[Lifetime Warranty] 50+7.5 uF MFD ±5% 370/440 VAC CBB65 CBB65B Dual Run Round Capacitor - Fits AC Unit Fan Motor, Heat Pump, Condenser

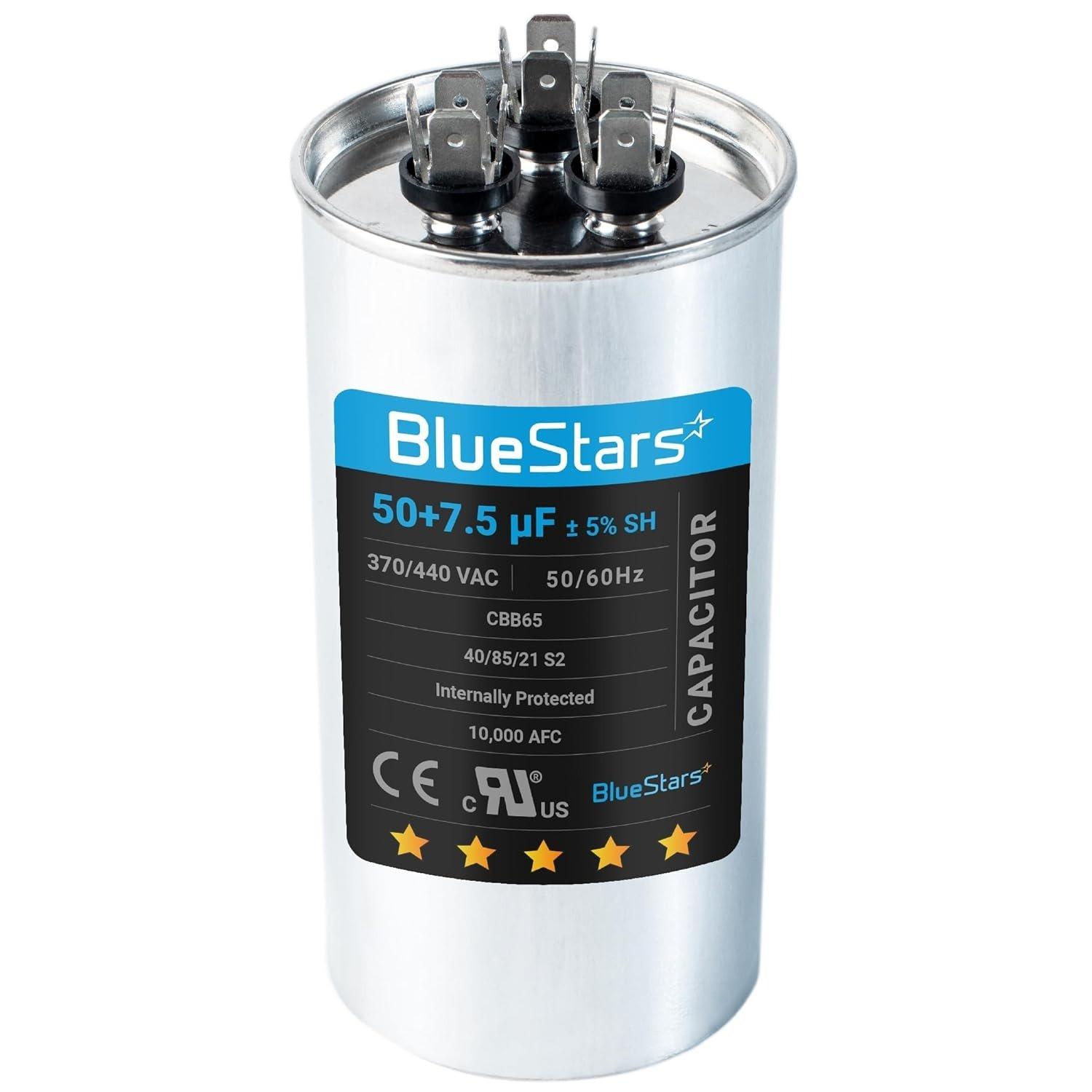

50+7.5 uf MFD ±5% 370 or 440 Volt AC CBB65B Dual Run Round Capacitor

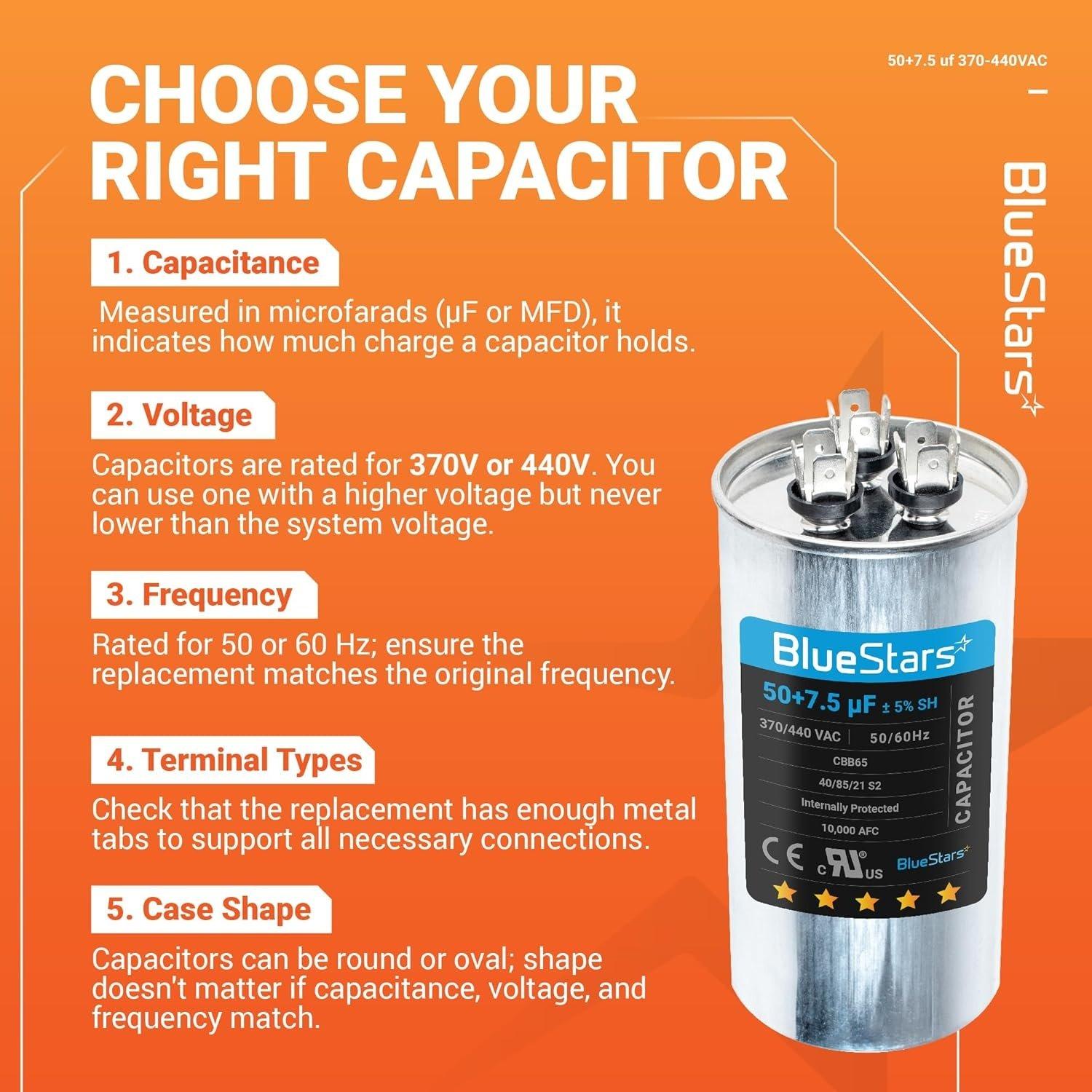

Key Features

• Capacitance: 50 + 7.5 Microfarad (MFD)
• Tolerance: ±5%
• Voltage Rating: 370 VAC or 440 VAC
• Frequency: 50/60 Hz
• Shape: Round
• Construction: Oil-filled, metal case
• Operating Temperature: -40°C to +85°C (-40°F to +185°F)

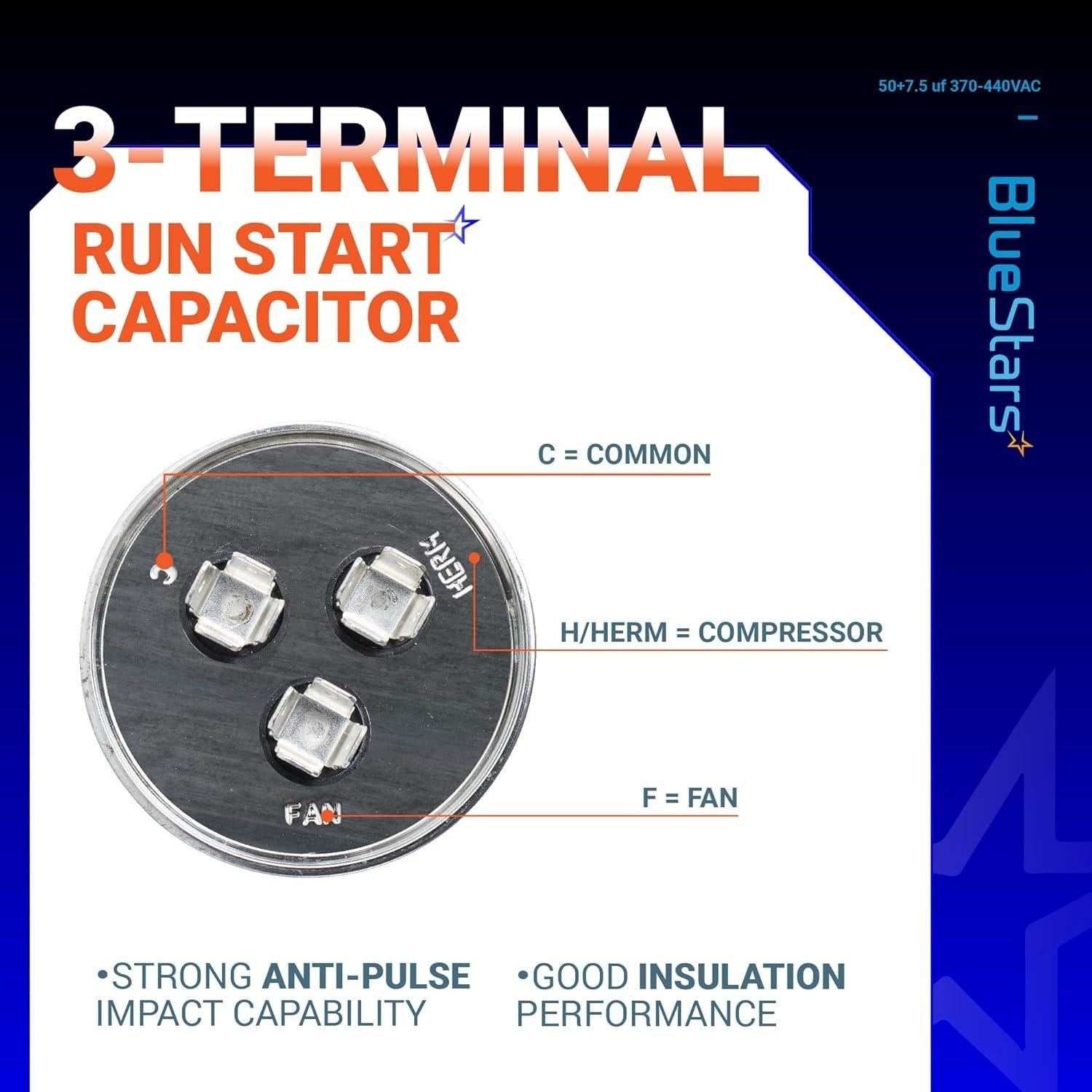

• Terminals: 3 (Common, Fan, Hermetically Sealed Compressor)

Replaces / Cross-Reference Part Numbers

• Functionally replaces any round or oval dual run capacitor with matching 50+7.5 MFD and 370V or 440V specifications.
• Common part numbers include: P291-5074R, C35075R, USA2236, TRCD5075.

Compatibility & Fitment

• Used in HVAC systems, air conditioners, and heat pumps to power the compressor and fan motor simultaneously.
• Compatible with units from brands including Goodman, Carrier, Bryant, Trane, Lennox, Rheem, and more, provided the specifications match.
• Dimensions: 1.97 inches (Diameter) x 5.59 inches (Overall Height). Verify physical space and mounting bracket compatibility before purchase.

When to Replace

• Compressor or fan motor hums but will not start.
• Outdoor unit fan is not spinning.
• AC unit is not cooling efficiently.
• Capacitor case is visibly swollen, bulging, or leaking fluid.
• Capacitance measurement is outside the rated ±5% tolerance.

Installation Tips

• Disconnect all electrical power to the HVAC unit before servicing.
• Safely discharge the old capacitor by shorting the terminals with an insulated tool.
• Note the wire positions on the C, FAN, and HERM terminals before removal.
• Connect wires to the corresponding terminals on the new capacitor.
• Secure the capacitor in the mounting bracket to prevent vibration.
