[Lifetime Warranty] 5304517203 1545680 Dishwasher Lower Spray Arm for Frigidaire Kenmore Crosley - Replaces 5304506526 1542508 154250801 154568002 154414101 154250901 154281101 154414102 154568001 4840174 EAP12585623

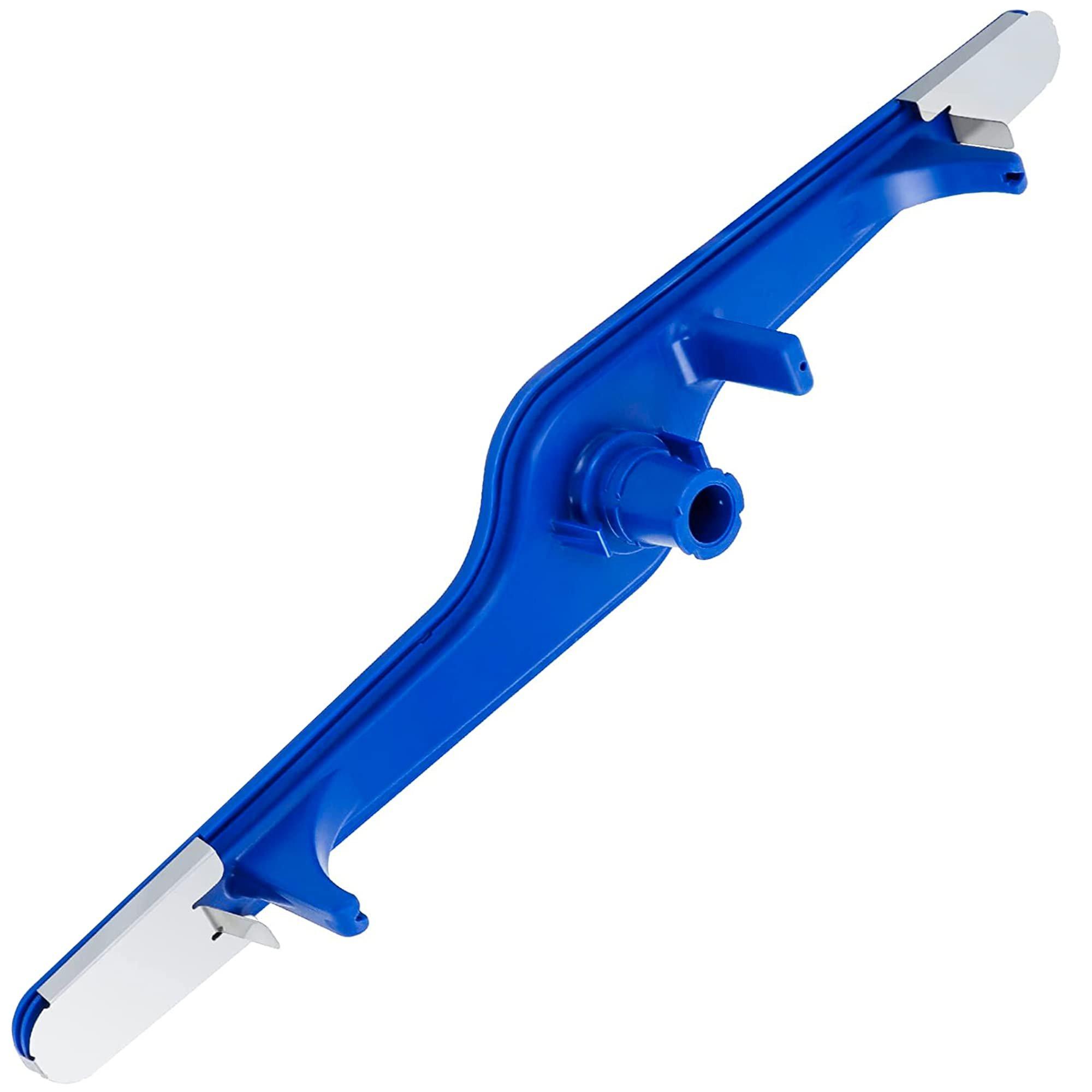

5304517203 1545680 Dishwasher Lower Spray Arm for Frigidaire Kenmore Crosley

Key Features

• Direct replacement for the lower dishwasher spray arm assembly.
• Distributes water throughout the tub for a thorough cleaning cycle.
• Includes an integrated heat shield to prevent warping from the heating element.
• Features a simple snap-in design for installation.

Replaces / Cross-Reference Part Numbers

• 5304517203
• 5304506526
• 1545680
• 154568001
• 154568002
• 1542508
• 154250801
• 154250901
• 154281101
• 154414101
• 154414102
• 1196170
• 4840174
• AP3958746
• EAP12585623
• PS1524955

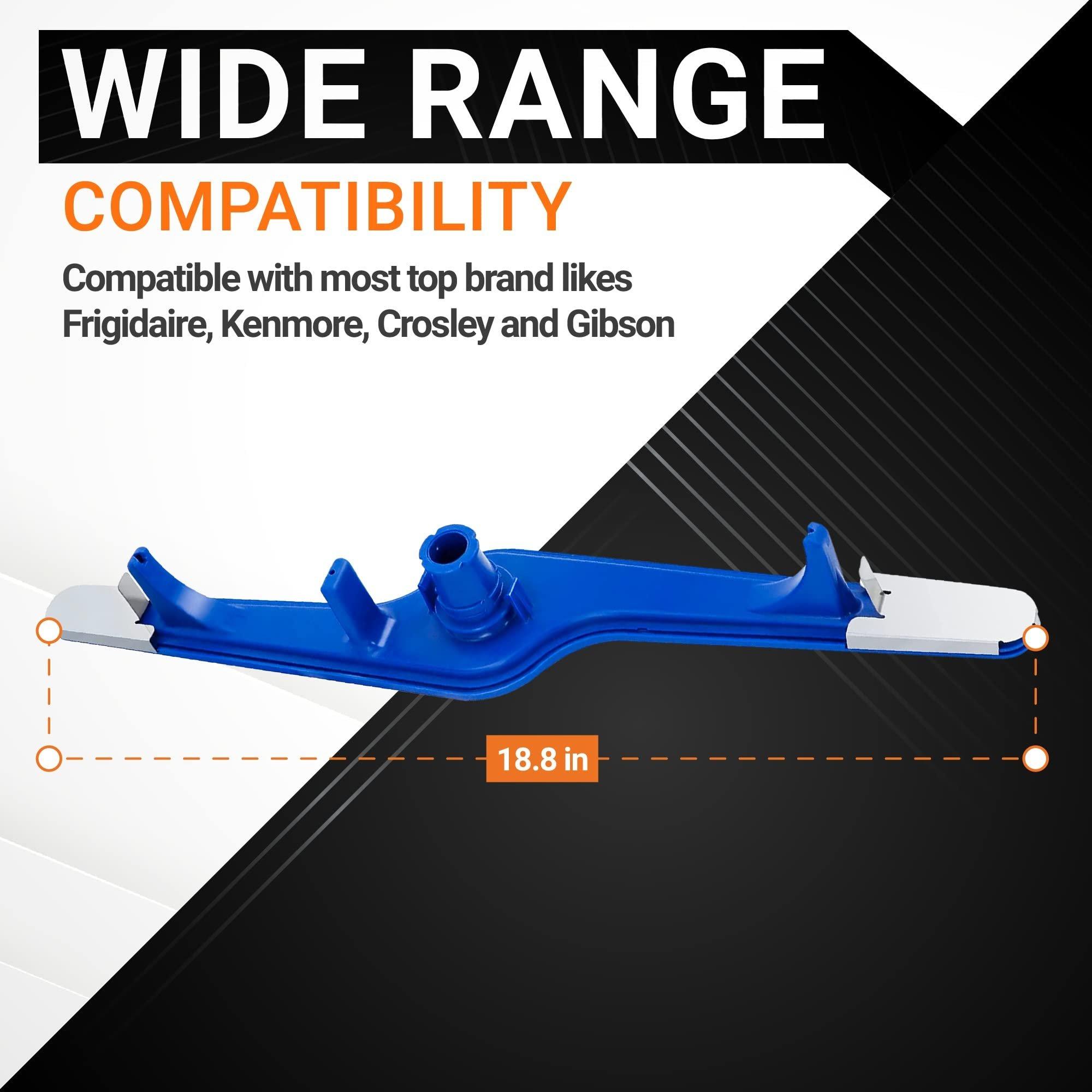

Compatibility & Fitment

• Designed for specific dishwasher models from brands including:
• Crosley
• Frigidaire
• Kelvinator
• Kenmore

When to Replace

• Dishes remain dirty or have food residue after a wash cycle.
• The existing spray arm is visibly cracked, warped, melted, or broken.
• Spray arm nozzles are clogged and cannot be cleared.
• Unusual noises are heard during the wash cycle, indicating a loose or damaged arm.
• Water is leaking from the dishwasher door, potentially caused by a misdirected spray.

Installation Tips

• Disconnect the dishwasher from power and water sources before beginning repair.
• Remove the lower dishrack to access the spray arm assembly.
• To remove the old arm, rotate it until the locking tabs align, then lift it off the support.
• Press the new spray arm firmly onto the mount until it snaps into place.
• Manually spin the new arm to ensure it rotates freely without obstruction.
