[Lifetime Warranty] 316489400 Range Oven Igniter for Frigidaire Kenmore Electrolux Crosley Range Oven - Replaces 316428500 316428501 5304462661 7316489400 1197384 AP3963540 PS1528534 EAP1528534 and more

316489400 Range Oven Igniter - Replaces 316428500 316428501 5304462661 7316489400 1197384 AP3963540 PS1528534 EAP1528534 and more

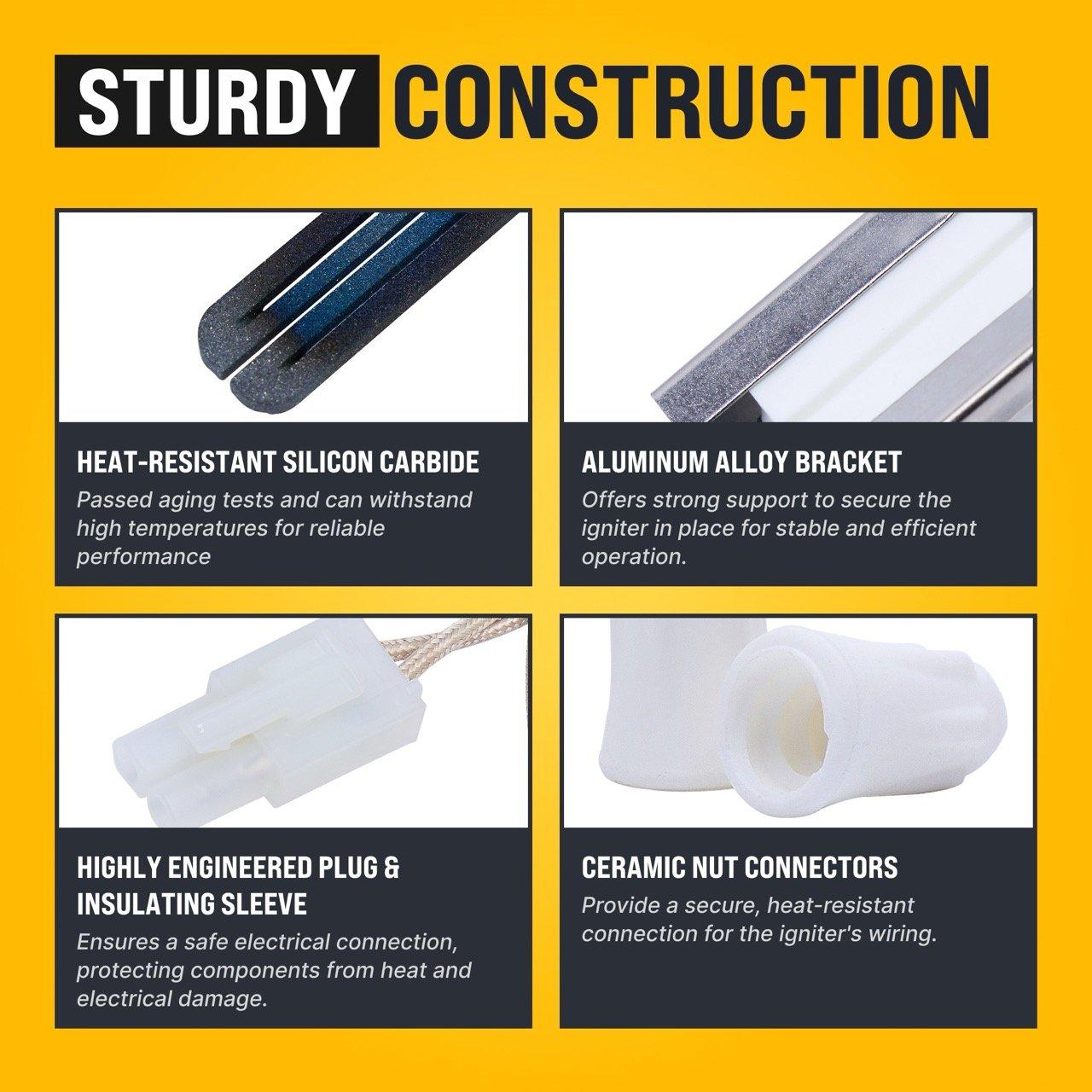

Key Features

• Type: Flat style oven bake igniter

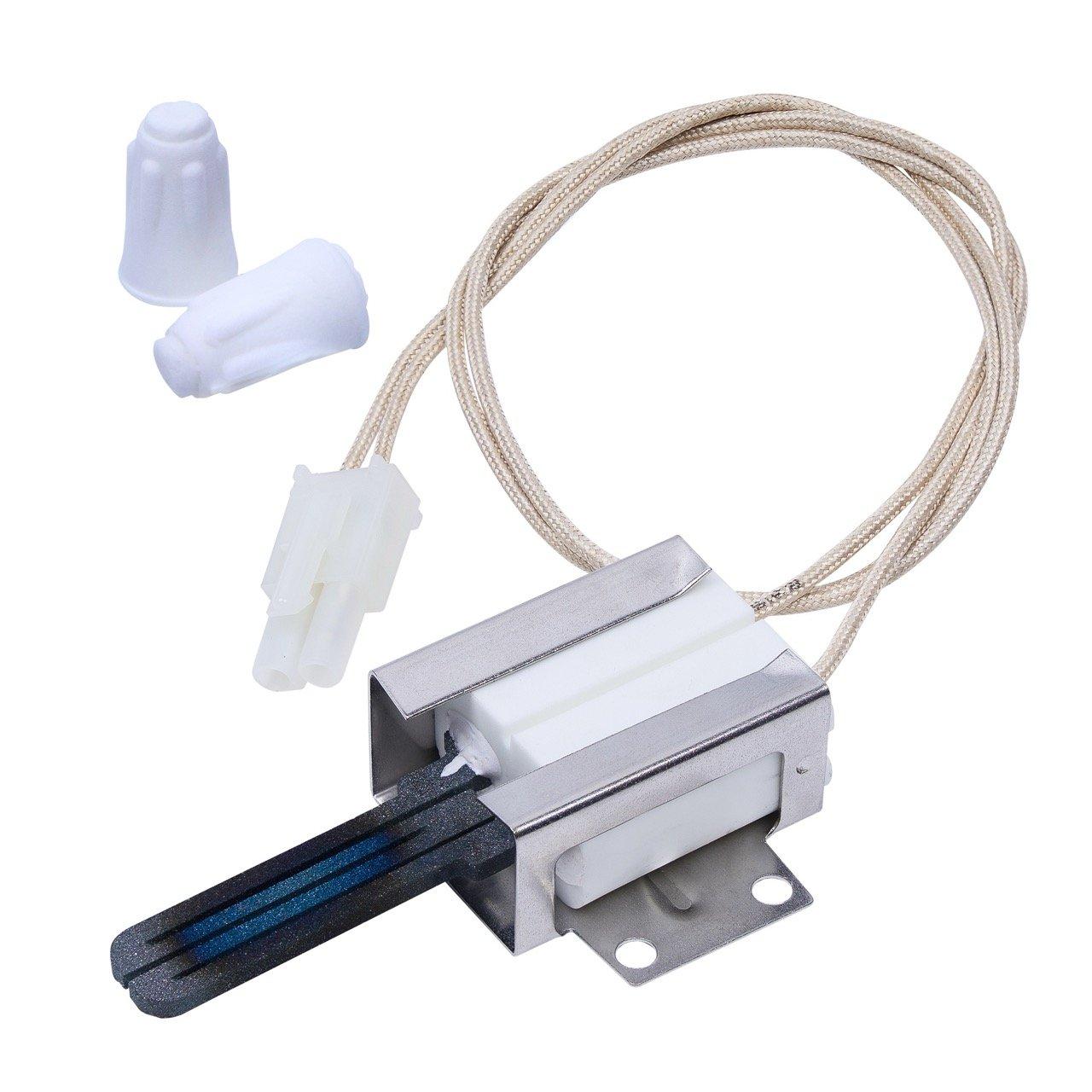

• Package Contents: One igniter, two ceramic wire nuts
• Connector: Molex plug

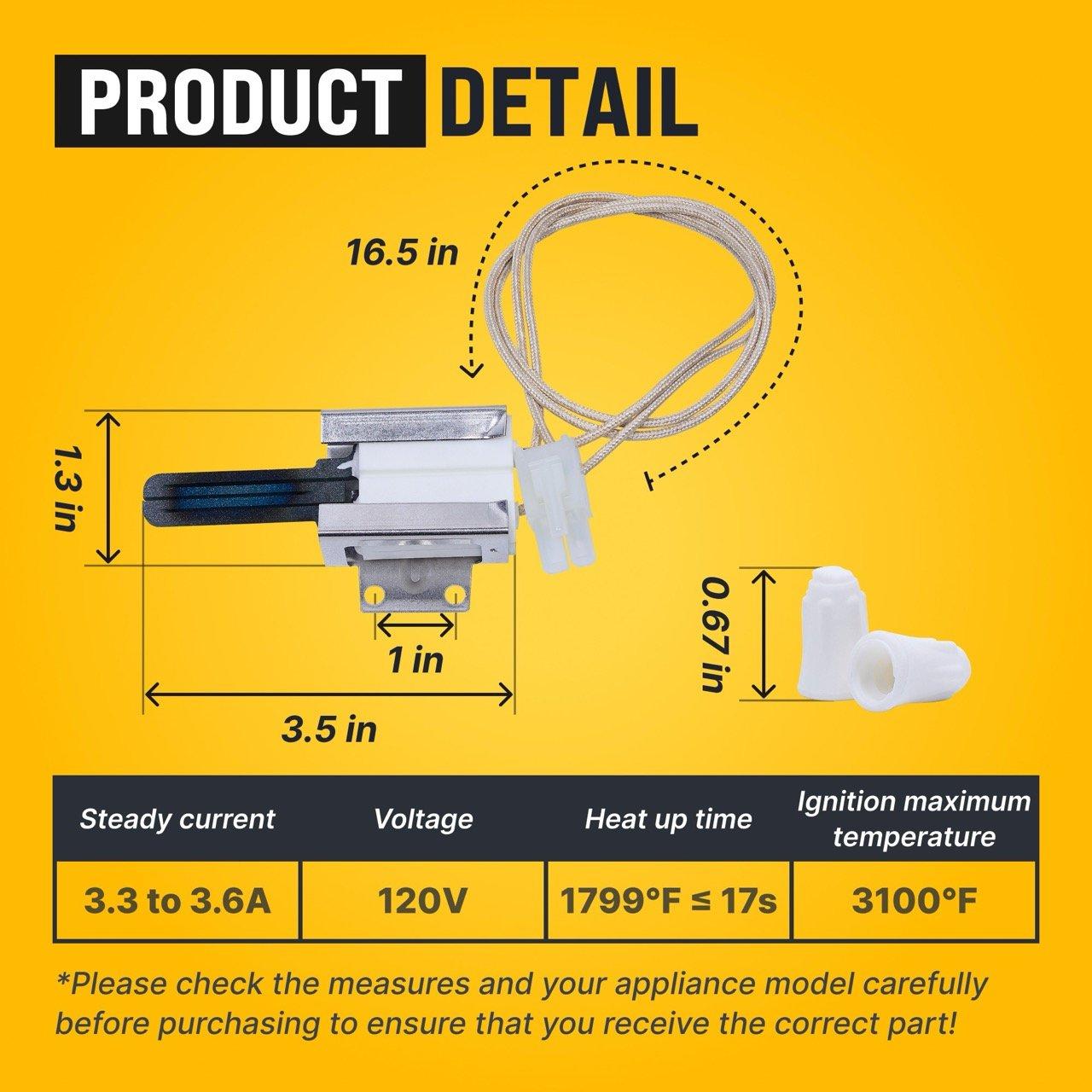

• Dimensions: 3.5 in length, 1.3 in width
• Ceramic Base Length: 1.5 in
• Wire Length: 15.5 in

Replaces / Cross-Reference Part Numbers

• 316489400
• 316489403
• 316428500
• 316428501
• 5304462661
• 7316489400
• 1197384
• 760-423
• A04454501
• AP3963540
• AP4433236
• EAP1528534
• IG94
• PCP423
• PS1528534
• PS2364063

Compatibility & Fitment

• Direct replacement for select gas range ovens from major brands including:
• Crosley
• Electrolux
• Frigidaire
• Kenmore
• Tappan
• White-Westinghouse

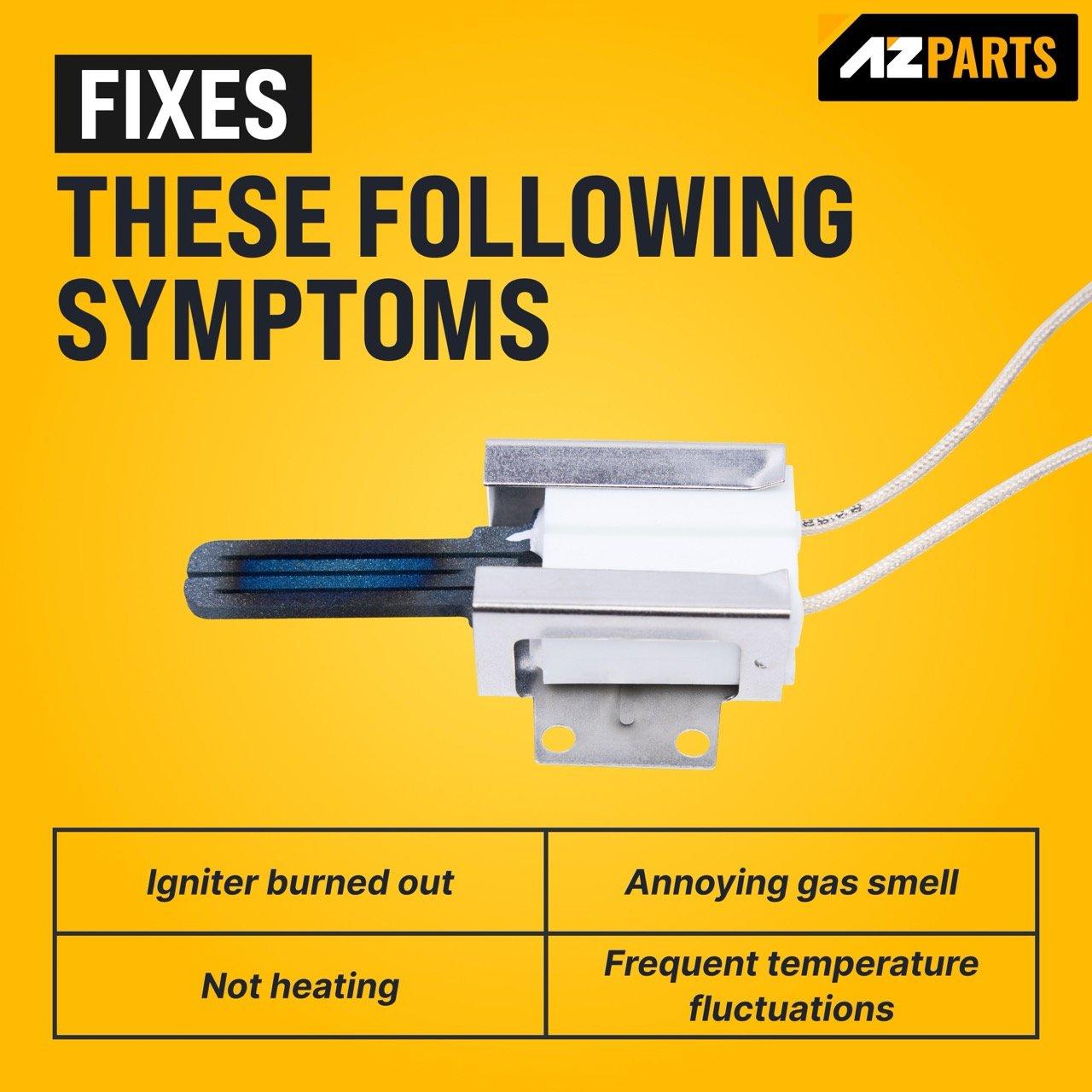

When to Replace

• Oven fails to heat or ignite
• Igniter does not glow
• Gas odor is present without ignition
• Oven takes an excessive amount of time to preheat

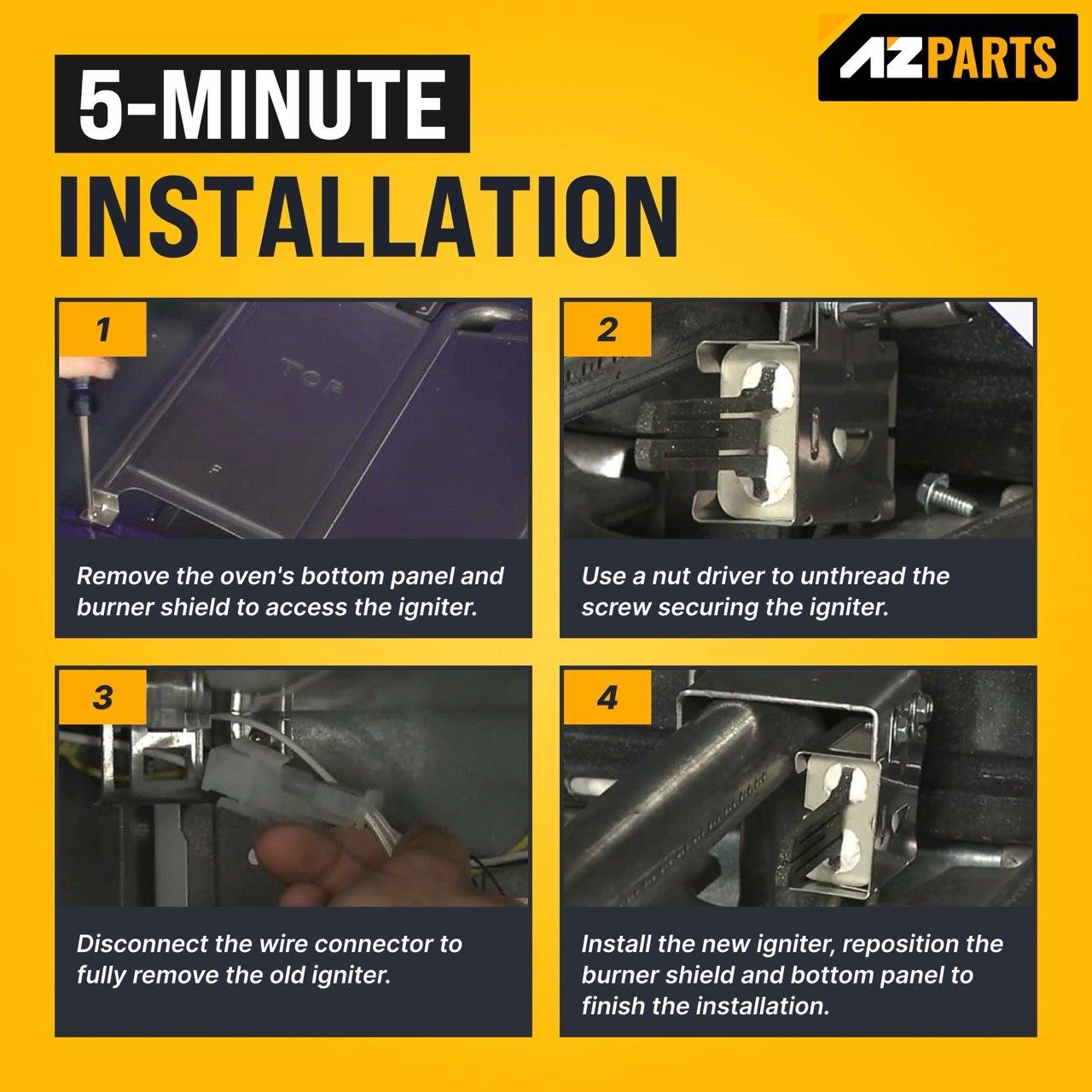

Installation Tips

• Disconnect the range from both power and gas supplies before servicing.
• Handle the new igniter by its ceramic housing to prevent contact with skin oils, which can reduce its lifespan.
