[Lifetime Warranty] 1N34A 1N34 Schottky Barrier Rectifier Blocking Diodes 50mA 65V

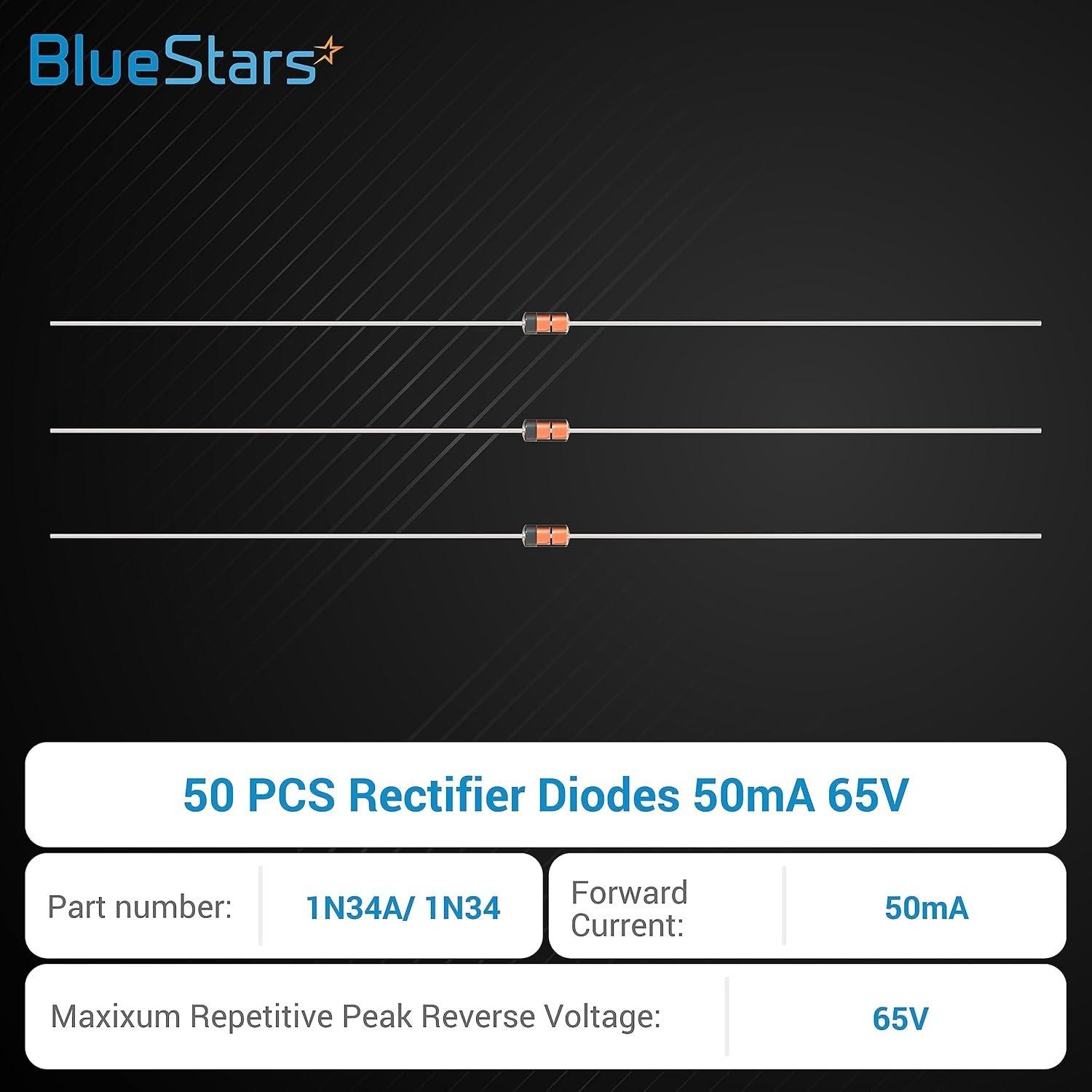

50 Pcs 1N34A 1N34 Schottky Diode 50mA 65V DO-35 (DO-204AH) IN34A IN34 Axial for TV FM AM Radio Detection

Key Features

• Quantity: 50 pieces

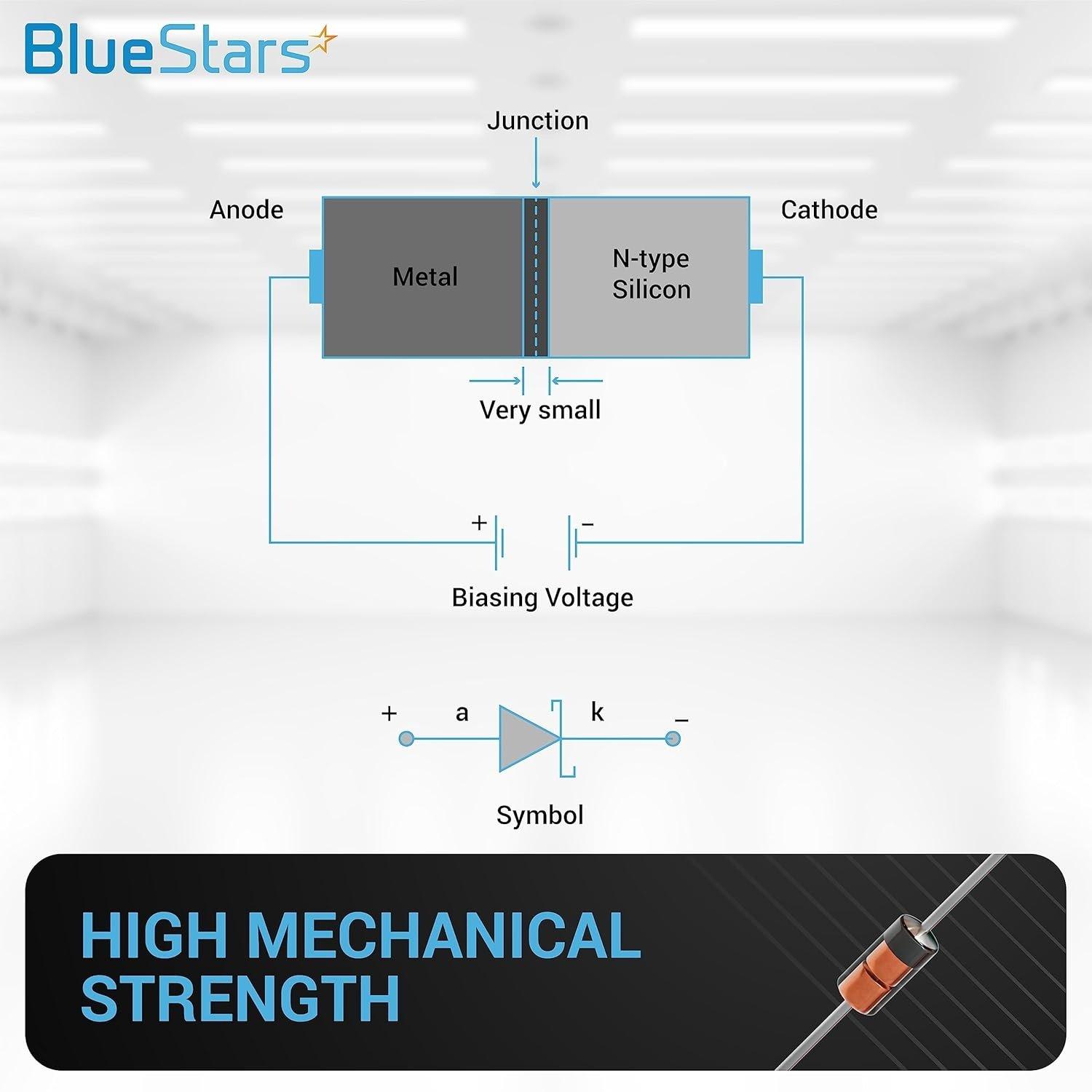

• Type: Schottky Barrier Diode
• Model: 1N34A
• Forward Current: 50mA
• Peak Reverse Voltage: 65V

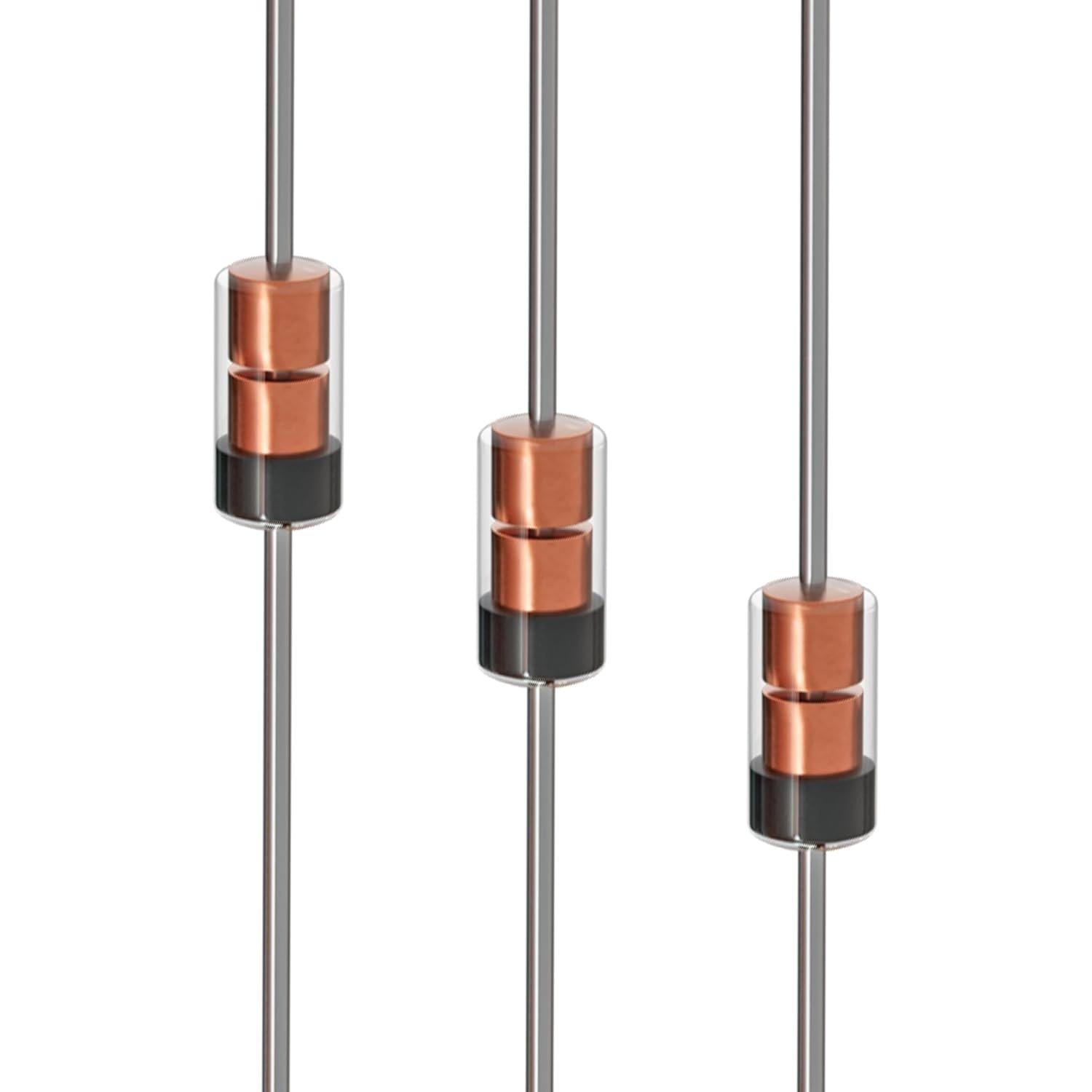

• Package: DO-35 (DO-204AH) axial glass body
• Low forward voltage drop and low leakage current

Replaces / Cross-Reference Part Numbers

• 1N34A
• IN34A
• 1N34
• IN34

Compatibility & Fitment

• Designed for general purpose and low-power applications
• Suitable for AM, FM, and TV radio signal detection circuits
• Used in crystal radio sets
• Applicable in switch-mode power supplies and high-frequency DC-to-DC converters
• Compatible with various electronic hobbyist and prototyping projects

When to Replace

• Component fails electrical tests (shows as open or shorted)
• No signal or poor reception in radio detector circuits
• Visible physical damage such as cracks or burn marks on the diode body
• Circuit malfunction directly attributable to diode failure

Installation Tips

• Verify diode polarity before soldering. The band on the diode body indicates the cathode (negative) side.
• Use a temperature-controlled soldering iron to prevent overheating the component.
• Consider using a heat sink (e.g., alligator clip on the lead) between the solder joint and the diode body to dissipate excess heat.
• Ensure the component is properly seated on the circuit board before soldering.
• Trim leads to the appropriate length after the solder joint has cooled.
