AZ00136914

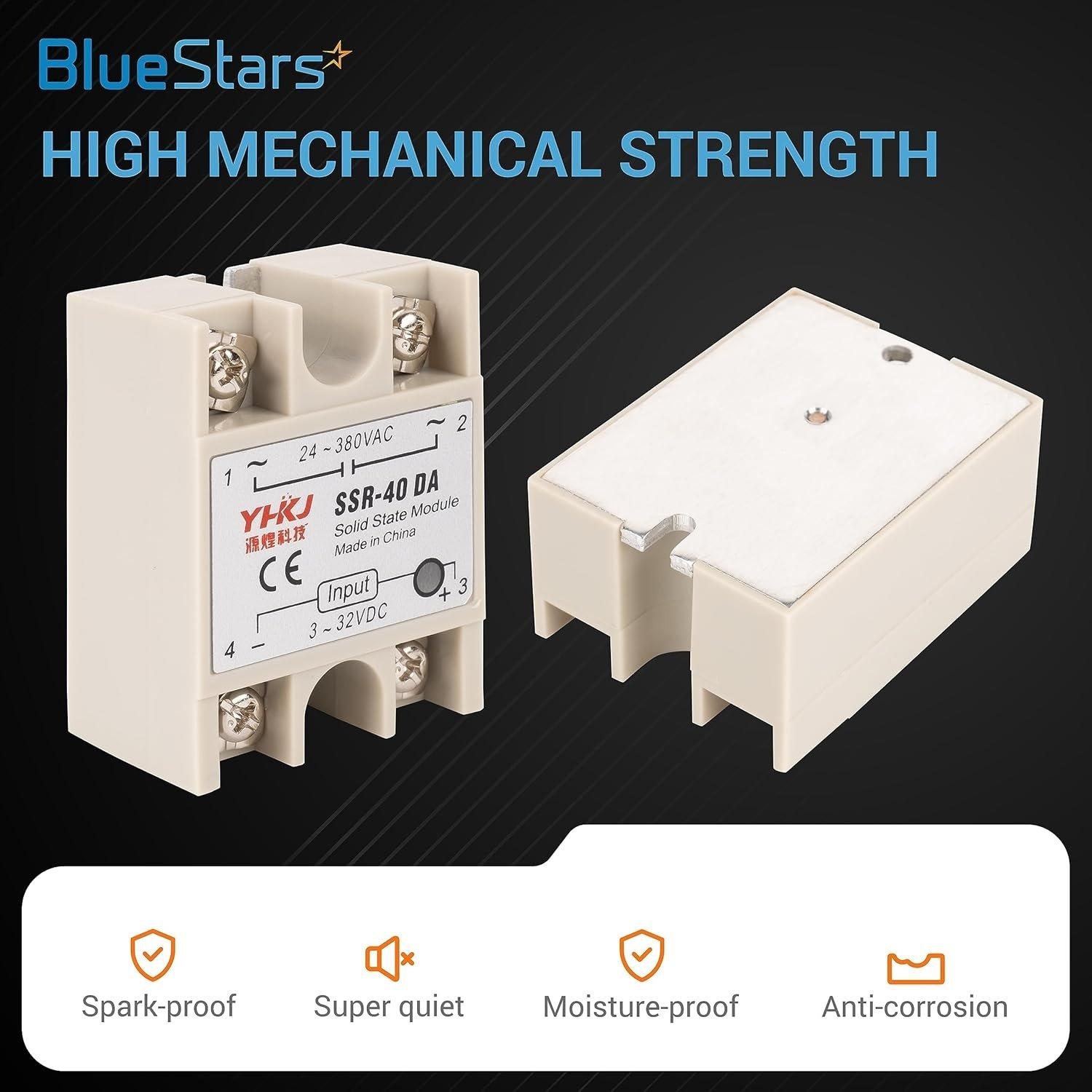

[Lifetime Warranty] SSR-40DA Solid State Relay - Pack of 2

Sold 12

Difficulty Icon: Easy
Easy
15 - 20 minutes

$15.21

$16.89

Save $1.68
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

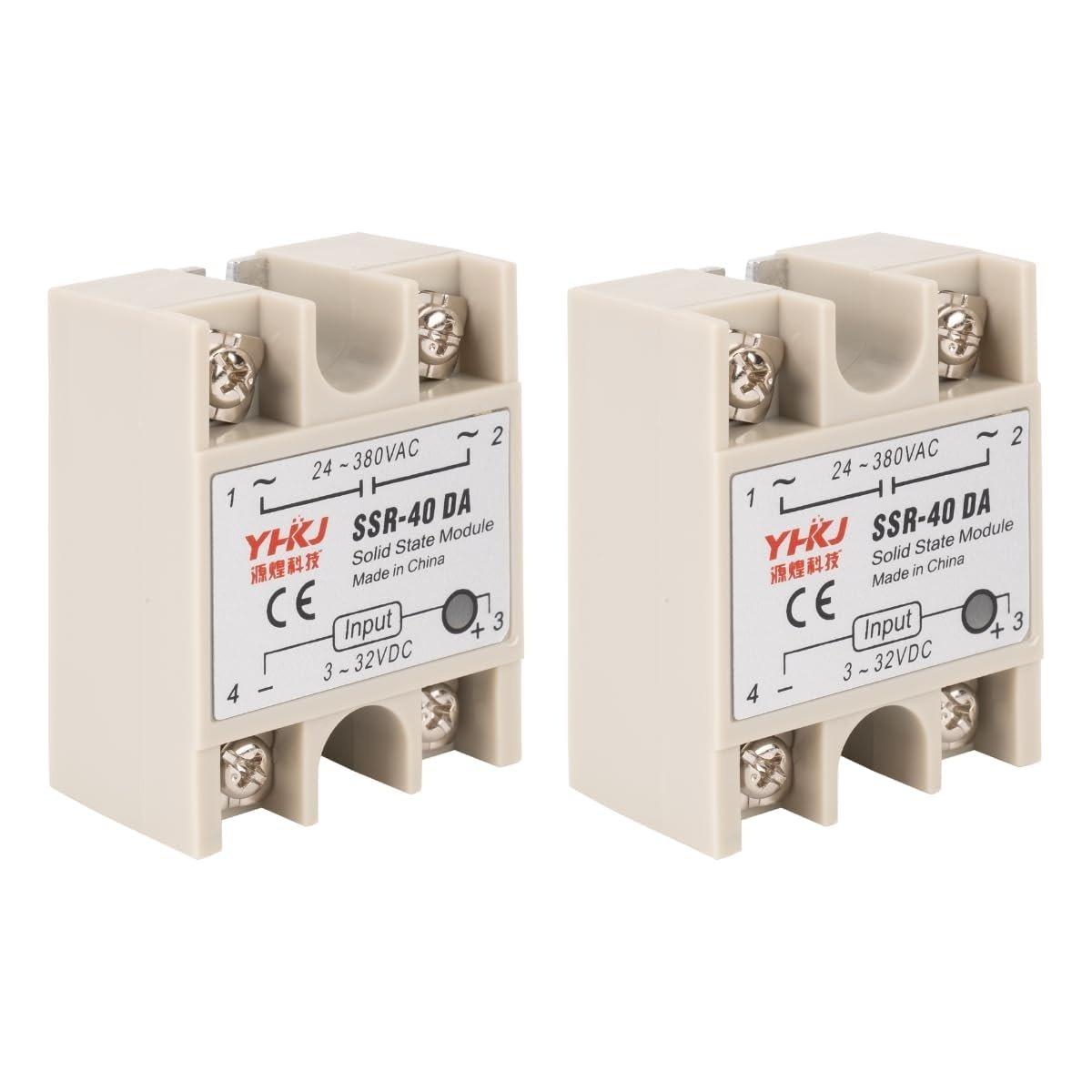

2-pack SSR-40DA Solid State Relay

Key Features

  • Package Contents: 2 solid state relays
  • Model: SSR-40DA
  • Control Method: DC to AC
  • Input Voltage: 3-32V DC
  • Load Voltage: 24-380V AC
  • Load Current: 40A
  • Switching Mechanism: Electronic, no mechanical parts
  • Trigger Type: Zero-cross

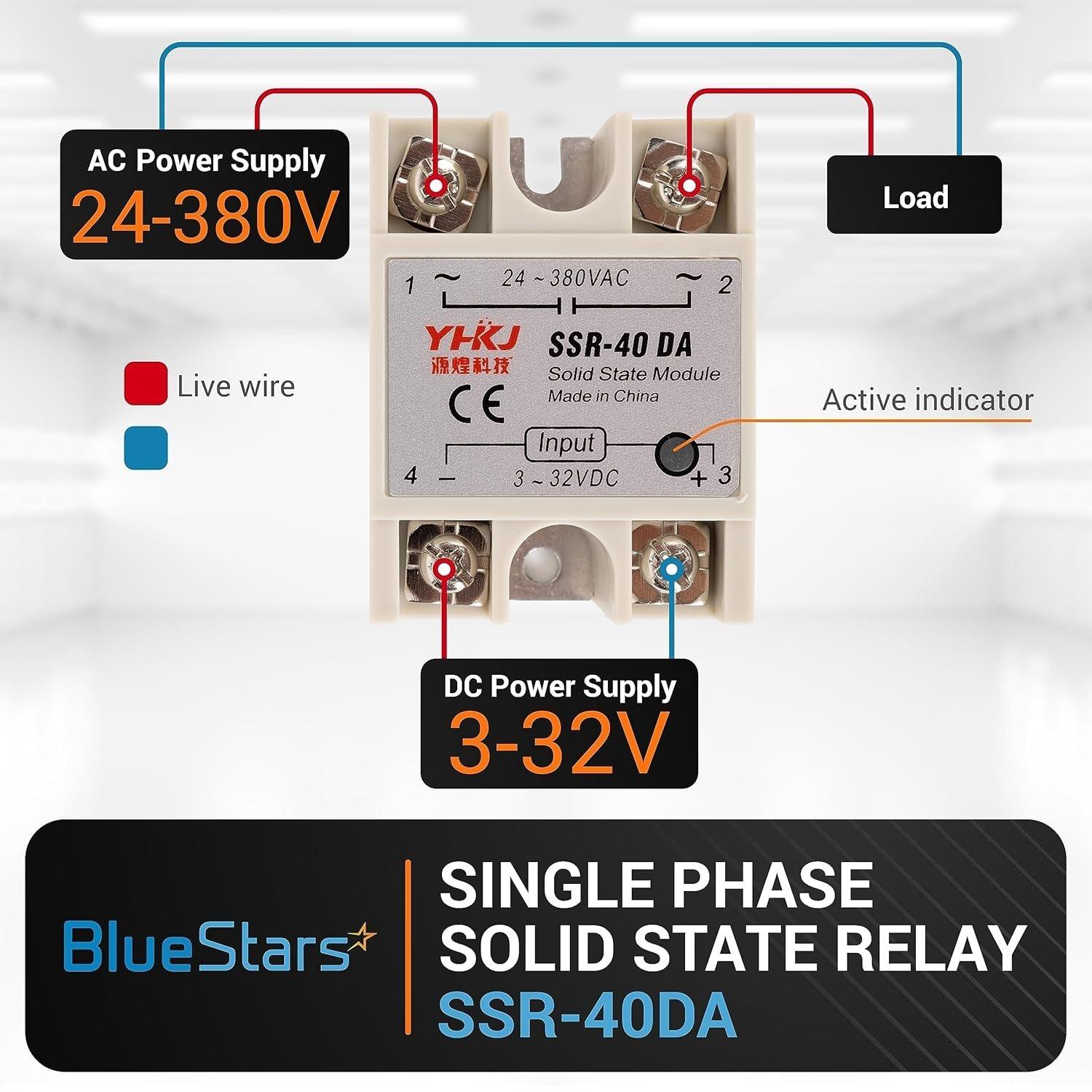

  • Connections: 4 screw terminals for input and output

Replaces / Cross-Reference Part Numbers

  • SSR-40DA

Compatibility & Fitment

  • General-purpose component for controlling high-current AC loads with a low-voltage DC signal.
  • Suitable for automatic control systems, including temperature controllers, HVAC systems, and industrial machinery.

When to Replace

  • Relay fails to activate when input voltage is applied.
  • Relay remains stuck in the "ON" position, even with no input voltage.
  • Intermittent or unreliable switching of the AC load.
  • Visible signs of damage, overheating, or melting on the relay housing.

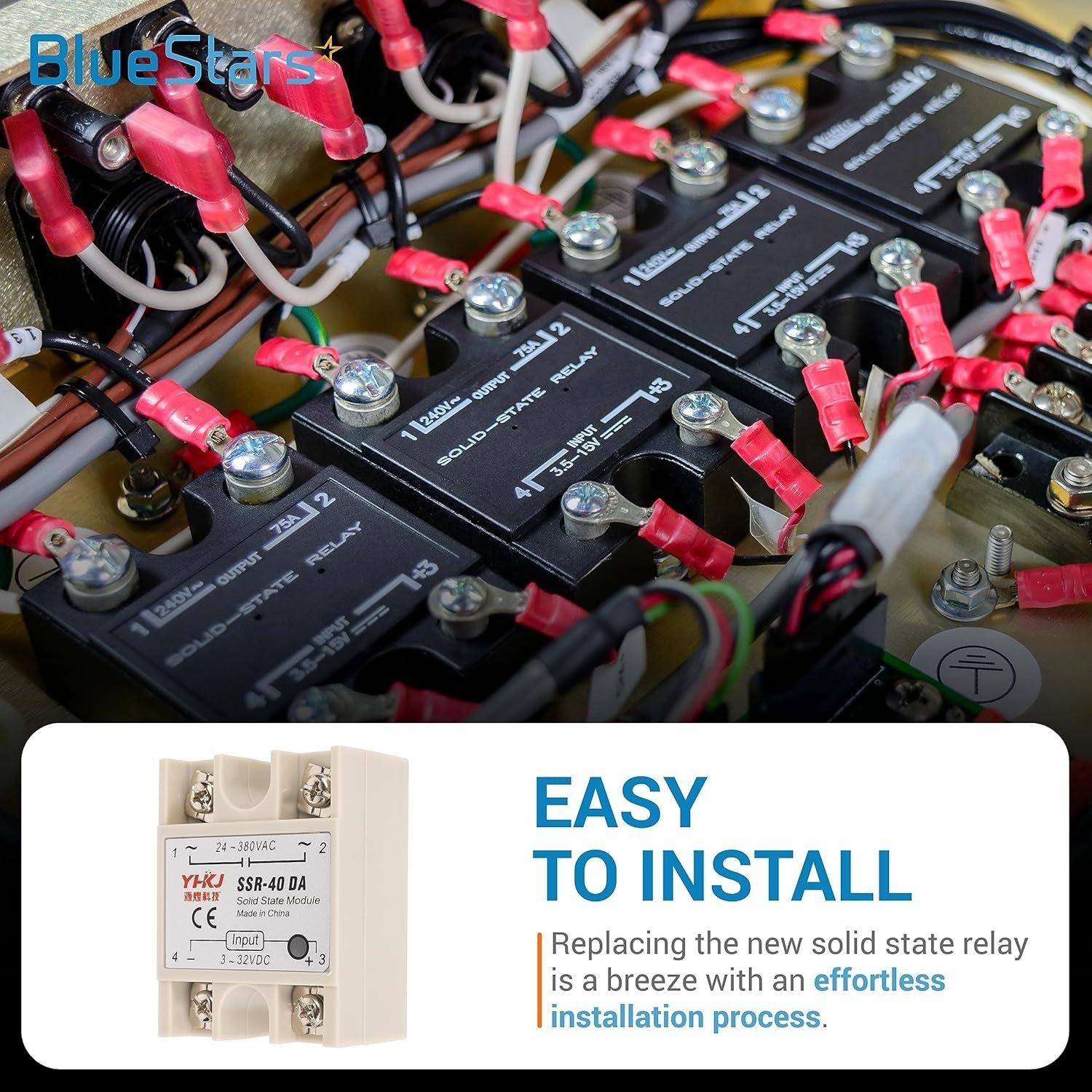

Installation Tips

  • Disconnect all power to the system before installation.

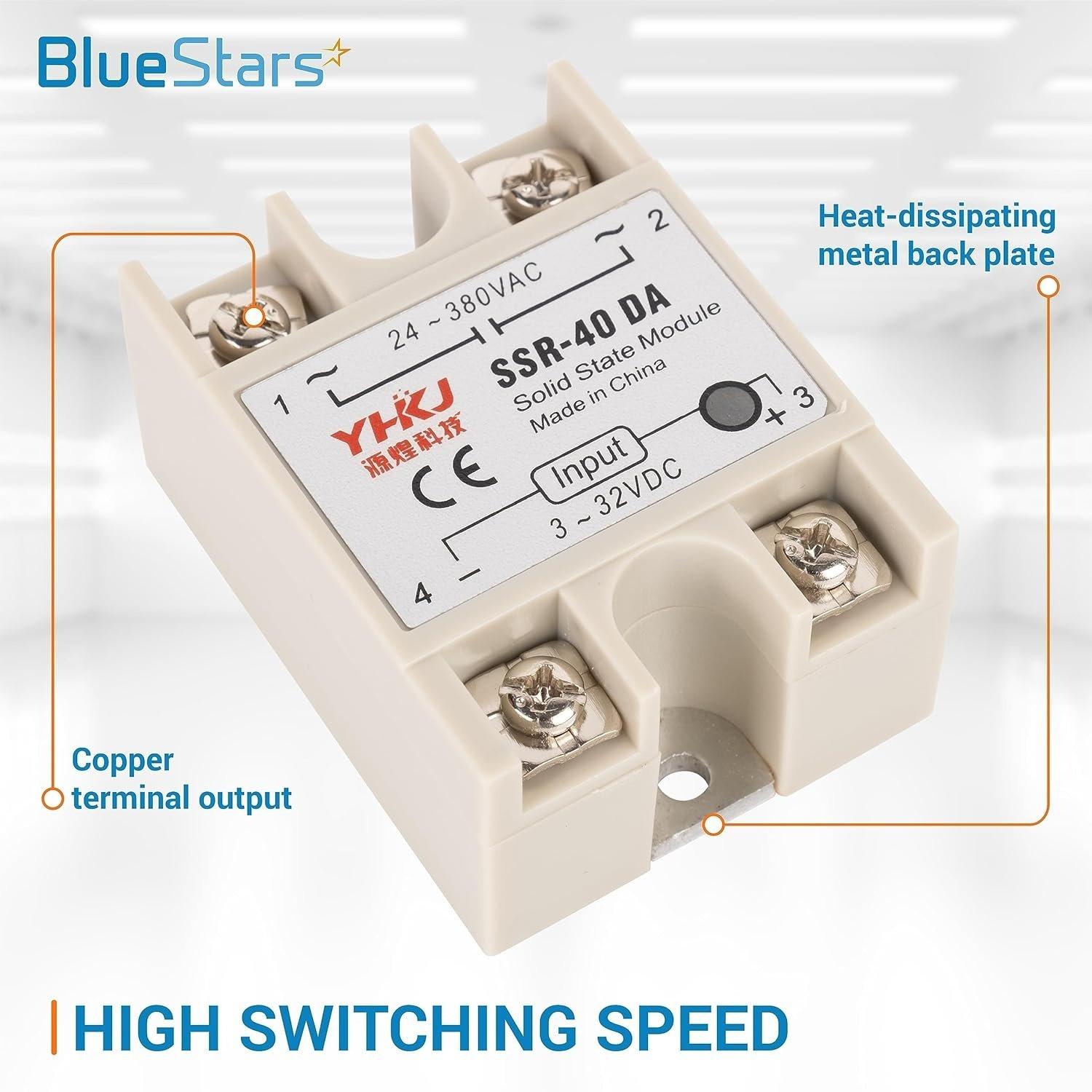

  • A heat sink is recommended for loads approaching the 40A rating to ensure proper heat dissipation.
  • Ensure all screw terminals are securely fastened to prevent arcing.
  • Verify that the wire gauge used is appropriate for the electrical load.
  • Confirm input and output connections are correct before applying power.
