[Lifetime Warranty] 60+7.5 uF MFD ±5% 370/440 VAC CBB65B Dual Run Round Capacitor - Fits AC Motor Run, Condenser, Heat Pump

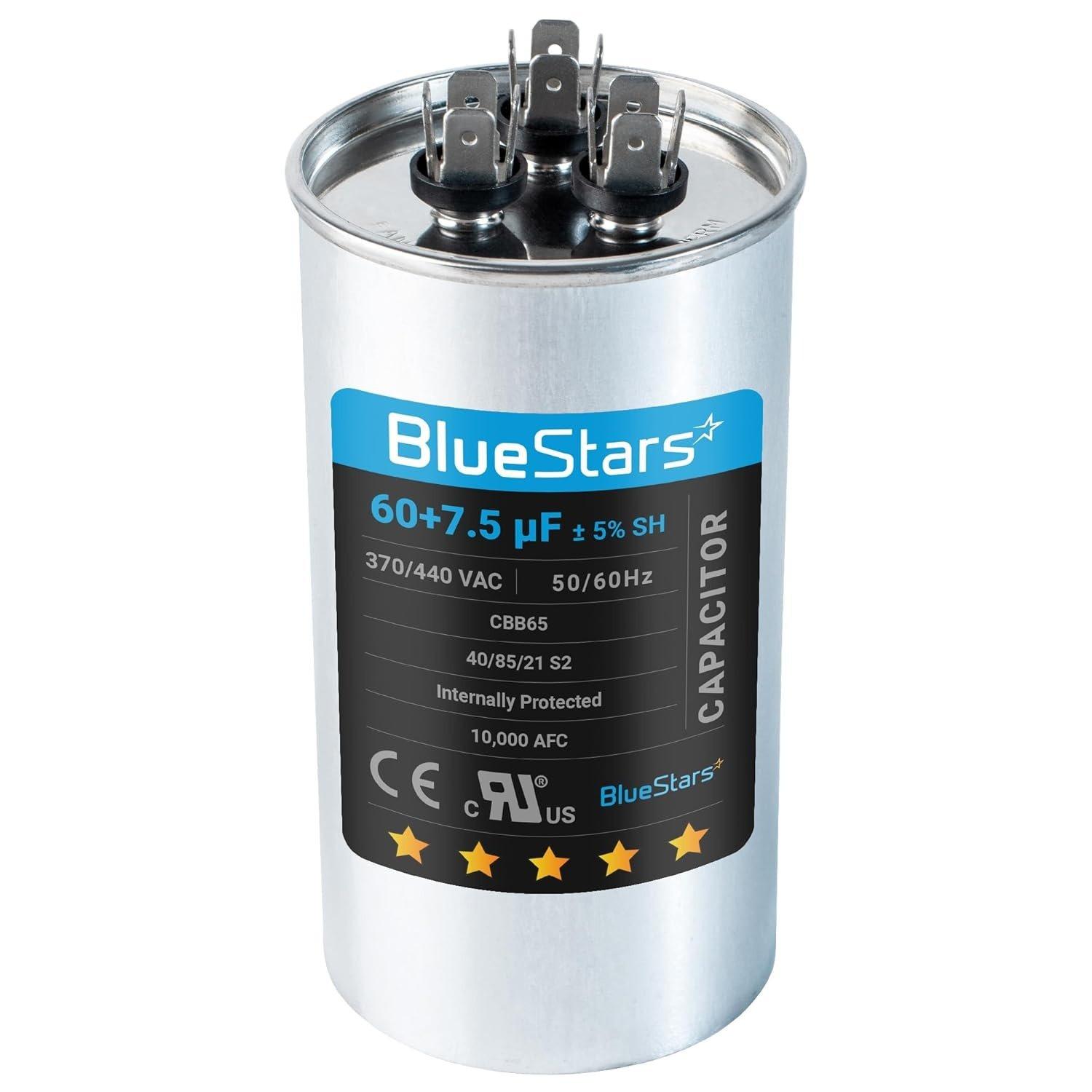

60+7.5 uf MFD ±5% 370 or 440 Volt AC CBB65B Dual Run Round Capacitor

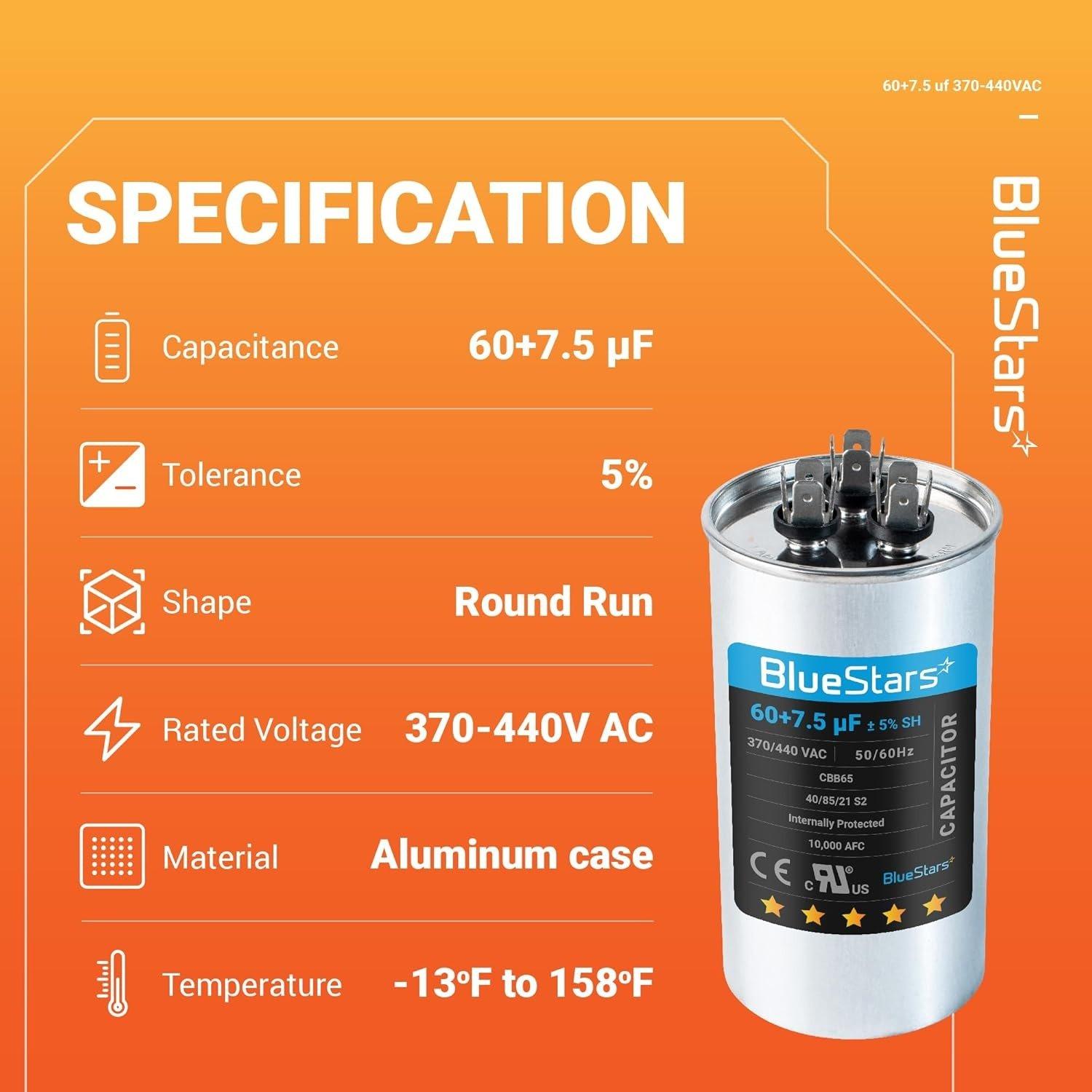

Key Features

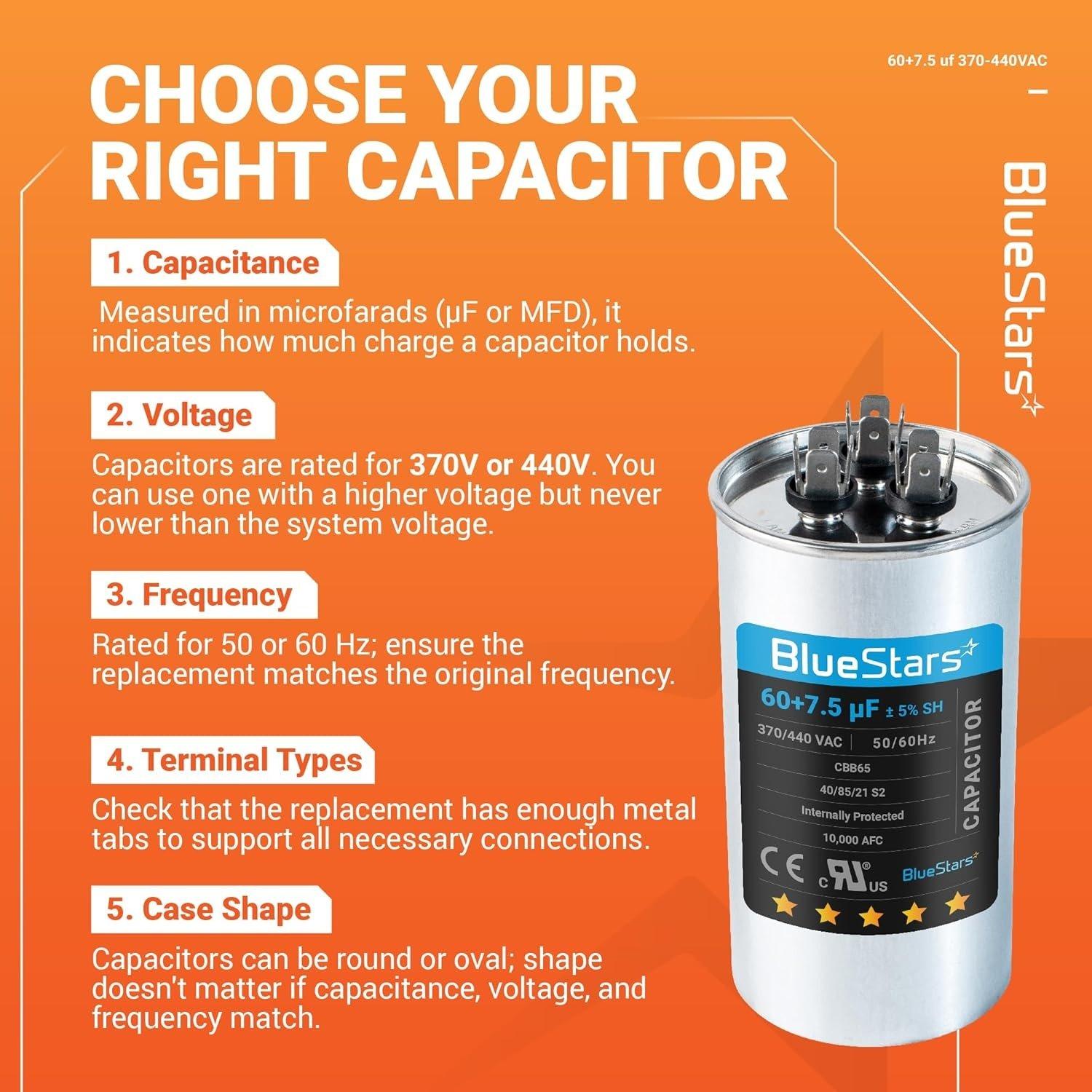

• Capacitance Rating: 60 + 7.5 Microfarad (MFD)
• Capacitance Tolerance: ±5%
• Voltage Rating: 370 or 440 Volts AC
• Frequency: 50/60 Hz
• Model: CBB65B
• Shape: Round
• Function: Dual run capacitor for compressor and fan motors
• Terminals: 3 terminals labeled "C" (Common), "HERM" (Compressor), and "FAN"

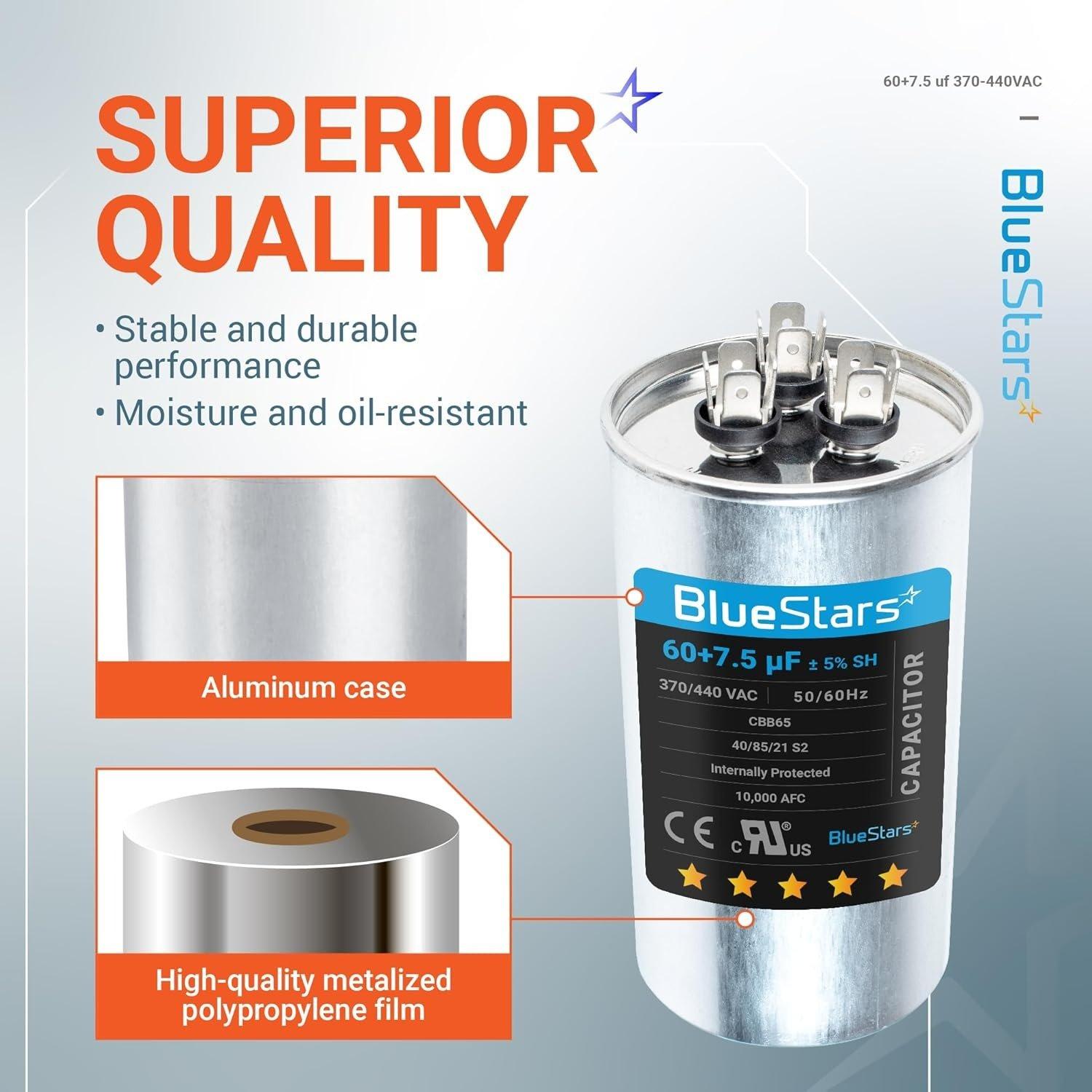

• Construction: Aluminum case with oil-filled design for heat dissipation

Replaces / Cross-Reference Part Numbers

• Universal replacement for round dual run capacitors with matching specifications.
• Replaces any capacitor with a 60/7.5 MFD rating and a 370V or 440V rating.
• Compatible with parts from multiple manufacturers provided the capacitance, voltage, and physical dimensions match.

Compatibility & Fitment

• Designed for starting and running AC motors in a single unit.
• Commonly used in HVAC systems, heat pump air conditioners, and condenser units.
• Fits a wide range of residential and commercial air conditioning units requiring a 60/7.5 MFD capacitor.

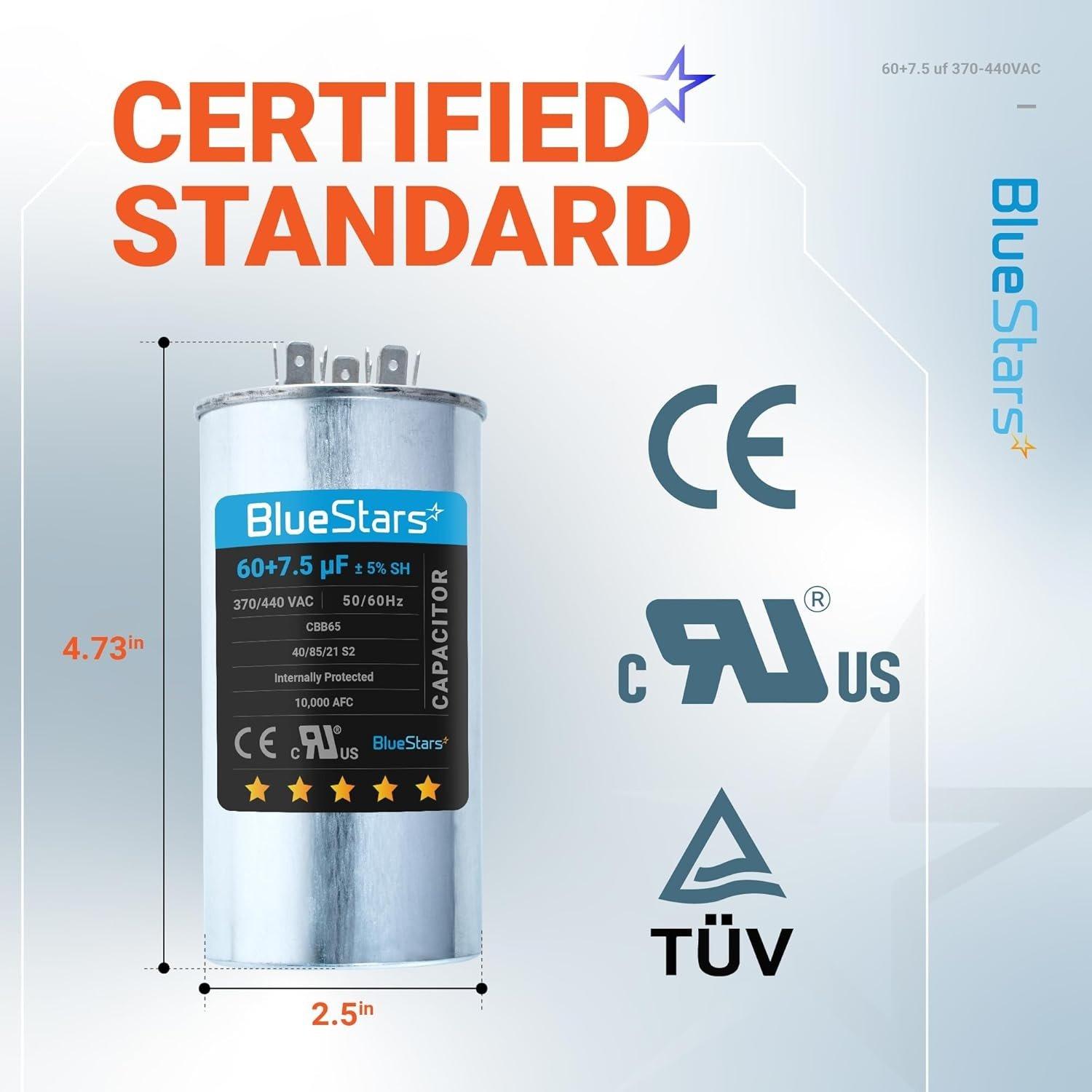

• Note: Verify physical dimensions (diameter and height) to ensure a proper fit in the mounting bracket.

When to Replace

• The fan motor or compressor fails to start or struggles to turn on.
• A humming noise is audible, but the motor does not engage.
• The HVAC unit starts but then shuts down intermittently.
• The existing capacitor case is visibly swollen, bulging, or leaking oil.

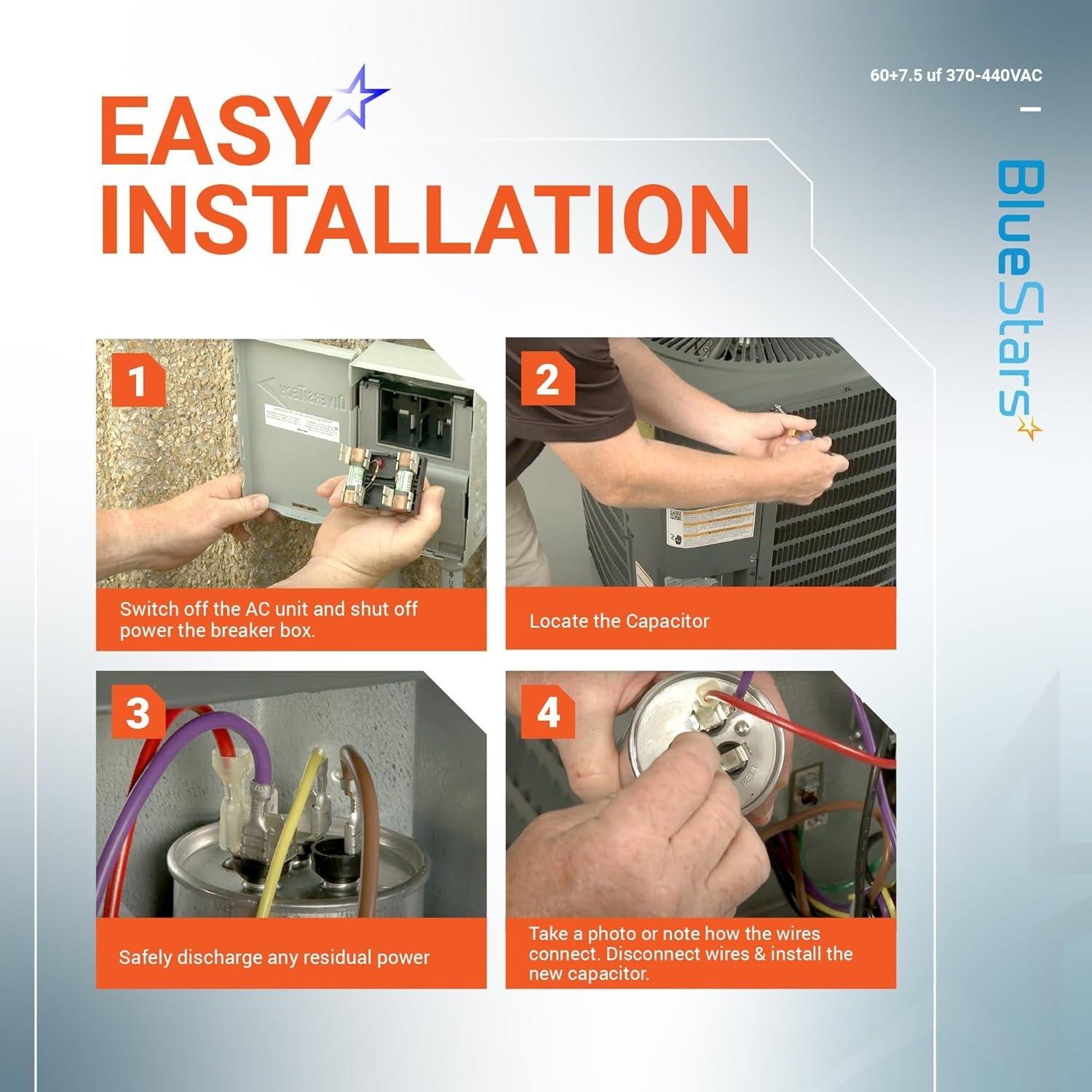

Installation Tips

• Disconnect all electrical power to the HVAC unit before beginning work.
• Safely discharge the old capacitor by shorting the terminals with an insulated screwdriver.
• Photograph or note the wire placement on the old capacitor's terminals before disconnecting.
• Connect the wires to the corresponding "C", "HERM", and "FAN" terminals on the new capacitor.
• Professional installation by a qualified technician is recommended.
