[Lifetime Warranty] W10876600 W10727777 Washer Drain Pump - Compatible with Whirlpool, Maytag Bravos XL MVWB835DW1, Kenmore, Crosley Washing Machines - Replaces W10876600VP, B25-3A04, AP6004933, PS11738156

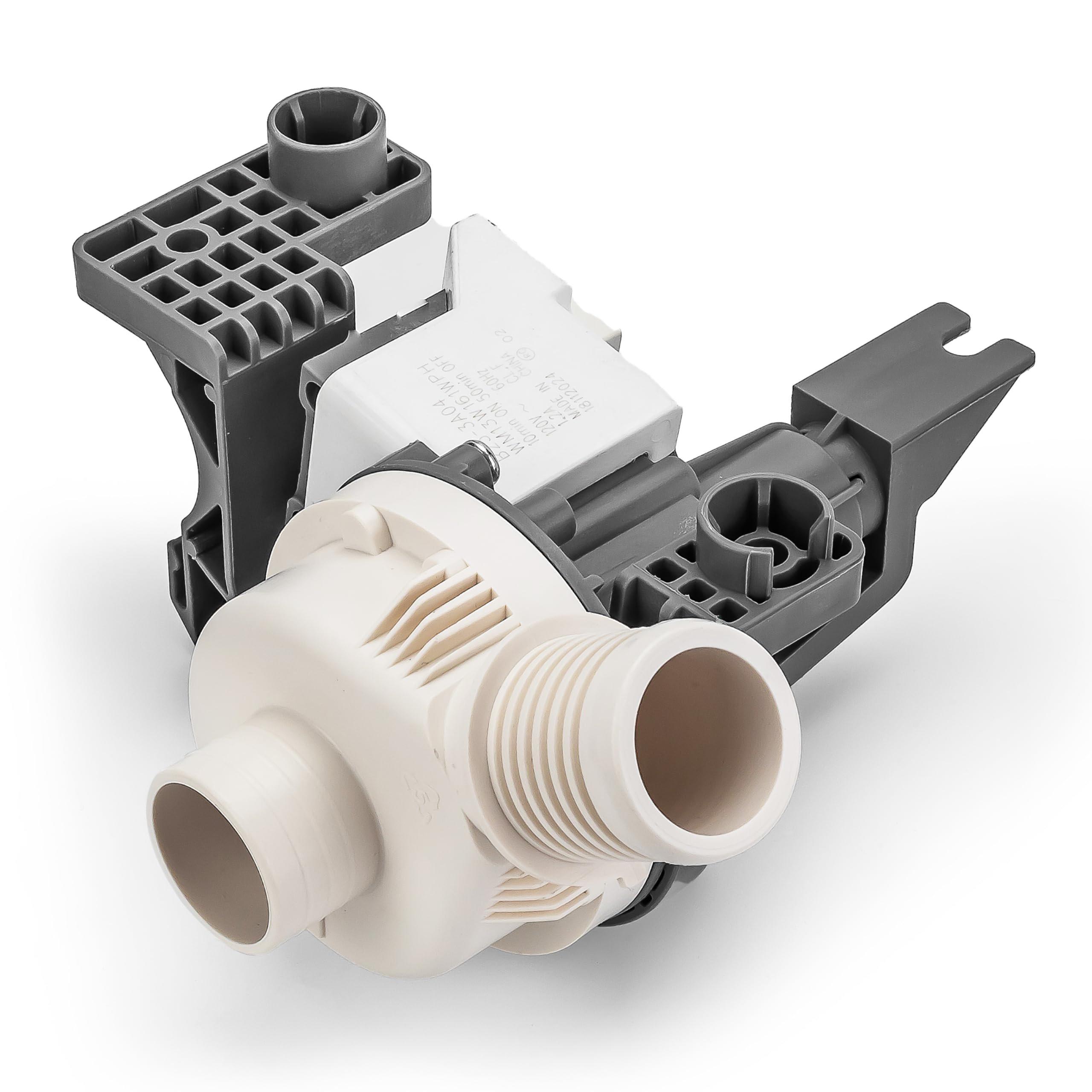

W10876600 Washer Drain Pump

Key Features

• Removes water from the washer tub during the drain cycle.
• Direct replacement for original equipment manufacturer (OEM) part.
• Weight: 2.42 lbs
• Package Dimensions: 6.62 in x 6.37 in x 8.00 in

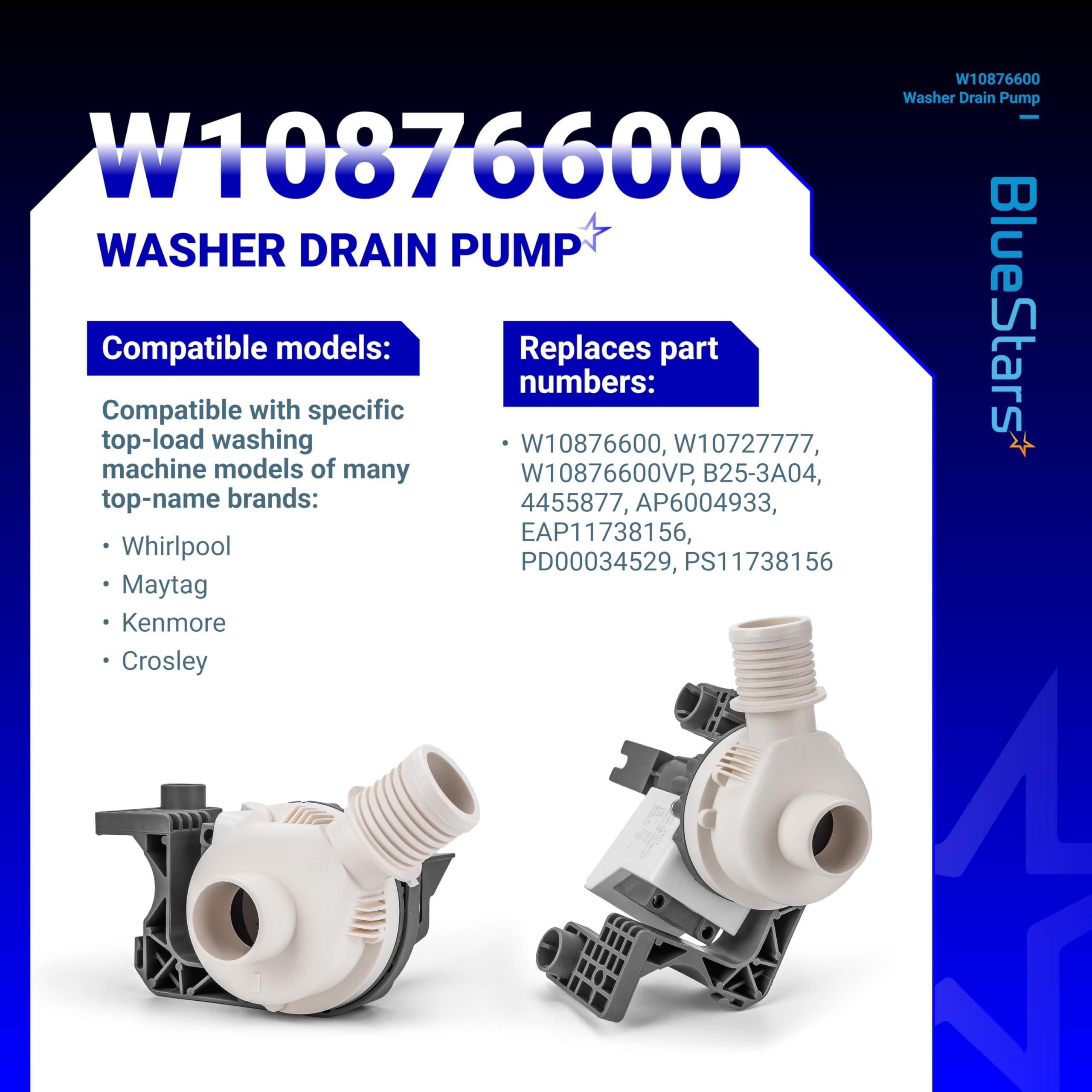

Replaces / Cross-Reference Part Numbers

• W10876600VP
• W10727777
• B25-3A04
• 4455877

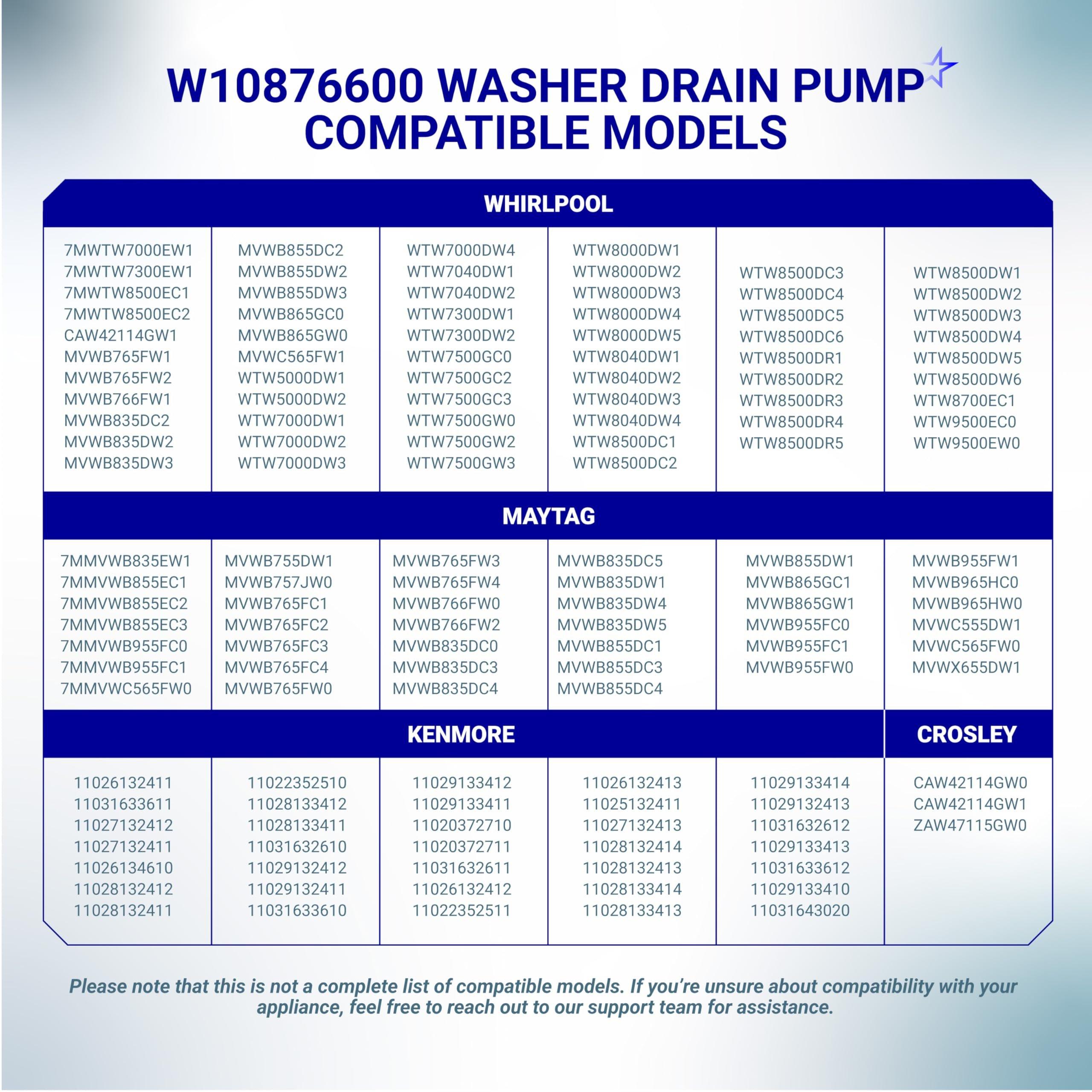

Compatibility & Fitment

• Designed for specific high-efficiency, top-load washing machine models.
• Compatible with select models from brands including Whirlpool, Maytag, Kenmore, Amana, Crosley, Jenn Air, Kitchenaid, and Magic Chef.

When to Replace

• Washer fails to drain or drains slowly.
• Water remains in the drum after the wash cycle completes.
• Unusual noises such as humming, grinding, or buzzing during the drain cycle.
• Visible leaks originating from the pump housing.

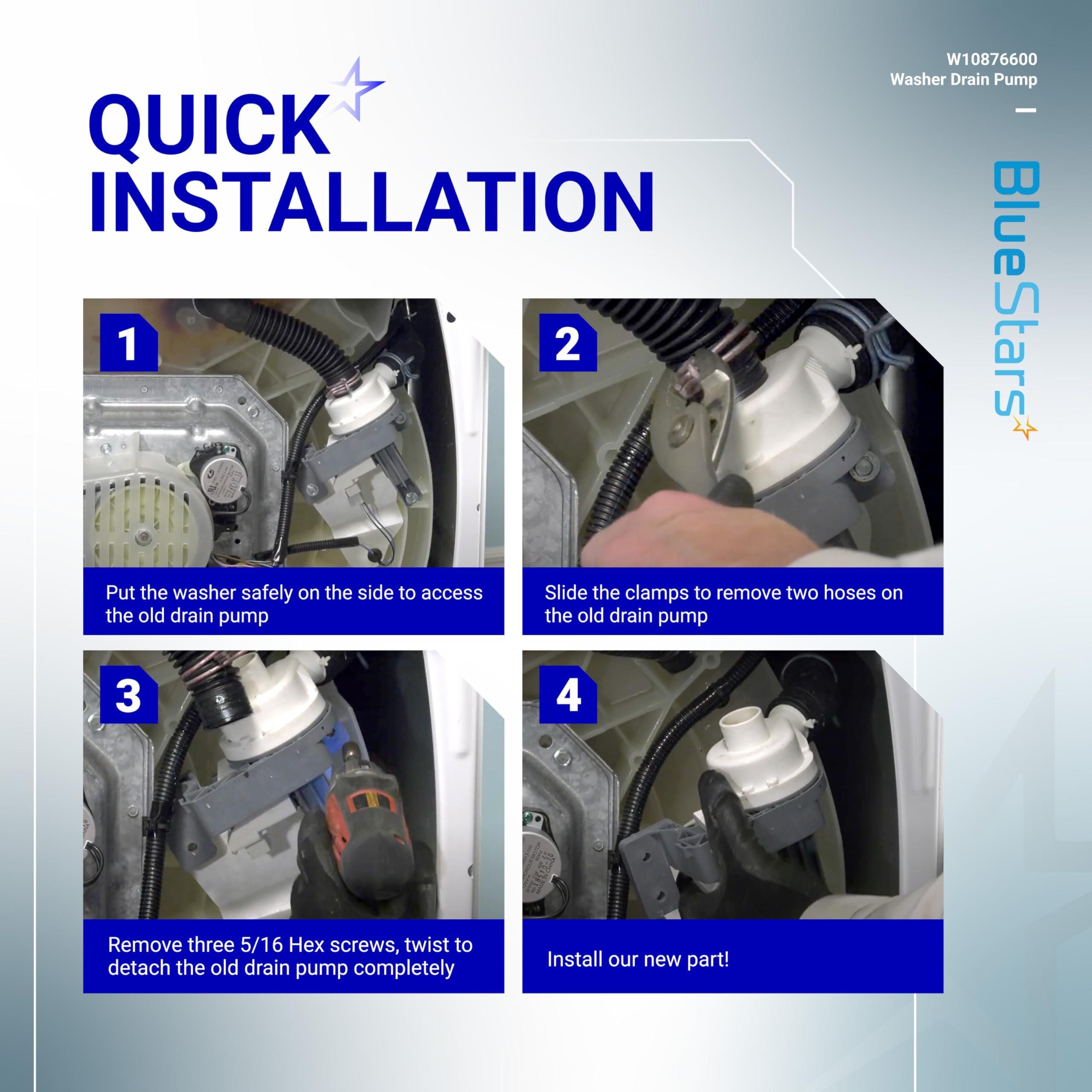

Installation Tips

• Disconnect the washer from power and water supplies before beginning installation.
• Place towels under the pump area to manage any residual water.
• Note the orientation of hoses and electrical connectors before removing the old pump.
• Ensure all hose clamps are securely tightened on the new pump to prevent leaks.
