[Lifetime Warranty] 134637810 Water Inlet Valve Compatible with Frigidaire Kenmore Electrolux Crosley Washing Machine - Replaces 134637800,7134637810,AP4368791,PS2349248, 1482877

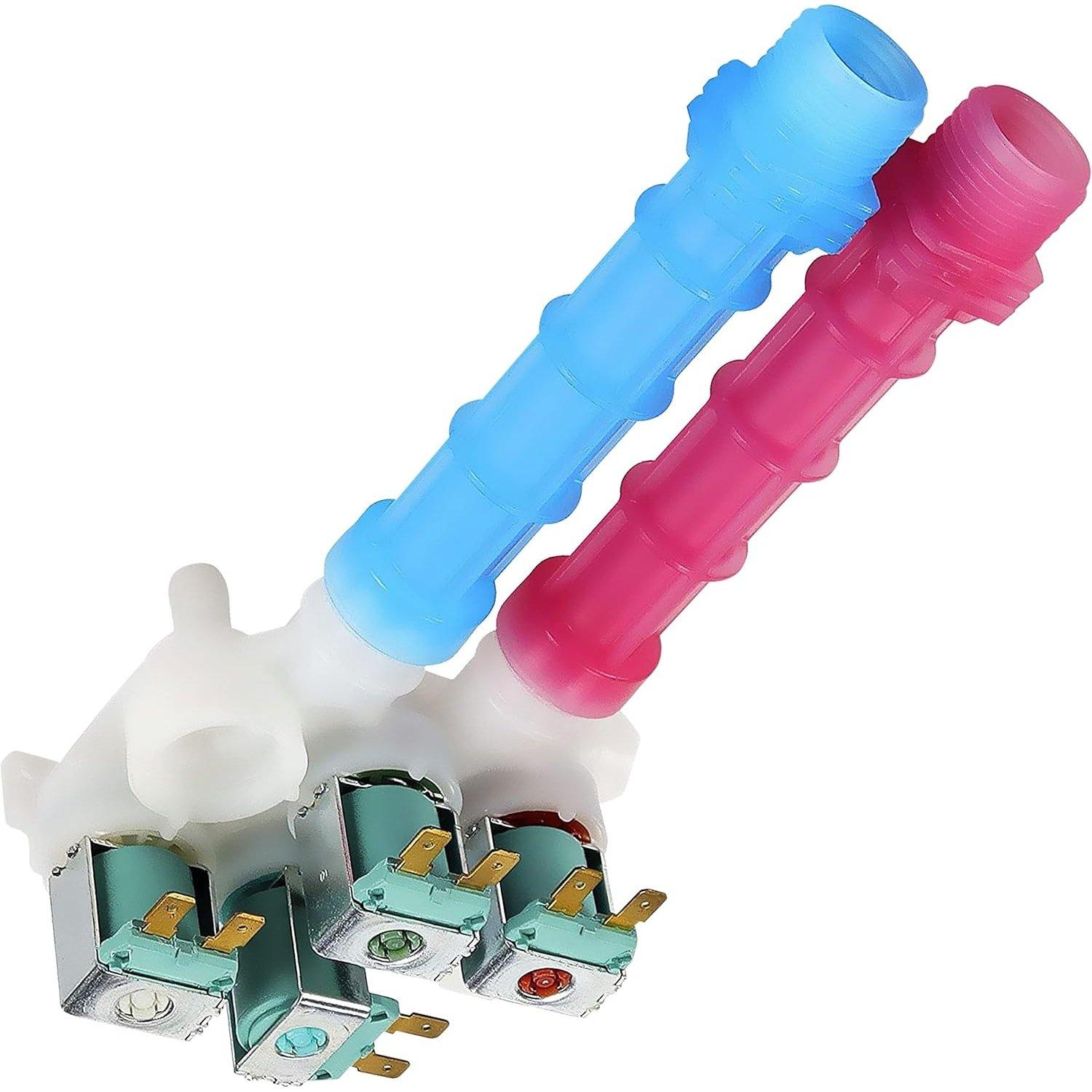

134637810 Water Inlet Valve

Key Features

• Dual Solenoid Control:Features two independent electromagnetic coils to precisely manage hot and cold water flow for accurate temperature blending.
• Automated Fill Regulation:Responds to signals from the pressure switch and control board to ensure the tub reaches the correct water level for every cycle.
• High-Pressure Tolerance:Engineered to operate reliably under standard residential water pressure while maintaining a quiet, hammer-free closure.

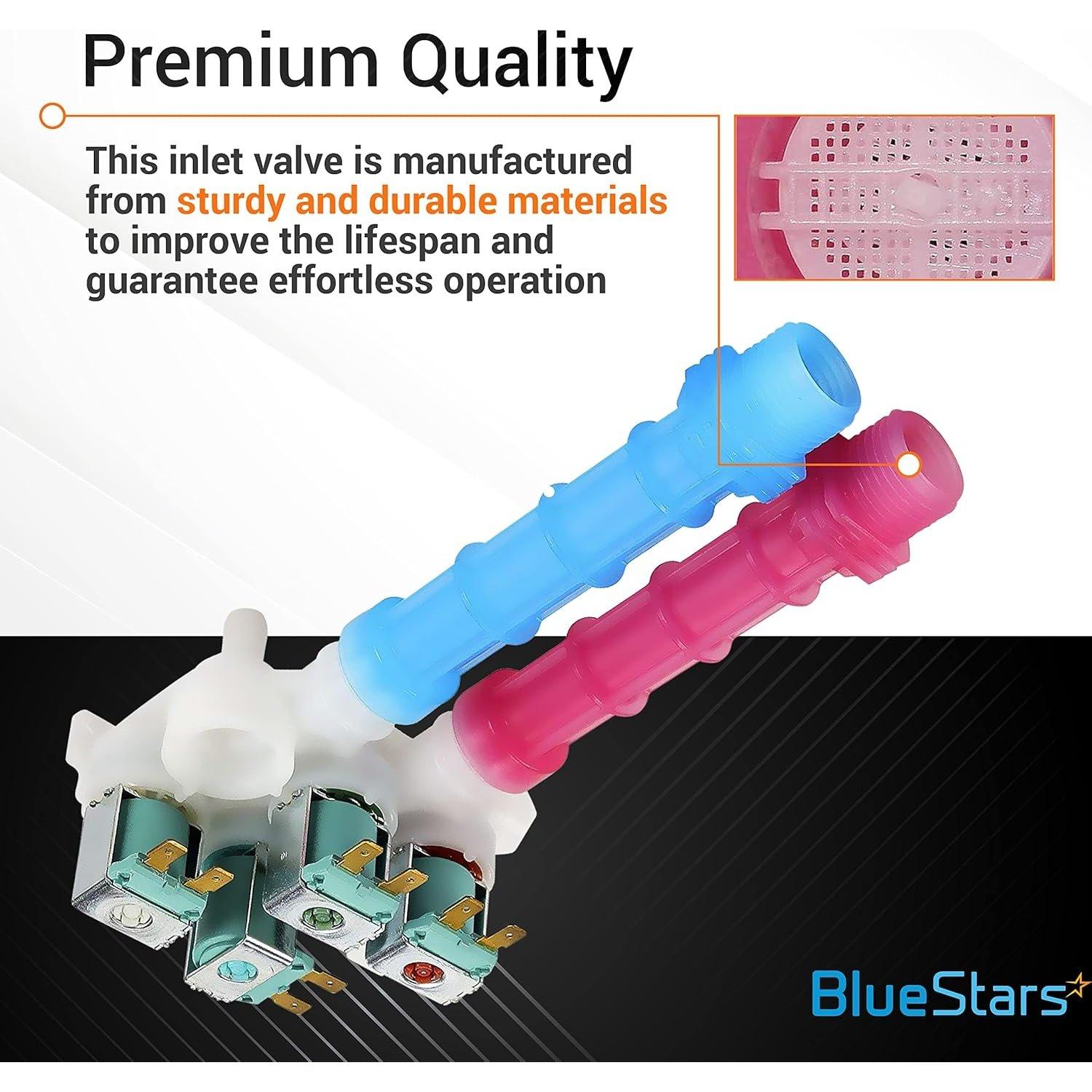

• Internal Sediment Screen:Equipped with fine-mesh filters at the inlet ports to prevent sand, silt, and pipe scale from entering the internal valve seat.

Replaces / Cross-Reference Part Numbers

• 134637810
• 134637800
• 7134637810
• AP4368791
• PS2349248
• 1482877
• EAP2349248

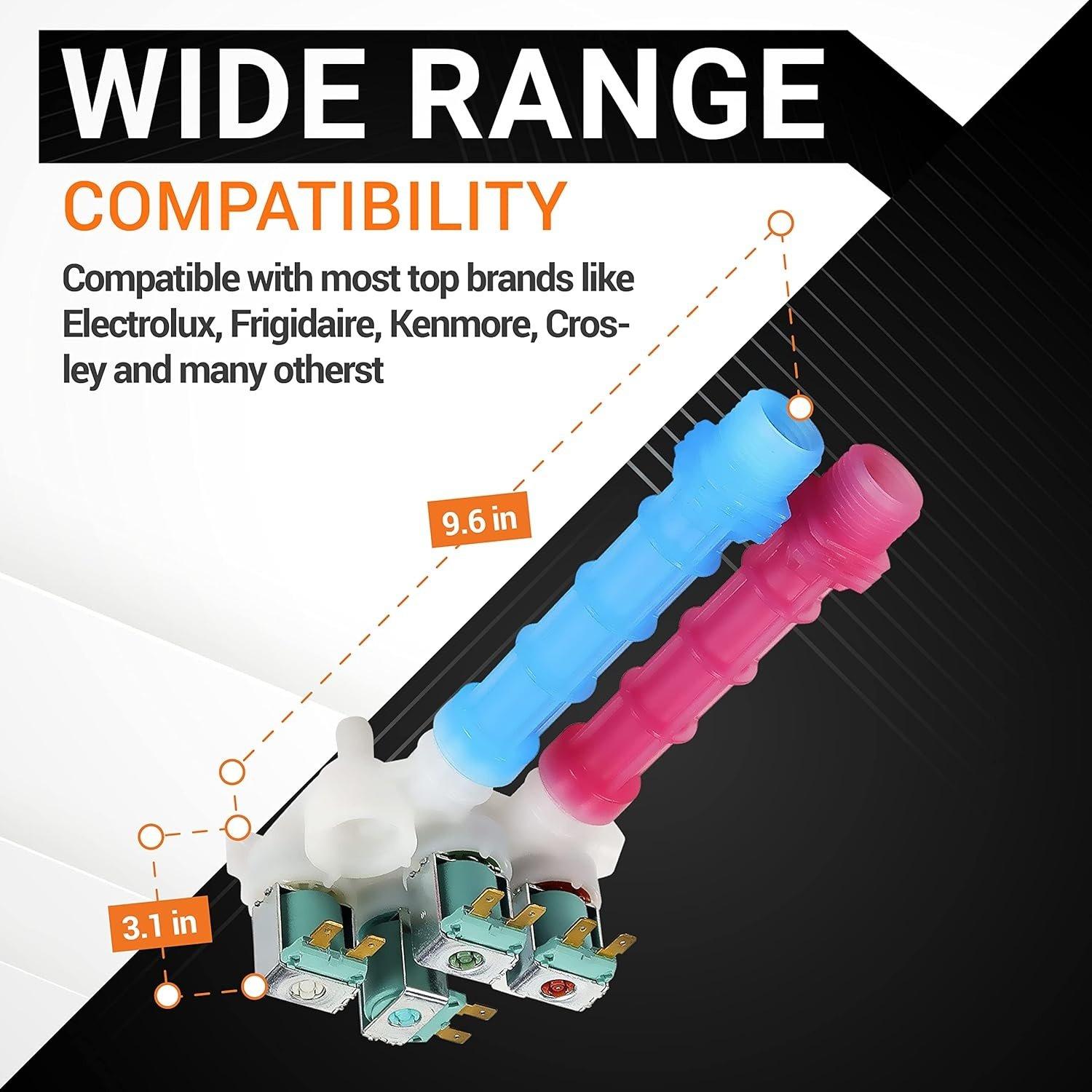

Compatibility & Fitment

• Frigidaire:Compatible with many Affinity, Gallery, and Professional series models (e.g., FAFW, FAFS, FTF, and FWT series).
• Kenmore / Sears:Fits select 417 series front-load washers (e.g., 417.48102701, 417.44052400).
• Electrolux:Fits several IQ-Touch and Wave-Touch series models.
• Crosley & White-Westinghouse:Compatible with select laundry units utilizing the 1346378 series valve.

When to Replace

• No Water Entry:The machine hums during the fill stage, but no water enters the tub, indicating a failed solenoid.
• Slow Filling:It takes an unusually long time to fill, often caused by mineral buildup or a clogged internal inlet screen.
• Overfilling or Leaking:Water continues to trickle into the tub even when the washer is turned off, suggesting the valve is stuck in the open position.
• Wrong Water Temperature:The washer only fills with hot or only cold water regardless of the setting, indicating one of the two solenoids has failed.
• Error Codes:The digital display shows "E11" or similar codes related to a "Long Fill" or "Fill Timeout" error.

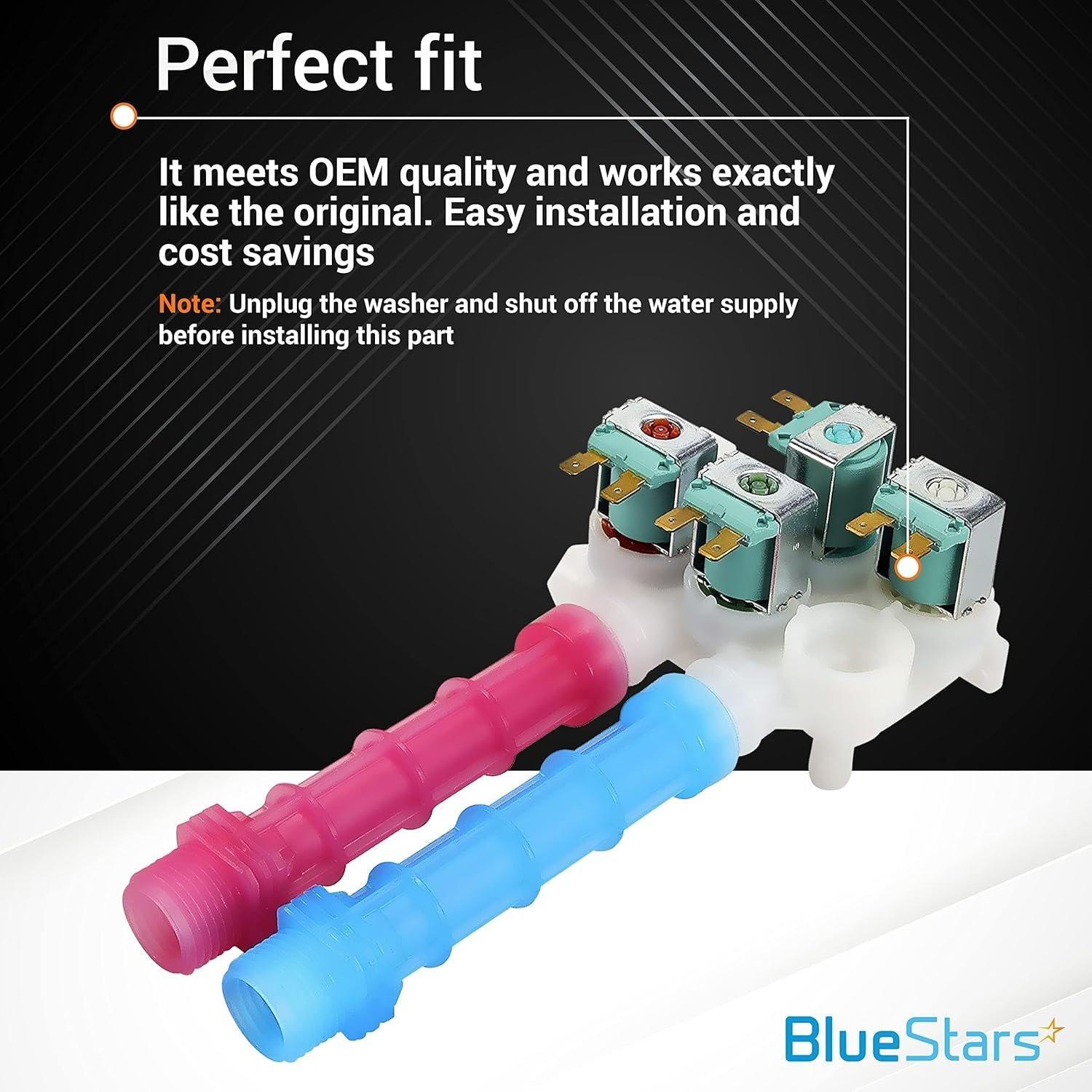

Installation Tips

• Safety First:Unplug the washing machine from the power outlet and turn off both the hot and cold water supply valves before starting.
• Accessing the Valve:On most front-load models, the valve is located at the top rear of the machine and can be accessed by removing the top panel screws.
• Wire Identification:Note the color-coding of the wires attached to the hot and cold solenoids to ensure they are reconnected to the correct terminals.
• Hose Seal:Check the rubber washers inside your fill hoses; if they are cracked or compressed, replace them during this repair to prevent external leaks.
• Avoid Overtightening:Screw the water lines onto the plastic valve threads by hand first, then tighten slightly with pliers. Overtightening can crack the plastic housing.
