AZ00169438

[Lifetime Warranty] 45+5 uF MFD 370/440 VAC Dual Circular Run Start Capacitor CBB65 50/60 Hz - Fits AC Motor Run, Fan Start - Replaces 97F9895

Sold 5,747

Difficulty Icon: Normal
Normal
More than 30 minutes

$23.40

$25.99

Save $2.59
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.

Description

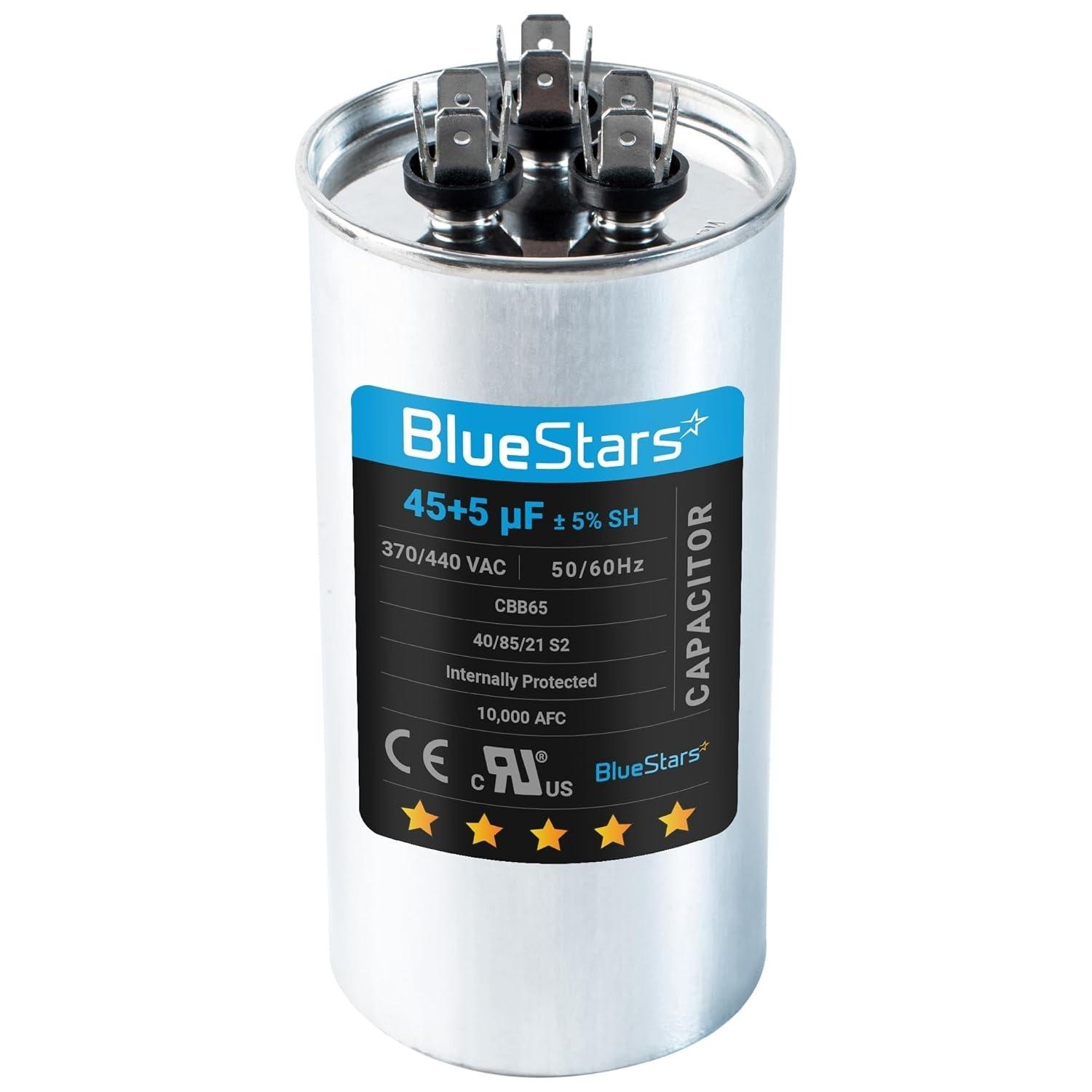

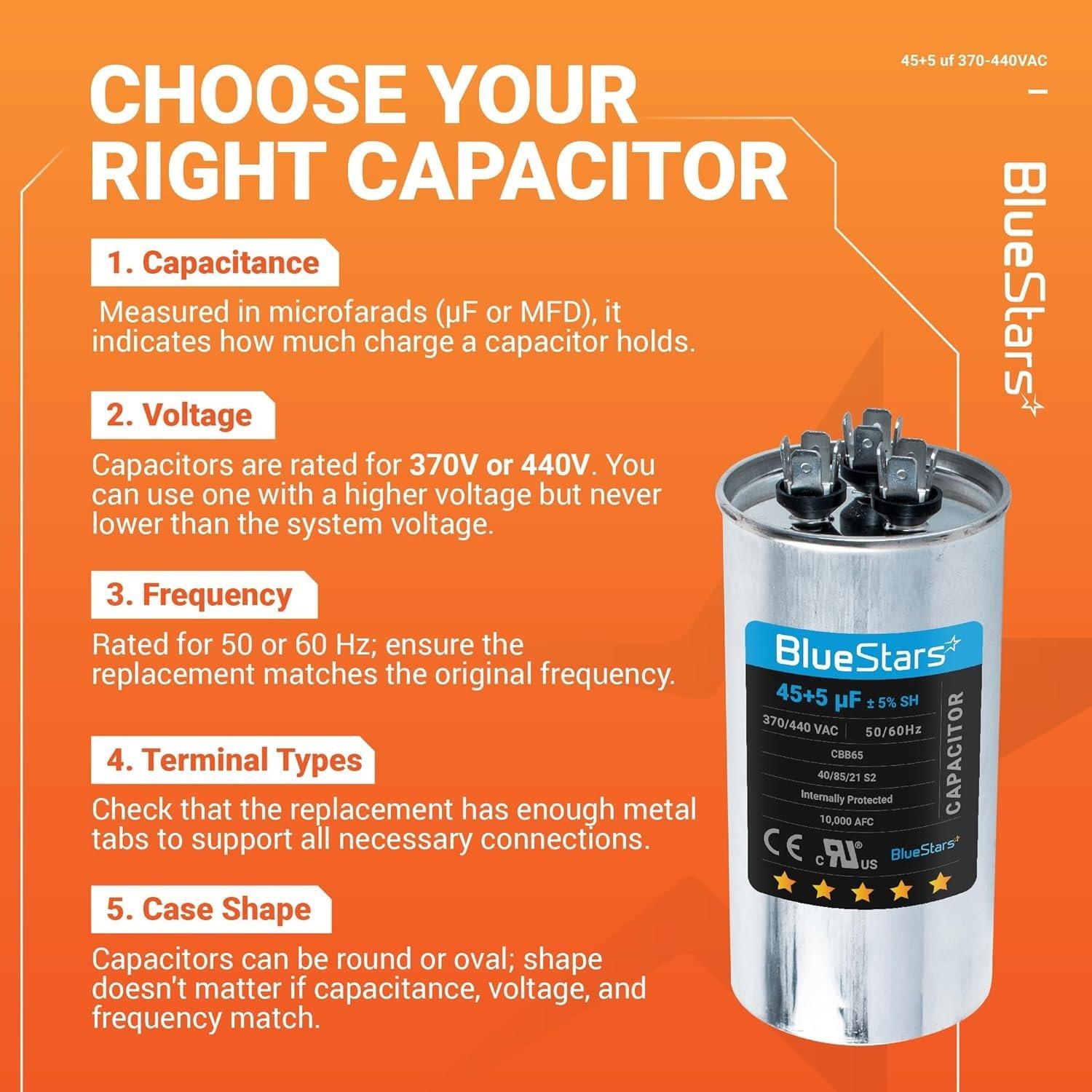

45+5 uf/MFD 370 or 440 Volt VAC Round Dual Run Capacitor CBB65 50/60 Hz

Key Features

  • Model: CBB65
  • Capacitance: 45 + 5 Microfarad (uF/MFD)
  • Capacitance Tolerance: ±6%
  • Voltage Rating: 370V or 440V AC
  • Frequency: 50/60 Hz
  • Shape: Round

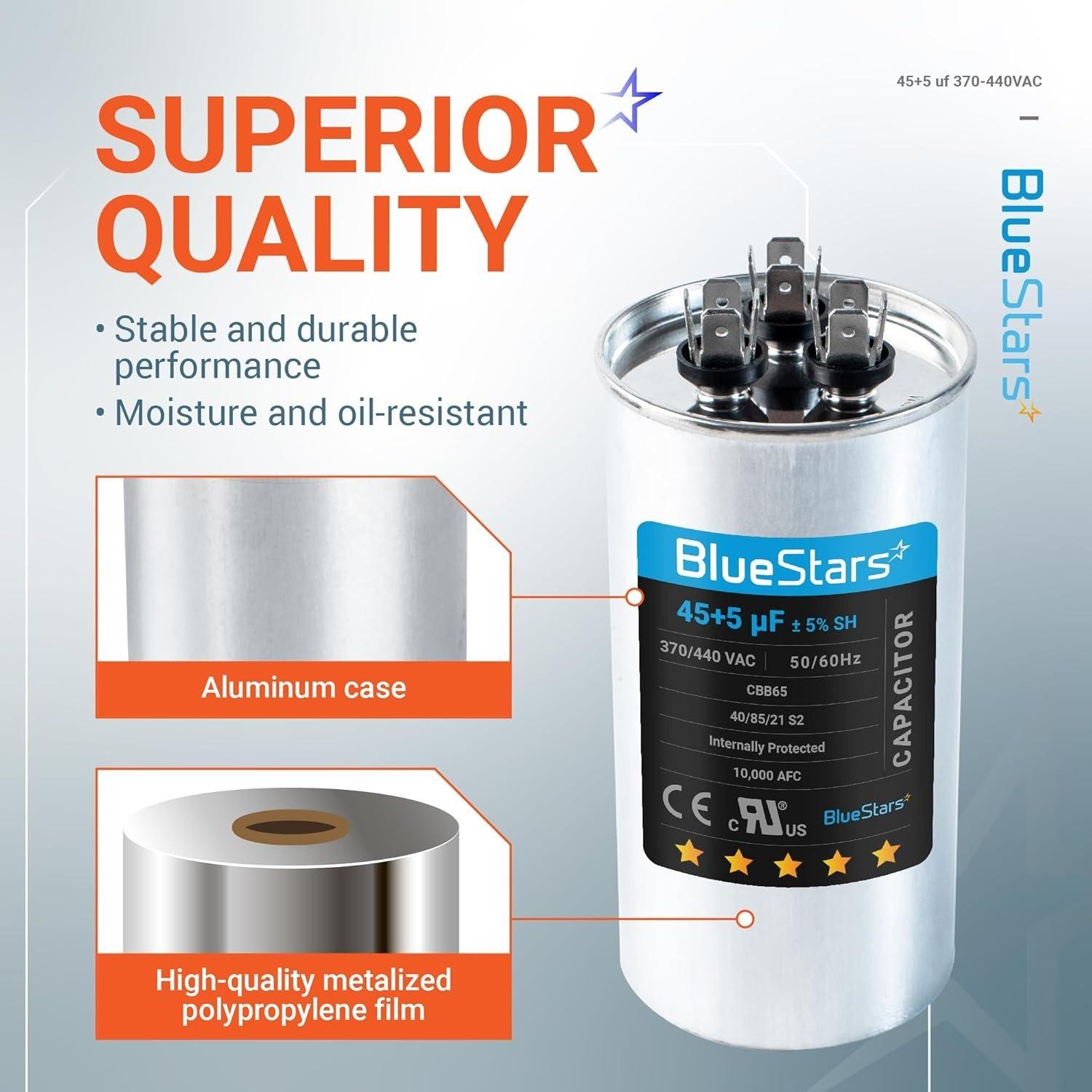

  • Construction: Aluminum Case
  • Operating Temperature: -40 °C to +70 °C (-40 °F to +158 °F)

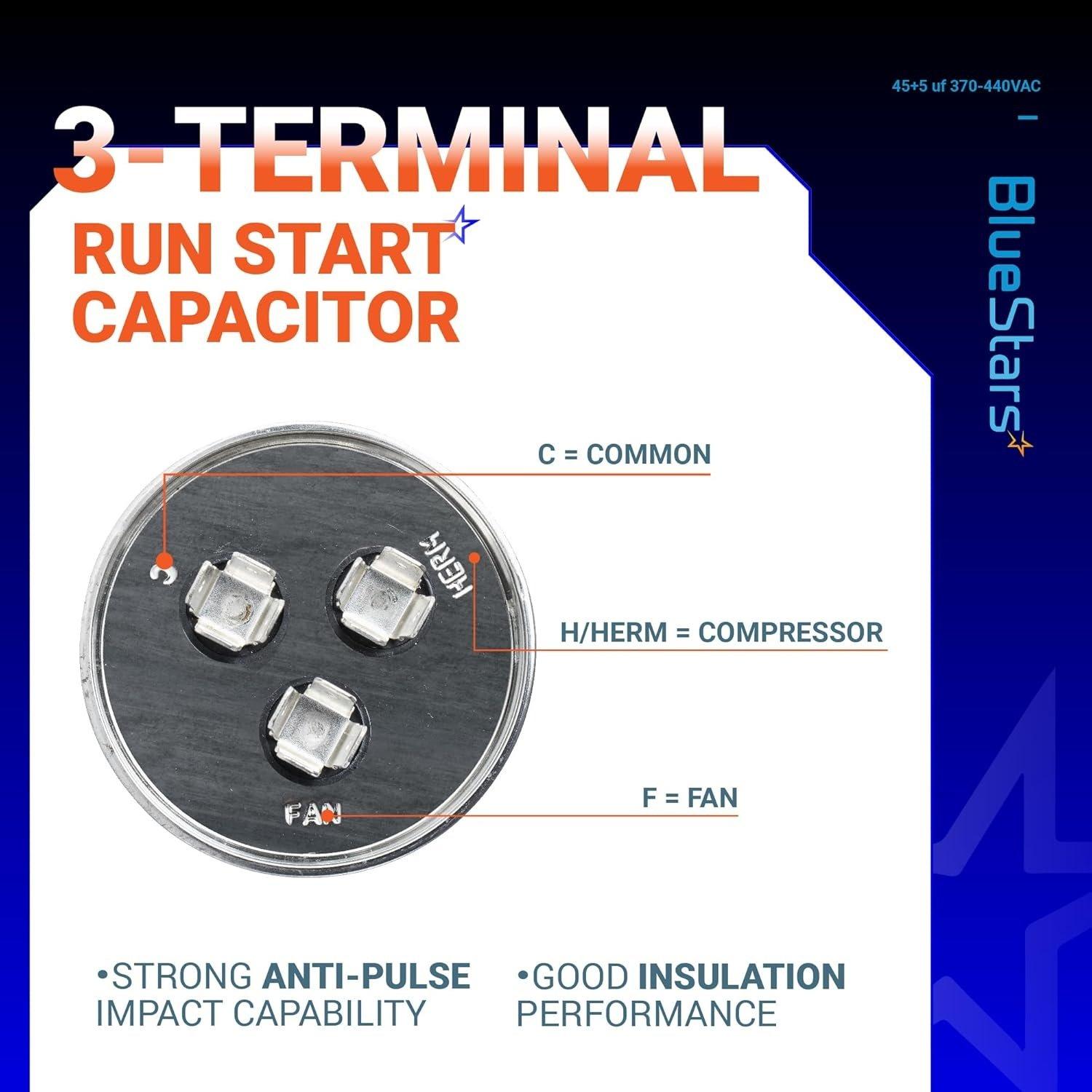

  • Terminals: 3 (C, HERM, FAN)
  • Safety Standard: EIA-456 Compliant

Replaces / Cross-Reference Part Numbers

This capacitor replaces any round or oval dual run capacitor with matching 45+5 uF capacitance and 370V or 440V specifications. It serves as a universal replacement for a wide range of part numbers from various manufacturers.

Compatibility & Fitment

Designed for heavy-duty, continuous use in HVAC systems such as central air conditioners and heat pumps. This dual run capacitor powers a compressor motor (HERM terminal) and a fan motor (FAN terminal) simultaneously from a single common line (C terminal). It is compatible with units requiring the specified capacitance and voltage.

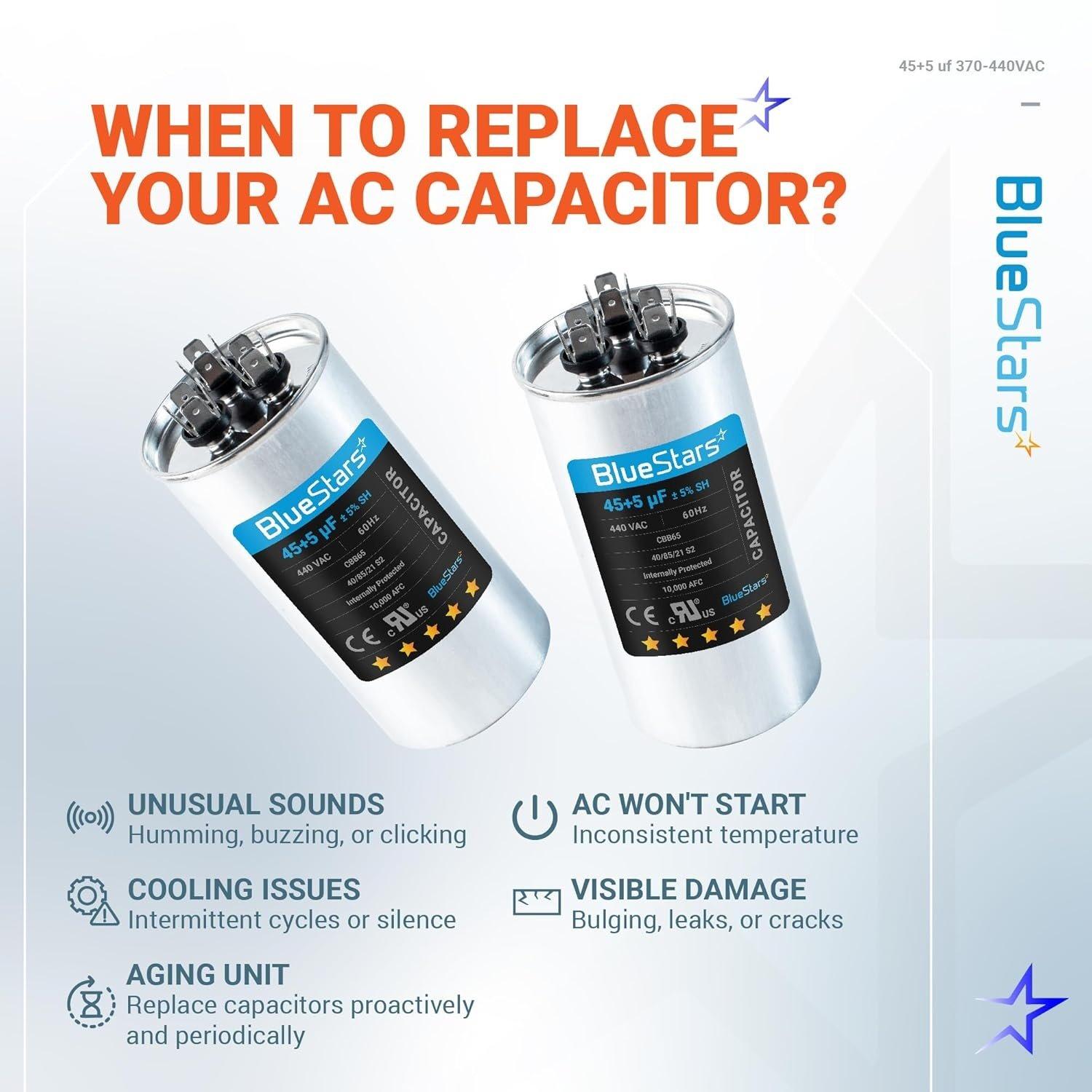

When to Replace

A failing capacitor can cause damage to motors. Consider replacement if you observe the following symptoms:
  • Compressor or fan motor struggles or fails to start.
  • AC unit hums but does not activate.
  • Fan spins slowly or not at all.
  • Visible signs of damage, such as a bulging or leaking capacitor case.
  • Measured capacitance is outside the rated tolerance (e.g., not within ±6% of 45/5 uF).

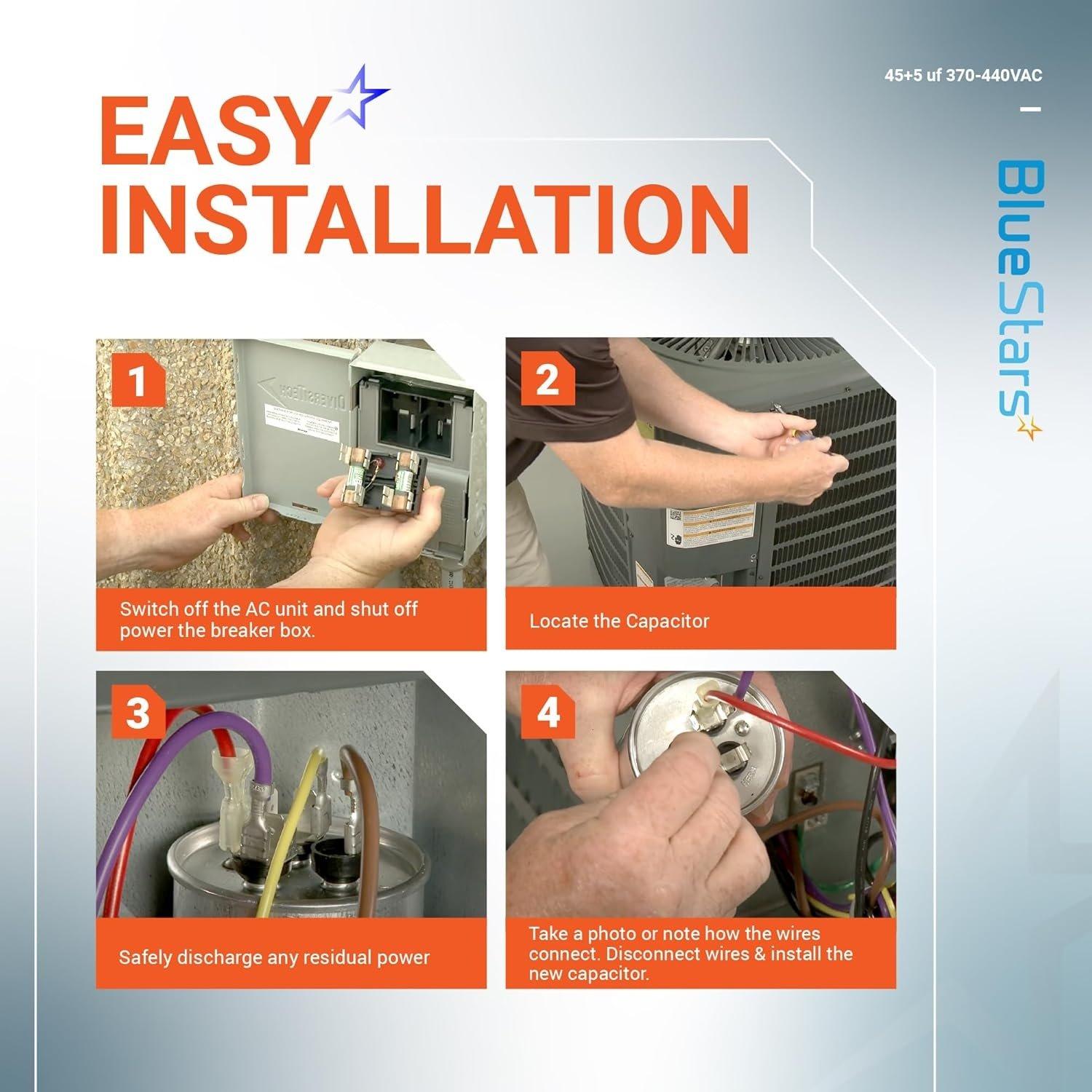

Installation Tips

  • Warning:Capacitors can store a lethal electrical charge even when power is off.
  • Disconnect all electrical power to the HVAC unit at the main breaker panel before proceeding.
  • Safely discharge the old capacitor by carefully shorting across the terminals with an insulated-handle screwdriver.
  • Confirm the uF and VAC ratings of the replacement match the original component.
  • Note the wire placement on the C, FAN, and HERM terminals before disconnecting.
  • Ensure all new connections are secure. Professional installation by a qualified technician is recommended.
