[Lifetime Warranty] 316489403 5304508786 Range Oven Igniter for Kenmore Crosley Frigidaire Electrolux Oven - Replaces AP4433236, 1513415, 7316489403, AH2364063, EA2364063, PS2364063

Difficulty Icon: Easy
Easy
15 - 20 minutes

Out of Stock
This item is no longer available. Please contact our customer service for more information
puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

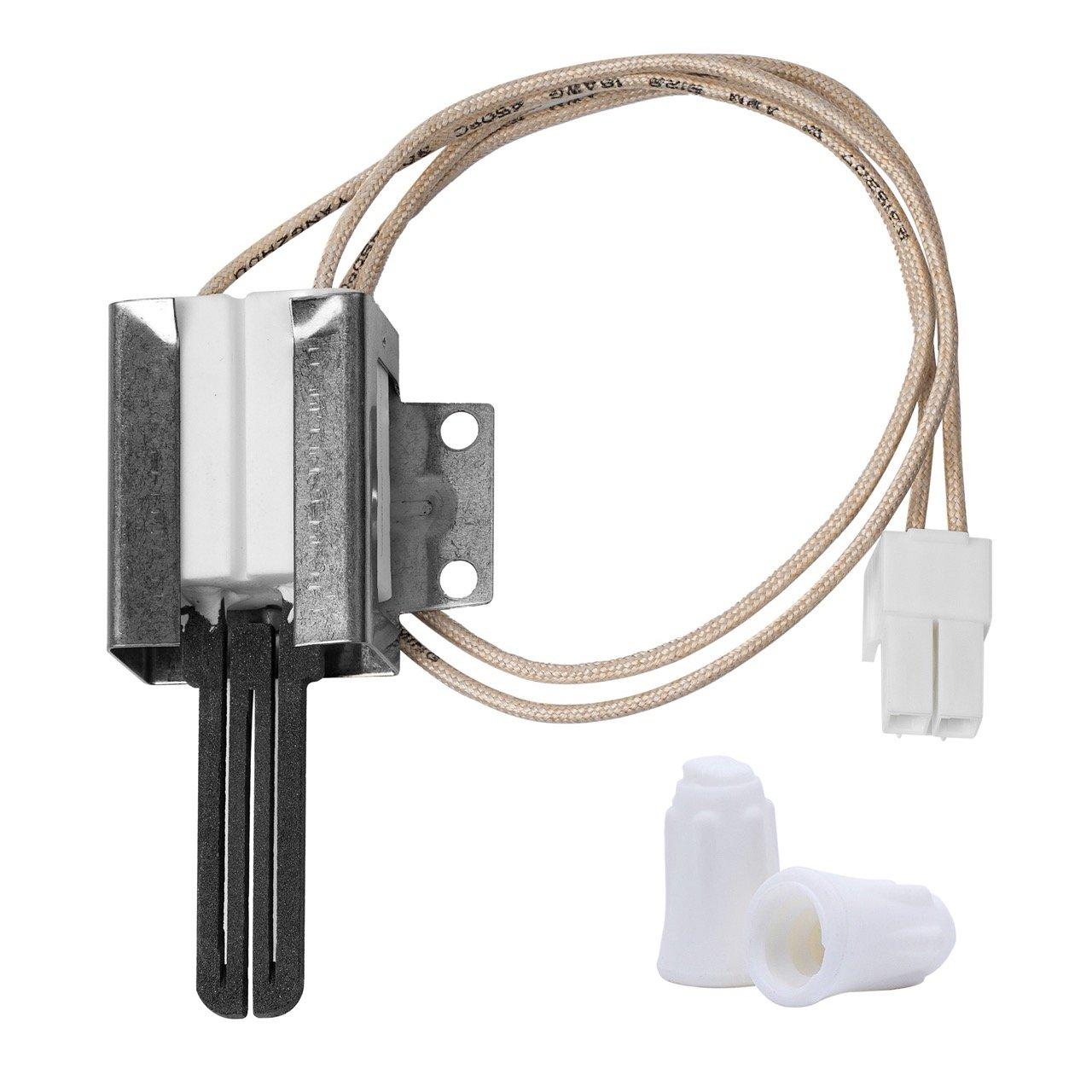

316489403 Range Oven Igniter

Key Features

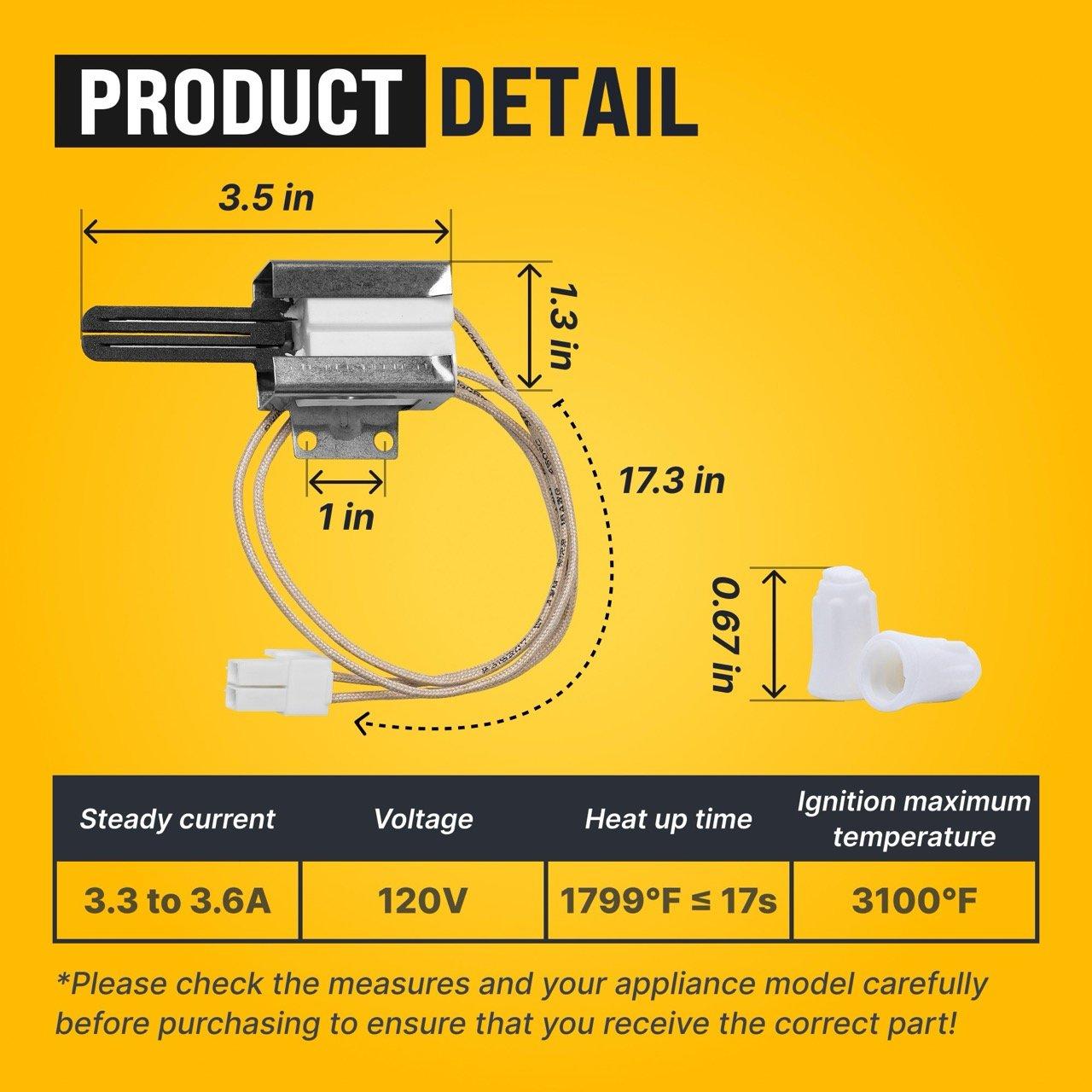

  • Draws 3.2 to 3.6 amps of electrical current to open the gas safety valve
  • Functions as a direct replacement for bake and broil elements
  • Includes a long wire harness for flexible installation
  • Designed to meet original equipment manufacturer (OEM) specifications

Replaces / Cross-Reference Part Numbers

  • 316489403
  • 41-213

Compatibility & Fitment

  • Fits specific range oven models manufactured by Electrolux
  • Compatible with brands including Frigidaire, Kenmore, Crosley, Tappan, Gibson, Kelvinator, Ikea, and White-Westinghouse

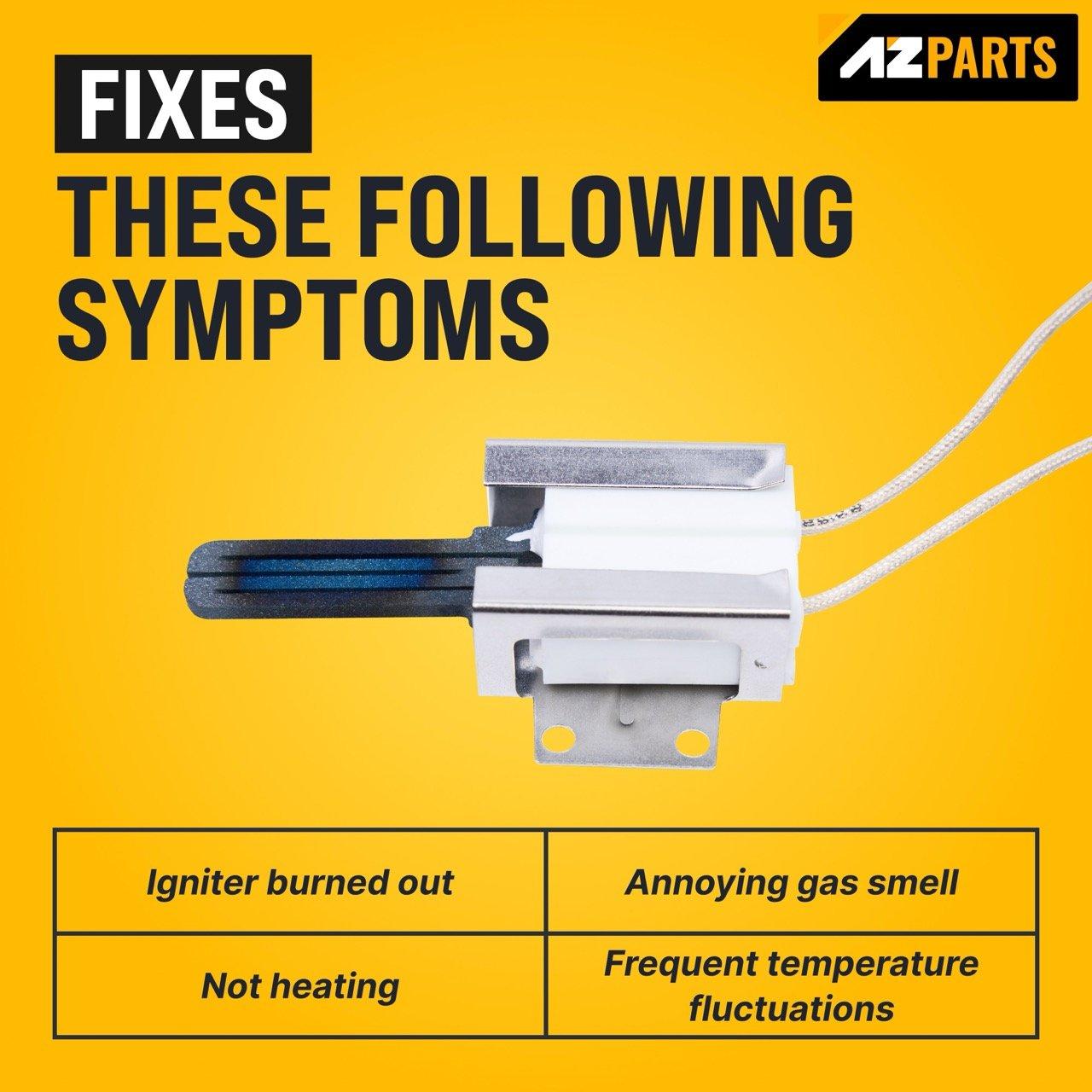

When to Replace

  • Oven fails to heat or heats intermittently
  • Igniter glows for an extended period, but the burner does not light
  • Burner fails to ignite, and a gas odor is present
  • Visible crack or break in the igniter element
  • Oven takes longer than usual to preheat

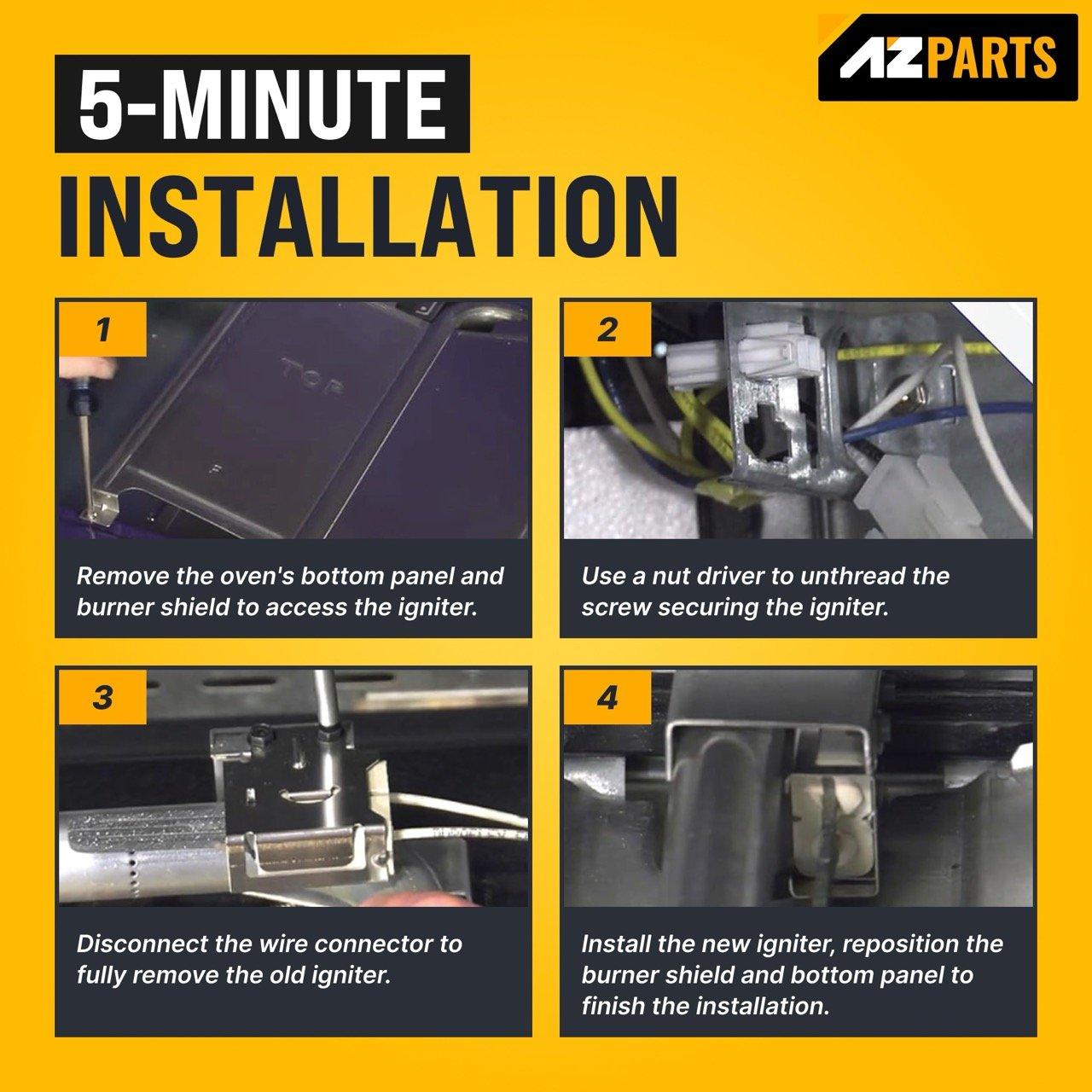

Installation Tips

  • Disconnect the appliance from power and shut off the gas supply before installation
  • Handle the new igniter by its ceramic base; avoid touching the dark gray element
  • Skin oils can damage the element and cause premature failure; wear gloves
  • Ensure wire connections are secure before restoring power
  • Consult your appliance's service manual for model-specific instructions
