[Lifetime Warranty] 30 PCS Powerpole Connectors, Quick Disconnect Assortment Kit

30 PCS Powerpole Connectors, Quick Disconnect Assortment Kit

Key Features

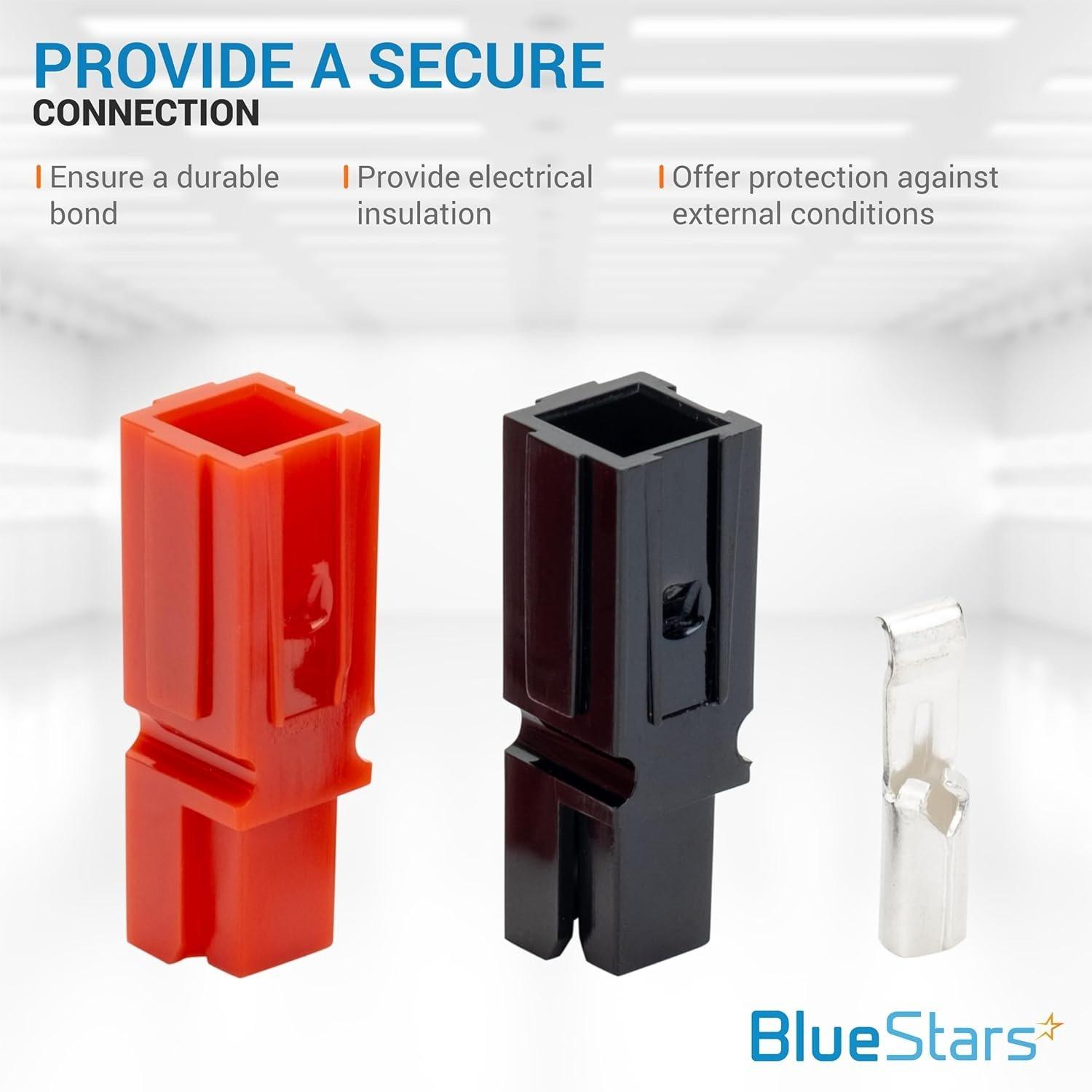

• Kit Contents: 15 red polycarbonate housings, 15 black polycarbonate housings, and 30 silver-plated copper contacts.

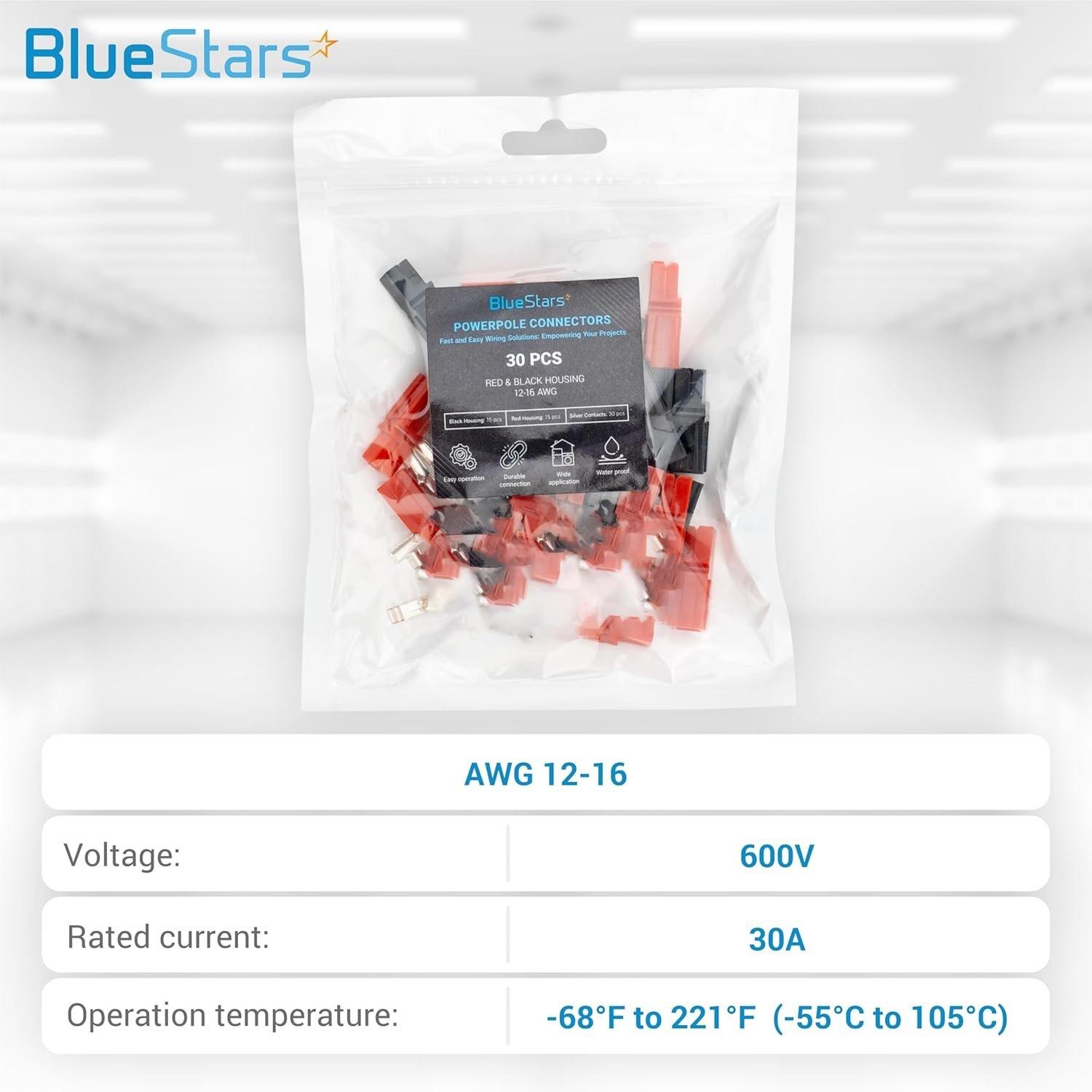

• Electrical Rating: Up to 600V and 30A continuous current.

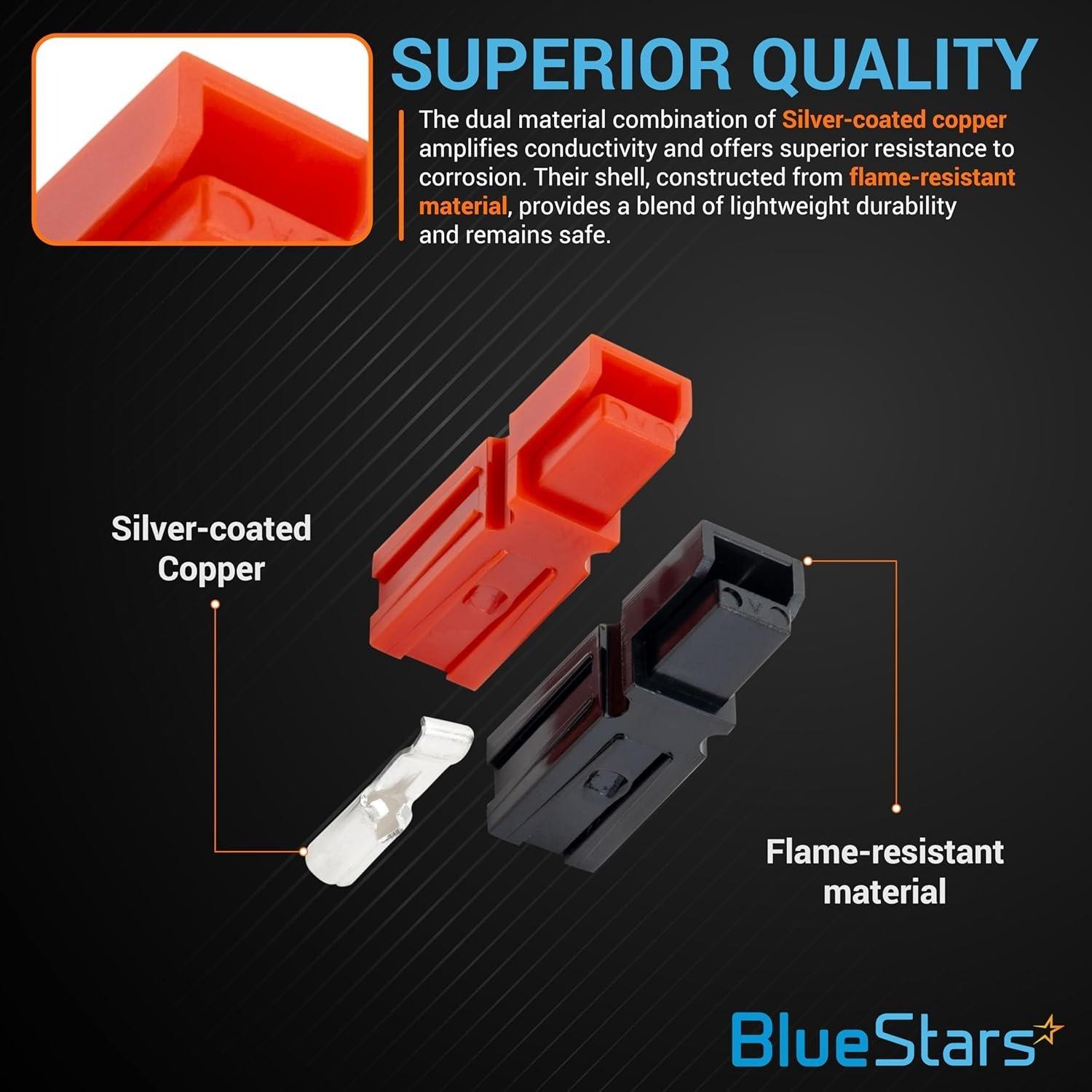

• Contact Material: Silver-plated copper for high conductivity and low resistance.
• Temperature Range: Designed to operate from -68℉ to 221℉.
• Housing Design: Genderless, interlocking housings allow for customizable multi-pole assemblies.

Replaces / Cross-Reference Part Numbers

• Interchangeable with similarly sized 15A, 30A, and 45A power pole style connector components.
• Serves as a direct replacement for 30-amp, two-pole DC power connectors.

Compatibility & Fitment

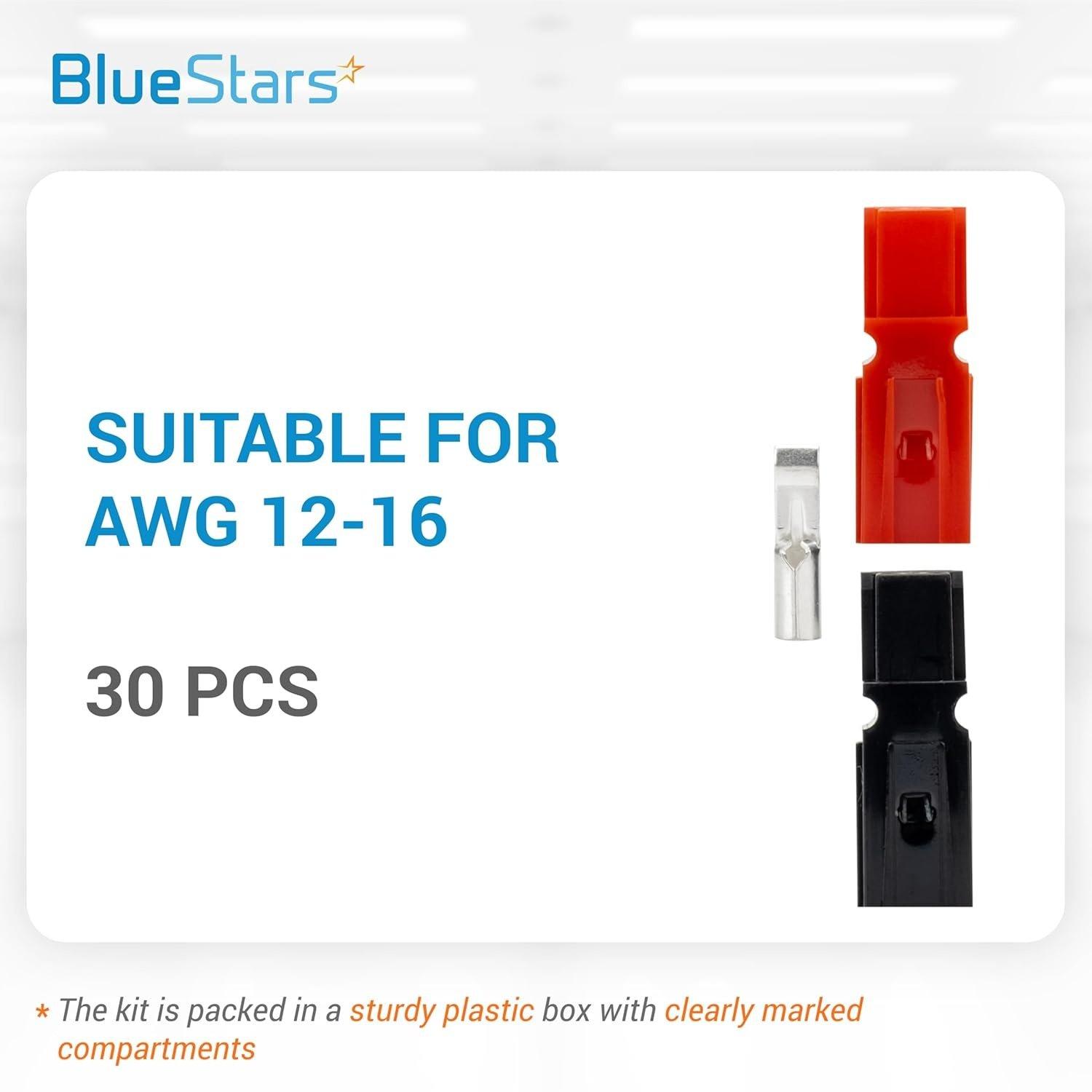

• Wire Gauge: Accepts 12 AWG, 14 AWG, and 16 AWG wire.
• Applications: Ideal for amateur radio equipment, battery chargers, solar power systems, automotive and marine electronics, and other high-current DC circuits.

When to Replace

• Visible damage to the housing, such as cracks, melting, or breakage.
• Corrosion, pitting, or burn marks on the metal contacts.
• Connection becomes loose, intermittent, or generates excessive heat under load.

Installation Tips

• Strip wire insulation to the proper length before inserting into the contact barrel.
• For a secure electrical and mechanical bond, use a dedicated crimping tool. Soldering is also a suitable method.
• Push the wired contact into the housing from the rear until it audibly clicks into place.
• Maintain consistent polarity by joining housings with the dovetail system (e.g., red for positive, black for negative).
