[Lifetime Warranty] 50 Pcs 2/3/5-250V 32A Orange Wire Connectors

50 Pcs 2/3/5-250V 32A Orange Wire Connectors

Key Features

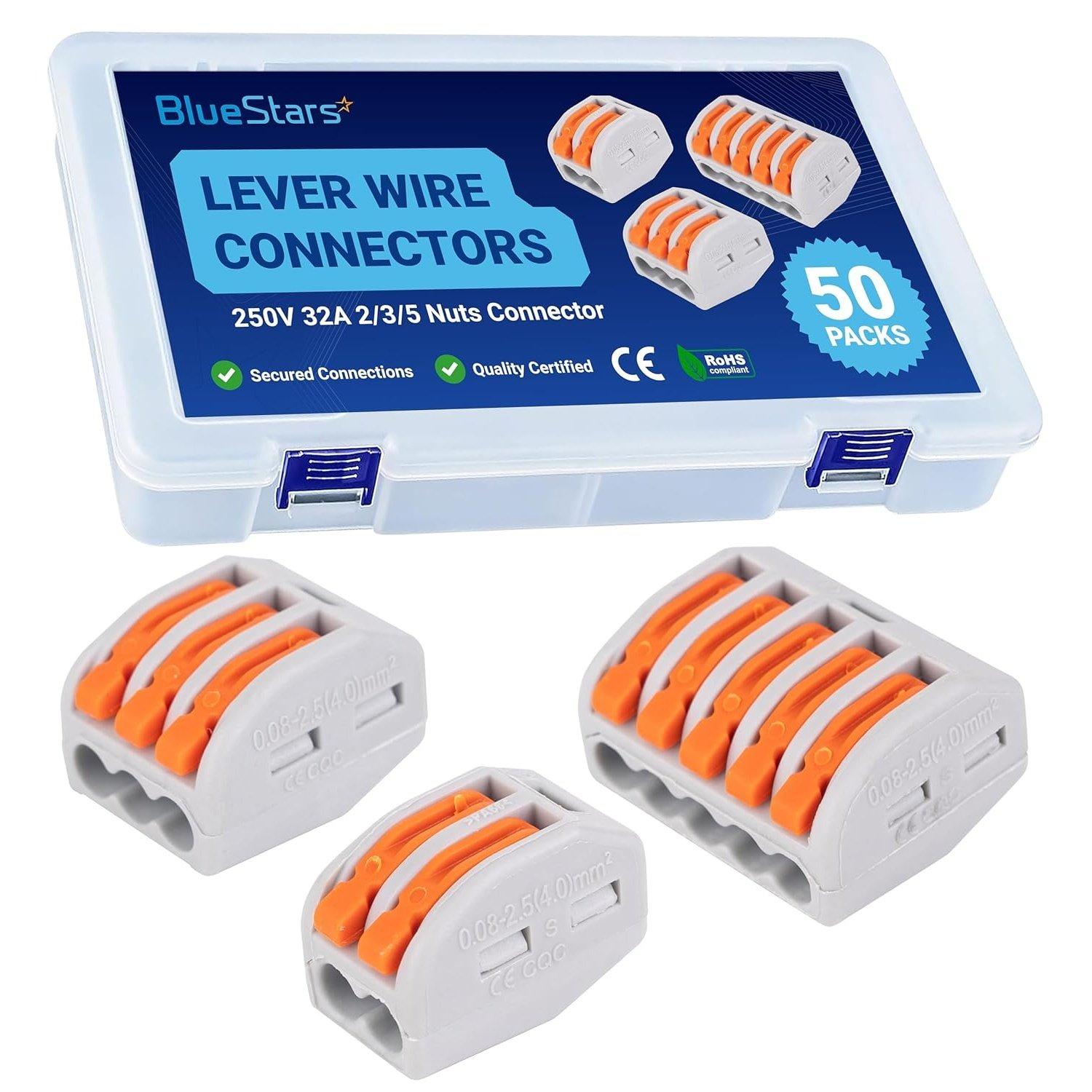

• Package includes: 50 lever-operated wire connectors.

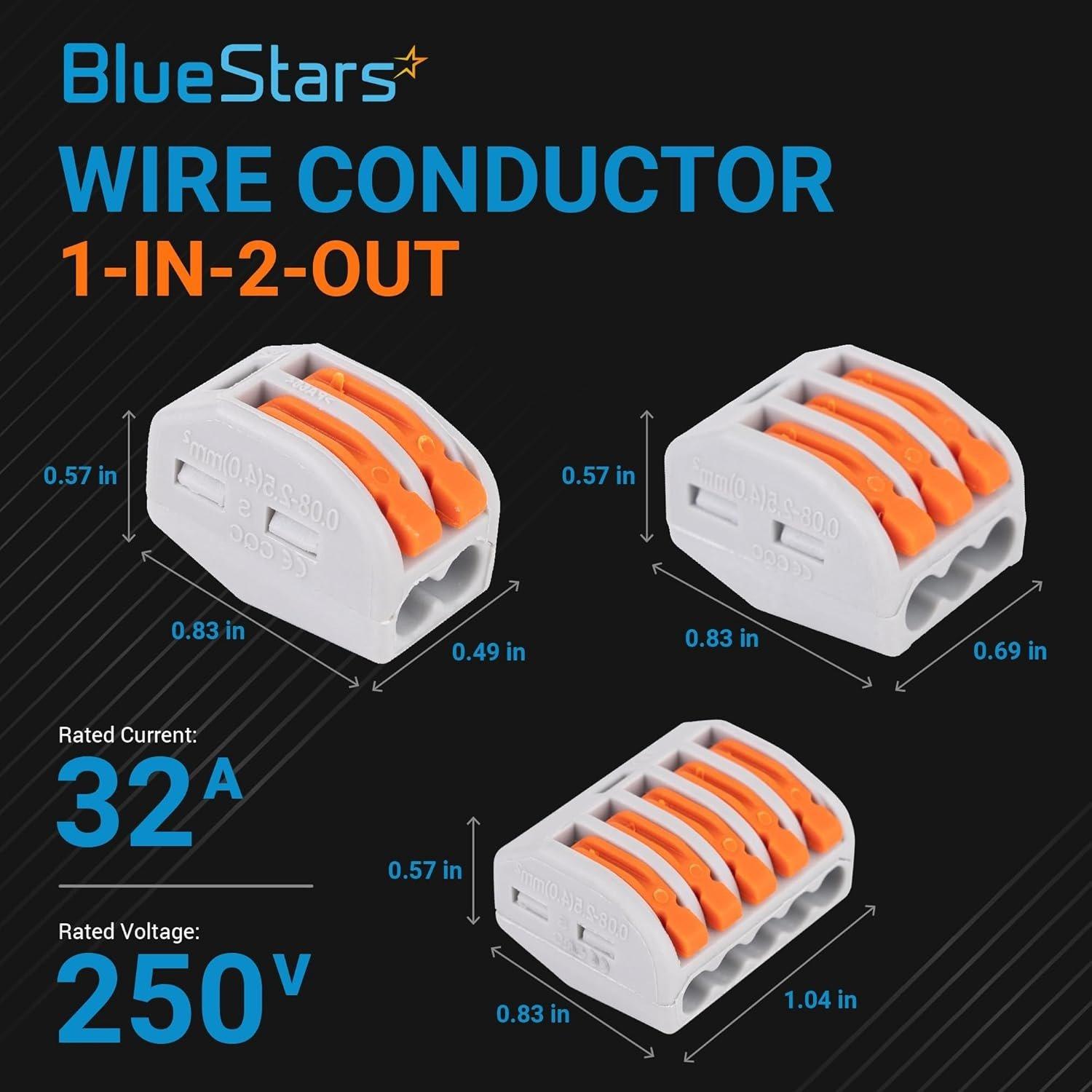

• Electrical Rating: 250V maximum voltage, 32A maximum current.

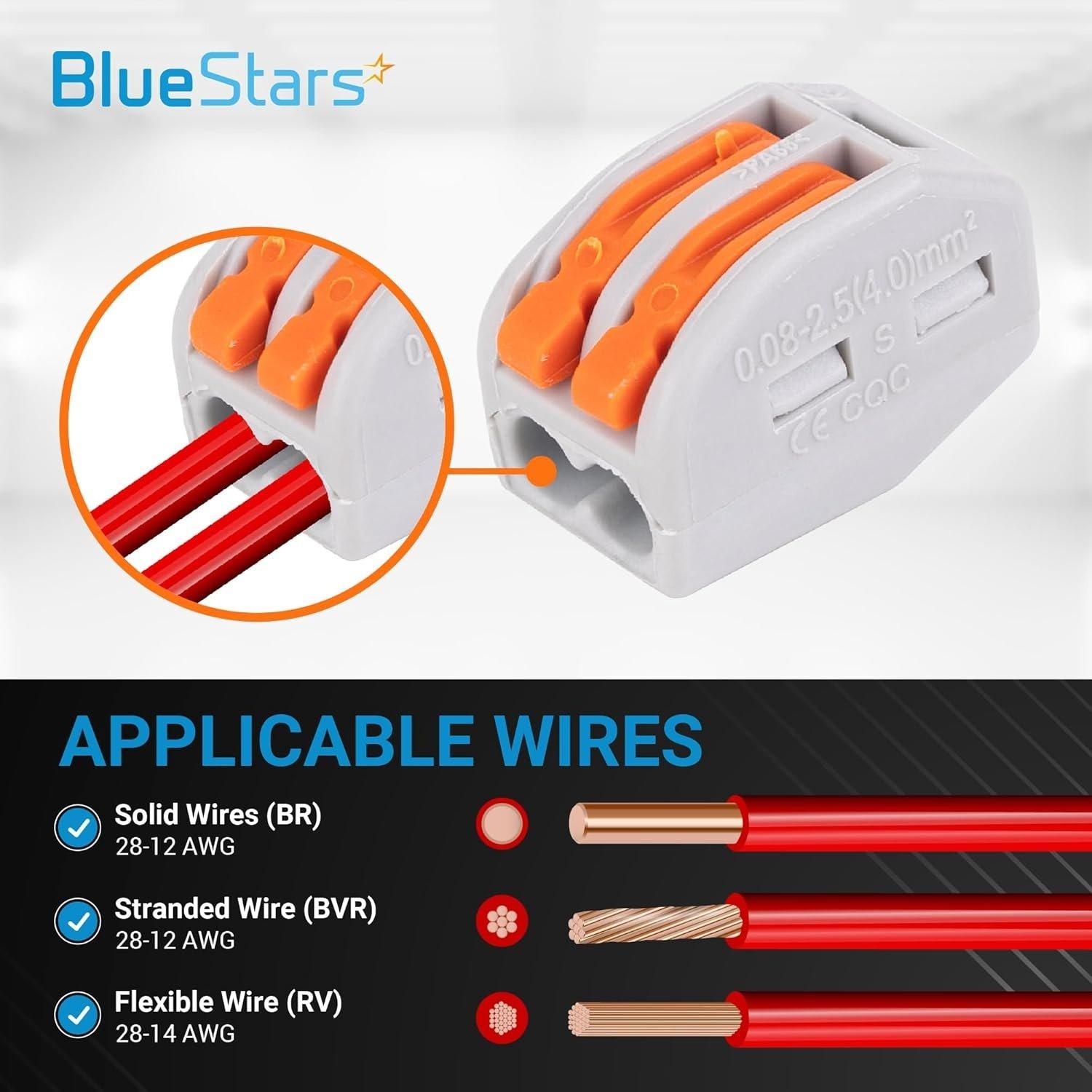

• Conductor Types: Compatible with solid, stranded, and flexible copper wires.

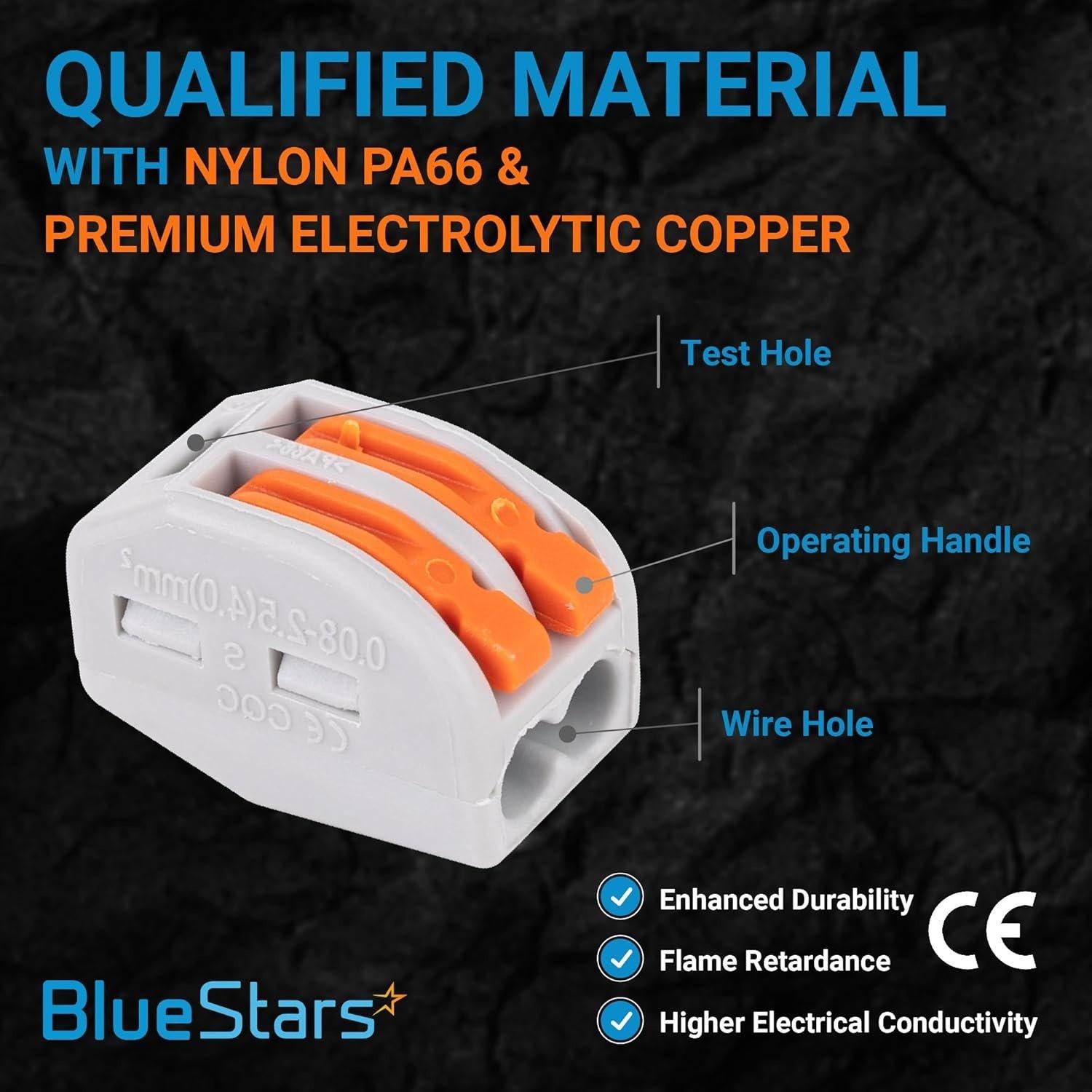

• Housing Material: PC (Polycarbonate) insulated, flame-retardant casing.
• Mechanism: Lever-actuated for fast, secure, and reusable connections without tools.
• Design: Compact body for installation in junction boxes and other tight spaces.
• Includes an integrated test port for checking voltage.

Replaces / Cross-Reference Part Numbers

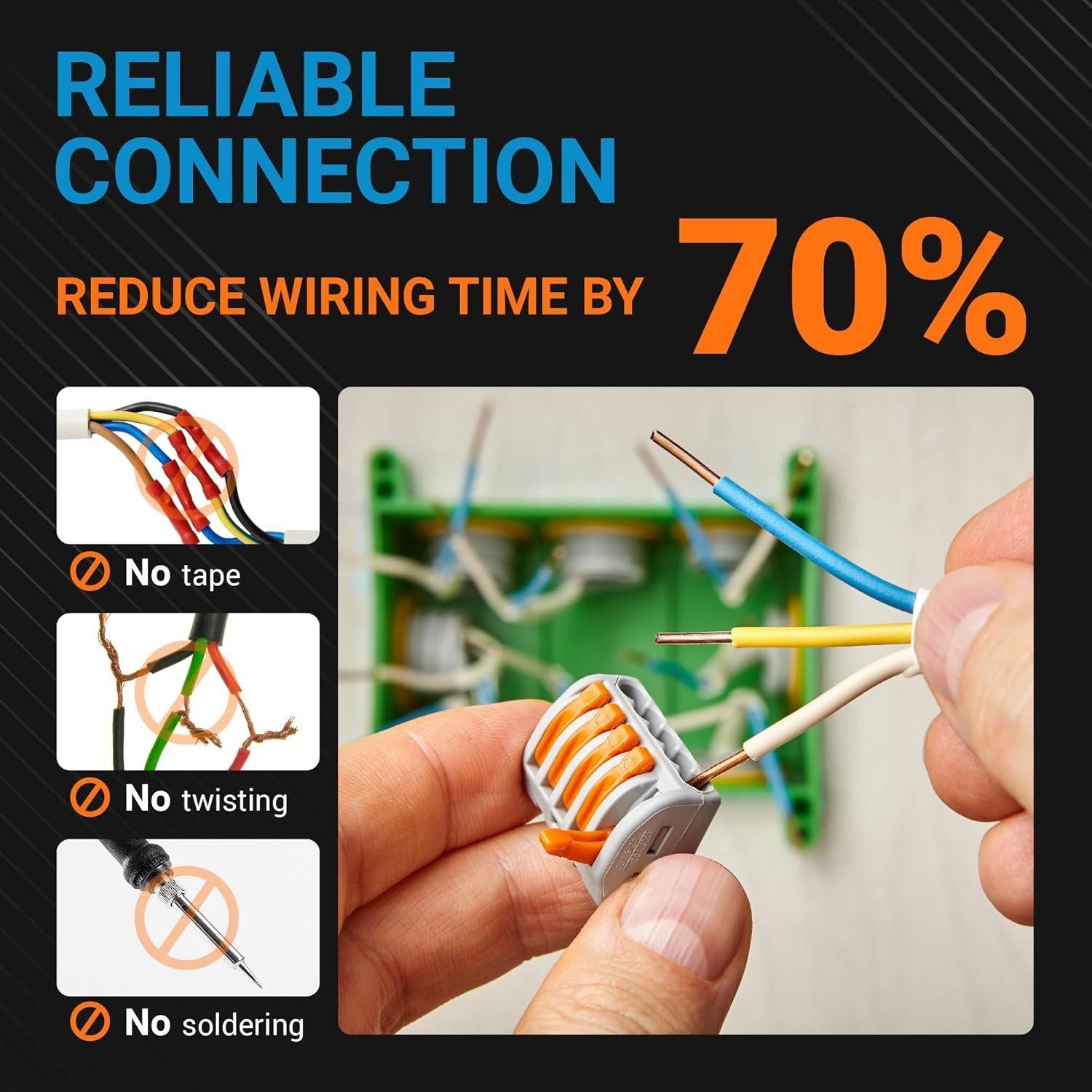

• Serves as a modern alternative to traditional twist-on wire nuts, terminal blocks, and soldered connections.
• Functionally comparable to connectors in the Wago 221 and 222 series.

Compatibility & Fitment

• Wire Gauge Range: 28-12 AWG (0.08 to 4.0 mm²).
• Applications: Suitable for residential and commercial wiring, lighting fixtures, control circuits, appliances, and automotive electrical systems.
• Not suitable for direct burial or submersion in water.

When to Replace

• Replace old or failing twist-on wire connectors for a more reliable connection.
• Use during new installations or when modifying existing wiring.
• Immediately replace any connector that shows signs of arcing, melting, discoloration, or physical damage.
• If an existing electrical connection is intermittent or loose.

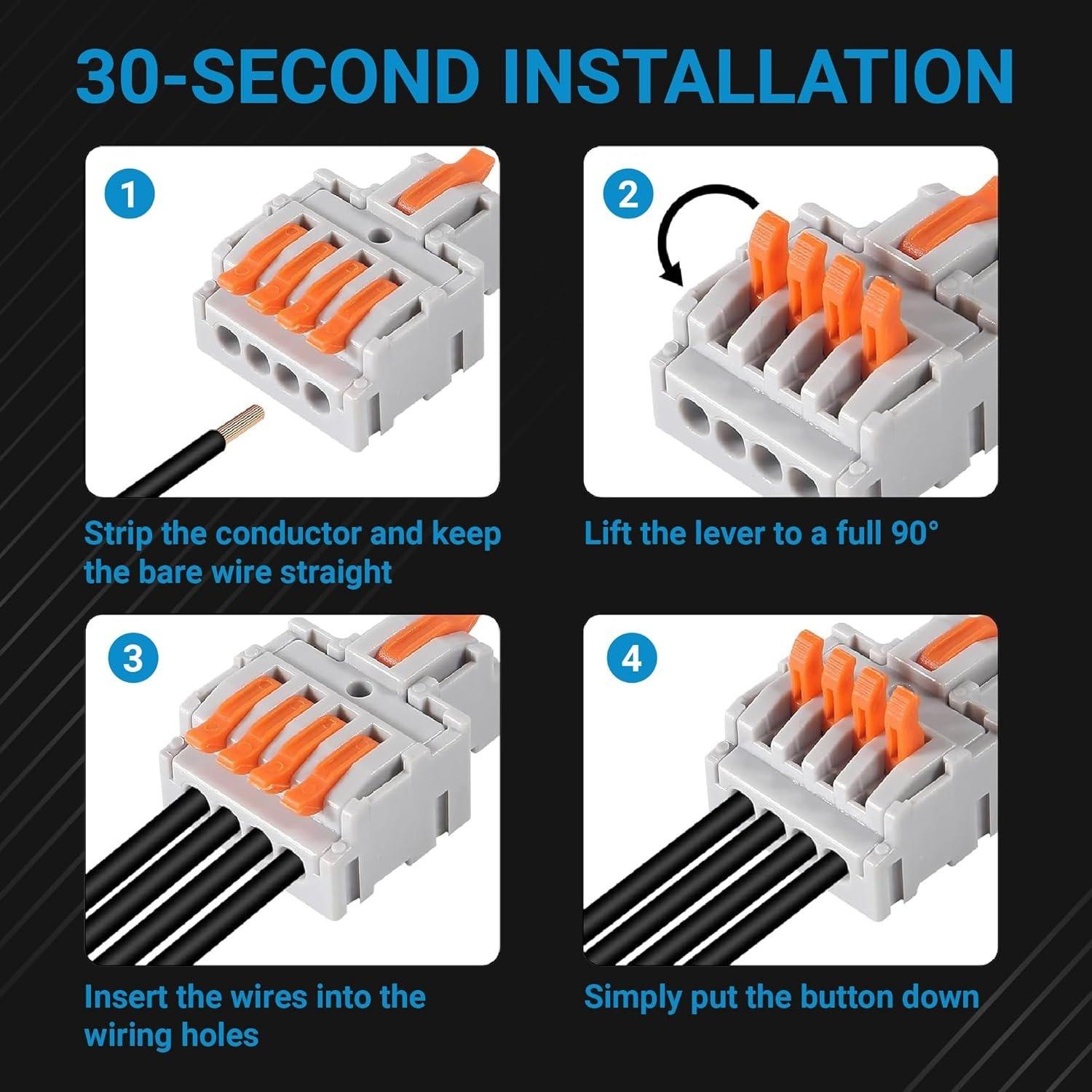

Installation Tips

• Strip approximately 10 mm (0.39 in) of insulation from the wire end.
• Lift the orange lever to a 90-degree angle to open the clamping port.
• Insert the stripped wire conductor until it hits the backstop.
• Lower the lever until it snaps shut, flush with the connector body.
• Confirm the connection is secure by gently pulling on the wire.
