Description

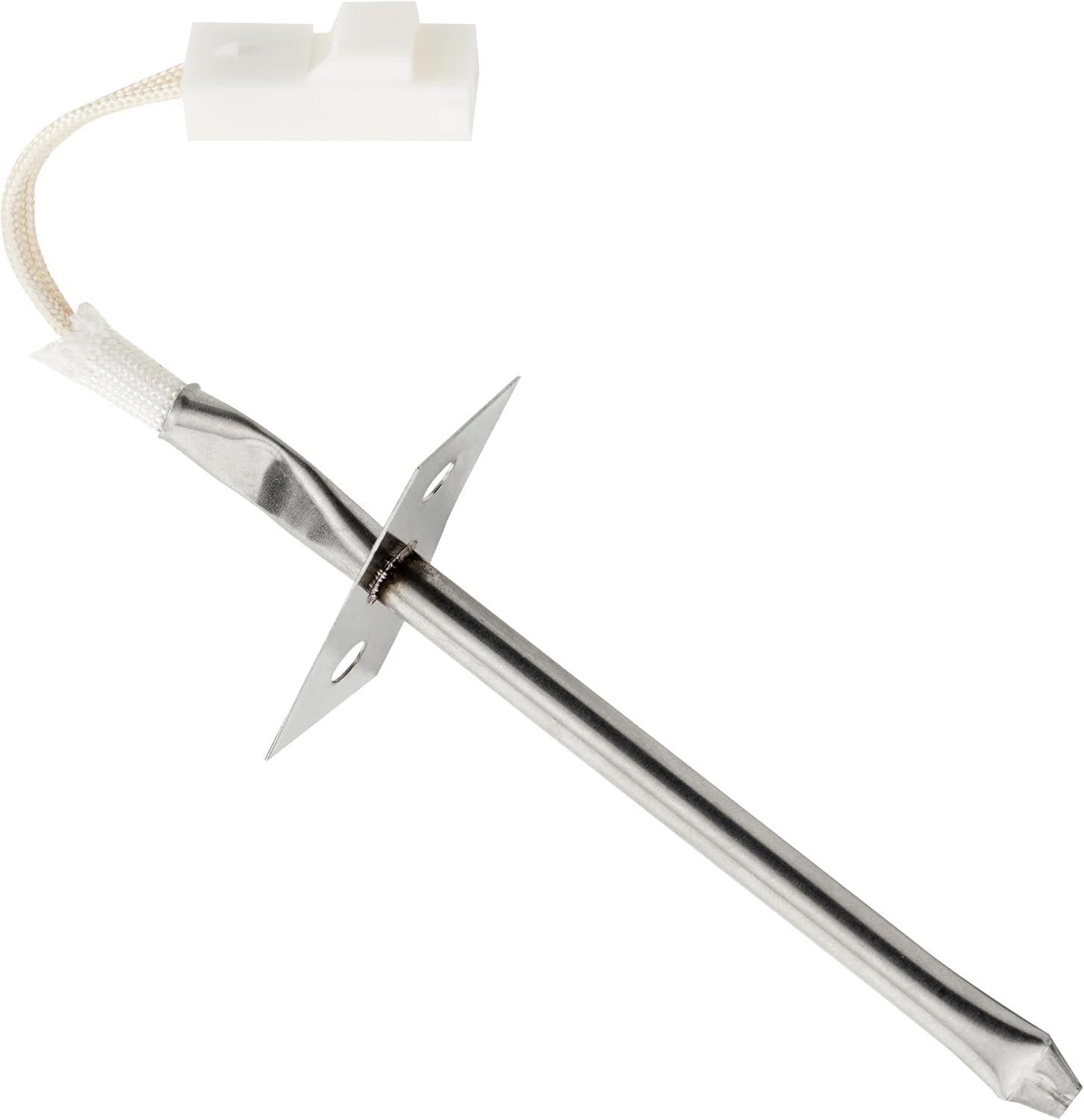

316233902 Oven Temperature Sensor

Key Features

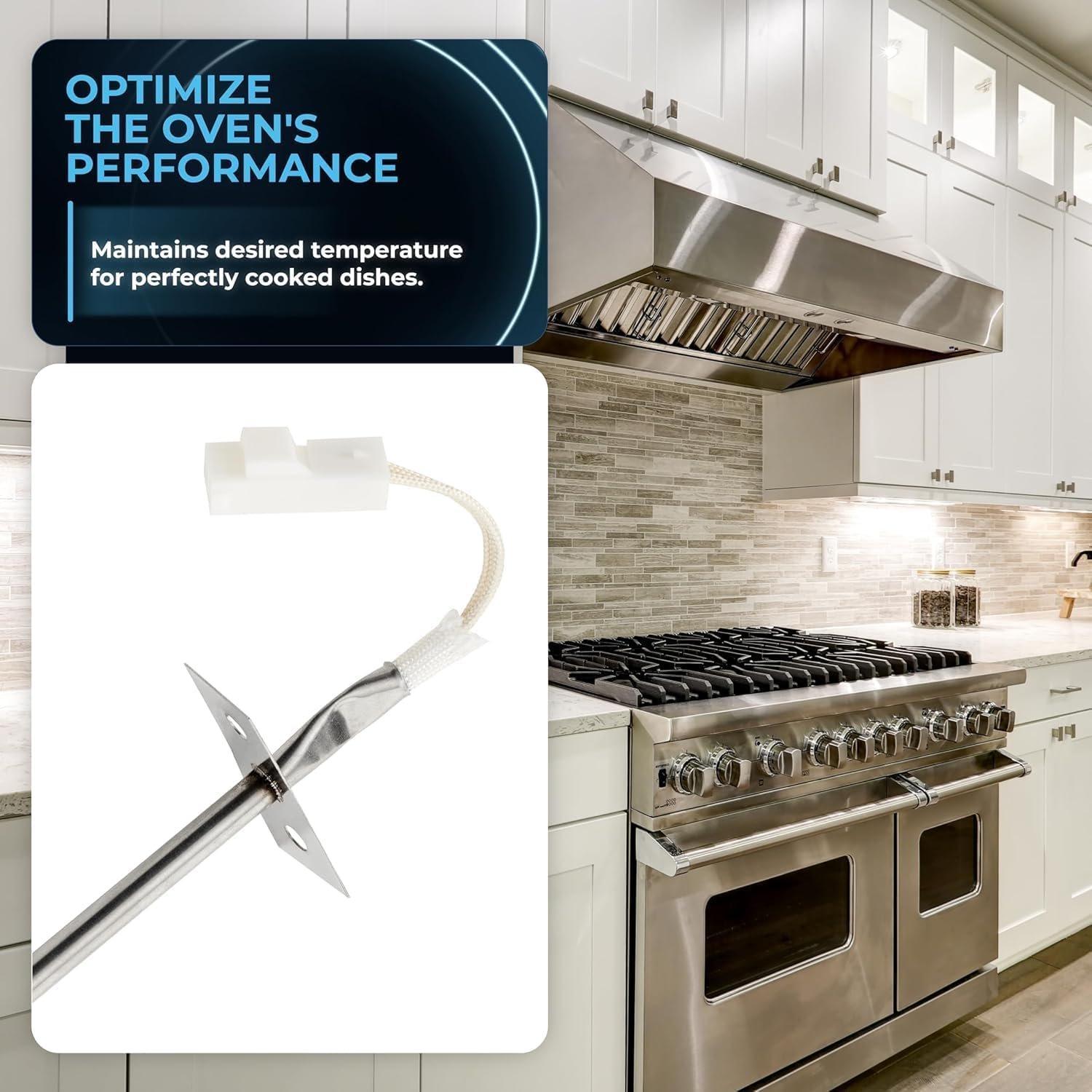

  • Monitors and helps regulate internal oven temperature for accurate cooking.

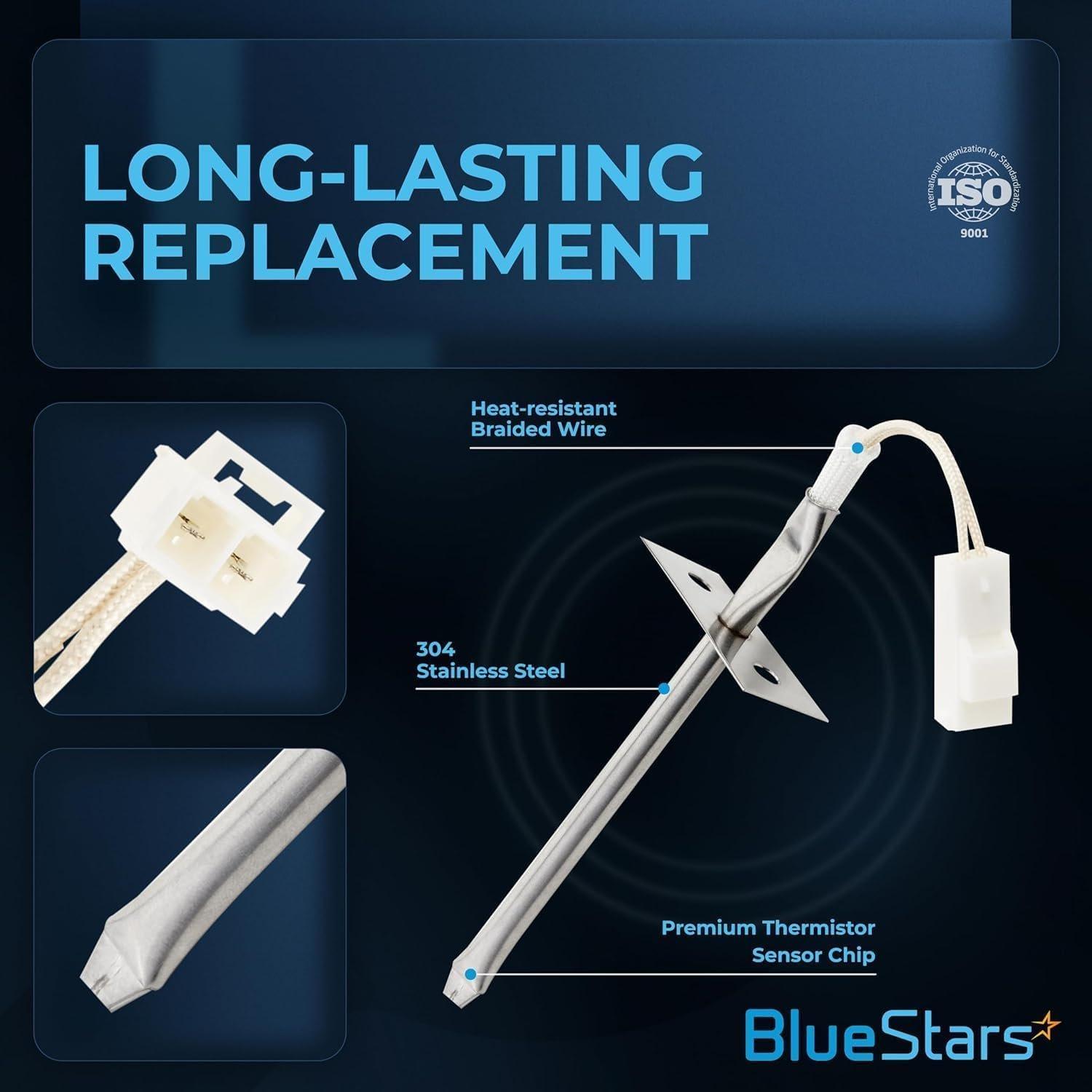

  • Durable stainless steel probe construction.
  • Overall length: 4.25 inches.
  • Probe length from tip to mounting bracket: 3.25 inches.
  • Mounting holes measure 1.0625 inches apart.
  • Features a two-prong wire harness connector for a secure fit.

Replaces / Cross-Reference Part Numbers

  • 316217008
  • 316233900
  • 316233903
  • SAP316233902

Compatibility & Fitment

  • Designed for a direct fit in various oven and range models.
  • Compatible with select Frigidaire, Electrolux, and Tappan appliances.
  • Confirm fitment by cross-referencing your appliance's model or original part number.

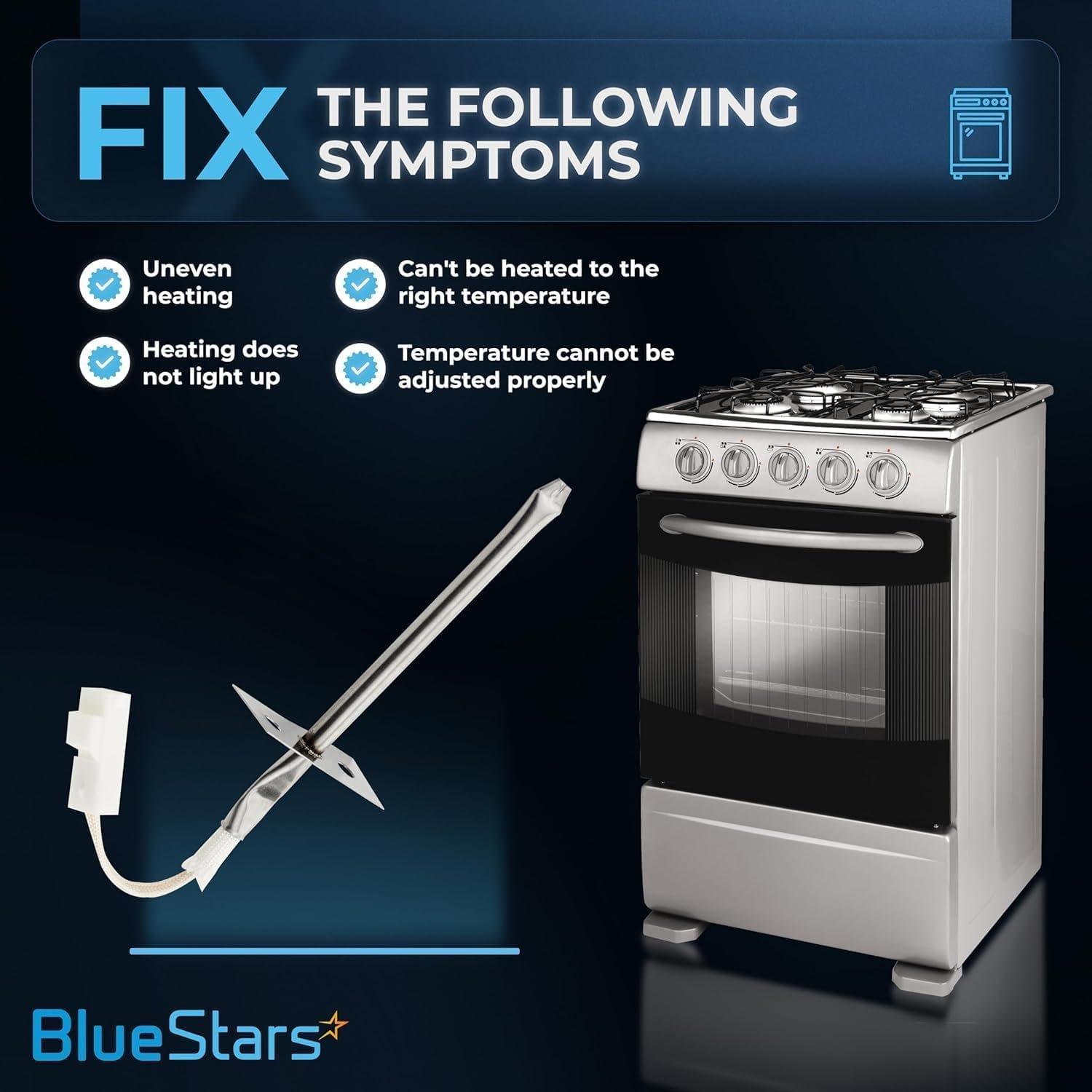

When to Replace

  • Oven temperature is inaccurate, either too hot or not hot enough.
  • Food cooks unevenly or takes longer than expected.
  • The oven displays a temperature sensor-related error code (e.g., F10, F11).
  • The self-cleaning cycle does not function correctly.

Installation Tips

  • Disconnect the range or oven from its power supply before beginning the repair.
  • Locate the sensor inside the oven cavity, typically on the upper rear wall.
  • Remove the mounting screws holding the old sensor in place.
  • Carefully pull the sensor and its wire connector through the back wall.
  • Disconnect the wiring harness, connect the new sensor, and reinstall.
Capacity
1 Centiliters

Wattage
1 watts

Material
Stainless Steel

Human Interface Input
Dial

Model Info
316233902

Part Number
316233902 Oven Temperature Sensor

Material Type
Stainless Steel

Batteries Included?
No

Item Model Number
316233902
