[Lifetime Warranty] Pack of 10 V-156-1C25 Micro Limit Switch Blade Momentary 250VAC/125VDC 15A Fit Arduino

Pack of 10 V-156-1C25 Micro Limit Switch Blade Momentary 250VAC/125VDC 15A Fit Arduino

Key Features

• Model: V-156-1C25

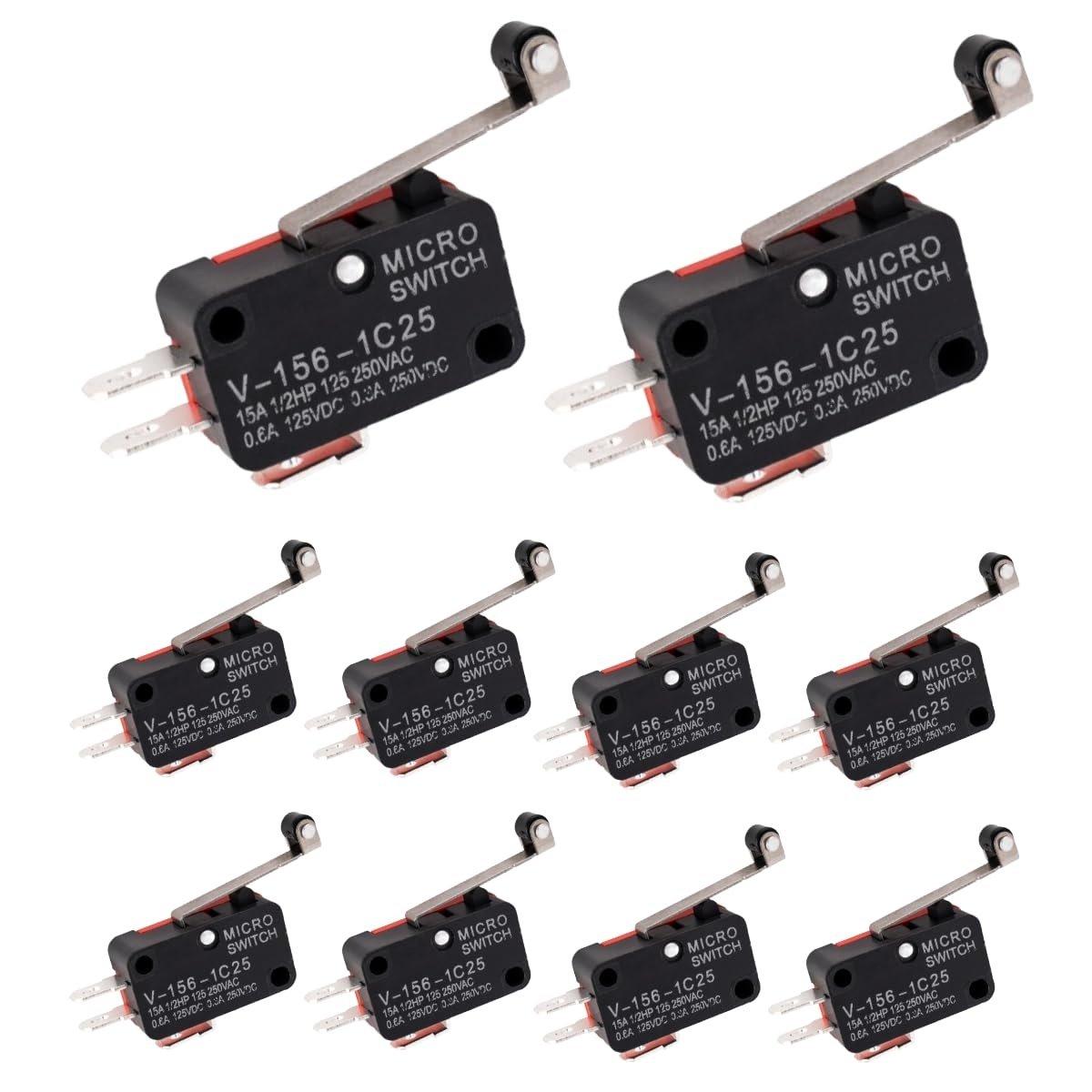

• Package Contents: 10 micro limit switches

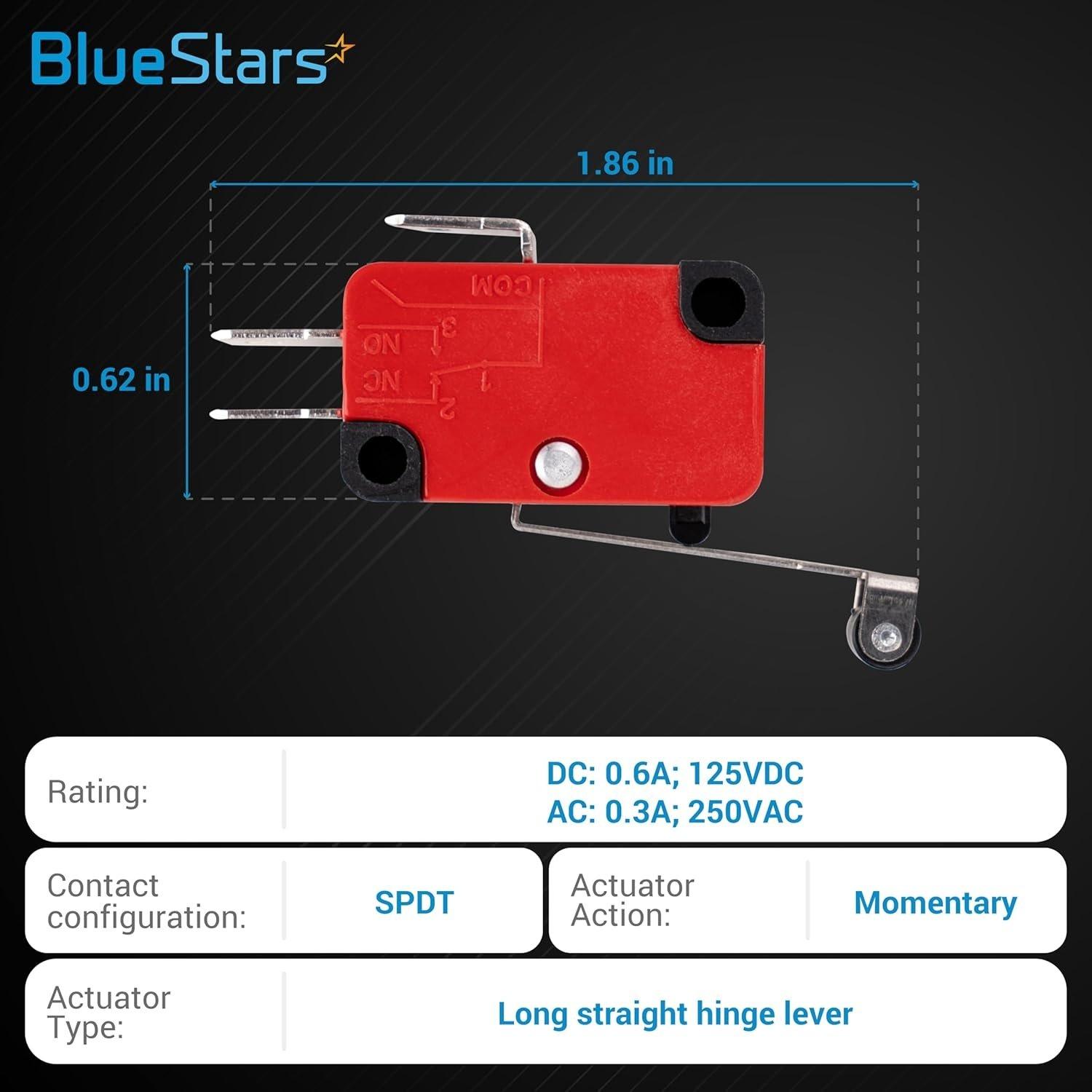

• Contact Configuration: SPDT (Single-Pole, Double-Throw)
• Switch Action: Momentary
• Actuator Type: Long hinge roller lever
• Terminal Count: 3 (Common, Normally Open, Normally Closed)
• AC Rating: 15A at 125/250VAC
• DC Rating: 0.5A at 125VDC; 0.25A at 250VDC

Replaces / Cross-Reference Part Numbers

• V-156-1C25

Compatibility & Fitment

• Designed for automation, appliances, and general electrical equipment
• Suitable for controlling the movement of mechanical parts in various systems
• Compatible with electronic development boards including Arduino, ESP32, ESP8266, and Raspberry Pi

When to Replace

• Switch fails to actuate or reset consistently
• Circuit remains open or closed regardless of actuator position
• Intermittent or unreliable electrical contact during operation
• Visible signs of physical damage, arcing, or corrosion

Installation Tips

• Disconnect power from the equipment before installation.
• Ensure the actuator is correctly aligned with the moving part it is intended to contact.

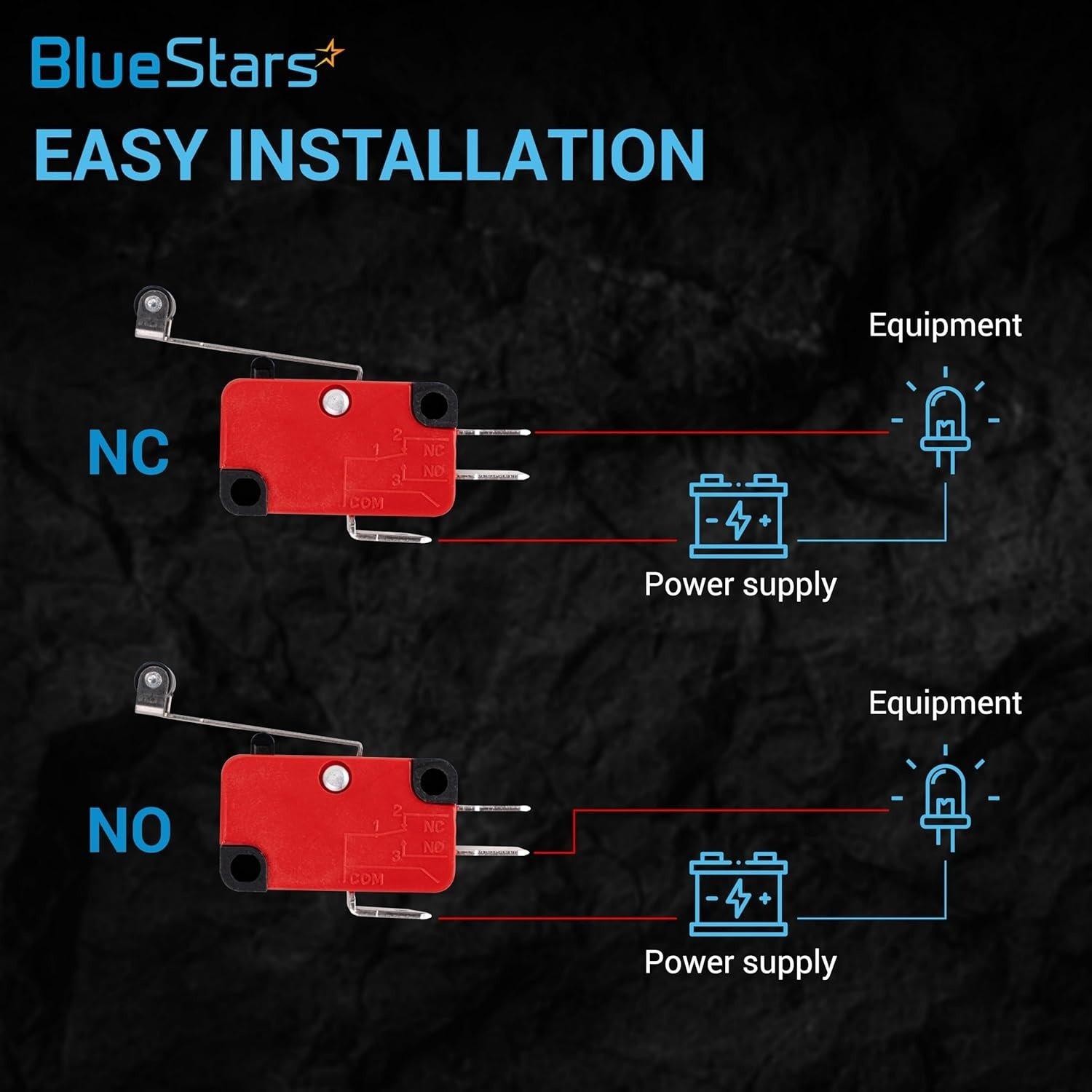

• Verify wiring to the Common (C), Normally Open (NO), and Normally Closed (NC) terminals based on circuit requirements.
• Operate the switch within its specified voltage and current ratings.
• Secure the switch body to a fixed surface to prevent movement.
