[Lifetime Warranty] 280148 Dryer Thermal Cut Off Kit - Includes 8557403 Thermostat & 8318314 Thermal Fuse - Compatible with Whirlpool Kenmore Maytag Dryers - Replaces 280148VP 1175772 AP3874047 PS991443

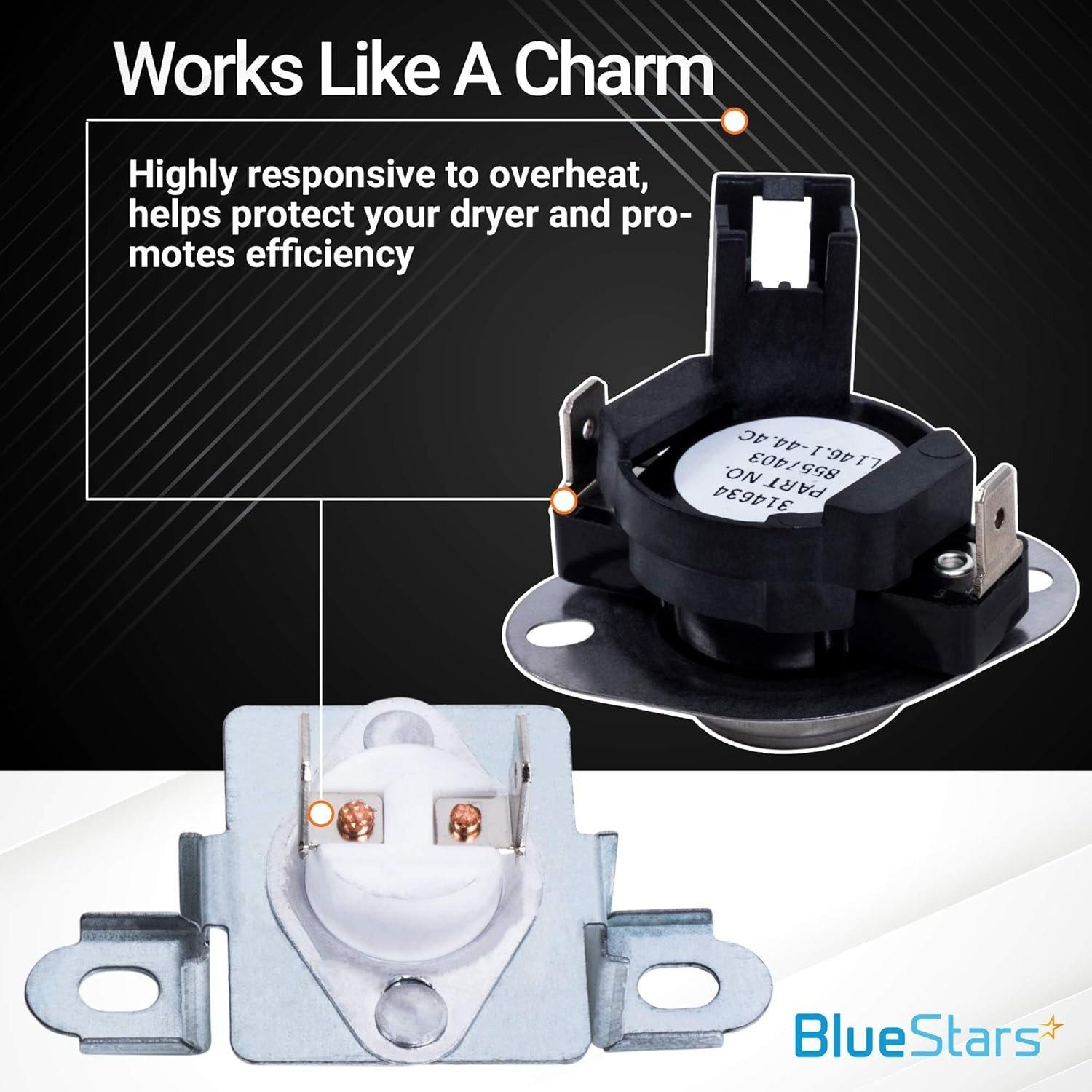

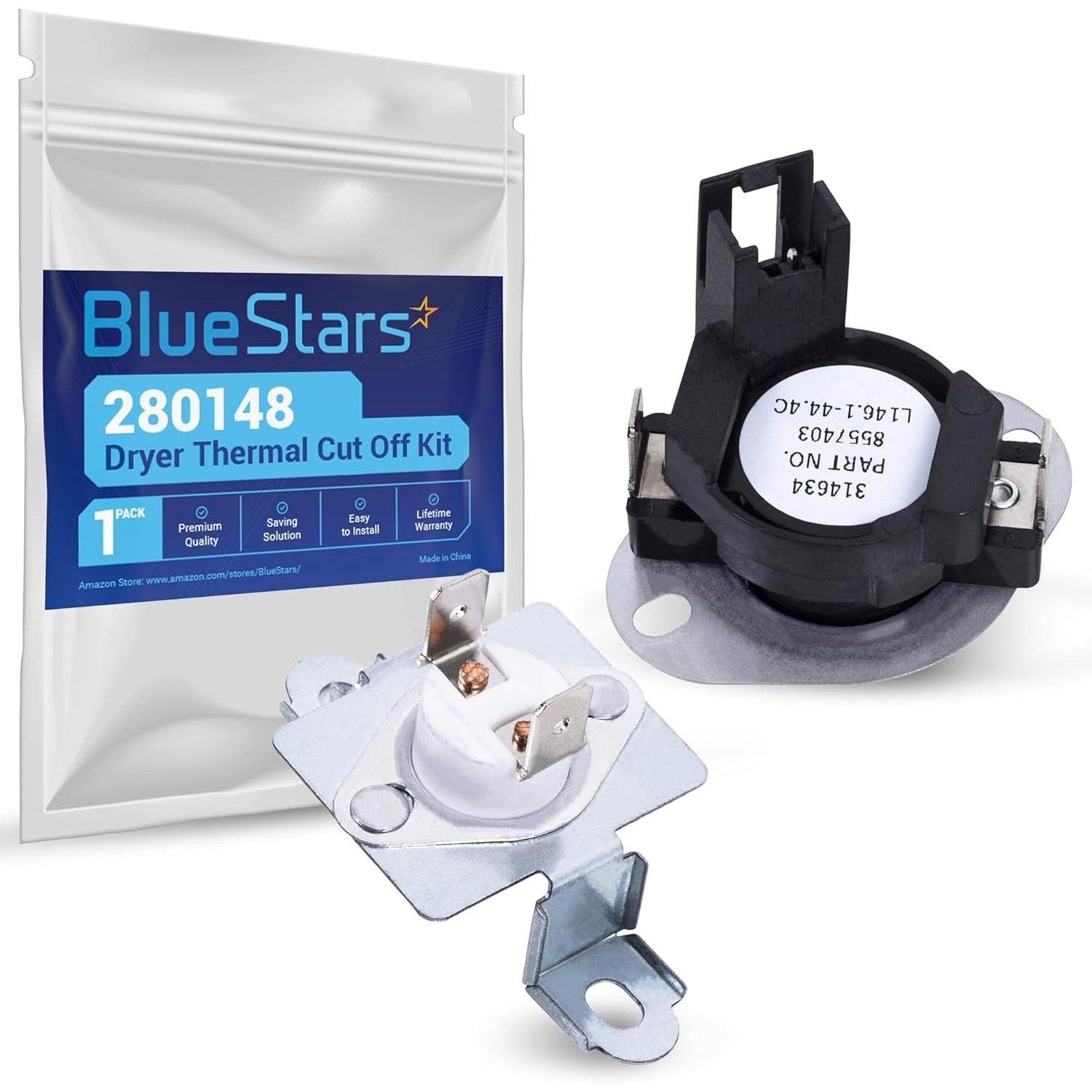

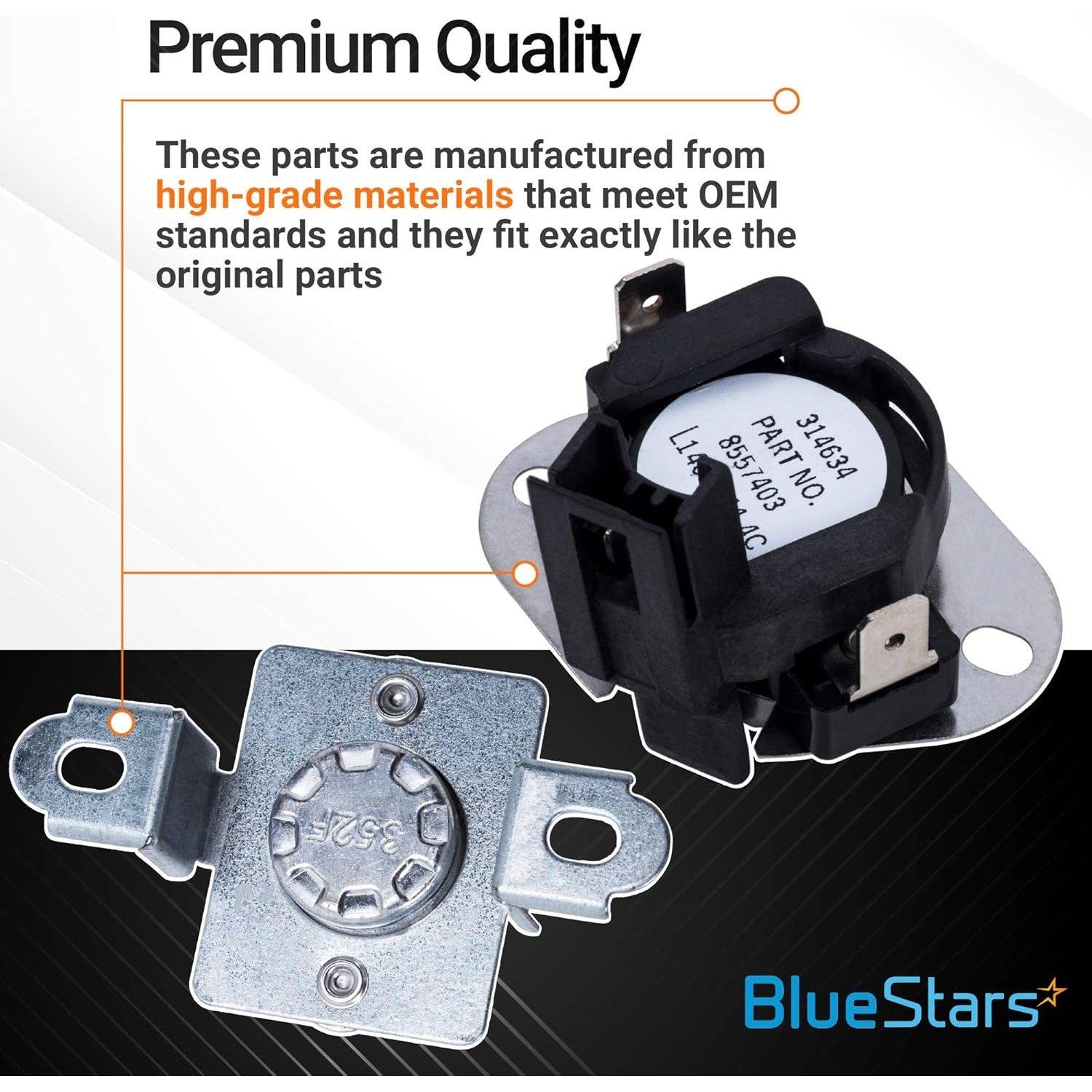

280148 Dryer Thermal Cut Off Replacement Kit Includes 8557403 Thermostat & 8318314 Thermal Fuse

Key Features

• Complete kit includes one high-limit thermostat and one thermal fuse.
• Part Number (Thermostat): 8557403
• Part Number (Thermal Fuse): 8318314
• Thermal fuse is a non-resettable, one-time safety device rated for 325°F.
• Prevents the dryer from overheating by interrupting the circuit at a set temperature.

Replaces / Cross-Reference Part Numbers

• 280148
• 1175772
• 280148CM
• 280148VP

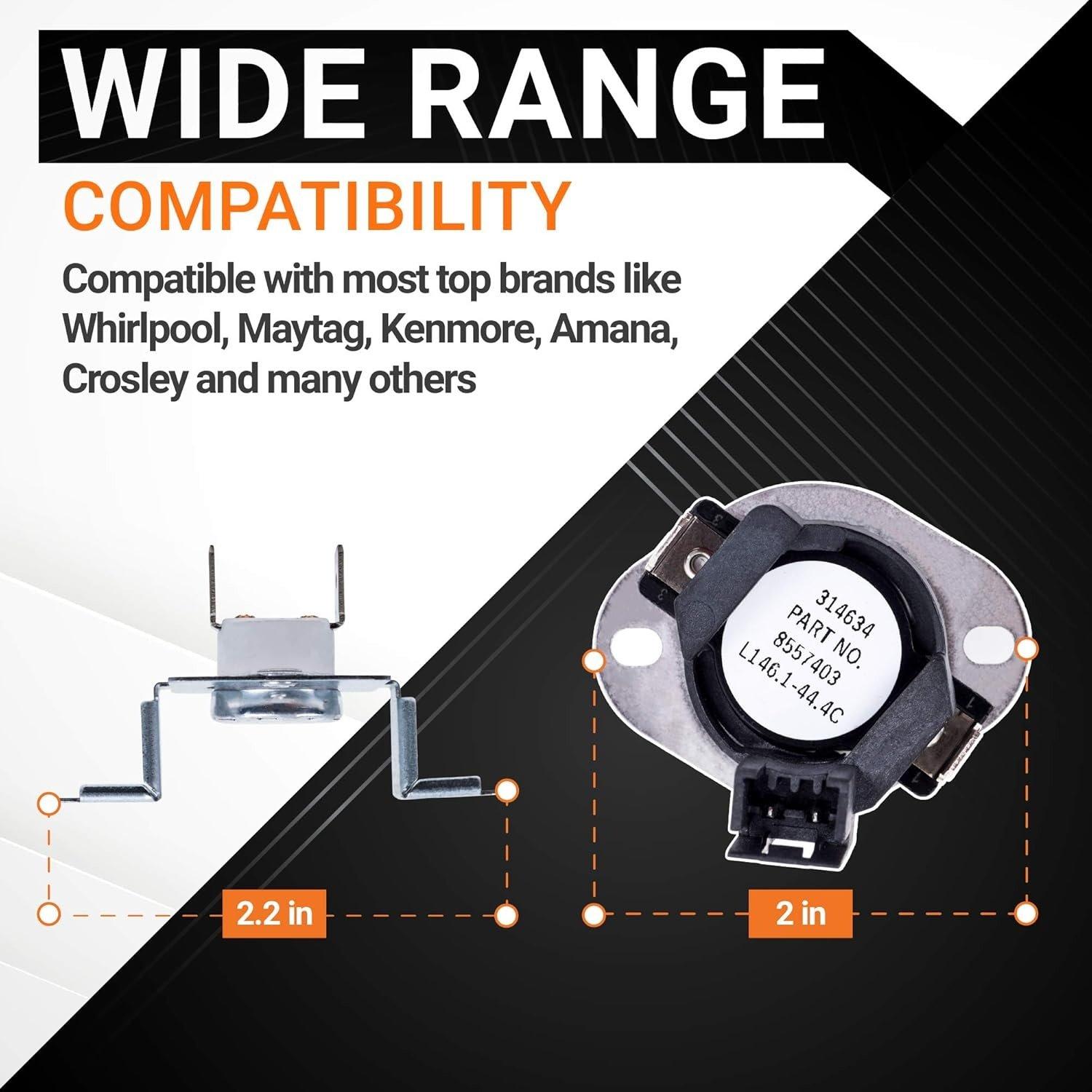

Compatibility & Fitment

• Designed for direct fitment in clothes dryers from numerous major brands.
• Compatible Brands Include:

When to Replace

• Dryer will not start.
• Dryer runs but produces no heat.
• Dryer shuts off prematurely during a cycle.
• Continuity test on existing fuse or thermostat fails.

Installation Tips

• Disconnect the dryer from its power source before starting the installation.
• A blown thermal fuse often indicates a vent blockage. Thoroughly clean the dryer's lint screen, trap, and entire exhaust vent system before replacing the part.
• Use a multimeter to verify the existing fuse or thermostat is faulty before replacing.
• Ensure all wire connections are secure upon installation of the new components.
