[Lifetime Warranty] 710-0890 Shear Pins and Nuts - Pack of 10

10 Pcs 710-0890 Shear Pins and Nuts - Replaces 710-0890A 910-0890 910-0890A (1-1/2" x 5/16")

Key Features

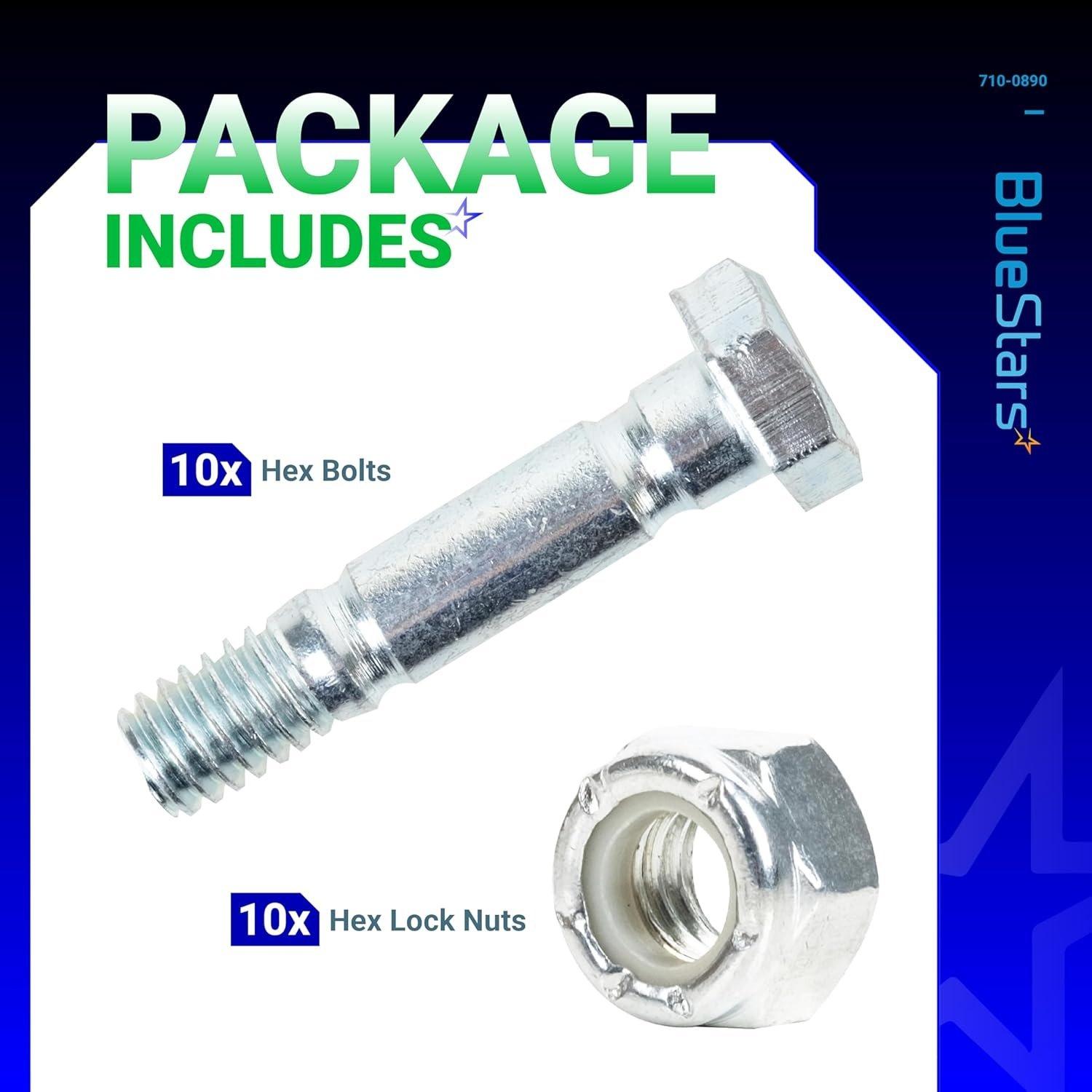

• Package includes: 10 shear pins and 10 nuts

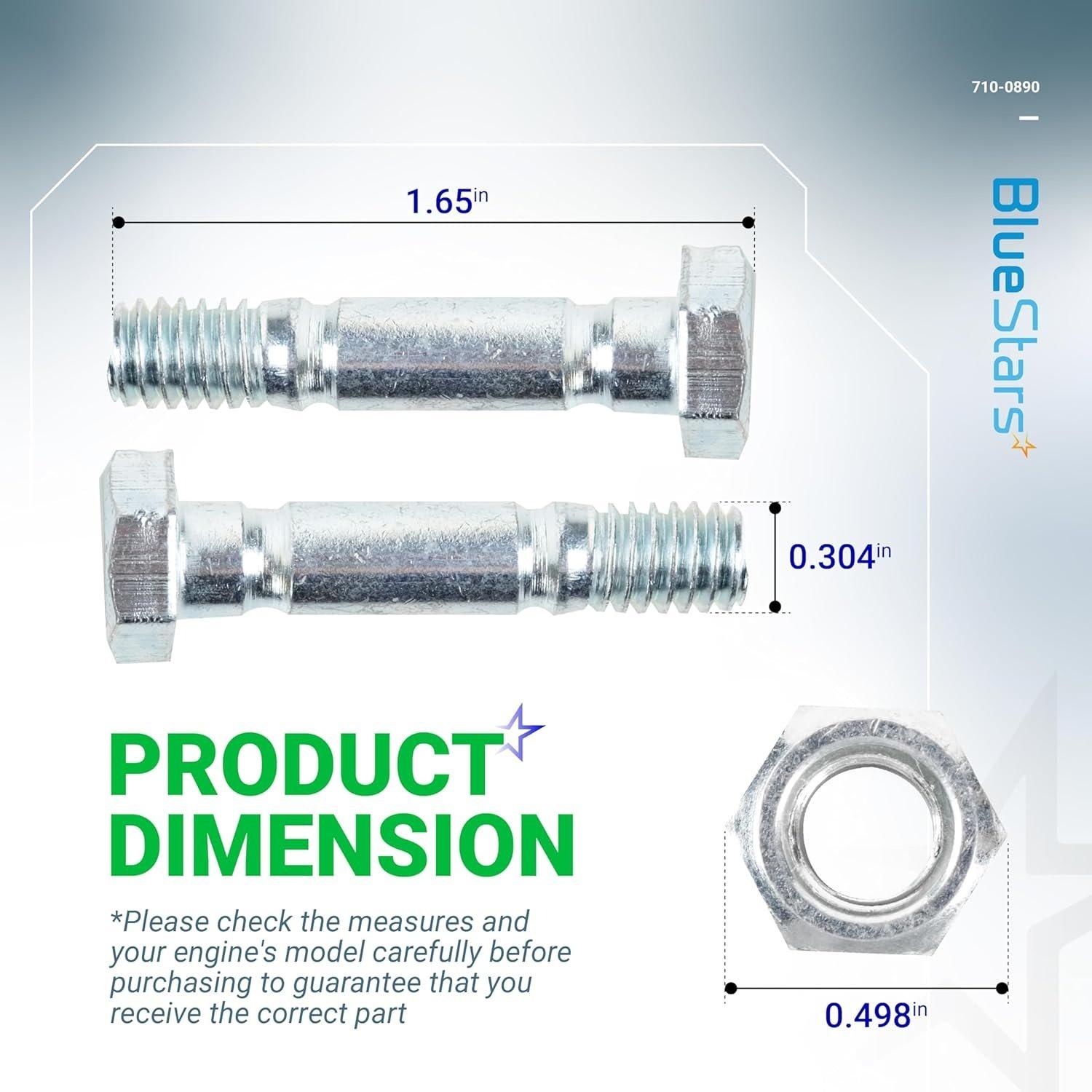

• Dimensions: 1-1/2 inch length x 5/16 inch diameter

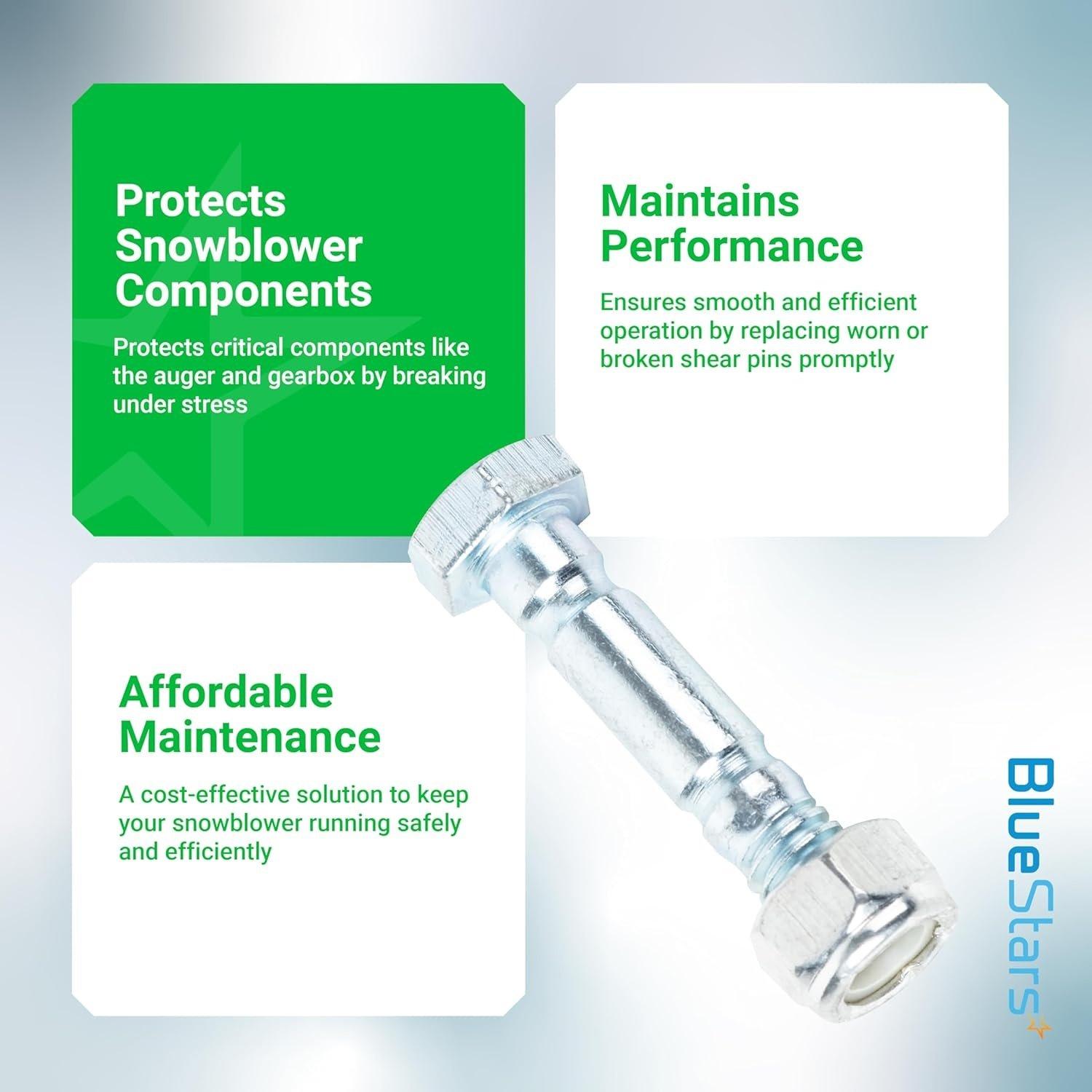

• Function: Designed to break under excessive stress to protect the auger gearbox and engine from damage
• Fits various two-stage snowblowers and snow throwers

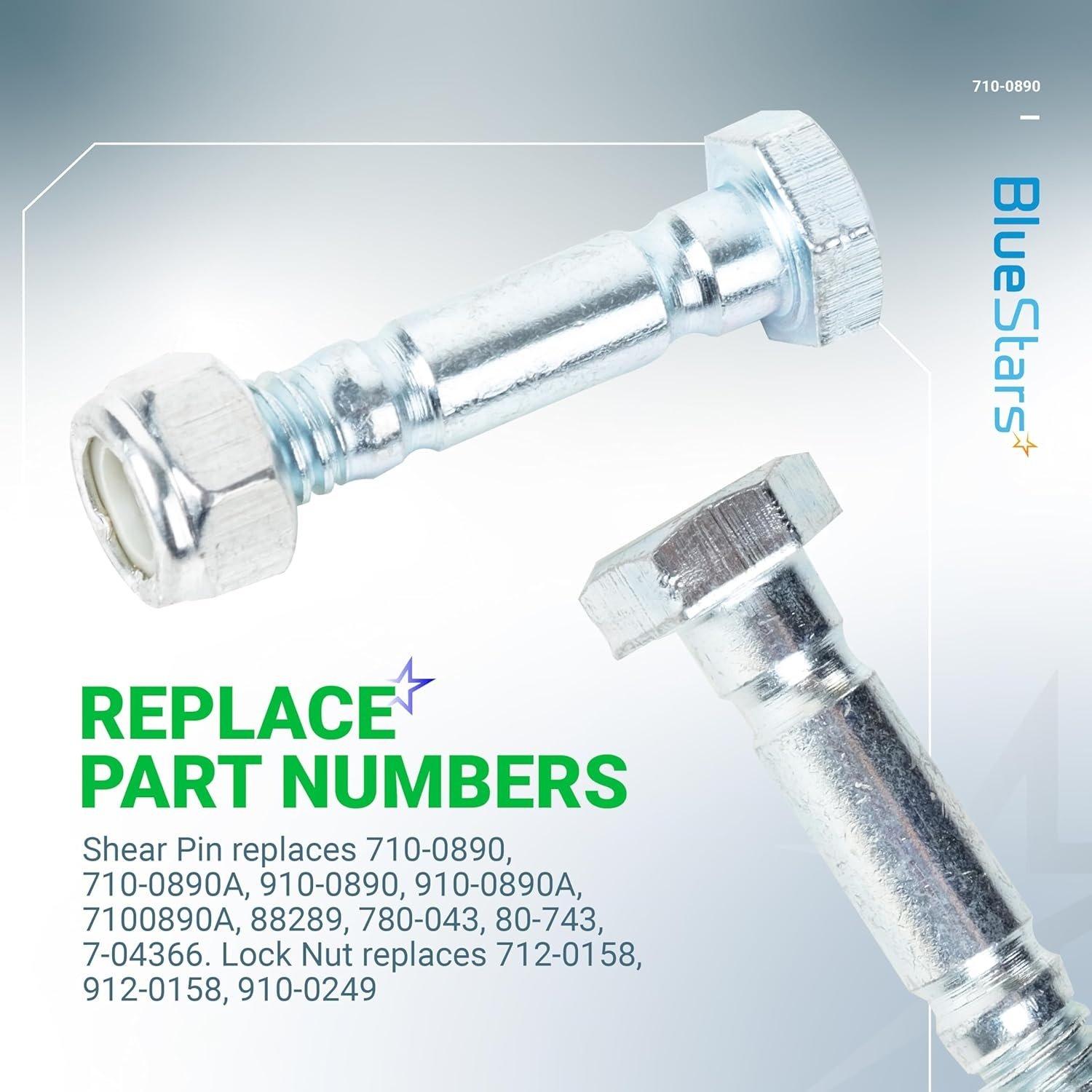

Replaces / Cross-Reference Part Numbers

• 710-0890
• 710-0890A
• 910-0890
• 910-0890A

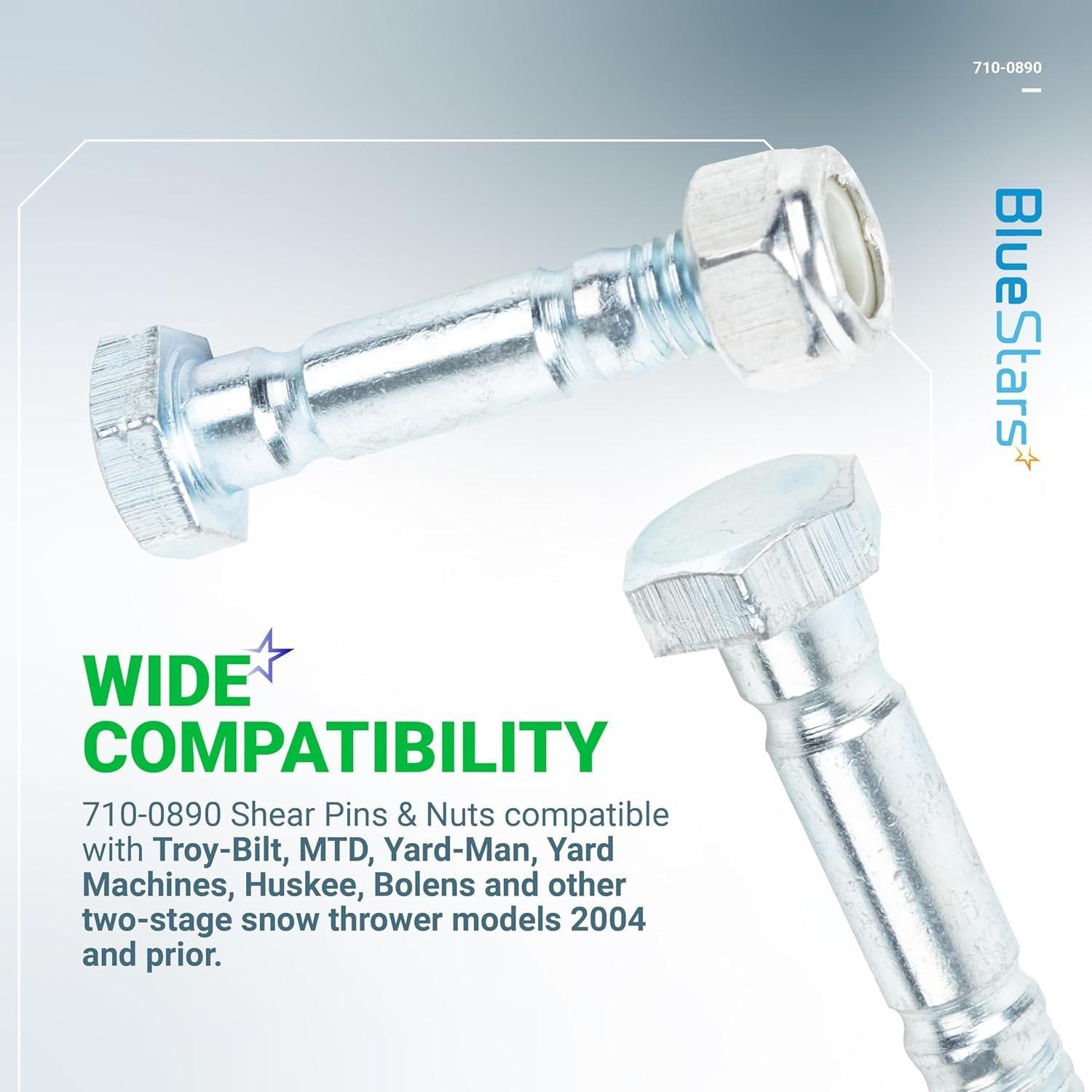

Compatibility & Fitment

• Brands: Fits MTD, Craftsman, Troy-Bilt, and other MTD-manufactured models
• Equipment Type: Two-stage snowblowers and snow throwers requiring a 1-1/2" x 5/16" shear pin
• Note: Always verify the part number for your specific model before ordering

When to Replace

• After the auger strikes a hard object like a rock, ice chunk, or curb, causing the original pin to shear
• When the augers will not turn while the engine is running
• If the existing pins are bent, heavily rusted, or show signs of wear during seasonal inspection

Installation Tips

• Safety first: Disconnect the spark plug wire before performing any maintenance
• Align the hole in the auger shaft with the hole in the gearbox shaft
• Insert the new shear pin through both aligned holes
• Secure the pin in place with the corresponding nut
• Use only the correct shear pin replacement to ensure proper equipment protection
