[Lifetime Warranty] W10648041 Dishwasher Water Inlet Valve with Elbow Fitting - Compatible with Whirlpool Kenmore KitchenAid Dishwashers - Replaces W10195048 AP5802887 W10219505 PS8760080

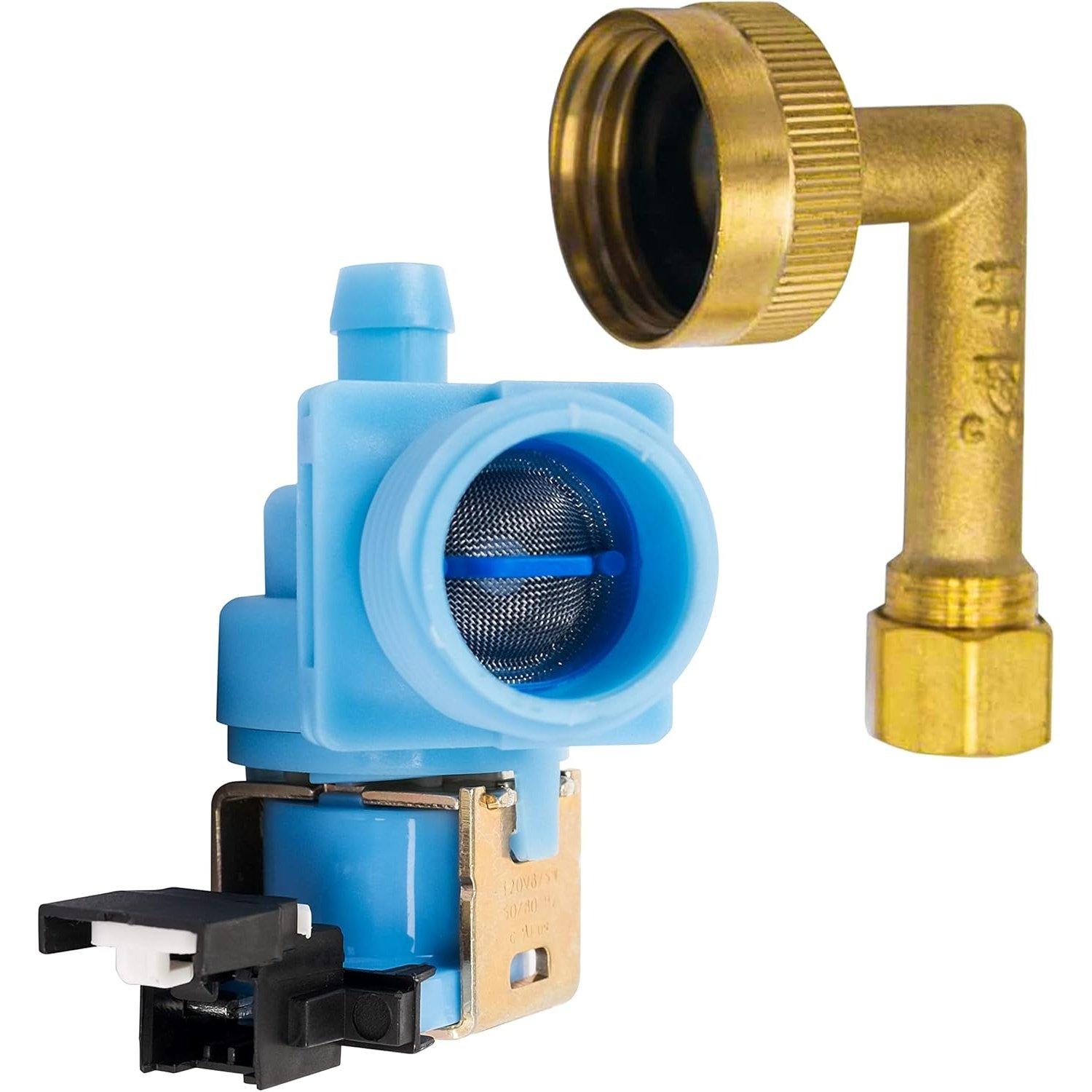

W10648041 Dishwasher Water Inlet Valve with Elbow Fitting

Key Features

• Controls the flow of water into the dishwasher tub.
• Redesigned to mount directly to the dishwasher frame without a bracket.

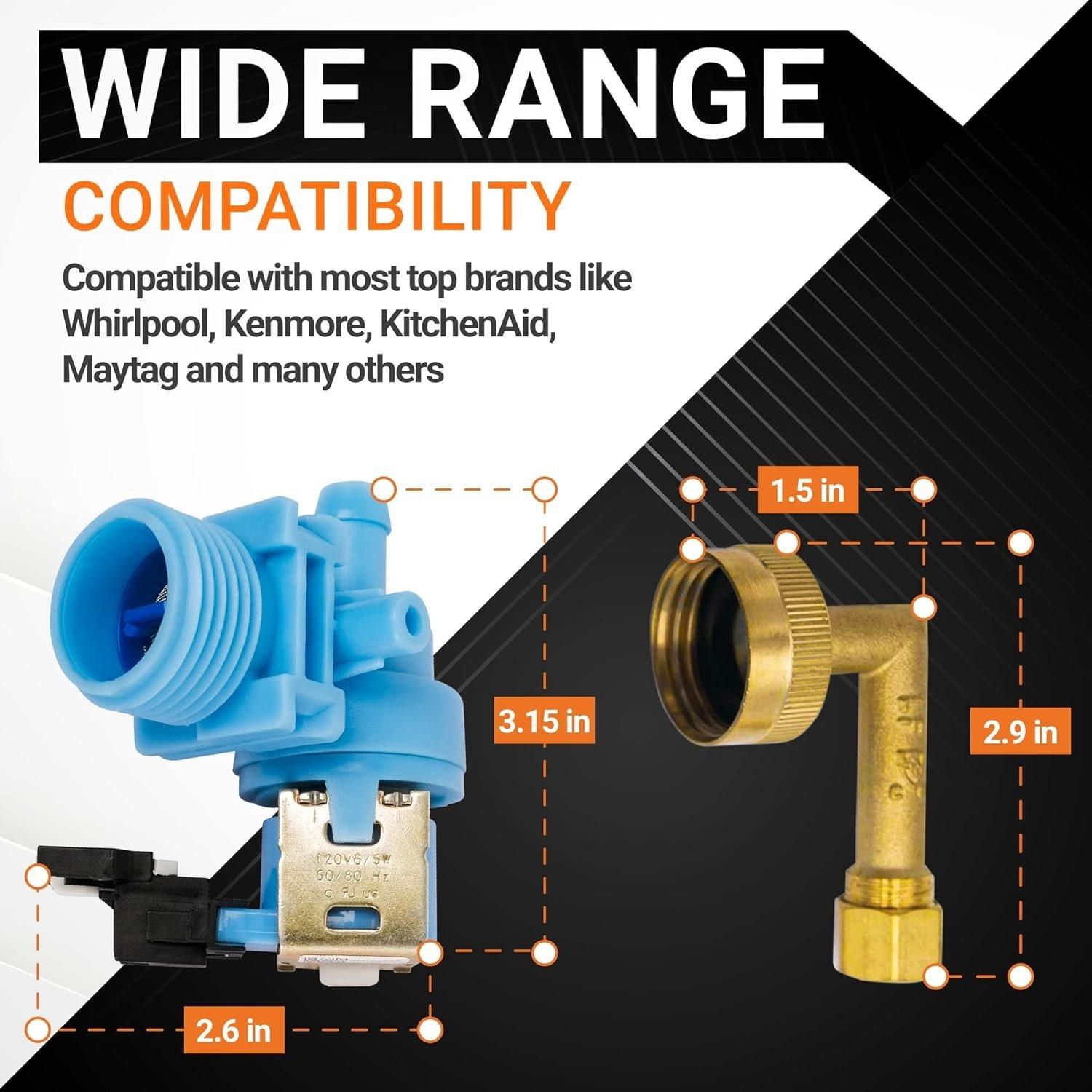

• Includes a 90-degree brass elbow fitting for the water supply line.
• Fitting connects a 3/4 inch garden hose thread (GHT) to a 3/8 inch compression line.

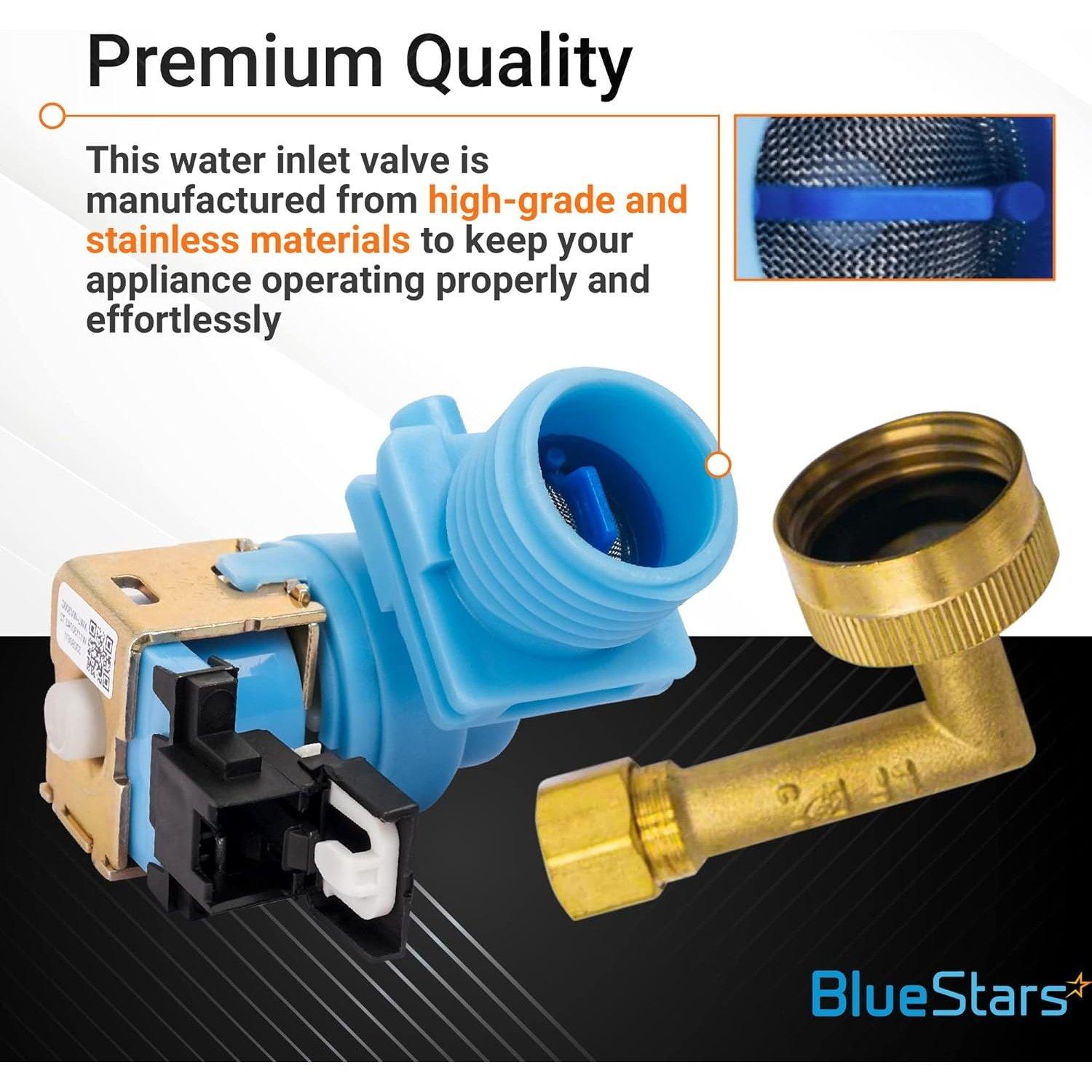

• Constructed with a plastic valve body and an electric solenoid.

Replaces / Cross-Reference Part Numbers

• W10195047
• W10327249
• W10327250
• W10448842
• W10522625
• W10632082
• W10865472
• AP5956364
• PS10064571

Compatibility & Fitment

• Designed for use with select dishwasher models from brands including Whirlpool, Kenmore, KitchenAid, and Maytag.
• Verify fitment with your specific model number before ordering.

When to Replace

• Dishwasher fails to fill with water.
• Dishwasher leaks from the valve area.
• Dishwasher overfills or fills continuously.
• Loud humming or buzzing noise during the fill cycle.

Installation Tips

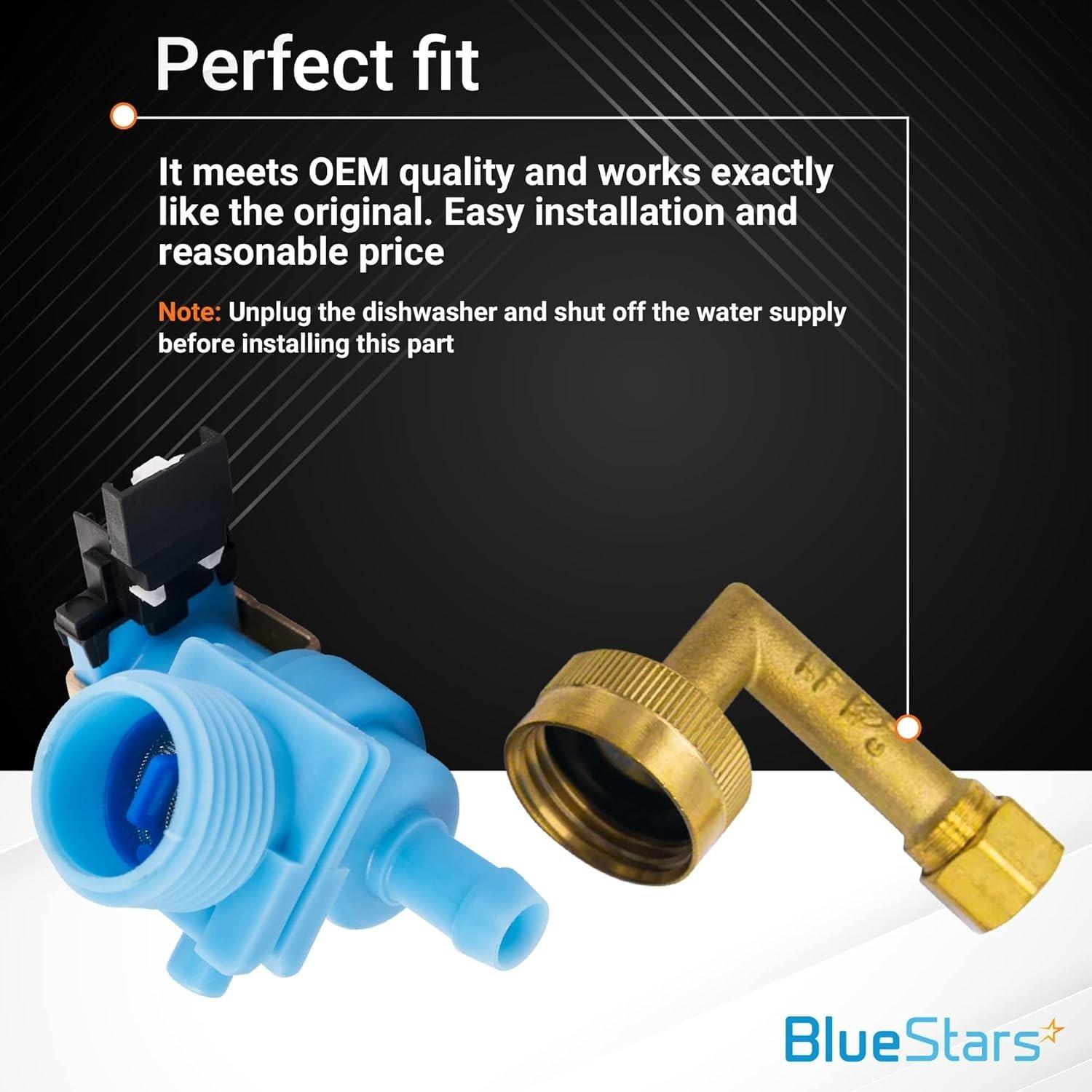

• Disconnect the dishwasher from power and water sources before beginning installation.
• Place a towel under the valve to catch any residual water.
• Use channel-lock pliers to disconnect the water supply hose from the existing valve.
• Ensure the new valve is securely mounted and all hose connections are tight to prevent leaks.
• After installation, reconnect power and water, then run a test cycle to check for proper operation and leaks.
