[Lifetime Warranty] DG94-00520AA Gas Range Oven Igniter

DG94-00520AA Gas Range Oven Igniter

Key Features

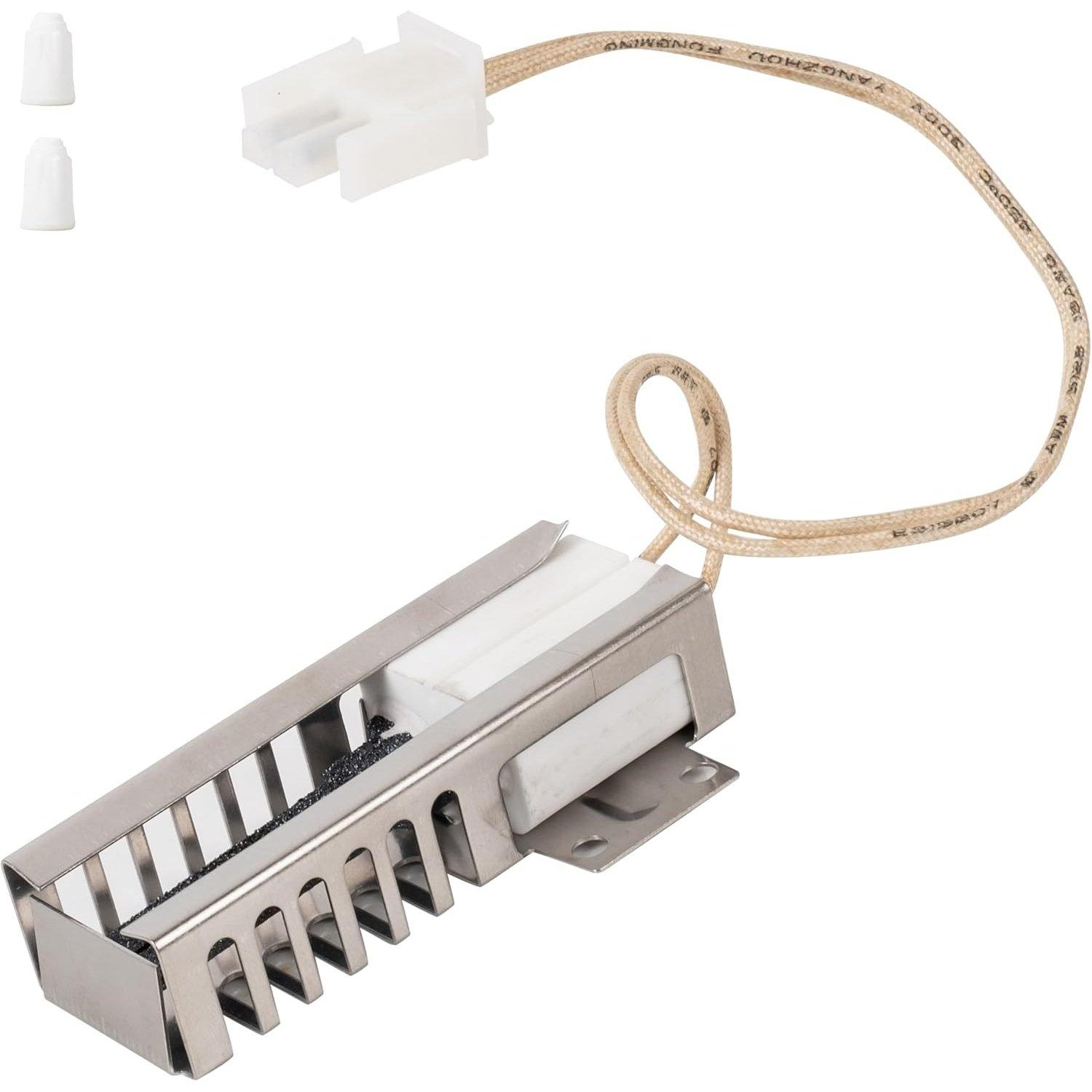

• Direct replacement igniter for gas range ovens
• Draws current to open the safety valve and ignite the gas burner
• Features a 1.25-inch ceramic bar
• Includes an attached two-prong wire harness connector
• Mounting bracket includes two holes for installation
• Wire leads are approximately 8 inches long

Replaces / Cross-Reference Part Numbers

• DG94-00520A
• WB13K21
• 501A

Compatibility & Fitment

• Designed for use in select Samsung brand gas ranges
• Confirm fitment by cross-referencing the part number from your appliance's manual or original component

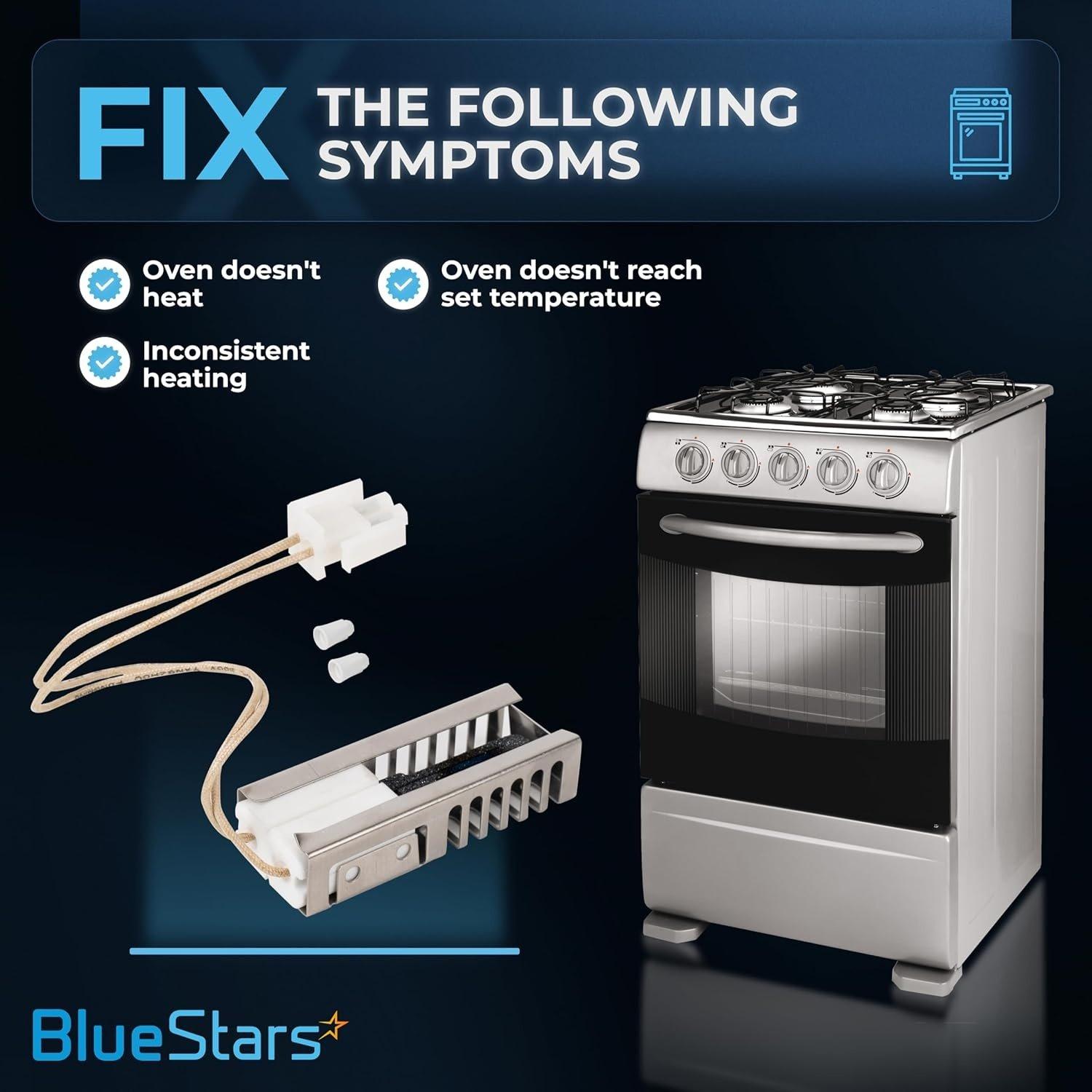

When to Replace

• Oven fails to heat or heats inconsistently
• Igniter glows, but the gas burner does not light
• The oven takes an excessively long time to preheat
• Igniter does not glow at all
• Bake or broil function has stopped working while the other still operates

Installation Tips

• Disconnect the range from both power and gas supplies before starting installation
• The ceramic igniter element is fragile and can be damaged by impact or oils from your skin
• Handle the new igniter by its metal cage or ceramic base only
• Ensure all electrical and mounting connections are secure before restoring power and gas
