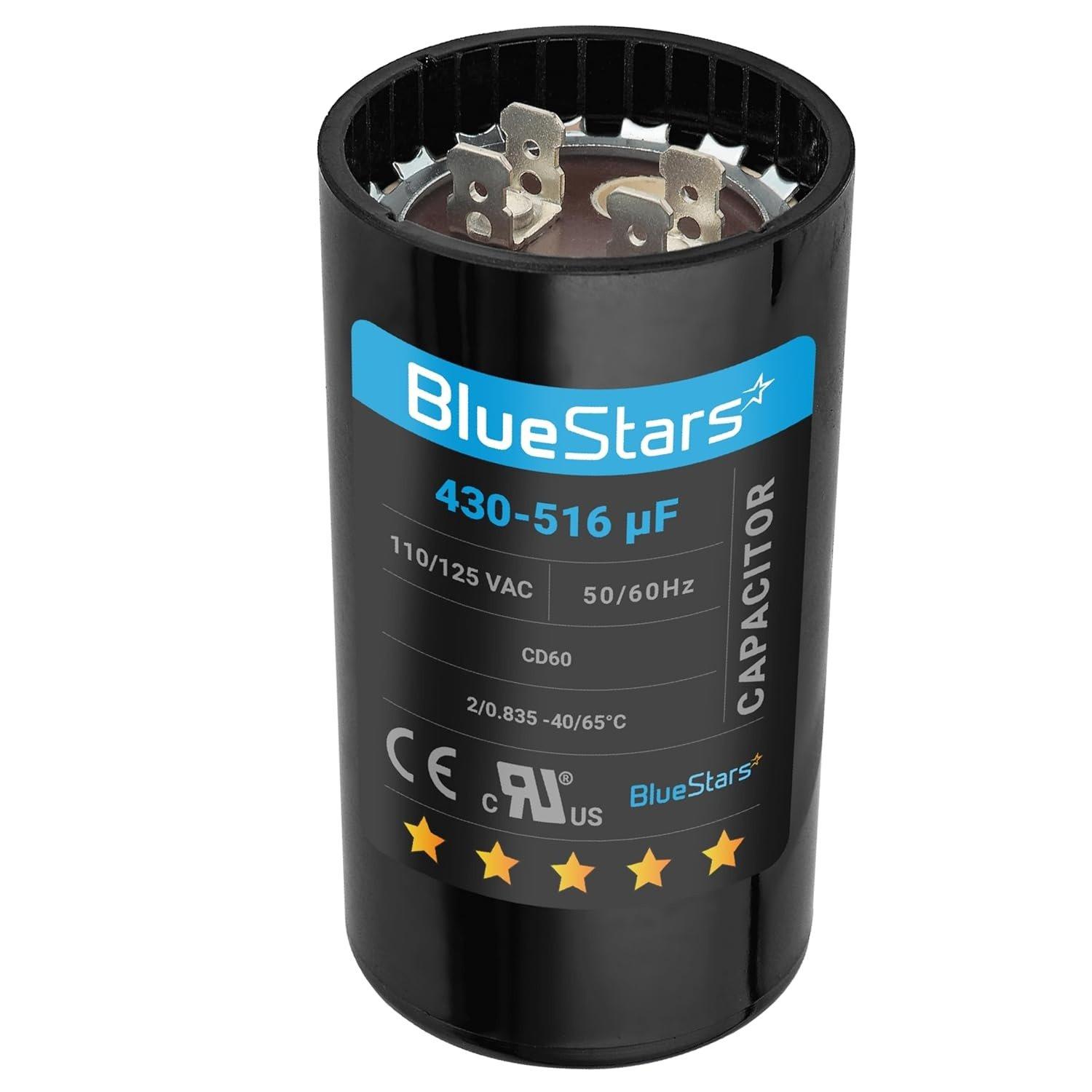

[Lifetime Warranty] 430-516 uF MFD 110-125 VAC ±20% 50/60 Hz Round Start Capacitor - Fits Single-Phase Electric Motors

430-516 uf/MFD 110-125 VAC ±20% Volts Round Start Capacitor 50/60 Hz AC Electric

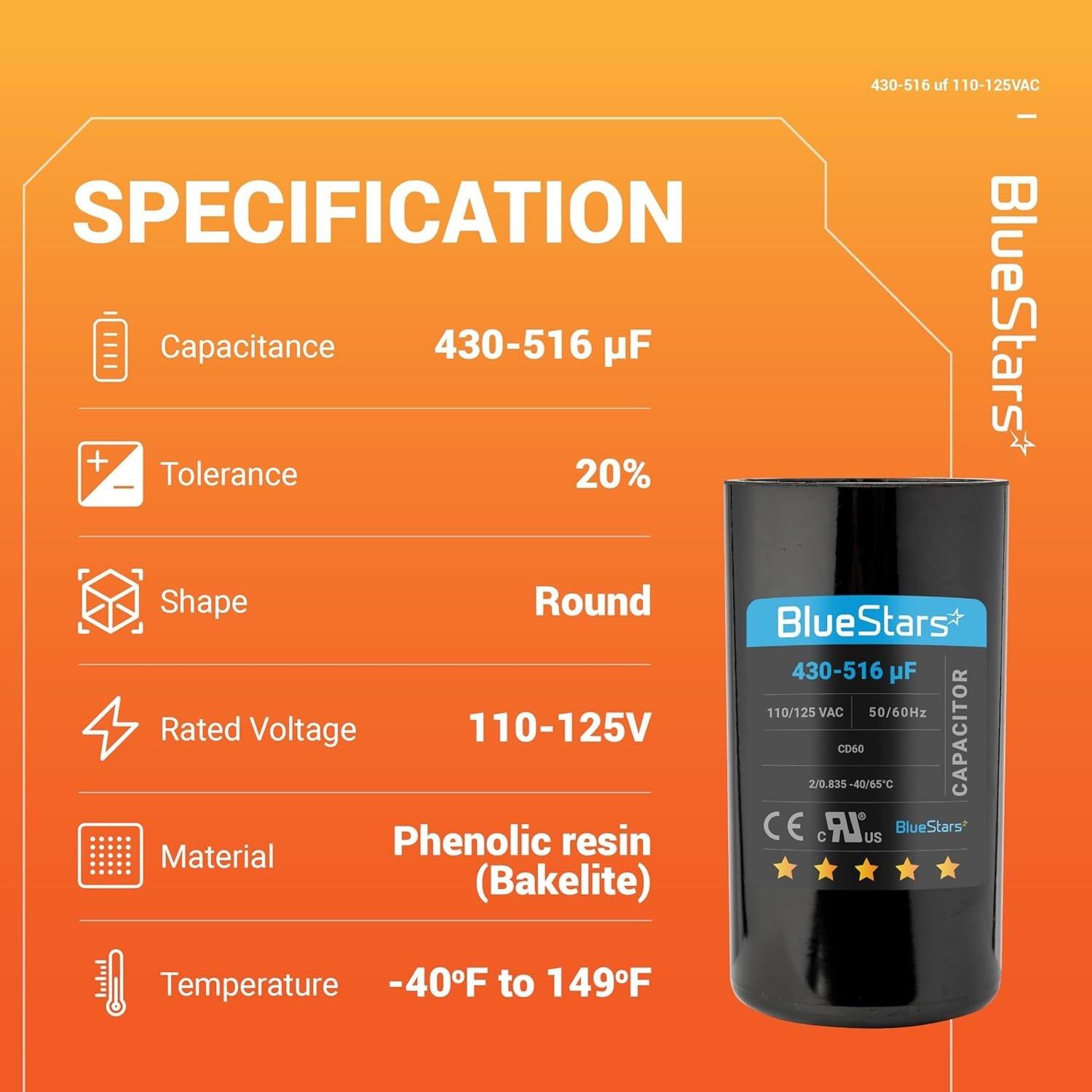

Key Features

• Capacitance: 430-516 uF/MFD
• Voltage Rating: 110-125 VAC
• Frequency: 50/60 Hz
• Tolerance: ±20%
• Operating Temperature Range: -40°C to +65°C (-40°F to +149°F)
• Shape: Round

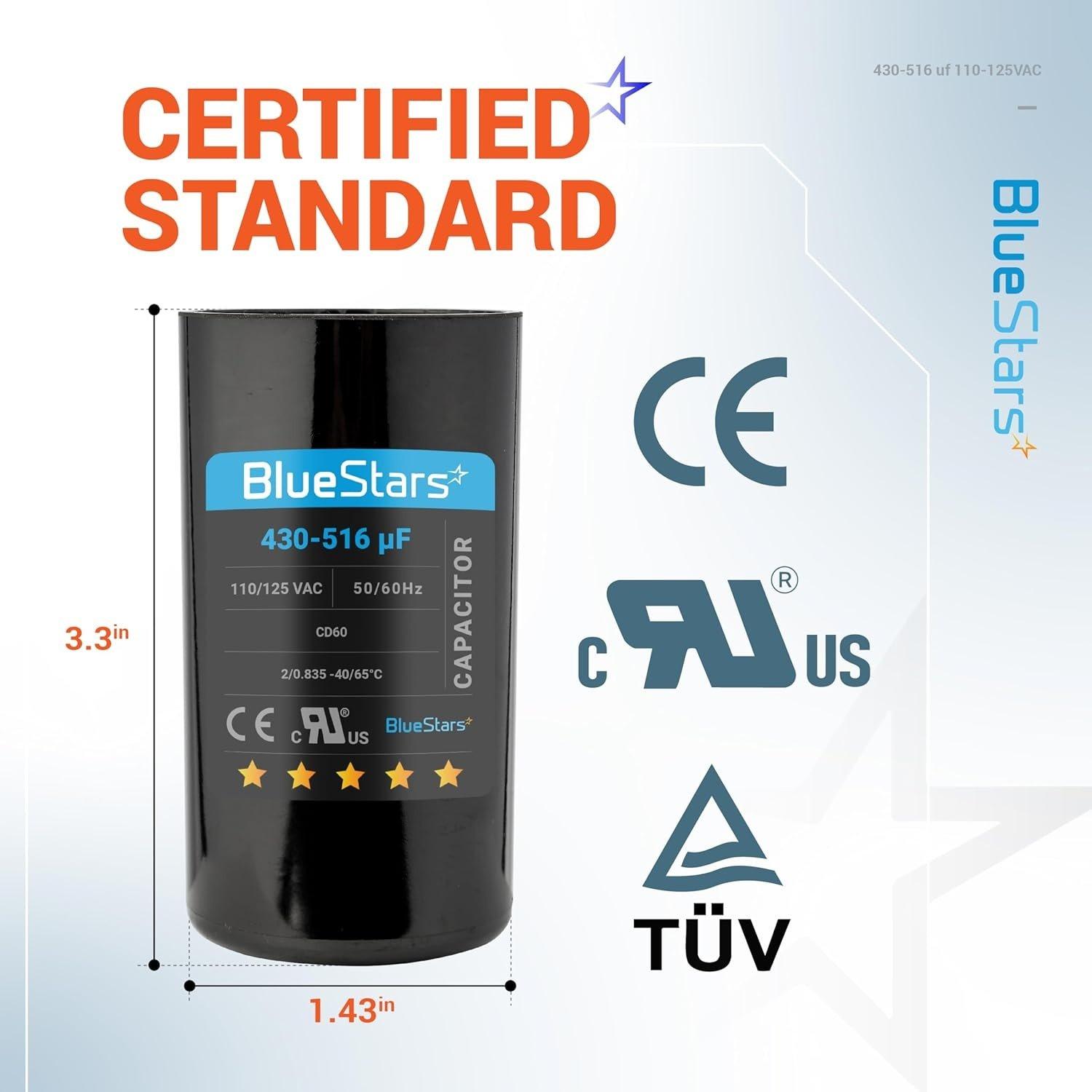

• Dimensions (Diameter x Height): 1.43 in x 3.3 in (36mm x 85mm)
• Terminals: 1/4 inch male quick-connect

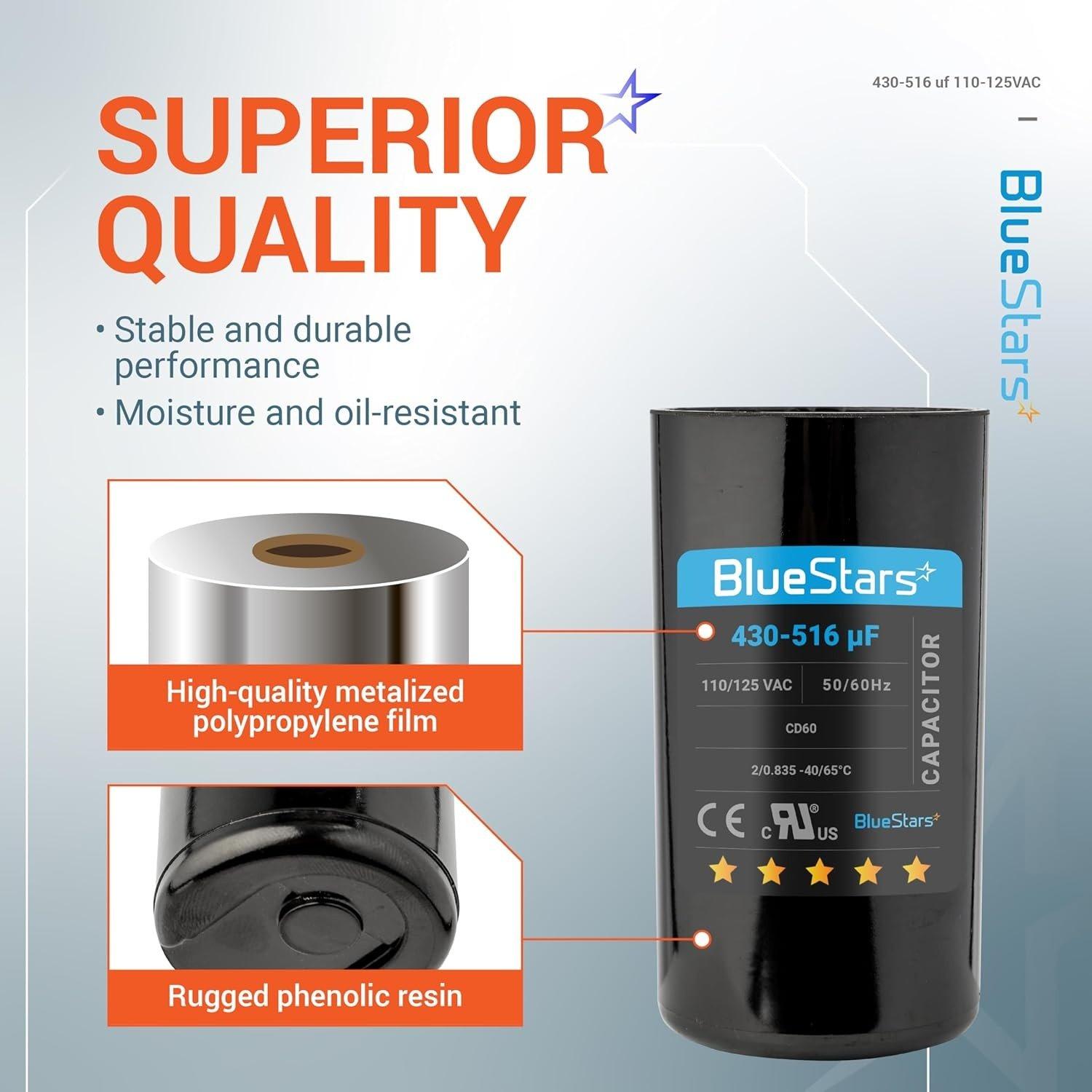

• Housing: Moisture and oil-resistant case

Replaces / Cross-Reference Part Numbers

• Replaces any round start capacitor with the same capacitance range and voltage rating. Verify that the physical dimensions are compatible with your application.

Compatibility & Fitment

• Designed for intermittent duty in single-phase AC motor starting circuits.

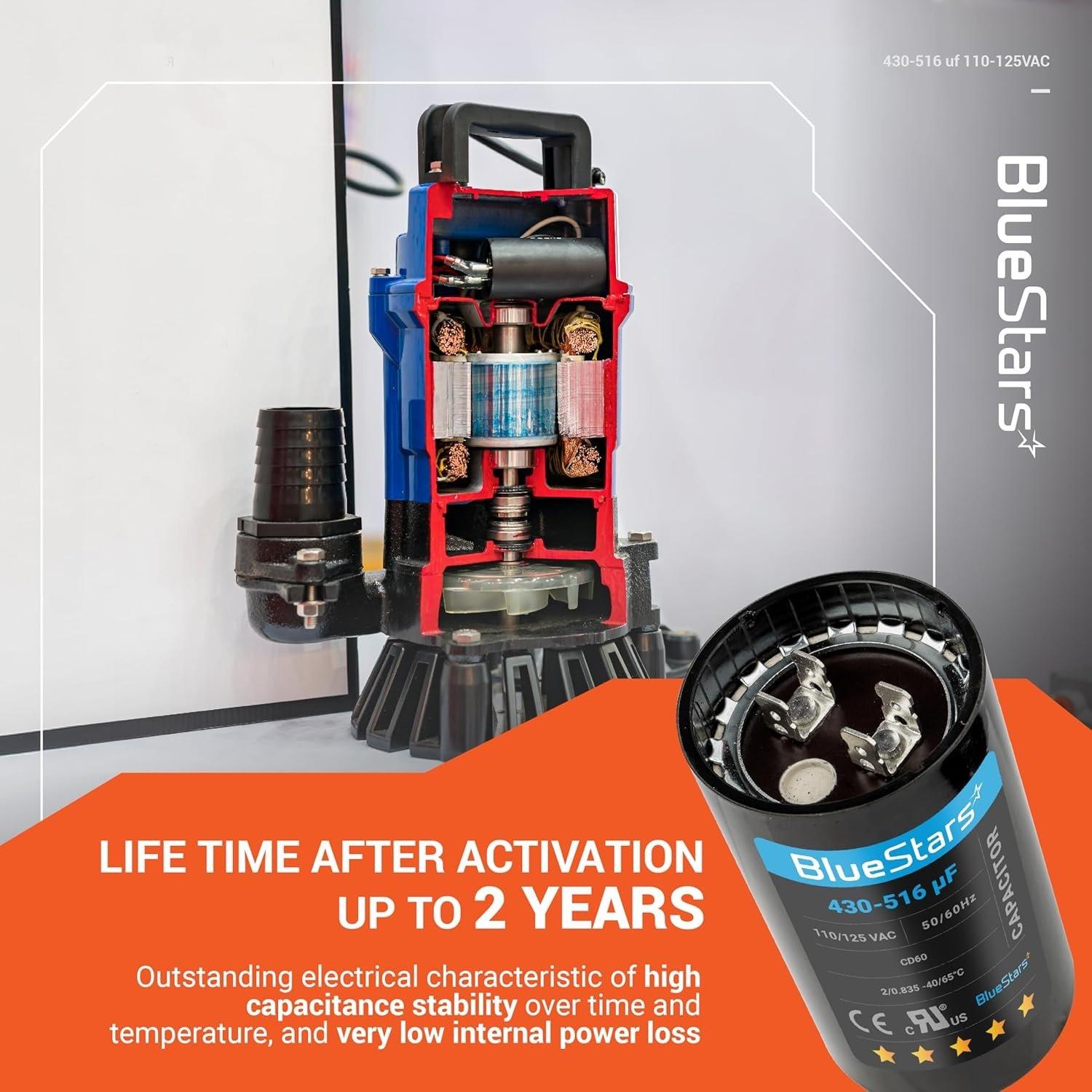

• Common applications include HVAC units, air compressors, well pumps, refrigeration systems, and other motor-driven equipment requiring a start capacitor with matching specifications.

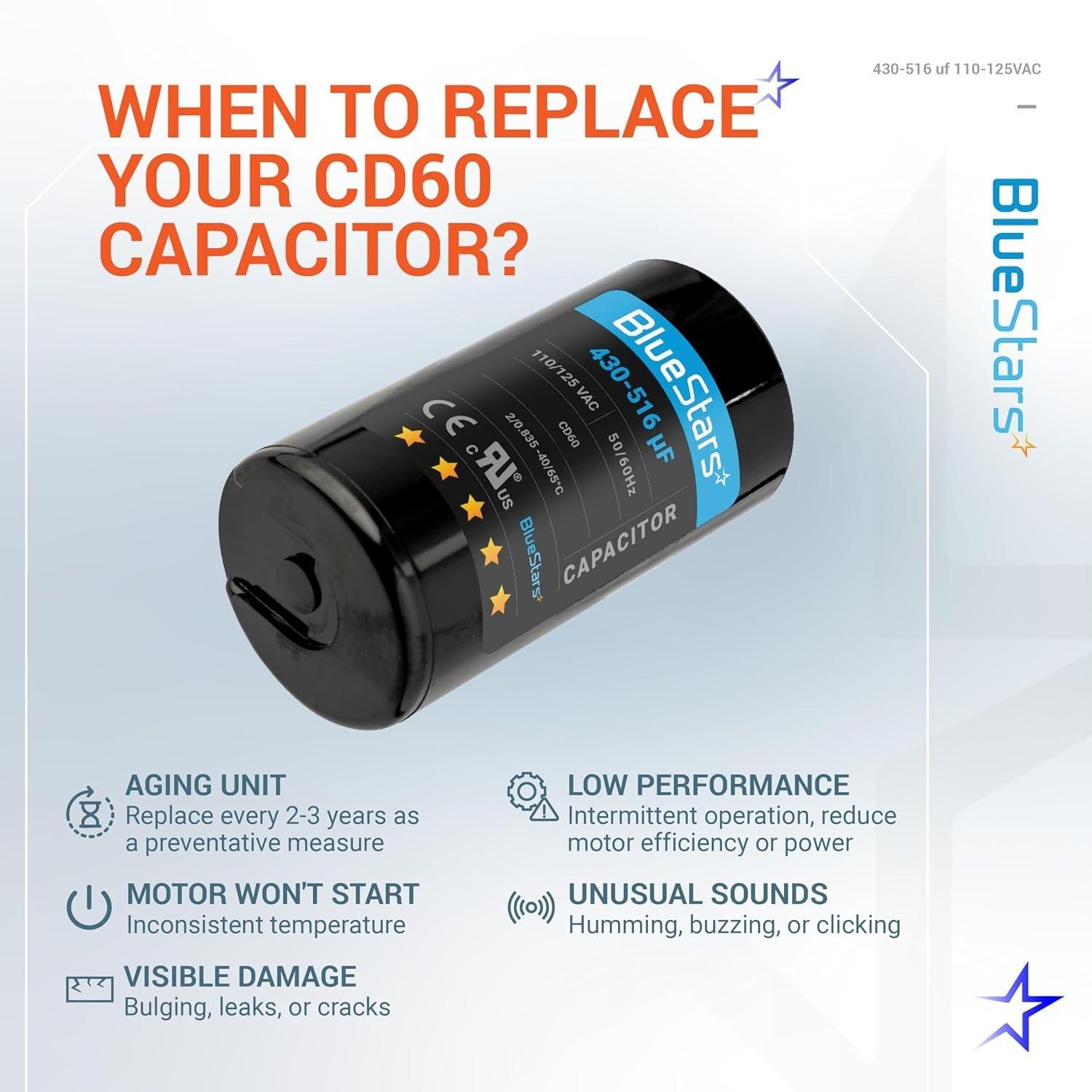

When to Replace

• Motor hums but fails to start or struggles to start.
• Circuit breaker trips when the motor attempts to start.
• Visible damage to the old capacitor, such as bulging, leaking fluid, or cracks.

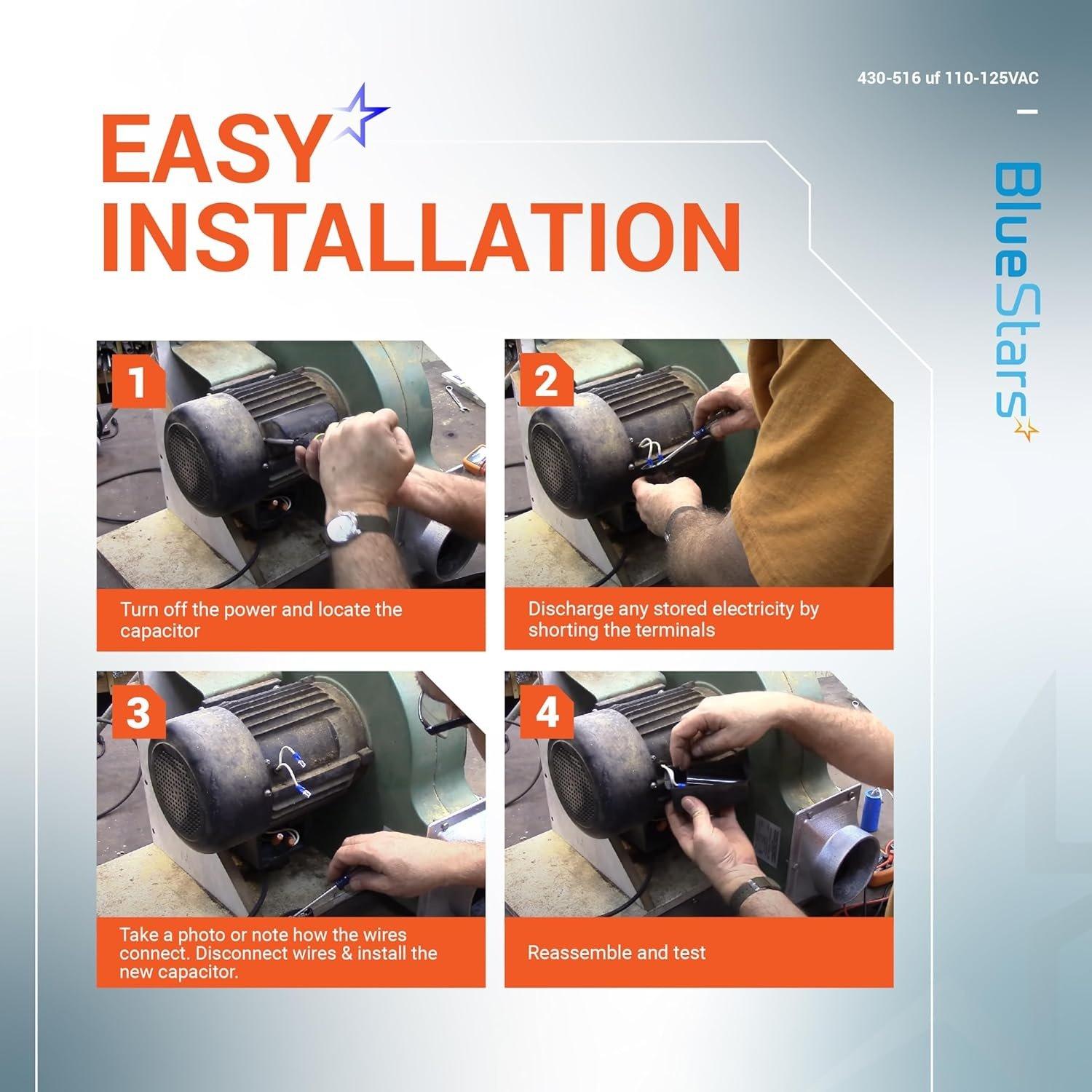

Installation Tips

• Disconnect all electrical power to the equipment before servicing.
• Safely discharge the existing capacitor by shorting the terminals with an insulated tool.

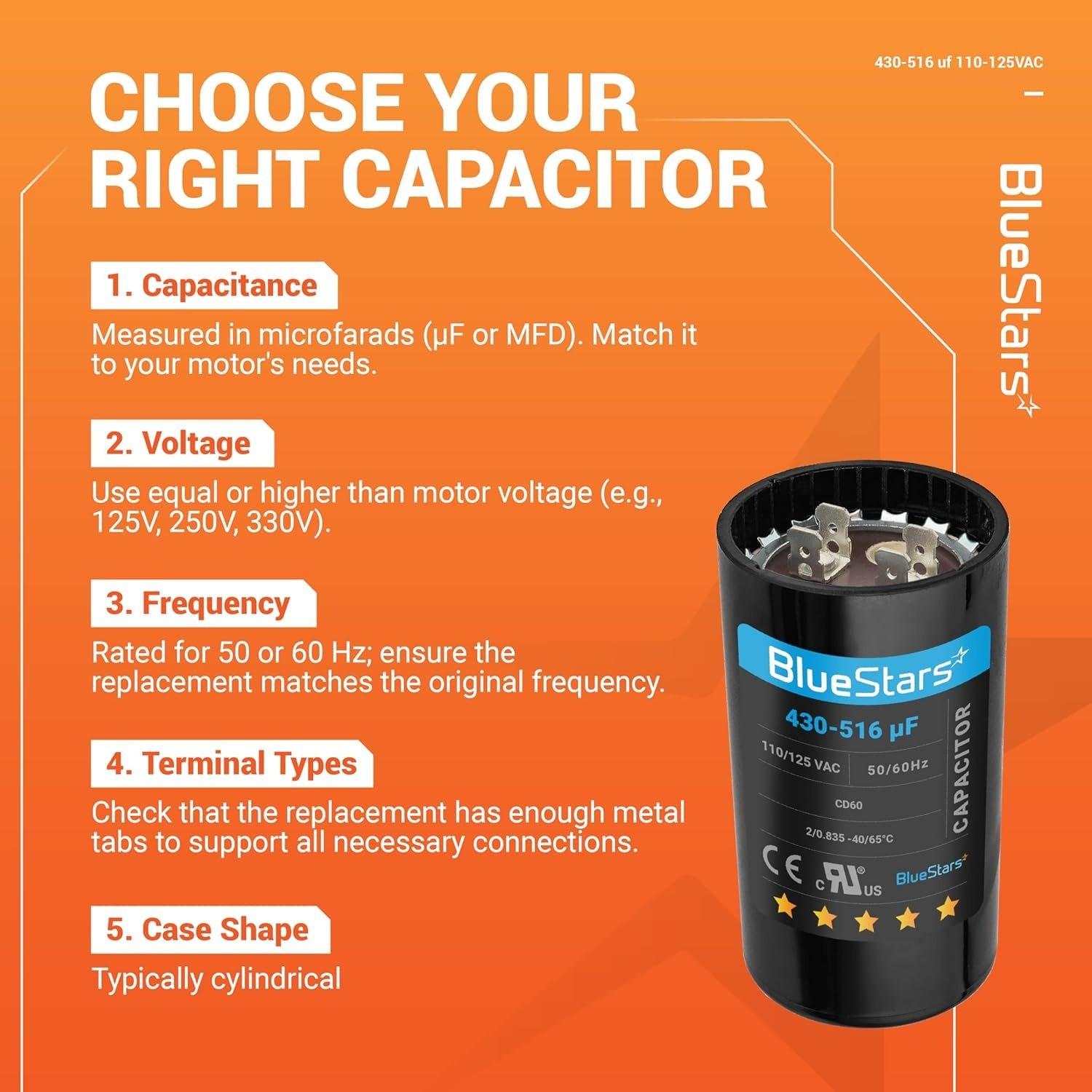

• Confirm the replacement capacitor's specifications match the original component. The voltage rating must be equal to or greater than the original.
• AC start capacitors are non-polarized and can be connected without regard to wire color.
