[Lifetime Warranty] PB040001 065650-000 Range Oven Igniter - Compatible with Viking Range Oven Gas Stove - Replaces AP5315579 065650-000 SGR4001 792263-4 - Pack of 2

PB040001 065650-000 Range Oven Igniter - Replaces AP5315579 065650-000 SGR4001 792263-4 - Pack of 2

Key Features

• Package includes: 2 igniters, 4 ceramic wire nuts
• Type: Flat, hot surface igniter for glow bar ignition systems

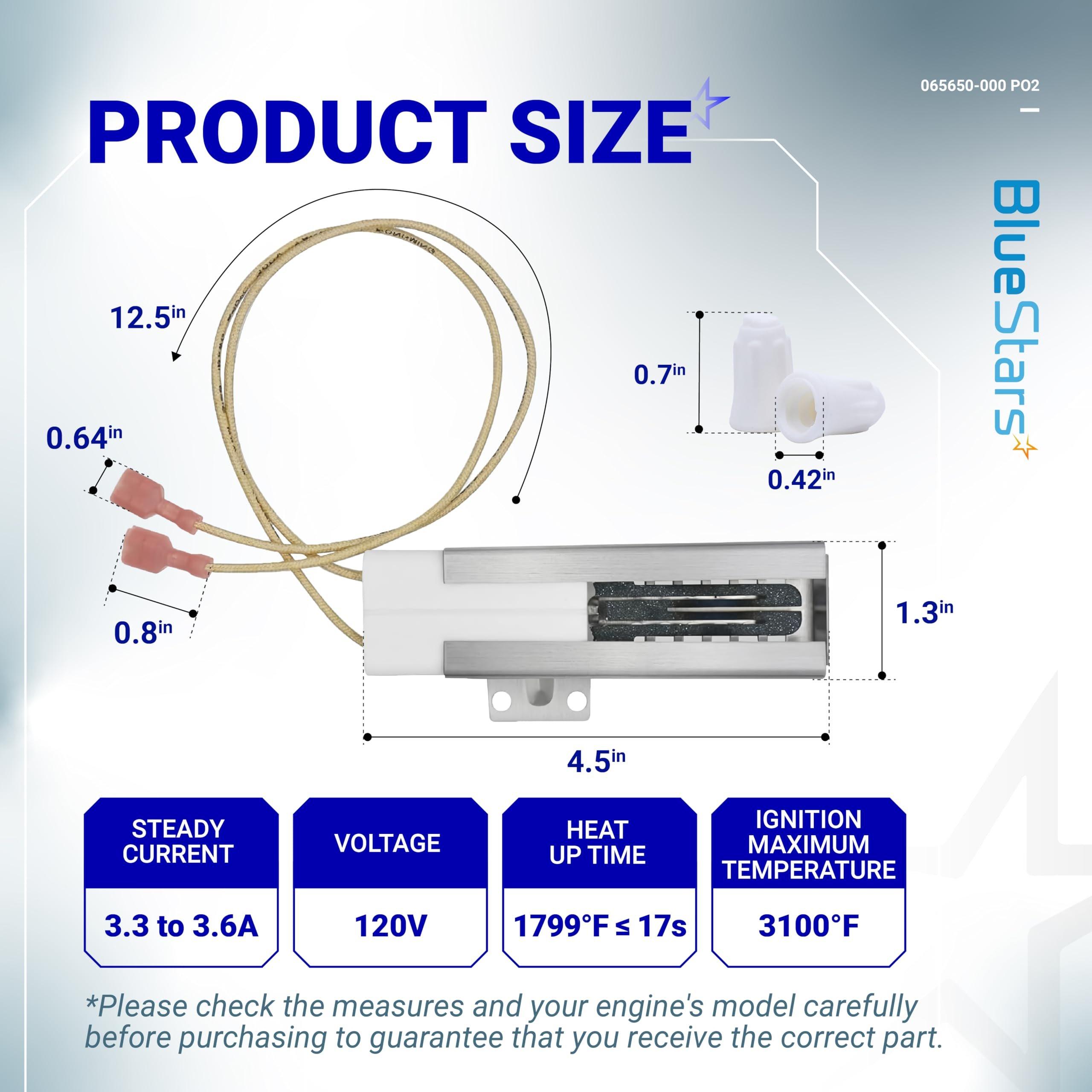

• Dimensions: 4.5 in. length, 1.3 in. width
• Wire Length: 12.5 in.

Replaces / Cross-Reference Part Numbers

• PB040001
• 065650-000
• AP5315579
• SGR4001
• 792263
• 792263-4

Compatibility & Fitment

• Brand: Viking
• Appliance Type: Gas Range, Oven, Stove
• Application: Bake and broil functions in Viking glow bar ignition systems

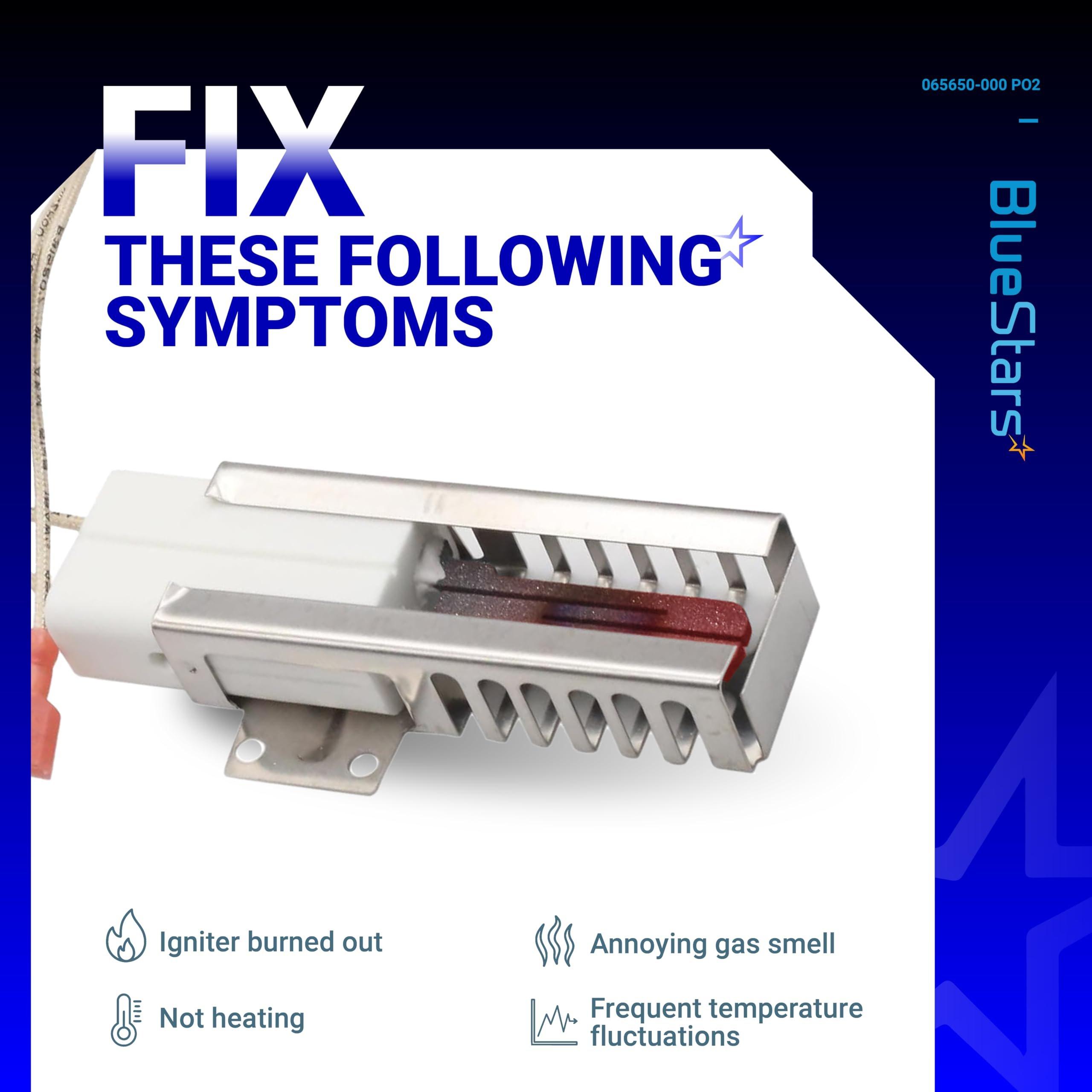

When to Replace

• Oven does not heat or heats intermittently
• Oven takes too long to preheat
• Igniter glows, but gas burner does not light
• Visible damage or breakage to the igniter element
• No glow from the igniter when the oven is turned on

Installation Tips

• Disconnect power and shut off the gas supply before installation.
• Handle the new igniter by its ceramic base to avoid touching the element. Skin oils can reduce the part's lifespan.
• Use the included ceramic wire nuts for a secure, heat-resistant connection.
• Ensure wires are not pinched or touching hot surfaces after installation.
