[Lifetime Warranty] DC97-16991A Washer Drain Pump Filter - Compatible with Samsung Washing Machines WF42H5600AW/A2 WF42H5000AW WF42H5000AW/A2 WF42H5600AP WF42H5600AP/A2 - Replaces 2813211 PS4222025 AP5586931

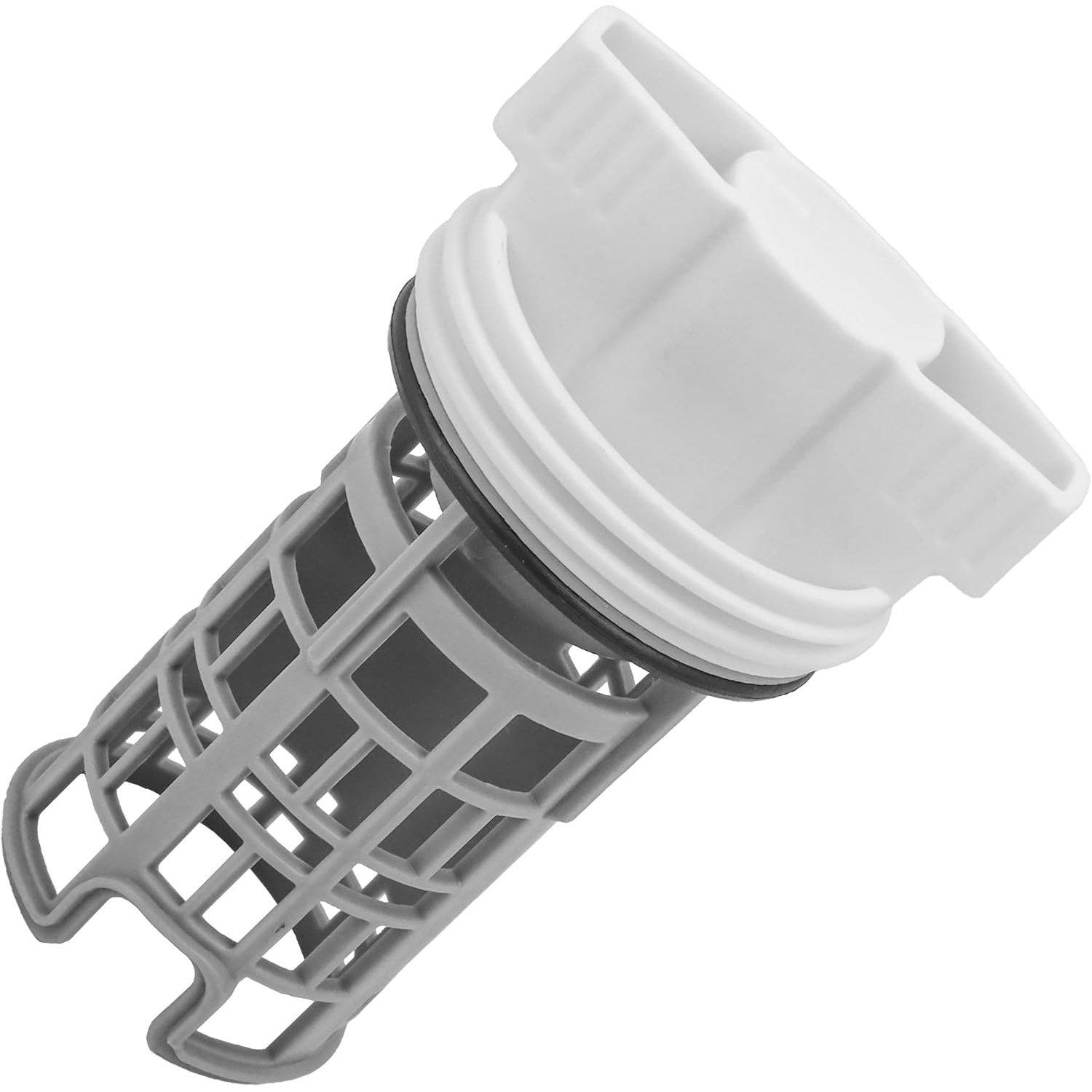

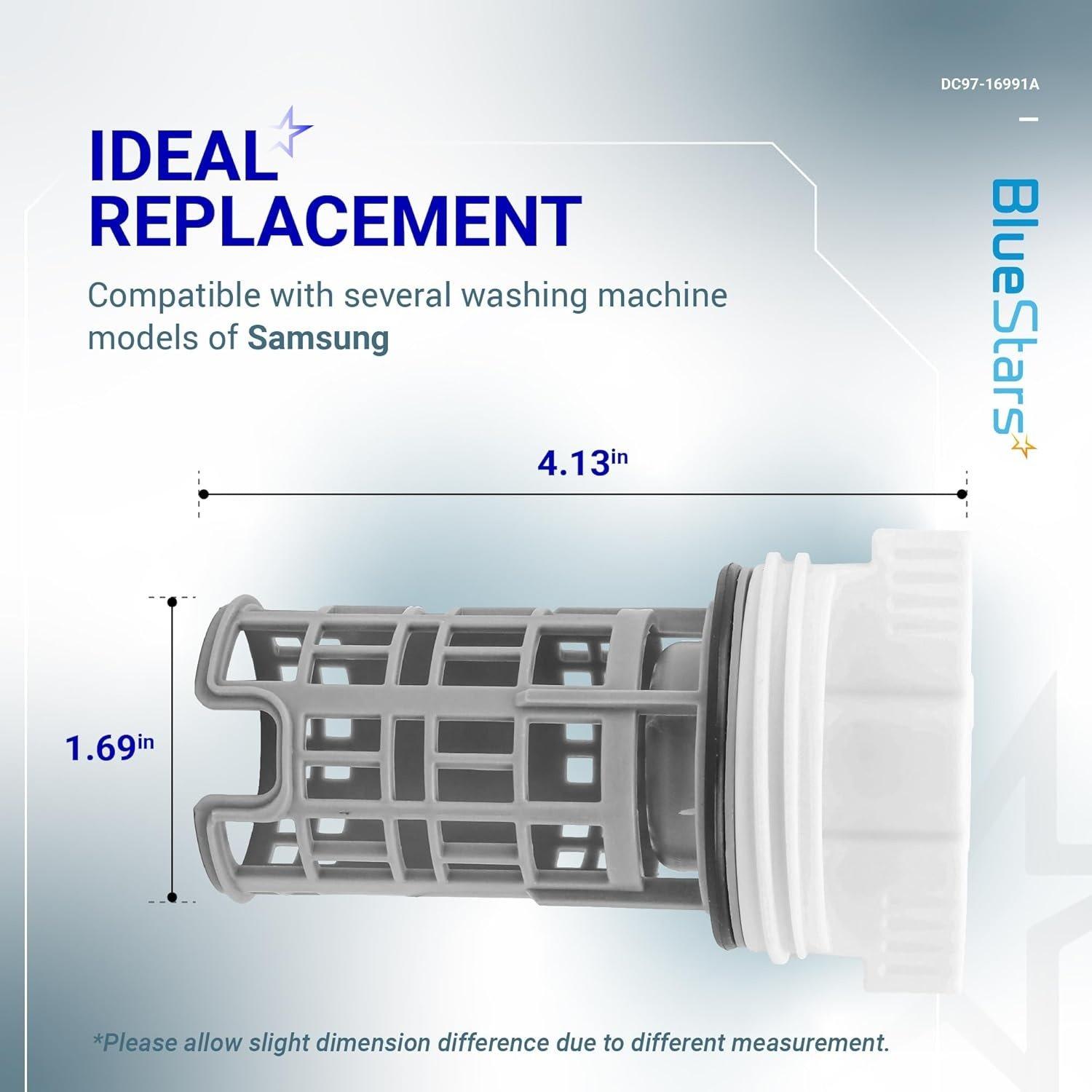

DC97-16991A Washer Drain Pump Filter

Key Features

• Genuine OEM Samsung replacement part

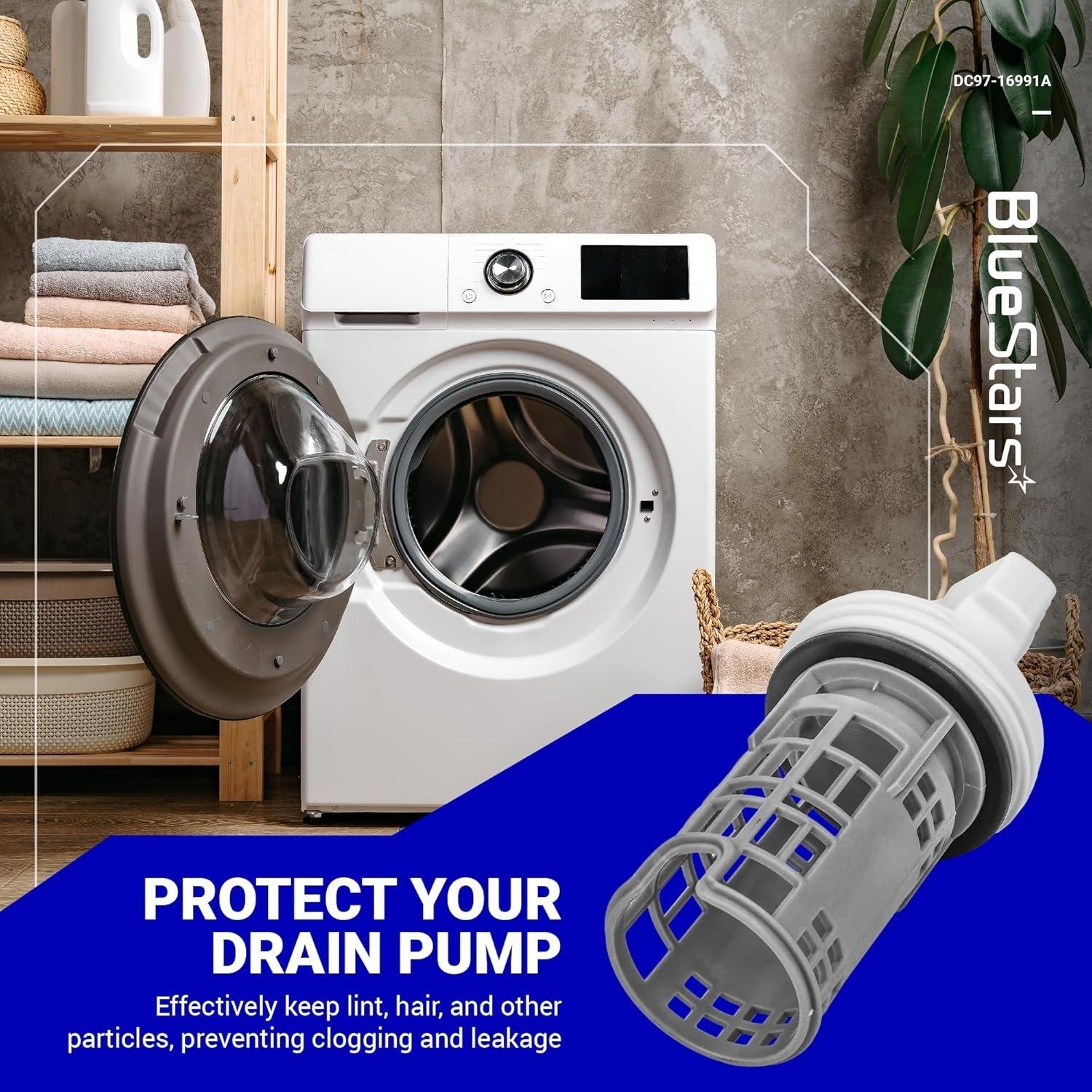

• Traps lint, coins, and other debris from drain water
• Prevents blockages in the drain pump and hose

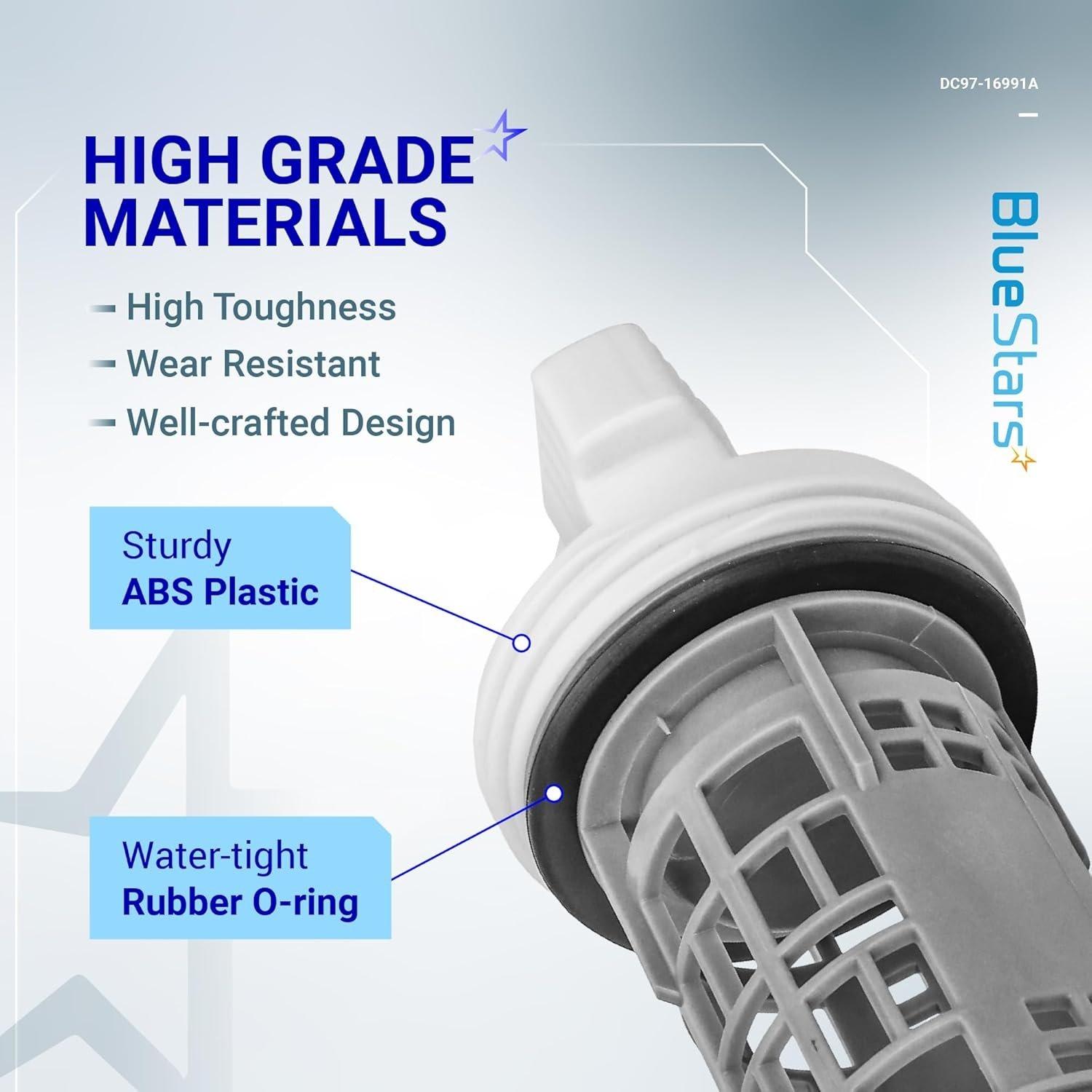

• Durable plastic construction for a secure, leak-free seal
• Also known as a coin trap or filter assembly

Replaces / Cross-Reference Part Numbers

• DC97-16991A
• AP5623041
• PS4221833
• EAP4221833

Compatibility & Fitment

• Designed for select Samsung front-load washing machine models
• Example compatible models include: WF42H5000AW/A2, WF457ARGSWR/AA, WF56H9100AV/A2
• Verify compatibility by checking your appliance's model number and service manual

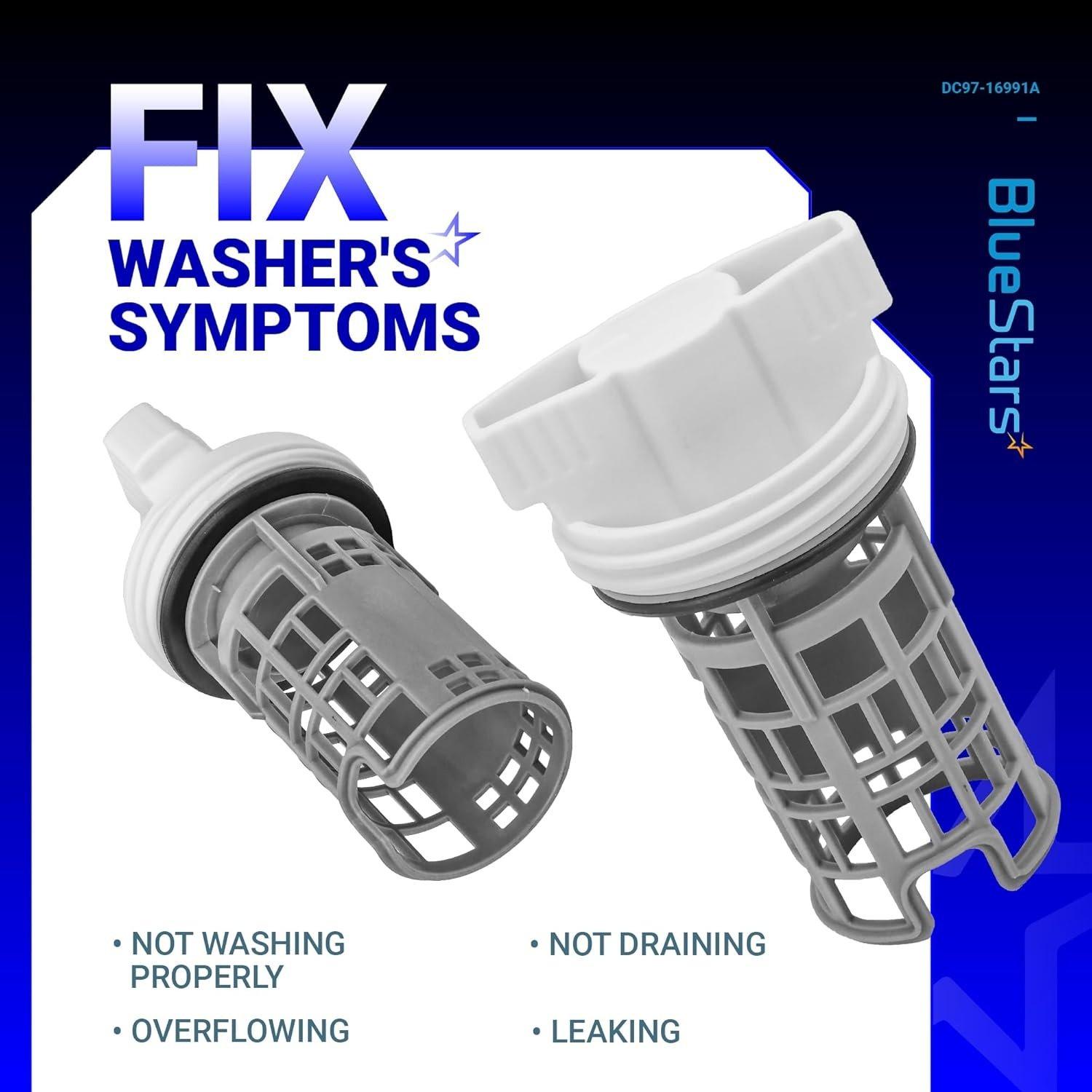

When to Replace

• Filter is cracked, damaged, or will not thread properly
• Gasket is worn, causing leaks from the filter housing
• Washer fails to drain or displays a drainage-related error code
• Visible debris remains after thorough cleaning

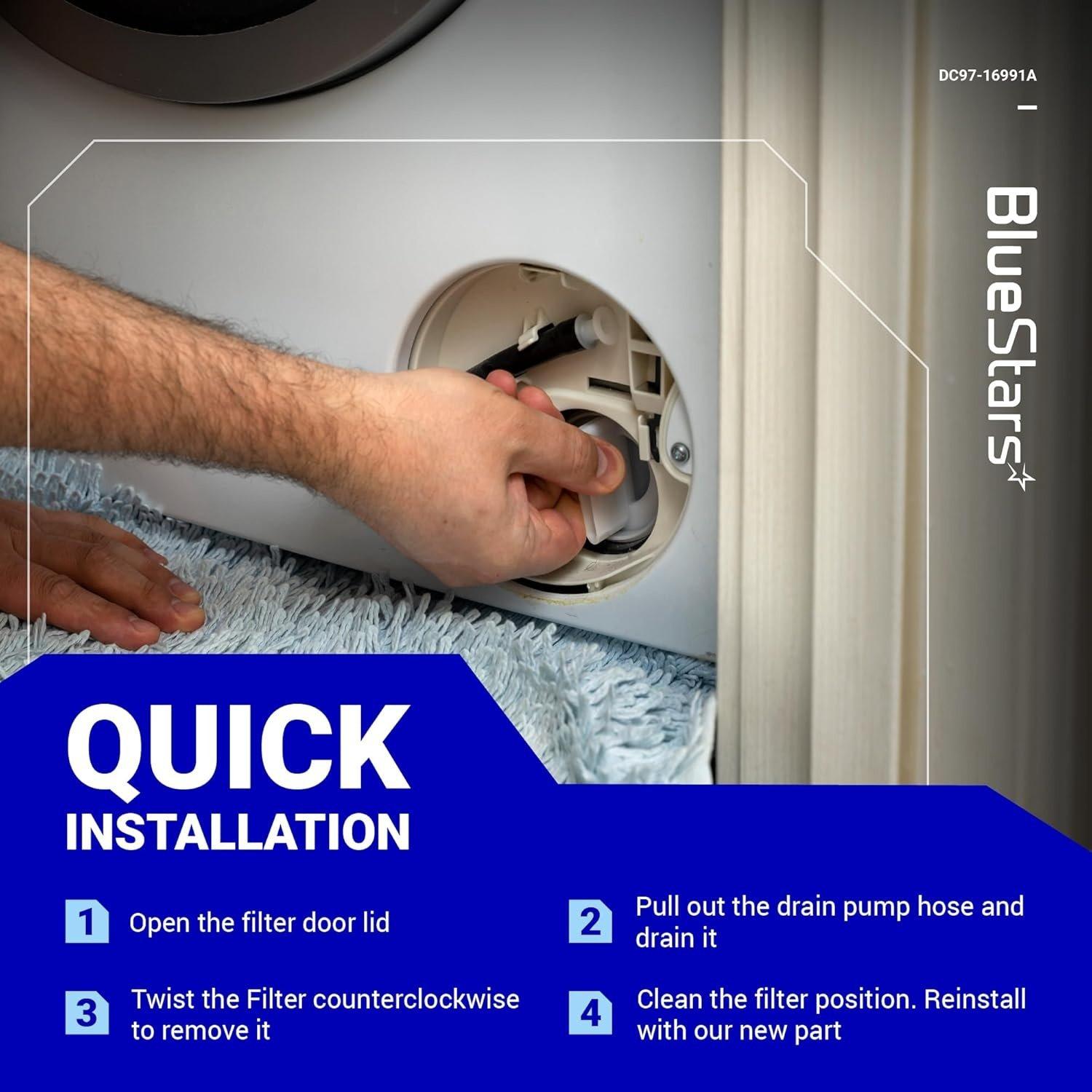

Installation Tips

• Disconnect the washer from power and water supplies before starting
• Locate the filter access panel on the bottom front of the appliance
• Place a shallow pan and towels underneath to catch residual water
• Unscrew the old filter counter-clockwise and remove
• Clean any debris from the filter housing cavity
• Install the new filter by twisting clockwise until it is securely tightened
