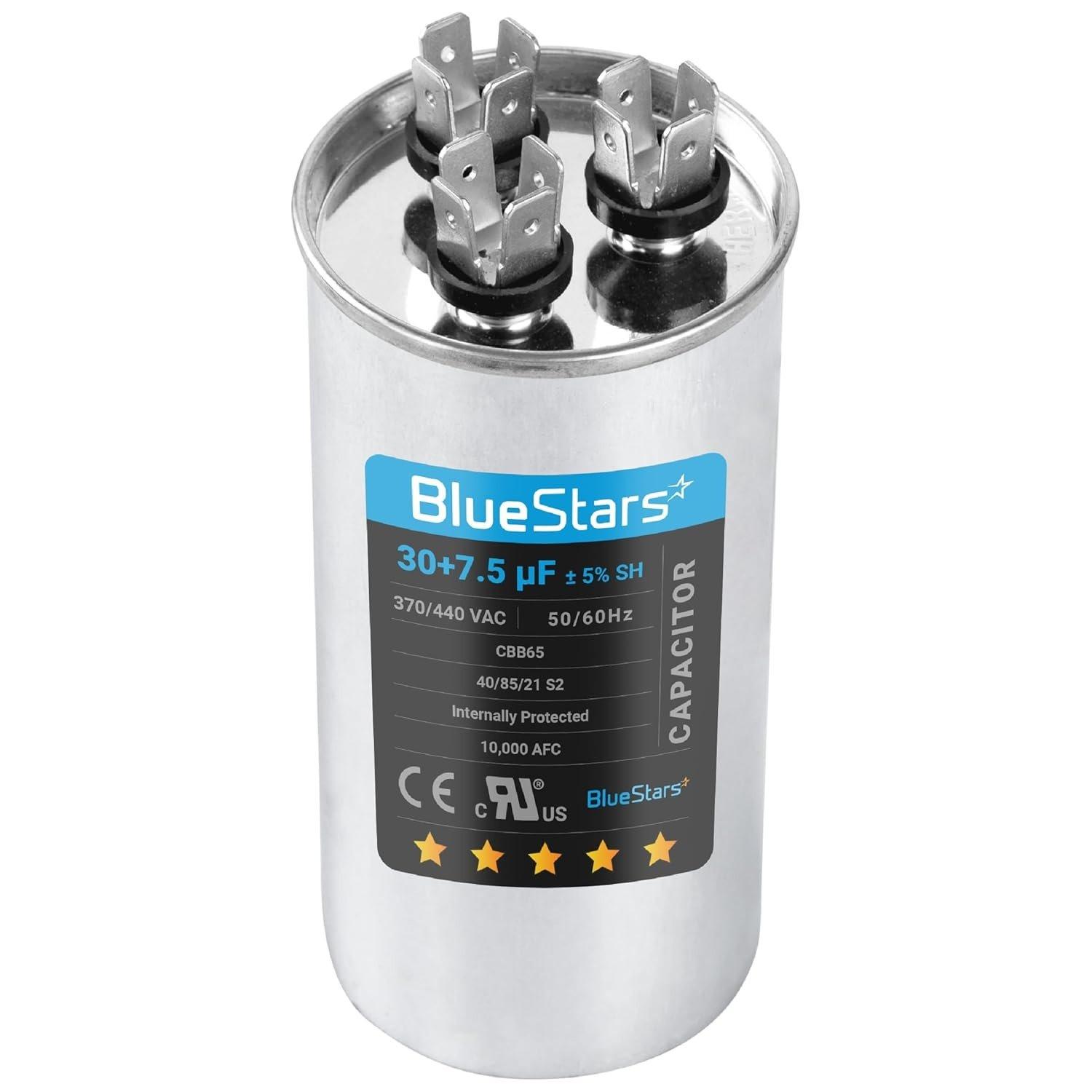

[Lifetime Warranty] 30+7.5 uF MFD ±5% 370/440 VAC Dual Run Start Round Capacitor 50/60 Hz 10000AFC - Fits Condenser, Heat Pump

30+7.5 uF ±5% 30/7.5 MFD 370/440 VAC Dual Run Start Round Capacitor 50/60Hz 10000AFC

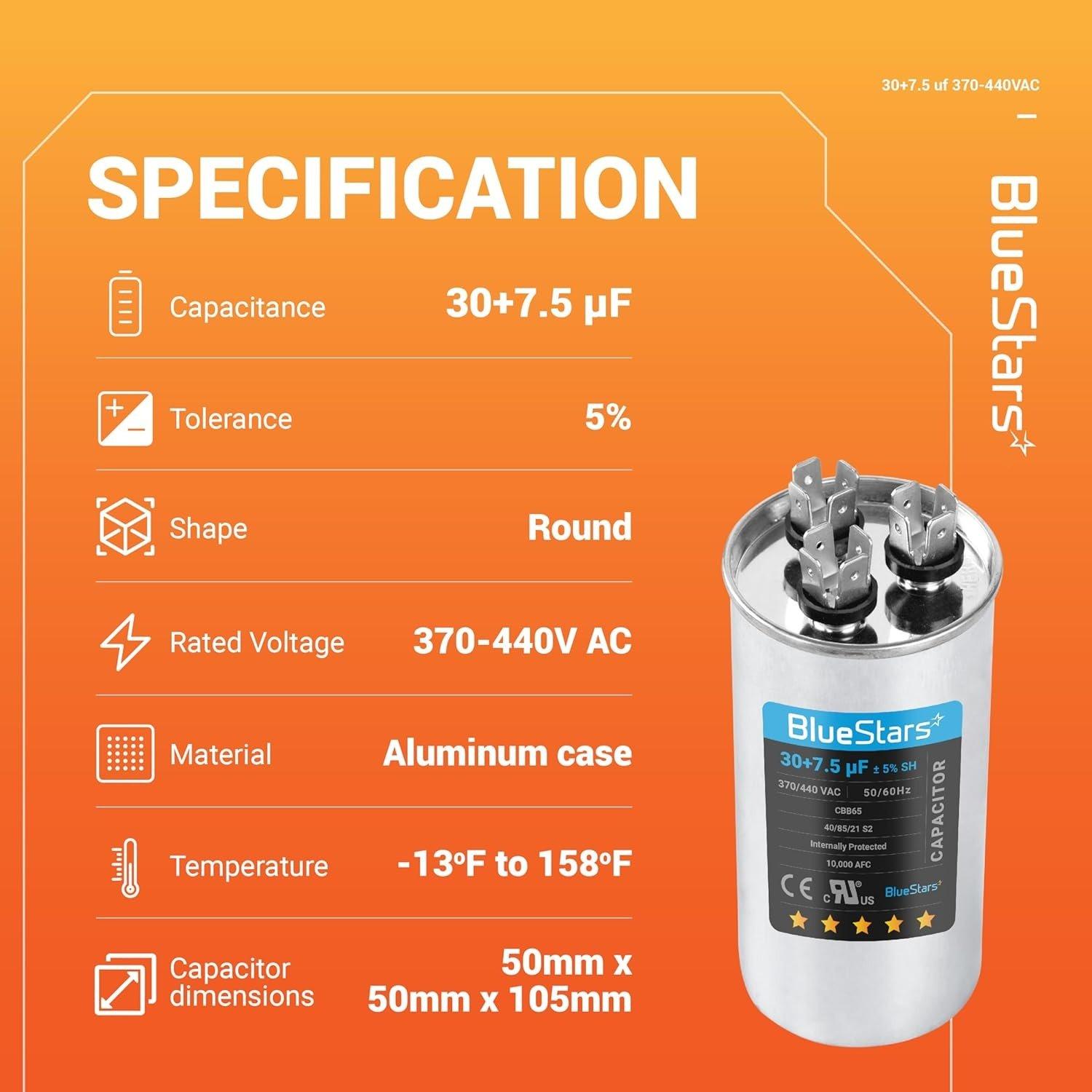

Key Features

• Capacitance: 30 + 7.5 Microfarad (MFD)
• Capacitance Tolerance: ±5%
• Voltage Rating: 370 or 440 VAC (dual rated)
• Frequency: 50/60 Hz
• Shape: Round

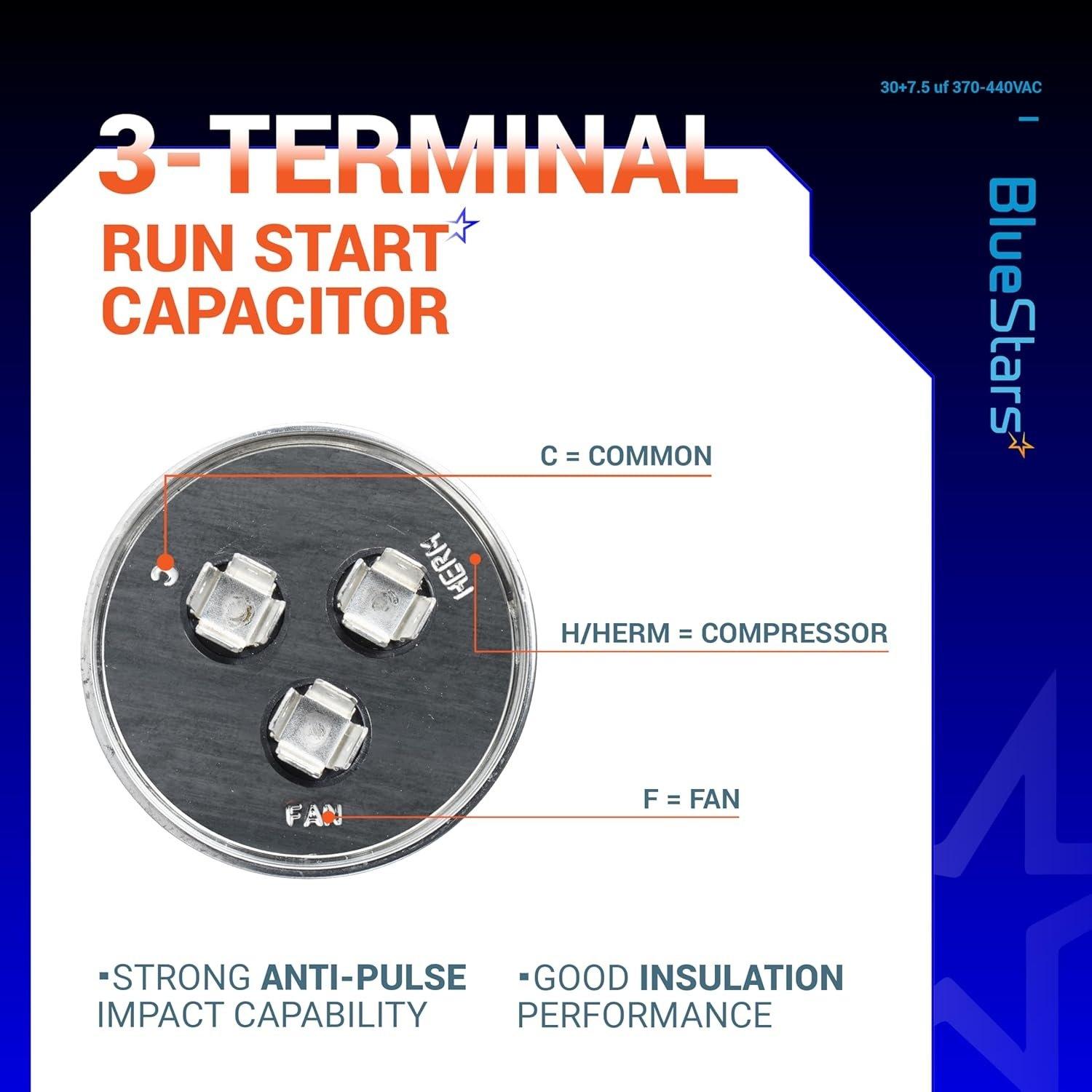

• Terminals: 3 (Common, Fan, Hermetic Compressor)
• Terminal Type: 0.250 in. quick-connect male blades
• Operating Temperature: -40°C to +70°C (-104°F to +158°F)
• Safety Rating: 10,000 AFC (Available Fault Current)

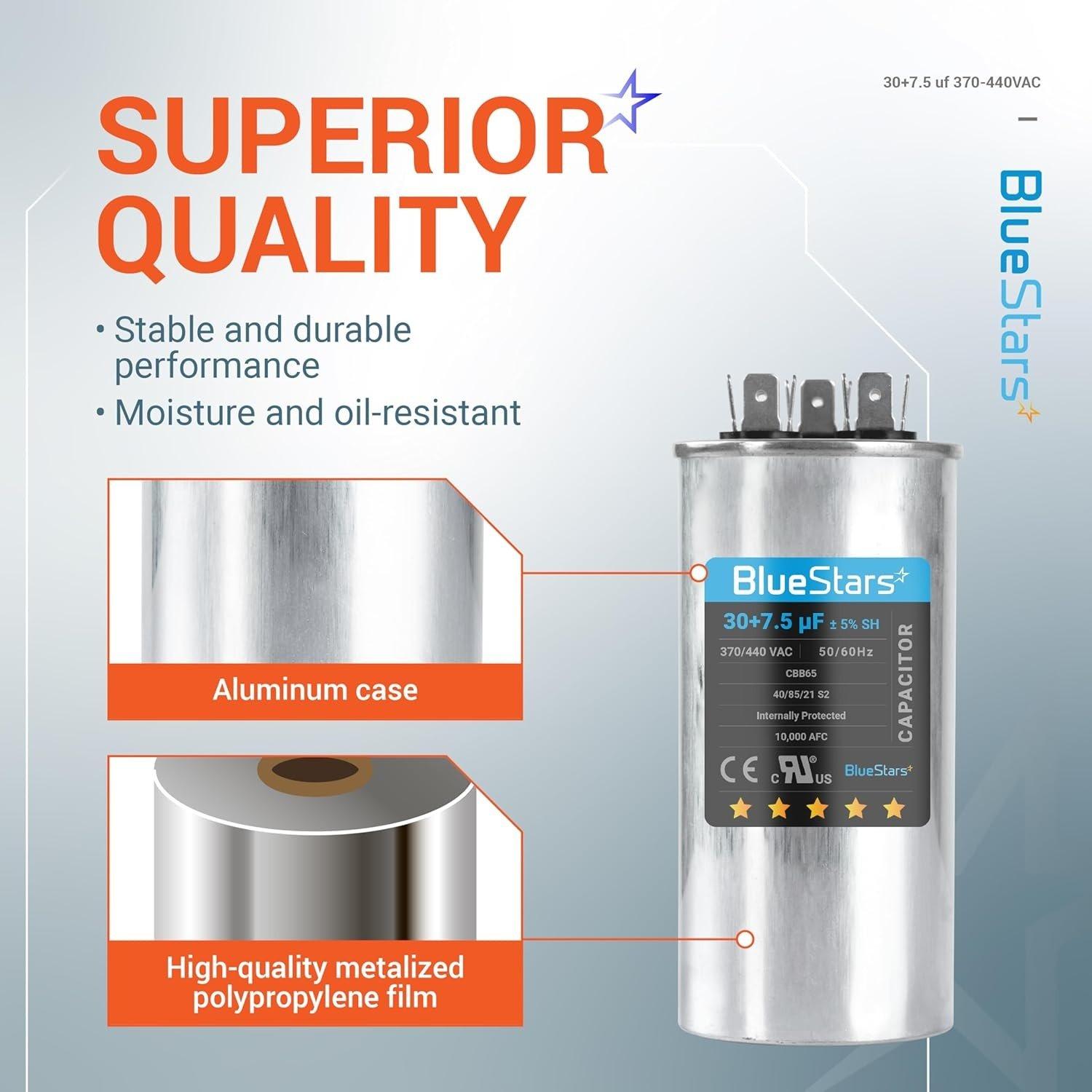

• Construction: Aluminum case with steel cover

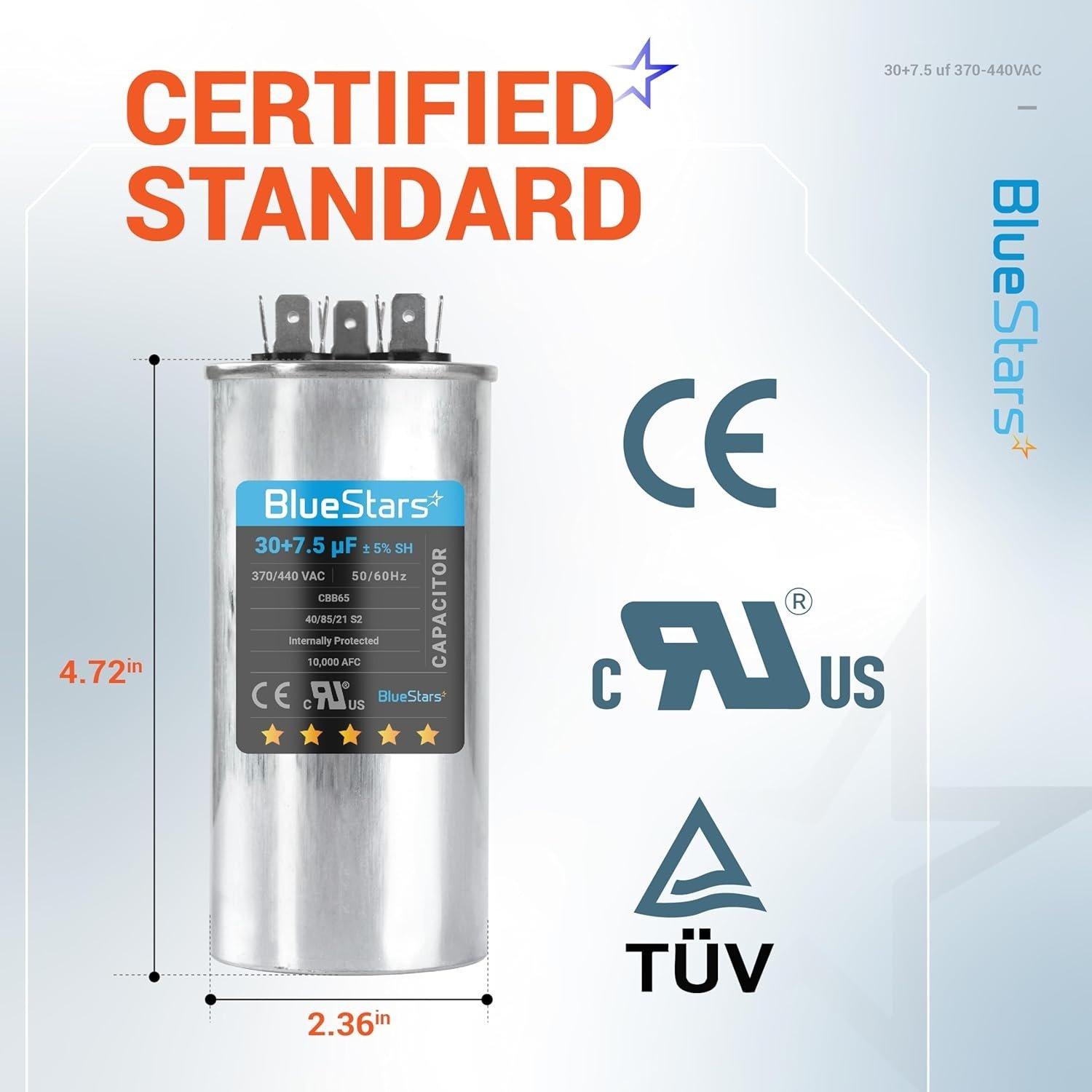

• Dimensions: 2 in. Diameter x 4.6 in. Height

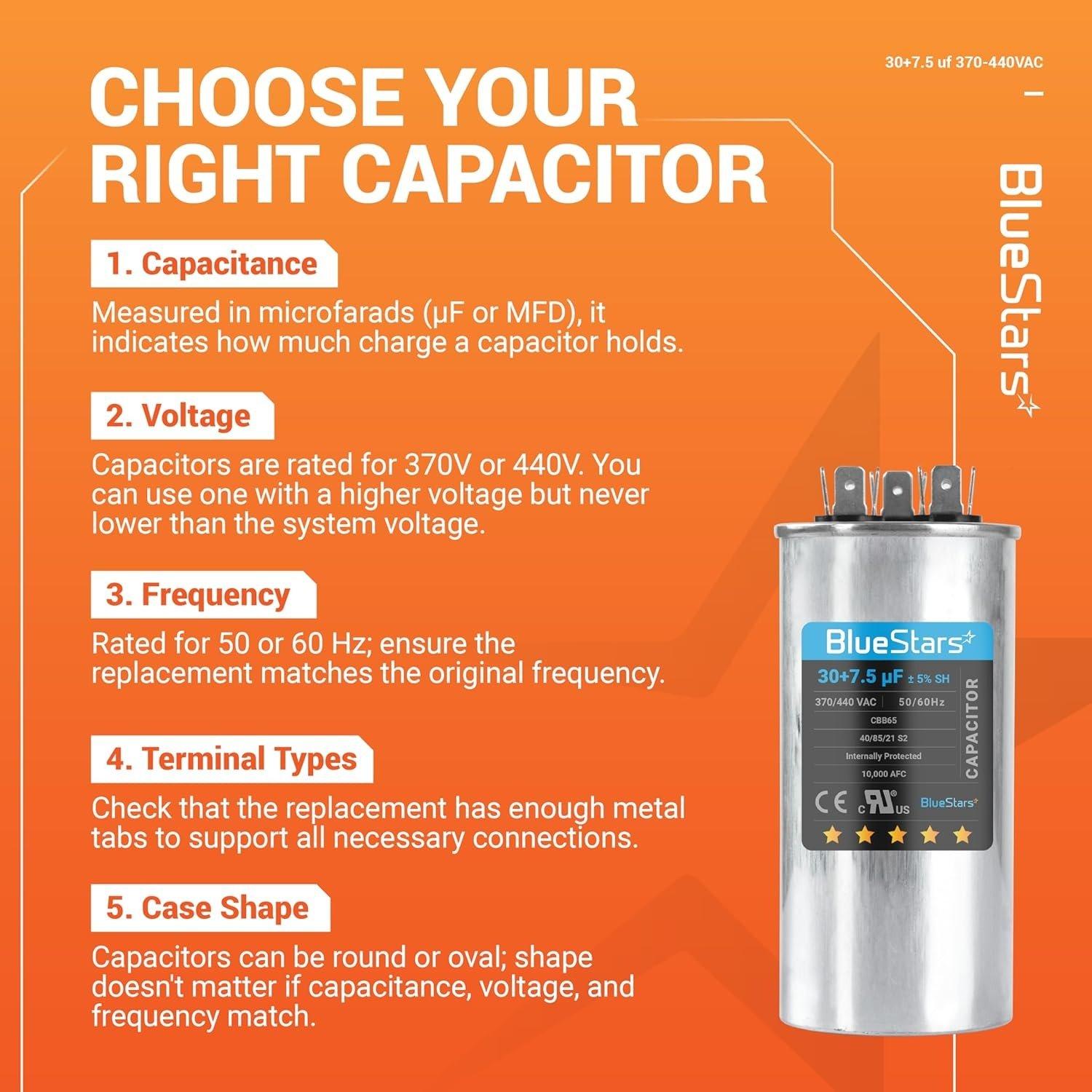

Replaces / Cross-Reference Part Numbers

• Capacitance: 30/7.5 uF or 30+7.5 MFD
• Voltage: 370V or 440V (this 370/440V unit can replace either)
• Shape: Round (ensure physical dimensions allow for a secure fit)

Compatibility & Fitment

• A higher capacitance terminal (30 uF) for the compressor motor (HERM).
• A lower capacitance terminal (7.5 uF) for the condenser fan motor (FAN).

When to Replace

• Outdoor unit hums but the fan does not spin.
• Compressor fails to start or struggles to turn on.
• AC unit starts but then shuts down shortly after.
• Visible signs of damage, such as a bulging or leaking top.
• Capacitance measures outside the ±5% tolerance when tested with a multimeter.

Installation Tips

• WARNING:Disconnect all electrical power to the HVAC unit before handling the capacitor.
• Safely discharge the old capacitor by carefully shorting across the terminals with an insulated-handle screwdriver.
• Document or photograph the wire connections to the C, FAN, and HERM terminals before removal.
• Connect the wires to the corresponding terminals on the new capacitor.
• Secure the new capacitor in the mounting bracket to prevent vibration.
