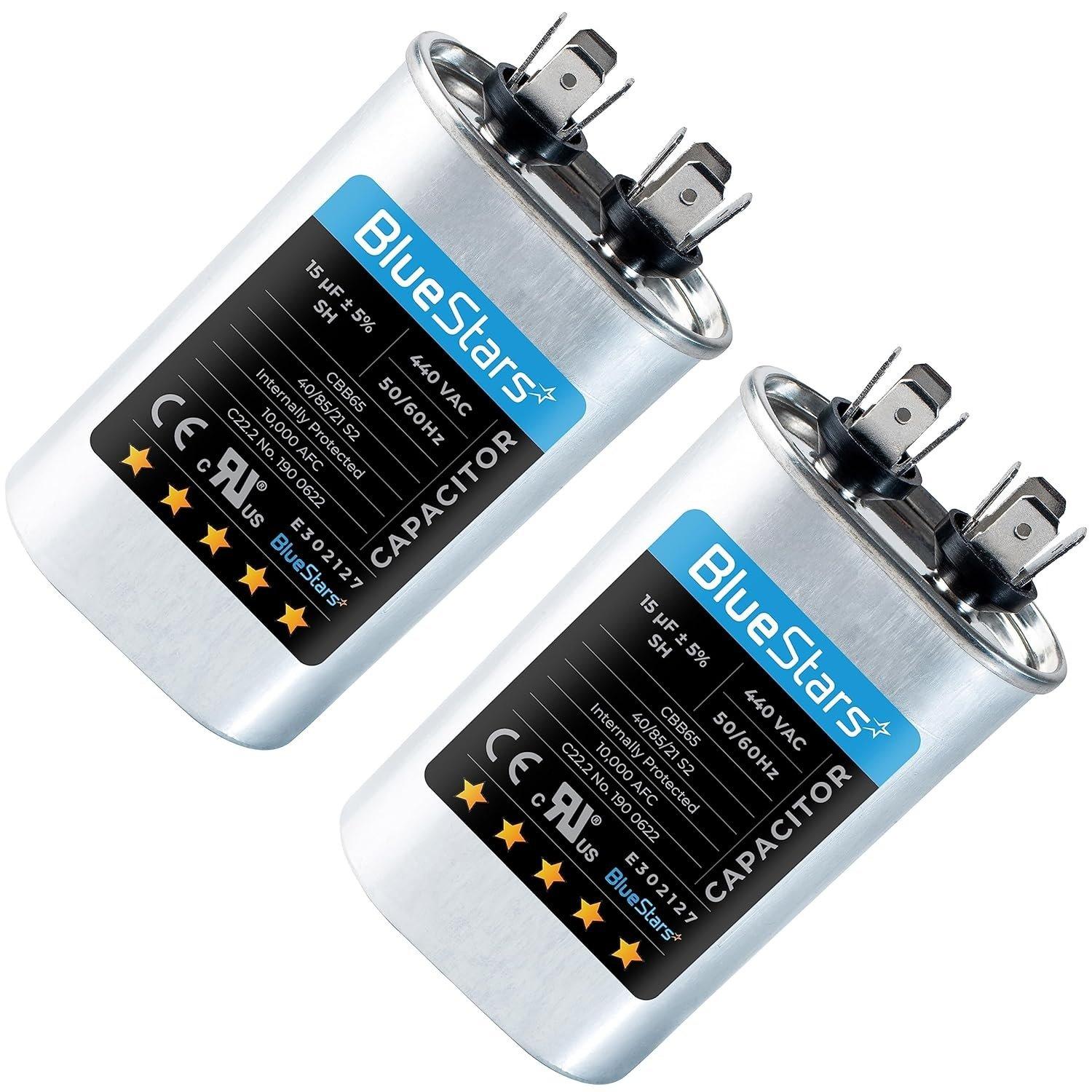

[Lifetime Warranty] 15 uF MFD 370/440 VAC Oval Run Start Capacitor CBB65 - Fits AC Motor, Condenser, Heat Pump - Pack of 2

CBB6515 uF/MFD 370 or 440 Volt 50/60 Hz Oval Run Start Capacitor - Pack of 2

Key Features

• Package Quantity: 2 Capacitors
• Model: CBB65
• Capacitance: 15 uF/MFD
• Capacitance Tolerance: ± 5%
• Voltage Rating: 370 VAC or 440 VAC (dual rated)
• Frequency: 50/60 Hz
• Shape: Oval
• Dimensions (L x W x H): 1.97 in x 1.24 in x 2.56 in
• Operating Temperature Range: -40°C to +70°C
• Construction: Metalized polypropylene film, oil-filled
• Safety Certifications: UL and CSA listed
• Contains no Polychlorinated Biphenyls (PCBs)

Replaces / Cross-Reference Part Numbers

• Direct replacement for any oval capacitor with matching 15 uF capacitance and 370V or 440V rating.
• Verify physical dimensions for proper fit in the mounting bracket.

Compatibility & Fitment

• Designed for single and three-phase AC motor applications.
• Commonly used in HVAC systems, including air conditioner condensers, heat pumps, compressors, and fan motors.
• Compatible with equipment requiring a 15 MFD run capacitor for either 370 Volt or 440 Volt systems.

When to Replace

• Motor hums but fails to start or struggles to start.
• Fan blades rotate slower than normal or require a manual push to start.
• Visible damage to the existing capacitor, such as swelling, bulging, or fluid leakage.

Installation Tips

• Disconnect all electrical power to the equipment before beginning service.
• Safely discharge the existing capacitor by shorting the terminals with a resistor or an insulated screwdriver.
• Note the wire placement on the old capacitor terminals before disconnecting.
• Confirm the uF/MFD rating matches the original part exactly.
• The voltage rating of the replacement capacitor must be equal to or greater than the original (e.g., a 440V capacitor can replace a 370V, but not vice-versa).
• Secure the new capacitor in place and reconnect the wires to the correct terminals.
