[Lifetime Warranty] Gas Range Oven Igniter WB13X25500

WB13X25500 Gas Range Oven Igniter

Key Features

• Direct replacement flat-style oven igniter for gas ranges.

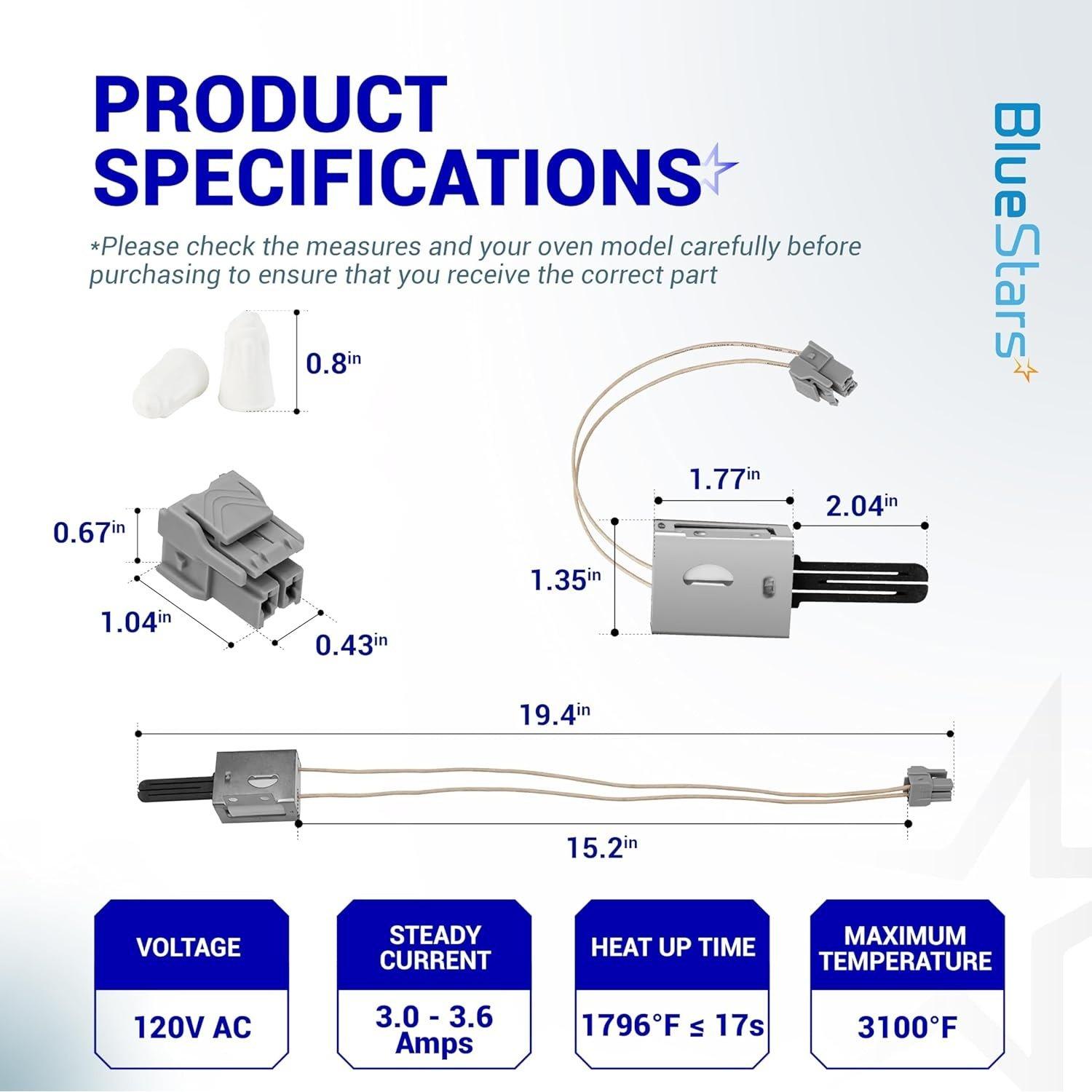

• Electrical rating: 3.2 to 3.6 Amps.

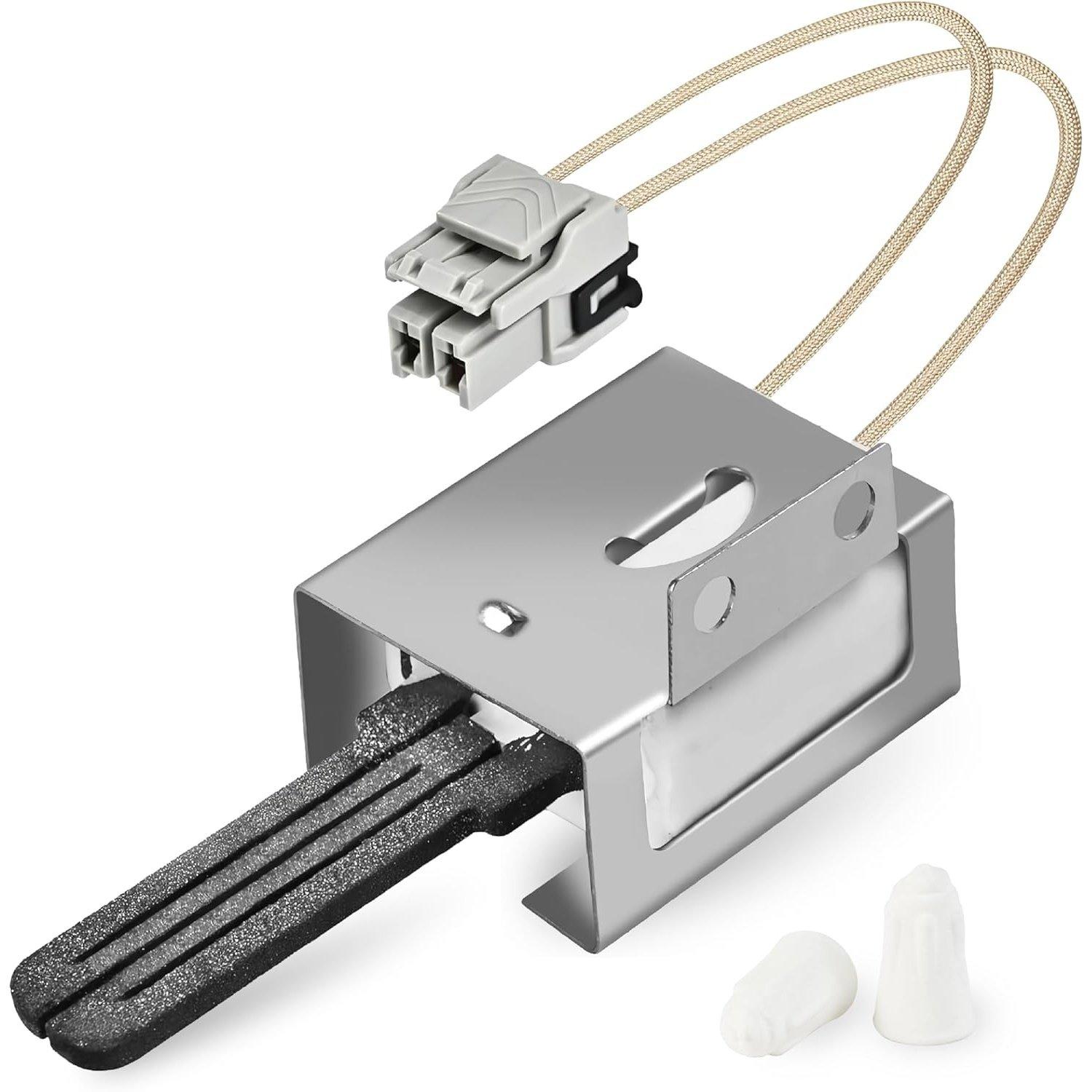

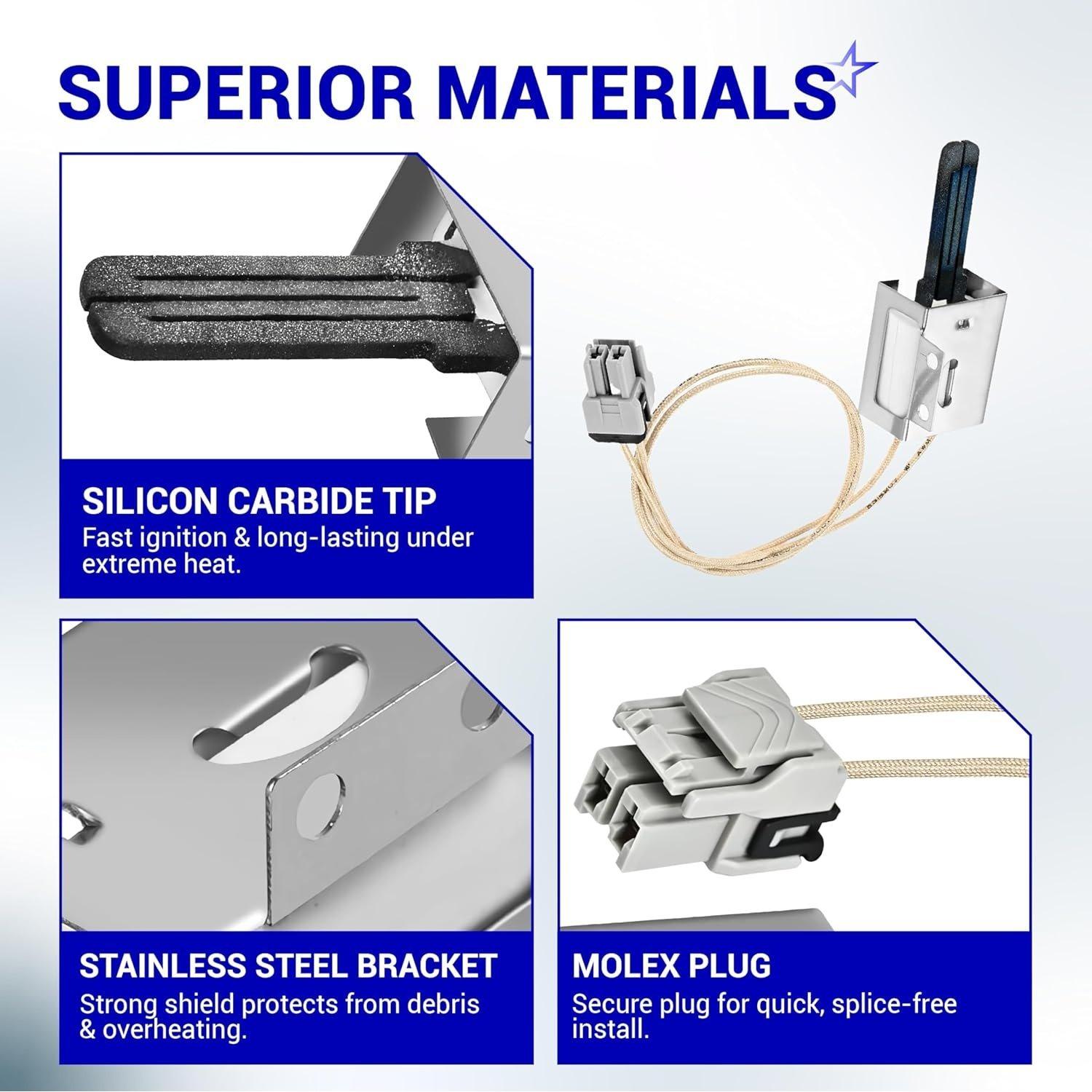

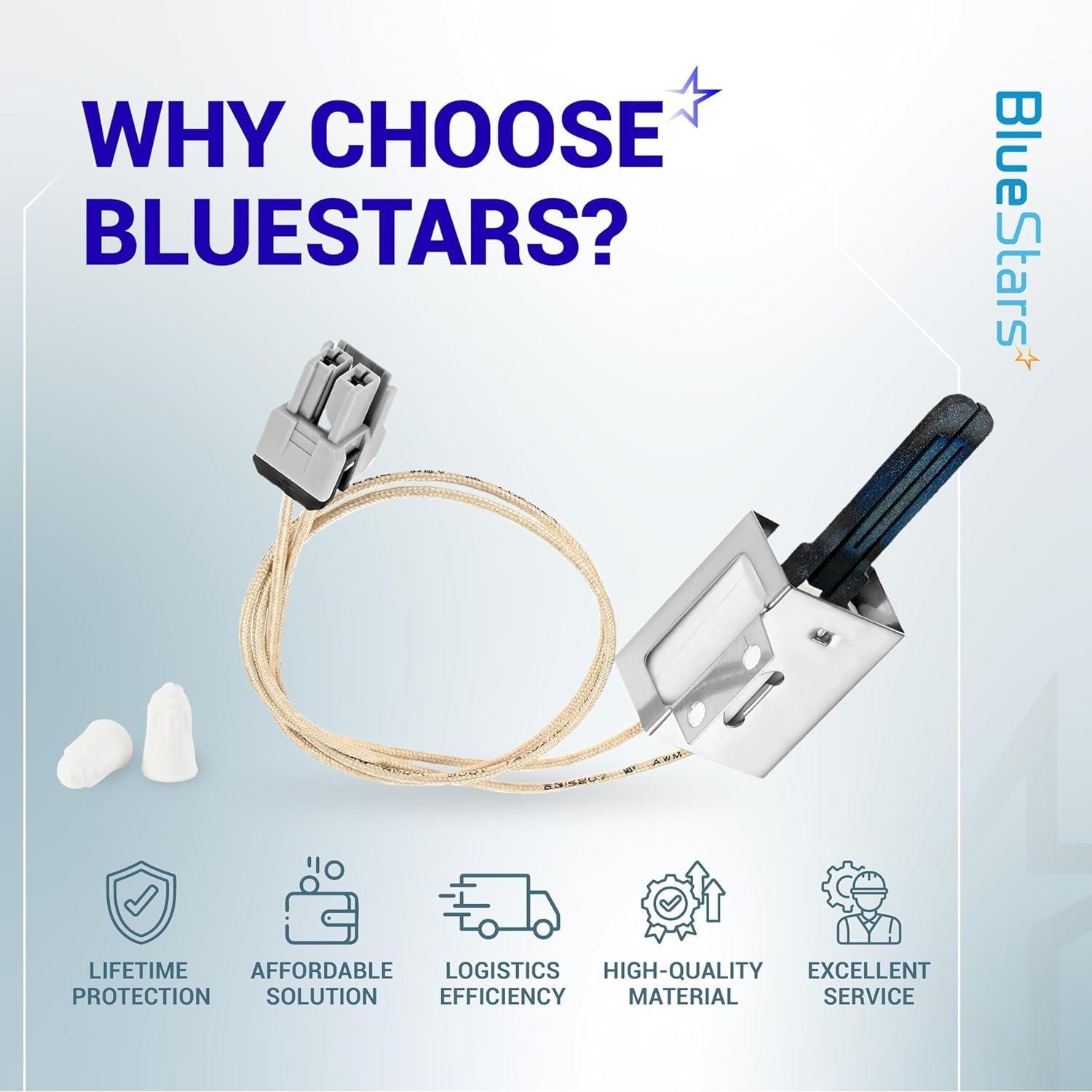

• Kit includes one igniter with bracket, leads, and plug.
• Also contains two ceramic wire nuts and a stainless steel heat shield.
• CSA-approved; RoHS and REACH compliant.

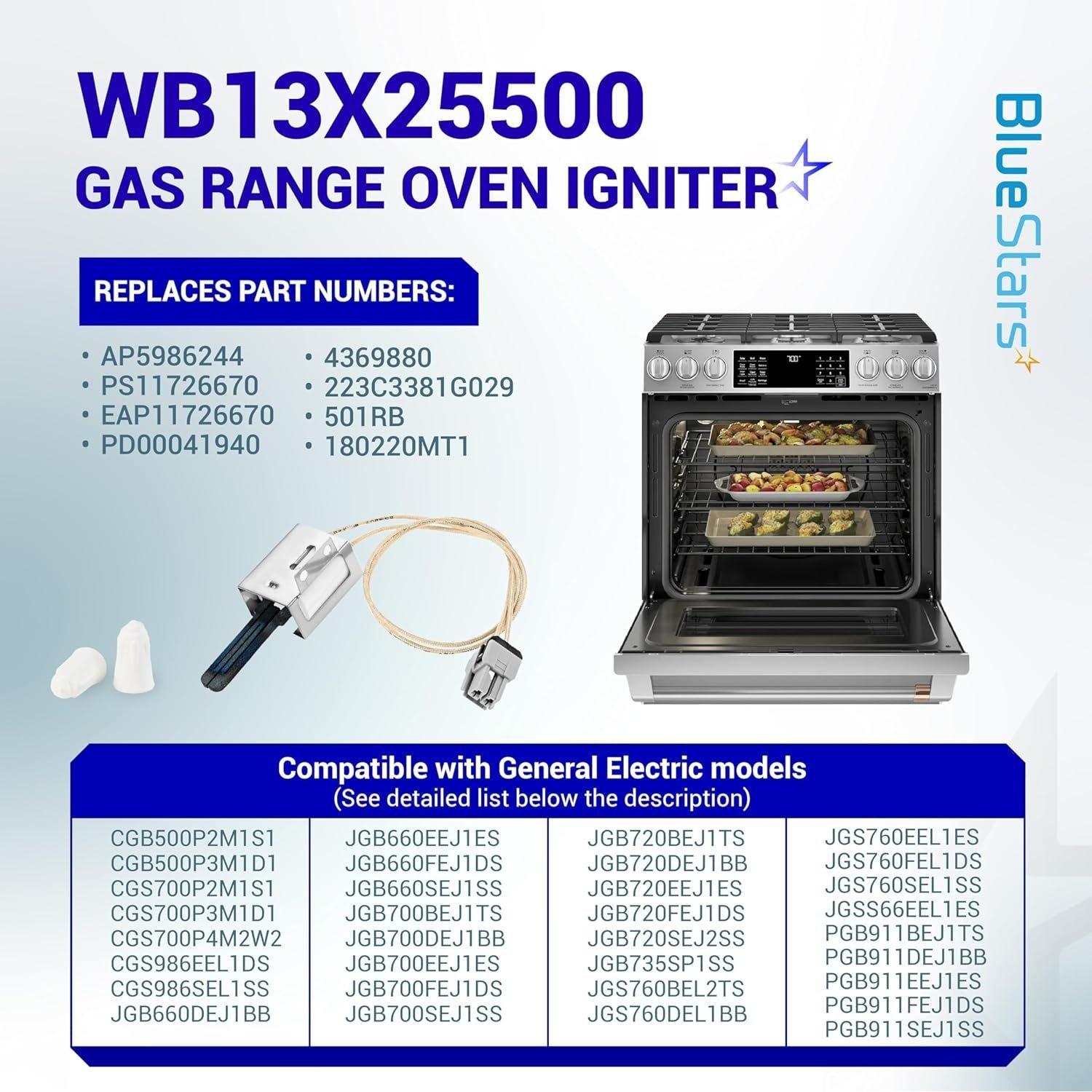

Replaces / Cross-Reference Part Numbers

• WB13X25500
• AP5986244
• PS11726670
• 4369880
• DS043KX
• 223C3381G029
• 501RB
• 180220MT1

Compatibility & Fitment

• Designed for specific GE gas oven ranges.
• Confirmed fit for models including, but not limited to: JGB660SEJ4SS, JGB700SEJ4SS, PGB930SEJ4SS, PGB911SEJ2SS, CGS986EEL1DS, JGB735SP1SS, and JGS760SEL1SS.

When to Replace

• Oven fails to heat or ignite.
• Oven takes an extended time to preheat.
• Glow bar does not glow bright orange/yellow.
• Igniter is visibly cracked or broken.
• Smell of unburned gas after attempting to start the oven.

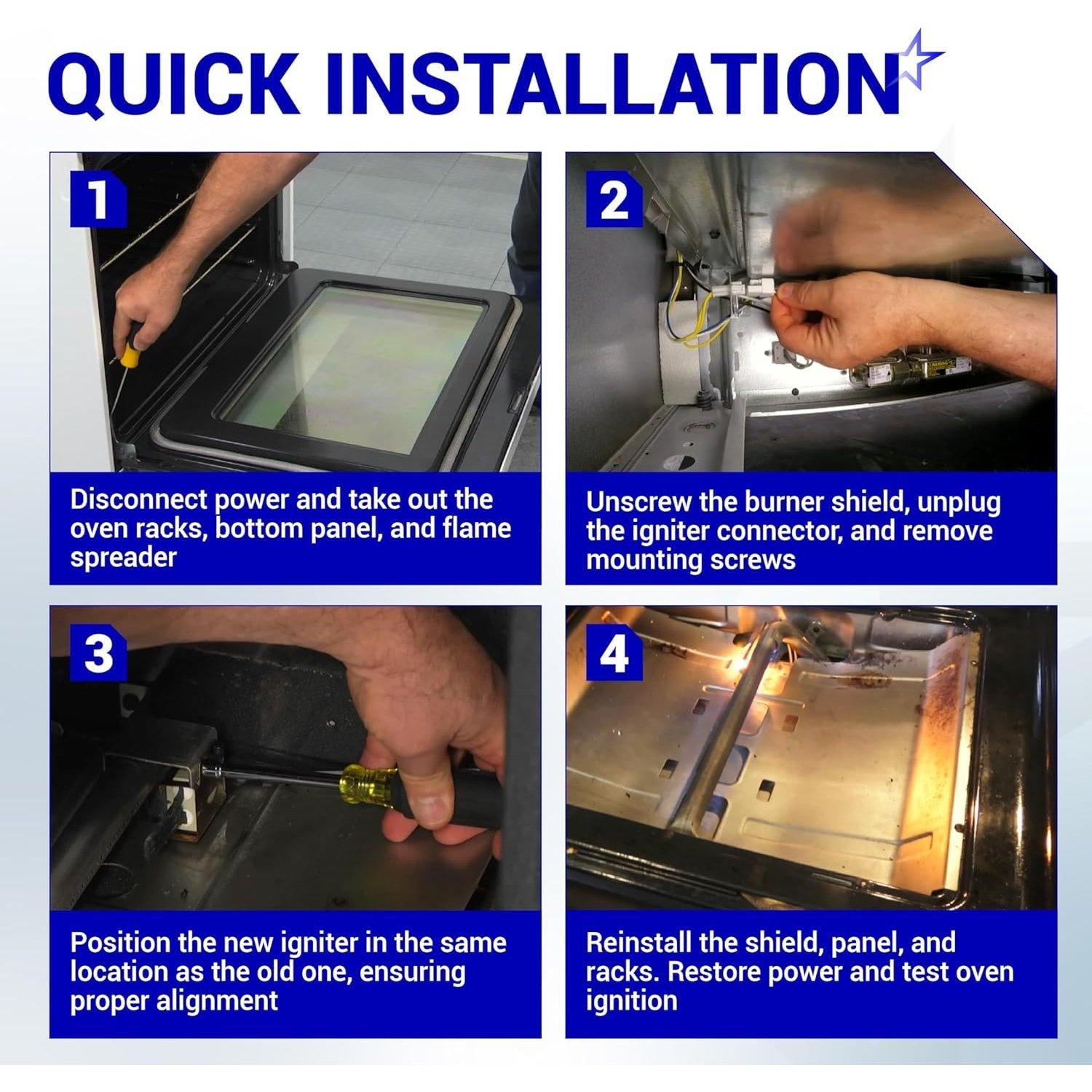

Installation Tips

• Disconnect the appliance from power and gas supply before installation.

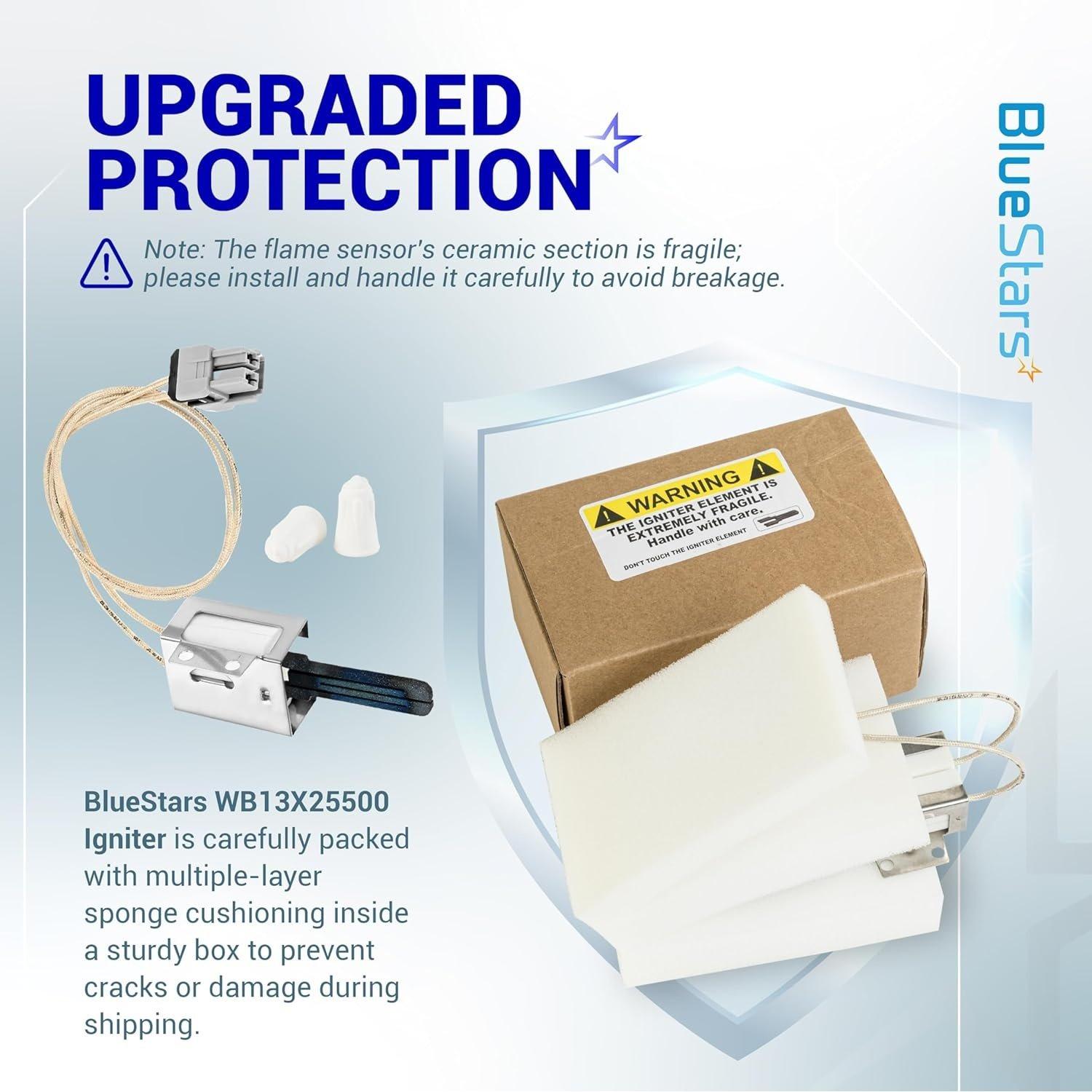

• The igniter element is fragile; handle with care and avoid touching it with bare hands.
• Use the included ceramic wire nuts to ensure a secure, high-temperature electrical connection.
• Confirm the wire connector plug is fully seated.
• Consult your appliance's service manual for model-specific instructions.
