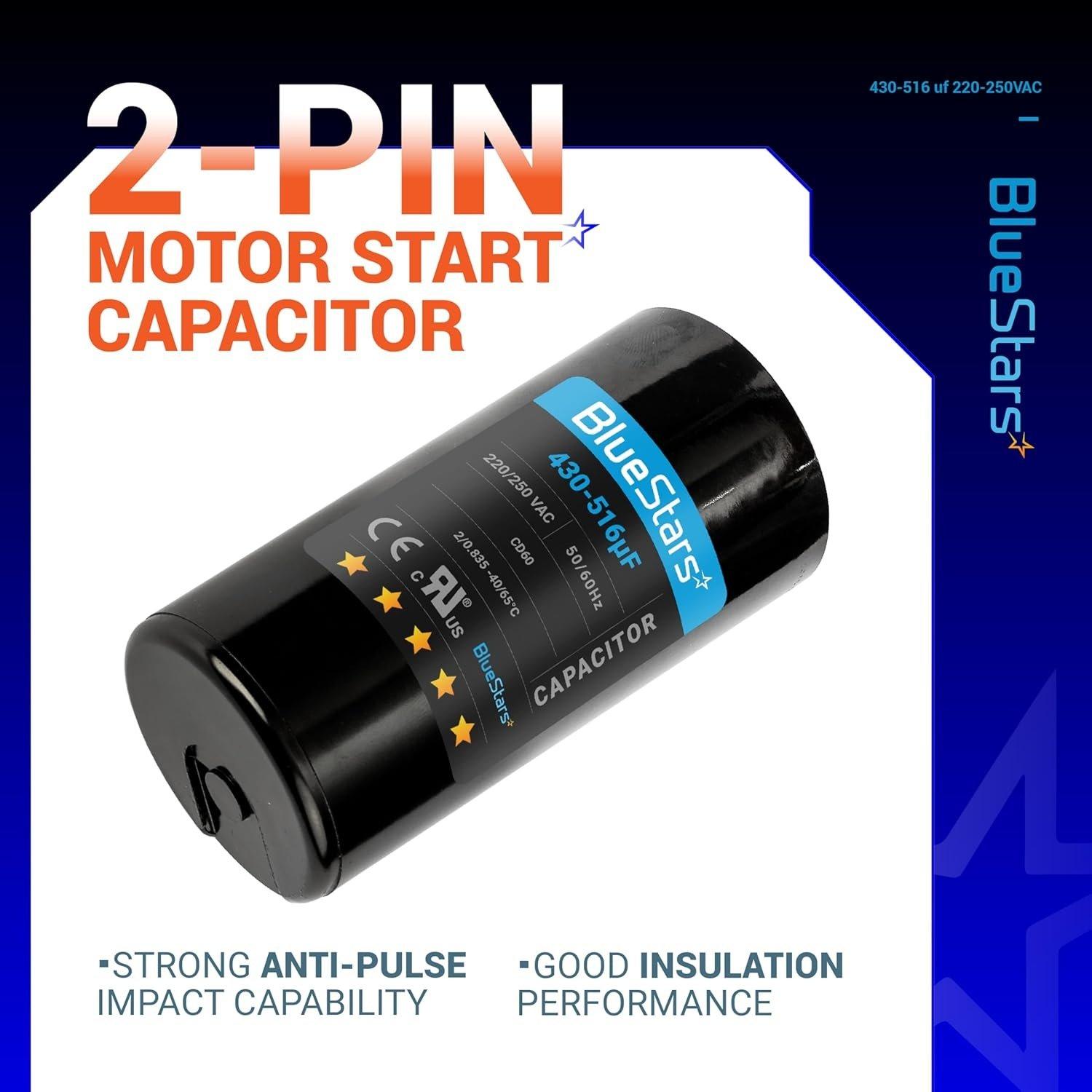

[Lifetime Warranty] 430-516 uF MFD 220-250 VAC ±20% Round Start Capacitor 50/60 Hz - Fits Single-Phase Electric Motors

430-516 uf/MFD 220-250 VAC ±20% Volts Round Start Capacitor

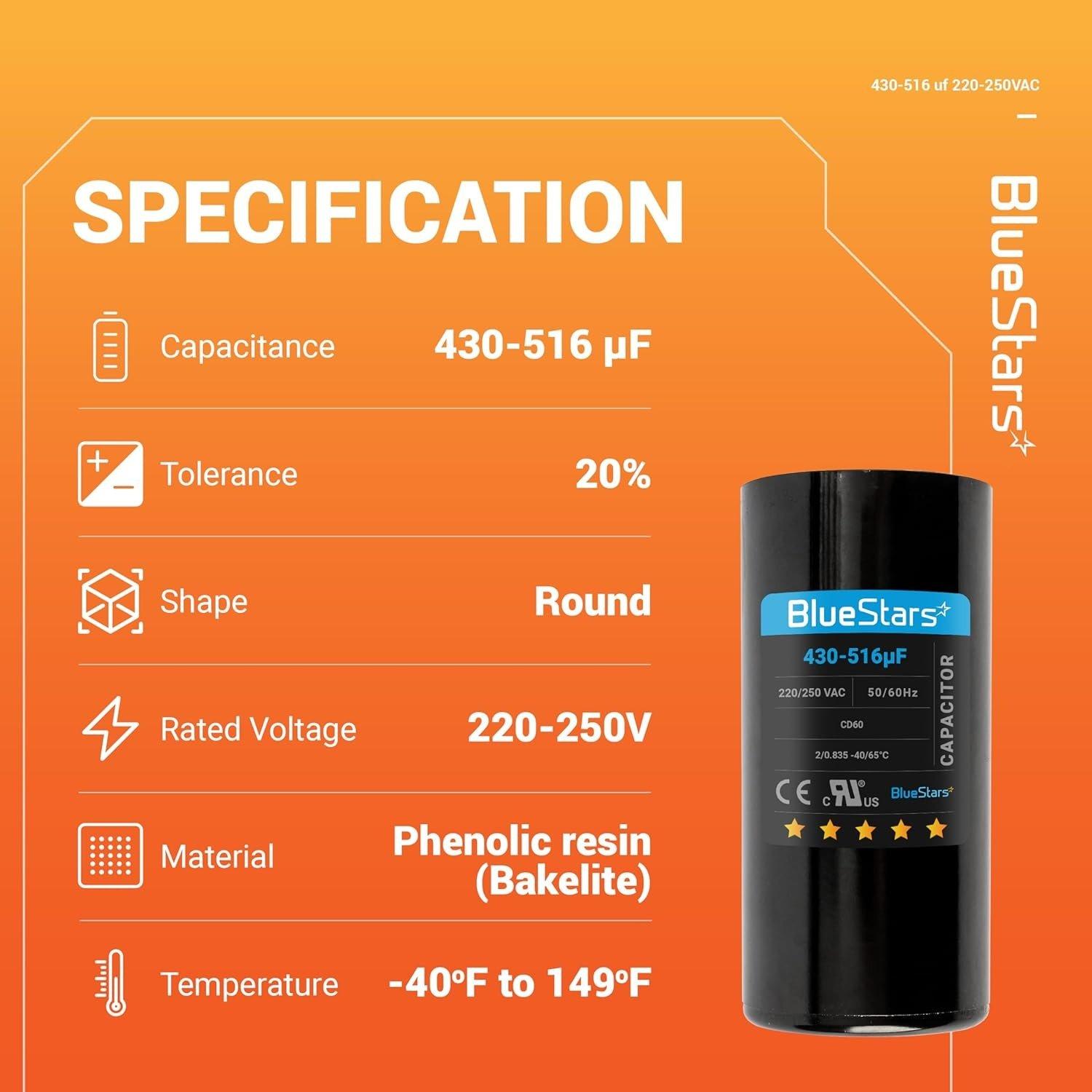

Key Features

• Capacitance: 430-516 Microfarads (uF/MFD)
• Voltage Rating: 220-250 Volts AC
• Frequency: 50/60 Hz
• Capacitance Tolerance: ±20%
• Terminals: 1/4 inch quick-disconnect
• Shape: Round

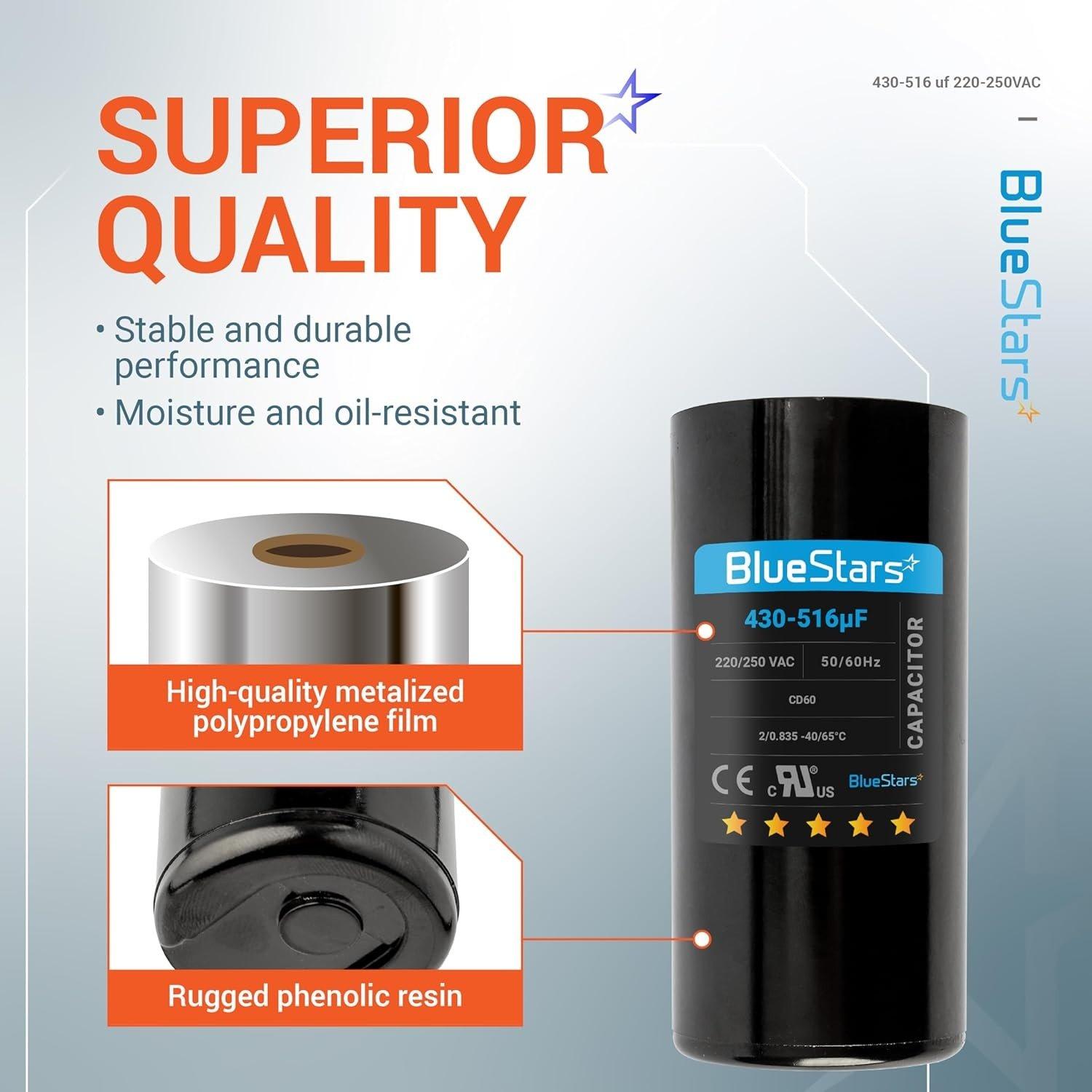

• Case: Moisture and oil-resistant plastic resin

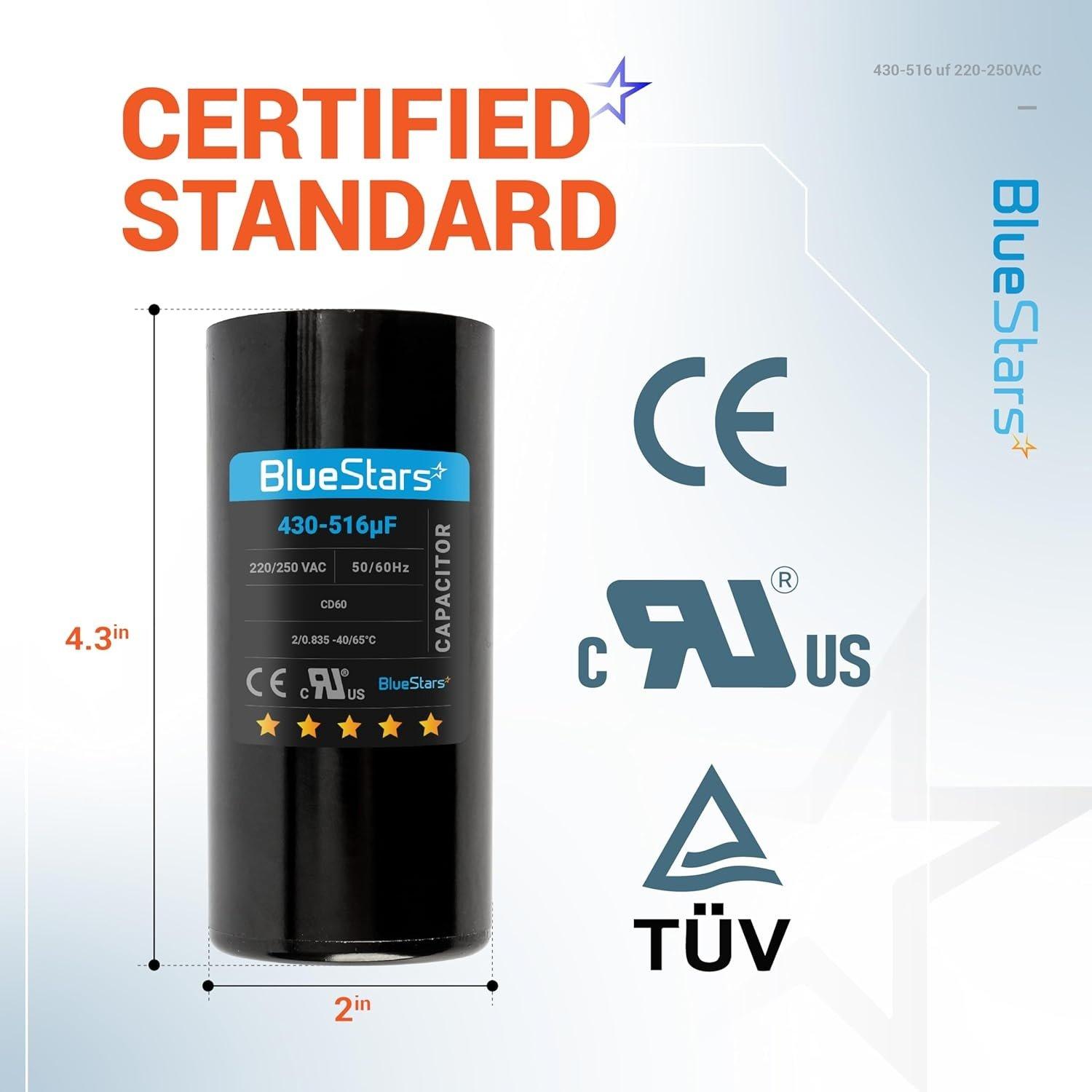

• Dimensions: 2-1/8 inch Diameter x 4-3/8 inch Height
• Type: Dry, electrolytic, non-polarized
• Compliance: UL 810 Recognized

Replaces / Cross-Reference Part Numbers

• Replaces any round motor start capacitor with matching specifications.
• Ensure the replacement has a capacitance range of 430-516 uF and a voltage rating of at least 220V.
• Compatible with type CD60 capacitors of the same rating.

Compatibility & Fitment

• For use in single-phase AC electric motor starting circuits.

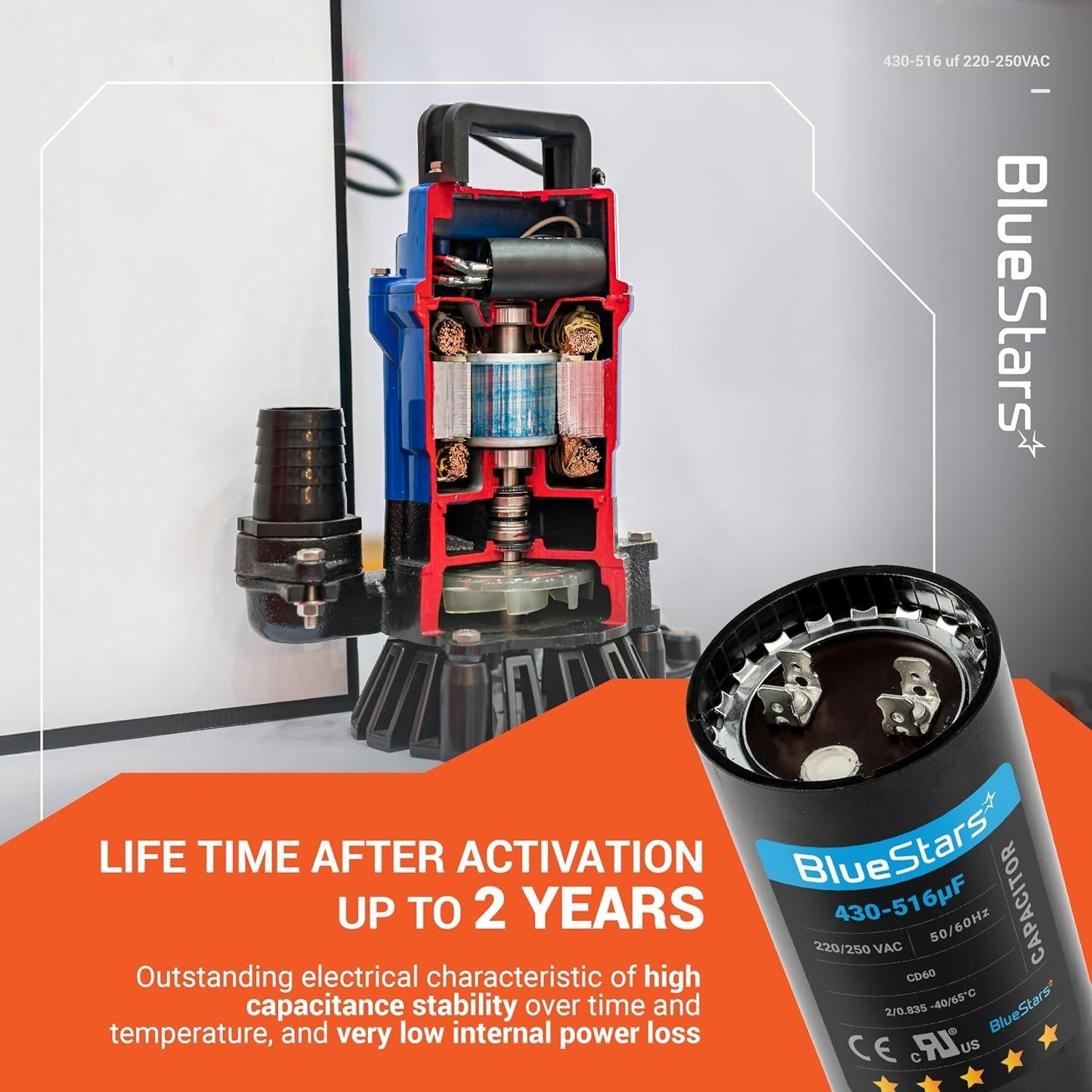

• Applications include HVAC units, air compressors, well pumps, and refrigeration systems.
• The voltage rating of the replacement capacitor must be equal to or greater than the original capacitor.

When to Replace

• Motor hums but fails to start.
• Motor starts slowly or with low torque.
• Circuit breaker trips upon motor startup.
• Visible damage to the existing capacitor, such as bulging, cracking, or fluid leakage.

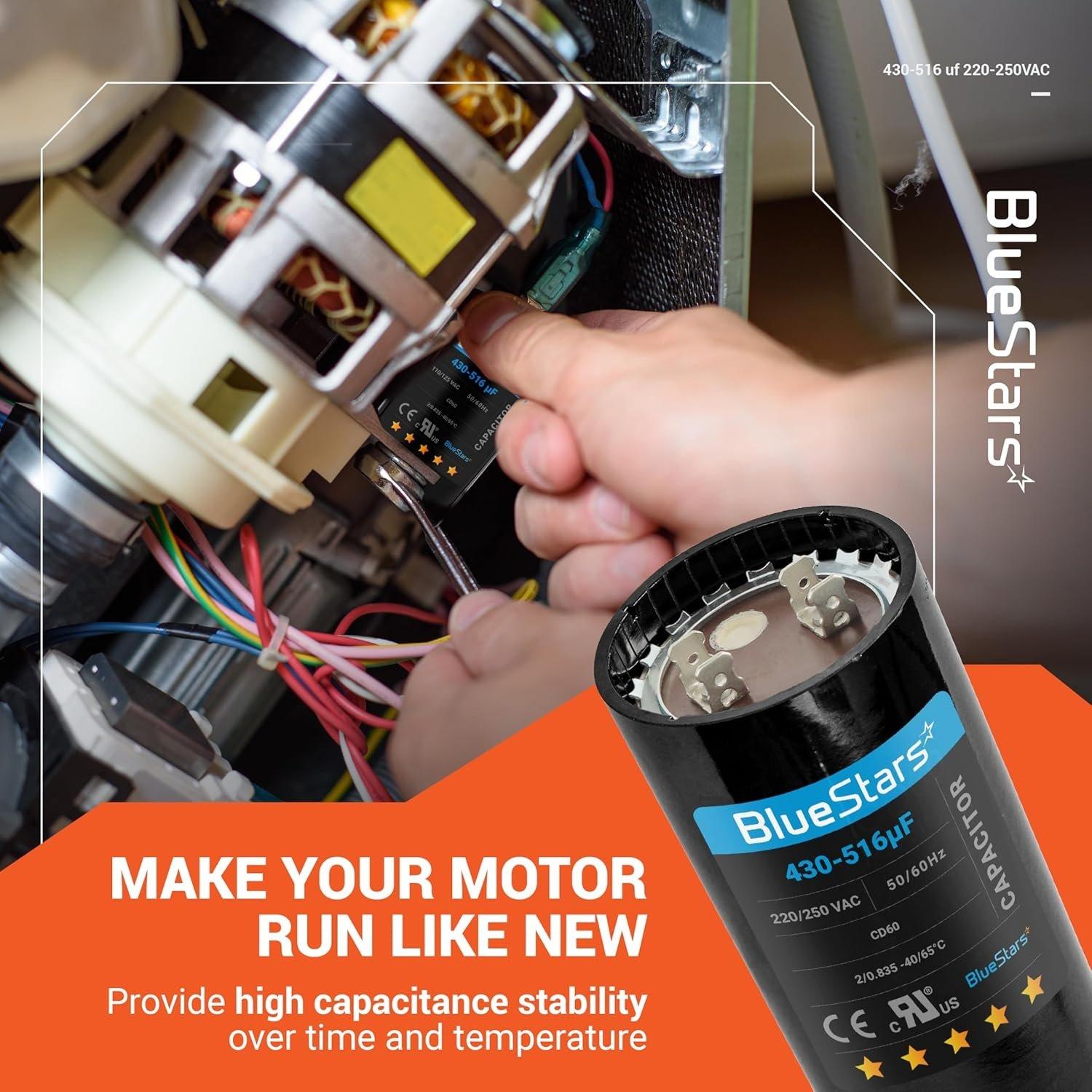

Installation Tips

• Disconnect electrical power to the unit before servicing.
• Discharge the existing capacitor by shorting the terminals with an insulated tool.

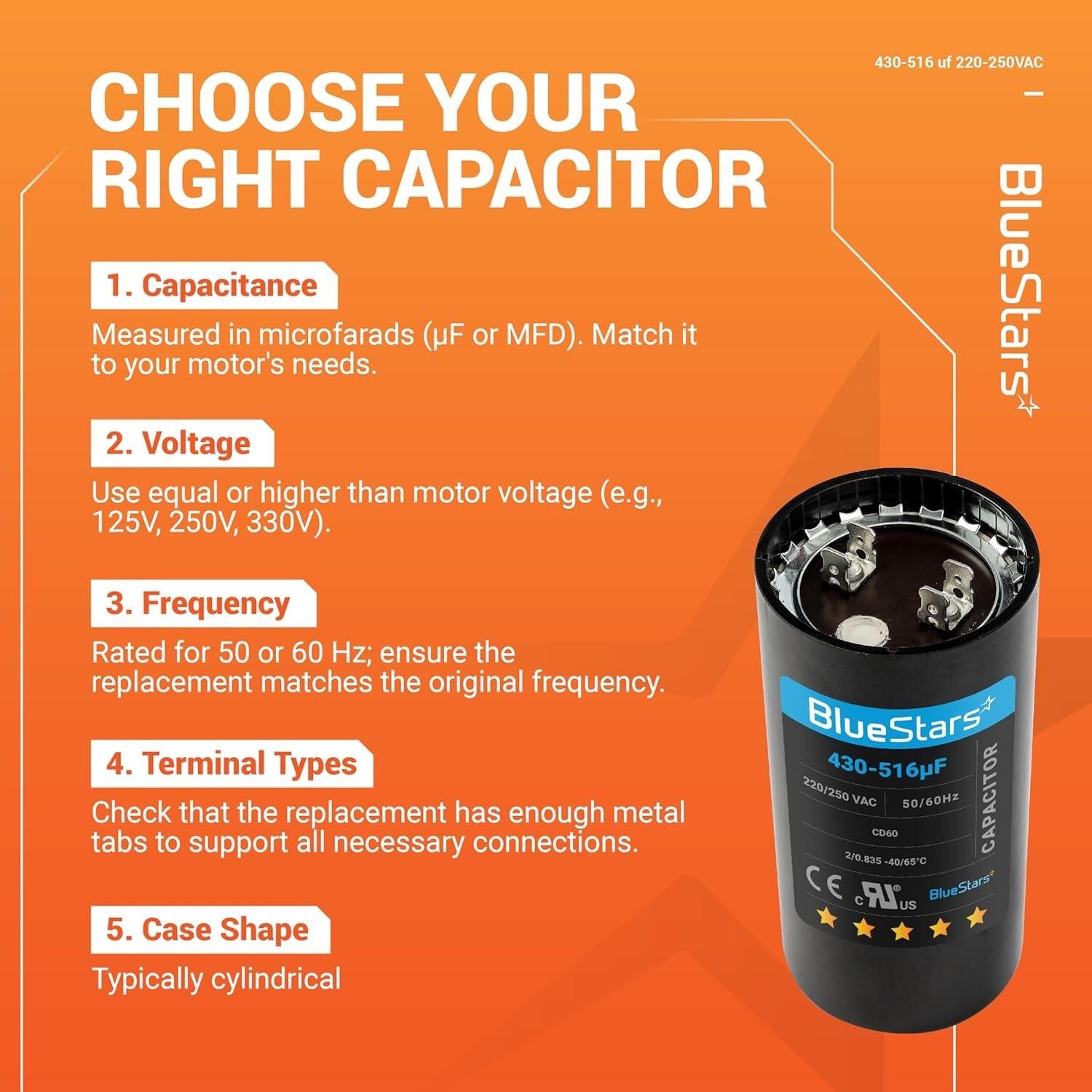

• Confirm the uF/MFD and VAC ratings of the new capacitor match the requirements of the original part.
• As a non-polarized capacitor, wire connections can be made to either terminal.
