AZ00390208

[Lifetime Warranty] [UL Listed] CBB60 60 uF MFD ±5% 250 VAC 50/60 Hz Round Run Start Capacitor - Fits Air Conditioner, Heat Pump, Pool Pump

Sold 1,566

Difficulty Icon: Easy
Easy
More than 30 minutes

$17.55

$19.49

Save $1.94
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

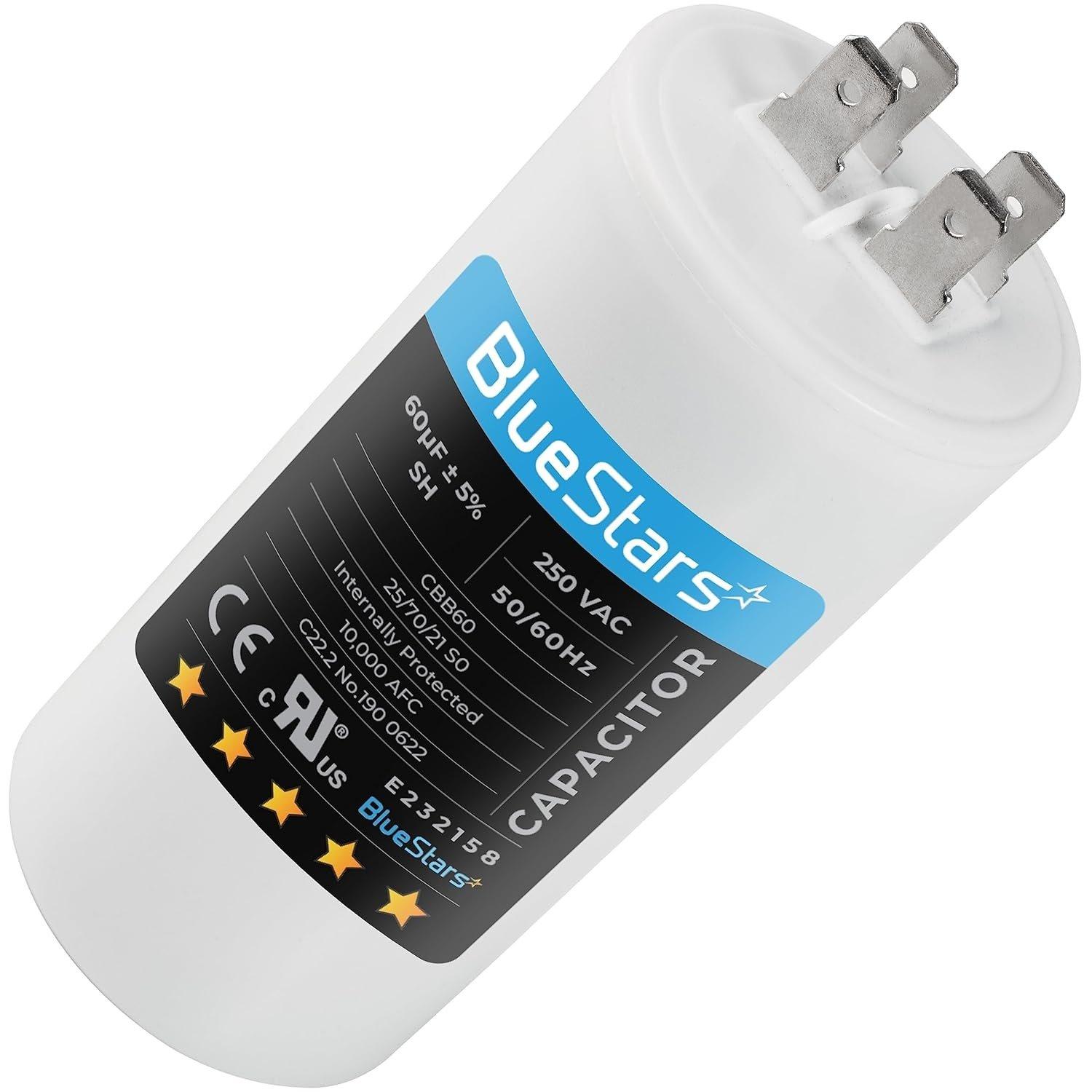

CBB60 60 uF/MFD/Microfarad 250 VAC Volts 50Hz/60Hz Run Capacitor

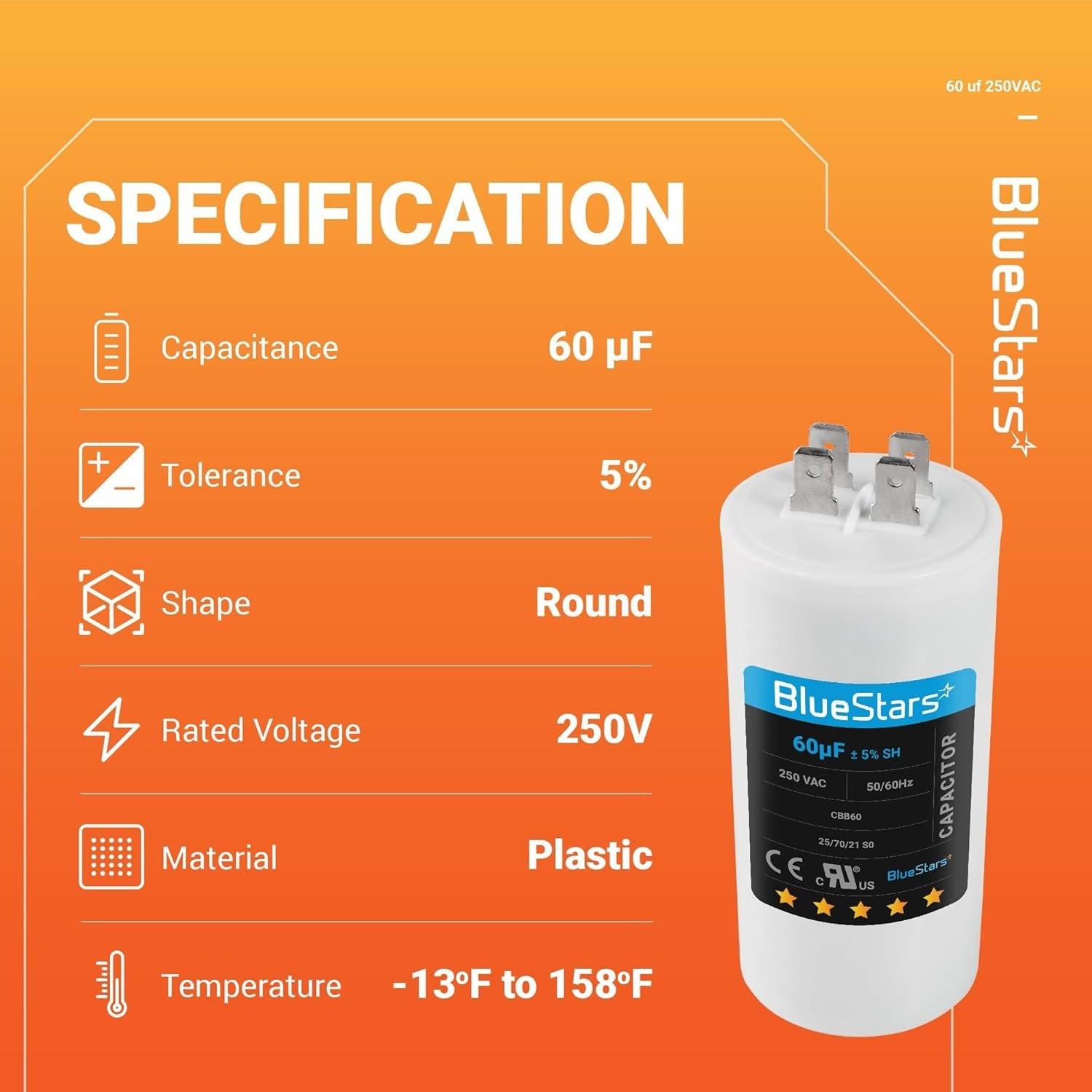

Key Features

  • Model: CBB60
  • Capacitance: 60 µF (MFD)
  • Tolerance: ±5%
  • Rated Voltage: 250V AC
  • Rated Frequency: 50/60Hz
  • Maximum Operating Temperature: 70°C
  • Climate Type: 40/70/21
  • Certifications: UL Listed

Replaces / Cross-Reference Part Numbers

  • Direct replacement for any CBB60 series capacitor with matching 60 uF capacitance and 250 VAC voltage specifications.

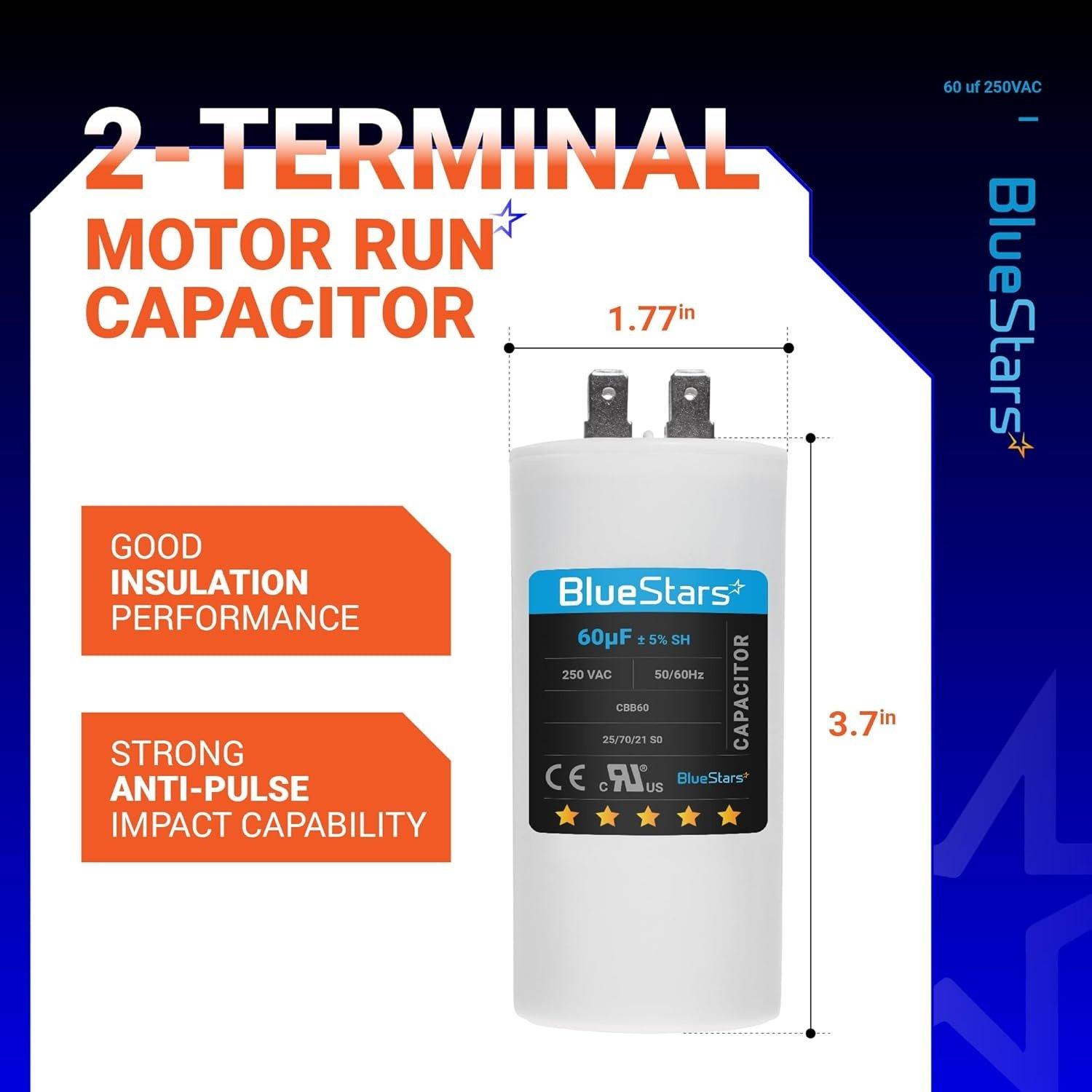

  • Verify physical dimensions and terminal type for proper fitment.

Compatibility & Fitment

  • For starting and running single-phase AC motors.
  • Suitable for applications including:Air conditionersCompressorsWater pumpsPressure washersWashing machinesFans and blowers

When to Replace

  • Motor hums or buzzes but fails to start.
  • Motor starts slowly or does not reach full operating speed.
  • Equipment shuts off intermittently during operation.
  • Capacitor casing is visibly swollen, cracked, or leaking fluid.
  • Capacitance measures outside the specified tolerance (±5%).

Installation Tips

  • Disconnect all electrical power to the unit before servicing.
  • Safely discharge the existing capacitor by shorting its terminals with an insulated tool.
  • Verify the capacitance (uF) and voltage (VAC) ratings match the original part.
  • Note the wire positions before disconnecting the old capacitor to ensure correct installation.
  • Secure the new capacitor in the mounting bracket and ensure all electrical connections are tight.
