[Lifetime Warranty] WR51X10055 Refrigerator Defrost Heater, WR55X10025 Temperature Sensor and WR50X10068 Defrost Thermostat Replacement - Compatible with GE Hotpoint Refrigerators

Sold 7,137

Difficulty Icon: Easy
Easy
More than 30 minutes

$18.72

$20.79

Save $2.07
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

WR51X10055 Refrigerator Defrost Heater, WR55X10025 Temperature Sensor and WR50X10068 Defrost Thermostat

Key Features

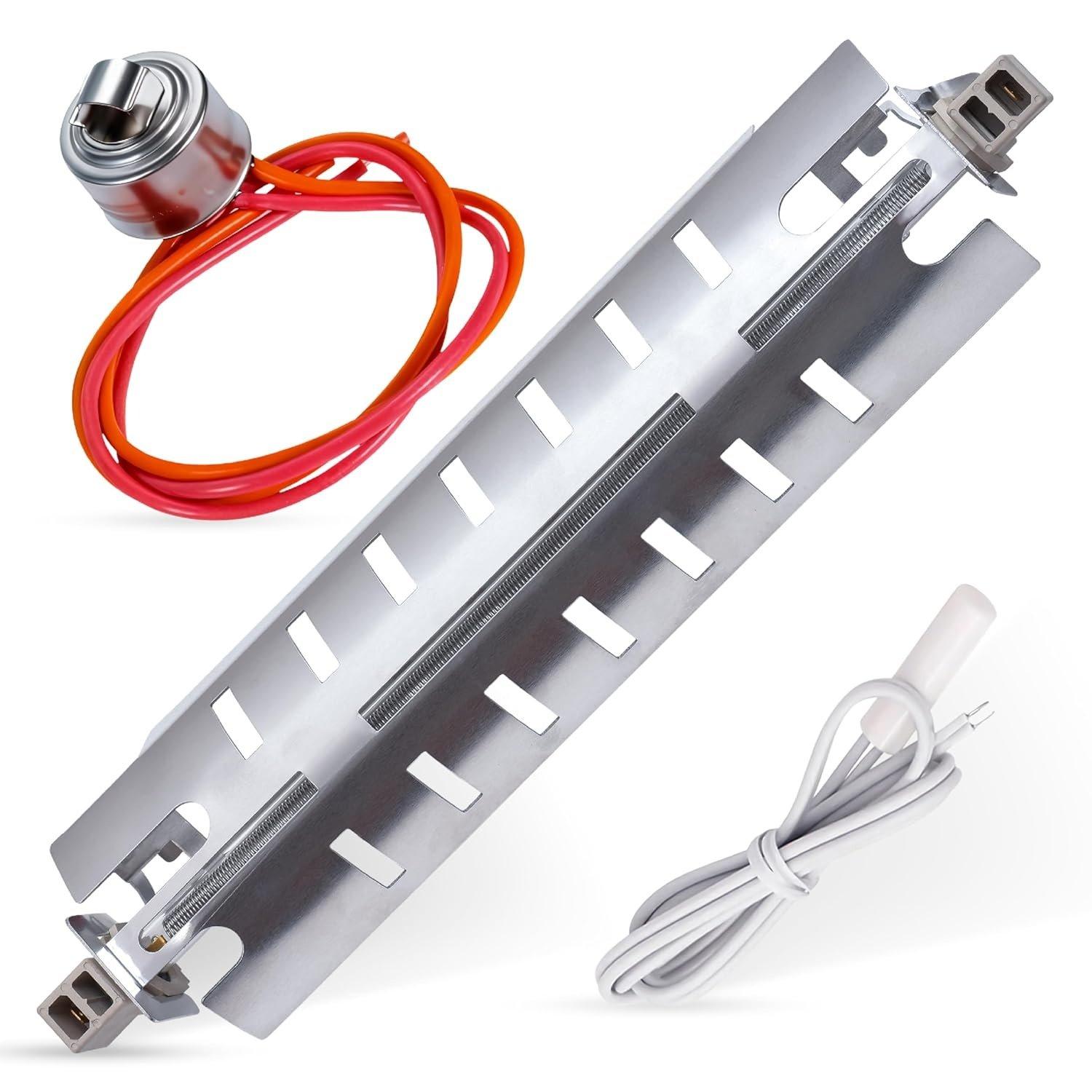

  • Complete three-piece defrost system repair kit.

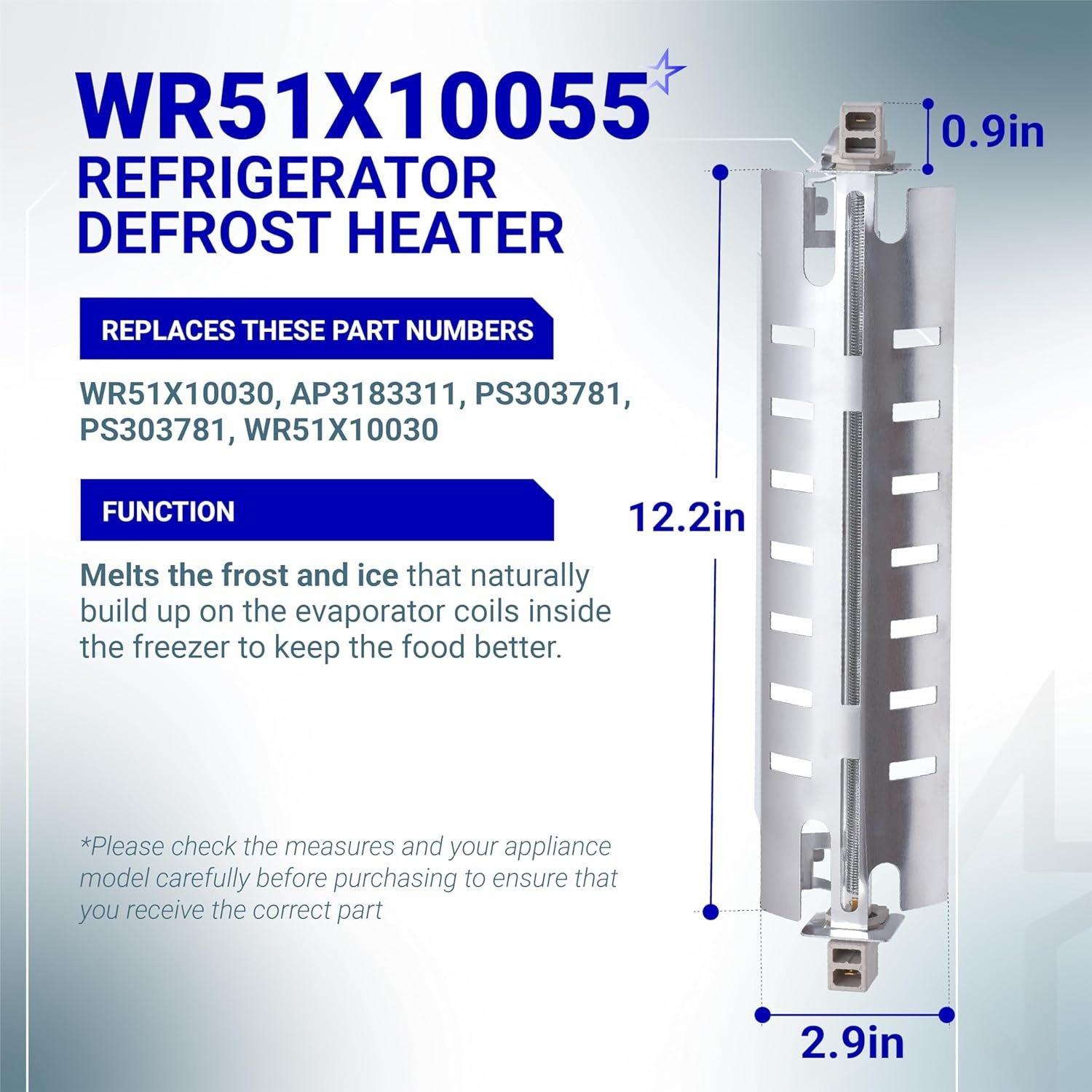

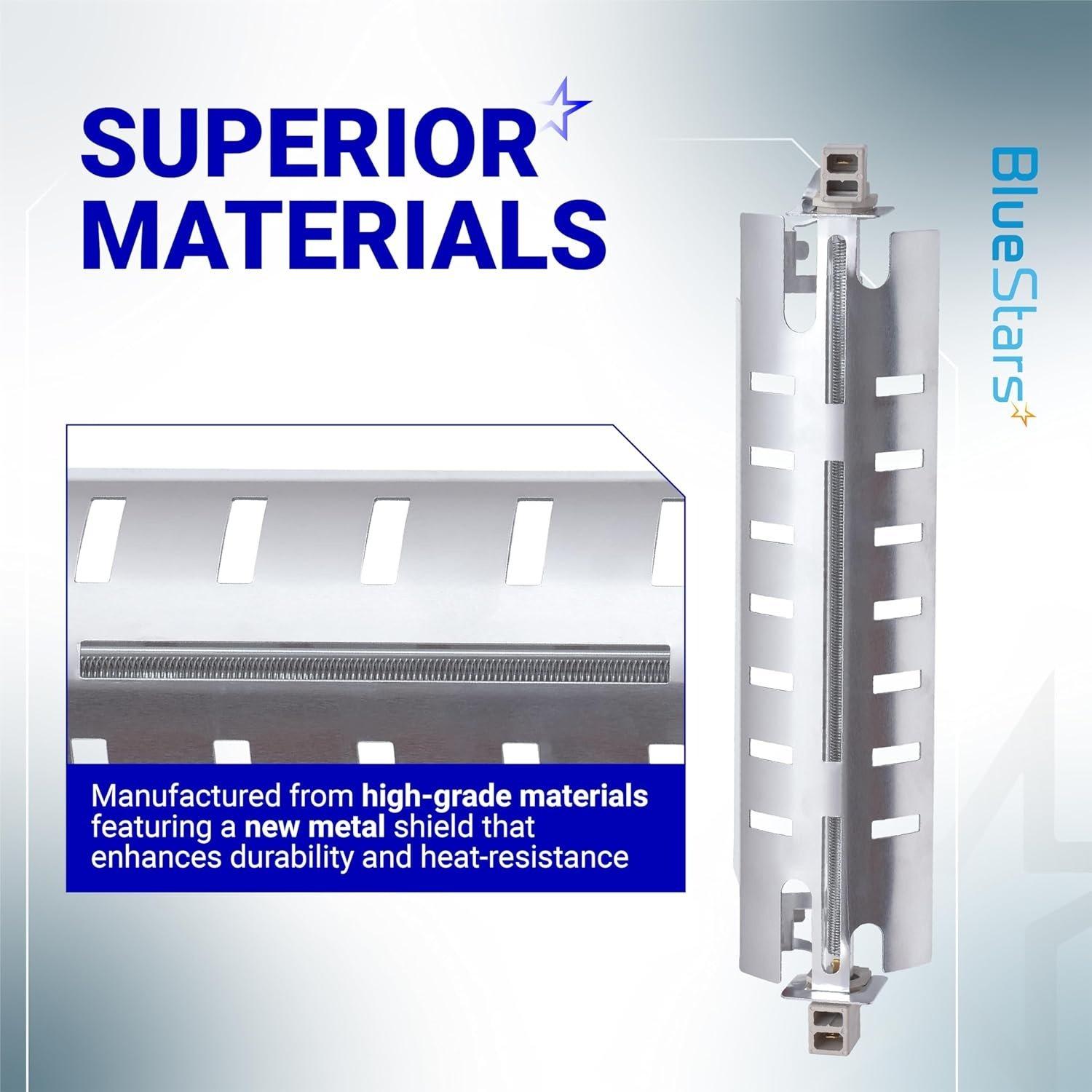

  • Defrost Heater WR51X10055:725-watt glass tube heating element with a metal shield. Melts frost and ice from the evaporator coils.
  • Temperature Sensor WR55X10025:Monitors the refrigerator's internal temperature and sends readings to the electronic control board.
  • Defrost Thermostat WR50X10068:Bi-metal thermostat that clips onto the evaporator tubing. It prevents overheating by cutting power to the defrost heater at a set temperature. Rated L140-30F.

Replaces / Cross-Reference Part Numbers

  • Defrost Heater:WR51X10055, WR51X10101, AP4355467, 1399613, AH1993872, EA1993872, PS1993872.
  • Temperature Sensor:WR55X10025, 914093, AP3792750, WR50X10027, WR55X10026, PS901297.
  • Defrost Thermostat:WR50X10068, AP3884317, 1170024, AH1017716, EA1017716, PS1017716.

Compatibility & Fitment

  • Designed for specific refrigerator models from brands including General Electric, Hotpoint, and Kenmore.
  • Verify compatibility by matching your appliance's model number with the required part numbers.

When to Replace

  • Excessive frost or ice buildup on the freezer's back panel or evaporator coils.
  • Refrigerator section is not cooling while the freezer remains cold.
  • Appliance is leaking water onto the floor.
  • Error codes related to the defrost system are displayed.

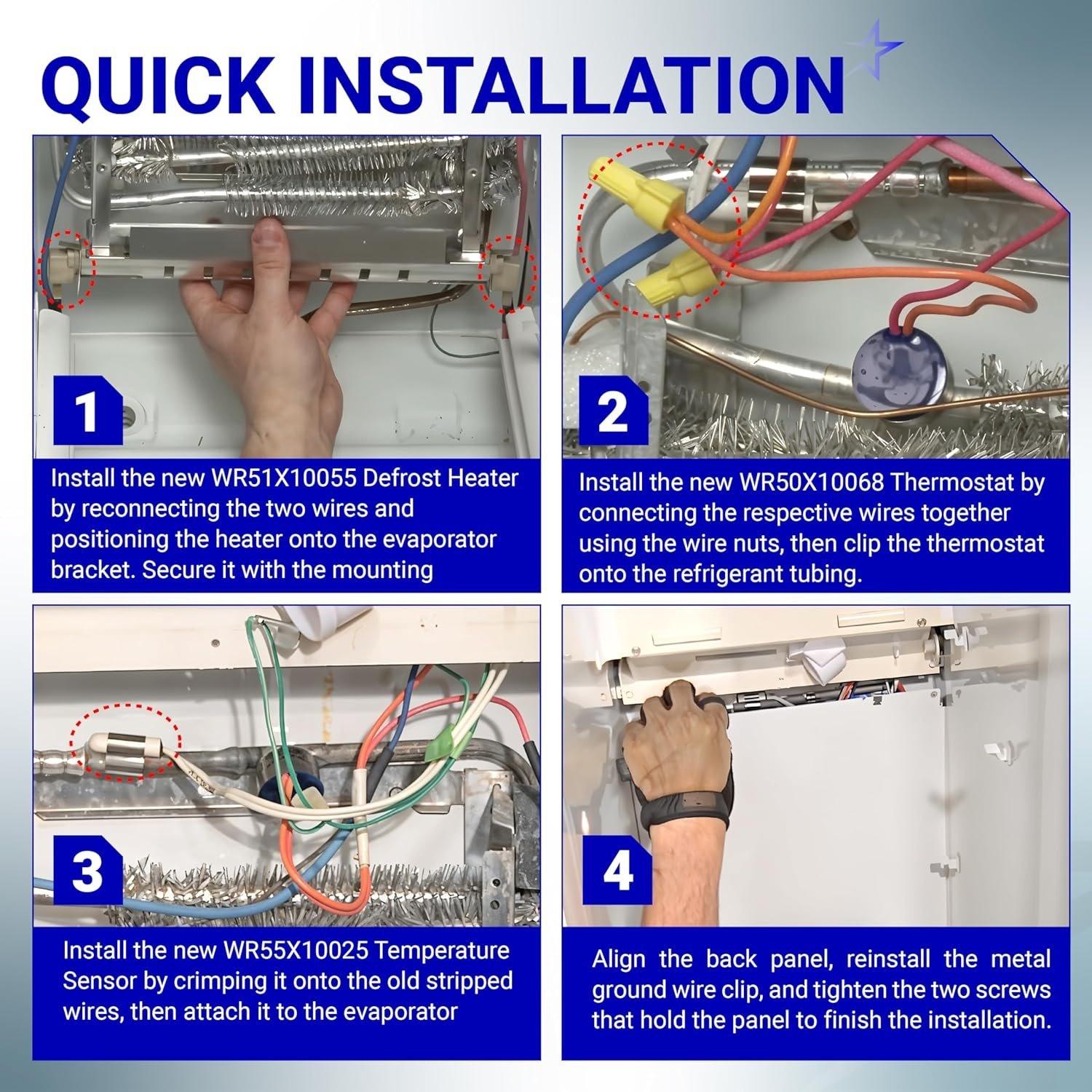

Installation Tips

  • Disconnect the refrigerator from its power source before beginning installation.
  • Wear protective gloves to prevent injury.
  • Photograph the original wiring configuration for reference before disconnecting components.
  • Use a hairdryer to gently melt any existing frost on the coils for easier removal of old parts.
