[Lifetime Warranty] 60 uF CBB60 250 VAC Motor Run Start Capacitor - Fits AC Motors 50/60 Hz - Pack of 2

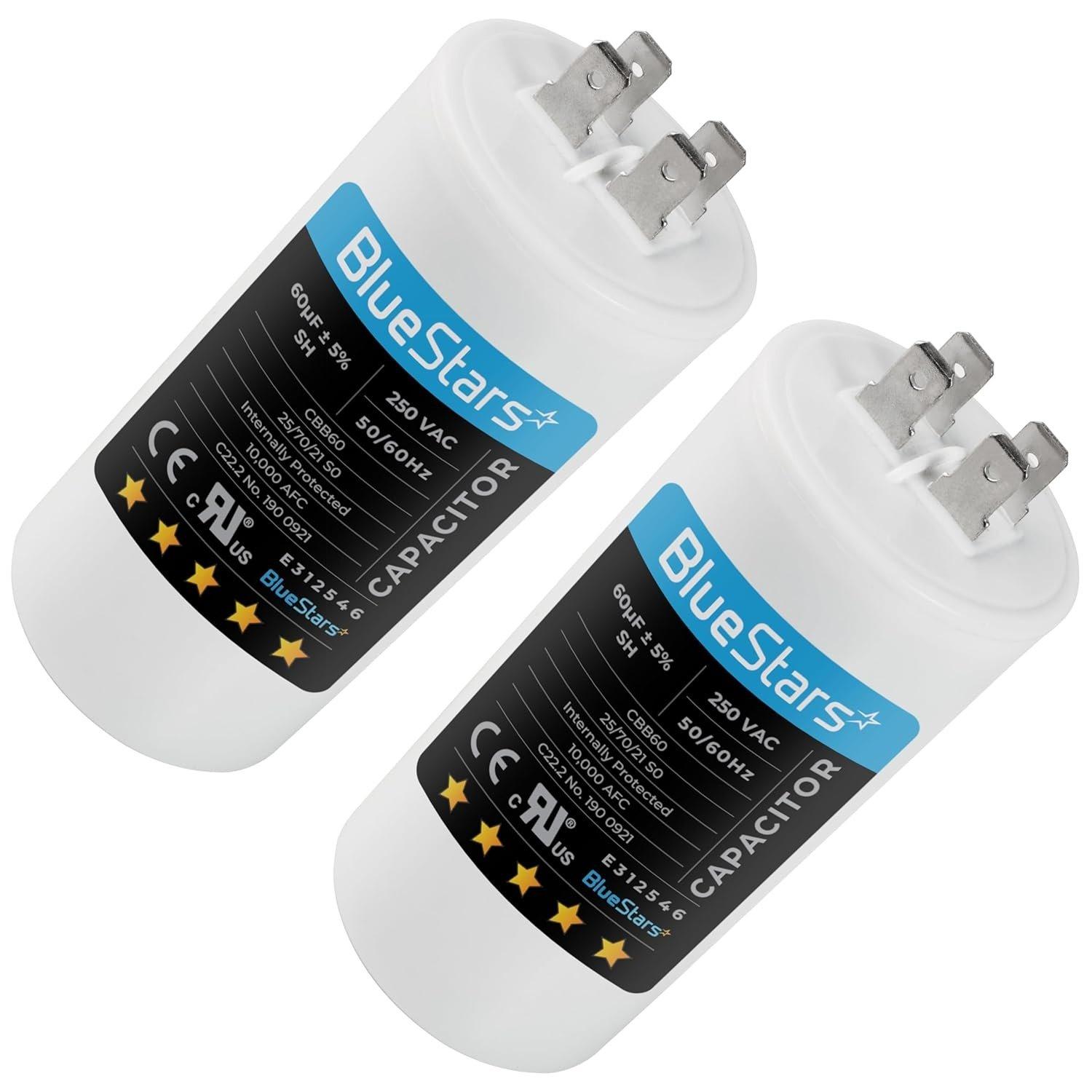

60 uF CBB60 250 Volt Motor Run Start Capacitor - Pack of 2

Key Features

• Package includes two (2) capacitors

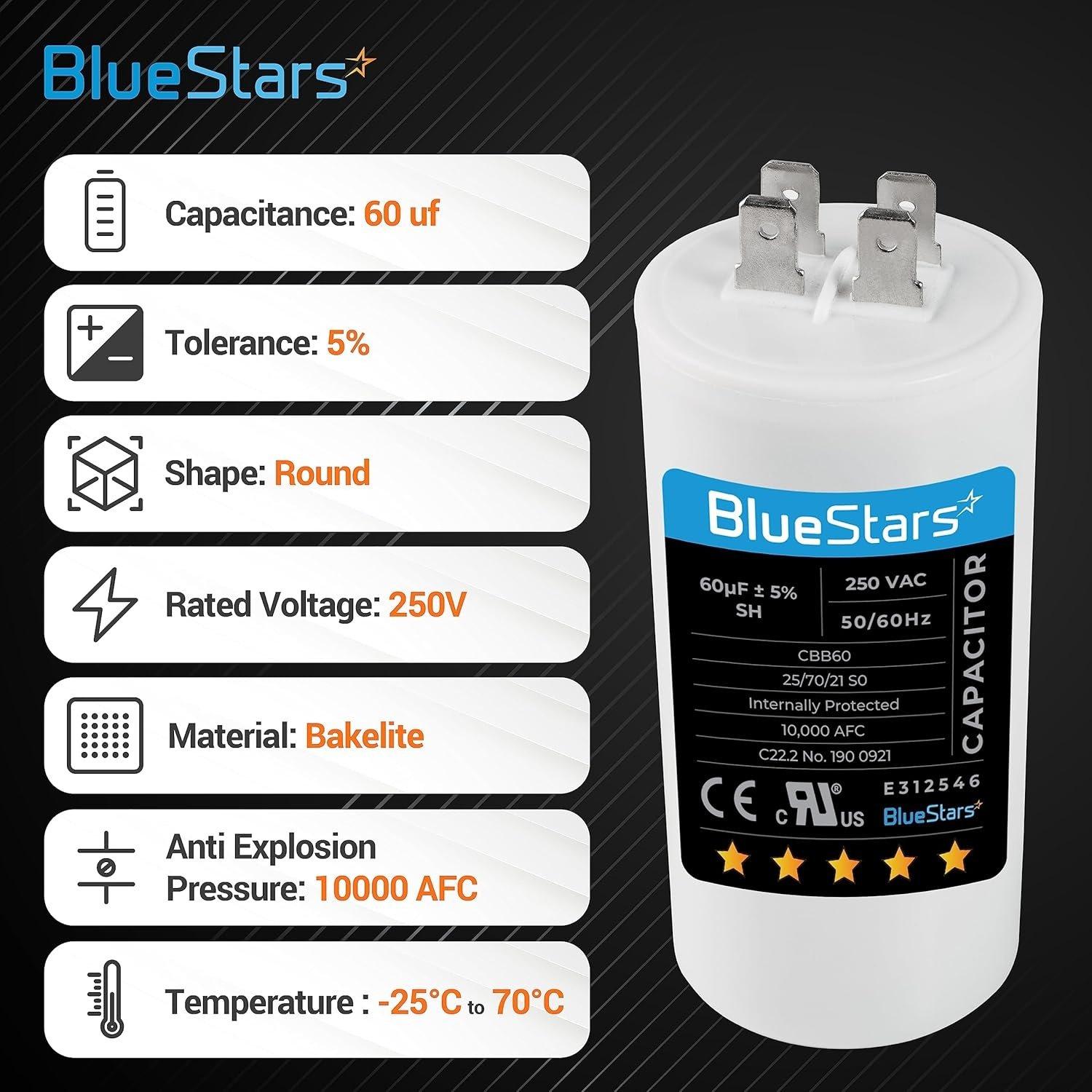

• Capacitance: 60 microfarads (uF)
• Voltage Rating: 250 Volts AC
• Frequency: 50/60 Hz
• Model: CBB60
• Capacitance Tolerance: ±5%
• Termination: 2-wire leads with fork terminals

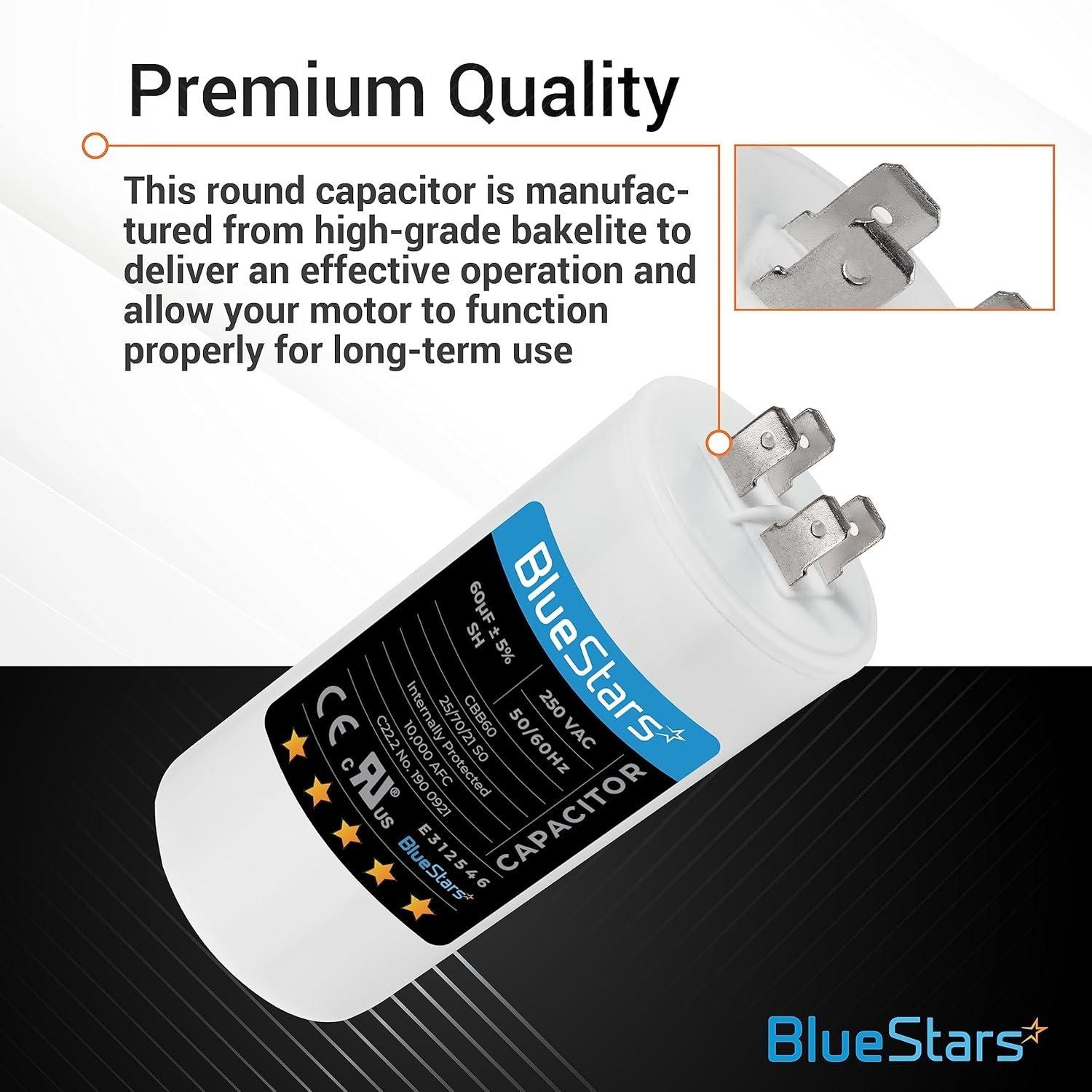

• Construction: Metalized polypropylene film
• Features an integrated pressure-sensitive safety interrupter

Replaces / Cross-Reference Part Numbers

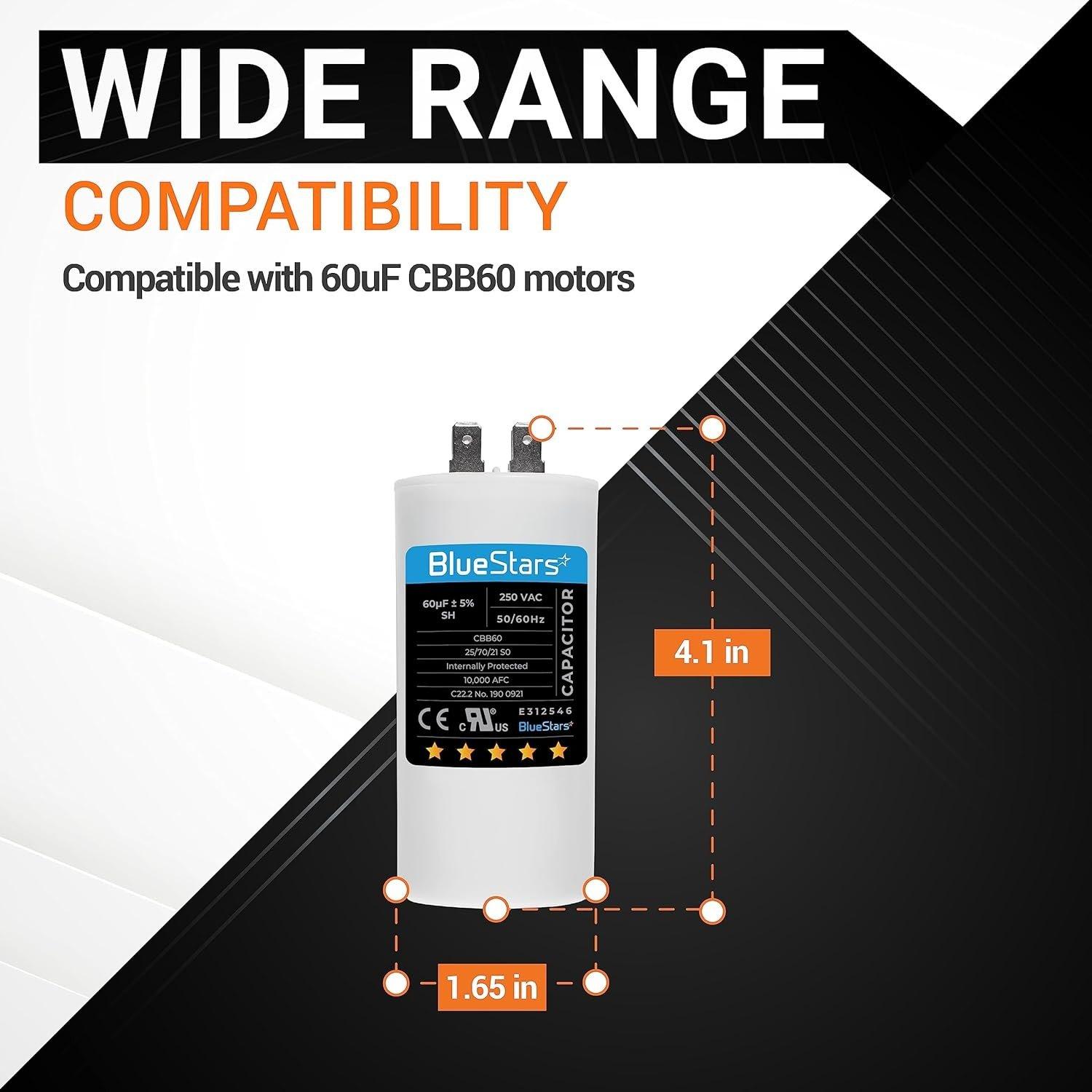

• This is a universal replacement part. Confirm that the capacitance (uF), voltage (V), and physical dimensions match your original capacitor.

Compatibility & Fitment

• Designed for the start and run circuits of single-phase AC motors.
• Commonly used in air conditioners, water pumps, washing machines, air compressors, fans, and generators.

When to Replace

• Motor produces a humming sound but does not start
• Motor starts slowly or fails to reach full speed
• Intermittent operation or frequent overheating of the motor
• Visible signs of damage to the capacitor, such as bulging, cracking, or leaking fluid

Installation Tips

• Disconnect all electrical power to the equipment before beginning installation.

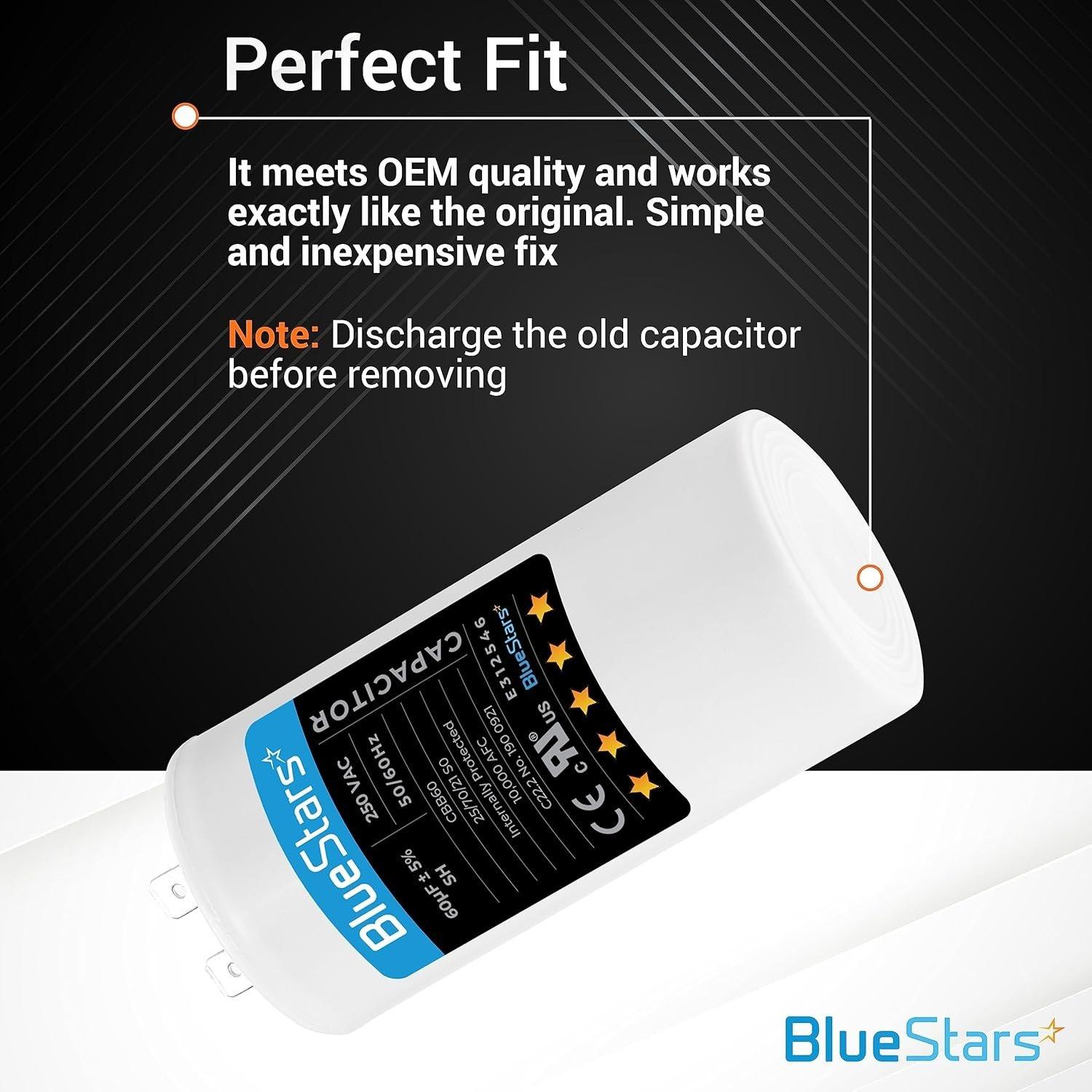

• Safely discharge the existing capacitor by shorting the terminals with a properly insulated tool or a high-wattage resistor.
• Ensure the replacement capacitor's specifications match the original part.
• Professional installation is recommended for those unfamiliar with electrical components.
