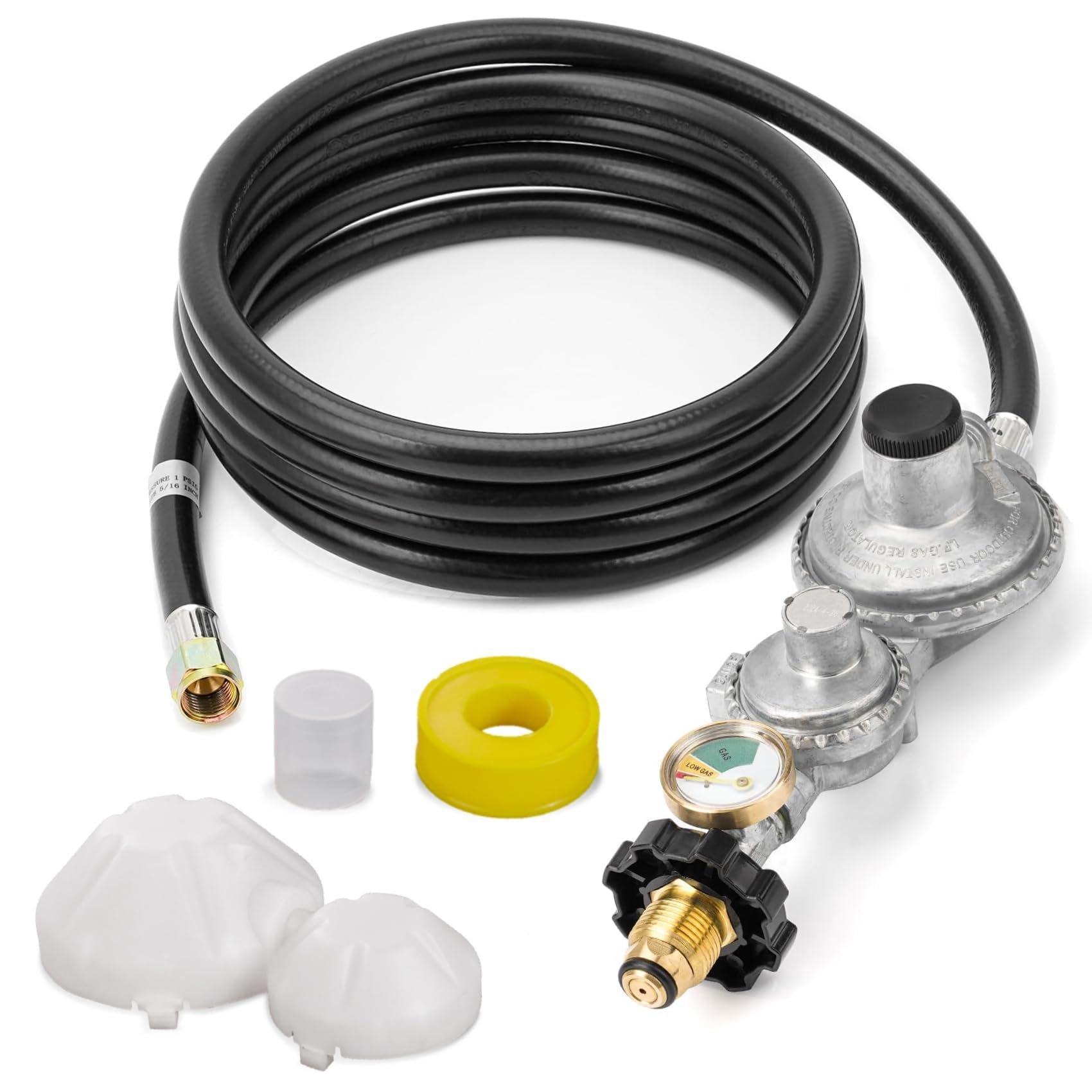

[Lifetime Warranty] [CSA Certified] 10FT Two Stage Propane Regulator Hose and Gauge - Standard P.O.L Tank Connection and 3/8in Female Flare Fitting for Grill Heaters Fire Pit Gas Stove Generator

10FT Two Stage Propane Regulator Hose and Gauge - Standard P.O.L Tank Connection and 3/8in Female Flare Fitting

Key Features

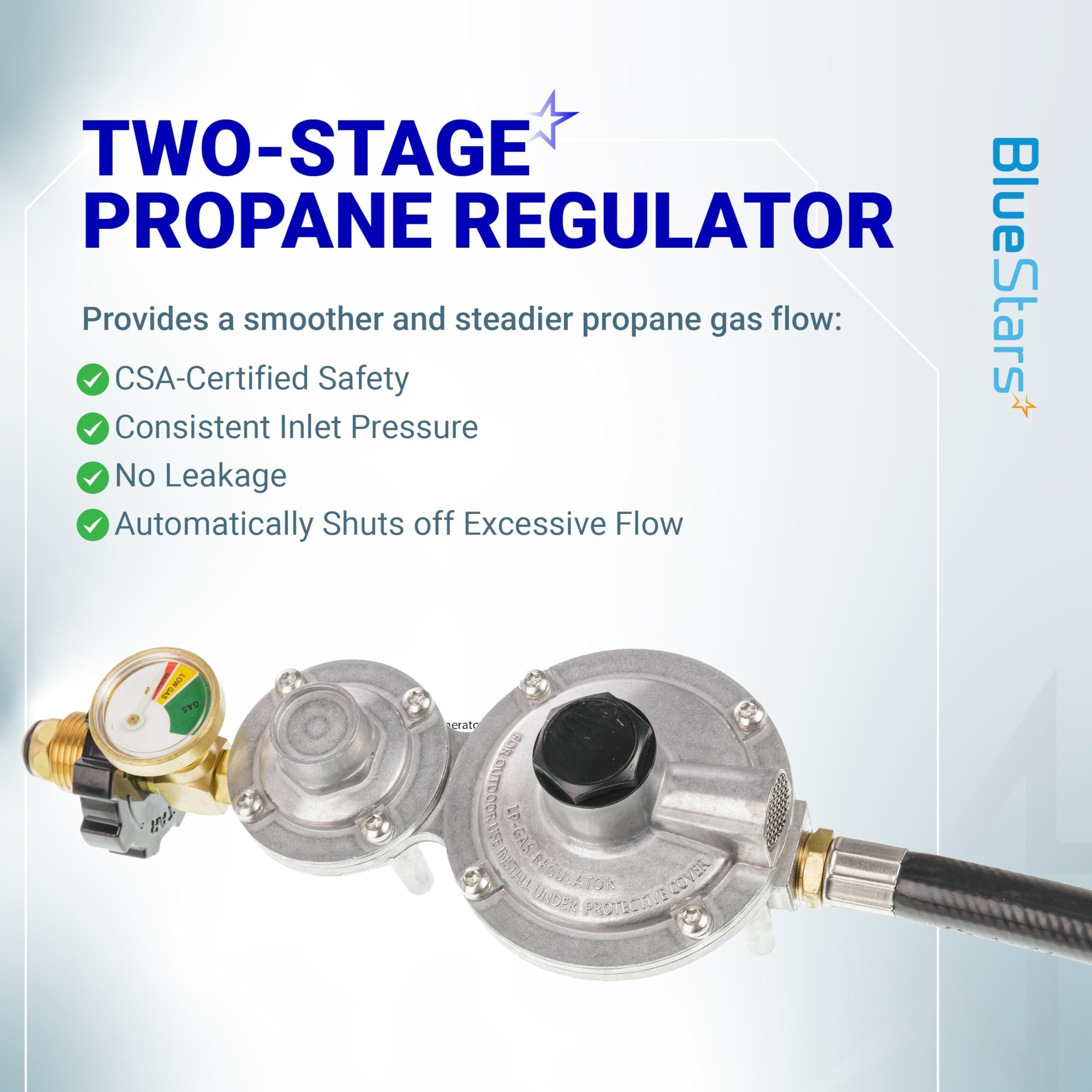

• Regulation Type: Two-stage system for consistent gas pressure and flow
• Hose Length: 10 feet
• Inlet Connection: Standard P.O.L. (Prest-O-Lite) fitting
• Outlet Connection: 3/8-inch female flare fitting (5/8-inch outer diameter)
• Maximum Flow Capacity: 160,000 BTU/hr

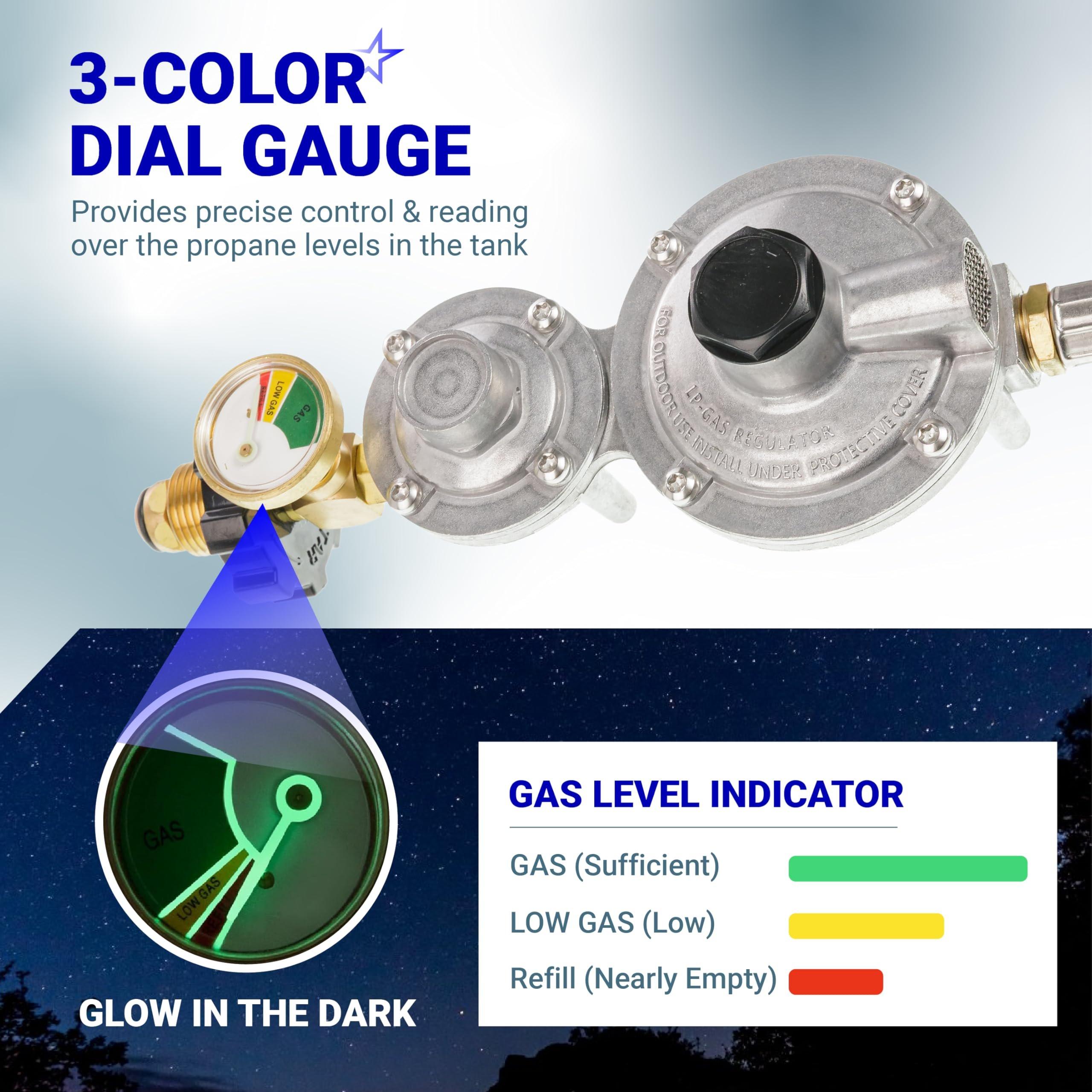

• Instrumentation: Integrated, color-coded pressure gauge for monitoring tank fuel level

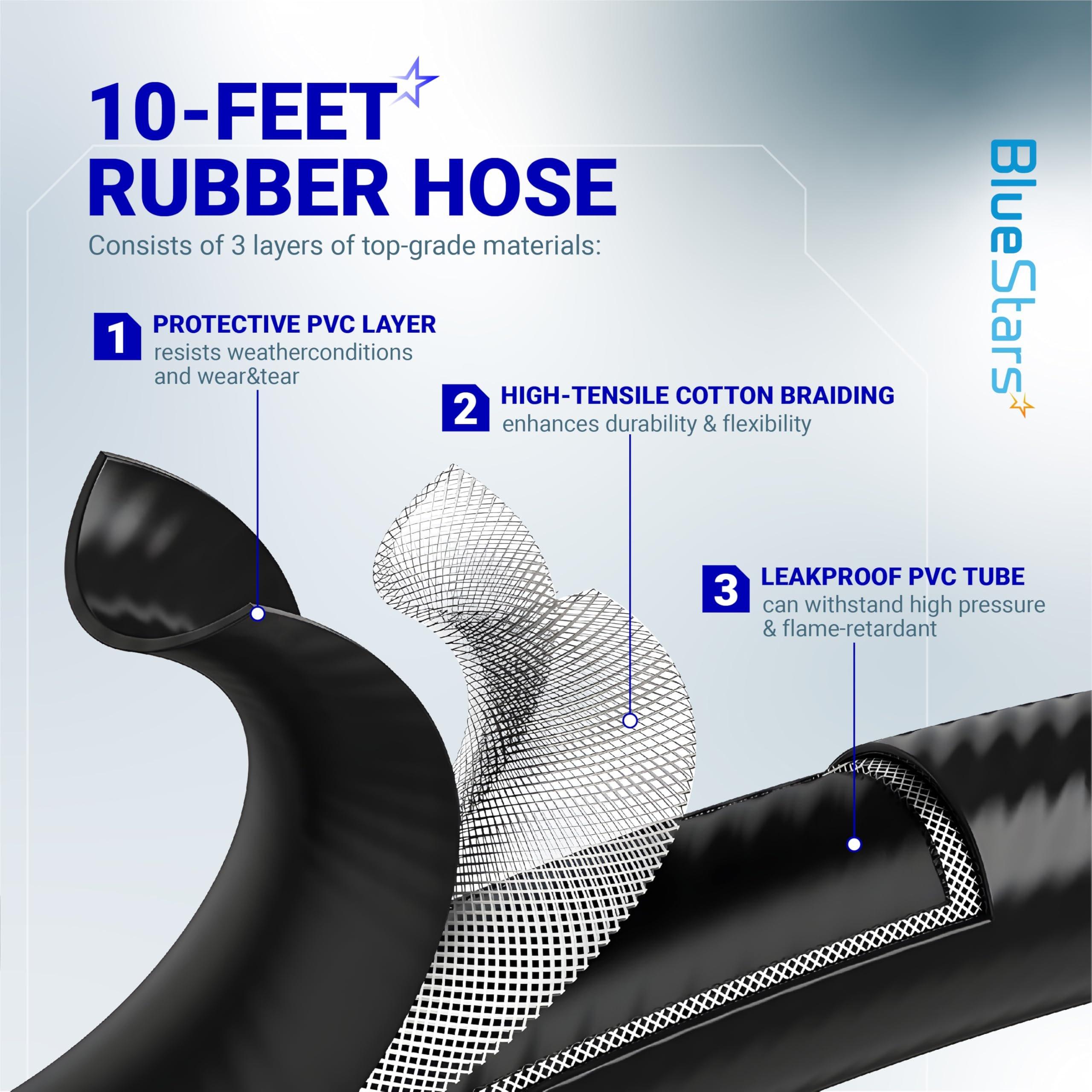

• Materials: Solid brass fittings and a durable rubber hose

Replaces / Cross-Reference Part Numbers

• Universal replacement for two-stage regulators with a P.O.L. inlet and a 3/8-inch female flare outlet. Verify specifications match your existing part.

Compatibility & Fitment

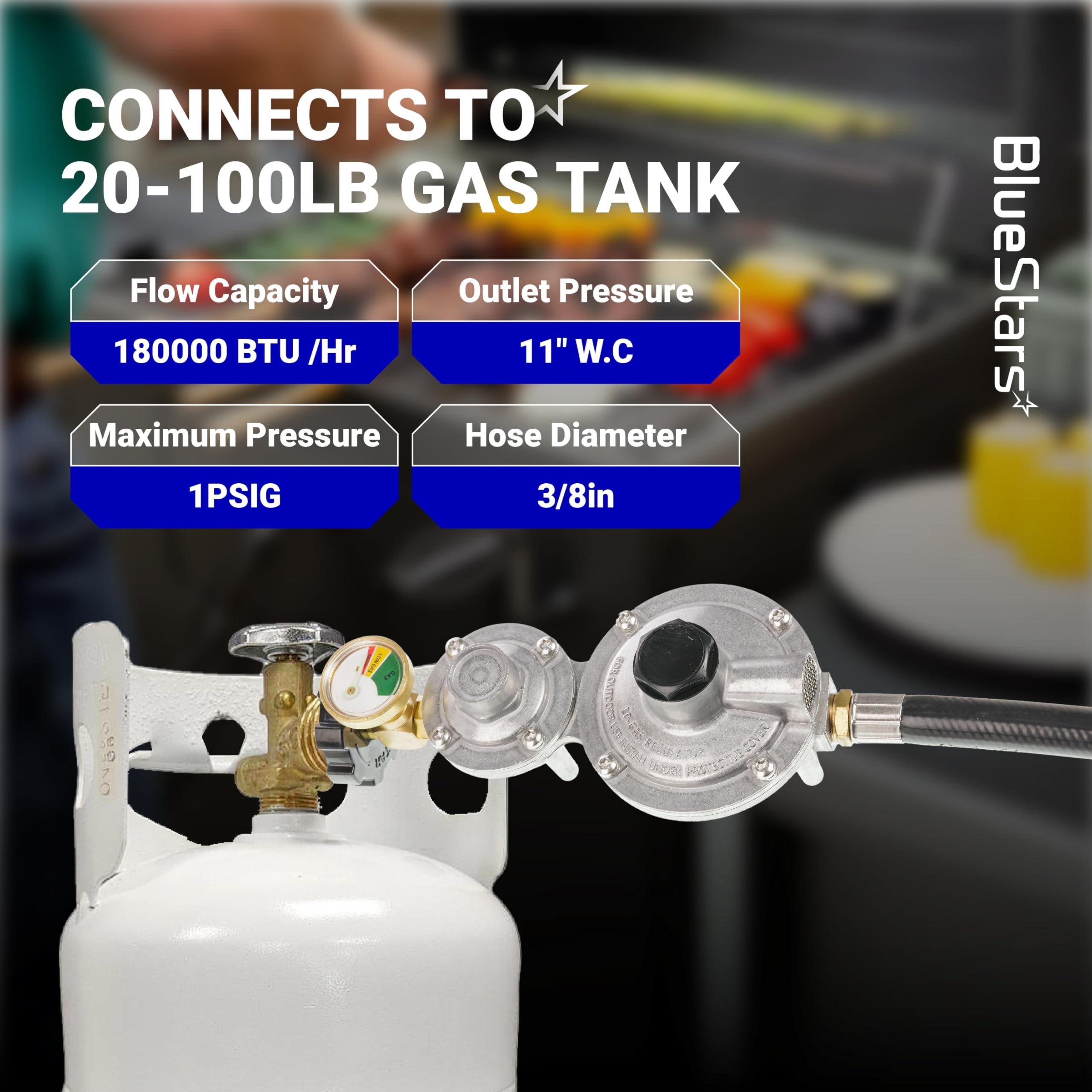

• Propane Tanks: Fits 20 lb to 100 lb propane cylinders with a P.O.L. valve connection.

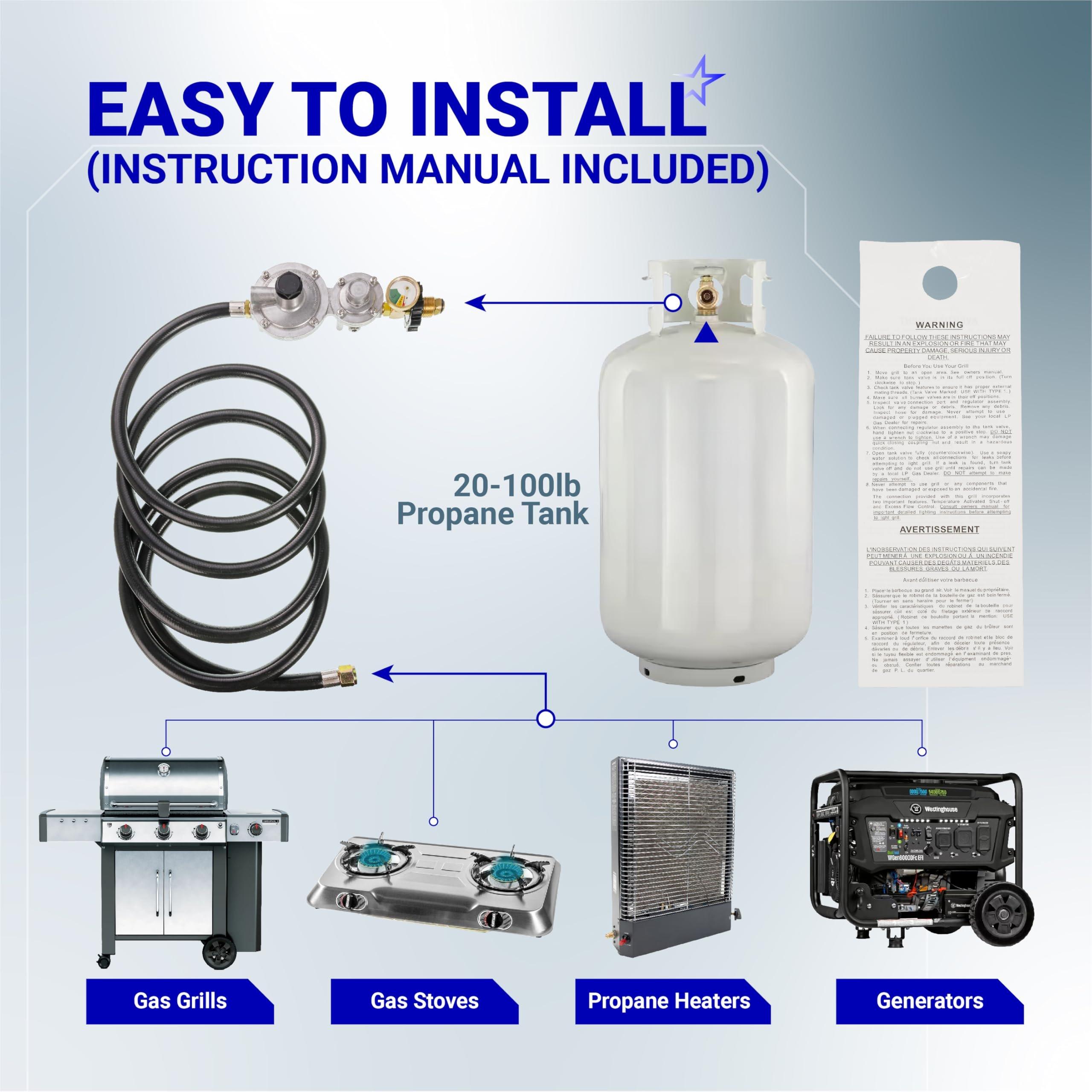

• Appliances: Suitable for high-demand propane appliances including gas grills, patio heaters, fire pits, gas generators, smokers, and RV systems requiring a 3/8-inch male flare inlet.

When to Replace

• Inconsistent or low flame height from the appliance.
• Appliance burners will not stay lit.
• Visible cracks, brittleness, or other damage to the hose.
• Gas odor is detected after turning on the cylinder.
• Gauge is damaged or provides inaccurate readings.
• Regulator is over 10 years old.

Installation Tips

• Ensure the propane tank valve and all appliance controls are in the off position before installation.
• Hand-tighten the P.O.L. fitting to the propane tank; it is a reverse (left-hand) thread. Do not overtighten.
• Use a wrench to tighten the 3/8-inch flare fitting onto the appliance's inlet connection.
• After all connections are secure, slowly open the tank valve.
• Apply a soapy water solution to all connections to check for leaks. Bubbles indicate a leak that must be corrected before use.
• Position the hose to avoid kinks and direct contact with hot surfaces.
