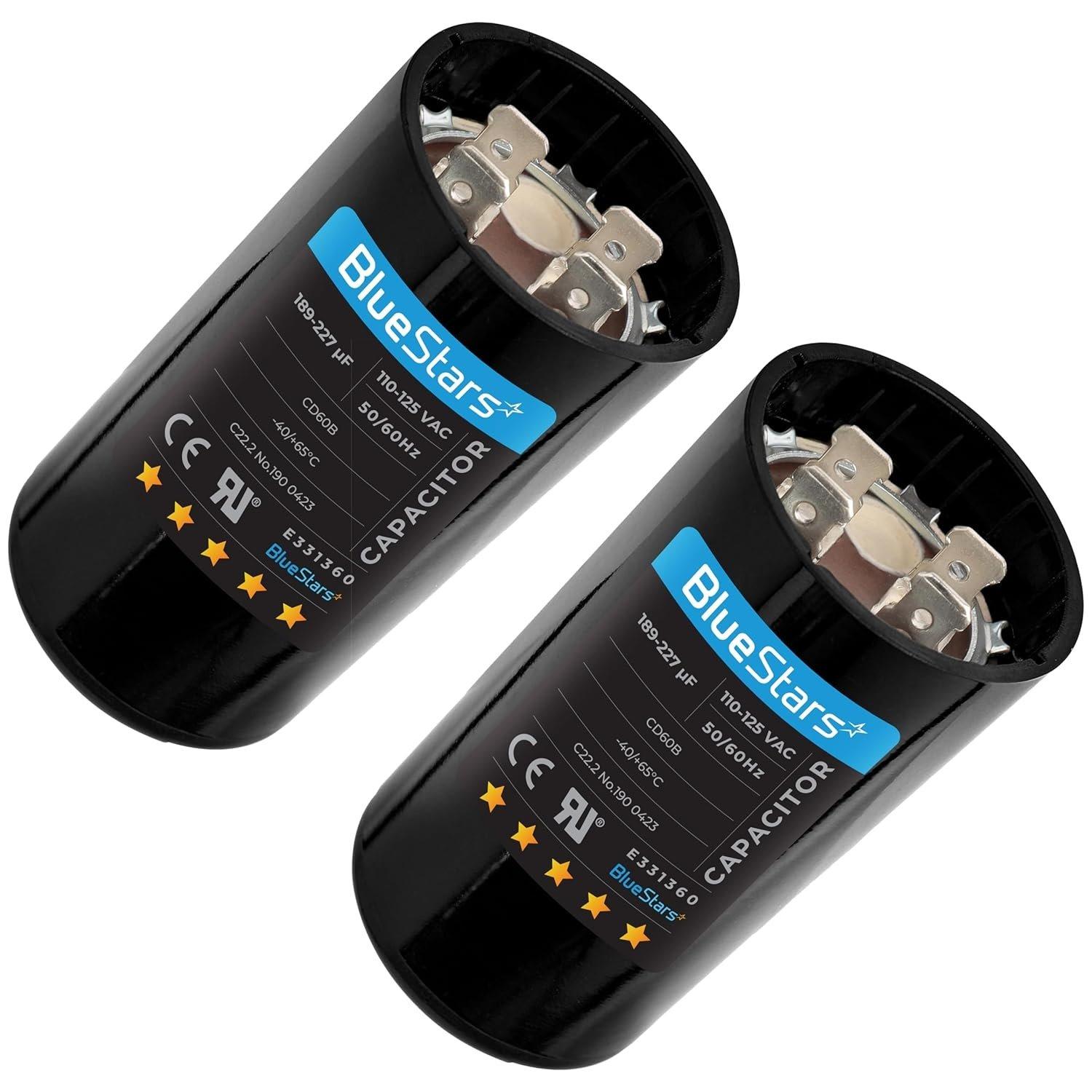

[Lifetime Warranty] 189-227 uF MFD 125 VAC Round Start Capacitor 50/60 Hz - Fits OEM Single Phase Motor - Pack of 2

2-pack 189-227 uf/MFD 125 VAC Volts

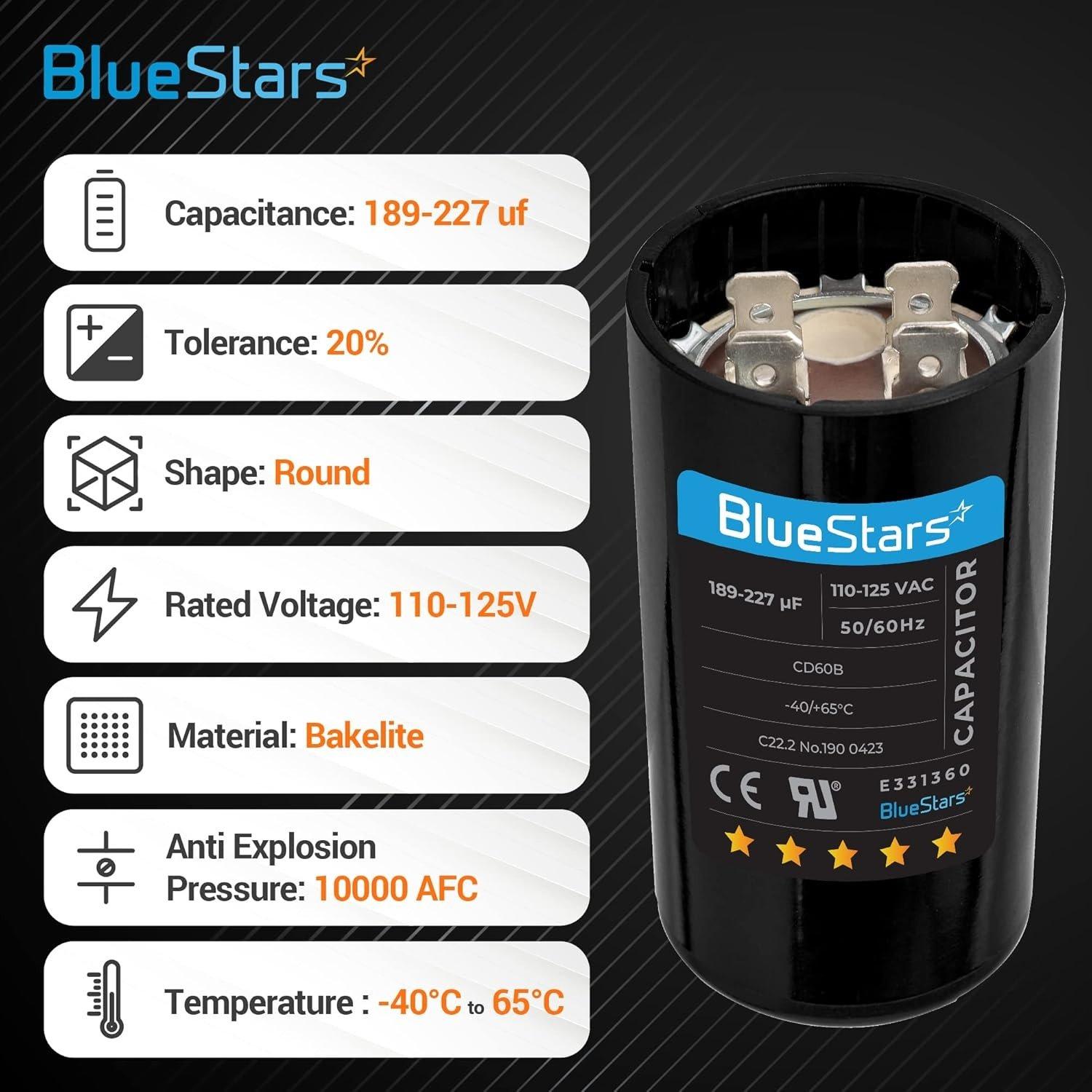

Key Features

• Quantity: 2 Capacitors
• Capacitance: 189-227 µF (MFD)
• Voltage Rating: 125 VAC
• Frequency: 50/60 Hz
• Tolerance: +20% / -0%
• Operating Temperature: -40°C to +65°C (-40°F to +149°F)
• Terminals: 1/4 inch male quick-connect
• Construction: Dry, non-polarized electrolytic type

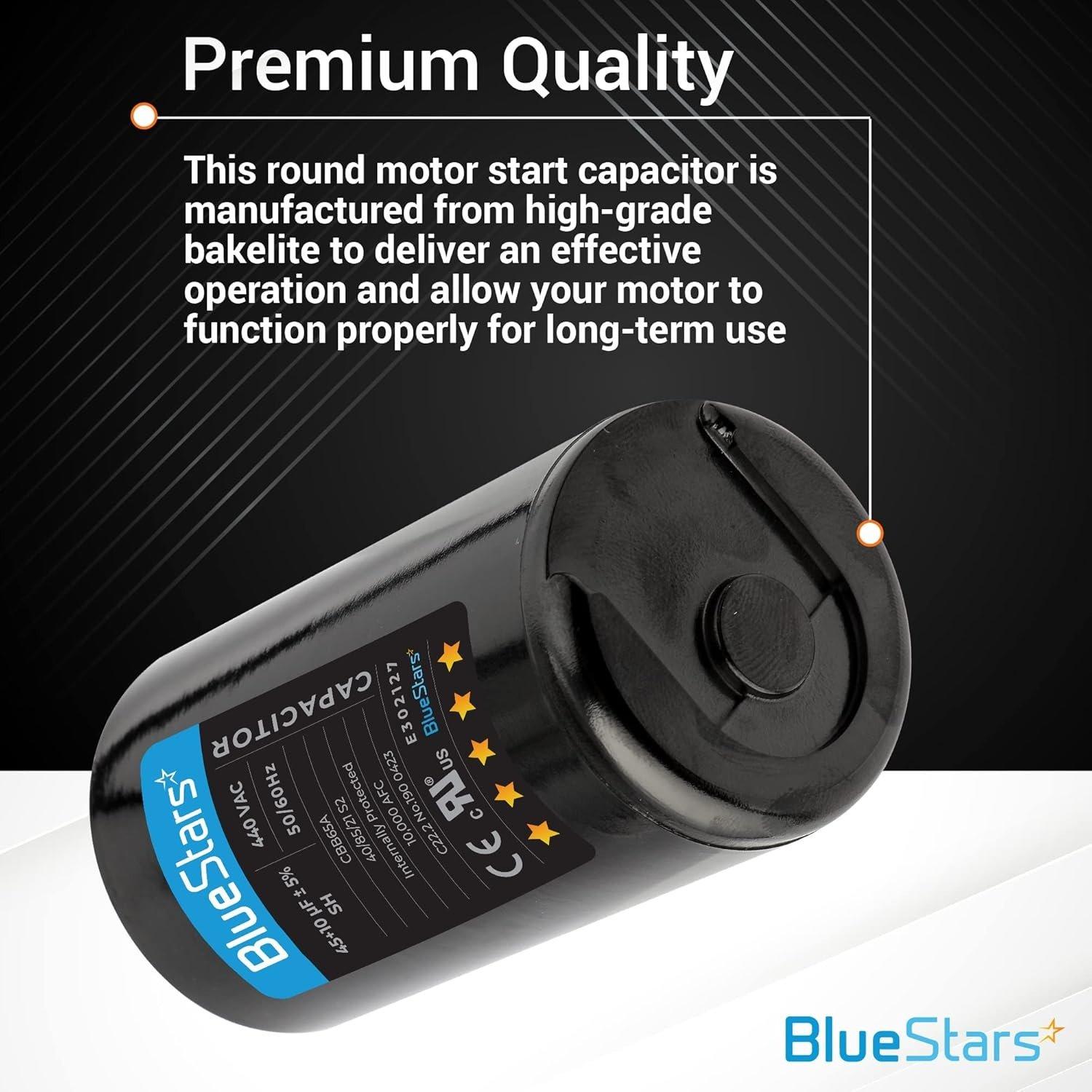

• Case: Moisture and oil-resistant molded plastic
• PCBs: Contains no Polychlorinated Biphenyls

Replaces / Cross-Reference Part Numbers

• This is a universal replacement for any round start capacitor with a 189-227 MFD capacitance range and a voltage rating of at least 125V.
• Compatible with parts from brands including BMI, TEMCo, and Titan that match these specifications.

Compatibility & Fitment

• Designed for intermittent duty in AC single-phase motor starting circuits.

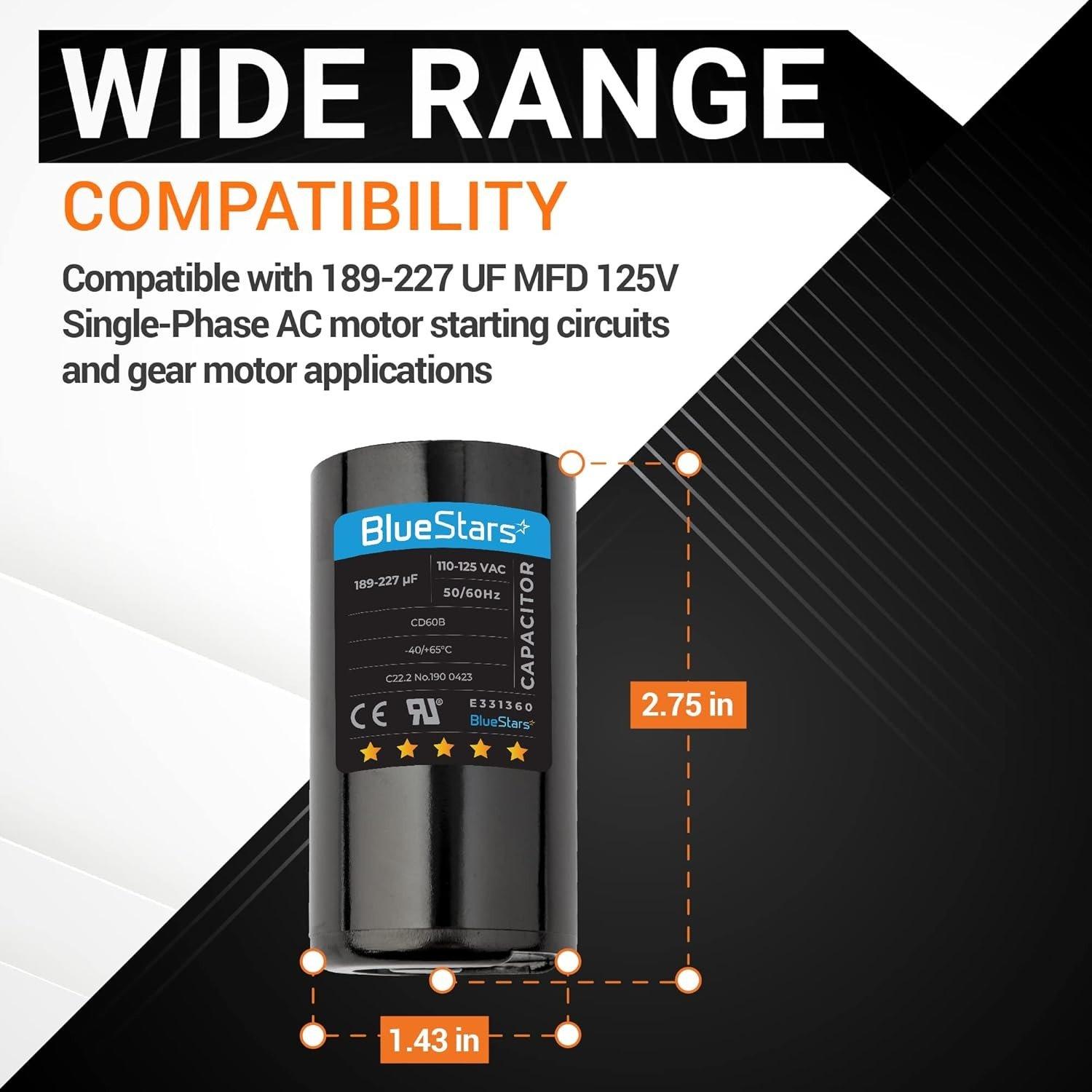

• Suitable for applications such as HVAC units, air compressors, well pumps, refrigeration systems, and other electric motors requiring a start capacitor.
• Verify that the µF (MFD) range, voltage rating, and physical dimensions match the original capacitor.

When to Replace

• Motor hums but struggles or fails to start.
• Starting cycle is slow or delayed.
• Repeated tripping of circuit breakers upon motor startup.
• Visible signs of damage such as swelling, cracks, or fluid leakage from the capacitor case.

Installation Tips

• Disconnect all electrical power to the equipment before beginning work.

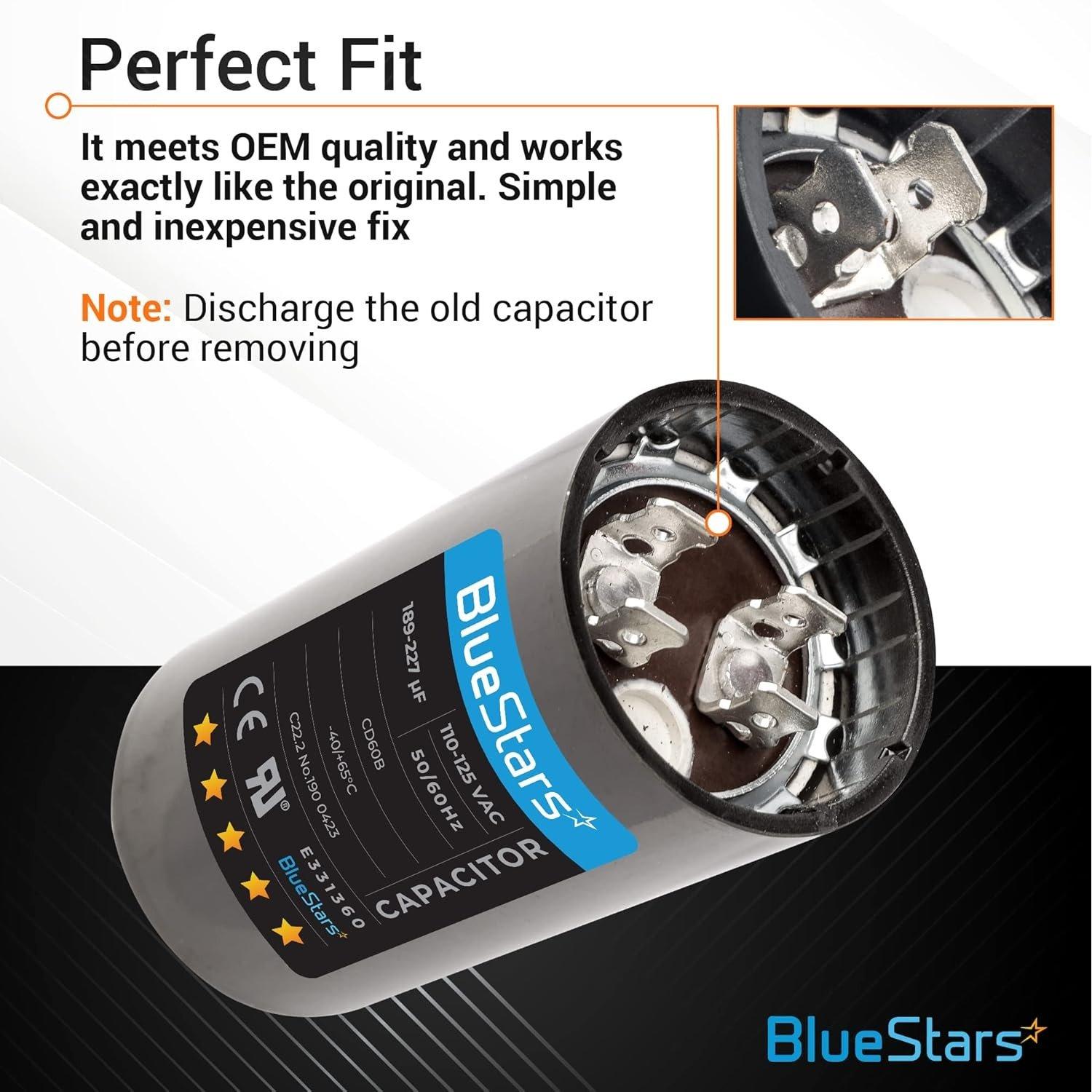

• Safely discharge the old capacitor by shorting its terminals with a resistor or an insulated-handle screwdriver.
• Note the wire connections before removing the original part.
• The replacement capacitor's voltage rating must be equal to or greater than the original's rating. Never use a lower voltage rating.
