[Lifetime Warranty] 5303918214 Refrigerator Defrost Thermostat Kit - Compatible with Frigidaire Kenmore Electrolux Refrigerators - Replaces 75303918214 892545 AP2150145 PS469522

5303918214 Refrigerator Defrost Thermostat Kit

Key Features

• Monitors the temperature of the evaporator coils to prevent frost buildup.

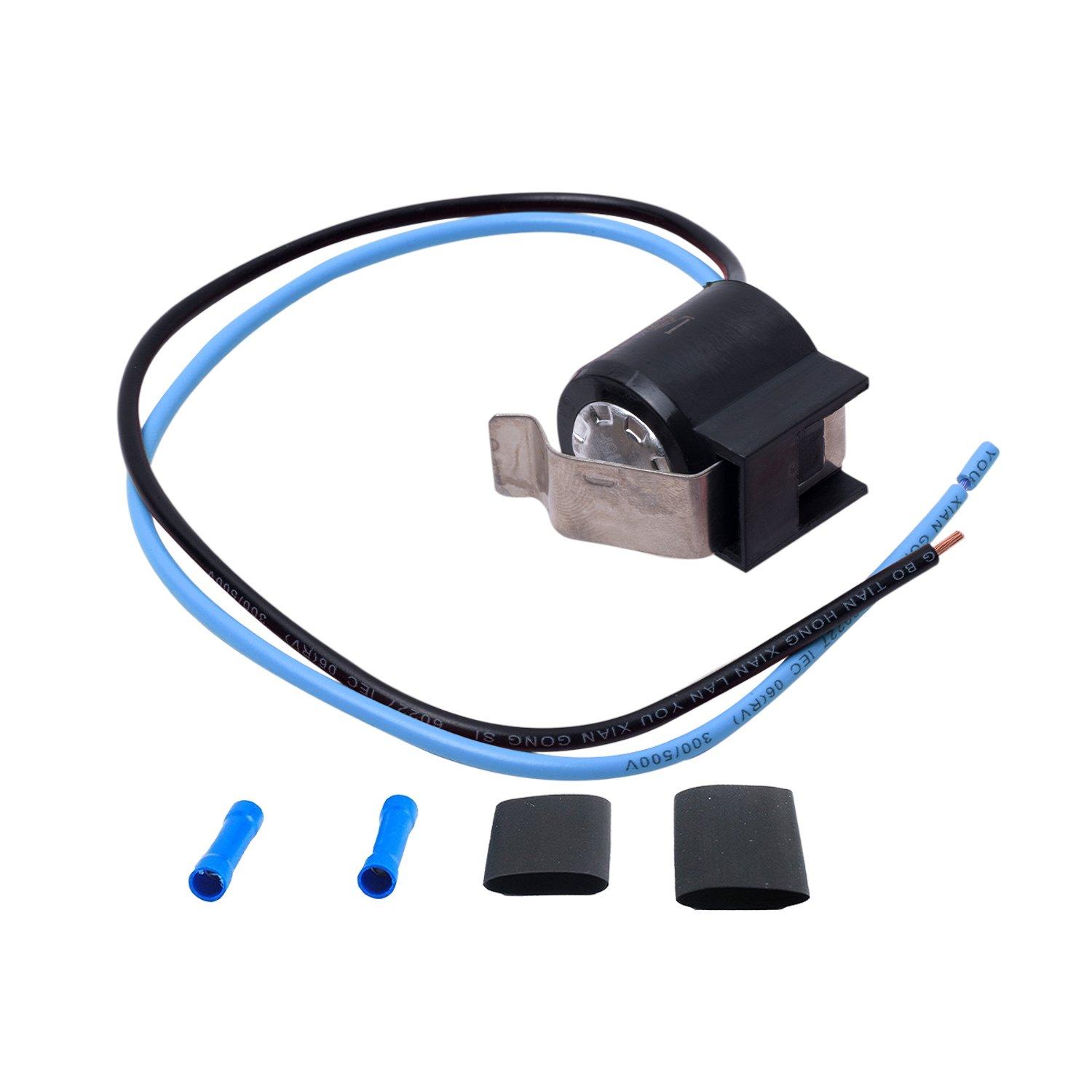

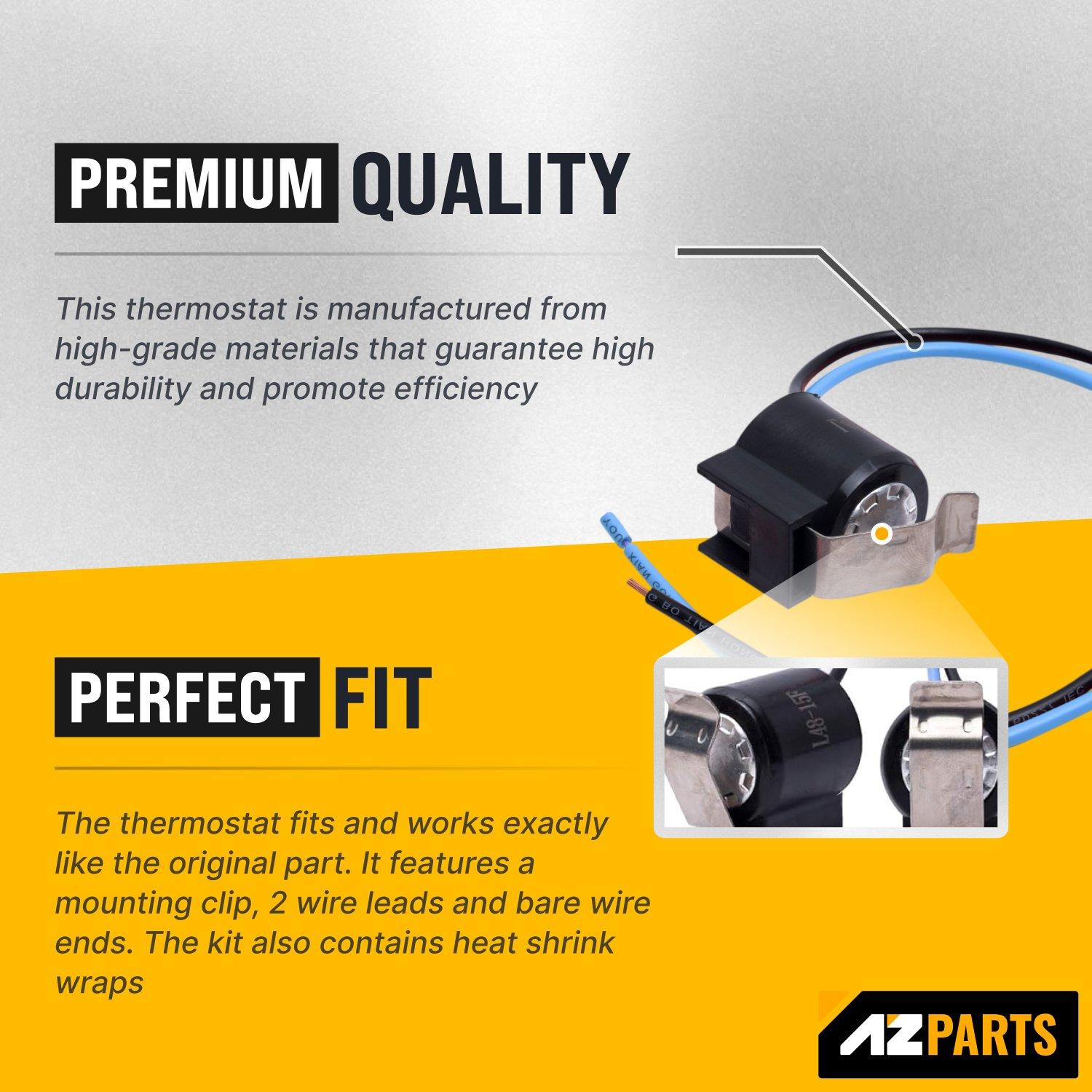

• Kit includes one defrost thermostat, wire leads, a clip, and heat shrink tubing.
• Helps maintain consistent refrigerator and freezer temperatures.
• Package Dimensions: 5.5 in (L) x 4.0 in (W).
• Country of Origin: China.

Replaces / Cross-Reference Part Numbers

• 5303918214
• AP2150145
• 241537101
• 241537104
• 75303918214
• PS469522
• EAP469522

Compatibility & Fitment

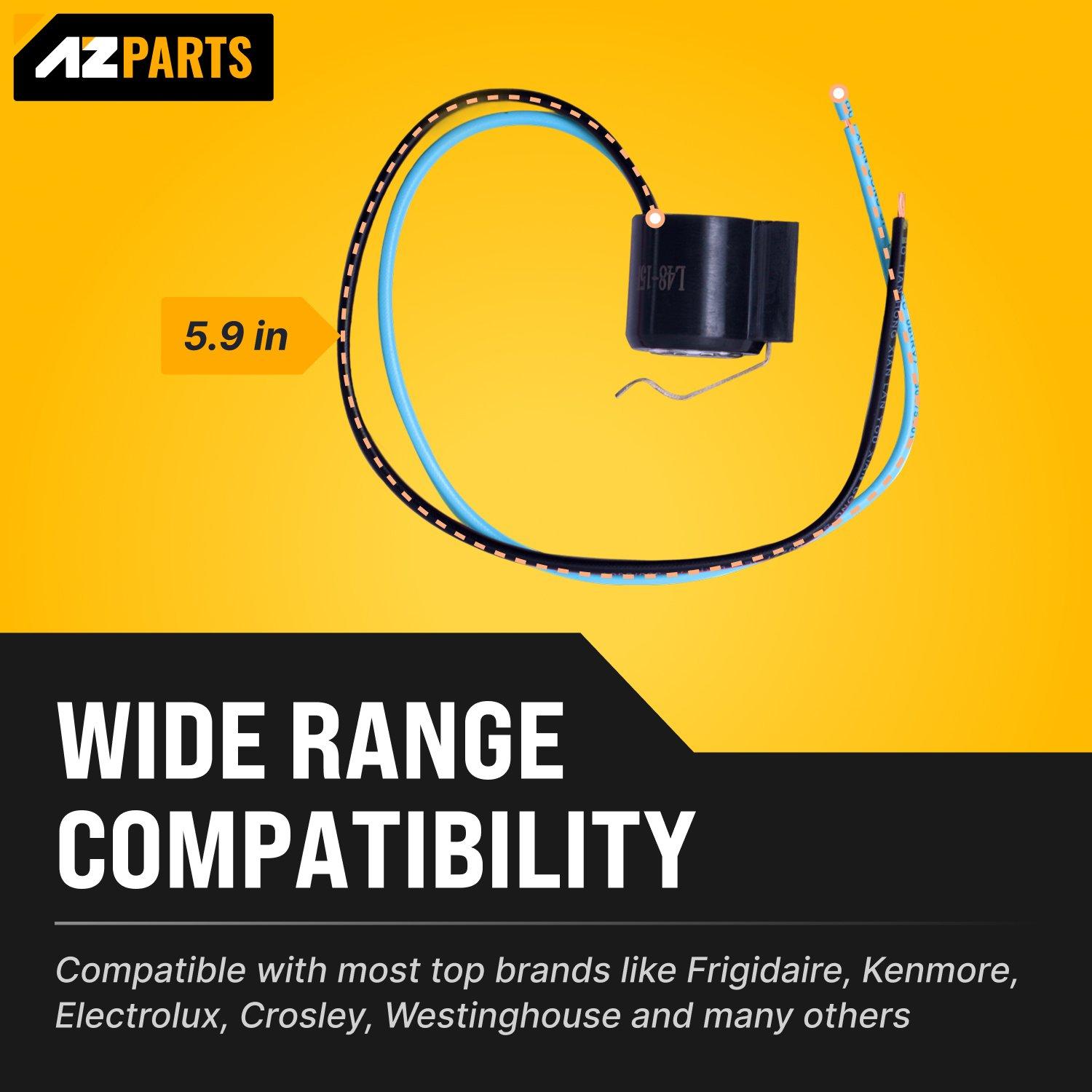

• Designed for use with refrigerators manufactured by Frigidaire, Electrolux, Kenmore, and others.
• Fits numerous side-by-side and top-freezer refrigerator models.
• Verify compatibility by checking your appliance's original part number before ordering.

When to Replace

• Excessive frost accumulation in the freezer section.
• Refrigerator or freezer compartment is too warm.
• Appliance runs continuously without cycling off.
• Water is leaking inside or outside the unit.
• Visible frost buildup on the evaporator coils.

Installation Tips

• Disconnect the refrigerator from its power source before beginning the repair.
• Access the thermostat by removing the interior panels of the freezer compartment.
• Use the included wire leads and heat shrink tubing to create secure, moisture-resistant connections.
• Attach the new thermostat to the evaporator tubing using the provided clip.
