[Lifetime Warranty] 285809 Washer Short Cam Agitator Repair Kit - Compatible with Whirlpool & Maytag Washers - Replaces 3951650 3951682 AP3094543 PS334648

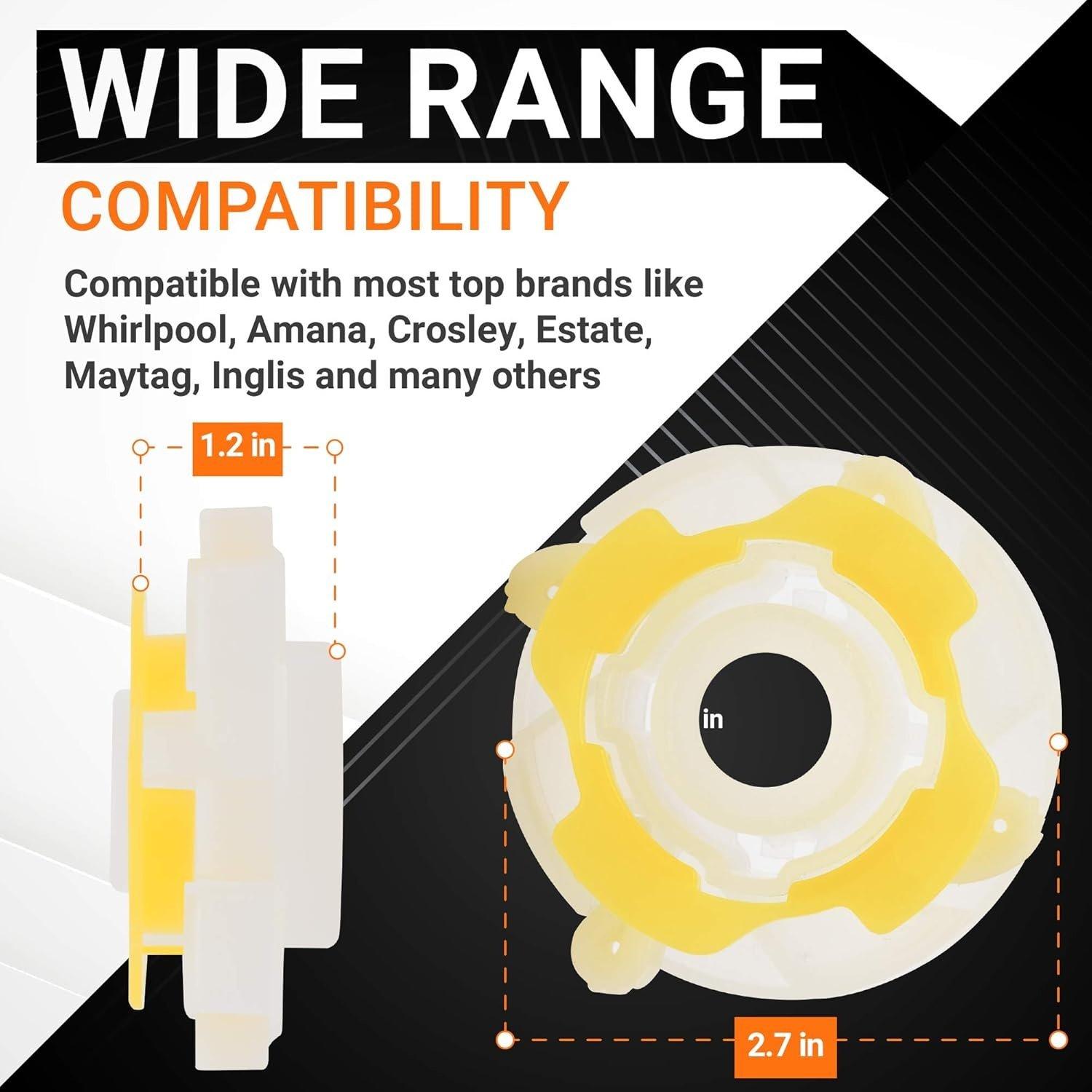

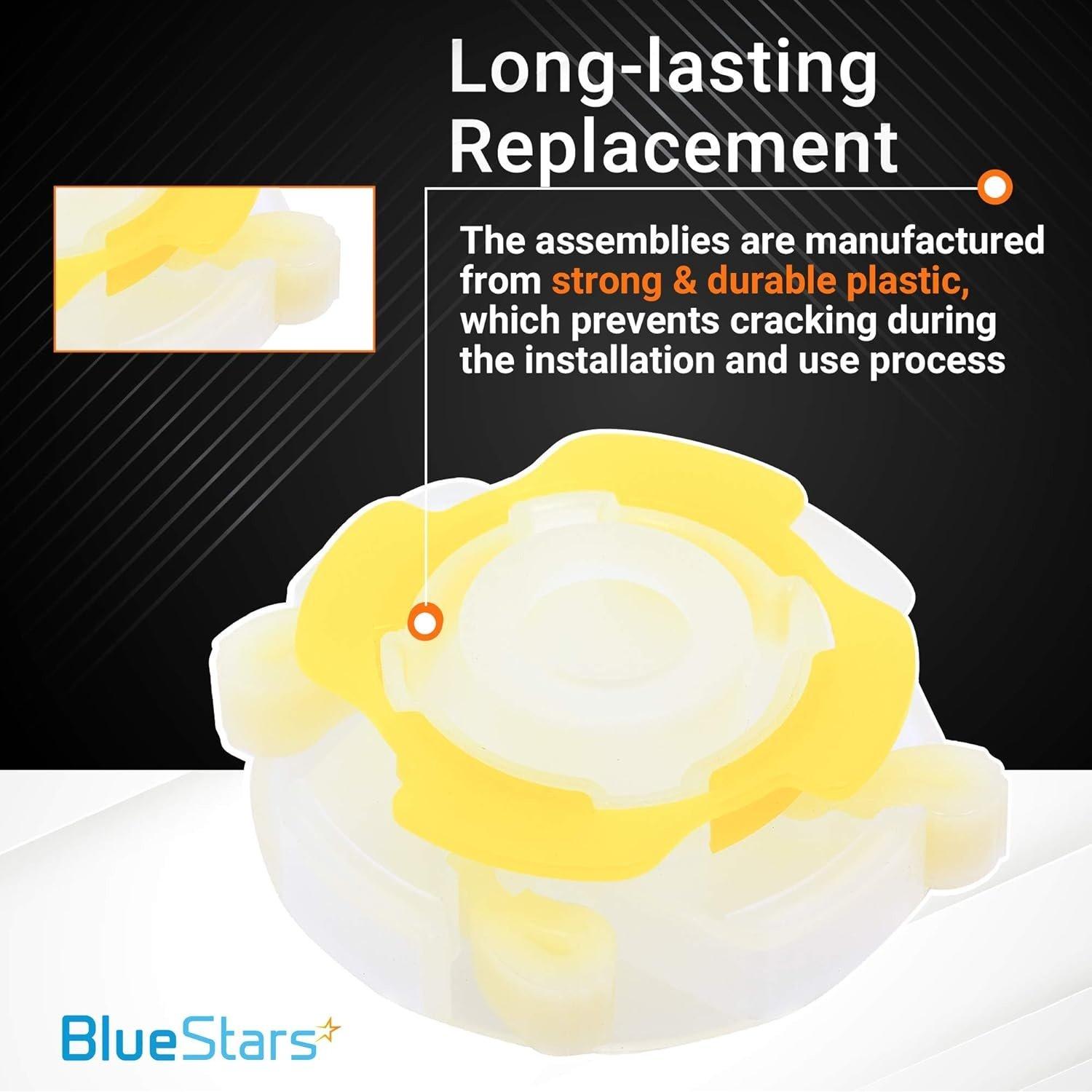

285809 Washer Short Cam Agitator Repair Kit

Key Features

• Restores the upper part of the agitator to full function.

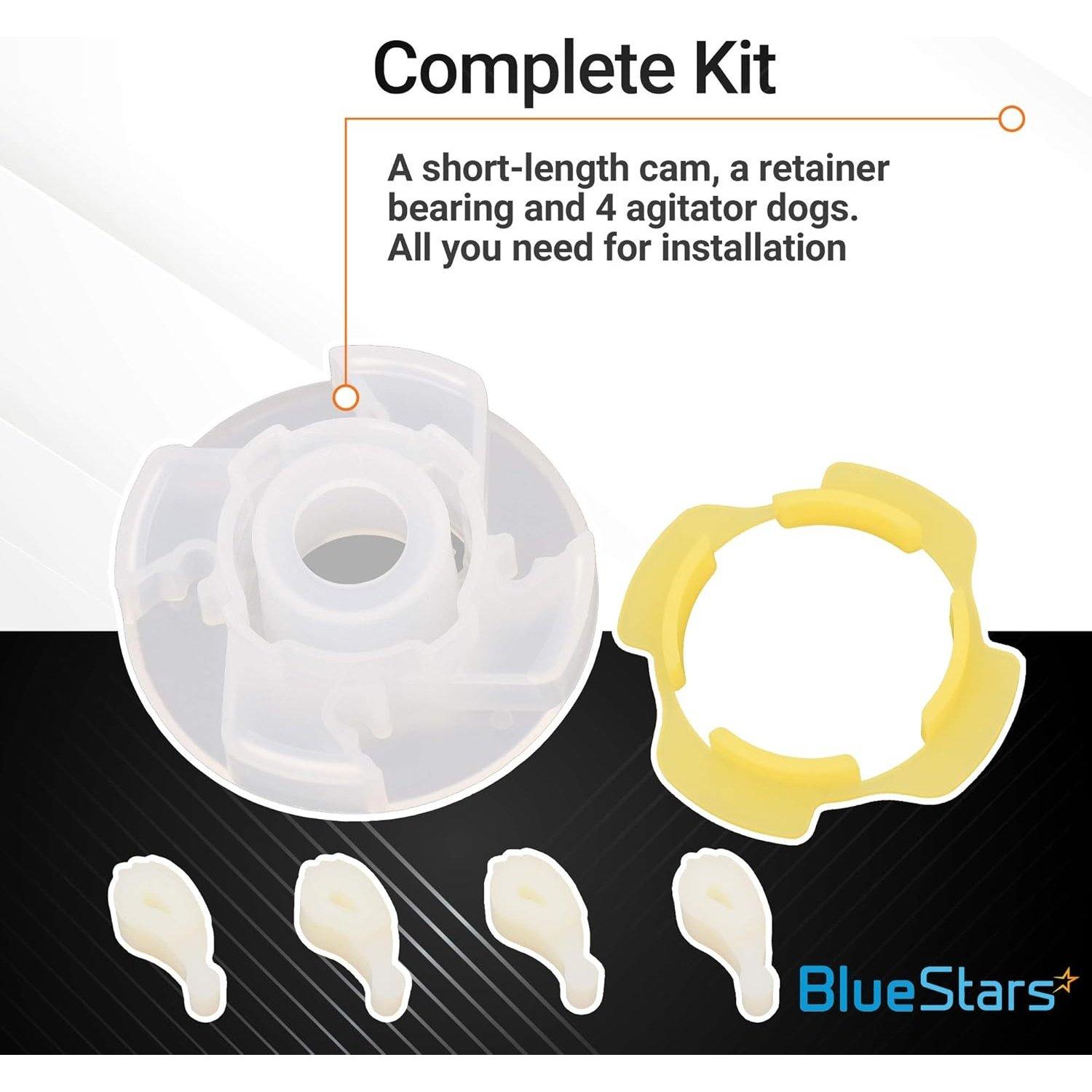

• Kit includes one cam assembly, four directional cogs, and one bearing.
• Addresses common washer symptoms including no agitation, slow agitation, or excessive noise.
• Engineered for direct-drive washing machines.

Replaces / Cross-Reference Part Numbers

• 285785
• 285809VP
• 3362002
• 3951682
• AP3119063
• PS334620
• EAP334620

Compatibility & Fitment

• Designed for washers manufactured by Whirlpool, Kenmore, Maytag, KitchenAid, Roper, Crosley, Estate, Inglis, Amana, and Admiral.
• Verify compatibility by checking your appliance's model number against the part number.

When to Replace

• The top portion of the agitator moves weakly, intermittently, or not at all.
• Washer produces a grinding or clicking noise during the wash cycle.
• The washer fills and drains but fails to agitate.
• Clothes remain dirty or are not properly cleaned after a full cycle.

Installation Tips

• Disconnect the washer from its power and water supply before starting the repair.
• Tools required may include a flat-head screwdriver and a 7/16-inch socket wrench.
• Remove the agitator cap and inner cap to access the bolt securing the agitator assembly.
• Note the orientation of the original directional cogs before removal to ensure correct installation of the new parts.
