[Lifetime Warranty] 3387747 WP3387747 Dryer Heating Element for Whirlpool MEDB835DW4 GEW9250PW1 GEW9250PW0 GEW9200LW1 WED5100HW1 WED8300SW2 MED6230HW1 Maytag KitchenAid Dryers

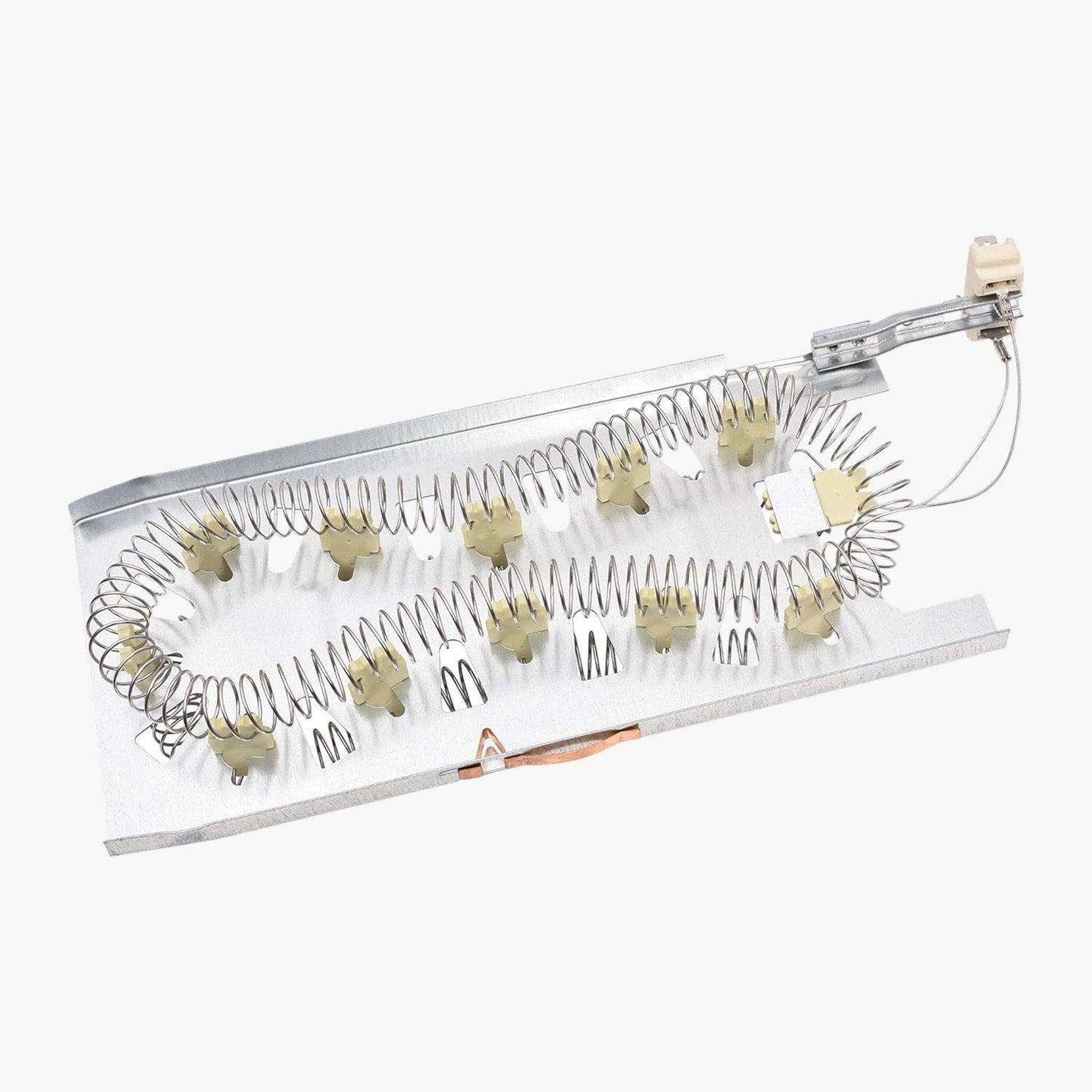

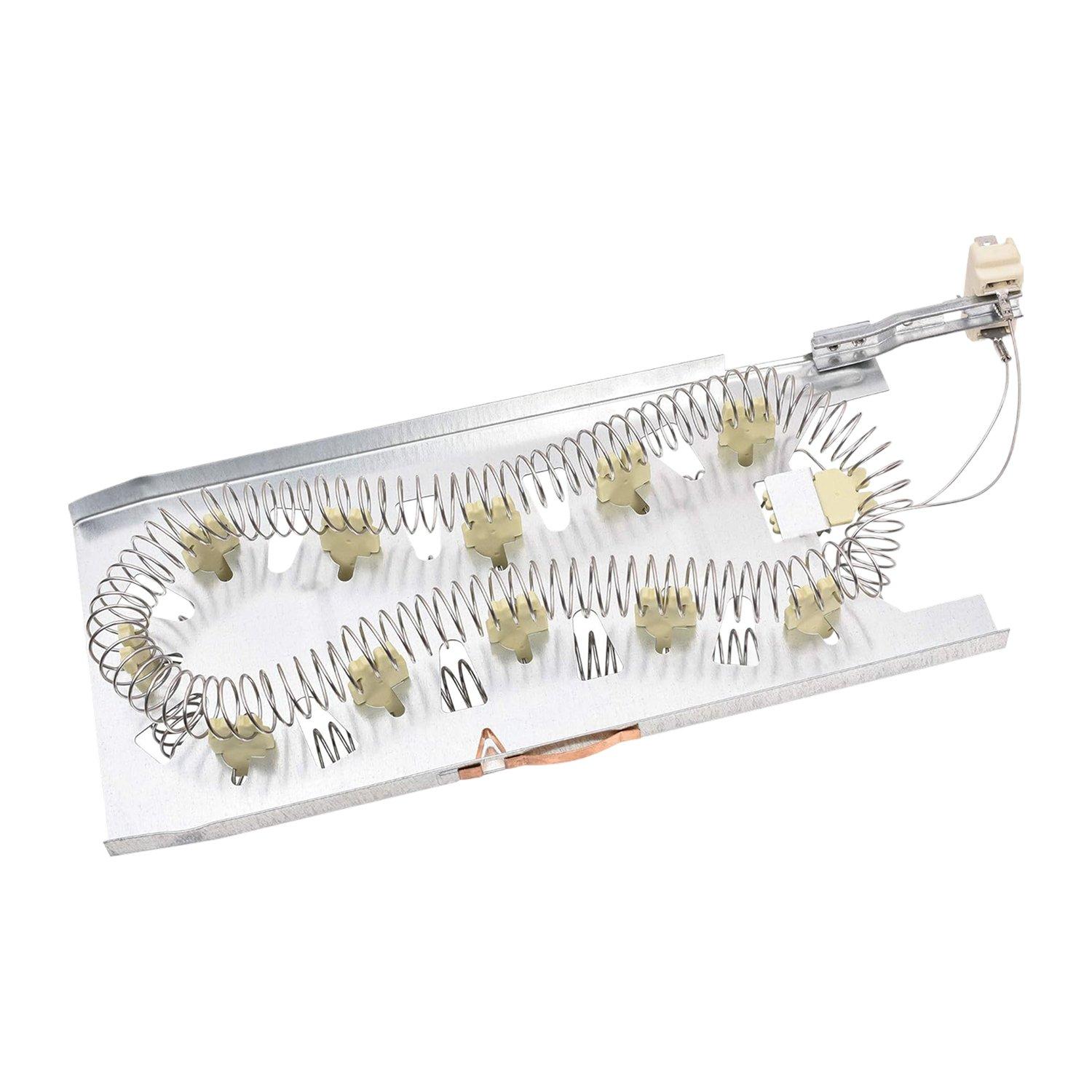

3387747 W11344457 Dryer Heating Element

Key Features

• Primary OEM Part Number: 3387747

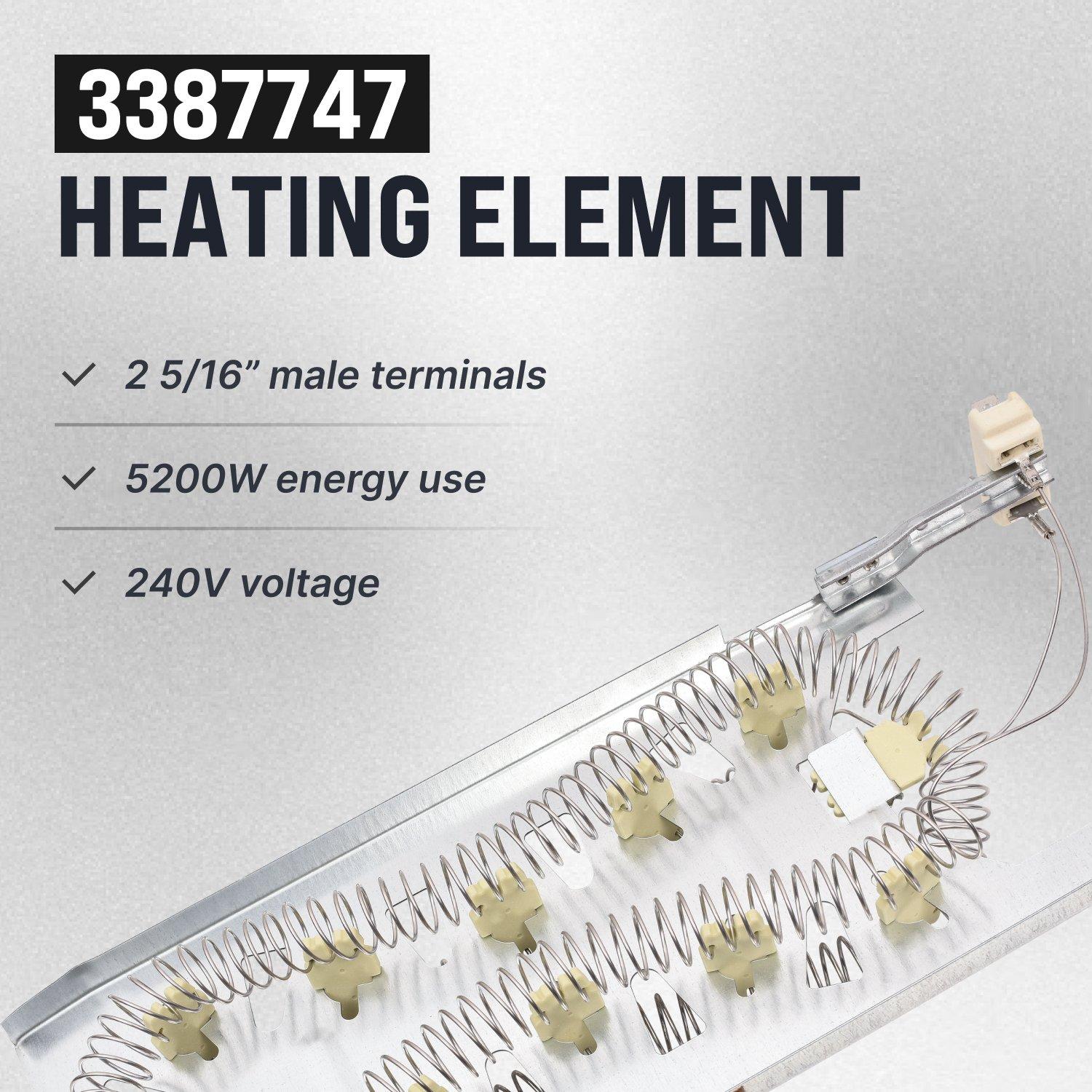

• Electrical Specifications: 240V, 5200W
• Terminal Type: 5/16 inch male terminals

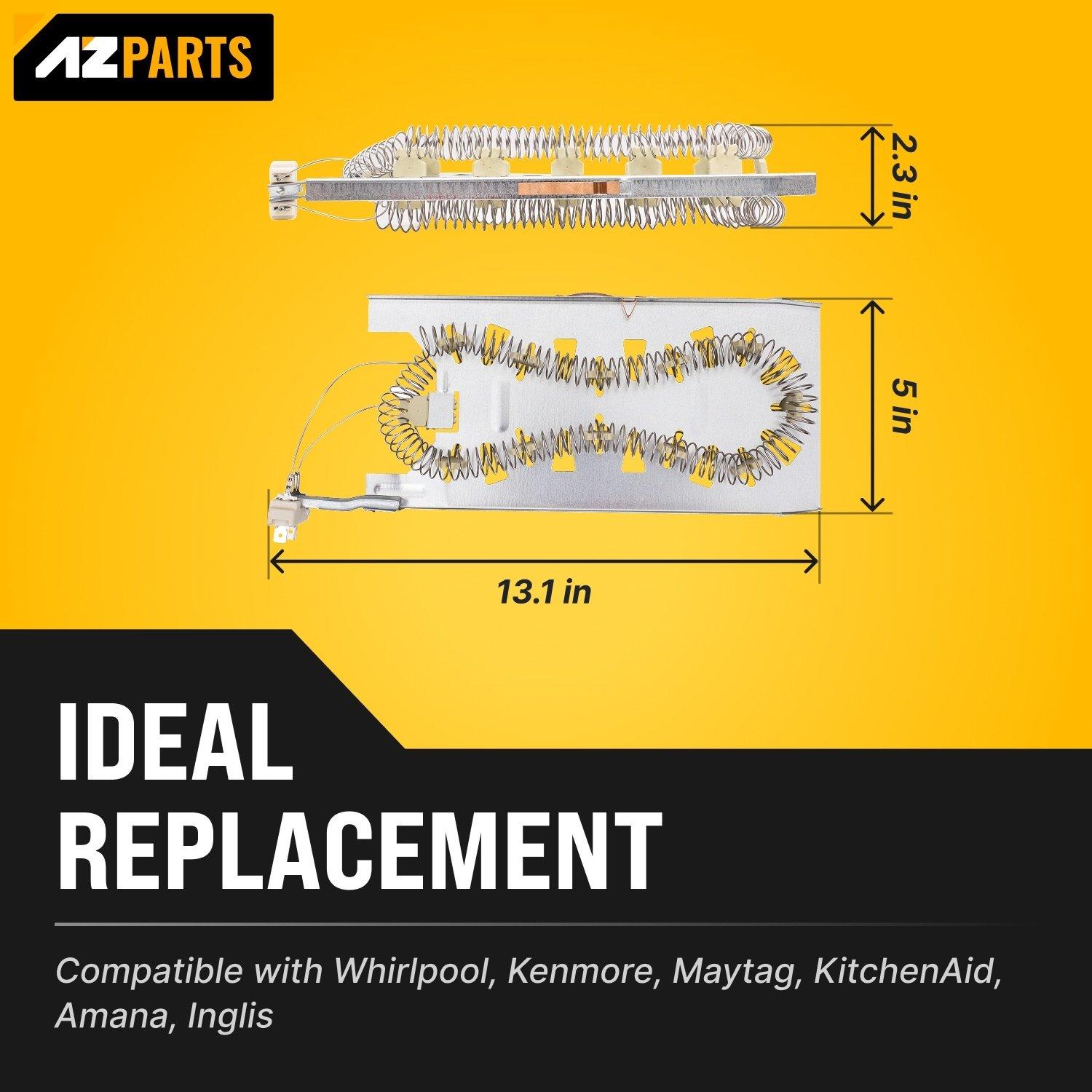

• Dimensions: Approximately 13.125 inches in length

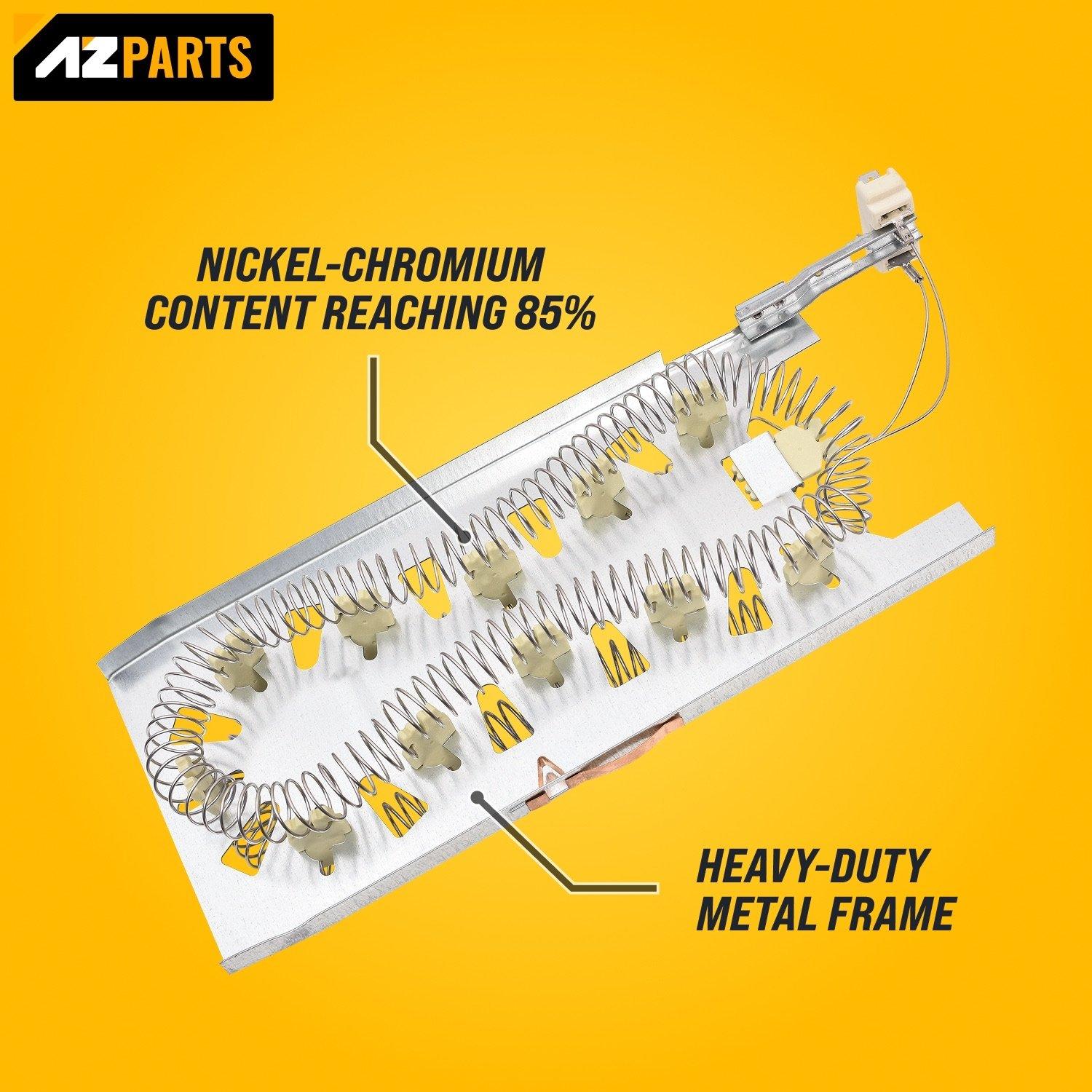

• Material: Metal housing with porcelain insulators and nickel-chromium alloy coil

Replaces / Cross-Reference Part Numbers

• W11344457
• W11045584
• WP3387747
• 8527865

Compatibility & Fitment

• Fits most major dryer brands including Whirlpool, Kenmore, Maytag, KitchenAid, Amana, and Inglis.
• Compatible with specific models such as Kenmore Elite HE4/90 series and Whirlpool MEDC700VW0.

When to Replace

• Dryer runs but produces no heat.
• Drying cycles are excessively long.
• Element coil is visibly broken or damaged.
• Element fails a continuity test with a multimeter.

Installation Tips

• Disconnect the dryer from its power source before beginning any repairs.
• It is recommended to also test the thermal fuse and high-limit thermostat for continuity, as a failure in these parts can cause similar heating symptoms.
• Clean any accumulated lint from the dryer housing during installation.
