AZ00102178

[Lifetime Warranty] 150 PCS 1W 100 ohm Metal Film Fixed Resistor

Difficulty Icon: Easy
Easy
15 - 20 minutes

$10.53

$11.69

Save $1.16
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

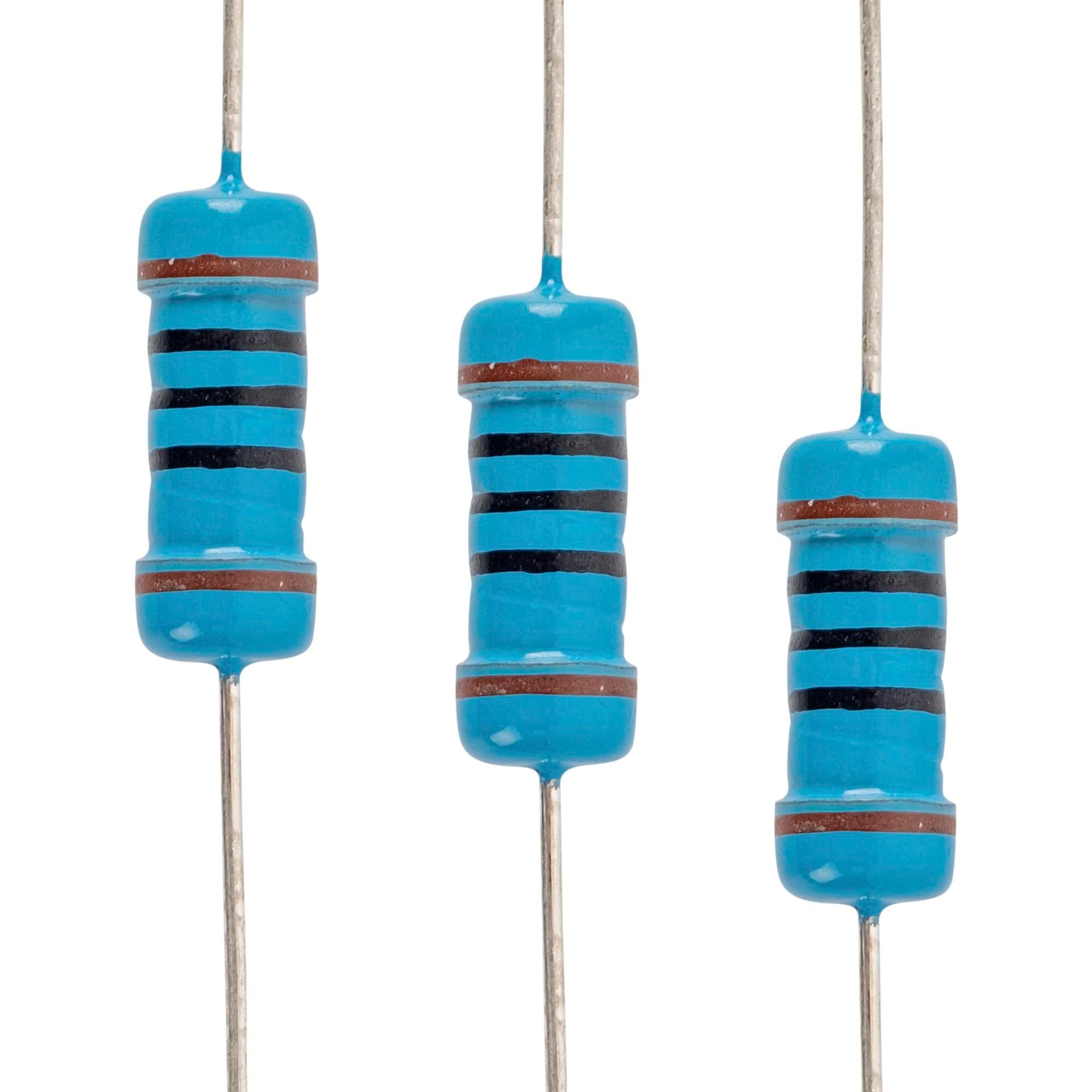

150 PCS 1W 100 ohm Metal Film Fixed Resistor

Key Features

  • Quantity: 150 pieces
  • Resistance: 100 ohm
  • Power Rating: 1 Watt
  • Tolerance: ±1%

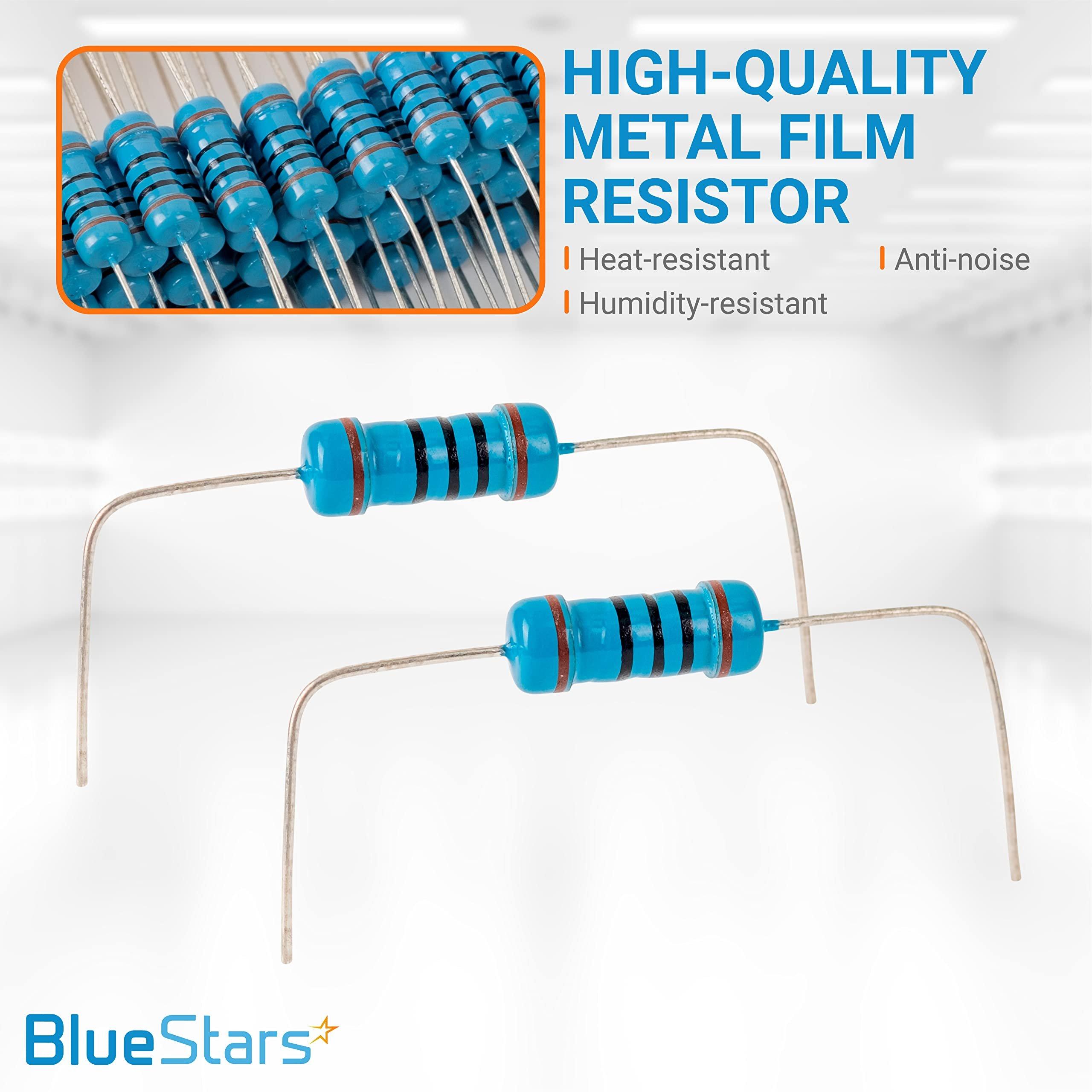

  • Type: Metal Film, Axial Lead
  • Characteristics: Low noise operation, high thermal stability

Replaces / Cross-Reference Part Numbers

  • Replaces any 1W axial resistor with 100 ohm, ±1% specifications.
  • Common Markings: 100R, 100Ω
  • 5-Band Color Code: Brown, Black, Black, Black, Brown

Compatibility & Fitment

  • Designed for through-hole mounting on printed circuit boards (PCBs), breadboards, and perfboards.
  • Suitable for a wide range of electronic applications, including:

When to Replace

  • Circuit is non-functional or operating incorrectly.
  • Resistor shows visible signs of damage, such as scorching or cracking.
  • Resistance measures as an open circuit (infinite resistance) or outside the specified 100 ohm ±1% tolerance range when tested with a multimeter.

Installation Tips

  • Confirm resistance value with a multimeter before soldering.
  • Bend leads at least 2mm away from the resistor body to avoid mechanical stress.
  • Use proper soldering techniques to prevent overheating the component.
  • Ensure adequate air circulation for heat dissipation, especially when operating near the maximum power rating.
  • This component is not polarized and can be installed in either orientation.
