AZ00105024

[Lifetime Warranty] 3392519 Dryer Thermal Fuse - Compatible with Whirlpool Kenmore - Replaces AP6008325 G4AP0500 3388651 694511 80005 WP3392519VP - Pack of 2

Sold 64,516

Difficulty Icon: Normal
Normal
15 - 20 minutes

$8.46

$9.39

Save $0.93
In Stock

Fast delivery

puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

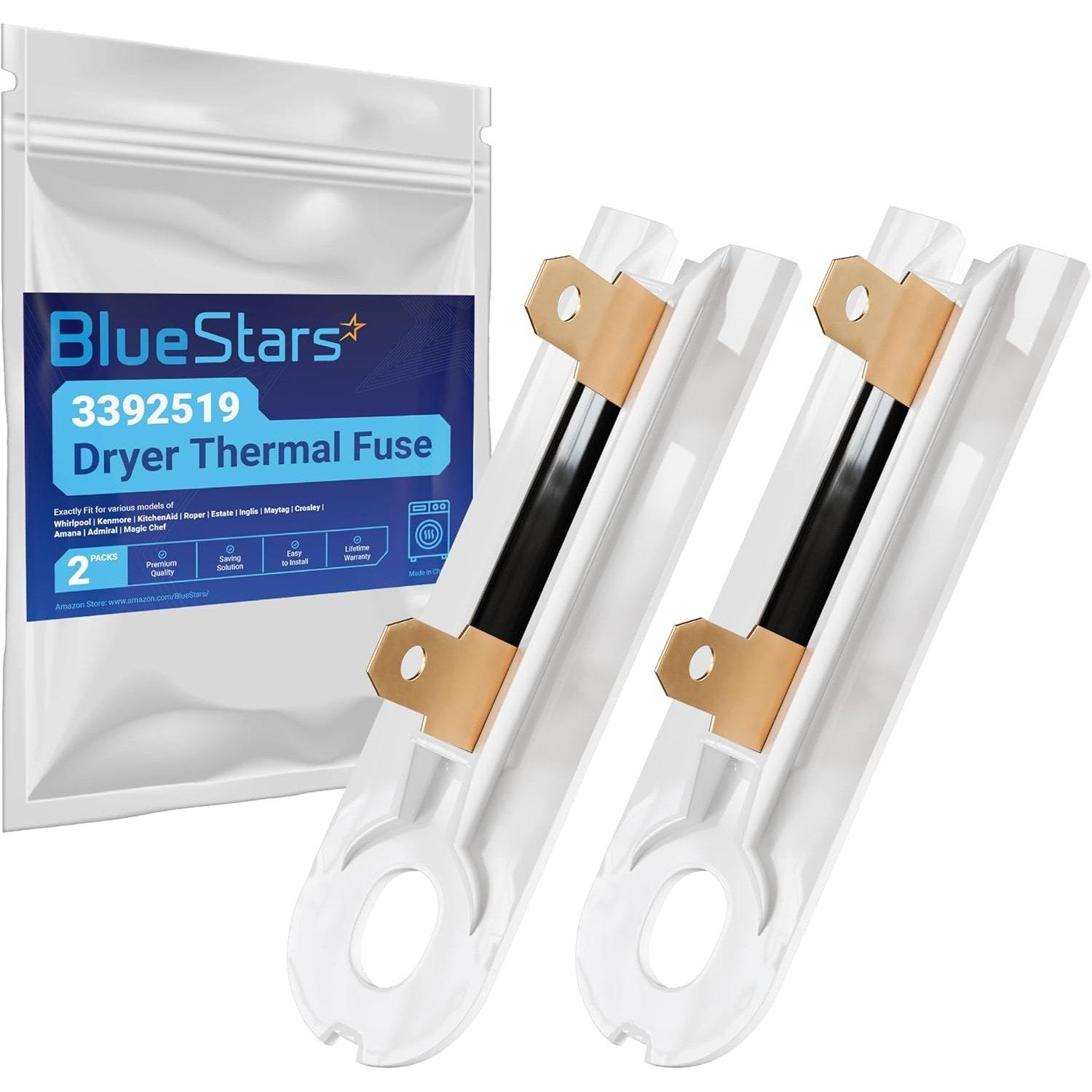

3392519 Dryer Thermal Fuse

Key Features

  • Single-use, non-resettable thermal fuse.
  • Opens at approximately 196°F (91°C) to cut power during overheating.
  • Designed to meet original equipment specifications for fit and performance.

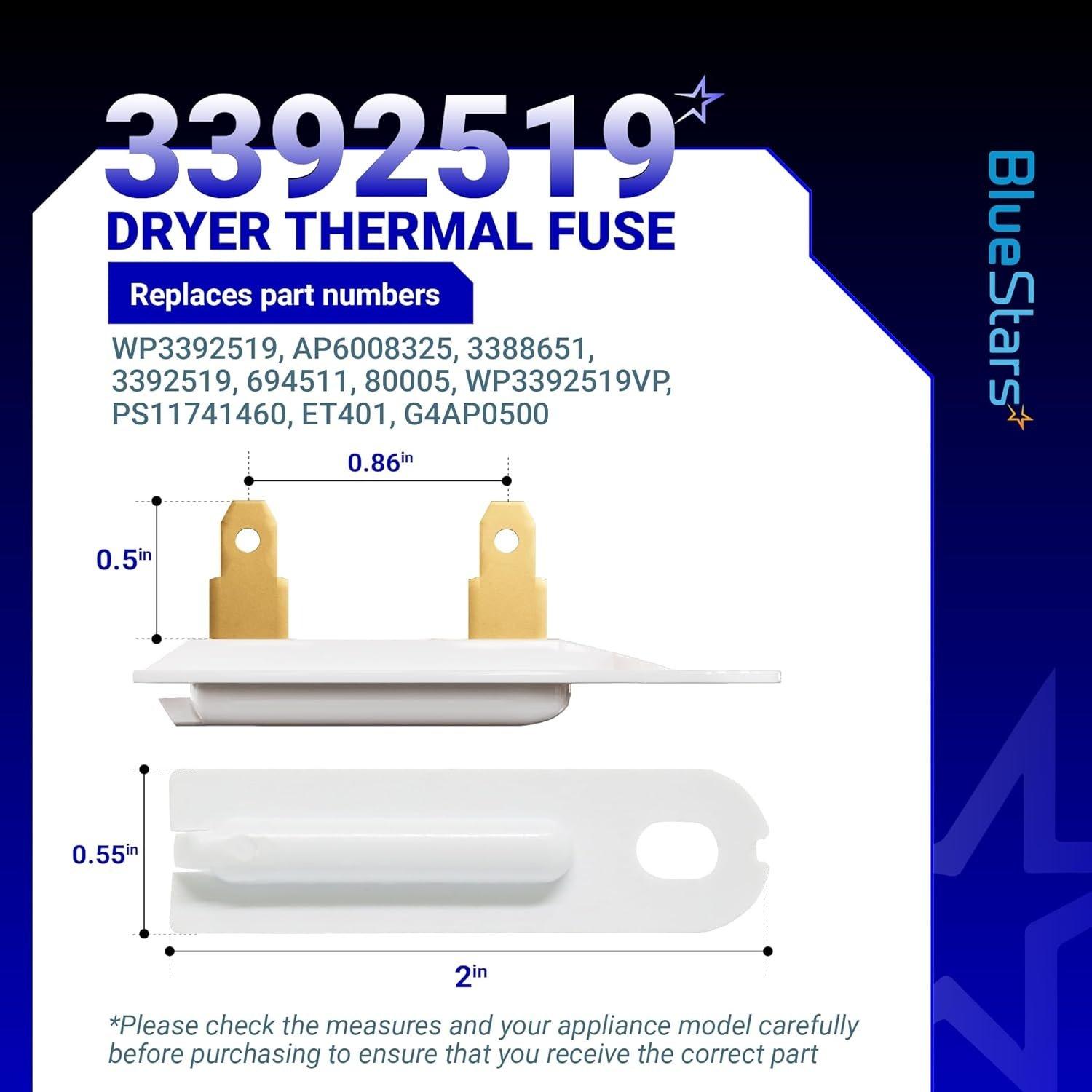

  • Dimensions: 2 in. L x 0.5 in. W.

Replaces / Cross-Reference Part Numbers

  • WP3392519
  • 3388651
  • 80005
  • 695563
  • ET401
  • PS11741460
  • AP6008325

Compatibility & Fitment

  • Fits a wide range of electric and gas dryers.
  • Compatible with brands including Whirlpool, Kenmore, Maytag, Roper, and KitchenAid.
  • Confirm fitment with your dryer's model number before purchase.

When to Replace

  • Dryer will not start.
  • Dryer tumbles but produces no heat.
  • Dryer shuts off prematurely during a cycle.
  • Existing fuse shows no continuity when tested with a multimeter.

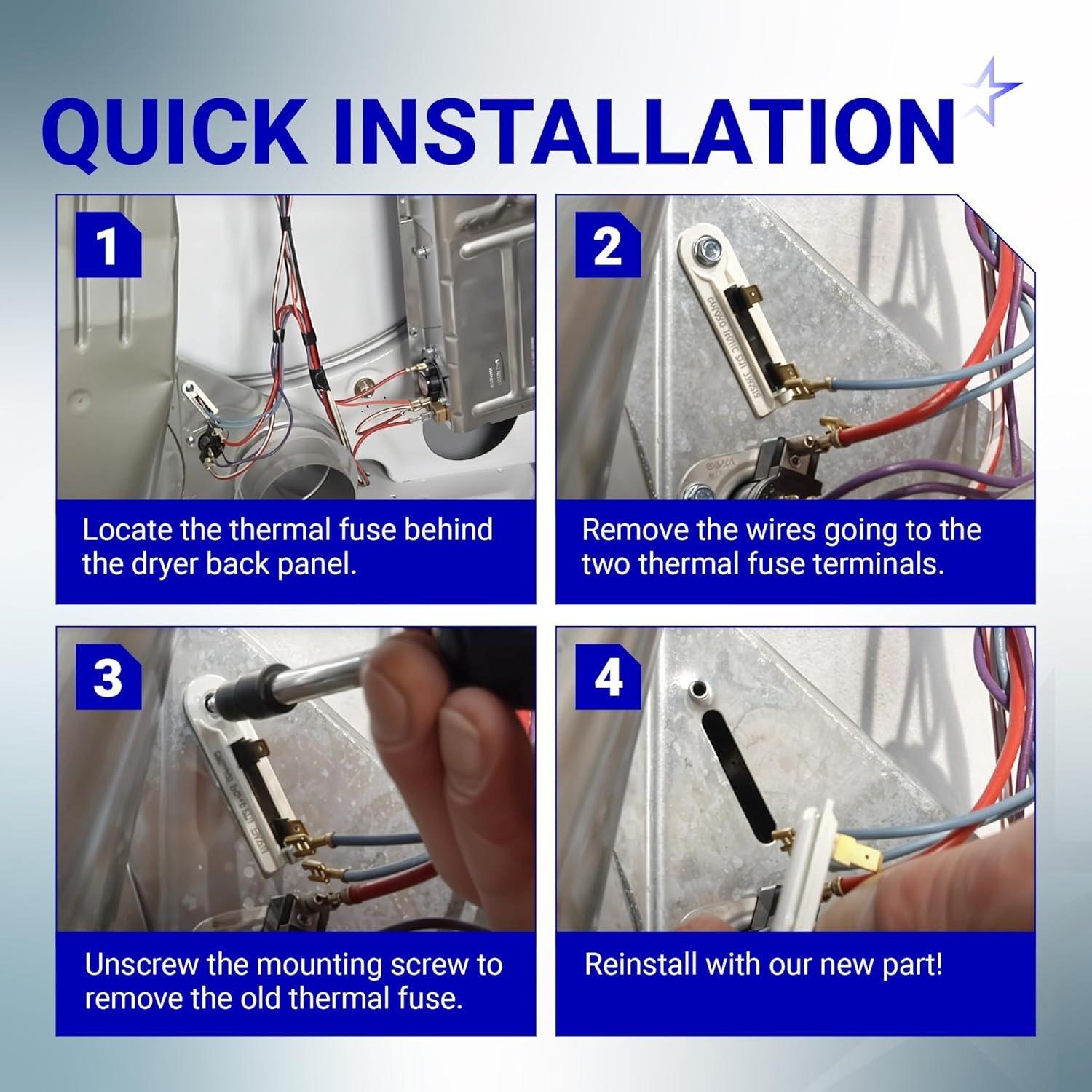

Installation Tips

  • Disconnect the dryer from its power source before starting the repair.
  • Before replacing a blown fuse, identify and correct the cause of overheating.
  • Thoroughly clean the lint screen, internal ductwork, and external vent pipe to ensure proper airflow.
  • Inspect the blower wheel for damage or obstructions.
  • For a more comprehensive repair, consider also replacing the high-limit and cycling thermostats.
