AZ00105898
Part Number: W10535778

Sold 51

Difficulty Icon: Easy
Easy
15 - 20 minutes

$19.89

$22.09

puzzle

Not sure if this is the right part?

Check now

[Lifetime Warranty] W10535778 Range Oven Door Seal Gasket - Compatible with Whirlpool Maytag Amana and Ikea - Rubber Door Seal replaces AP6022735 WPW10535778 3449335 PS11756072 EAP1175607 image 0
[Lifetime Warranty] W10535778 Range Oven Door Seal Gasket - Compatible with Whirlpool Maytag Amana and Ikea - Rubber Door Seal replaces AP6022735 WPW10535778 3449335 PS11756072 EAP1175607 image 1
[Lifetime Warranty] W10535778 Range Oven Door Seal Gasket - Compatible with Whirlpool Maytag Amana and Ikea - Rubber Door Seal replaces AP6022735 WPW10535778 3449335 PS11756072 EAP1175607 image 2
[Lifetime Warranty] W10535778 Range Oven Door Seal Gasket - Compatible with Whirlpool Maytag Amana and Ikea - Rubber Door Seal replaces AP6022735 WPW10535778 3449335 PS11756072 EAP1175607 image 3
[Lifetime Warranty] W10535778 Range Oven Door Seal Gasket - Compatible with Whirlpool Maytag Amana and Ikea - Rubber Door Seal replaces AP6022735 WPW10535778 3449335 PS11756072 EAP1175607 image 4
[Lifetime Warranty] W10535778 Range Oven Door Seal Gasket - Compatible with Whirlpool Maytag Amana and Ikea - Rubber Door Seal replaces AP6022735 WPW10535778 3449335 PS11756072 EAP1175607 image 5
[Lifetime Warranty] W10535778 Range Oven Door Seal Gasket - Compatible with Whirlpool Maytag Amana and Ikea - Rubber Door Seal replaces AP6022735 WPW10535778 3449335 PS11756072 EAP1175607 image 6
[Lifetime Warranty] W10535778 Range Oven Door Seal Gasket - Compatible with Whirlpool Maytag Amana and Ikea - Rubber Door Seal replaces AP6022735 WPW10535778 3449335 PS11756072 EAP1175607 image 7
[Lifetime Warranty] W10535778 Range Oven Door Seal Gasket - Compatible with Whirlpool Maytag Amana and Ikea - Rubber Door Seal replaces AP6022735 WPW10535778 3449335 PS11756072 EAP1175607 image 8
AZ00105898
Part Number: W10535778

[Lifetime Warranty] W10535778 Range Oven Door Seal Gasket - Compatible with Whirlpool Maytag Amana and Ikea - Rubber Door Seal replaces AP6022735 WPW10535778 3449335 PS11756072 EAP1175607

Sold 51

Difficulty Icon: Easy
Easy
15 - 20 minutes

Out of Stock
This item is no longer available. Please contact our customer service for more information
puzzle

Confirm the fit for your model

Find your model number and check it here to see if the part fits.


Description

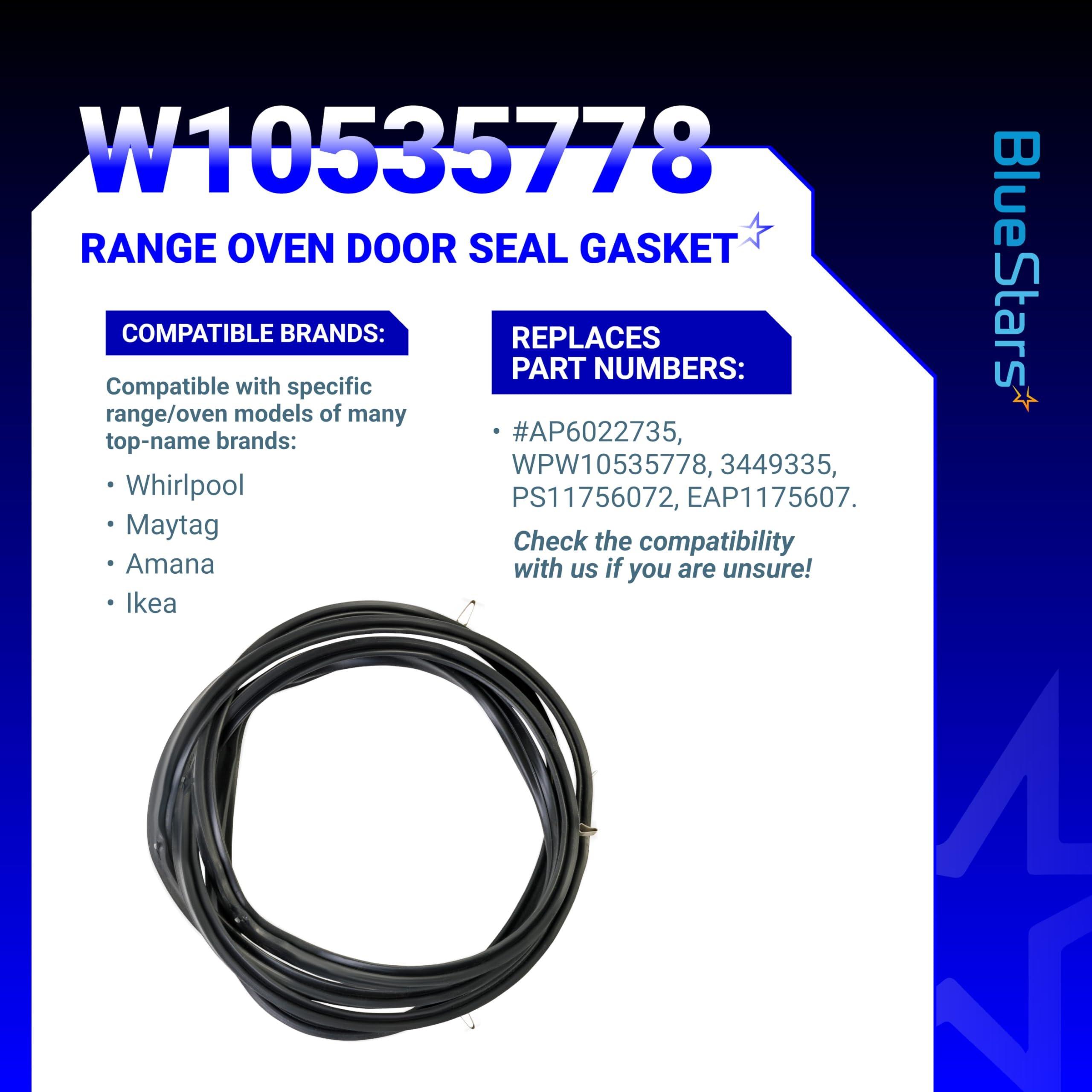

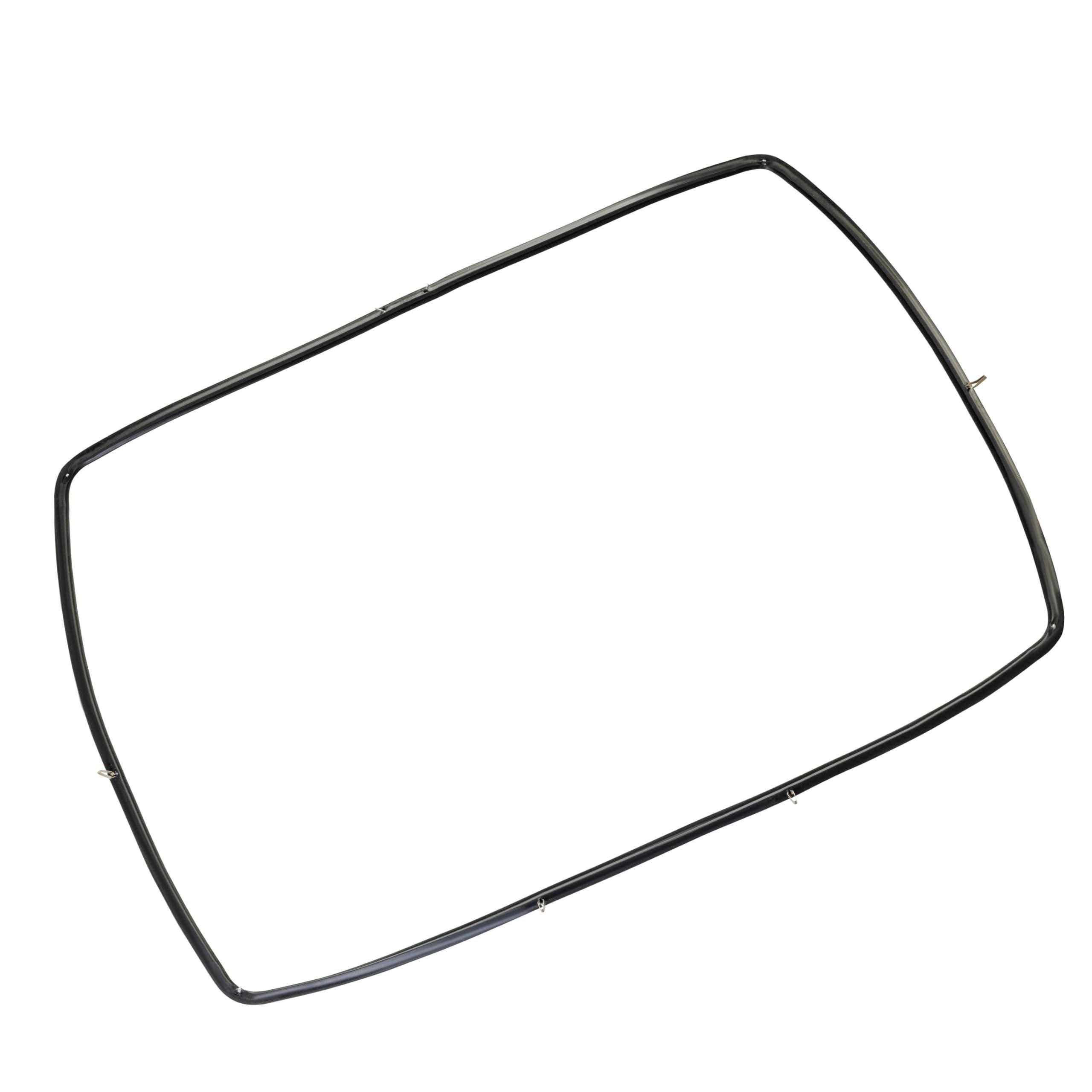

W10535778 Range Oven Door Seal Gasket

Key Features

  • Creates a tight seal around the oven door to prevent heat loss.
  • Maintains consistent oven temperatures for improved cooking efficiency.

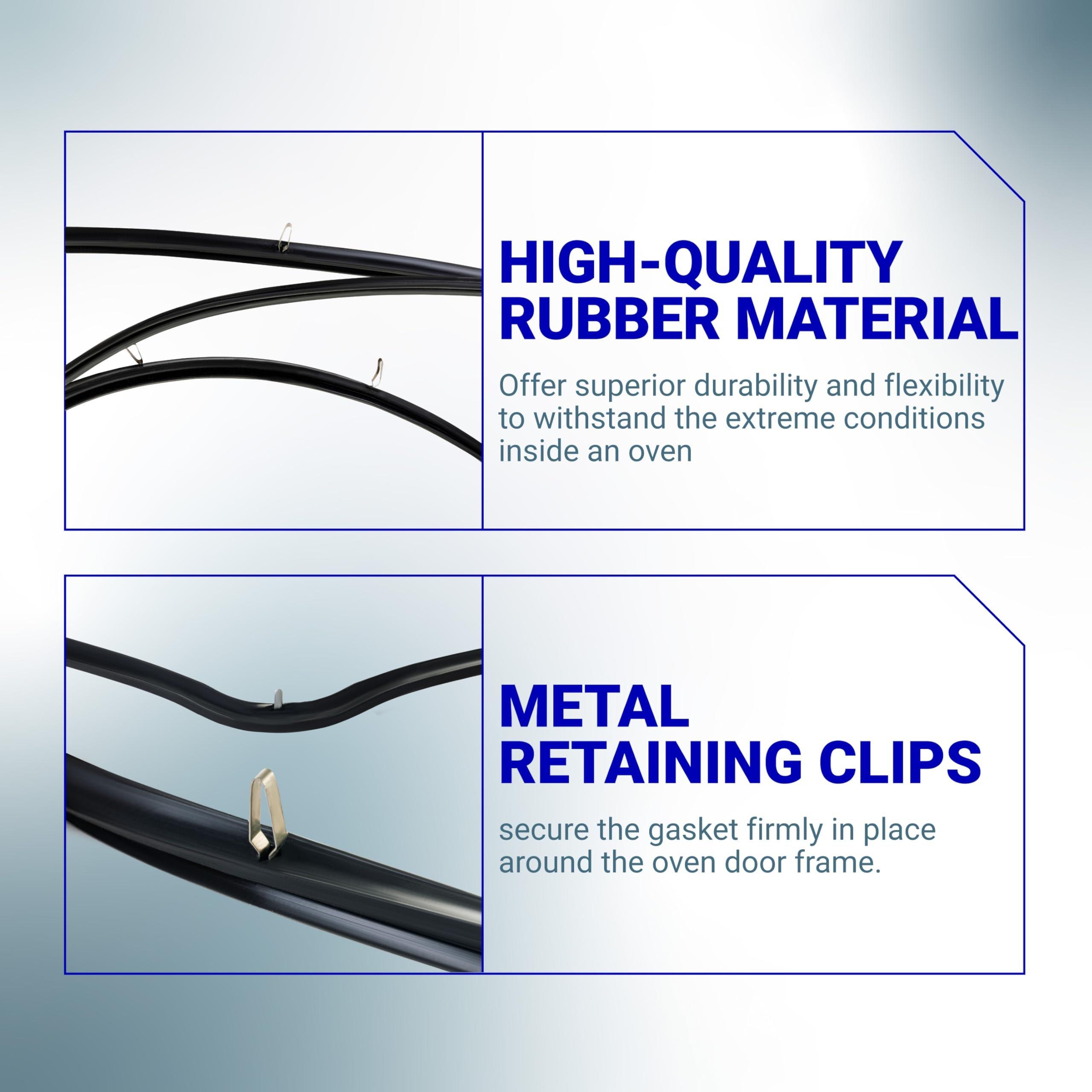

  • Constructed from durable, heat-resistant rubber material.
  • Direct replacement for specified OEM parts.

Replaces / Cross-Reference Part Numbers

  • W10535778
  • WPW10535778
  • AP6022735
  • PS11756072
  • EAP1175607
  • 3449335

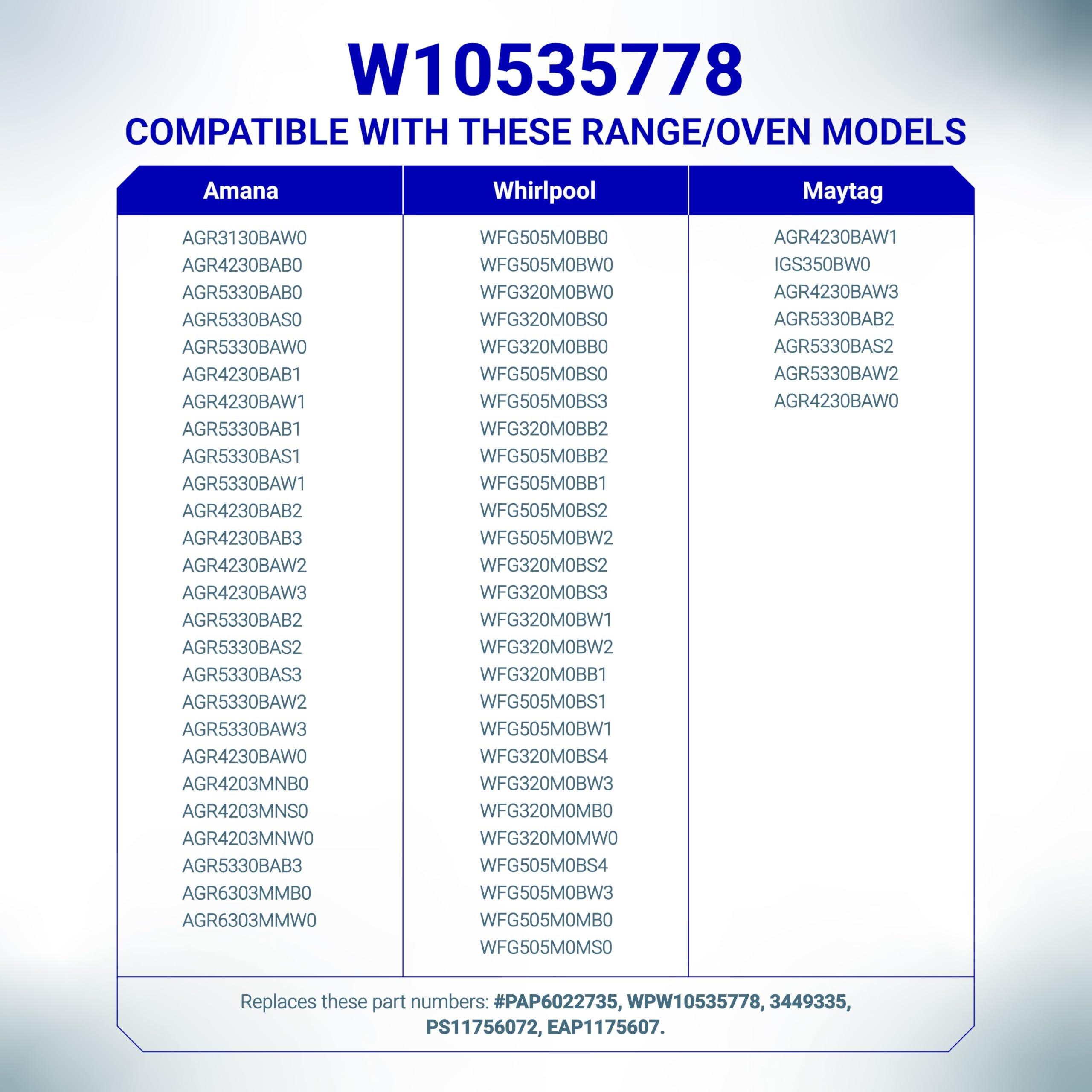

Compatibility & Fitment

  • Designed for use with select range and oven models from the following brands:
  • Whirlpool
  • Maytag
  • Amana
  • Ikea

When to Replace

  • Visible damage such as cracks, tears, or brittleness.
  • Gasket is compressed, hardened, or no longer provides a seal.
  • Noticeable heat escaping from around the oven door.
  • Inconsistent cooking times or unevenly cooked food.

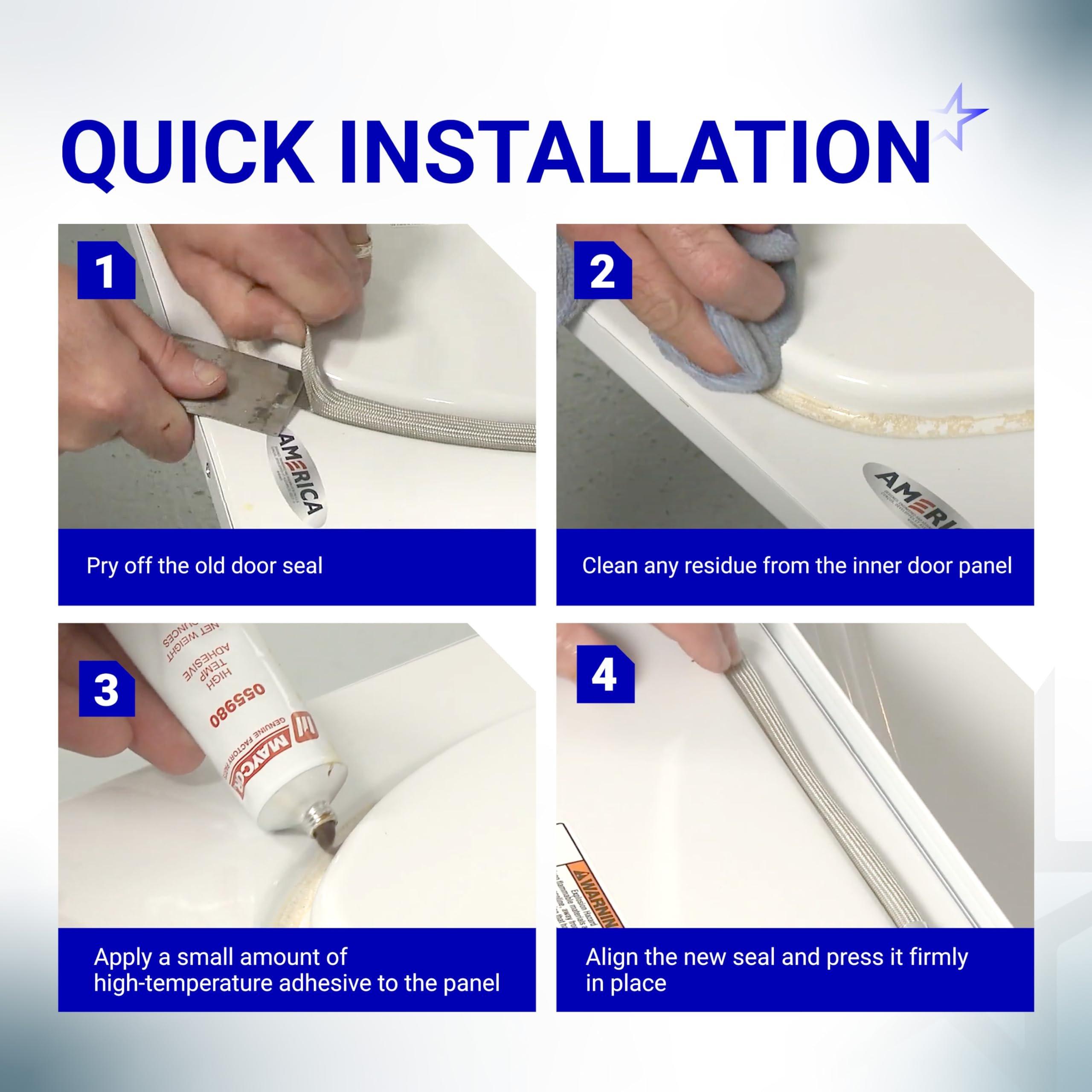

Installation Tips

  • Disconnect the appliance from its power source before beginning installation.
  • Remove the old gasket by carefully pulling it and its mounting clips out of the door channel.
  • Thoroughly clean the channel on the oven door to remove any grease or food debris.
  • Press the new gasket into the channel, ensuring all mounting clips are fully seated for a secure fit.
Batteries Included?
No

Color
As Pictured

Item Model Number
W10535778
