[Lifetime Warranty] Set of 5 (10 Pieces) Extension Cord Plugs 125V 15A 2 Pole 3 Wire with Male Plug and Female Connector

Set of 5 (10 Pieces) Extension Cord Plugs 125V 15A 2 Pole 3 Wire with Male Plug and Female Connector

Key Features

• Package Contents: 5 male plugs and 5 female connectors (5 sets total).

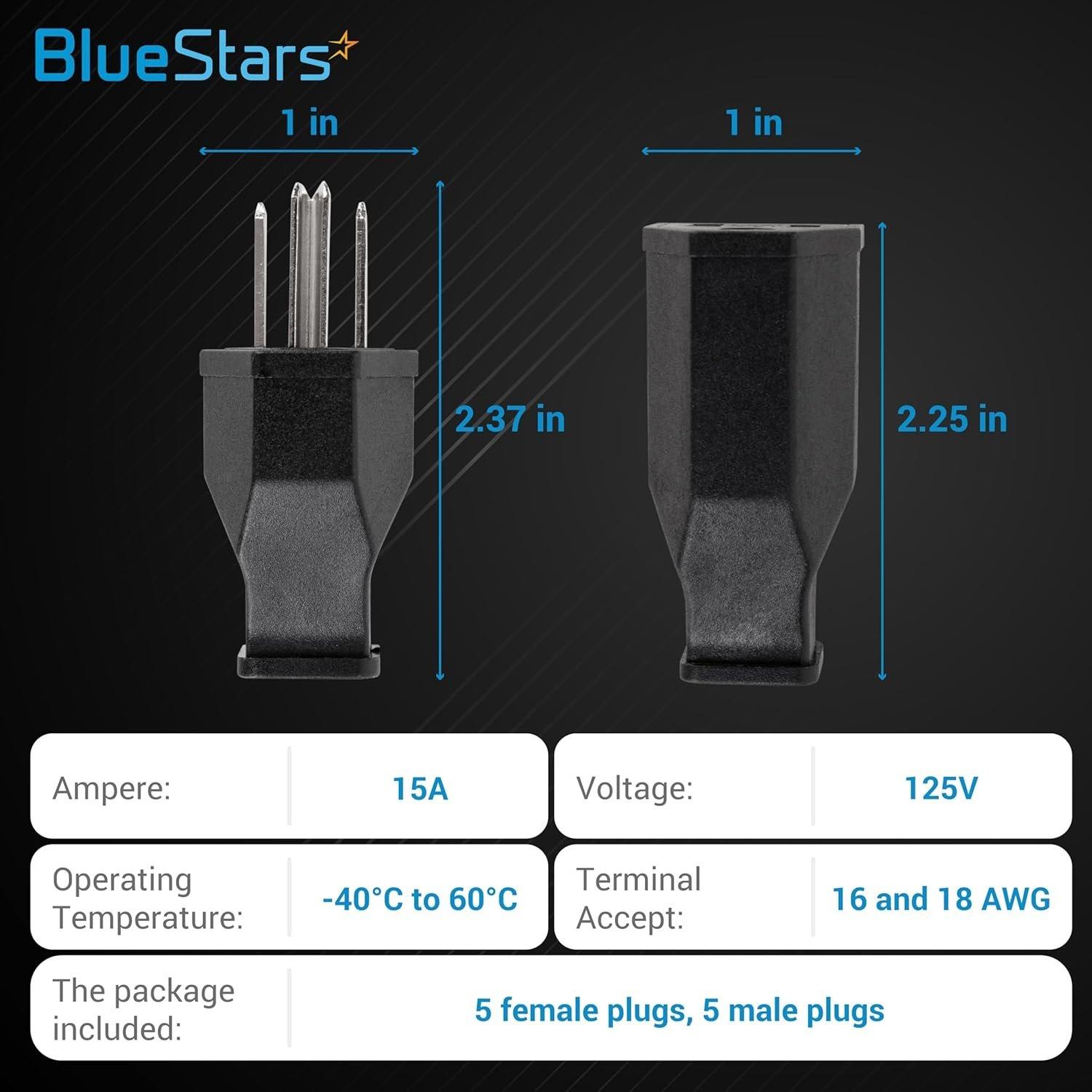

• Electrical Rating: 15 Amp, 125 Volt, 1875 Watt maximum.

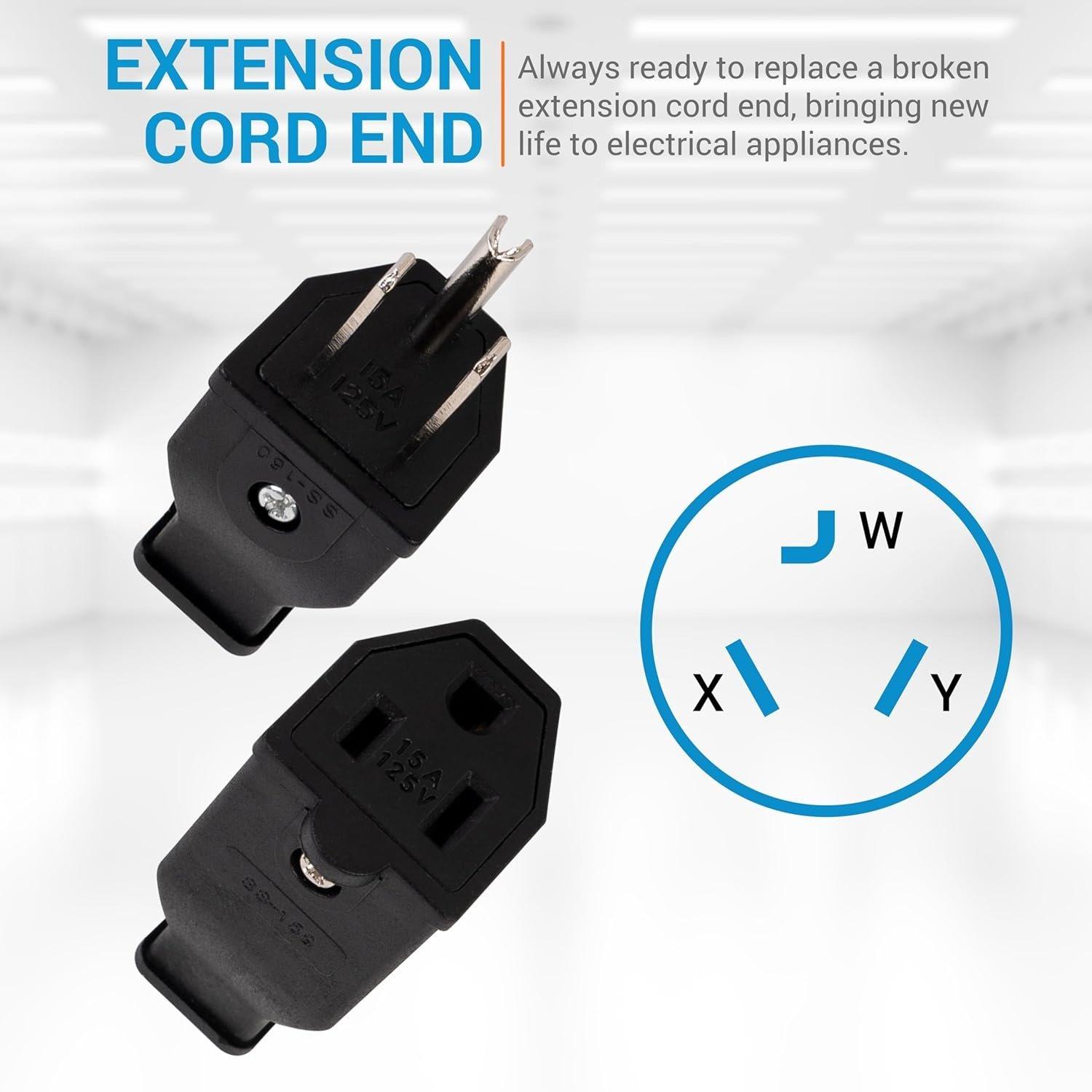

• Configuration: NEMA 5-15P (male) and NEMA 5-15R (female).
• Design: 2 Pole, 3 Wire, grounding type.
• Blade Style: Straight blade.
• Application: For repair or replacement of ends on extension cords, tools, and appliances.

Replaces / Cross-Reference Part Numbers

• NEMA 5-15P
• NEMA 5-15R

Compatibility & Fitment

• Fits standard 3-wire round cords such as SJT, SJO, and SJOW.
• Accommodates common wire gauges rated for 15A service (e.g., 16/3, 14/3, 12/3).
• Connects to any standard North American 120V NEMA 5-15 outlet or receptacle.

When to Replace

• Visible damage such as cracks, chips, or broken housing.
• Bent, loose, or corroded metal prongs or contacts.
• Signs of overheating, melting, or discoloration.
• Intermittent power connection or flickering.
• Cord clamp fails to secure the cable jacket.

Installation Tips

• Ensure the cord is completely disconnected from any power source before work begins.

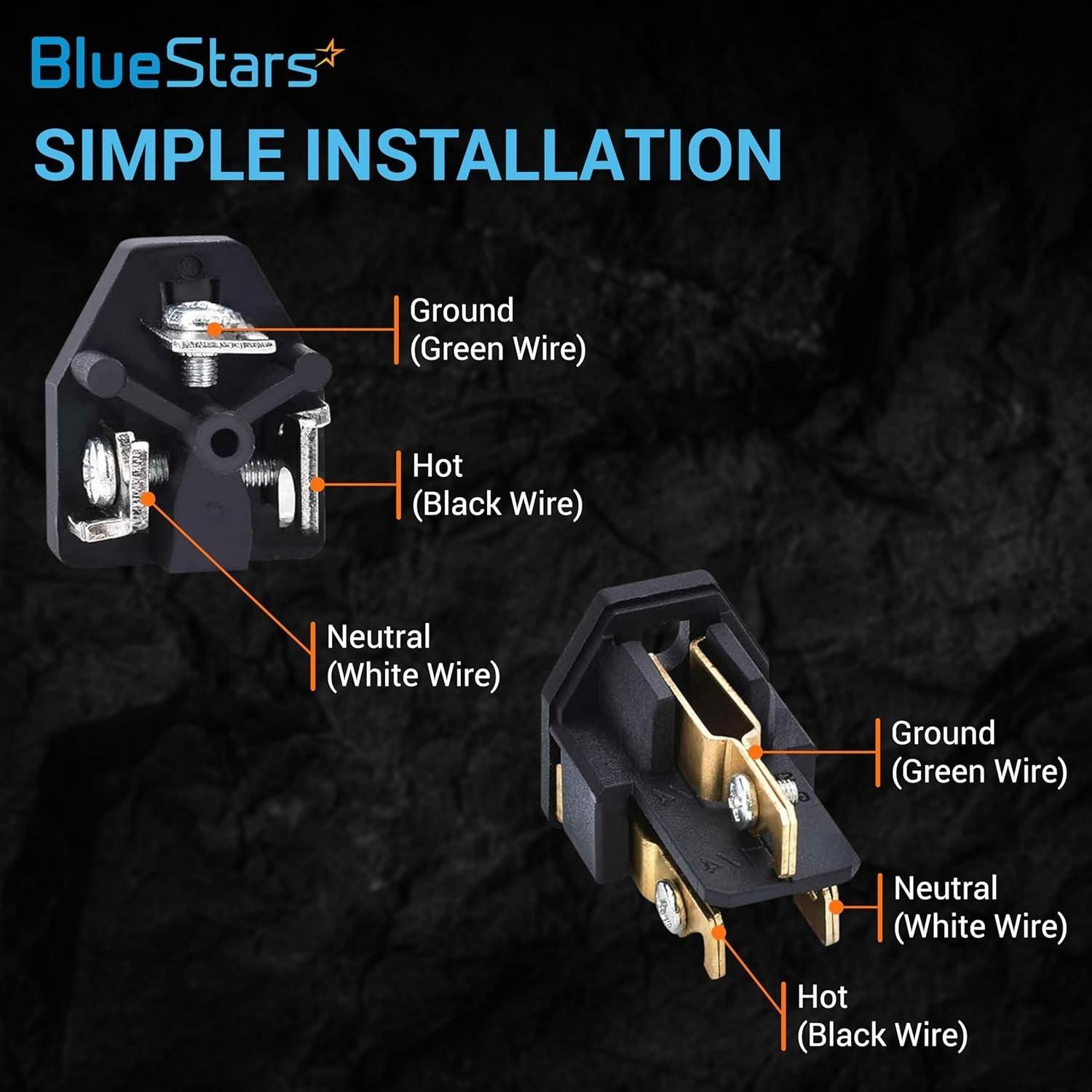

• Follow the standard wiring convention: Green wire to the Ground (green screw), White wire to Neutral (silver screw), and Black wire to Hot (brass/gold screw).
• Strip only enough of the outer cord jacket and inner wire insulation to make a secure connection.
• Confirm all terminal screws are tightened firmly on the conductors.
• Securely tighten the cord clamp onto the outer jacket, not the inner wires, to provide strain relief.
