[Lifetime Warranty] V-15-1C25 Micro Limit Switch Blade Momentary - Pack of 10

V-15-1C25 Micro Limit Switch Blade Momentary - Pack of 10

Key Features

• Model Number: V-15-1C25

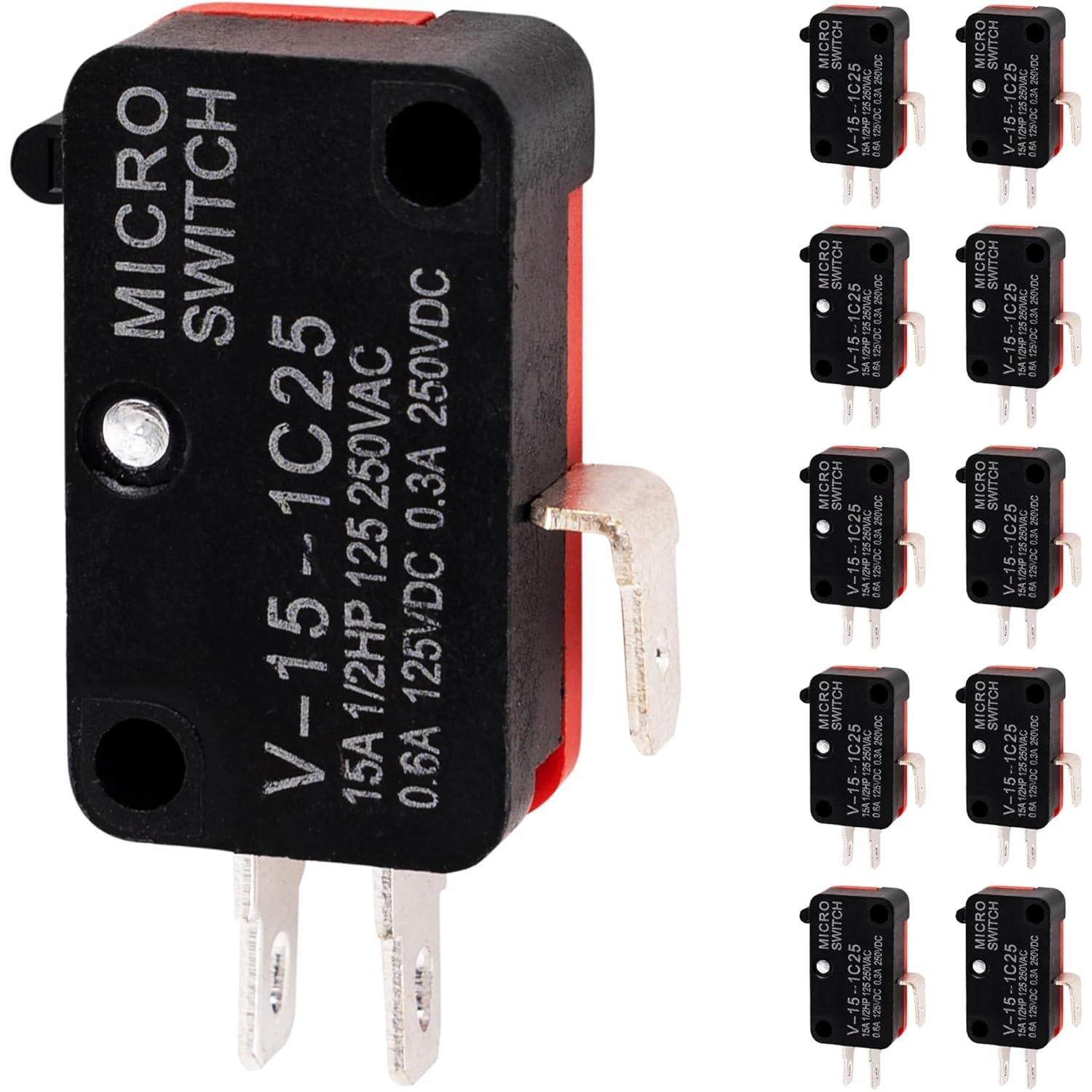

• Quantity: 10 switches per pack
• Switch Type: SPDT (Single Pole, Double Throw)

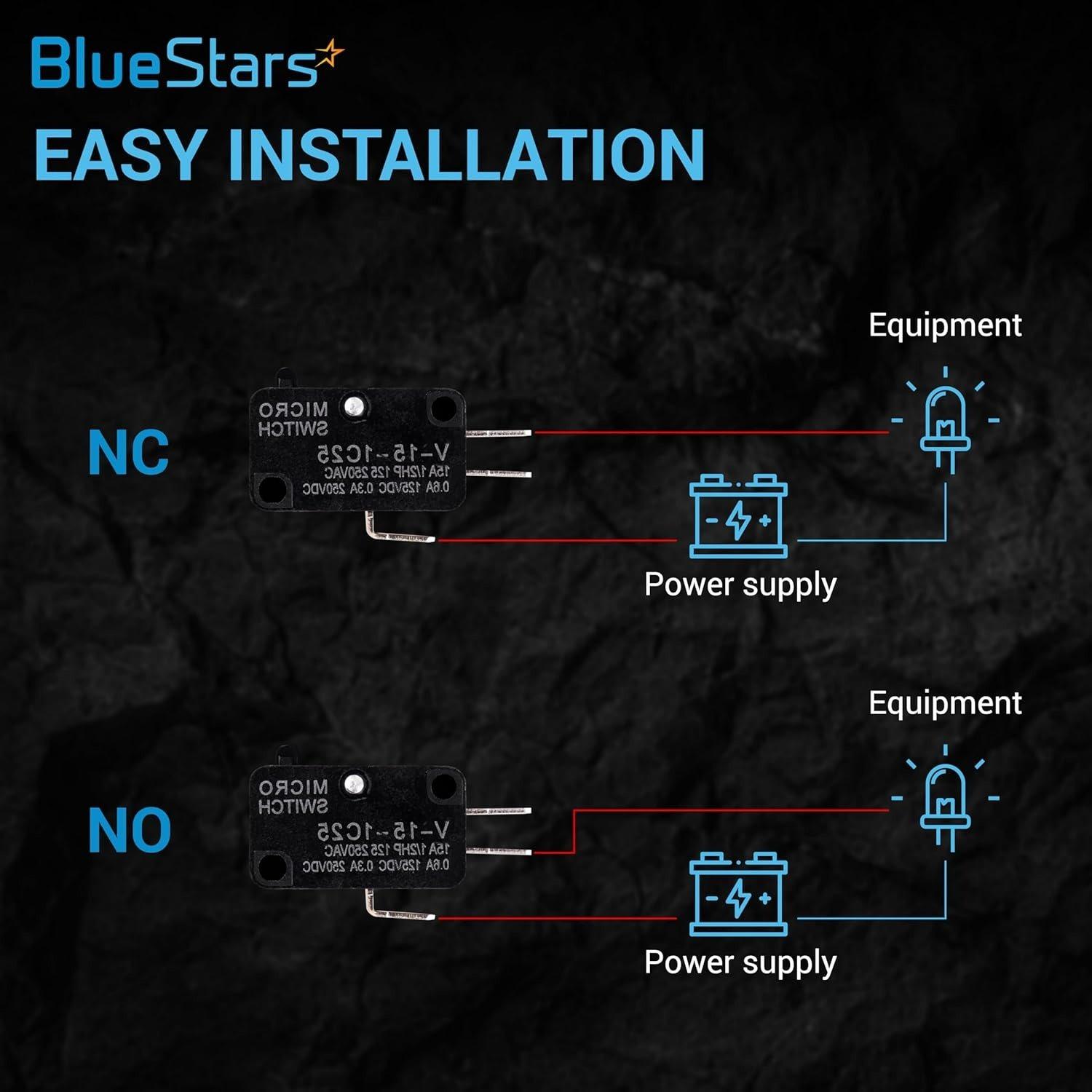

• Contact Configuration: 1 NO (Normally Open), 1 NC (Normally Closed)
• Action Type: Momentary, snap action
• Actuator Type: Short hinge lever
• AC Rating: 15A, 1/2HP at 125/250VAC
• DC Rating: 0.6A at 125VDC, 0.3A at 250VDC

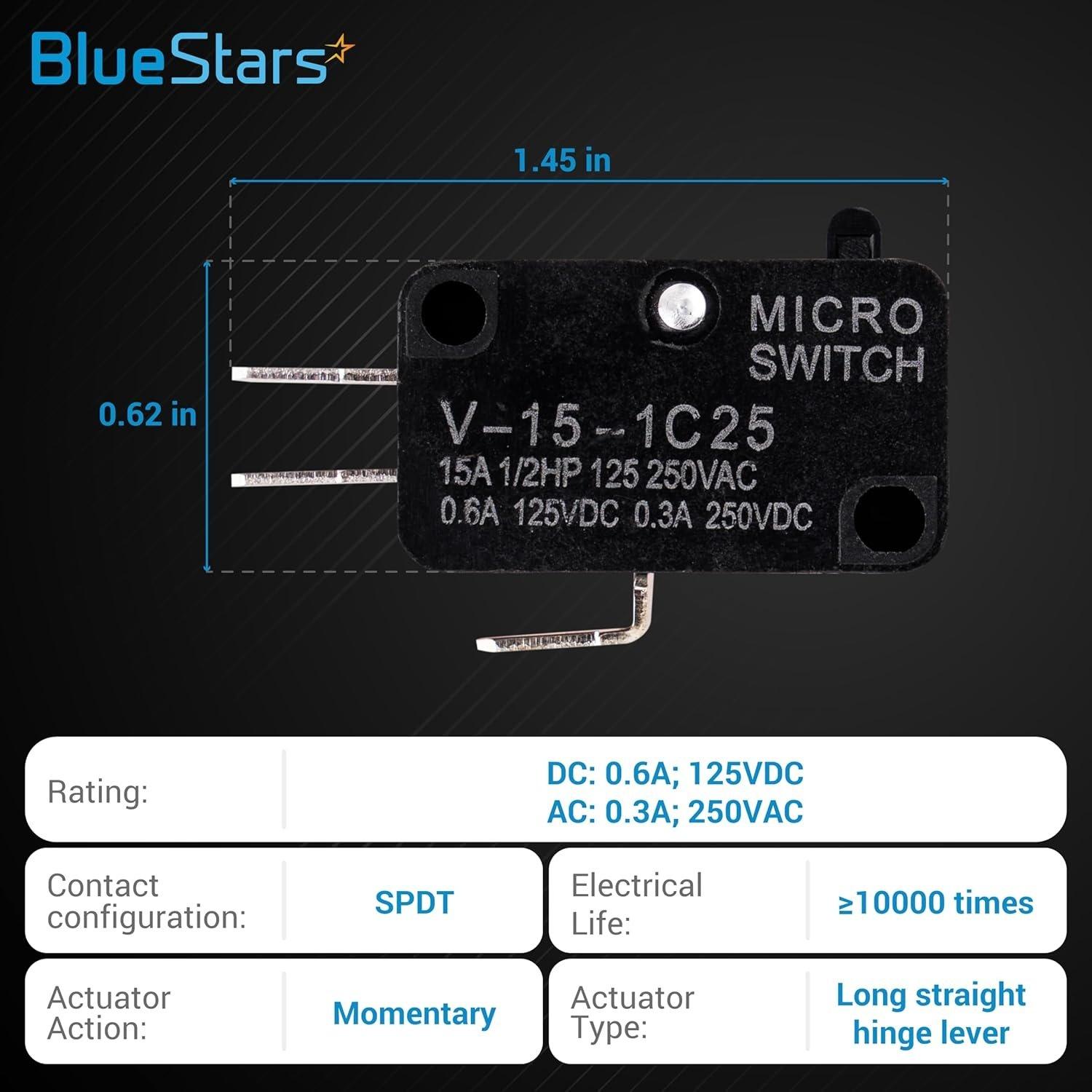

• Body Dimensions: 3.8 x 2.1 x 1cm (L*W*H)

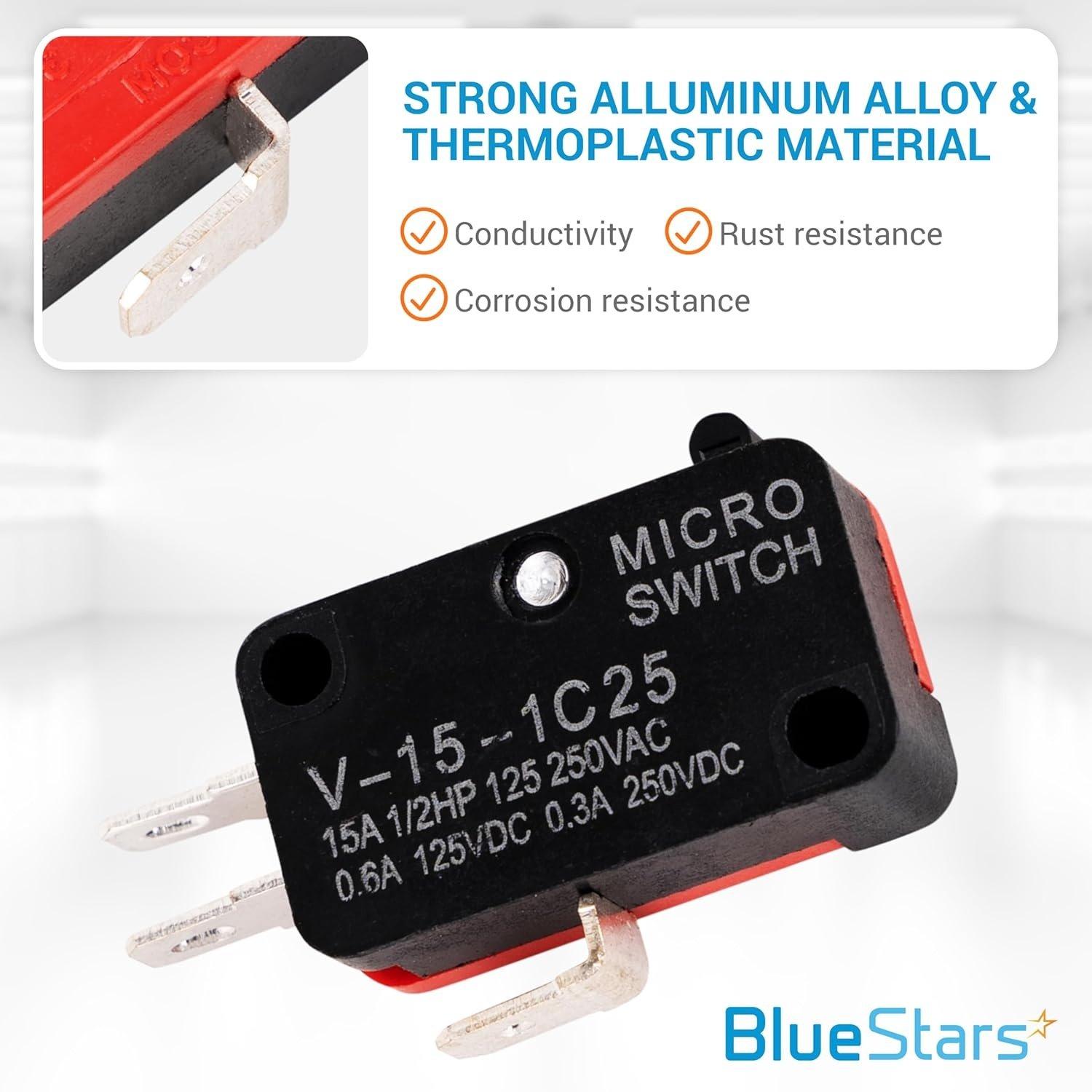

• Construction: Plastic body and metal components

Replaces / Cross-Reference Part Numbers

• Direct replacement for switches marked with V-15-1C25

Compatibility & Fitment

• Designed for a wide range of applications including:
• Appliance controls
• DIY electronics projects (e.g., Arduino)
• Industrial machinery
• General purpose electrical equipment

When to Replace

• Switch no longer actuates or provides an audible click.
• Circuit operates intermittently or unreliably.
• Visible physical damage, such as a broken lever or cracked housing.
• Continuity tests fail for Normally Open or Normally Closed positions.

Installation Tips

• Disconnect all power to the device before beginning installation.
• Verify the voltage and current ratings of the new switch are appropriate for the application.
• Ensure the actuator aligns correctly with the machine's moving components.
• Securely fasten electrical connections to the terminals.
• Test the switch functionality before restoring full power to the equipment.
