[Lifetime Warranty] 161-193 uF MFD 220-250 VAC 50/60 Hz Round Start Capacitor - Universal Fits Air Conditioners

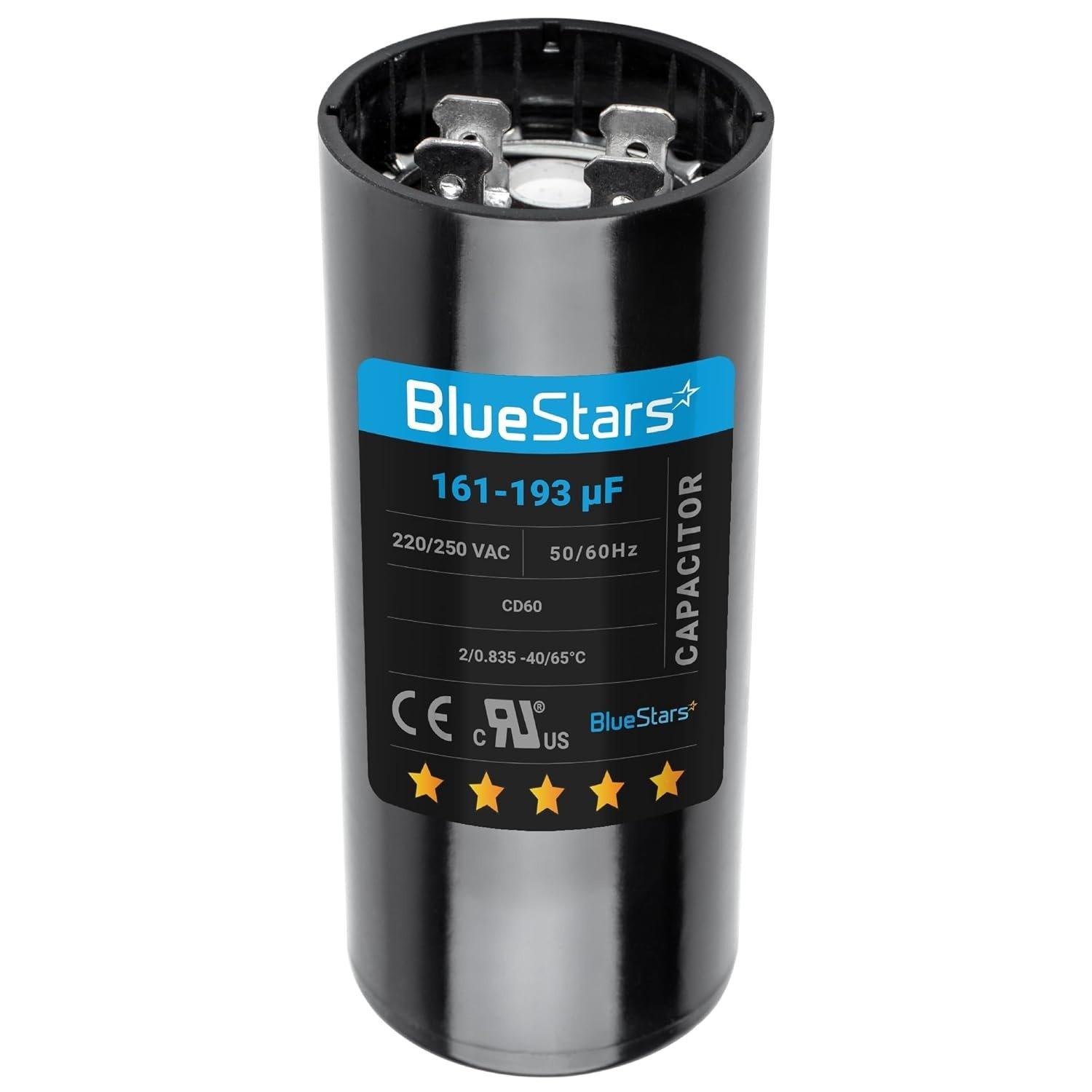

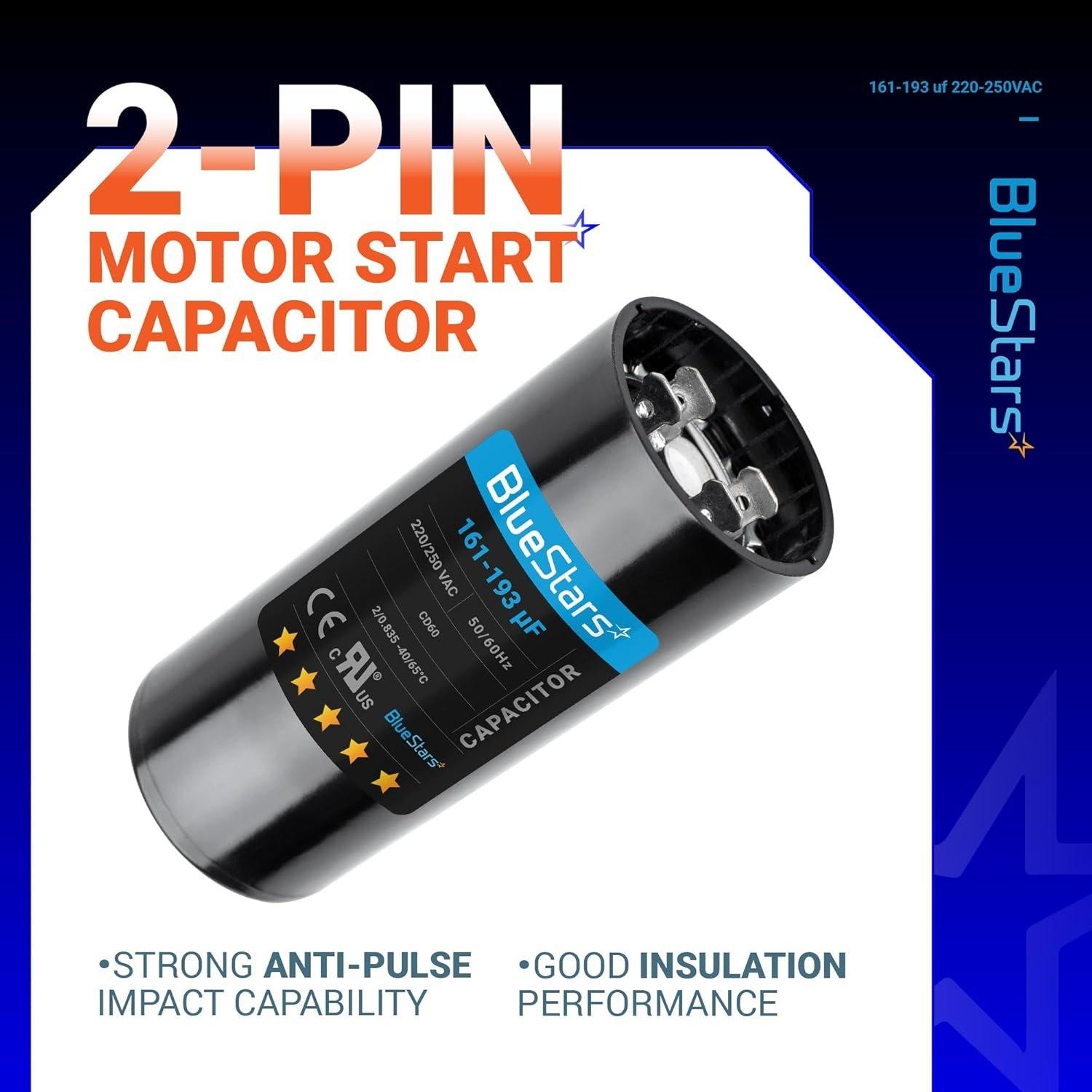

161-193 uF MFD 220-250 VAC 50/60 Hz Round Start Capacitor

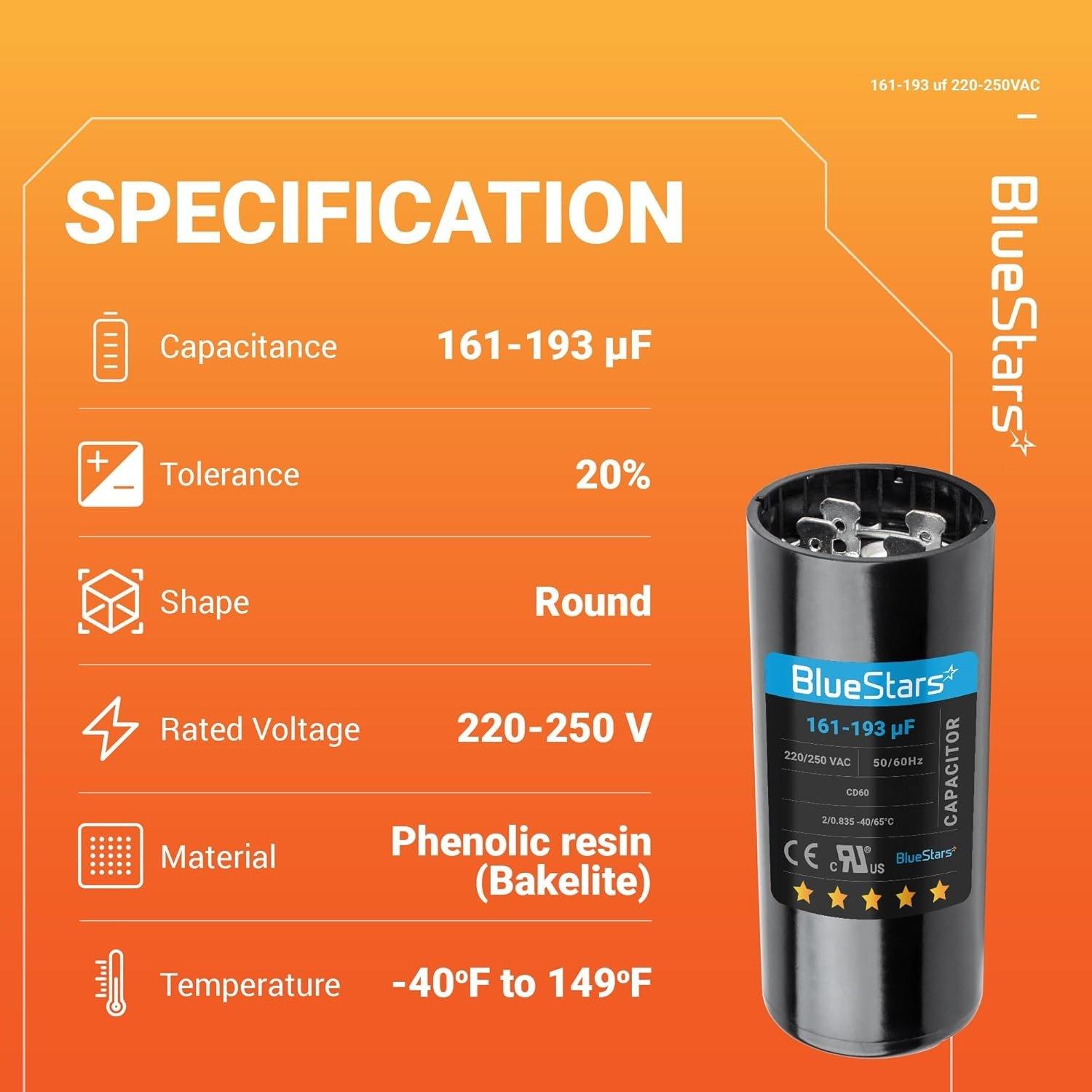

Key Features

• Capacitance: 161-193 uF (Microfarad)
• Voltage Rating: 220-250 VAC
• Frequency: 50/60 Hz
• Capacitance Tolerance: ±20%
• Operating Temperature: -40° C to +65° C (-40° F to +149° F)
• Shape: Round
• Terminals: 1/4 in. quick disconnect

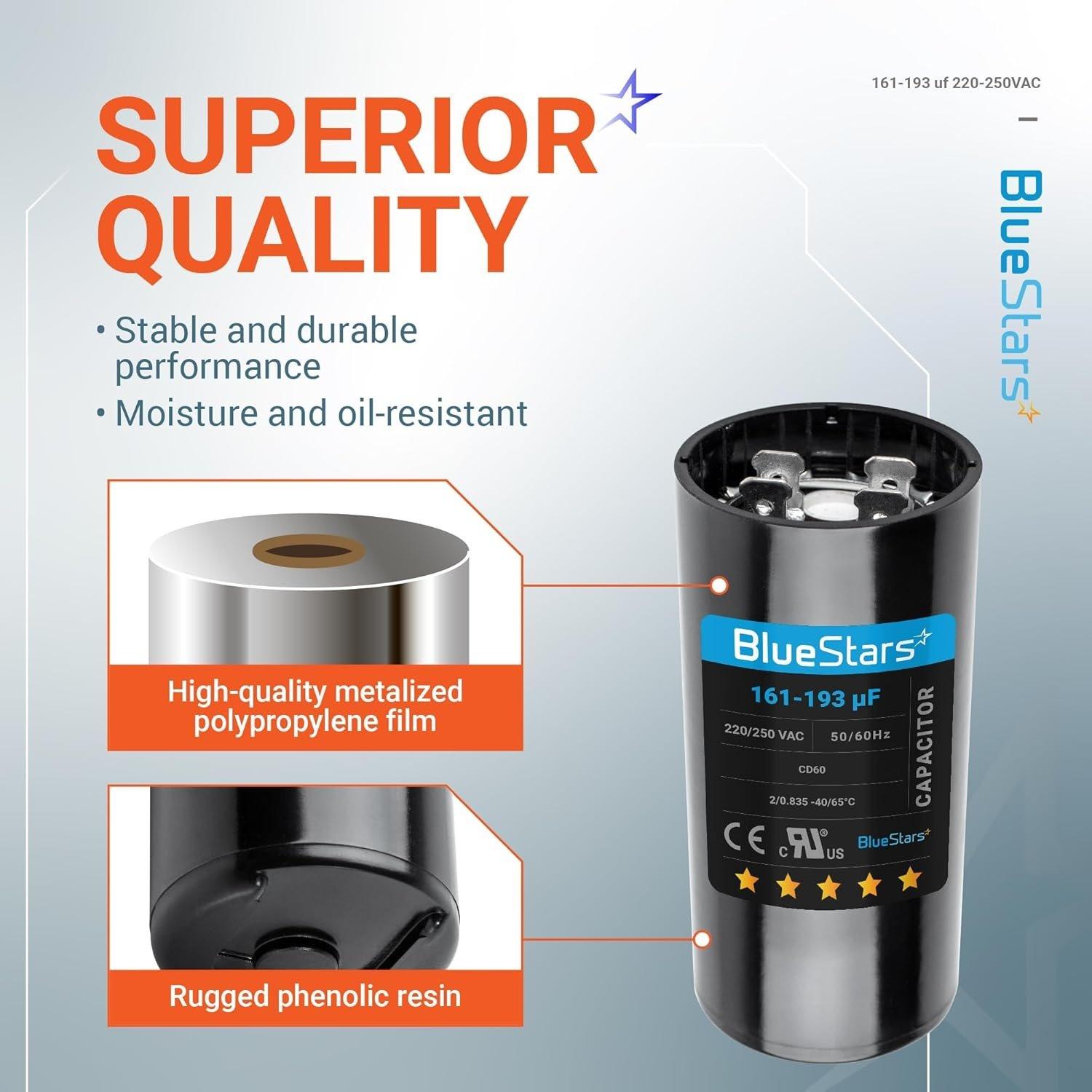

• Case Material: Moisture and oil resistant molded phenolic resin or plastic

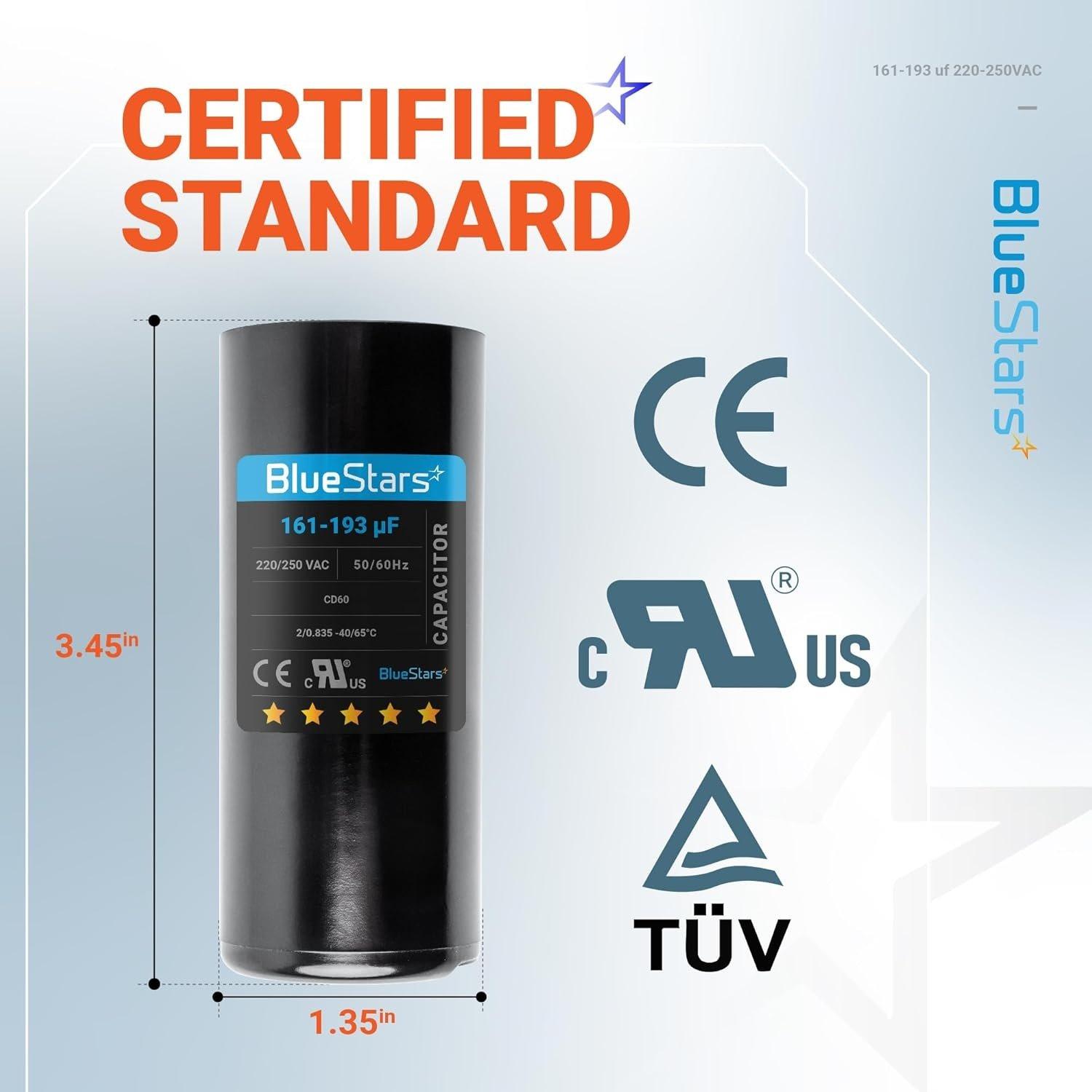

• Diameter: 1.81 in. (46 mm)
• Overall Height: 3.37 in. (85 mm)

Replaces / Cross-Reference Part Numbers

• This is a universal replacement component. It replaces any brand of start capacitor with the same capacitance range (161-193 uF/MFD) and voltage rating (220-250 VAC).

Compatibility & Fitment

• Designed for single-phase AC electric motors.

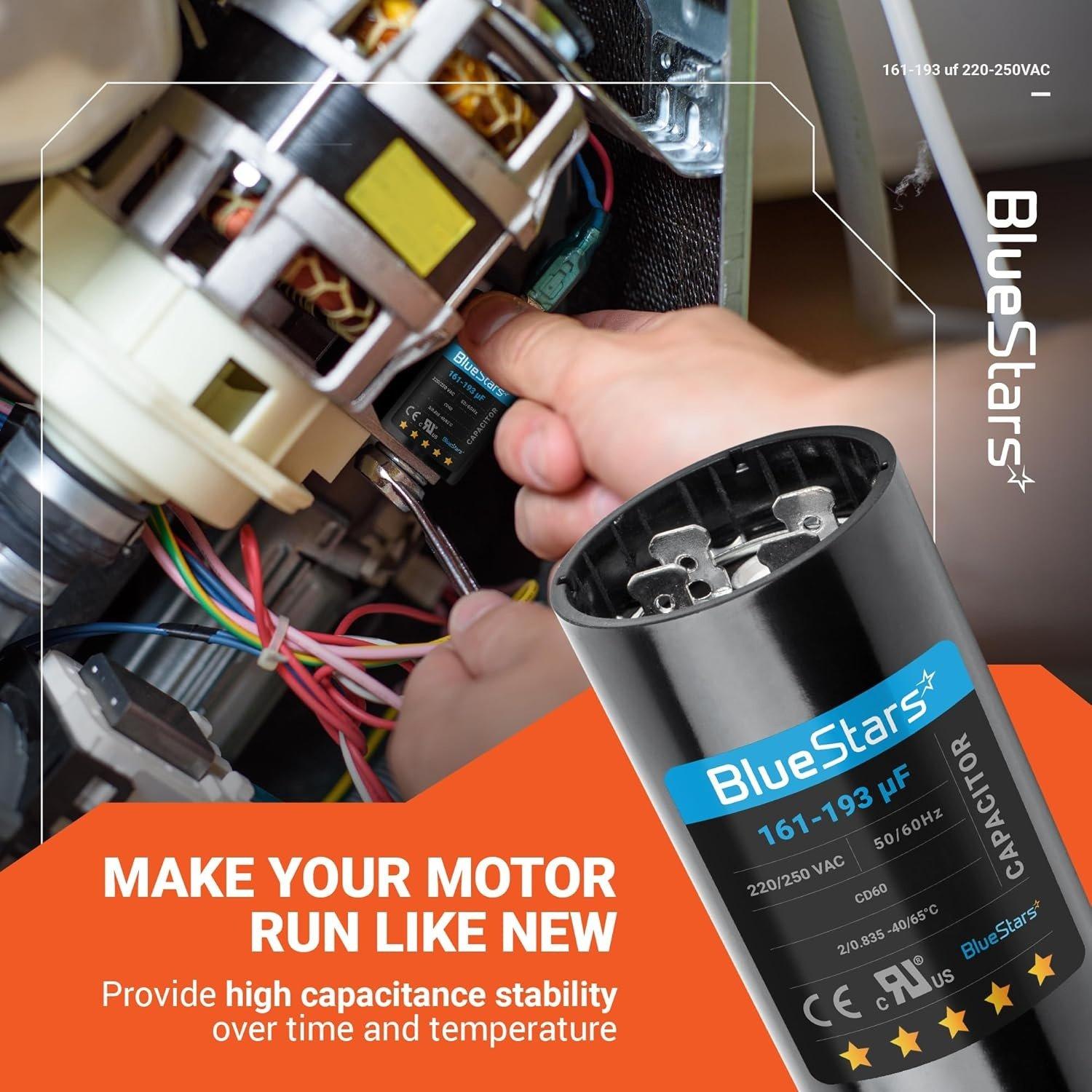

• Commonly used in air conditioner compressors, fan motors, and other electric motor start applications that require a capacitor with matching specifications.

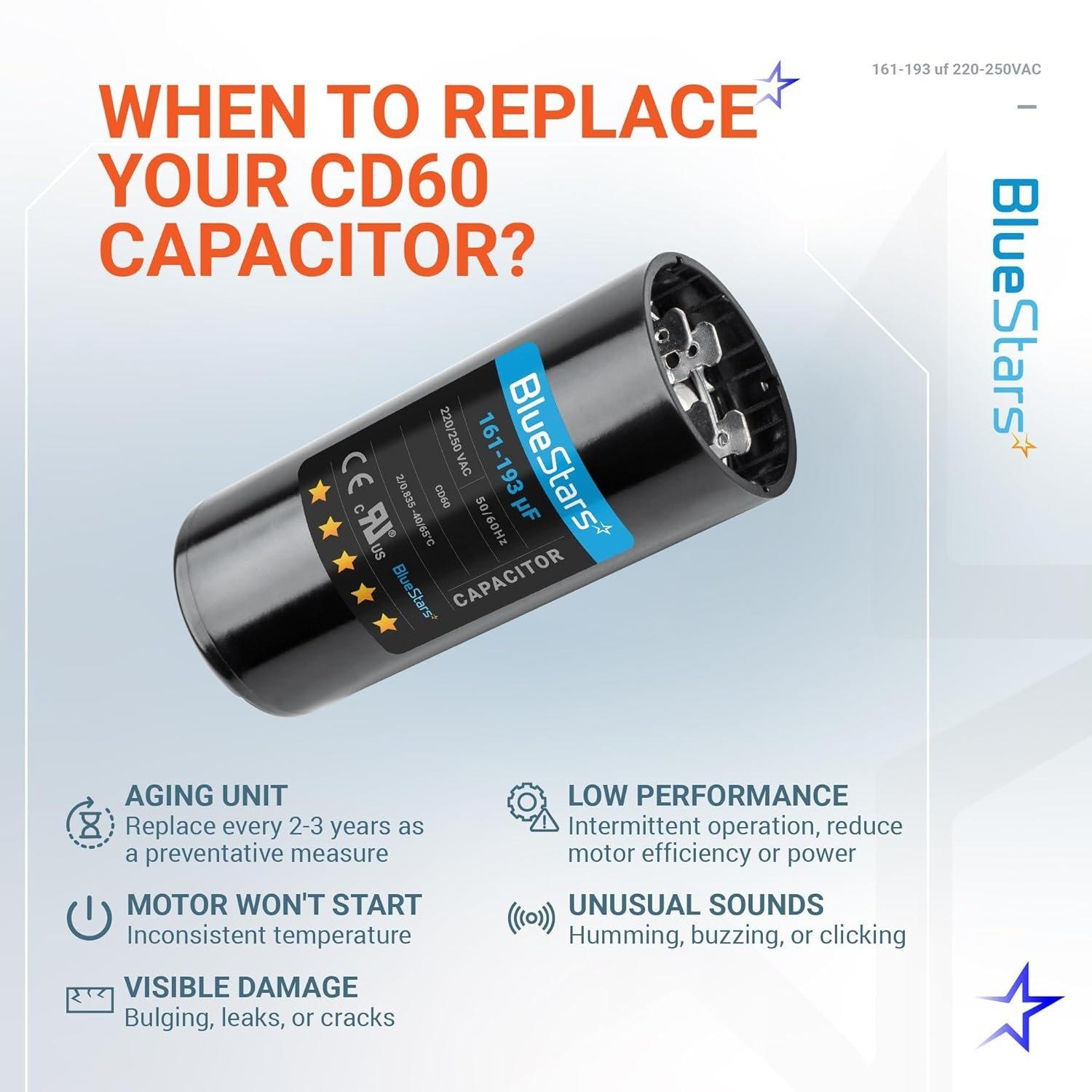

When to Replace

• The motor hums but will not start.
• The motor starts slowly or requires manual assistance.
• The circuit breaker trips repeatedly during motor startup.
• The existing capacitor shows physical signs of failure such as bulging, cracking, or leaking fluid.

Installation Tips

• Disconnect all electrical power to the unit before handling components.
• Safely discharge the existing capacitor by shorting the terminals with an insulated screwdriver or a resistor rated for the task.
• Verify that the replacement capacitor's uF/MFD rating is within the range specified by the motor manufacturer.
• The voltage rating of the replacement capacitor must be equal to or greater than the original capacitor's voltage rating.
• Note the terminal connections before removing the old capacitor to ensure correct wiring.
