[Lifetime Warranty] W11251749 W11602886 Refrigerator LED Light Bulb - Compatible with Whirlpool Kenmore Amana Refrigerator - Replaces W11449273 W11520324 W11468934 AP6986570 W11549780 AP7192759

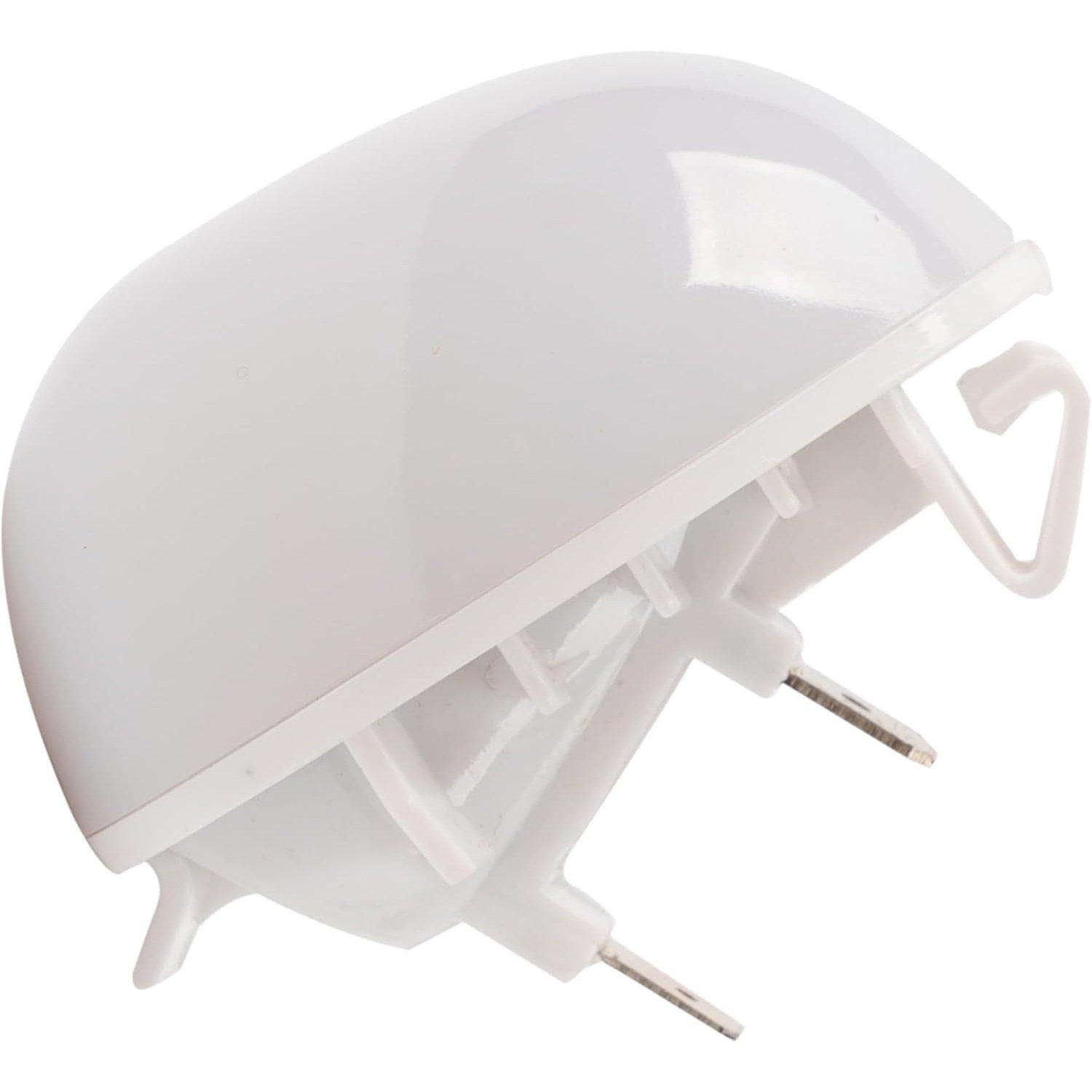

Refrigerator LED Light W11251749 W11602886

Key Features

• Direct replacement LED light module for refrigerators and freezers.
• Illuminates the interior compartment for improved visibility.
• Voltage: 120VAC, 60Hz
• Power: 4.2W
• Operating Current: 52mA
• Module Voltage: 30-32V DC

Replaces / Cross-Reference Part Numbers

• W11602886
• W11251749
• W11549780
• W11520324
• W11468934
• W11449273
• AP7192759

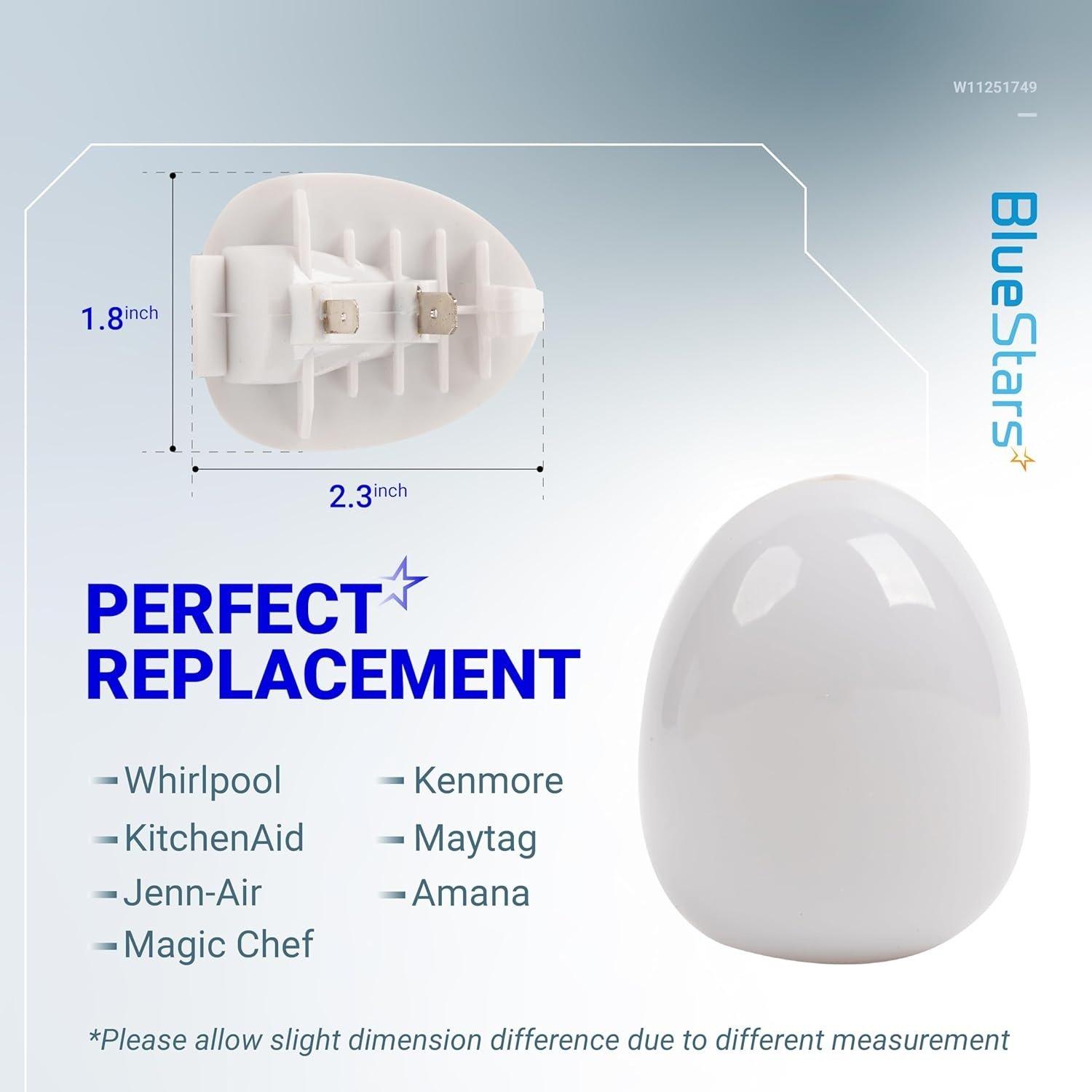

Compatibility & Fitment

• Designed for use with various refrigerator models from brands including Whirlpool, Kenmore, Amana, Maytag, KitchenAid, Jenn-Air, Magic Chef, Admiral, Norge, and Roper.
• Confirm fitment by checking your appliance's original part number before ordering.

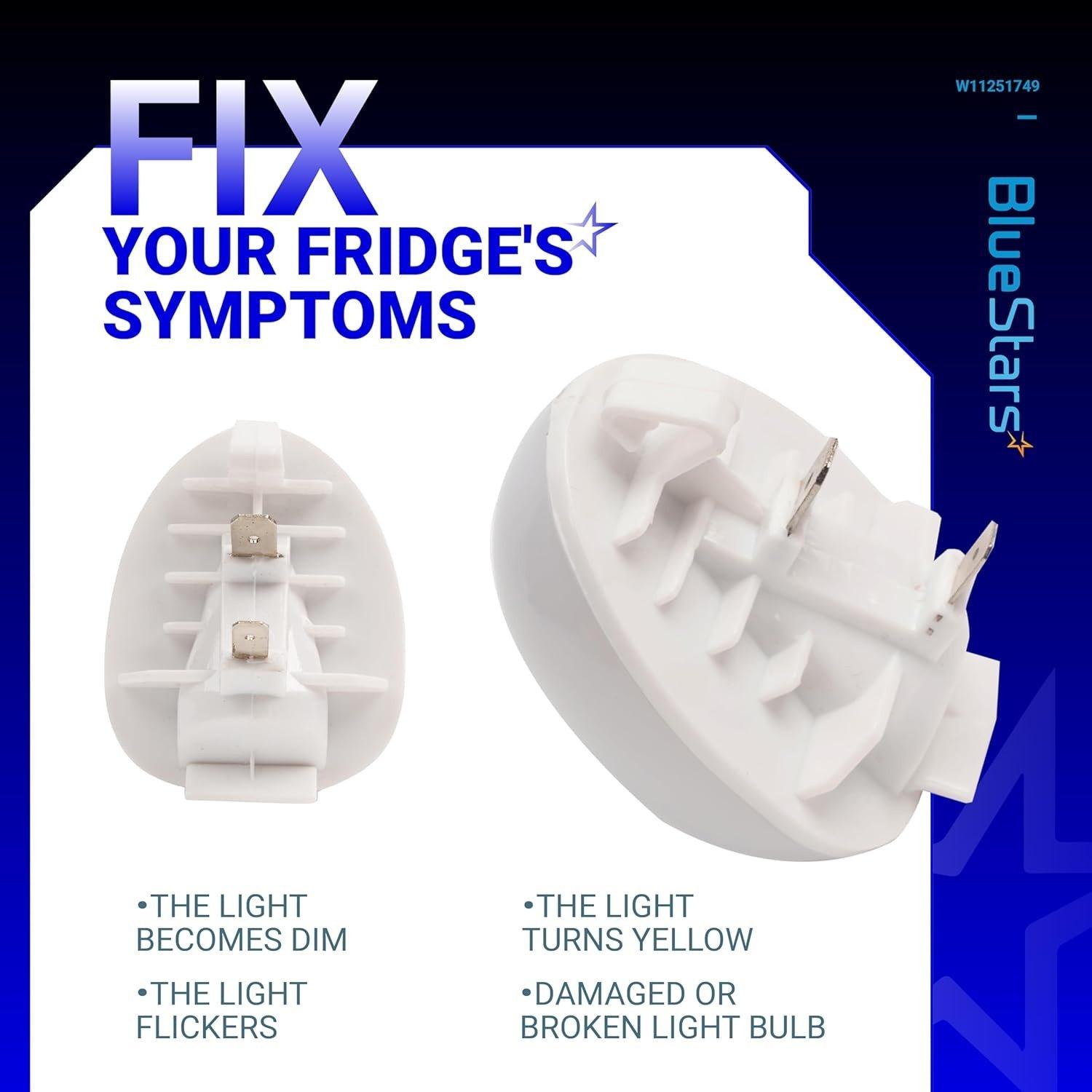

When to Replace

• The interior light does not turn on when the door is opened.
• The light is dim, flickering, or inconsistent.
• The original light module is visibly damaged.

Installation Tips

• Disconnect the refrigerator from its power source before beginning installation.
• Gently remove the light cover or shield, if applicable.
• Disconnect and remove the old light module.
• Connect the new module and secure it in place.
• Replace the light cover and restore power to test the new light.
