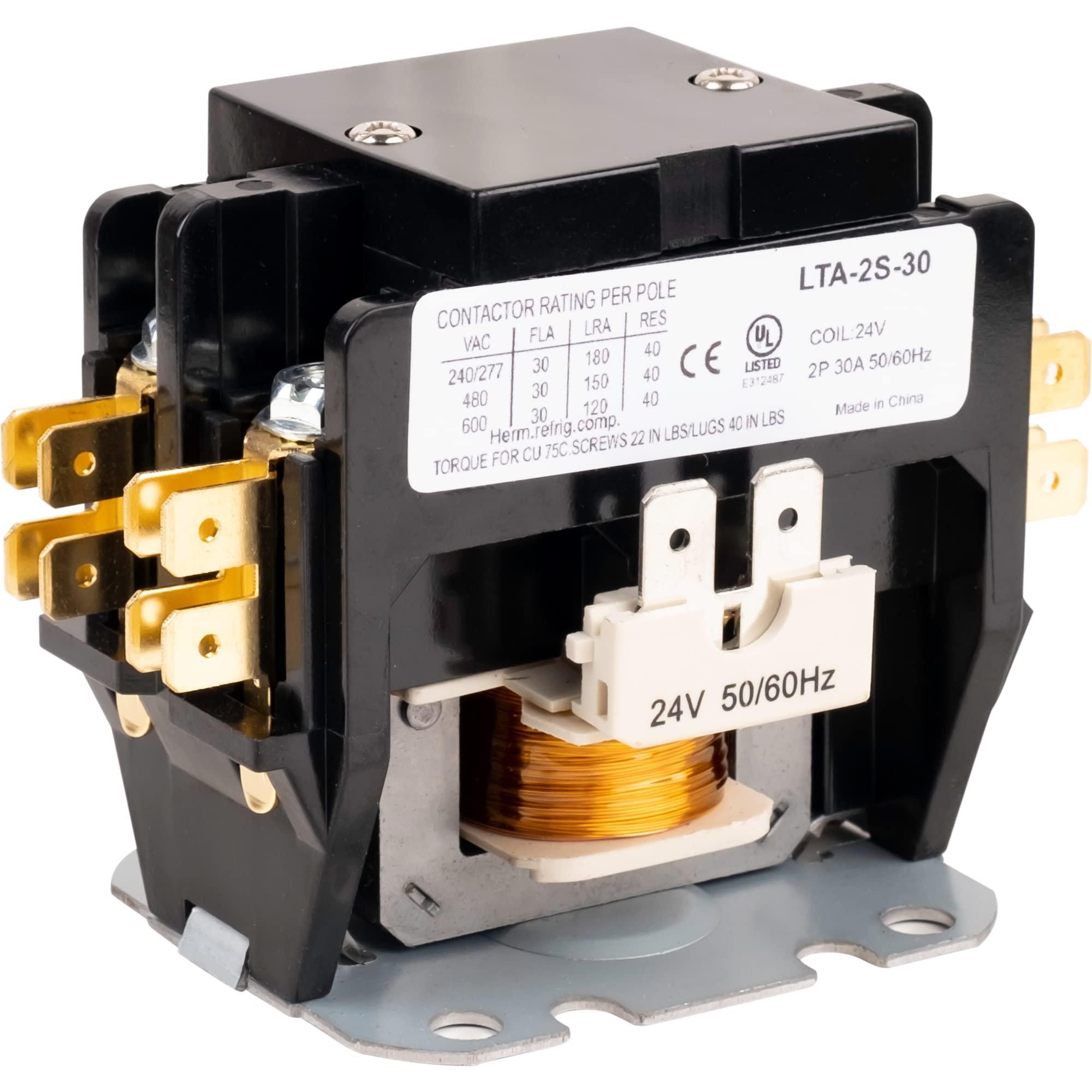

[Lifetime Warranty] 2 Pole Contactor 30 Amp 24VAC Coil

2 Pole Contactor 30 Amp 24VAC Coil - Compatible with Relays, Air Conditioner, Heat Pump, Refrigeration Systems

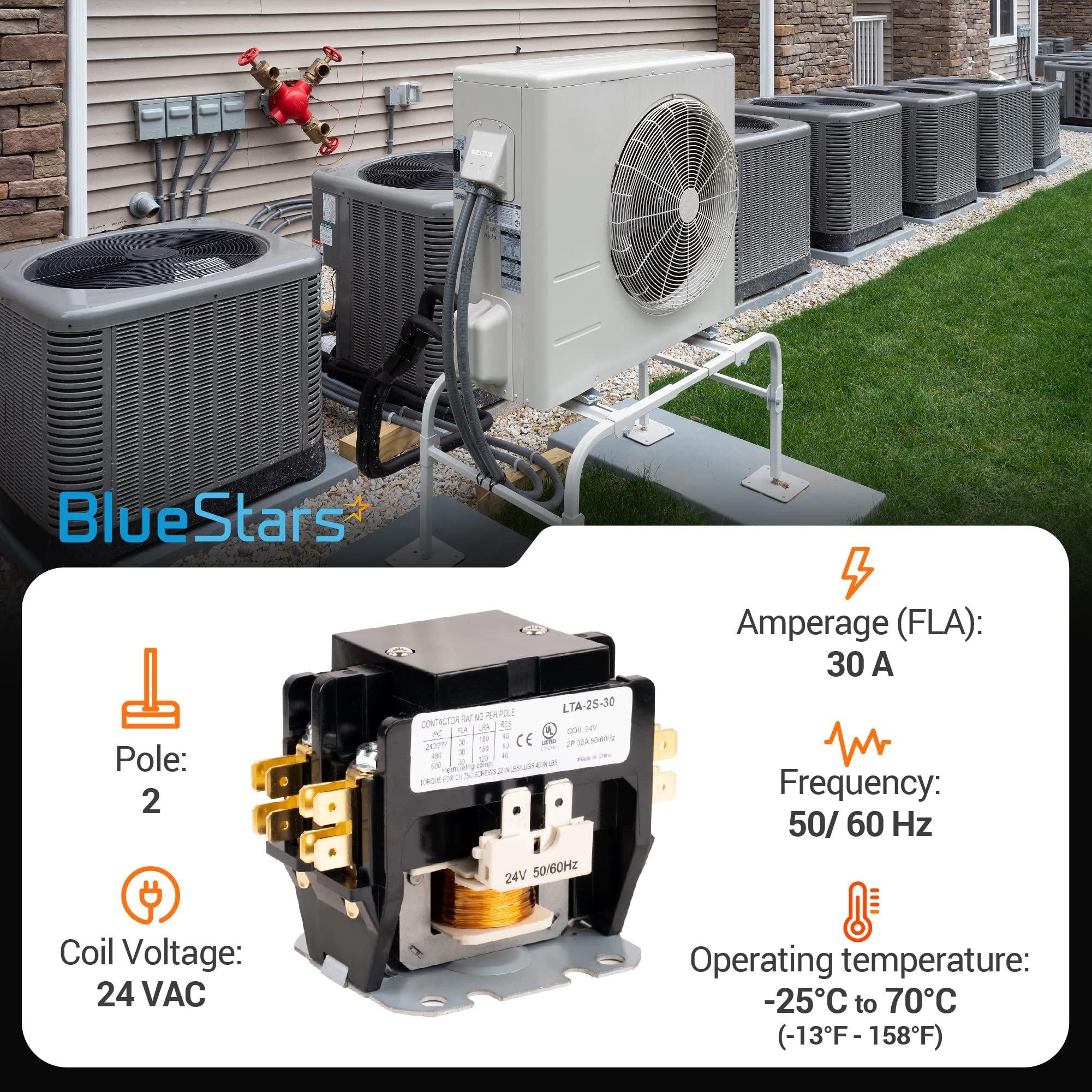

Key Features

• Poles: 2
• Coil Voltage: 24 VAC
• Full Load Amperage (FLA): 30A
• Resistive Amperage (RES): 40A
• Maximum Voltage Rating: 600 VAC
• Terminal Type: 1/4 inch quick connect

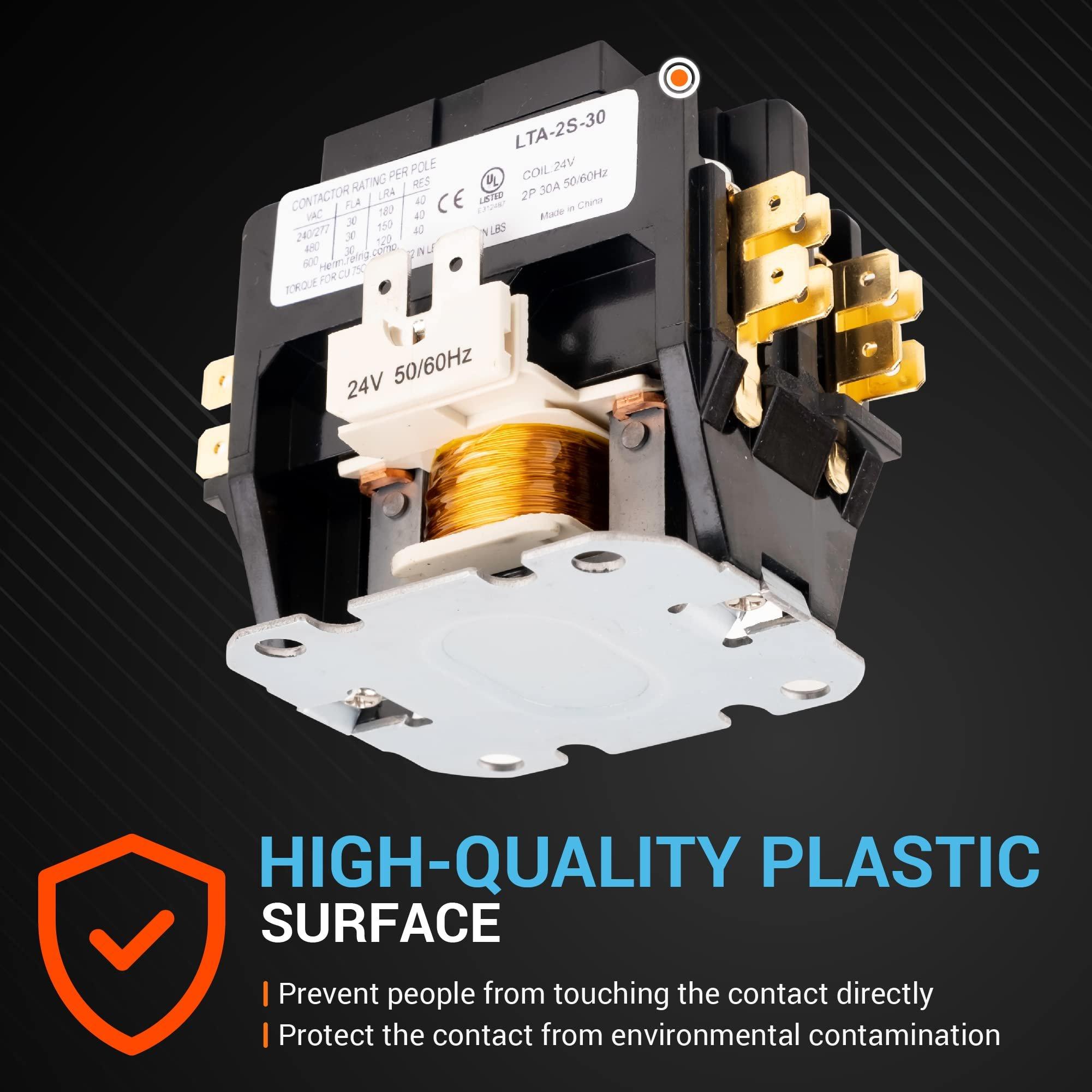

• Enclosed housing to protect internal components

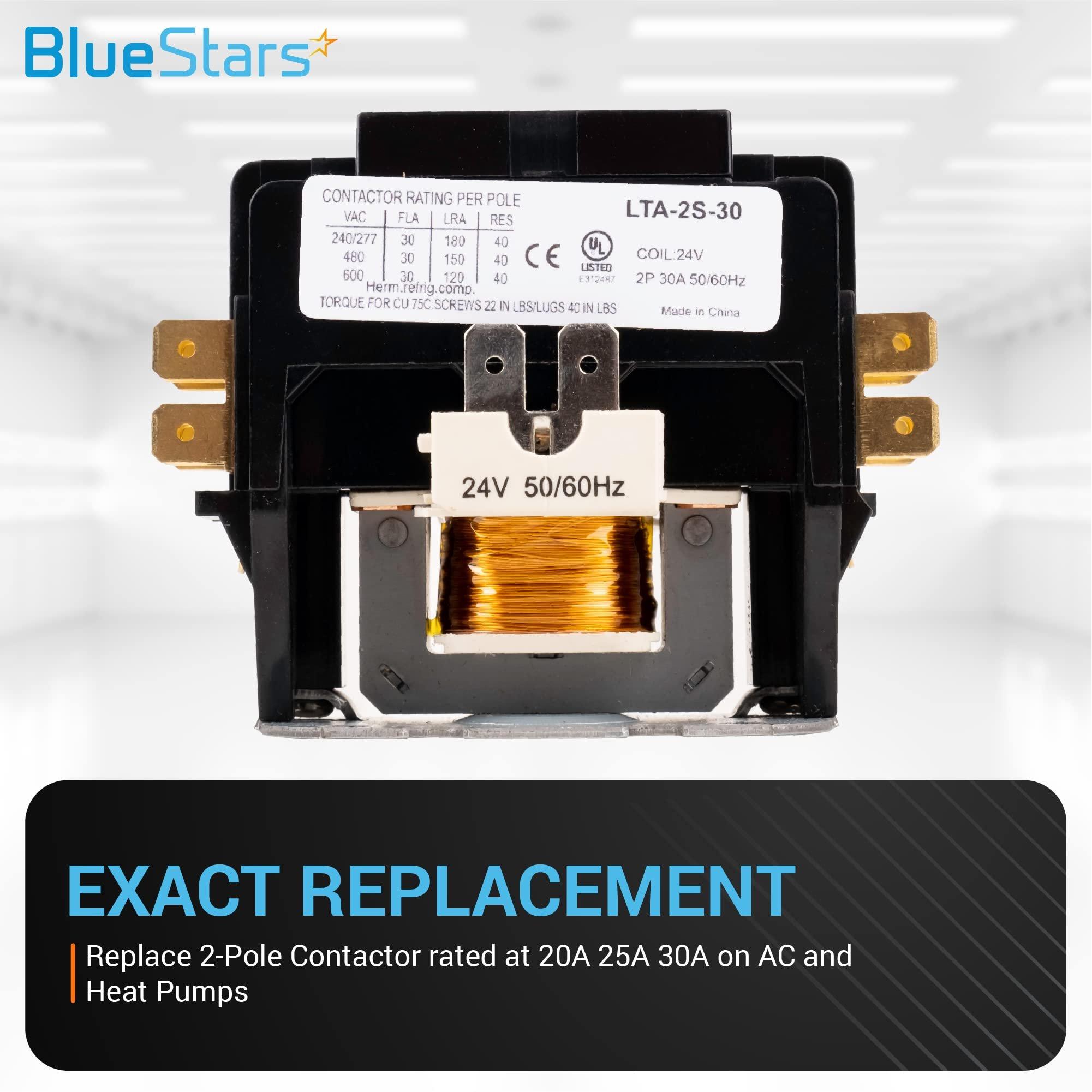

Replaces / Cross-Reference Part Numbers

• Packard: C230A, PC230A
• White-Rodgers: Type 122
• Replaces many Furnas DP series contactors
• Serves as a direct replacement for numerous other 2-pole, 30 Amp contactors with a 24V coil.

Compatibility & Fitment

• Designed for residential and light commercial HVAC applications.
• Suitable for central air conditioners, heat pumps, and refrigeration systems.
• Functions as a control relay for motors, lighting, and other electrical loads.
• Compatible with most major HVAC equipment brands requiring matching specifications.

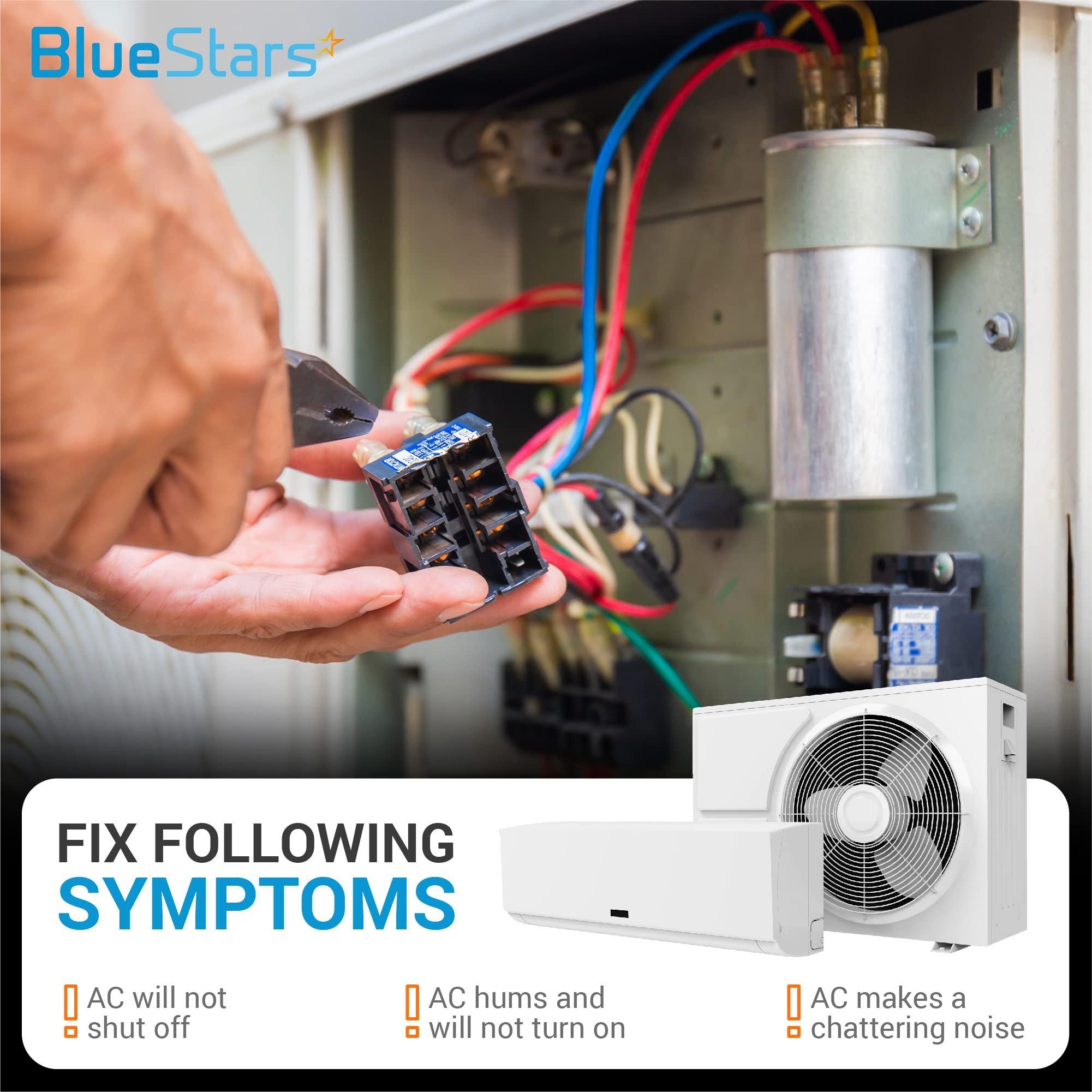

When to Replace

• Outdoor condenser unit fails to start.
• Audible buzzing or chattering from the existing contactor.
• Visible signs of burning, pitting, or arcing on contact points.
• Coil resistance is out of specification or shows an open circuit.

Installation Tips

• Disconnect all electrical power to the unit before beginning work.
• Verify the system requires a 24 VAC coil voltage.
• Photograph or label wires before removing the old contactor to ensure proper re-connection.
• Ensure all electrical connections are clean and tight.
