[Lifetime Warranty] CSA Certified 3 Feet Propane Refill Adapter Hose with Gauge & ON/Off Control Valve Stainless Steel Extension Propane Refill Hose Fill 1 Pound Bottles from 5-40lb Tank - with Cap, Tape

CSA Certified 3 Feet Propane Refill Adapter Hose with Gauge & ON/Off Control Valve Stainless Steel Extension Propane Refill Hose Fill 1 Pound Bottles from 5-40lb Tank - with Cap, Tape

Key Features

• Hose Length: 3 feet (36 inches)

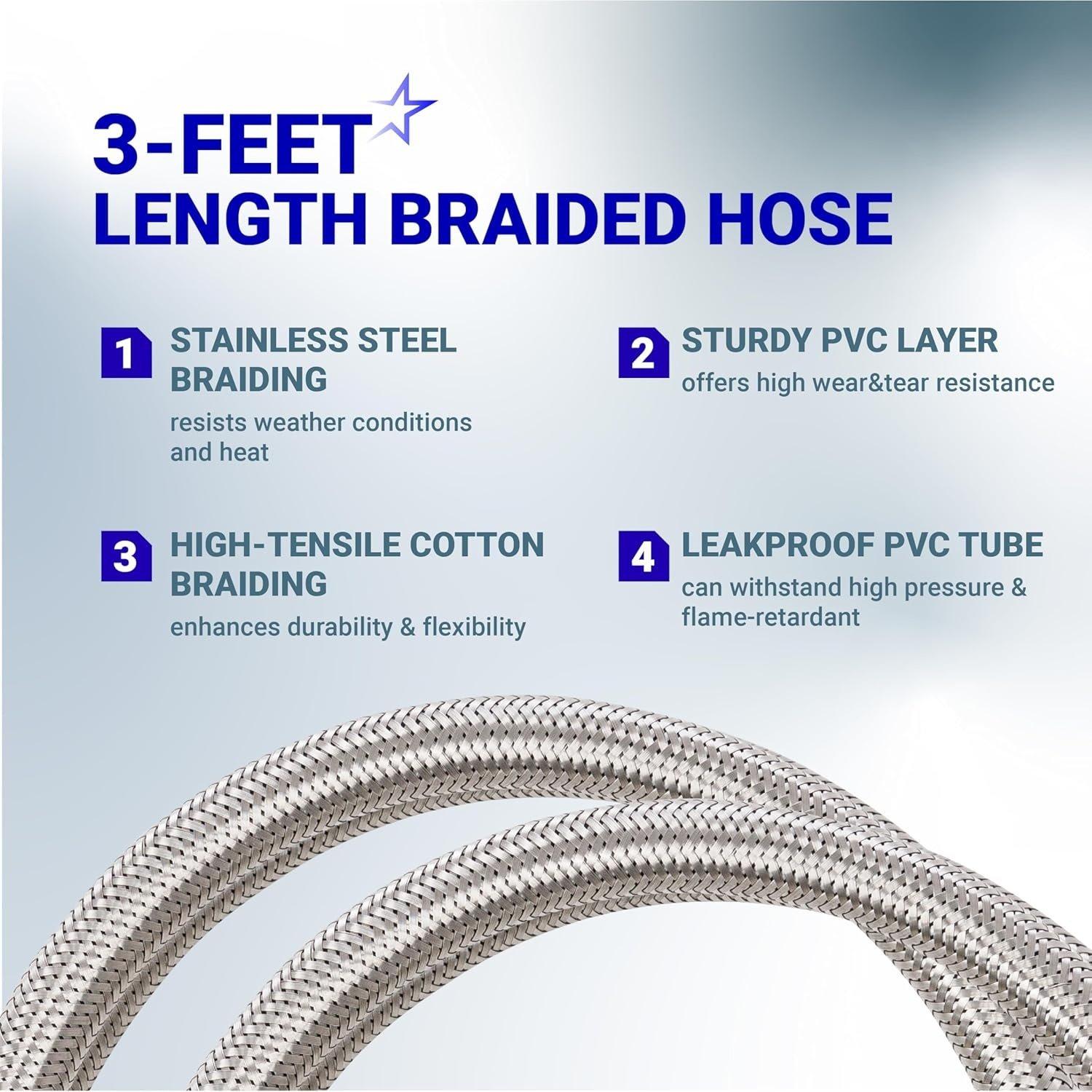

• Hose Material: Braided stainless steel
• Pressure Rating: 350 PSI
• Valve: Manual ON/OFF control valve for flow regulation

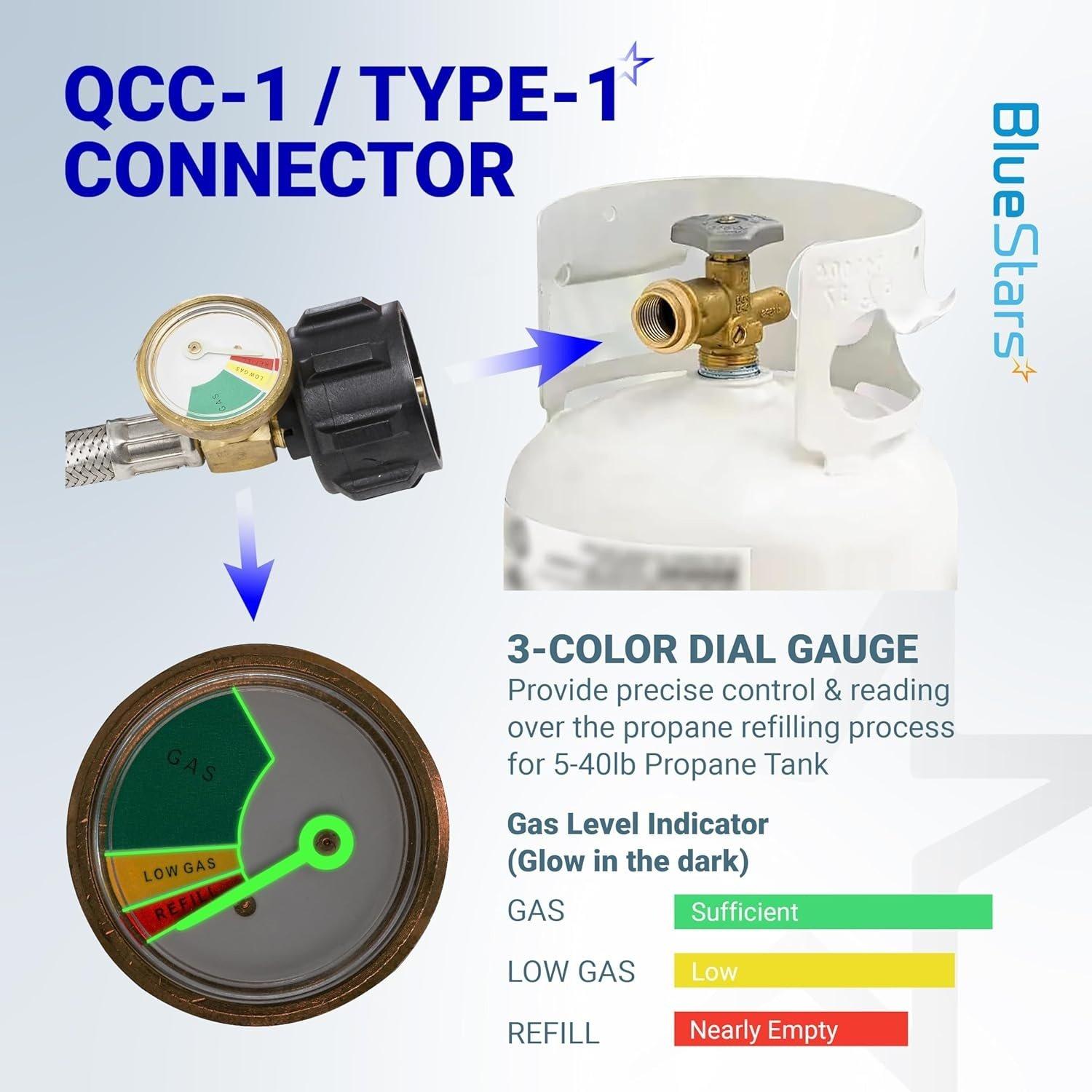

• Gauge: Integrated pressure gauge with a color-coded, luminous dial
• Certification: CSA Certified

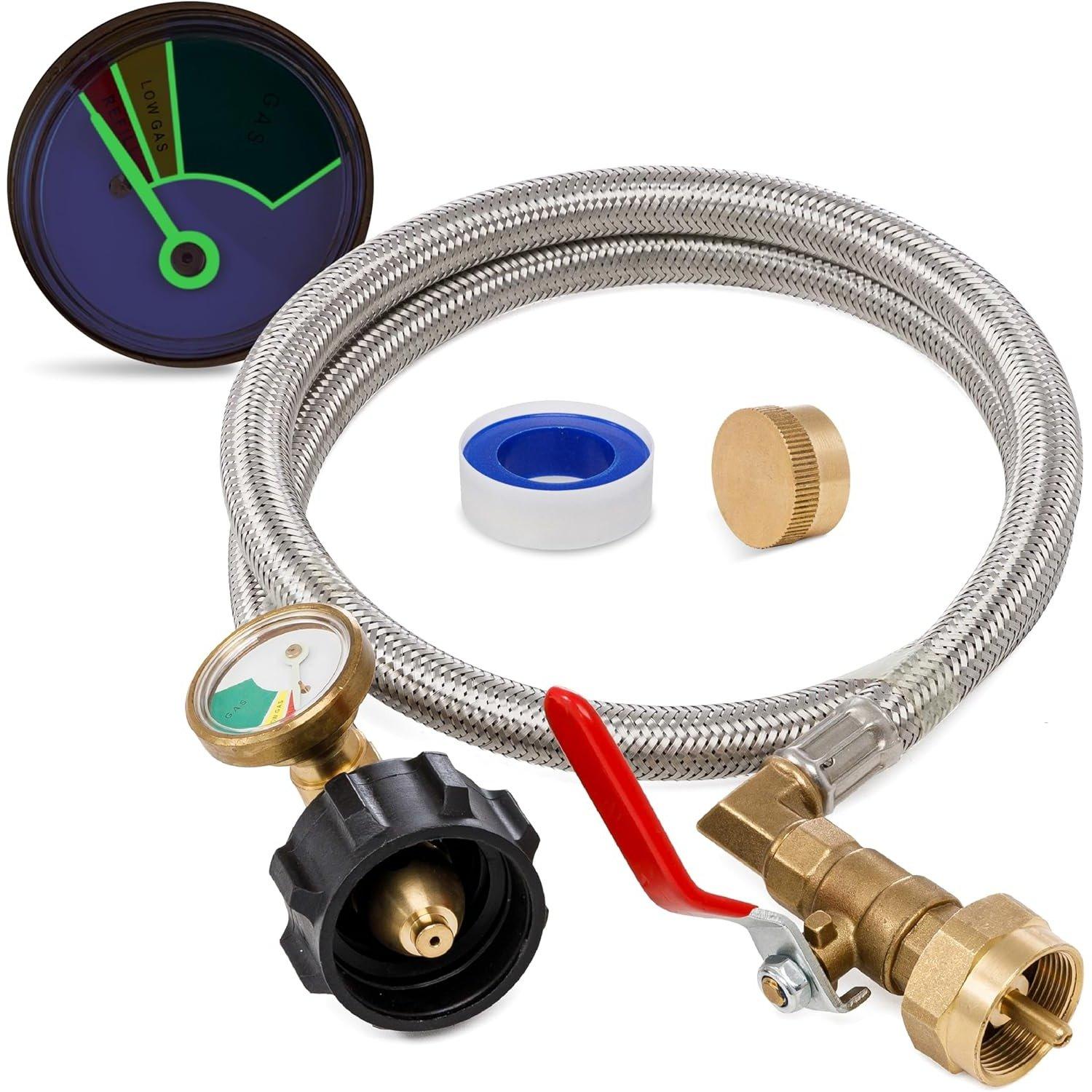

• Includes: Thread protector cap, thread seal tape

Replaces / Cross-Reference Part Numbers

• Universal aftermarket component designed to refill 1 lb propane cylinders
• Replaces similar adapter hoses with QCC1/Type 1 and 1"-20 throwaway cylinder thread fittings

Compatibility & Fitment

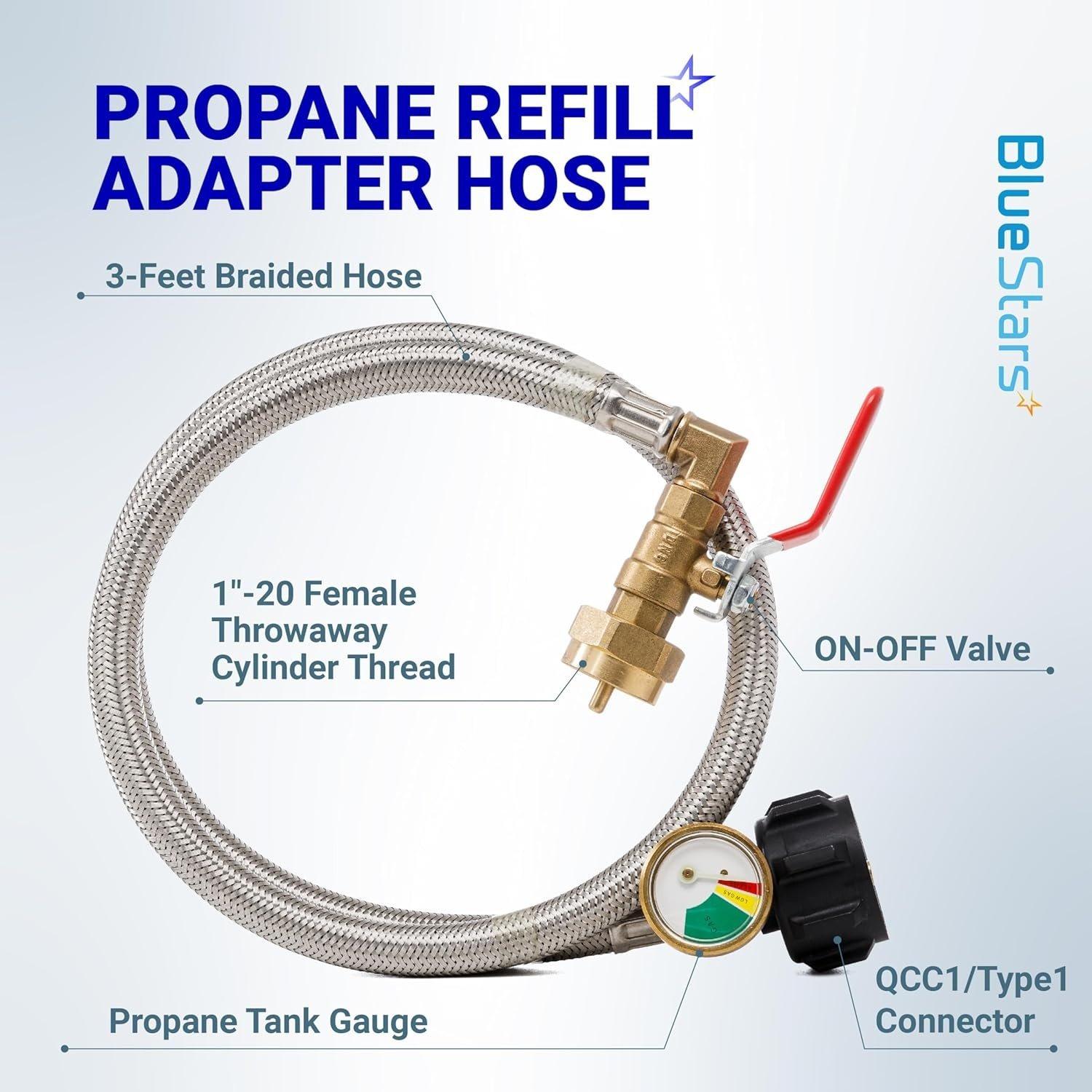

• Tank Connection: QCC1 / Type 1 connector fits standard 5 lb to 40 lb propane tanks
• Cylinder Connection: 1 inch x 20 female throwaway cylinder thread fits standard 1 lb propane bottles
• Use: Transfers liquid propane from a large tank to a small 1 lb cylinder

When to Replace

• Visible signs of wear, including cracks, abrasions, or fraying on the hose
• Gas leaks detected at fittings, the valve, or along the hose body
• The control valve becomes difficult to operate or fails to shut off completely
• Pressure gauge is damaged or provides inaccurate readings

Installation Tips

• Always conduct refilling in a well-ventilated outdoor area, away from flames or ignition sources.
• Chill the empty 1 lb cylinder in a freezer for 15-20 minutes before filling to create a pressure differential.
• Ensure both the propane tank valve and the hose control valve are in the OFF position before connecting.
• Connect the QCC1 fitting to the large tank first, then attach the 1 lb cylinder.

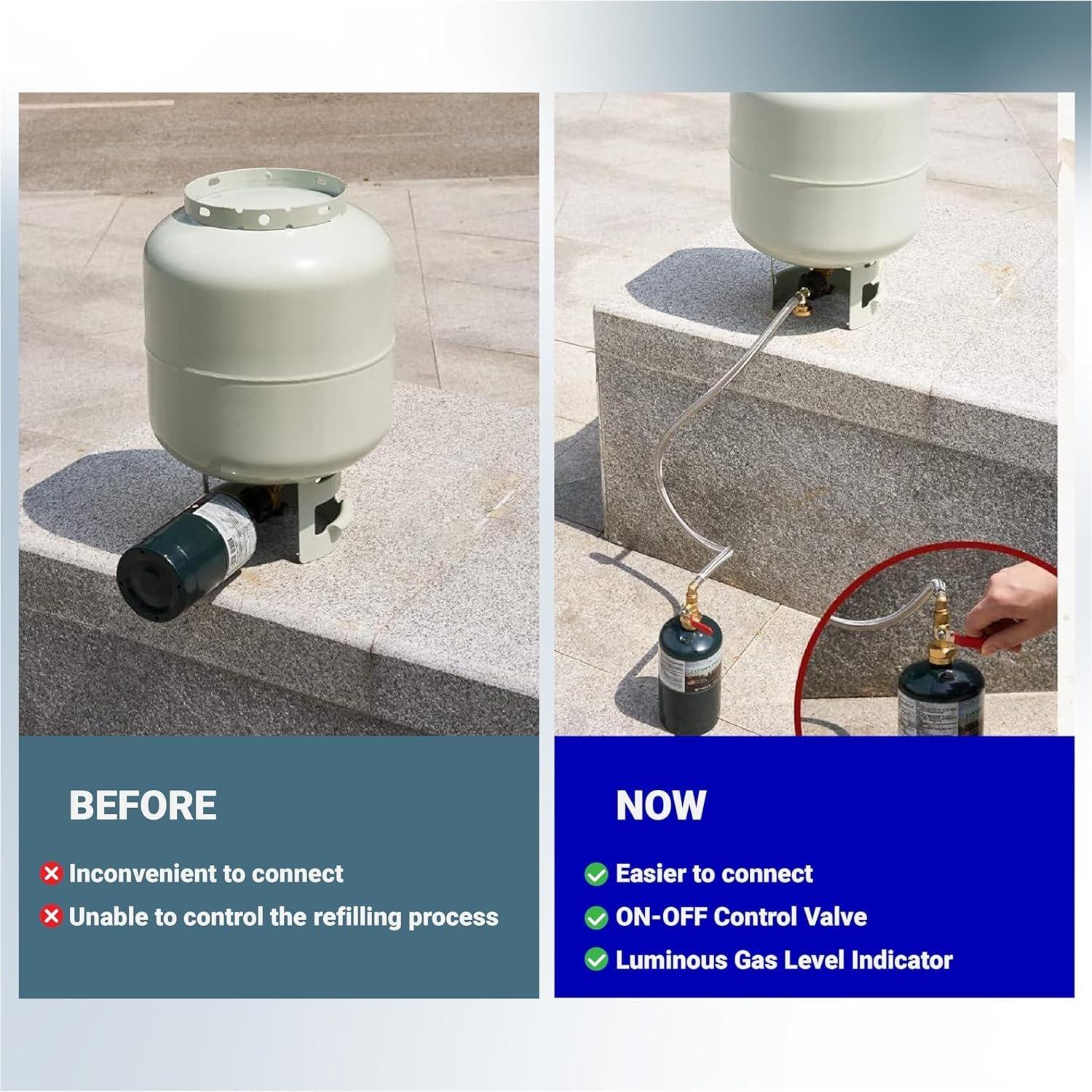

• Invert the large source tank to ensure liquid propane is transferred.
• Slowly open the source tank valve, then the hose control valve to begin filling. Close all valves once transfer is complete.
• Check all connections for leaks with a soapy water solution after filling.
