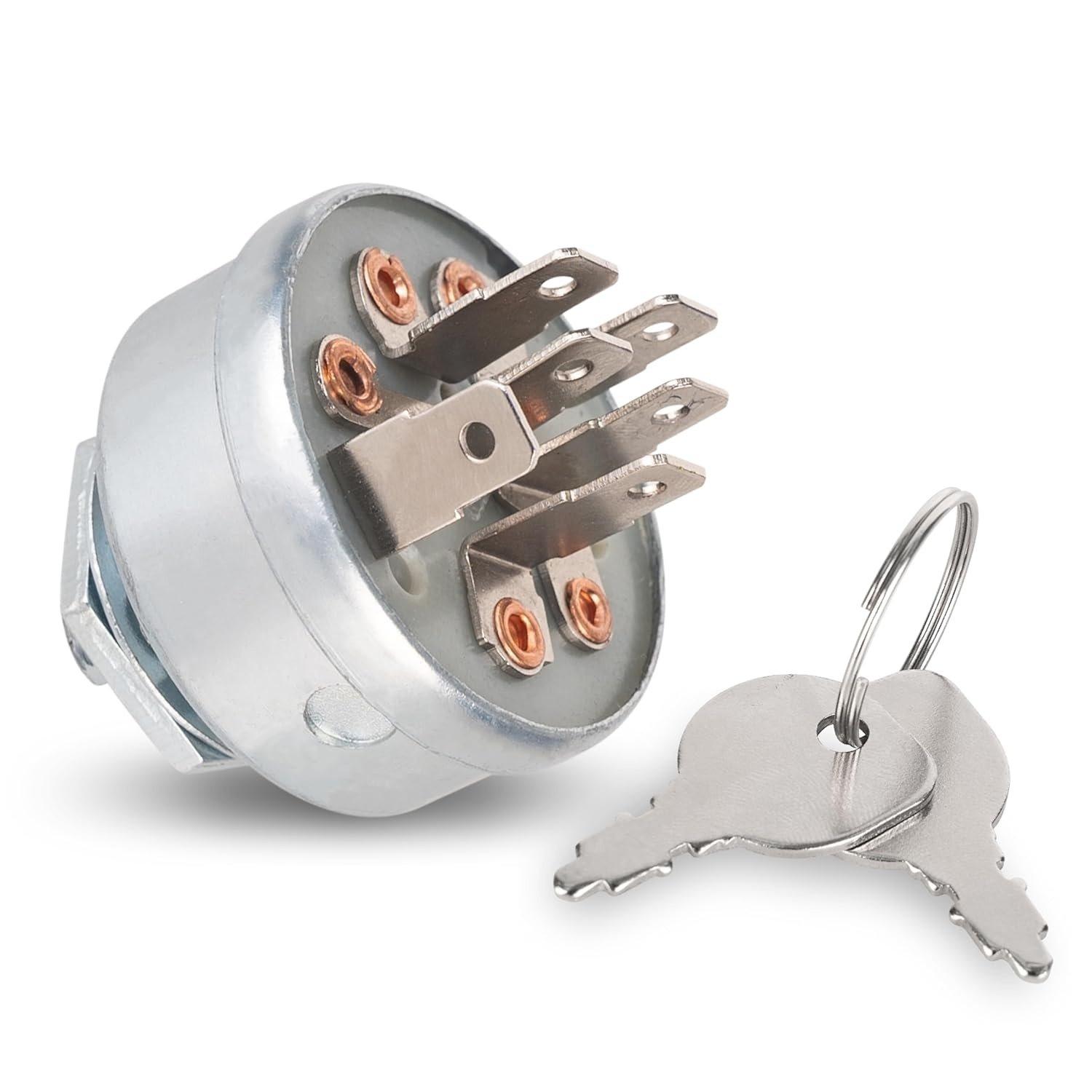

[Lifetime Warranty] 103-0206 Ignition Switch

103-0206 Ignition Switch

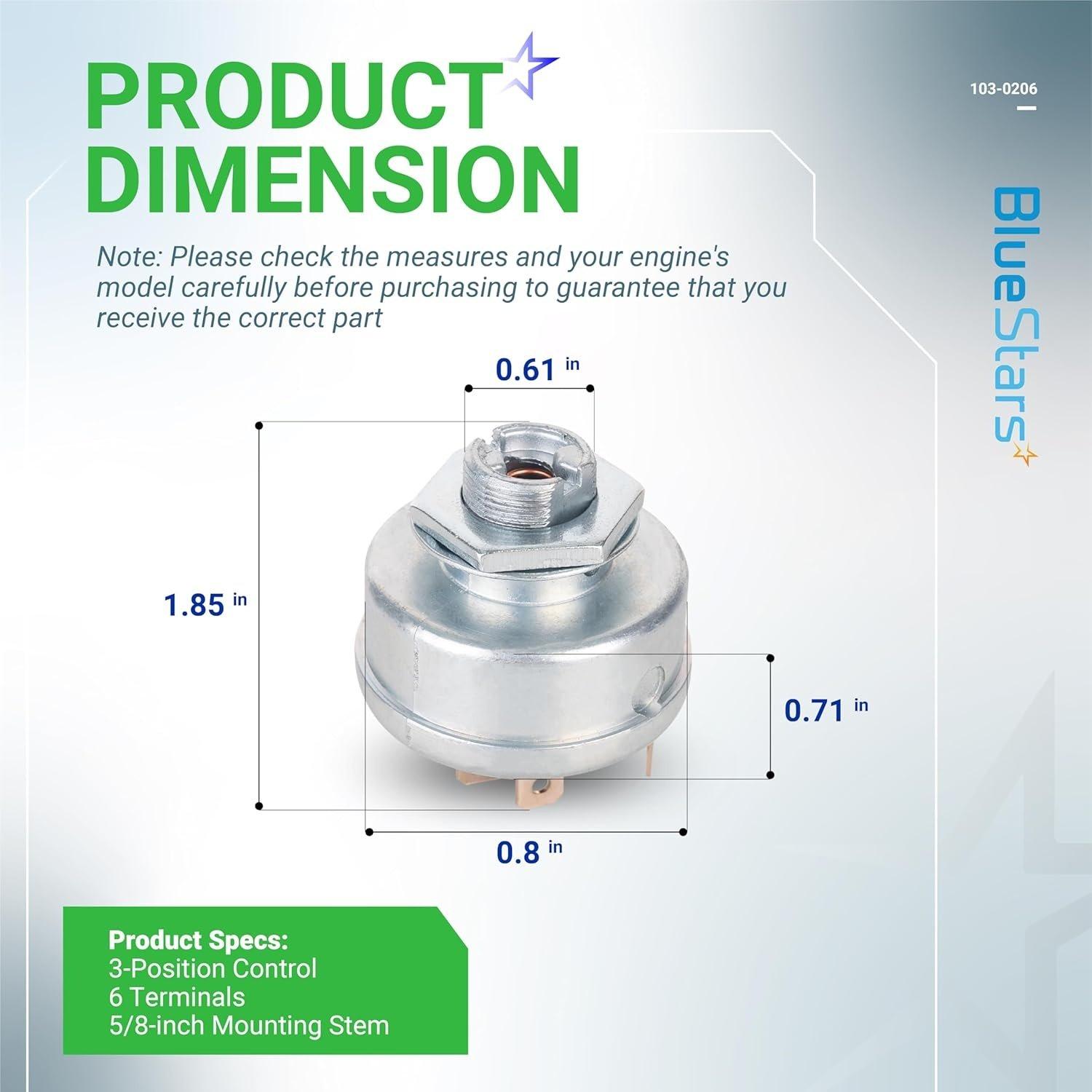

Key Features

• Positions: 3 (Off/On/Start)
• Terminals: 6
• Includes two keys
• Direct-fit aftermarket component

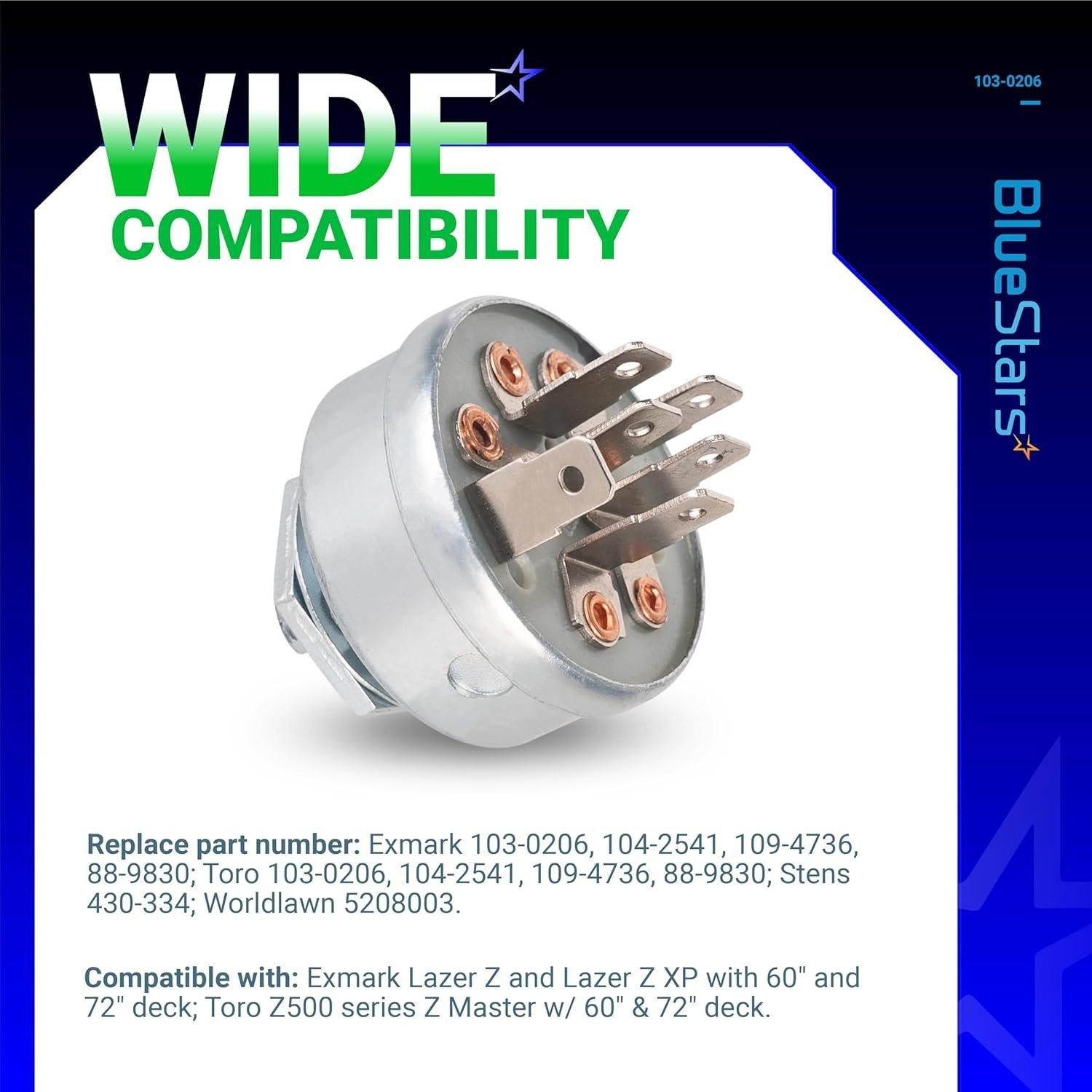

Replaces / Cross-Reference Part Numbers

• Exmark: 103-0206, 104-2541, 109-4736, 88-9830
• Toro: 103-0206, 104-2541, 109-4736, 88-9830
• Rotary: 11822
• Stens: 430-334

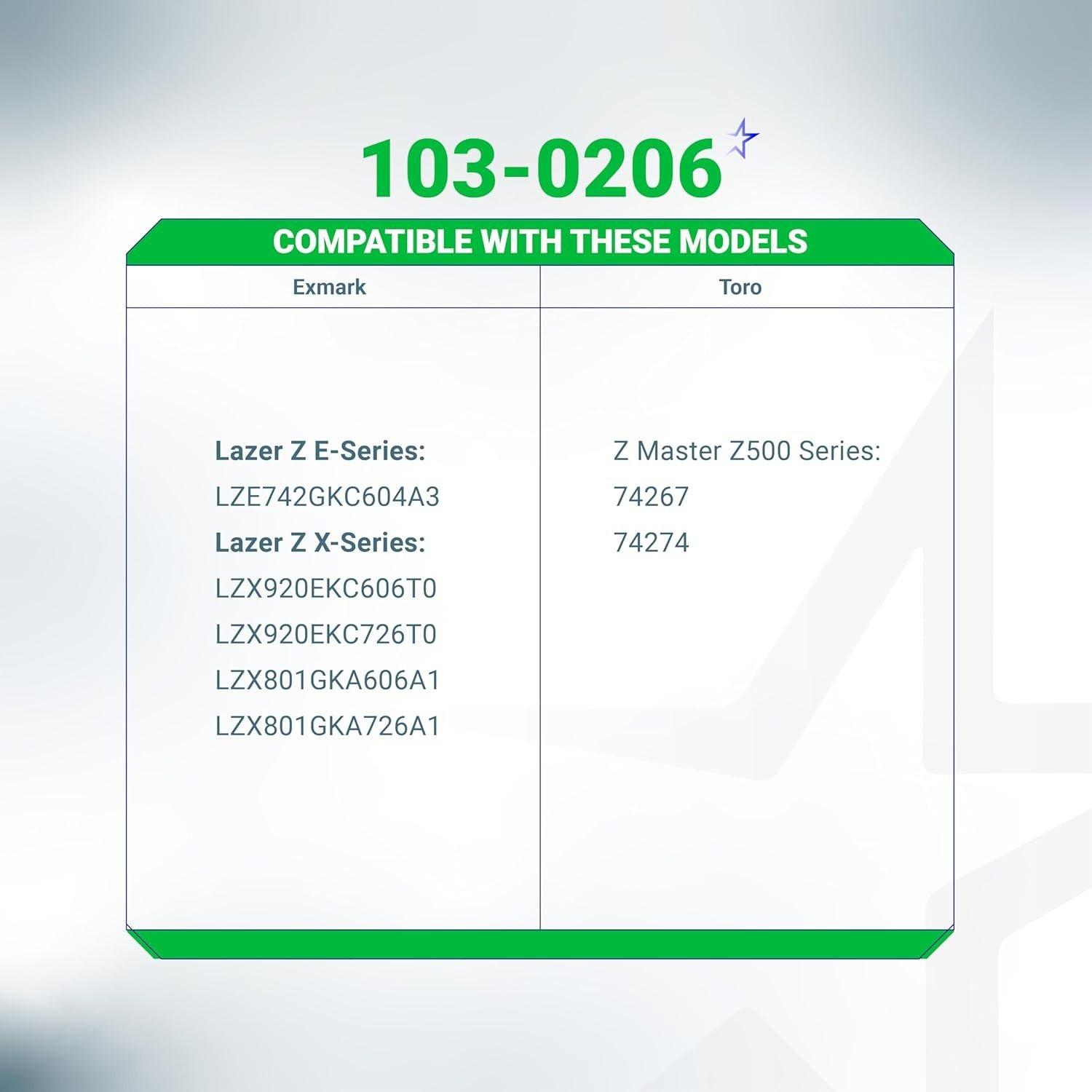

Compatibility & Fitment

• Fits select Exmark Lazer Z, Lazer Z XP, and Lazer Z XPF models with 60-inch and 72-inch decks
• Fits select Toro Z 500 series Z Master models with 60-inch and 72-inch decks
• Fits select Wheel Horse models

When to Replace

• Engine fails to crank or has intermittent starting problems
• Key is difficult to turn or gets stuck in a position
• Loss of electrical power to the machine's dashboard or accessories
• Engine shuts off unexpectedly during operation
• Visible damage, corrosion, or loose terminals on the existing switch

Installation Tips

• Disconnect the negative battery terminal before beginning work.
• Photograph or label the wire connections on the old switch before removal.
• Match the wire positions to the corresponding terminals on the new switch.
• Ensure the switch is mounted securely to the control panel.
• Reconnect the battery and test all switch functions before operating the equipment.
