AZ00119758
2-pack 35+3 MFD uf 370/440 Volt Dual Run Round Capacitor CBB65
Sold 292
Easy
More than 30 minutes
$26.91
$29.89
Save $2.98
In Stock
Fast delivery
Confirm the fit for your model
Find your model number and check it here to see if the part fits.
Description
Description
2-pack 35+3 MFD uf 370/440 Volt Dual Run Round Capacitor CBB65
Key Features
- Quantity: 2 Capacitors
- Capacitance: 35 + 3 Microfarad (MFD/uF)
- Tolerance: ±6%
- Voltage Rating: 370V or 440V AC
- Frequency: 50/60 Hz
- Shape: Round

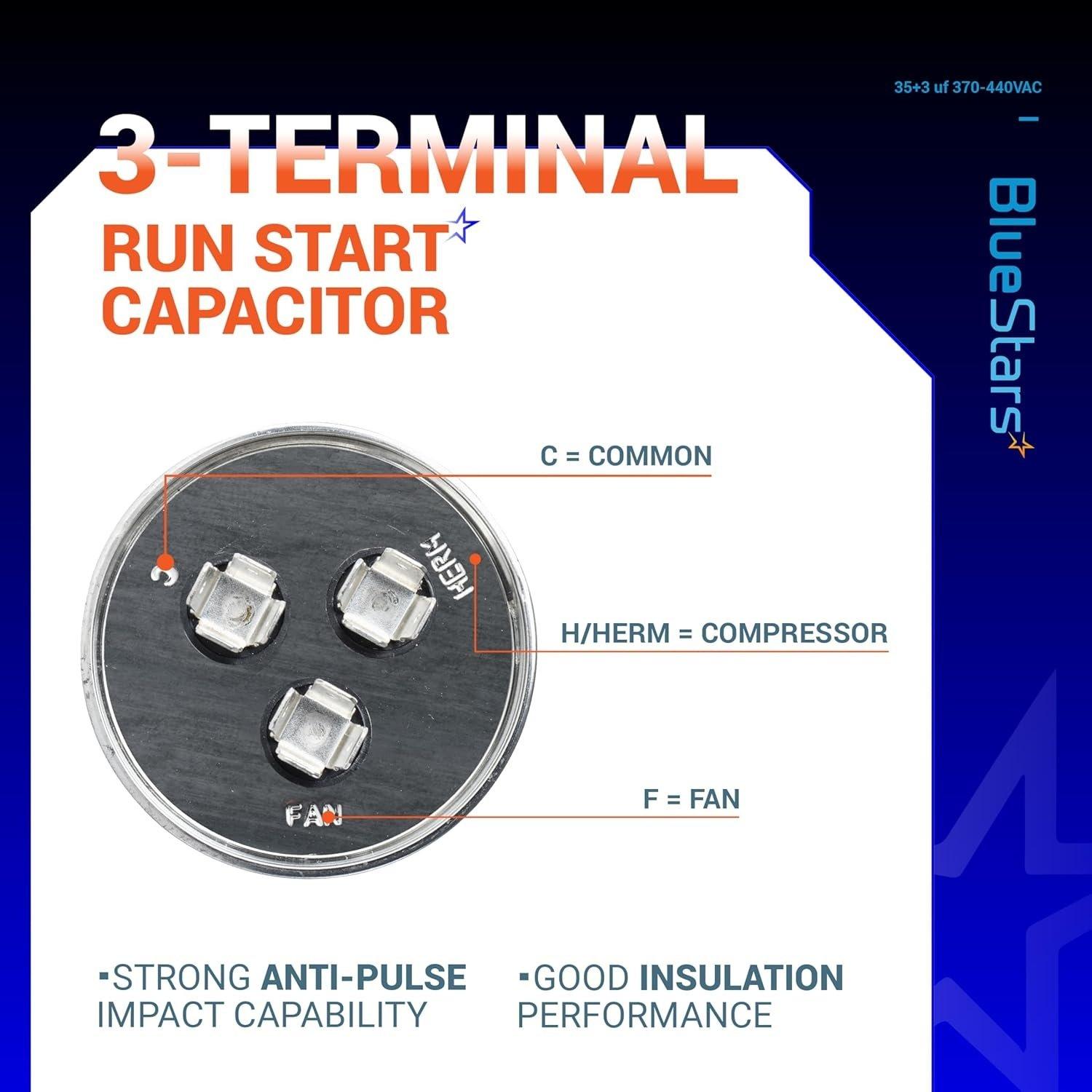

- Terminals: 3 (HERM, FAN, C)
- Operating Temperature: -40°C to +70°C
- Construction: Metal case, oil-filled
Replaces / Cross-Reference Part Numbers
- Replaces any dual run round capacitor with matching 35/3 MFD capacitance and 370 VAC or 440 VAC voltage ratings. The physical dimensions should also be compatible with the mounting bracket.
Compatibility & Fitment
- Used in HVAC systems, air conditioners, heat pumps, and furnaces.
- Powers a compressor motor (HERM) and a fan motor (FAN) simultaneously.

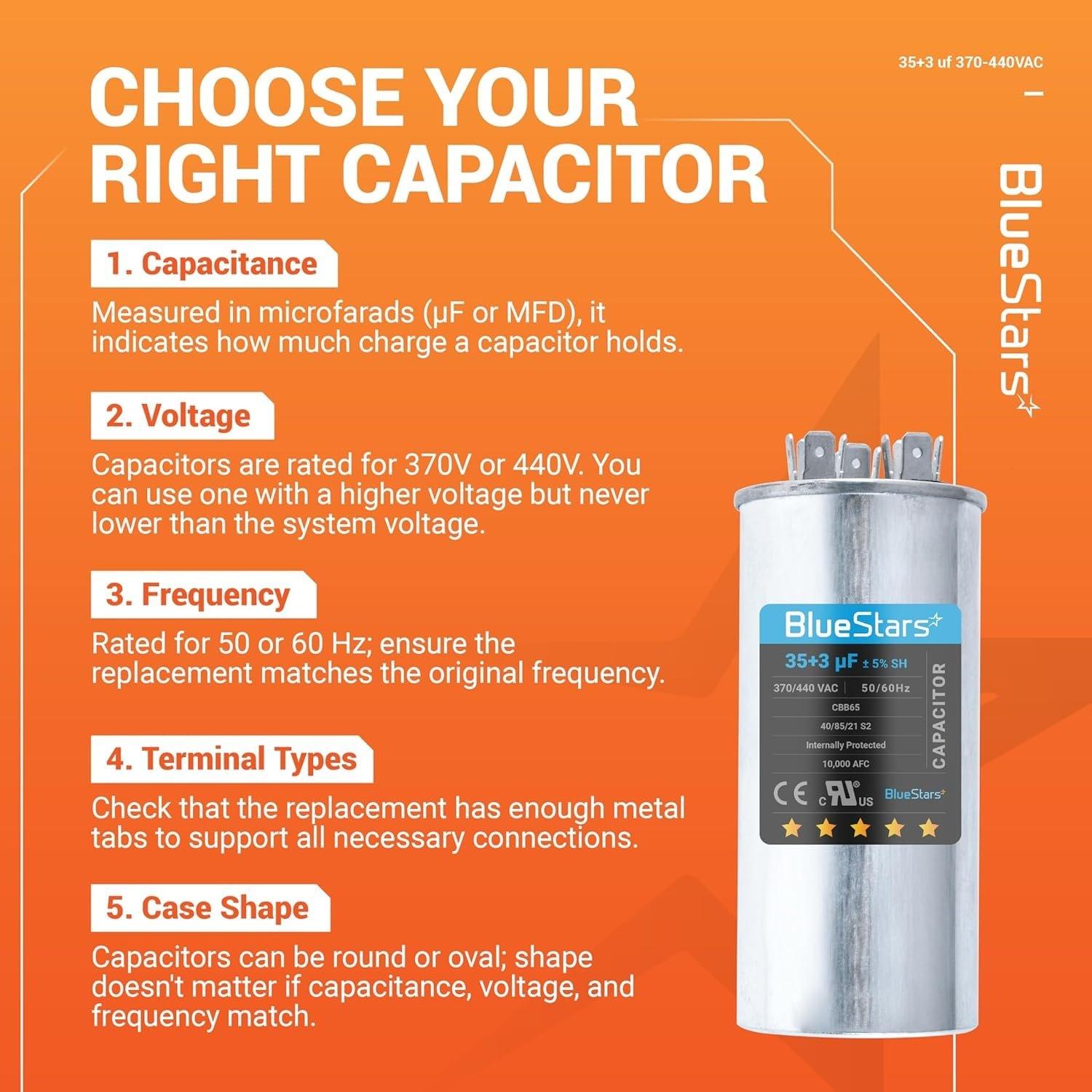

- Verify the MFD rating, voltage, and physical size of your original capacitor before ordering. A capacitor with a 440V rating can replace one with a 370V rating, but not vice-versa.
When to Replace
- Motor hums but does not start.
- Fan or compressor struggles to start or runs slowly.
- AC unit is not cooling effectively.
- Visible signs of failure on the old capacitor, such as a swollen or bulging top, or leaking fluid.
Installation Tips
- Disconnect all electrical power to the unit before servicing.
- Safely discharge the existing capacitor by shorting the terminals with an insulated-handle screwdriver.
- Photograph or make a note of the wire connections before disconnecting them.
- Connect wires to the correct terminals: 'HERM' for the compressor, 'FAN' for the fan motor, and 'C' for the common line.
