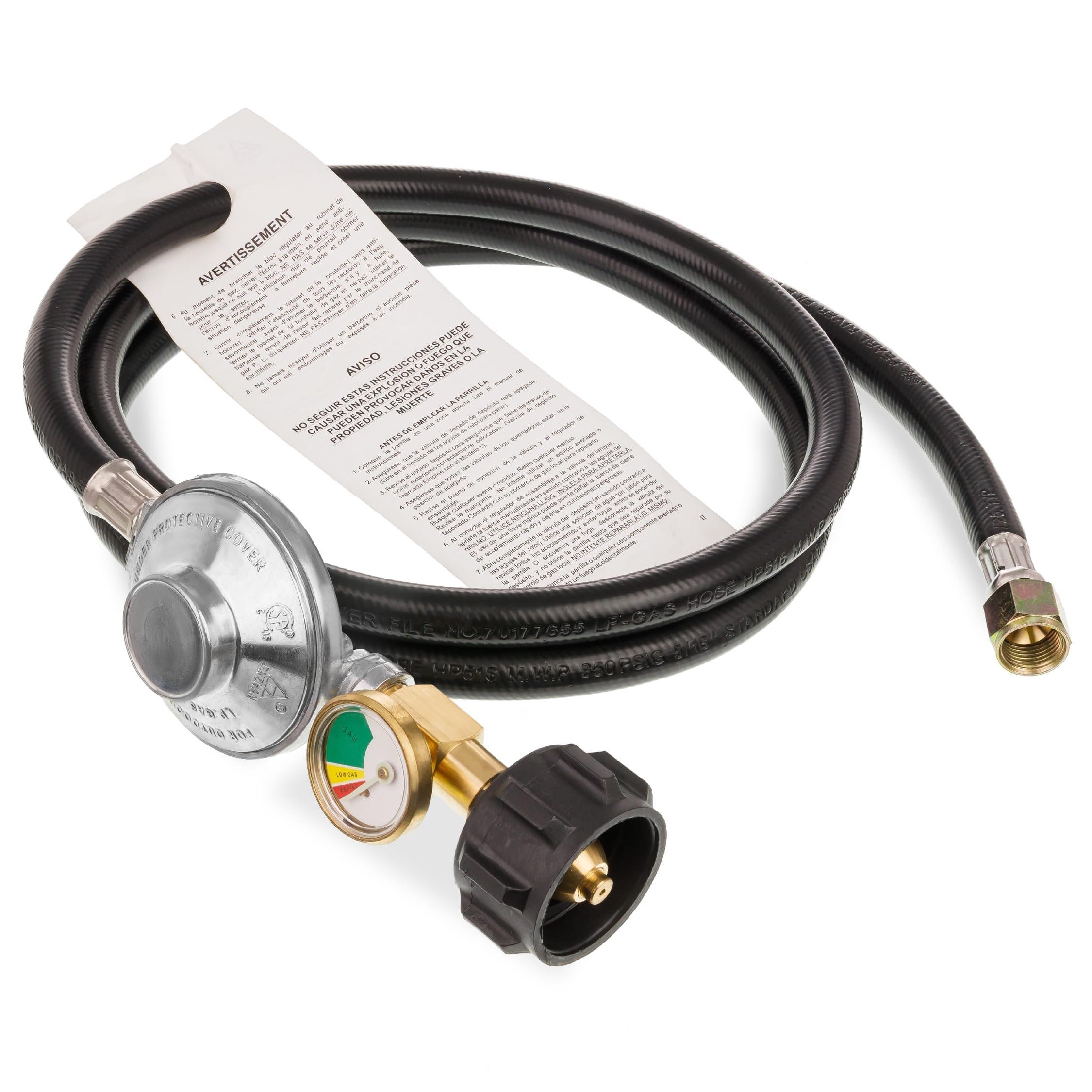

[Lifetime Warranty] [CSA Certified] 6 Feet Propane Hose Regulator with Gauge - Universal Regulator for Weber Nexgrill Cuisinart Grill, Patio Heater and Fire Pit, Low Pressure 3/8" Female Flare Nut

6 Feet Propane Hose Regulator with Pressure Gauge

Key Features

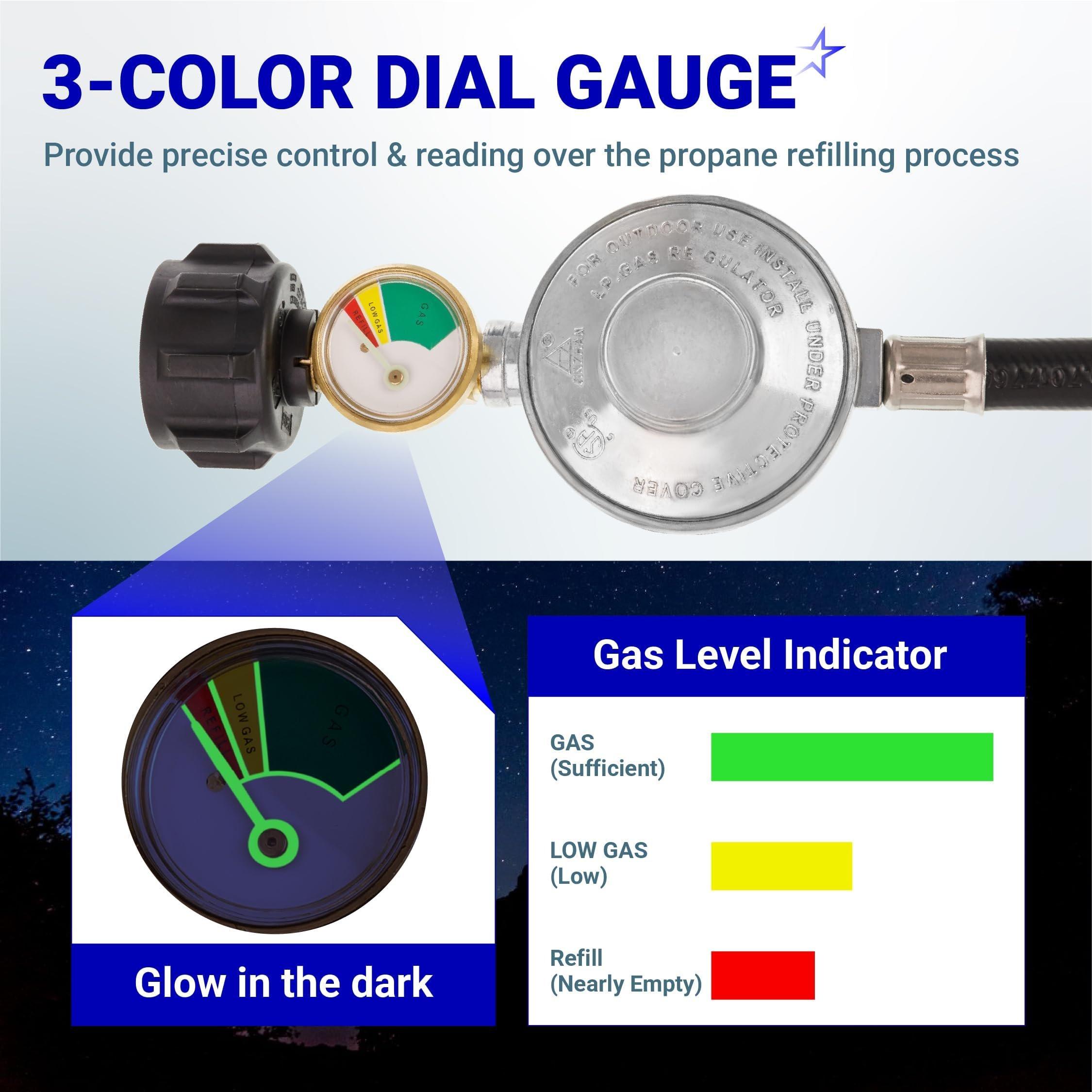

• Integrated color-coded pressure gauge for real-time fuel level monitoring and leak detection.
• CSA certified assembly ensuring compliance with North American safety and performance standards.

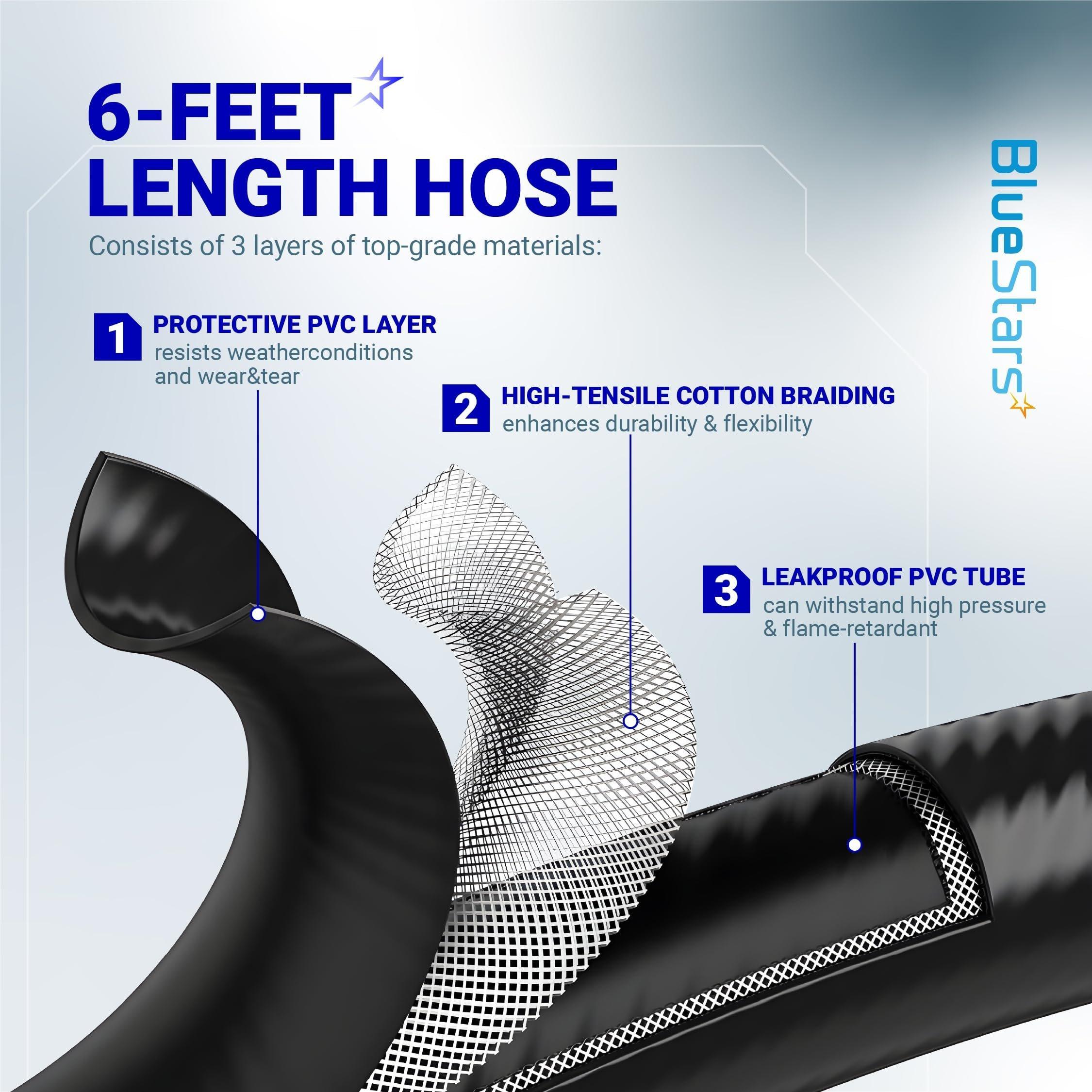

• 6-foot weather-resistant hose provides extended reach for versatile appliance positioning.

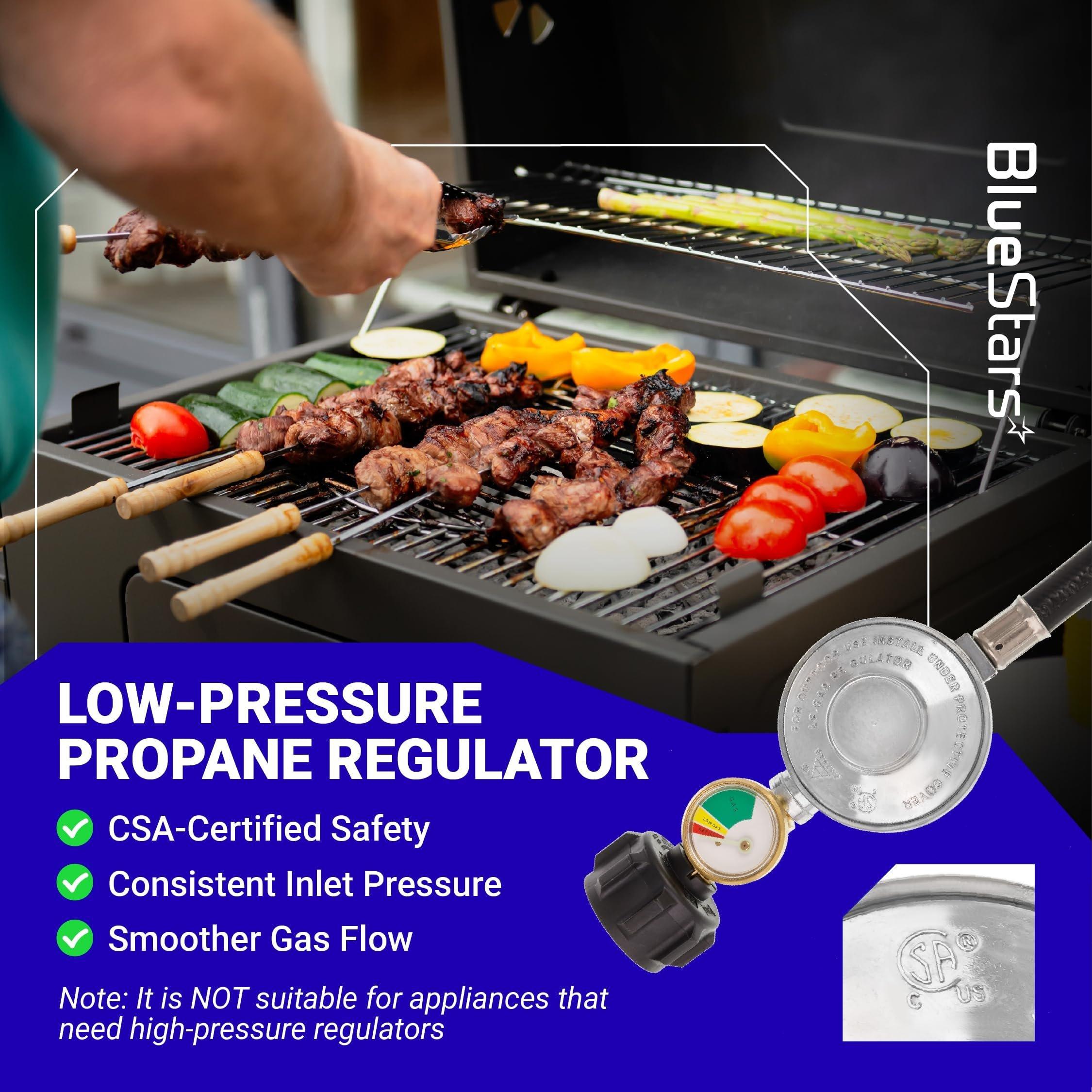

• Low-pressure regulation (11" Water Column) for consistent gas flow and efficient combustion.

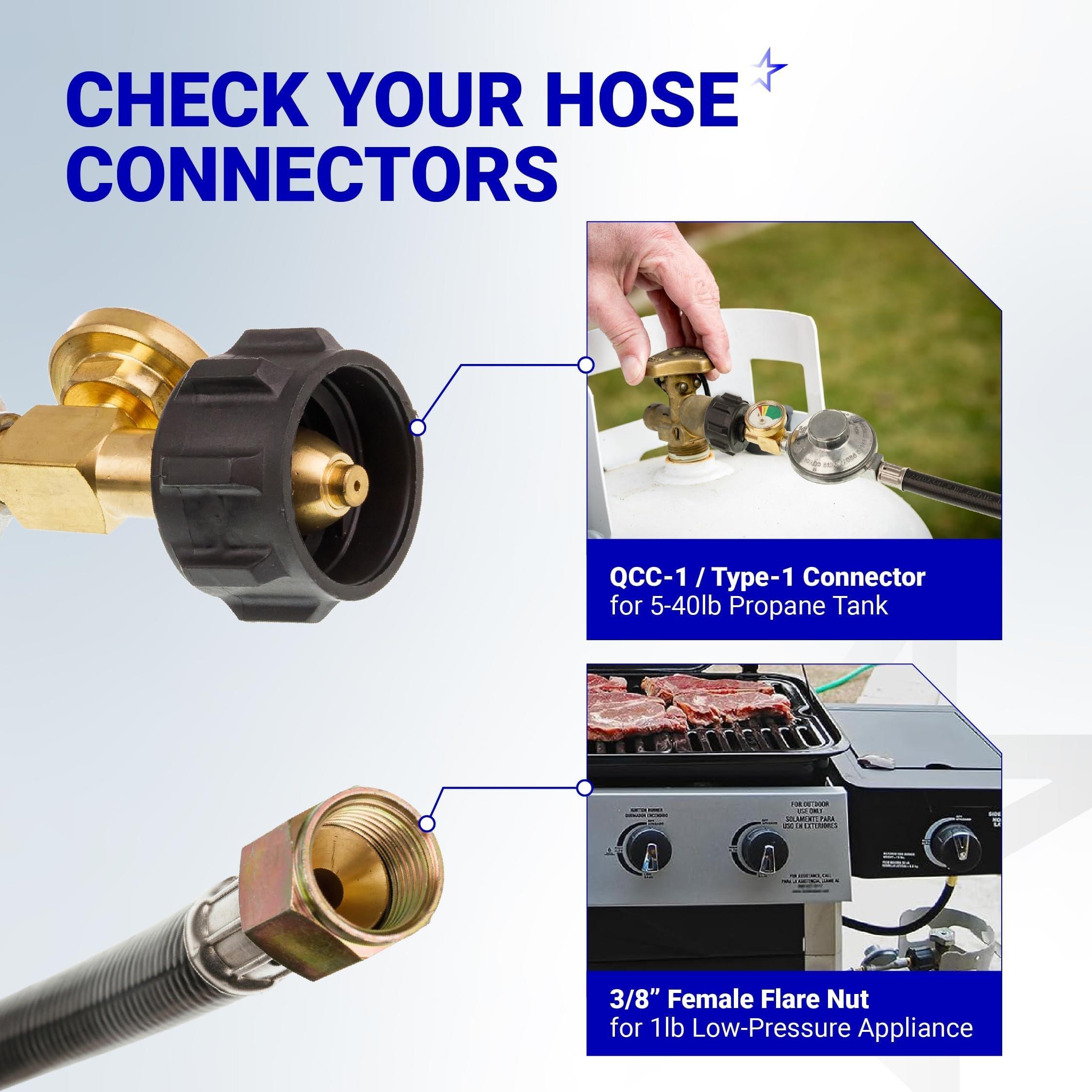

• Corrosion-resistant brass 3/8" female flare nut for a secure, gas-tight connection to the manifold.
• Standard QCC1 / Type 1 tank connector with a hand-tighten knob for tool-free cylinder attachment.

Replaces / Cross-Reference Part Numbers

• QCC1 / Type 1 Tank Connection
• Low-Pressure Propane Regulator 3/8" Flare
• Weber 60040 / 7503 / 54009
• Nexgrill 710-0003 Replacement
• Cuisinart 2-Burner/3-Burner Regulator

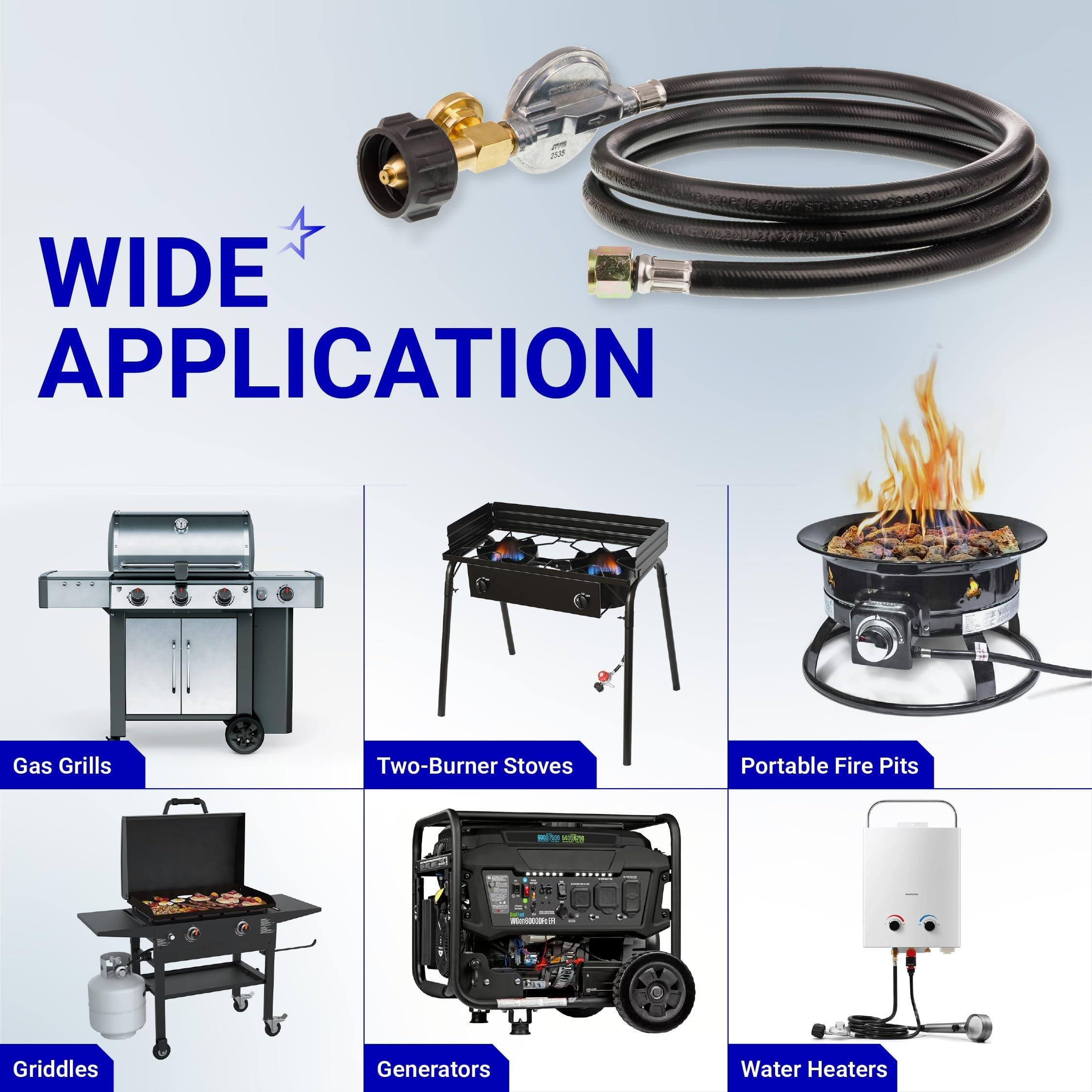

Compatibility & Fitment

• Grills:Compatible with Weber (Spirit, Genesis, Q series), Nexgrill, Cuisinart, Char-Broil, Blackstone, and Napoleon.
• Outdoor Heating:Fits most propane patio heaters and portable fire pits.
• Cooking Equipment:Suitable for turkey fryers, burners, and camp stoves requiring a low-pressure supply.
• Tanks:Connects to standard 5lb to 40lb refillable propane cylinders (QCC1/Type 1 valves).

When to Replace

• Propane smell is present near the regulator or hose assembly.
• The pressure gauge stays in the "Red" zone despite having a full tank.
• Burner flames appear orange, yellow, or are unusually weak/low.
• The rubber hose shows visible cracking, stiffness, or dry rot.
• The regulator makes a continuous humming or whistling sound during operation.
• Bubbles appear on the hose or fittings during a soapy water leak test.

Installation Tips

• Ensure the propane tank valve and all appliance control knobs are in the "OFF" position before installation.
• Connect the QCC1 black nut to the tank valve by turning clockwise until hand-tight; do not use a wrench on the plastic nut.
• Use a 5/8" or adjustable wrench to secure the 3/8" female flare nut to the appliance inlet; do not use thread sealant (teflon tape) on flare fittings as the metal-to-metal contact creates the seal.
• After connecting, open the tank valve slowly to prevent the internal excess-flow safety device from tripping.

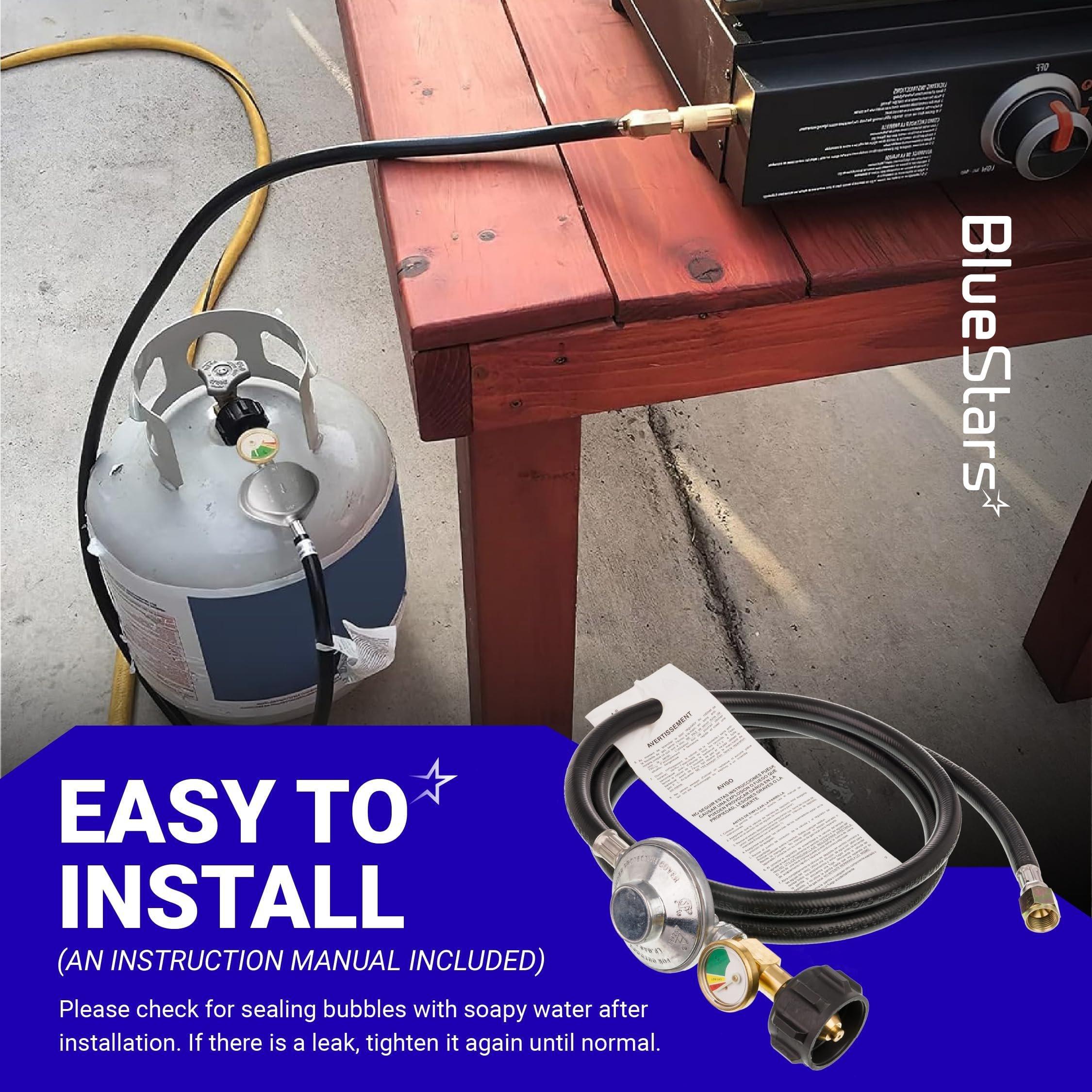

• Perform a leak test by applying a mixture of soap and water to all connections; if bubbles form, tighten the connections and re-test.
