[Lifetime Warranty] 330031 Range Burner Receptacle Kit - Compatible with Whirlpool Kenmore Range/Stove/Microwave Oven - Replaces AP3075808 814399 5303935058 5301167733 WB17X210 - Pack of 4

330031 Range Burner Receptacle Kit

Key Features

• Connects the surface heating element to the range's internal wiring.
• Universal design for use with two-prong surface burner elements.

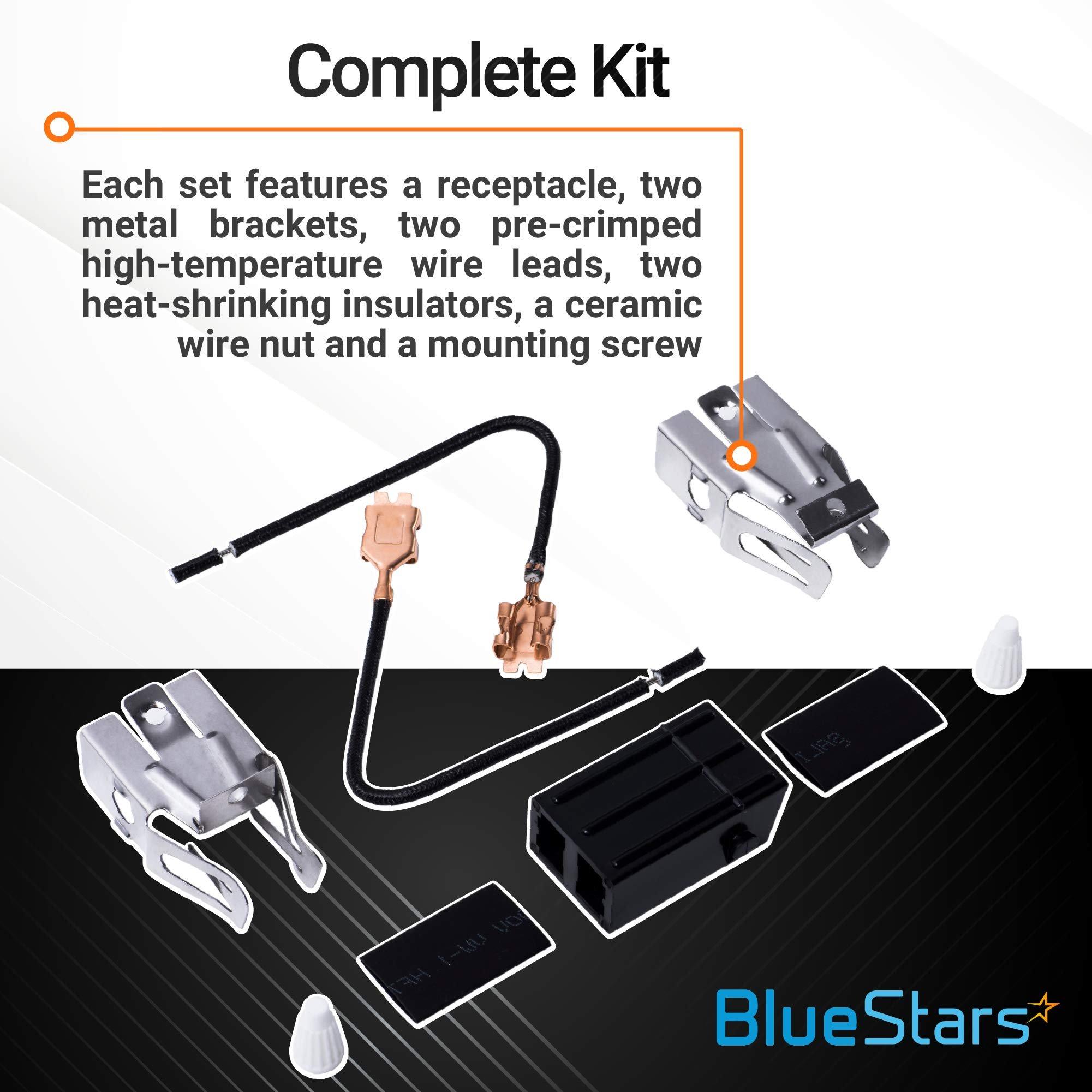

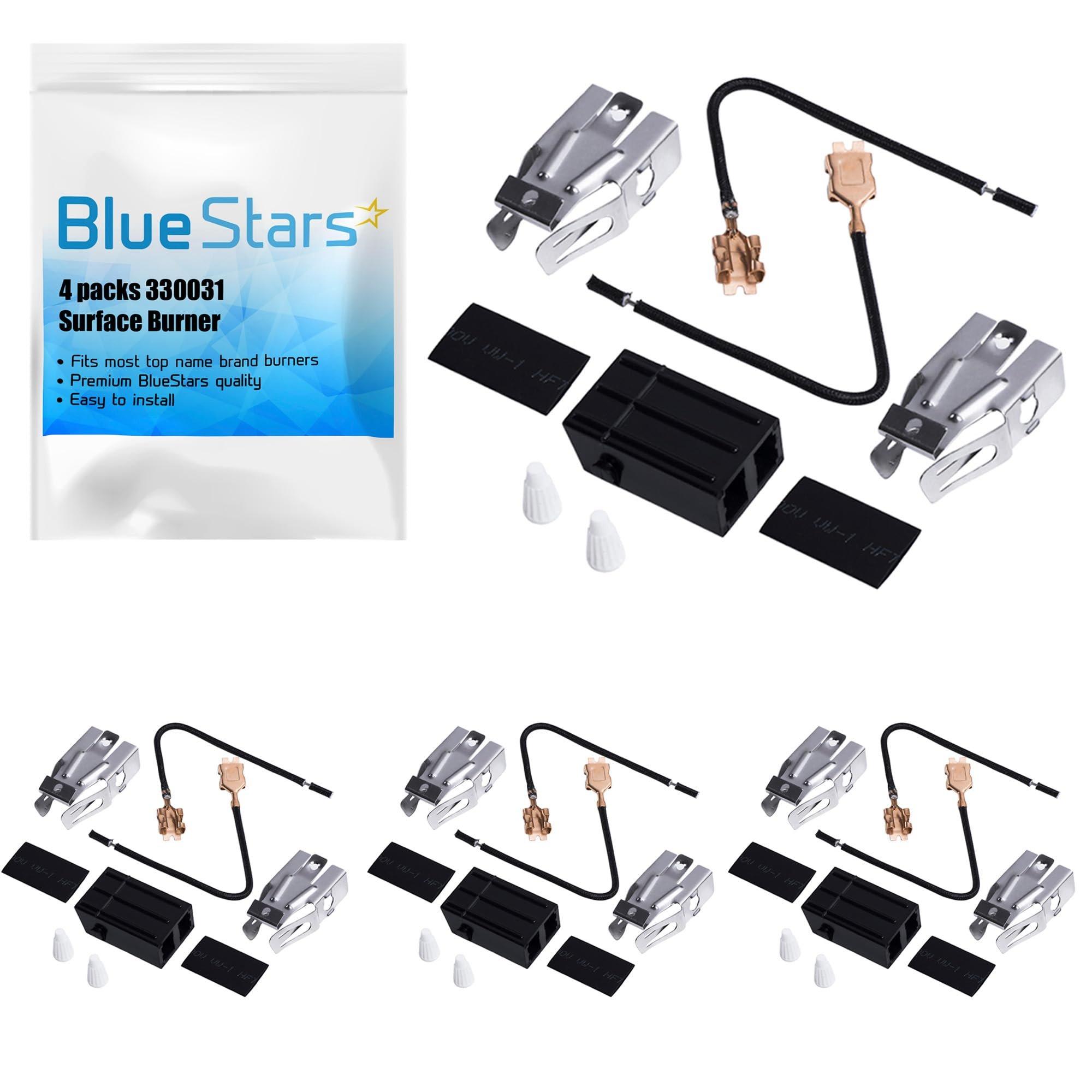

• Kit includes a receptacle block, high-temperature wire leads, mounting brackets, wire connectors, and heat-shrink tubing.

Replaces / Cross-Reference Part Numbers

• 330031
• 868464
• 99989649
• AP3075808
• PS340571
• W10841094

Compatibility & Fitment

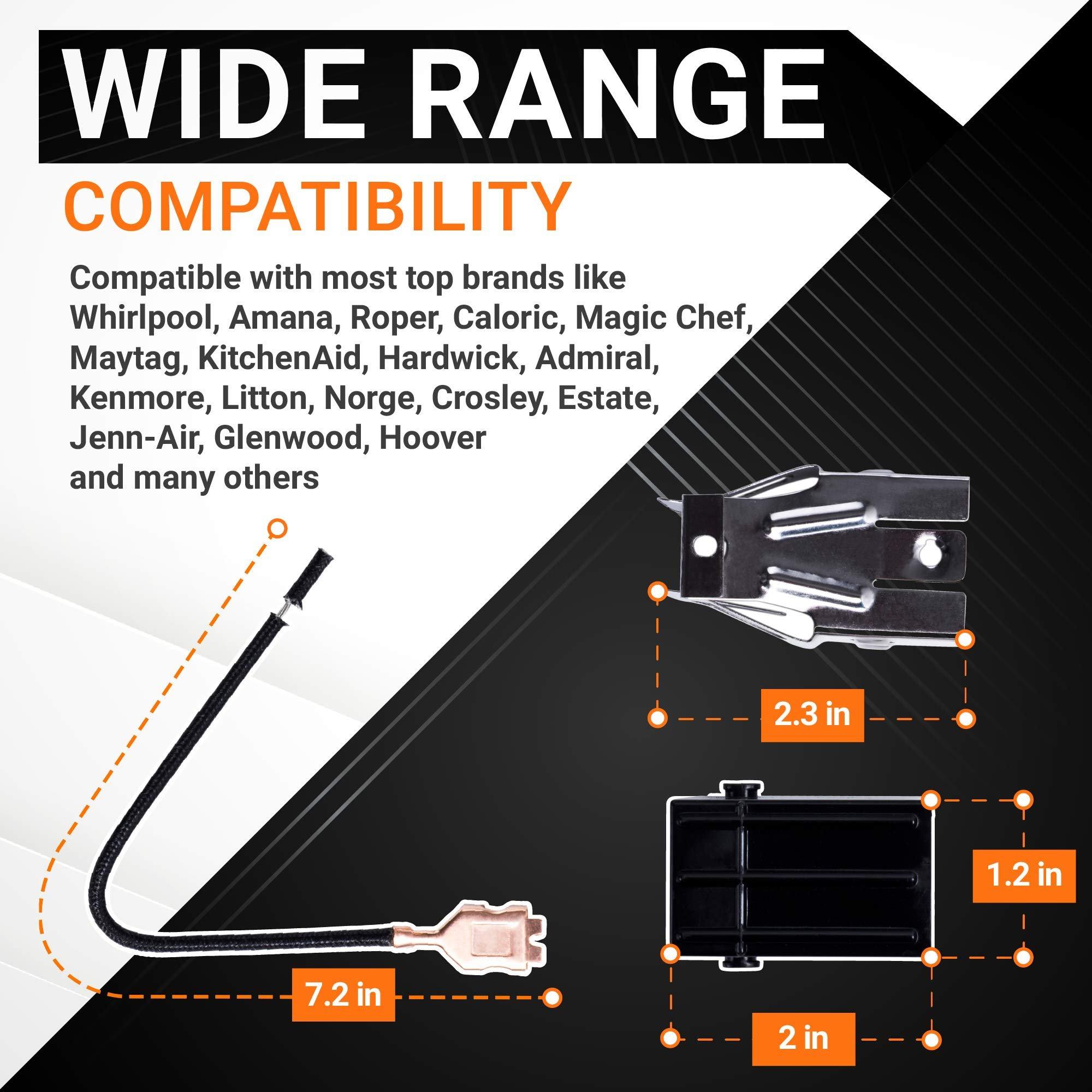

• Designed for electric ranges and cooktops from various brands, including Whirlpool, Kenmore, Maytag, and Frigidaire.
• Verify compatibility by matching part numbers or the physical design of your existing receptacle.

When to Replace

• Surface element does not heat or heats intermittently.
• Visible damage, melting, or burn marks on the receptacle block.
• Loose connection where the element prongs plug in.

Installation Tips

• Disconnect the appliance from its power source before beginning the repair.
• Use the included ceramic wire connectors and heat-shrink tubing for secure, insulated connections.
• Select the mounting bracket from the kit that matches the original part's configuration.
• Ensure all electrical connections are tight to prevent arcing and overheating.
