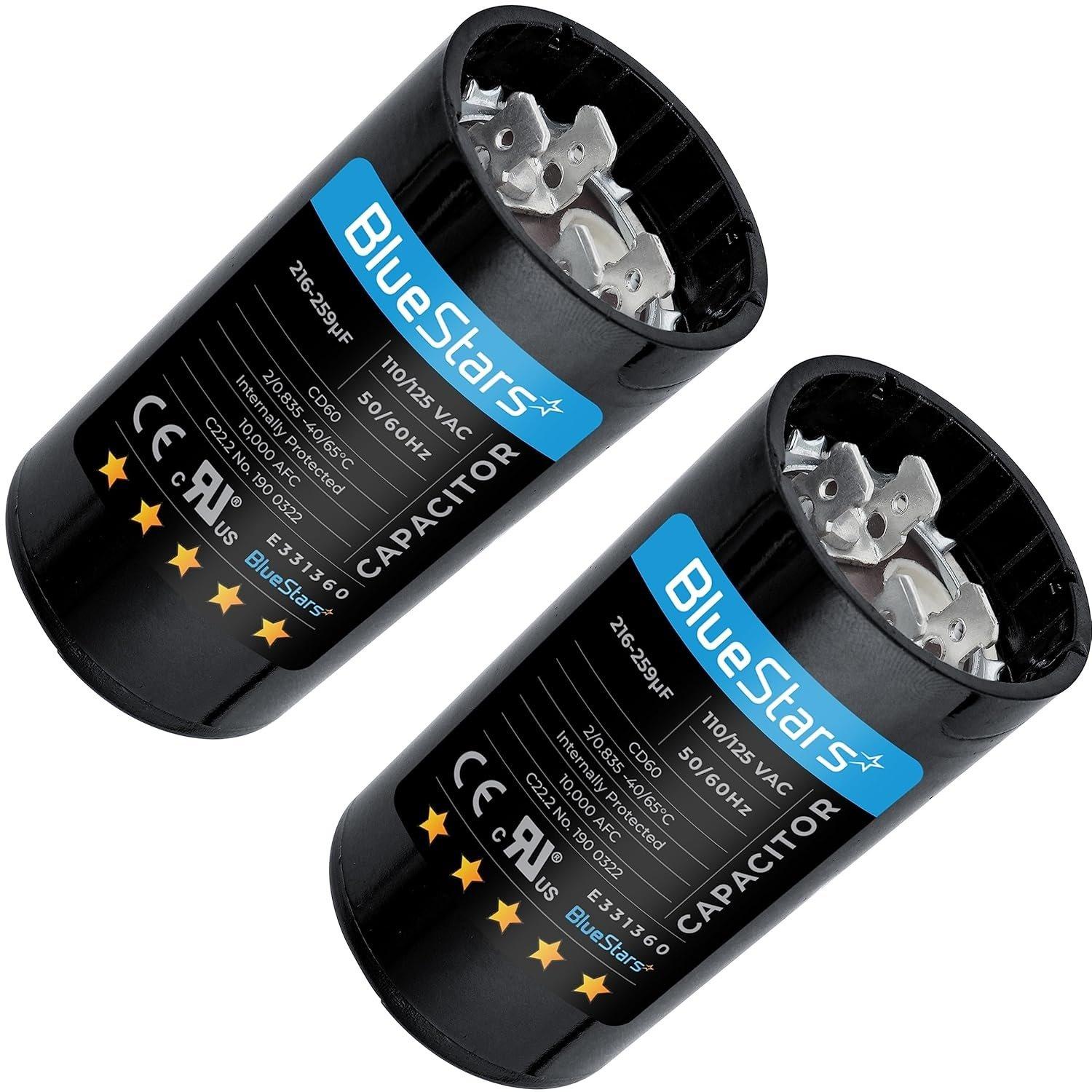

[Lifetime Warranty] 216-259 uF MFD 110-125 VAC CD60 - Fits AC Motor Run, Fan Start, Heat Pump - Pack of 2

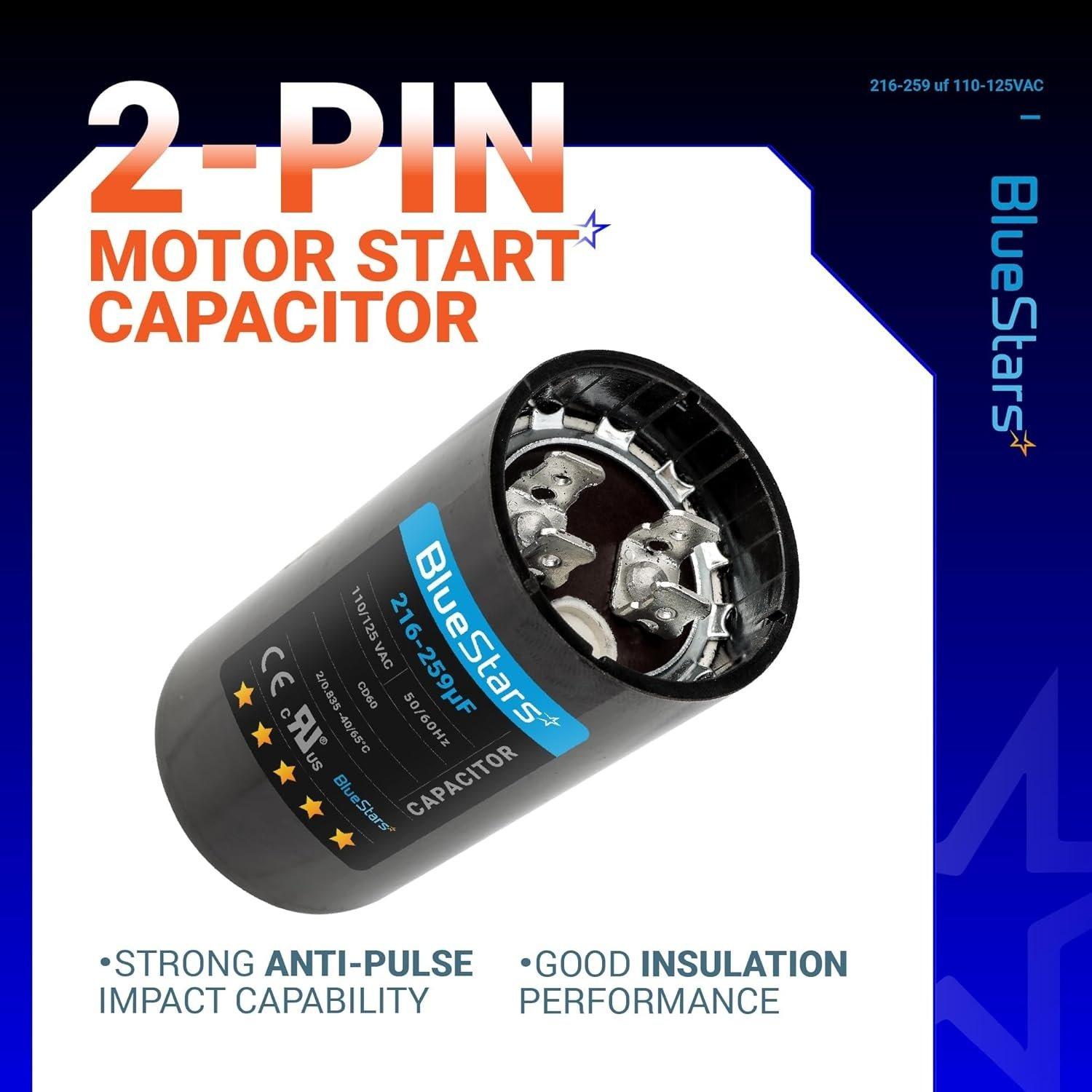

216-259 uF/MFD 110-125V Round Start Capacitor

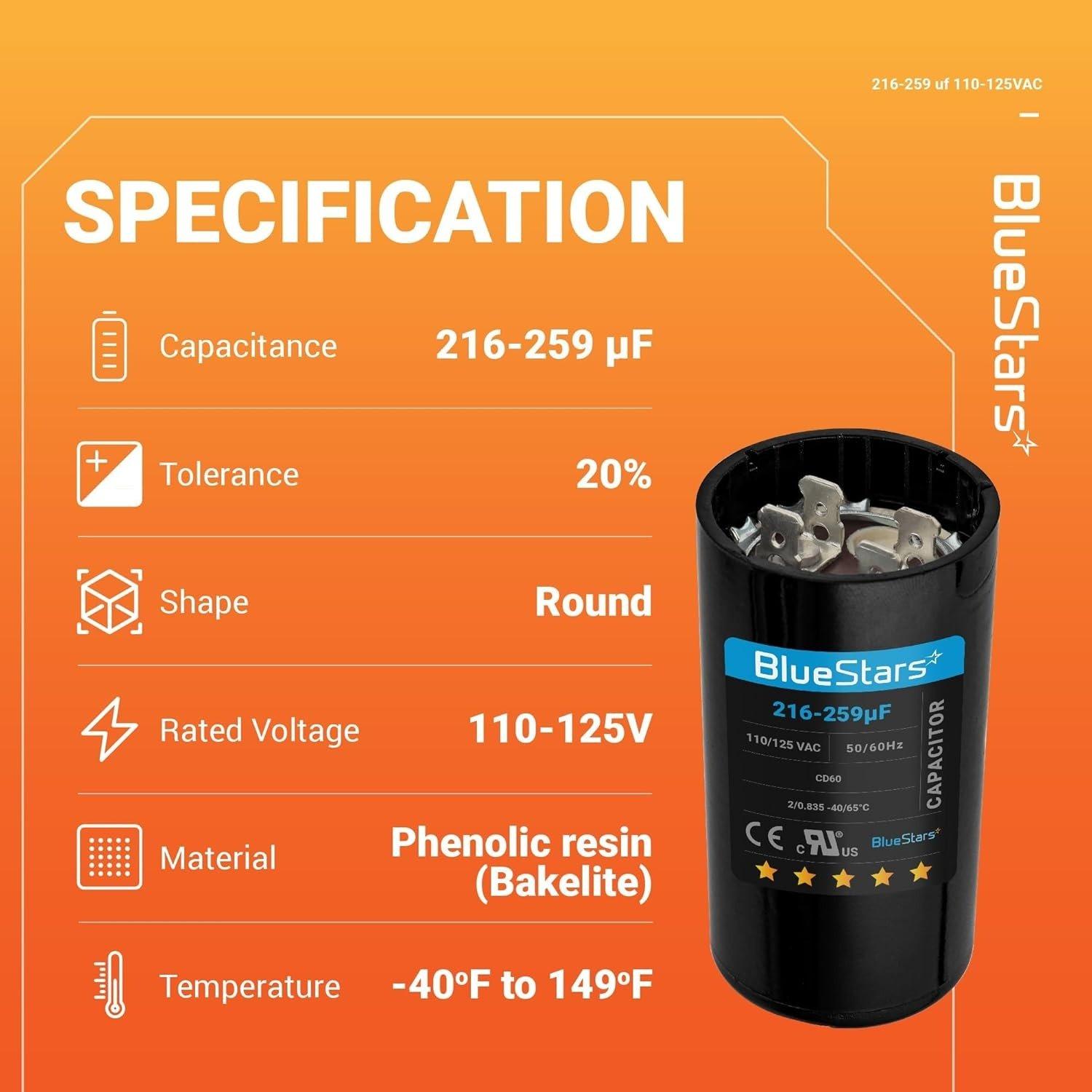

Key Features

• Capacitance: 216-259 µF (Microfarad)
• Voltage Rating: 110-125V AC
• Frequency: 50/60 Hz
• Shape: Round

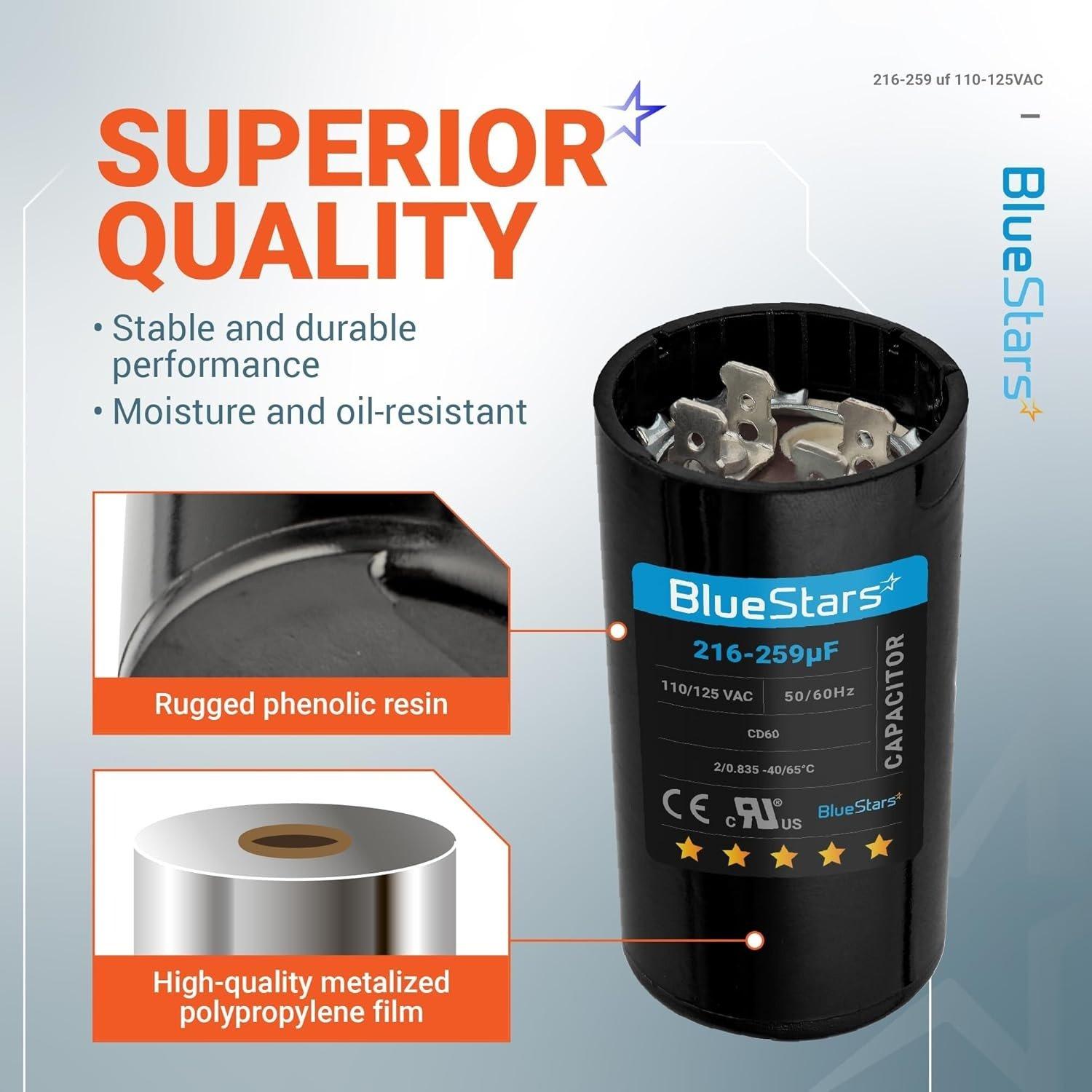

• Case Material: Moisture and oil-resistant phenolic resin
• Terminals: 1/4 inch male quick-connect
• Dielectric: Non-PCB

Replaces / Cross-Reference Part Numbers

• Replaces any start capacitor with matching capacitance (216-259 µF) and voltage (110V, 115V, 125V) ratings.
• Part Number: 460-552
• Model Type: CD60

Compatibility & Fitment

• Designed for intermittent duty on single-phase AC electric motors.
• Commonly used in HVAC systems, air conditioners, and heat pumps.

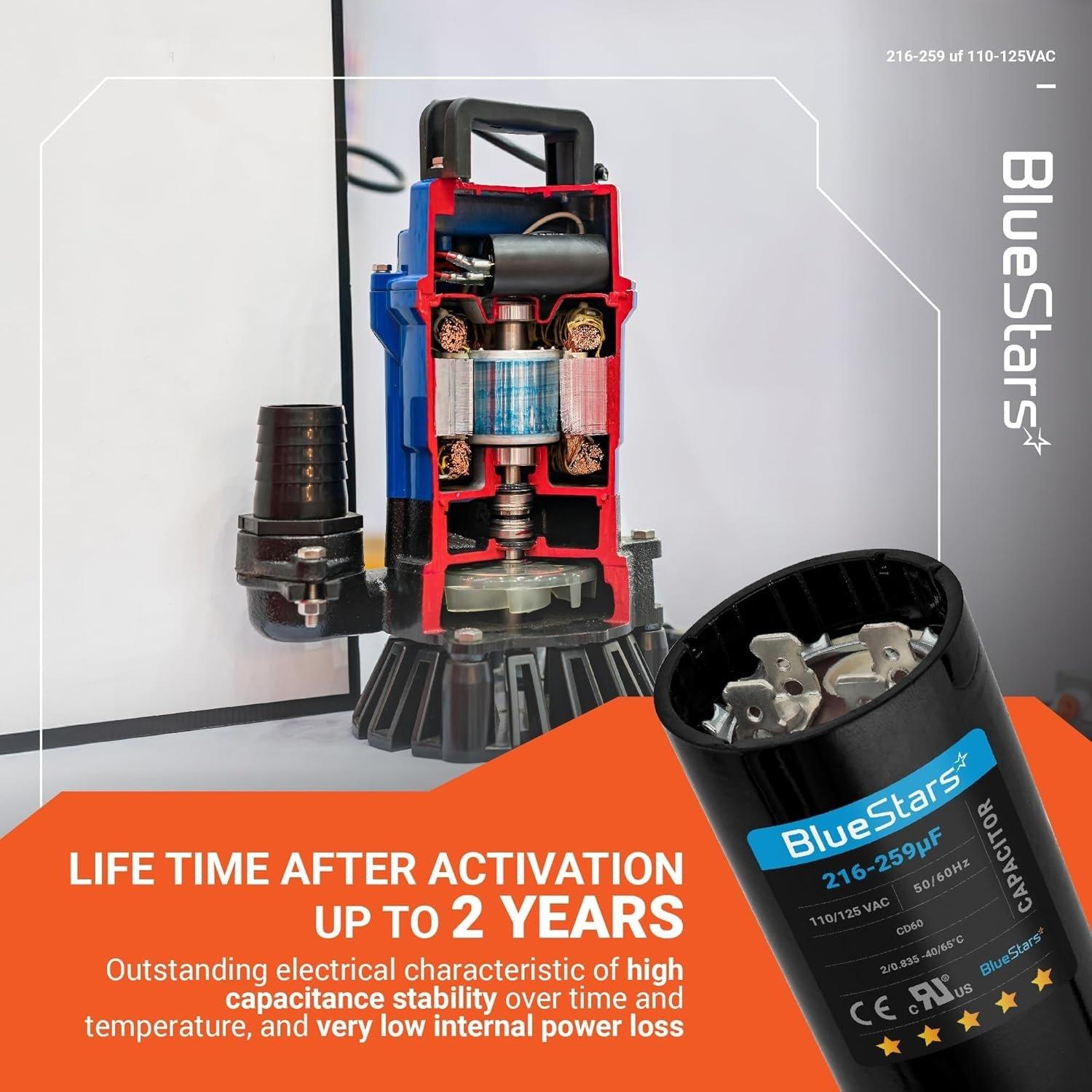

• Suitable for compressors, well pumps, and refrigeration units.
• Fits various fan and blower motors.

When to Replace

• Motor hums but struggles or fails to start.
• Motor starts slowly or requires manual assistance.
• Circuit breaker trips when the motor attempts to start.
• Visible signs of failure on the existing capacitor, such as bulging, cracking, or leaking fluid.

Installation Tips

• Disconnect all electrical power to the equipment before servicing.
• Safely discharge the existing capacitor by shorting the terminals with an insulated-handle tool.

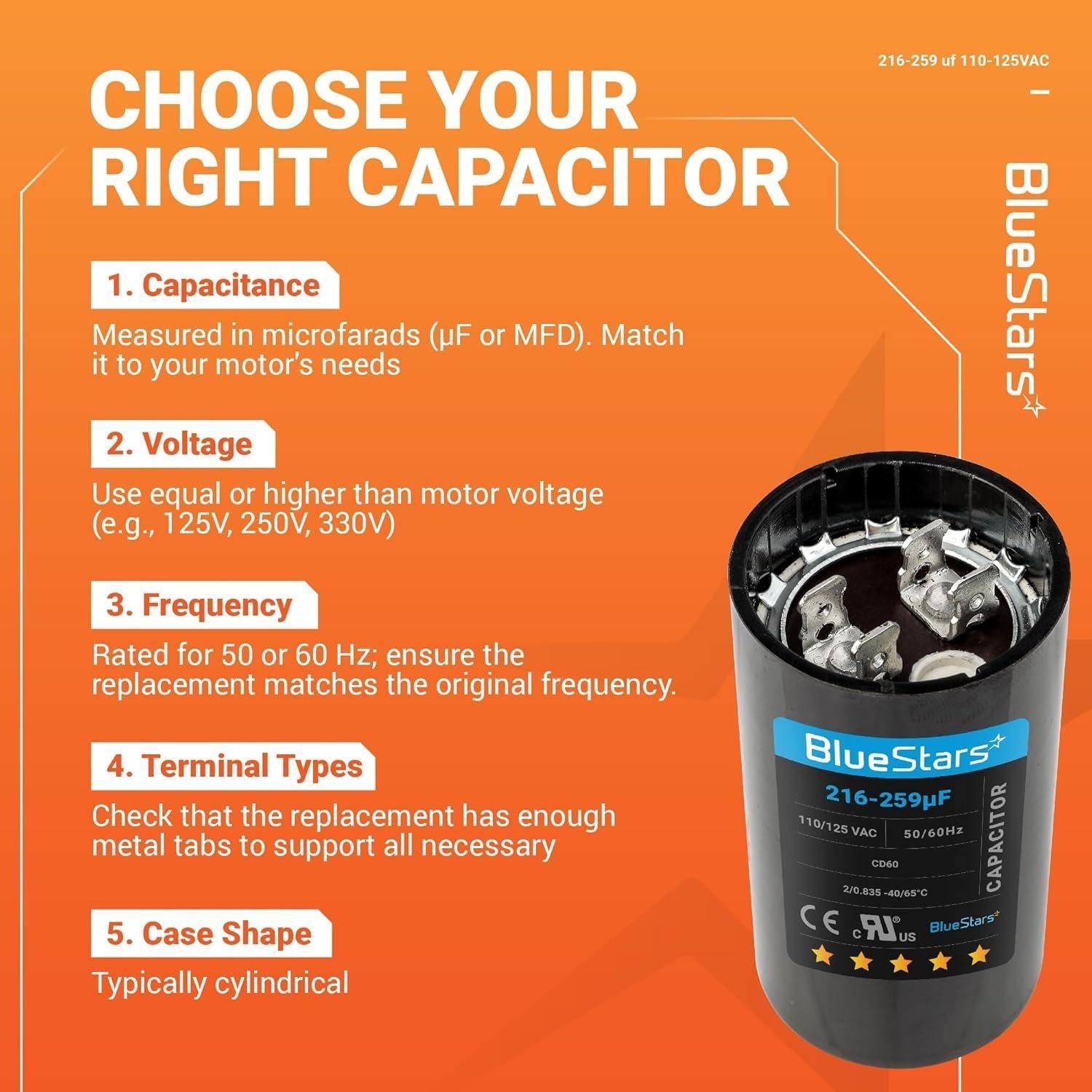

• Verify that the µF/MFD rating of the replacement capacitor is within the range specified by the motor manufacturer.
• The voltage rating of the replacement capacitor must be equal to or greater than the original capacitor's voltage rating.
• Ensure terminal connections are clean and secure.
