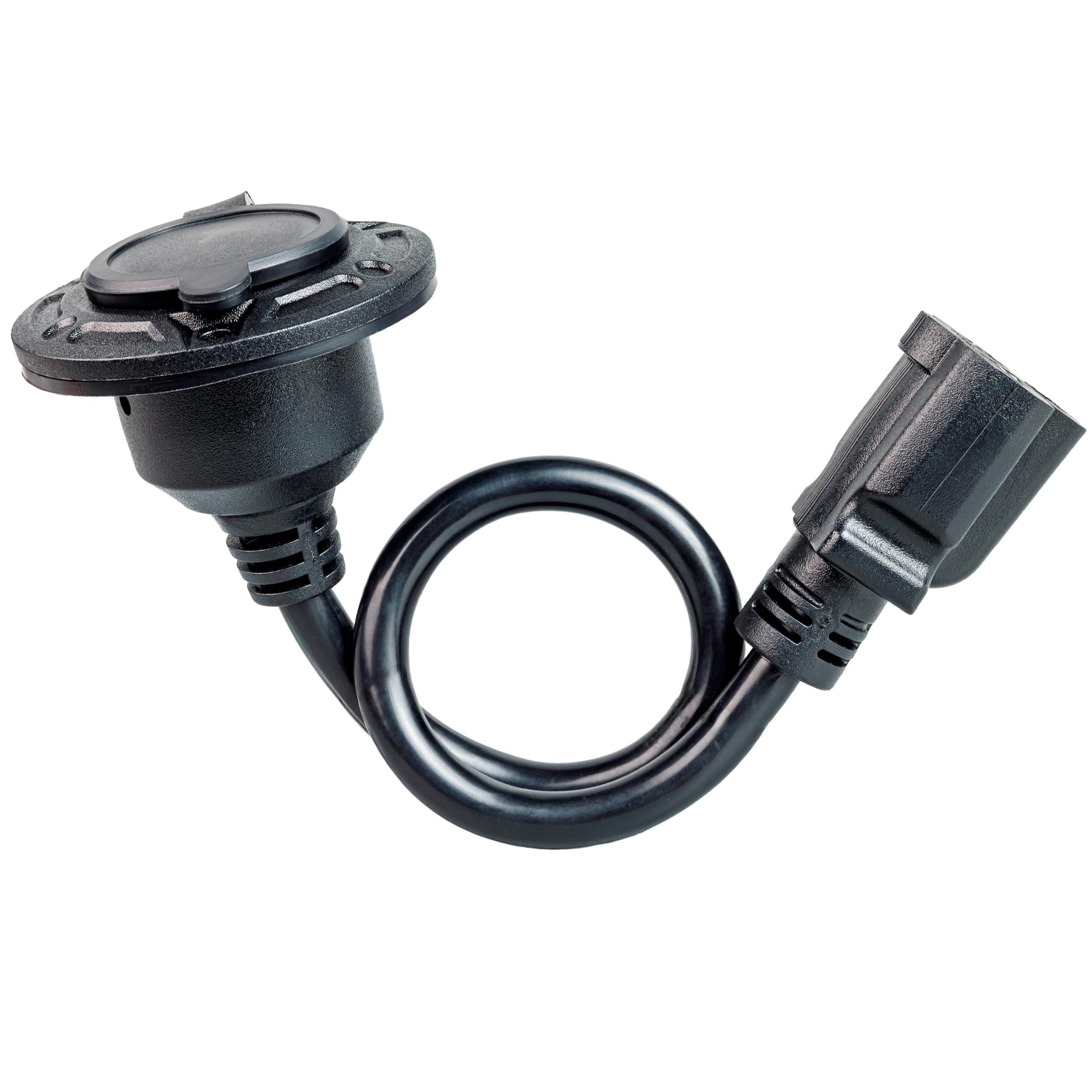

20A 125V AC RV Shore Power Inlet Socket

20A 125V AC RV Shore Power Inlet Socket

Key Features

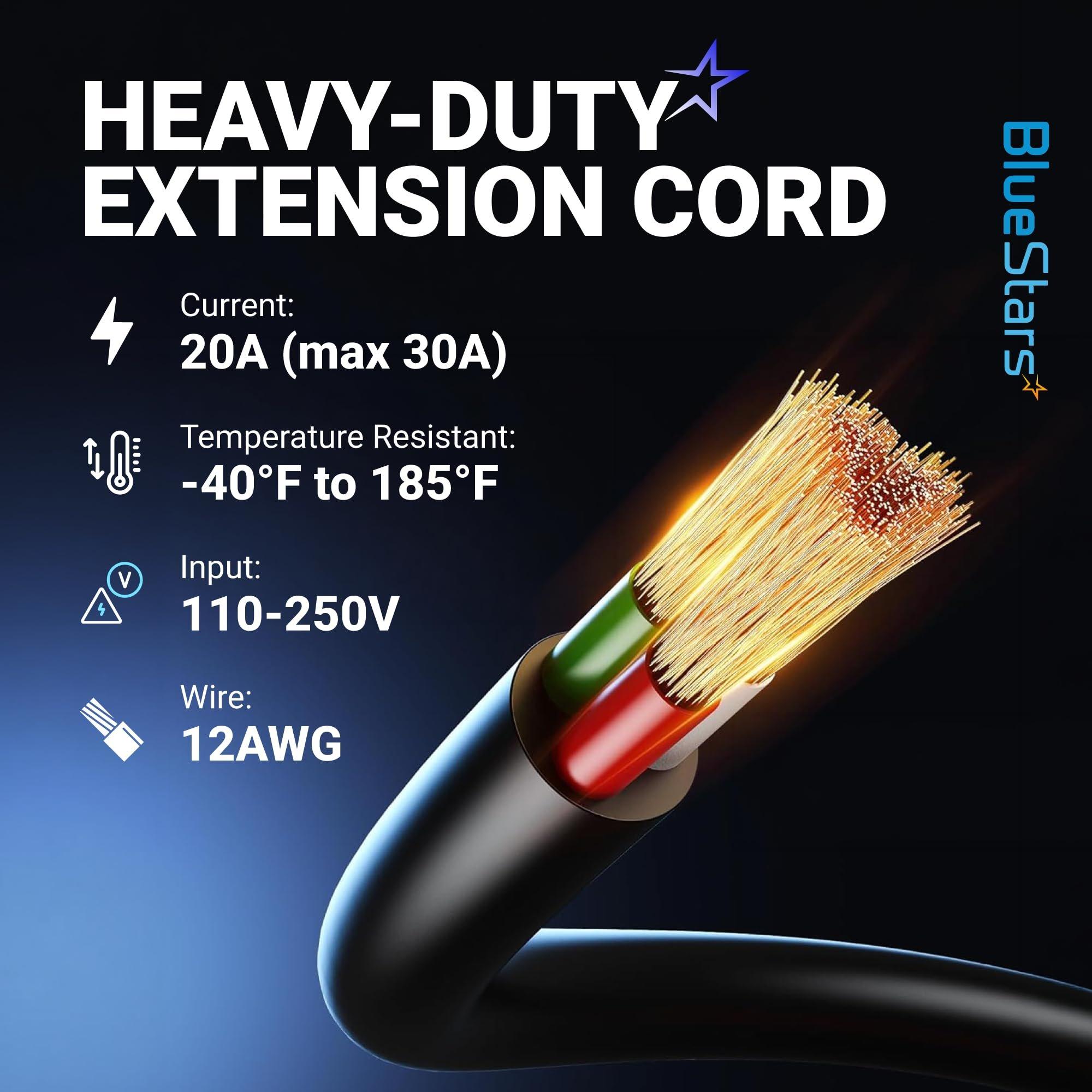

• 20A, 125 VAC continuous electrical rating with a stated 30A peak surge capacity.

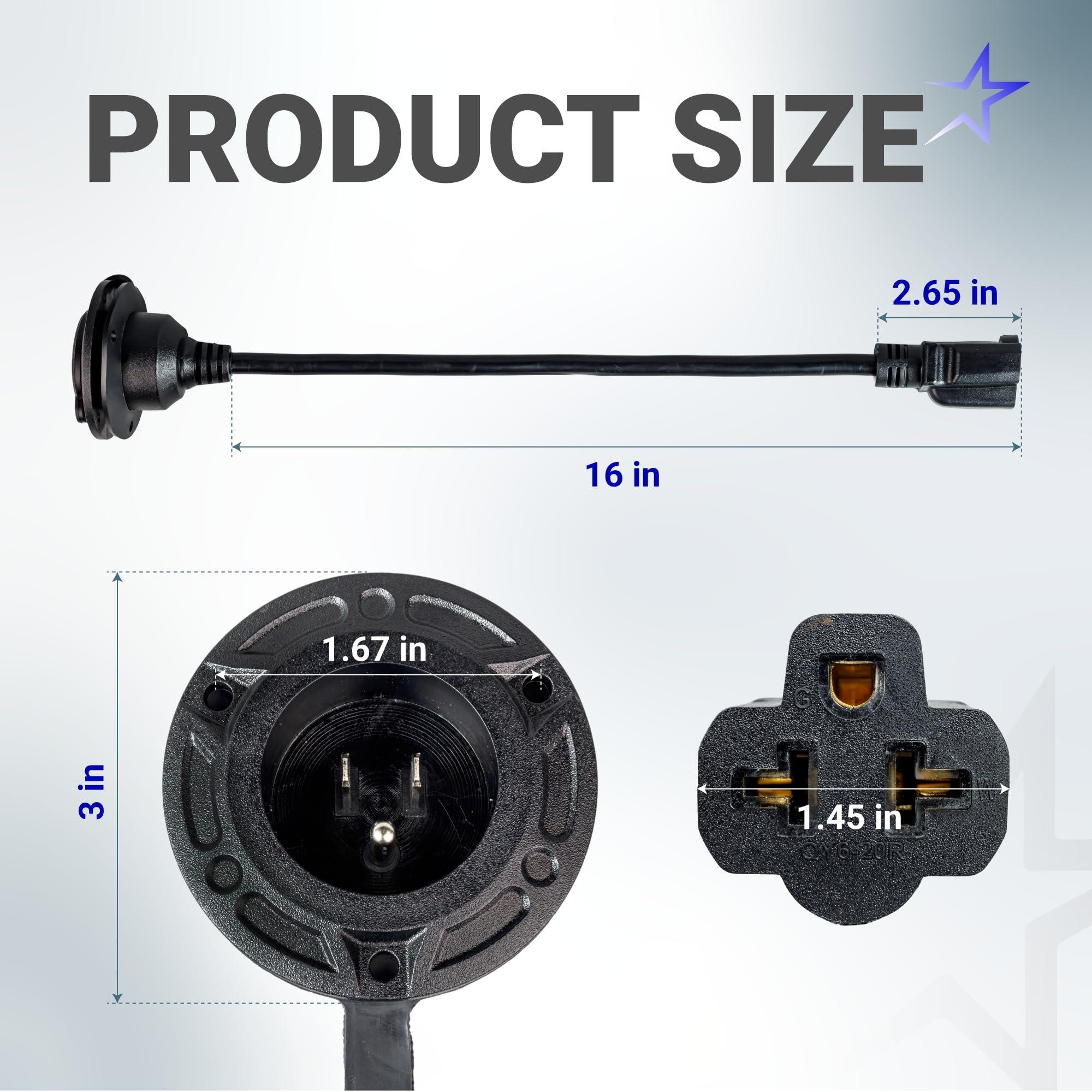

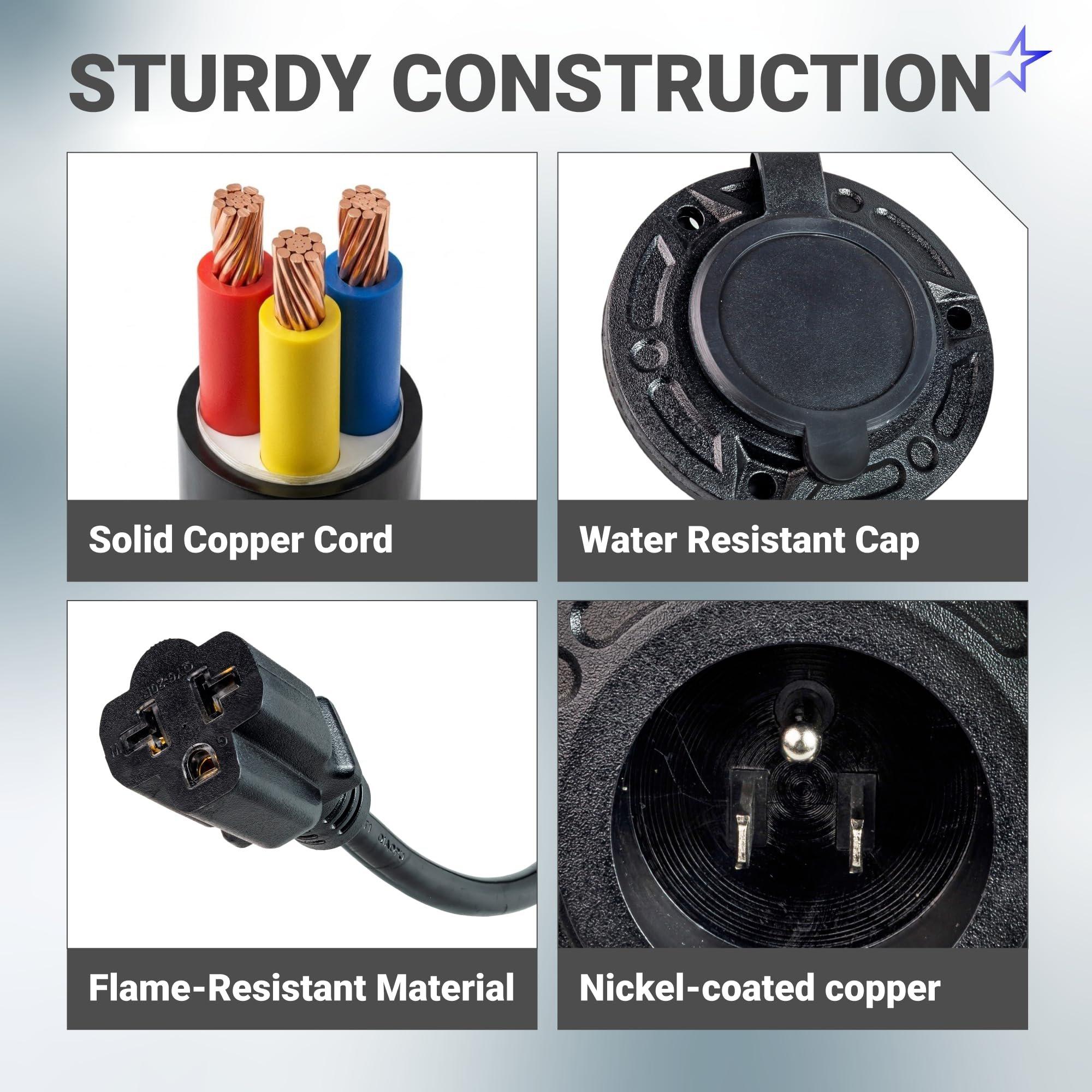

• Integrated 16-inch extension cord made with 12 AWG oxygen-free copper wiring to support conductivity and reduce voltage drop.

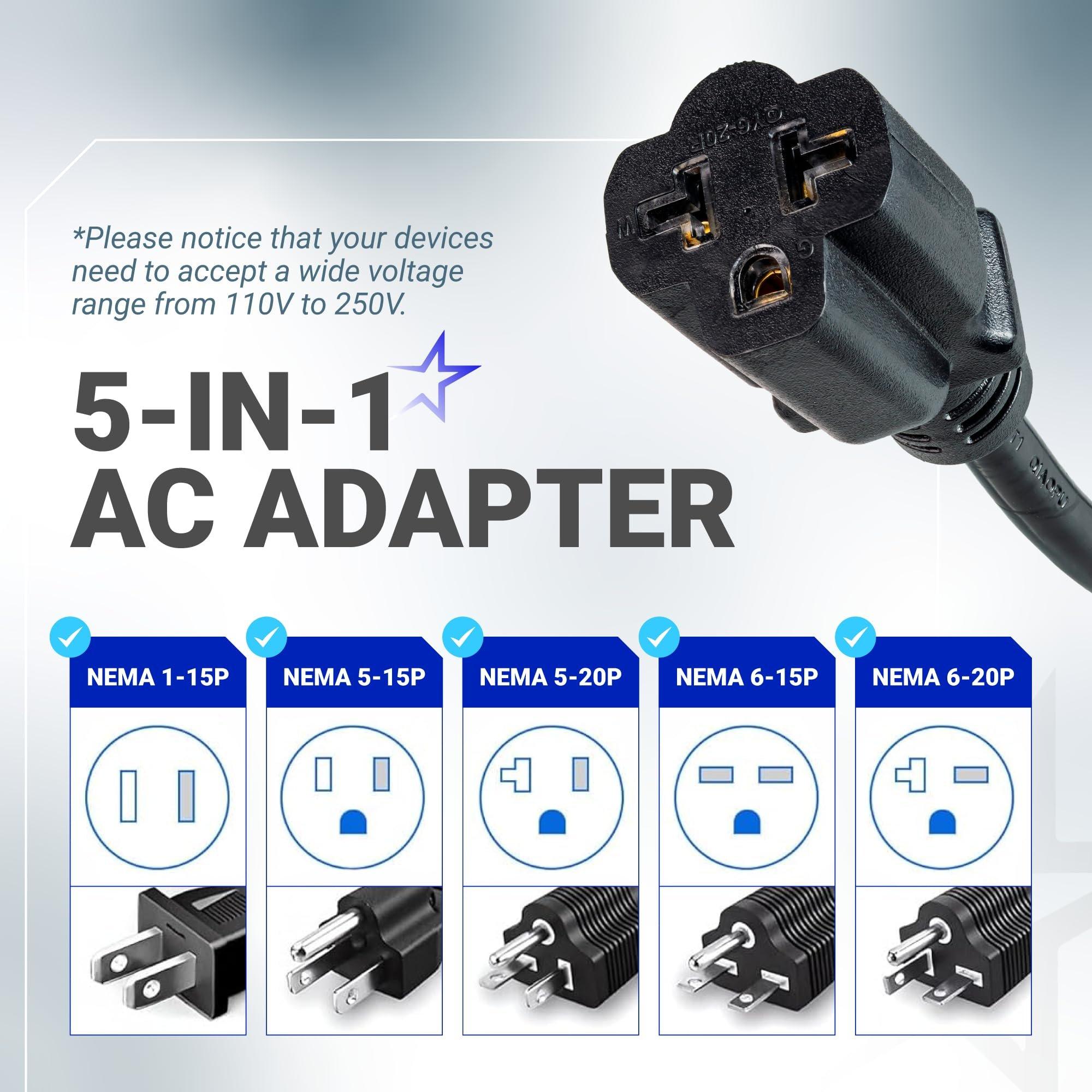

• 5-in-1 T-blade adapter accepts 1-15P, 5-15P, 5-20P, 6-15P, and 6-20P plug types.
• Use equipment connected through 6-15 or 6-20 plugs only when the interior devices accept a 110V to 250V voltage range.
• Waterproof inlet design with a pressure-fit rubberized sealing cap to help block water, snow, ice, freezing rain, dust, stink bugs, and yellow jackets.
• Black nylon plastic housing with one total power outlet.
• Suitable for an onboard battery charger or engine block heater.
• Lifetime protection is provided for defects or other product issues.

Replaces / Cross-Reference Part Numbers

• Part number: 5-in-1 RV Shore Power Inlet Socket.
• No additional replacement or cross-reference numbers are specified.

Compatibility & Fitment

• Fits RVs, boats, trailers, golf carts, jeeps, trucks, pickups, garden sheds, and cabins.
• Listed applications include Yamaha golf carts, the 2019 Subaru Forester, and the 2008 Ranger Z21 boat.
• Suitable for equipment requiring a 20A, 125 VAC shore power inlet and a compatible plug connection.

When to Replace

• Replace a damaged, cracked, loose, or weather-exposed shore power inlet.
• Replacement is appropriate when the existing receptacle, sealing cap, or attached cord shows deterioration, exposed wiring, or unreliable electrical contact.
• A new inlet can eliminate the need to route an extension cord through an unsealed opening in the vehicle or equipment enclosure.

Installation Tips

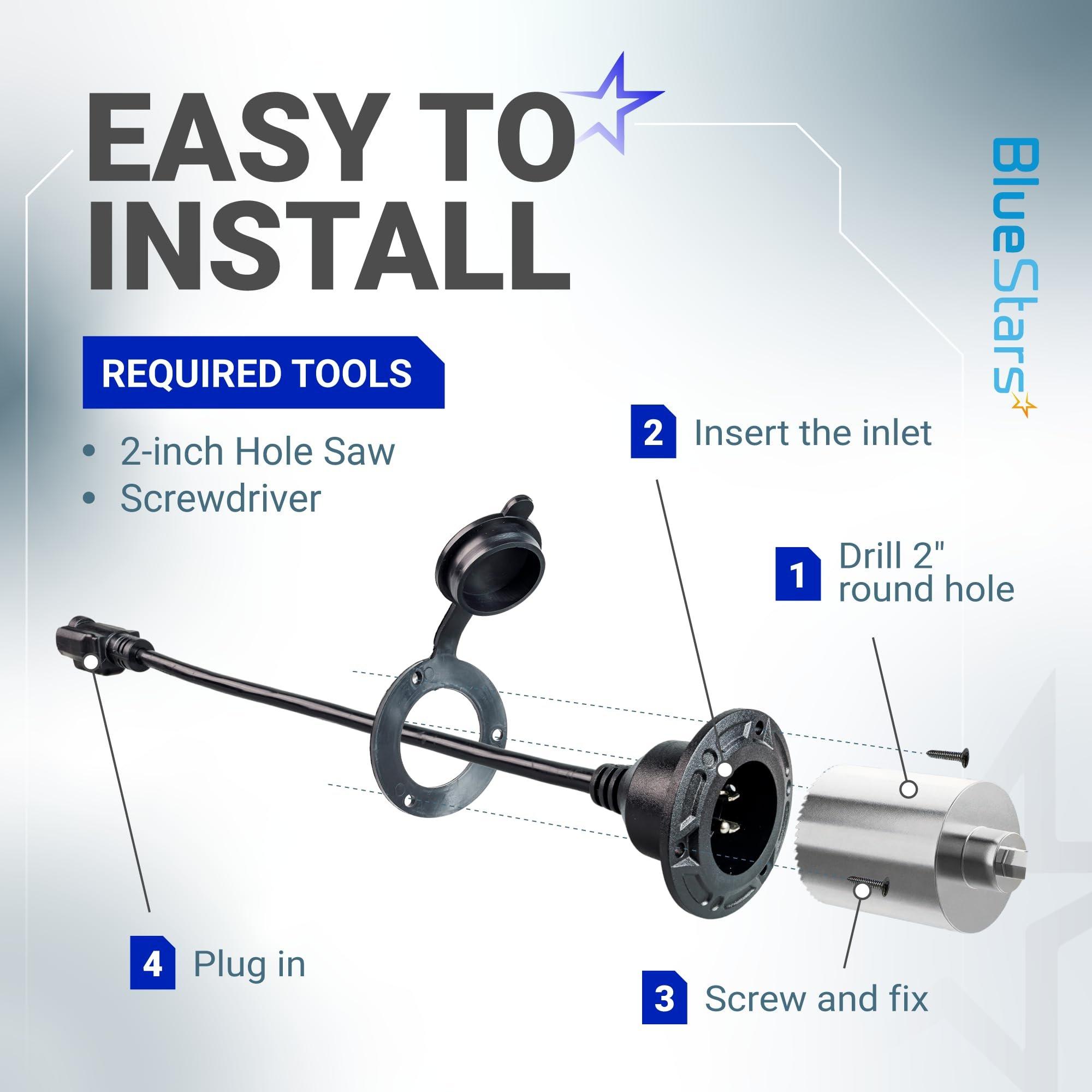

• Required tools include a drill, screwdriver, and 2-inch hole saw.
• Drill a standard 2-inch opening, insert the flanged inlet, fasten it with the provided screws, and connect the equipment.

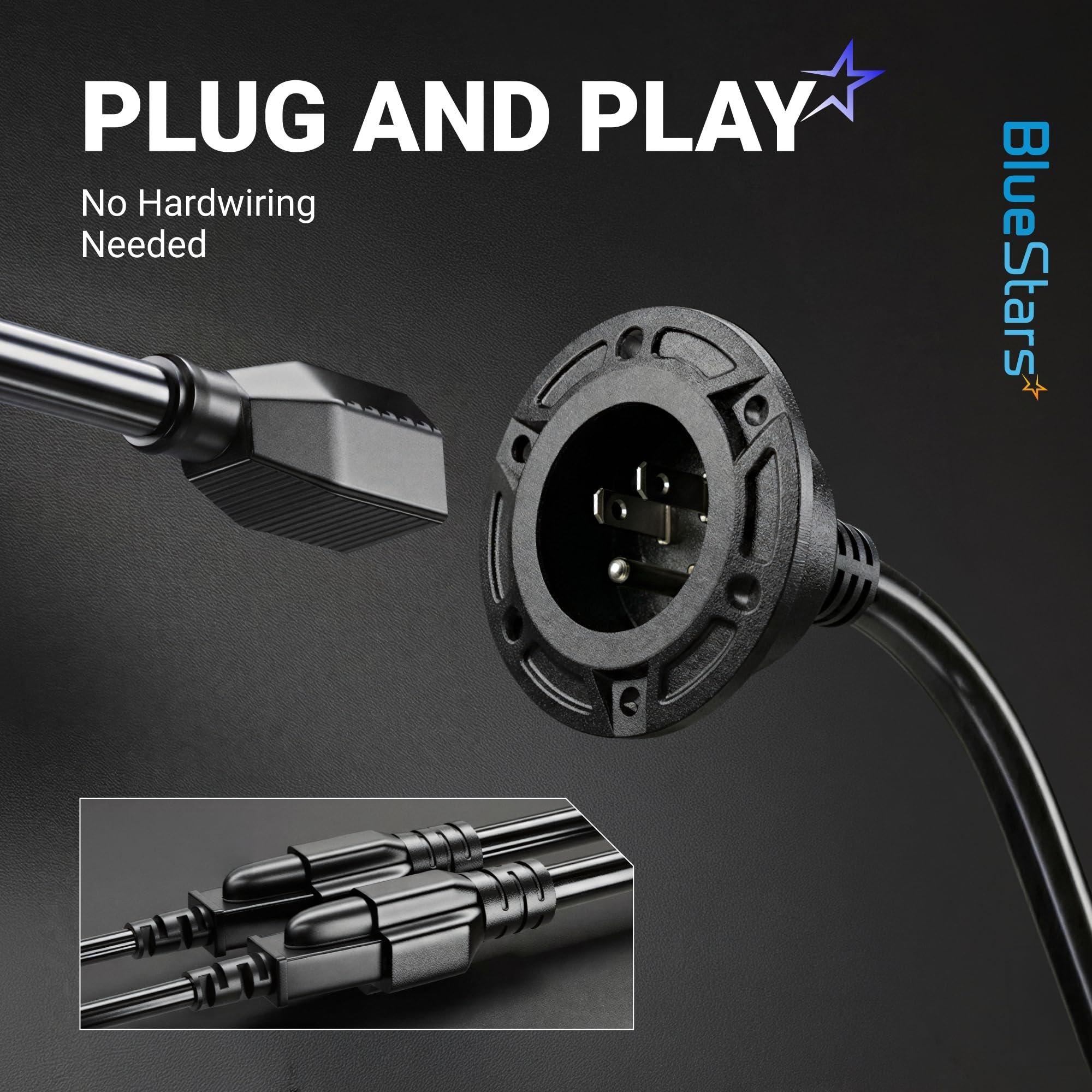

• The attached 16-inch extension cord avoids separate hand wiring during installation.
• Confirm the equipment voltage and plug type before connecting. For 6-15 or 6-20 plugs, verify that the interior device accepts 110V to 250V.
• Disconnect power before installation and ensure the sealing cap closes securely around the external connection.
