[Lifetime Warranty] 3392519 Dryer Thermal Fuse - Compatible with Whirlpool Maytag Kenmore Dryers - Replaces AP6008325 3388651 694511 80005 WP3392519VP WP3392519 ET401 PS11741460 - Pack of 3

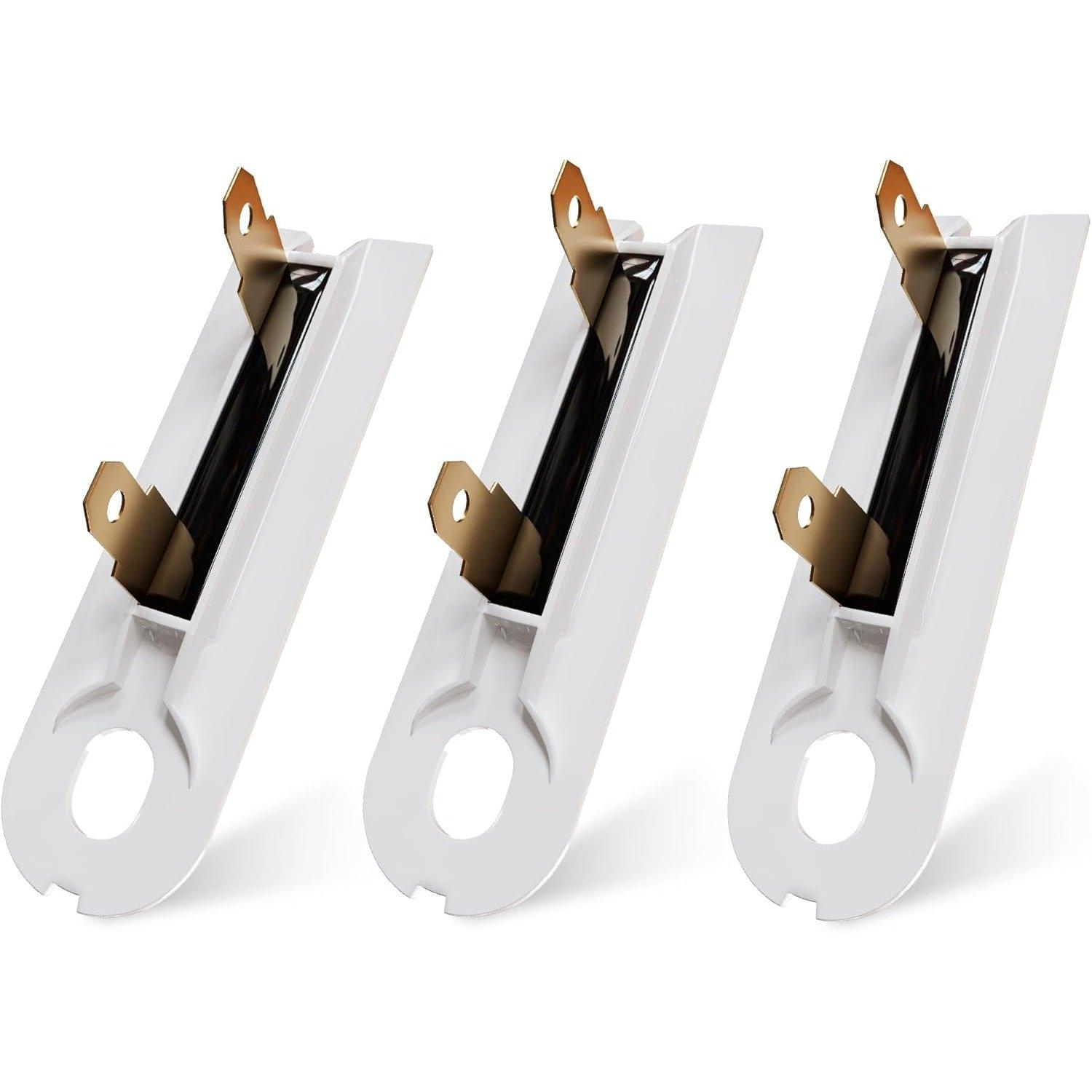

Pack of 3 3392519 Dryer Thermal Fuse

Key Features

• Package includes three (3) thermal fuses.
• Acts as a safety device to shut off the heating element or burner when the dryer overheats.
• Non-resettable, one-time use fuse.
• Rated for 91°C / 196°F.

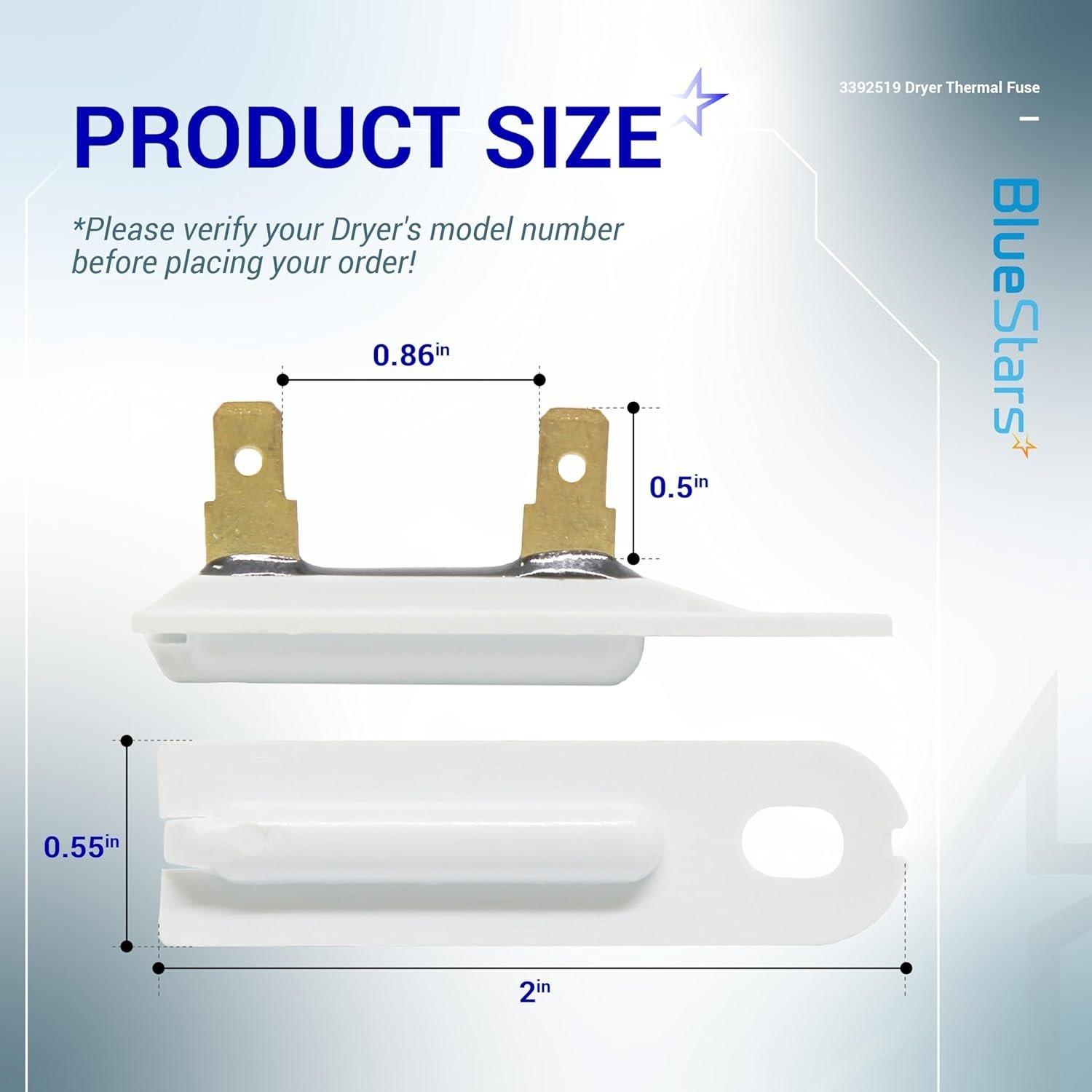

• Dimensions: Approximately 2 in. x 0.5 in.

Replaces / Cross-Reference Part Numbers

• 3392519
• WP3392519
• 3388651
• 694511
• 80005
• WP3392519VP

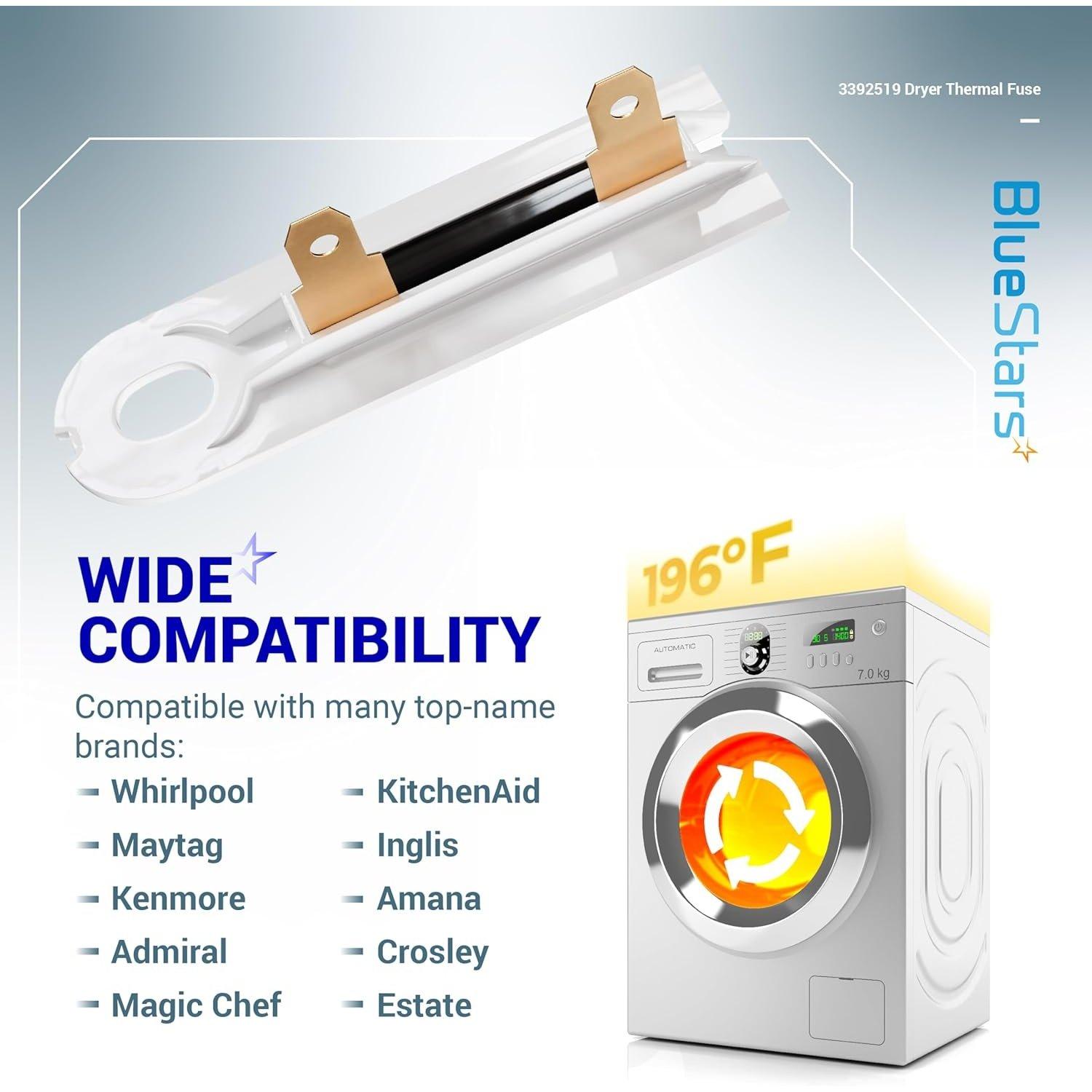

Compatibility & Fitment

• Designed for use in many gas and electric clothes dryers.
• Fits models from brands including Whirlpool, Kenmore, Maytag, KitchenAid, and Roper.
• Verify compatibility by checking your appliance's original part number.

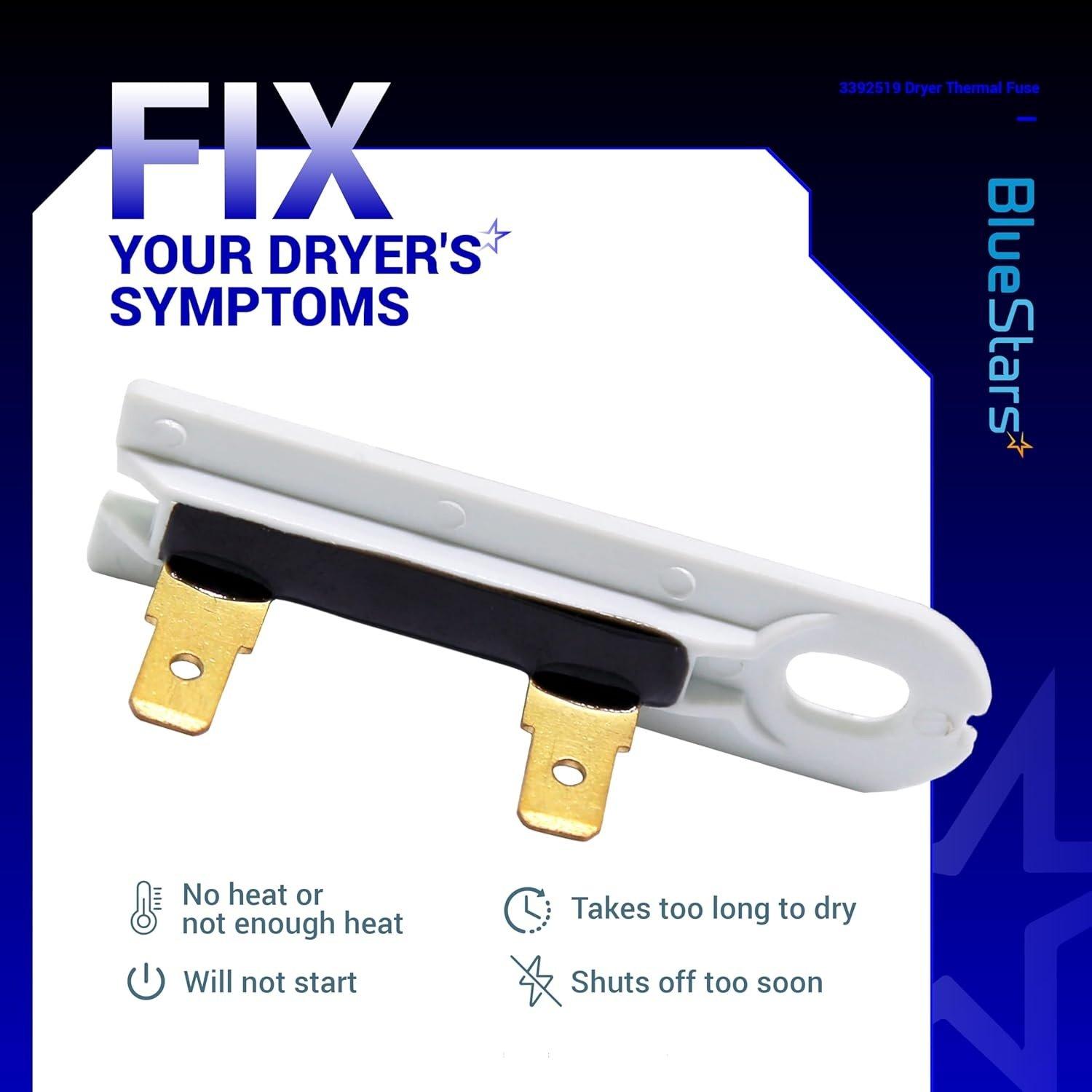

When to Replace

• Dryer will not start.
• Dryer starts but does not heat.
• A blown fuse often indicates a vent blockage or other airflow problem that should be inspected and resolved.

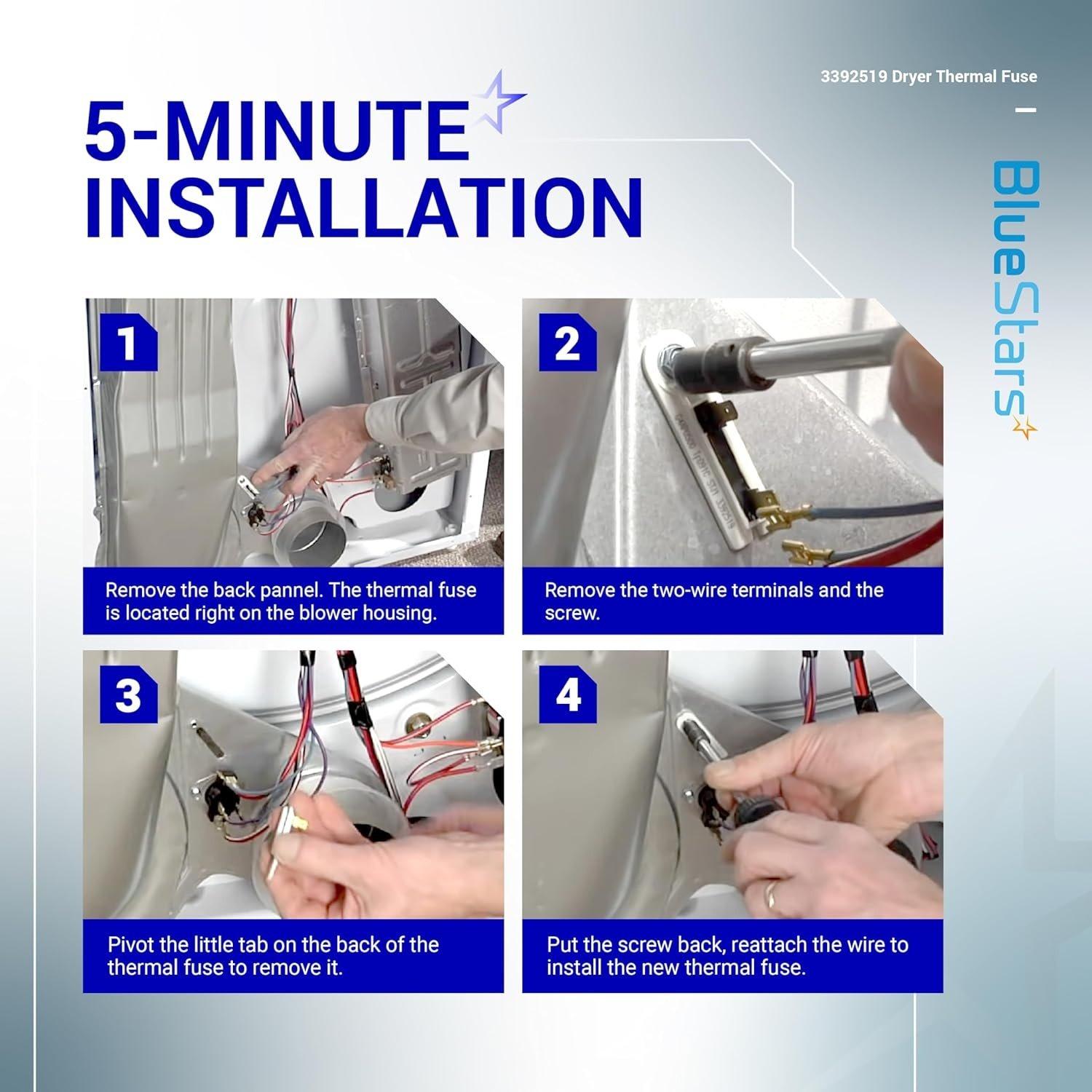

Installation Tips

• Disconnect the dryer from its power source before beginning the repair.
• The thermal fuse is typically located on the blower wheel housing.
• Remove the access panel to locate the fuse.
• Disconnect the two wires attached to the old fuse.
• Remove the screw securing the fuse and replace it with the new part.
• Reconnect the wires and reassemble the dryer.
