[Lifetime Warranty] 119-8820 Mower Drive Deck V-Belt

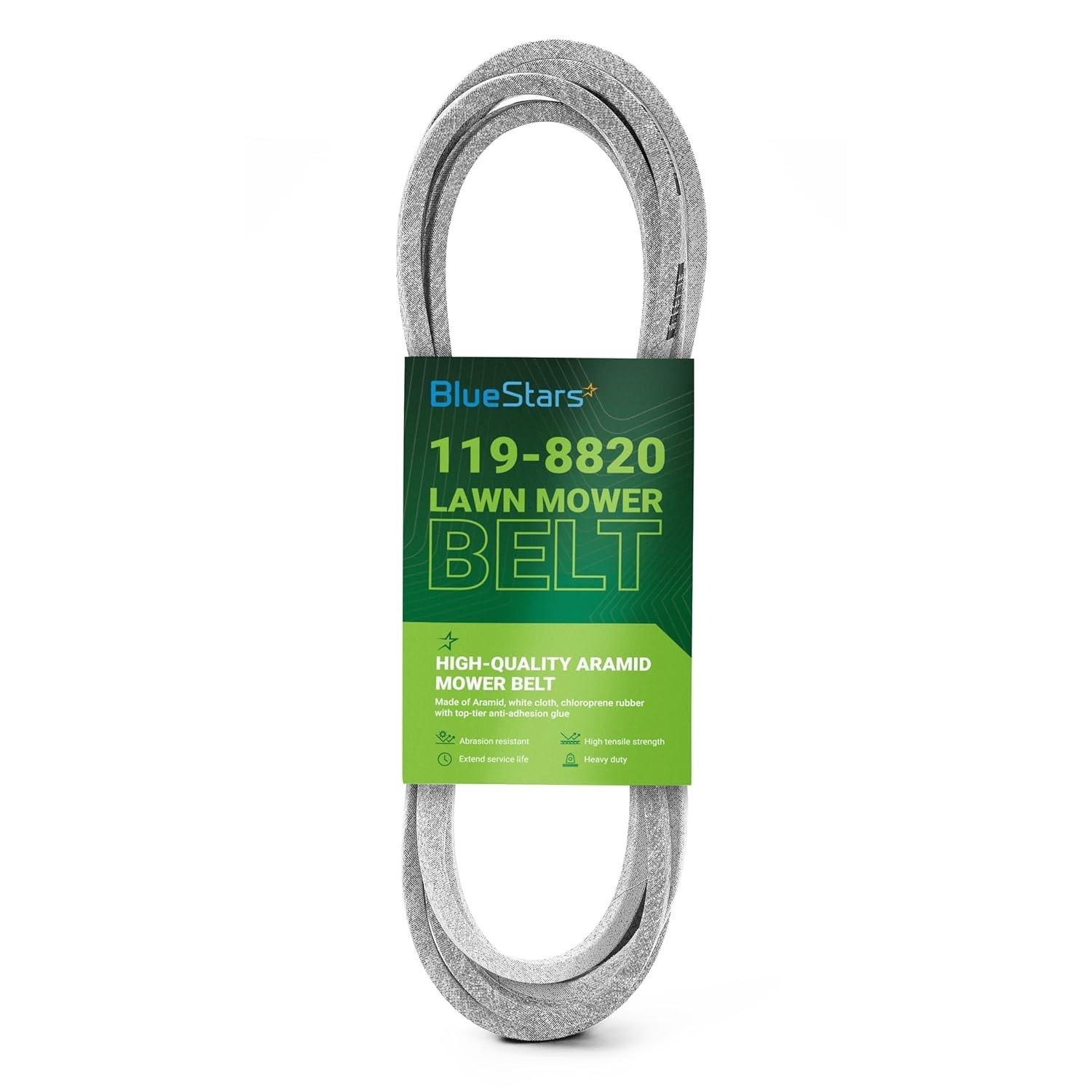

119-8820 Mower Drive Deck V-Belt

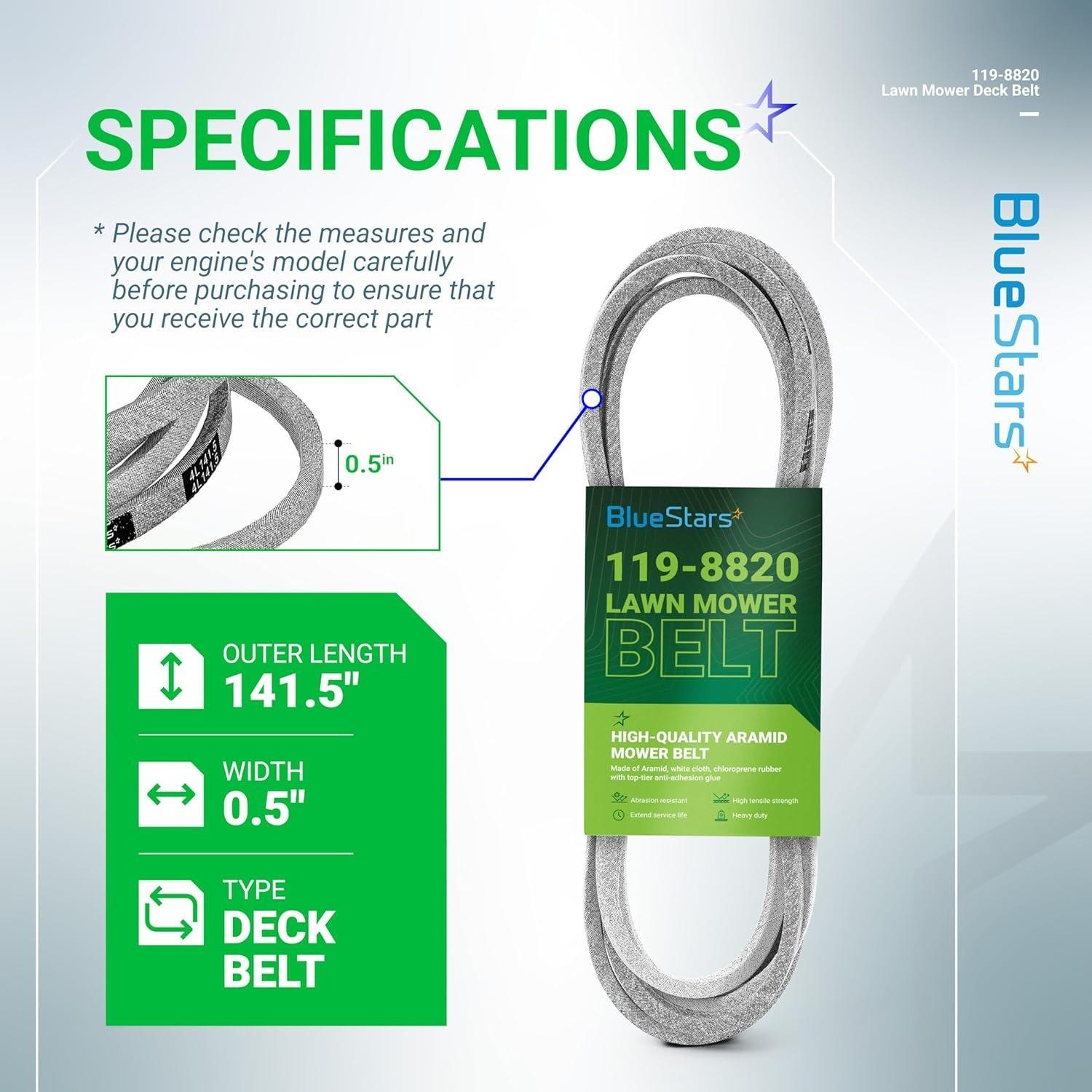

Key Features

• Type: Mower Deck Drive V-Belt
• Length: 141.5 inches
• Width: 0.5 inches (1/2 inch)

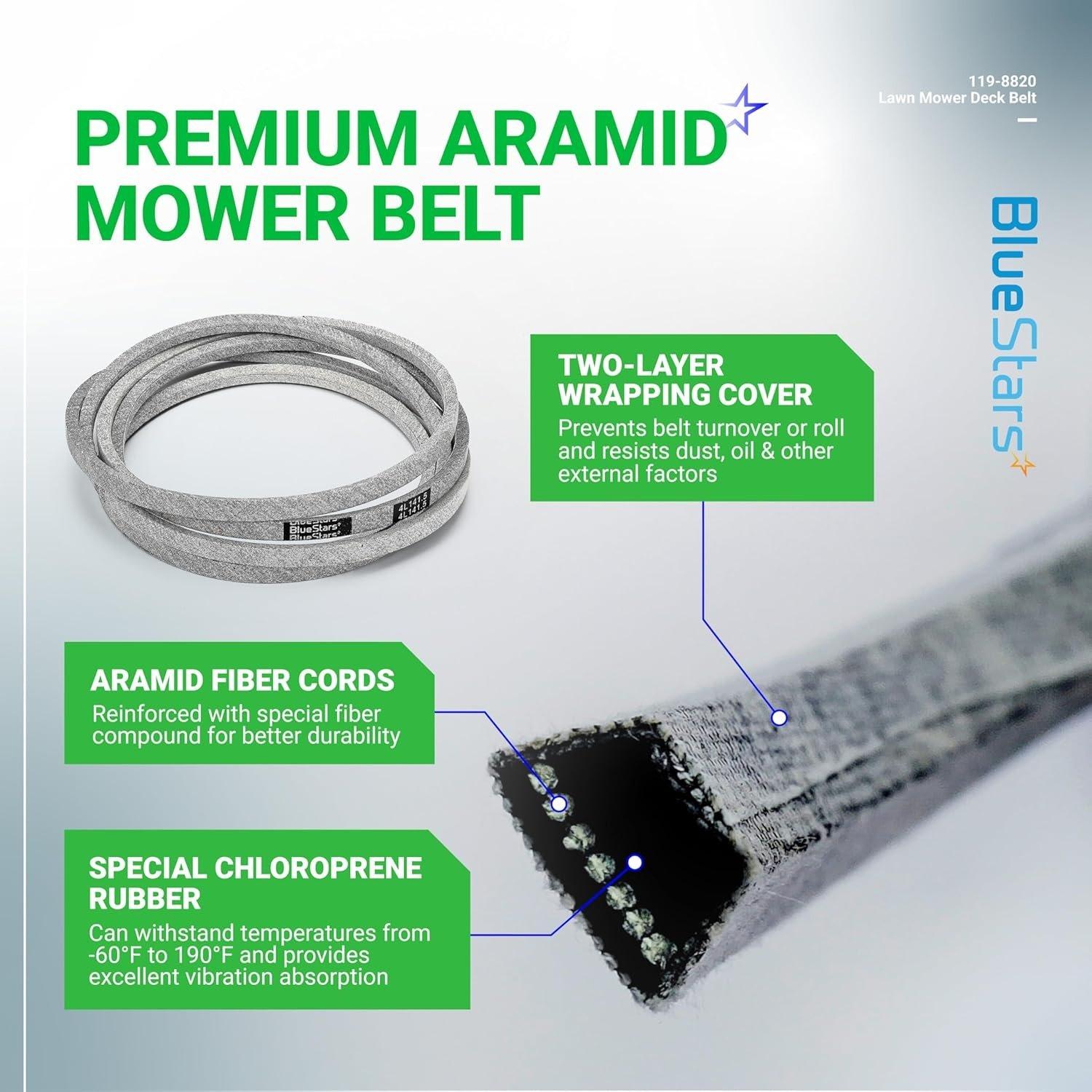

• Material: Aramid fiber cord construction for enhanced durability and strength

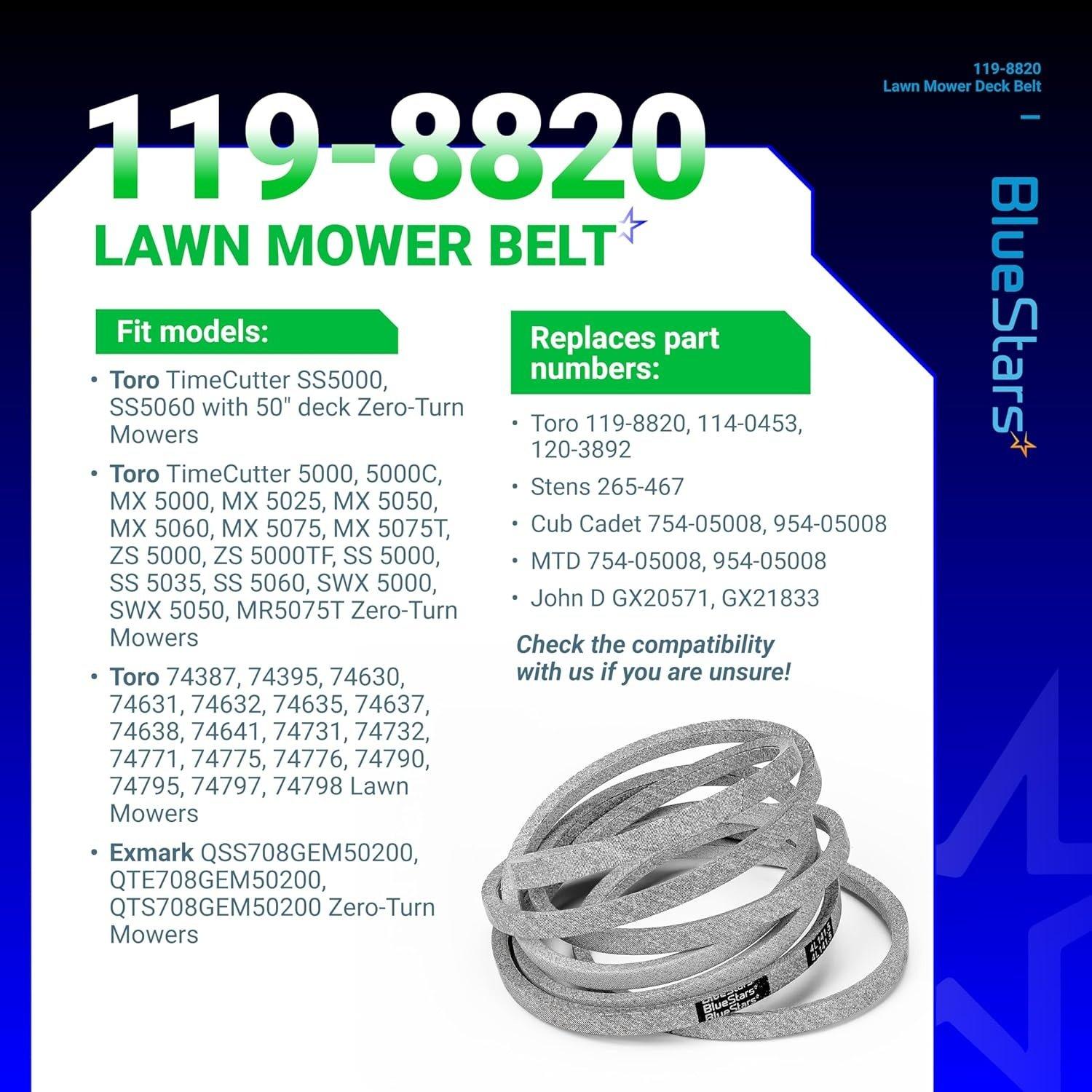

Replaces / Cross-Reference Part Numbers

• Toro: 119-8820
• Exmark: 119-8820
• Stens: 265-467

Compatibility & Fitment

• Designed for 50-inch mower decks
• Fits select Toro TimeCutter models, including SS5000 and SS5060
• Fits select Exmark Quest models
• Note: Fitment can vary by sub-model, serial number, or production date. Always verify the part number required for your specific equipment.

When to Replace

• Visible signs of wear such as cracking, fraying, glazing, or separation
• Belt slips during operation, causing uneven cutting or loss of blade speed
• Inability to maintain proper tension due to stretching

Installation Tips

• Disconnect the spark plug wire before performing any service.
• Refer to your mower's service manual for the correct belt routing diagram.

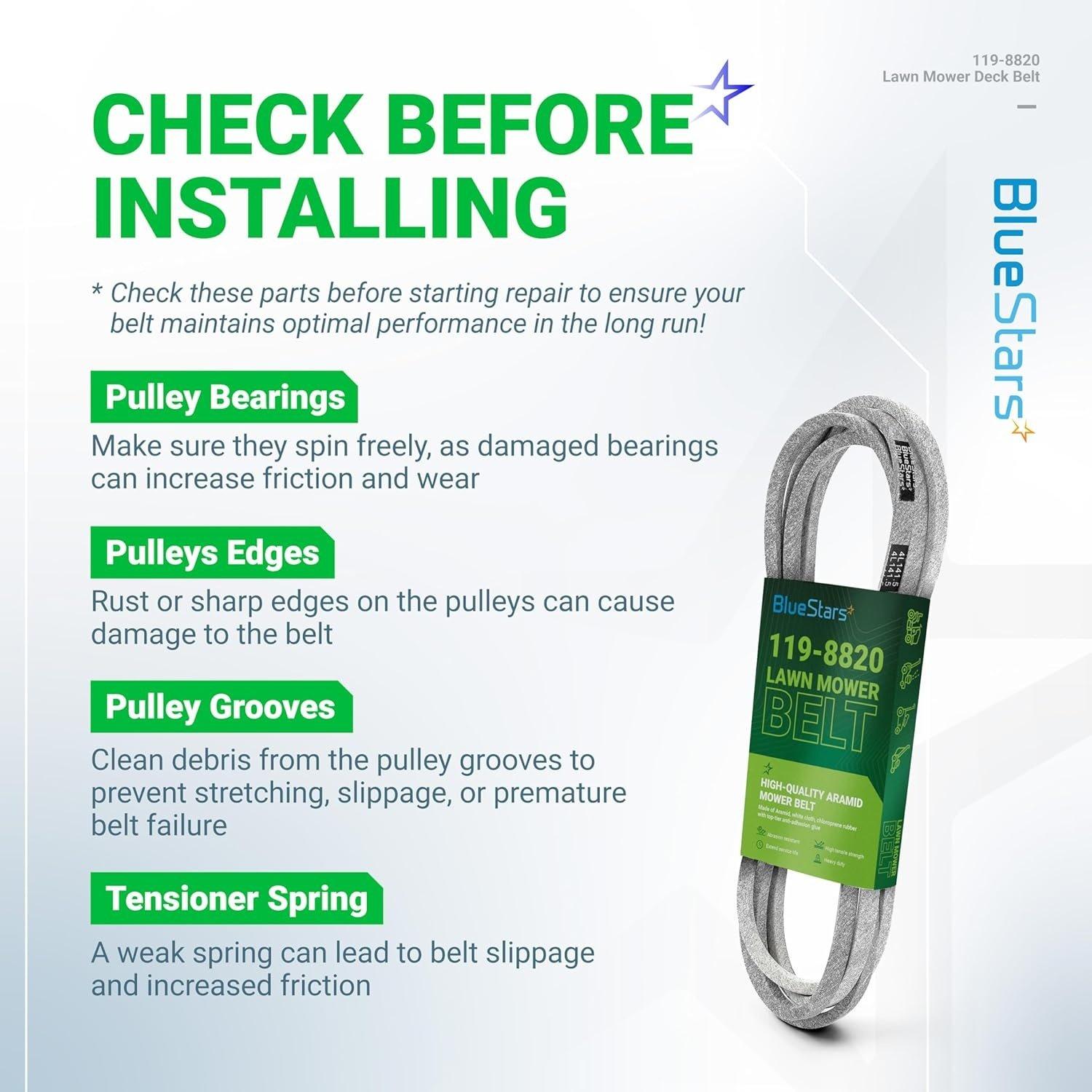

• Inspect all pulleys and tensioner springs for wear or damage before installing the new belt.
• Ensure the belt is seated correctly in all pulley grooves.
• Check for proper tension after installation as specified by the manufacturer.
